Fresca FFT1032CH User manual

INSTALLATION
INSTRUCTIONS
1
●
We recommend that this product is installed by a qualified professional contractor.
●
Please check this product immediately to ensure that it has not been damaged and is complete.
●
Please flush the water system to ensure that no debris or any other impurities can enter the taps.
Turn off water supply before commencing work .
●Please read these instructions carefully and keep for future reference.
We do NOT recommend you use any household cleaners to clean the product. Because these cleaners change substance or formula
too frequently. The product should always be cleaned with soapy water and rinsed with clean water and dried with a soft cloth.
Important
Maintainance
Single hole faucet
FFT1032CH
Dimensions Unit:inches
11 3/8″
4 1/4″
7 7/8″
5 3/8″
4 3/4″
Max 1.1″
6 1/4″

2
To remove the cartridge.
First shut off the water supply to the tap.
1: Pull out the cap from the handle.
2: Loosen the grub screw in handle, but do not remove it.
3: Take off the handle, unscrew the cartridge cover.
4: Unscrew the retaining nut.
5: Pull the cartridge and wash it with clean running water.
6: Dry and lightly grease the seals (only use silicone grease)

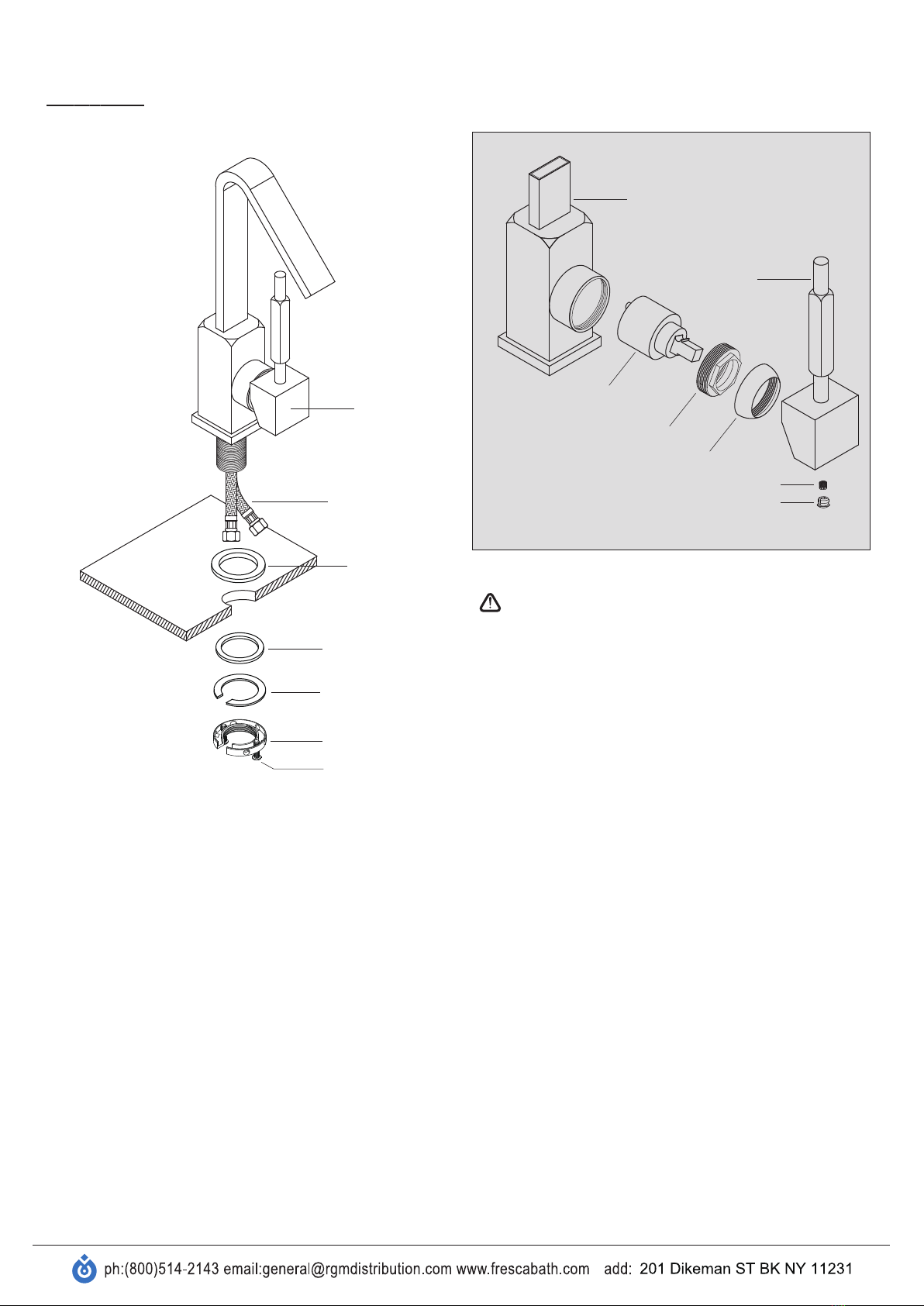

Installation
HANDLE
CARTRIDGE
COVER
CAP
GRUB SCREW
RETAINING
NUT
CARTRIDGE
FAUCET
SUPPLY LINES
RUBBER WASHER
PLASTIC WASHER
FEMALE SCREW
HEAD SCREW
FAUCET
WASHER
1: Fit the washer into the underside of the faucet.
2: Screw the supply lines into the faucet and fully hand tighten.
3: Pass the tail of supply lines through the hole on the basin from above, and place the faucet in position on the basin, to see if any
alteration to the existing supply pipe work is necessary, make any necessary alterations to the pipe work.
4: Tighten the rubber washer, the plastic washer with the female screw from the underside of the counter.
5: Check that the faucet is correctly positioned, fully tighten the female screw.
6: Connect the water supply pipes to the tail of supply lines with the hot water and cold water.
