Fri-Jado TDR 5 s AC User manual

TDR s auto-clean
EN (Original Instruction) 9124464 / 1909
USER MANUAL
TDR 5 s AC
TDR 7 s AC / TDR 7+7 s AC
TDR 8 s AC / TDR 8+8 s AC
WARNING
Read the instructions before using the machine.

TDR s auto-clean
EN 2 / 32
KEEP THIS USER MANUAL FOR FUTURE USE
© 2019 Fri-Jado B.V., Oud Gastel, The Netherlands.
We advise you to contact your supplier for the guarantee period and conditions. Further we refer
to our General Terms and Conditions for Sales and Delivery that are available upon request.
The manufacturer does not accept any liability for damage or injury caused by failing to adhere to
these regulations or by not observing the usual caution or care in actions, operation, maintenance
or repair activities, even if not explicitly described in this manual.
As a result of constant commitment to improvement, it may happen that your unit deviates in detail
from what is described in this manual. For this reason, the given instructions are only a guideline
for the installation, use, maintenance and repair of the unit referred to in this manual. This manual
has been composed with the utmost care. The manufacturer shall, however, not be held
responsible for any mistakes in this manual nor for any consequences thereof. The user is allowed
to copy this manual for own use. Further all rights are reserved and nothing in this manual may be
reproduced and/or made public in any way.
Modifications:
In case of unauthorized modifications in or on the unit, every liability on the part of the
manufacturer becomes null and void.

TDR s auto-clean
EN 3 / 32
CONTENTS
1. INTRODUCTION ..............................................................................................................5
1.1 General.............................................................................................................................5
1.2 Identification of the unit.....................................................................................................5
1.3 Pictograms and symbols...................................................................................................5
1.4 Safety instructions ............................................................................................................6
1.4.1 General........................................................................................................................6
1.4.2 Moving.........................................................................................................................7
1.5 Hygiene ............................................................................................................................7
1.6 Service and technical support...........................................................................................7
1.7 Storage.............................................................................................................................7
1.8 Disposal............................................................................................................................7
2. DESCRIPTION OF THE UNIT..........................................................................................8
2.1 Technical description........................................................................................................8
2.2 Intended use.....................................................................................................................8
2.3 Accessories......................................................................................................................8
3. INSTALLATION AND FIRST USE ...................................................................................9
3.1 Unpacking the unit............................................................................................................9
3.2 Installation and positioning..............................................................................................10
3.3 First use..........................................................................................................................11
3.3.1 Metal odor .................................................................................................................11
4. OPERATION AND USE ................................................................................................. 12
4.1 Control Panel..................................................................................................................12
4.2 Switching-on the unit.......................................................................................................13
4.3 Loading the unit..............................................................................................................13
4.3.1 Loading the rotisserie using meat forks......................................................................13
4.3.2 Loading the rotisserie using V-shape spits (accessory) .............................................14
4.3.3 Loading the rotisserie using meat baskets (accessory)..............................................15
4.3.4 Loading the rotisserie using two different accessories...............................................15
4.4 Grilling time.....................................................................................................................16
4.5 Taking out the products ..................................................................................................16
4.5.1 Taking out the meat forks ..........................................................................................16
4.5.2 Taking out the V-shape spit (accessory)....................................................................16
4.5.3 Taking out the meat basket (accessory). ...................................................................17
4.6 Emptying grease container / drawer................................................................................17
4.7 Switching-off the unit.......................................................................................................17
5. OPERATE ...................................................................................................................... 18
5.1 Starting a program..........................................................................................................18
5.2 Pre-heating.....................................................................................................................18
5.3 While cooking .................................................................................................................19

TDR s auto-clean
EN 4 / 32
5.4 Adding extra time to the active program..........................................................................19
5.5 Interrupt a program.........................................................................................................20
5.6 Reset alarm signal..........................................................................................................20
5.7 Power down....................................................................................................................20
6. SETTINGS...................................................................................................................... 21
6.1 General...........................................................................................................................21
6.2 Overview main parameters.............................................................................................21
6.3 Service Menu..................................................................................................................21
7. PROGRAM..................................................................................................................... 22
7.1 General...........................................................................................................................22
7.2 Adding programs ............................................................................................................22
7.3 Edit programs.................................................................................................................22
7.4 Deleting programs ..........................................................................................................23
8. CLEANING AND MAINTENANCE................................................................................. 24
8.1 Maintenance schedule....................................................................................................24
8.2 Daily Cleaning.................................................................................................................24
8.2.1 Preparing the tablet dispenser...................................................................................25
8.2.2 Start the cleaning program (standard, quick) .............................................................25
8.3 Deep Cleaning................................................................................................................26
9. MALFUNCTIONS AND SERVICE.................................................................................. 27
9.1 Replace the mains cord..................................................................................................27
10. TECHNICAL SPECIFICATIONS .................................................................................... 28

TDR s auto-clean
EN 5 / 32
1. INTRODUCTION
1.1 General
This manual is intended for the user of the TDR s AC (Turbo Deli Rotisserie with cleaning feature).
The features and controls are being described, along with directions for the safest and most
efficient use, in order to guarantee a long life of the unit.
All pictograms, symbols and drawings in this manual apply to all TDR s AC models.
1.2 Identification of the unit
The identification plate can be found on the outside of the machine, and contains the following
data:
•Name of the supplier or the manufacturer
•Model
•Serial number
•Year of construction
•Voltage
•Frequency
•Power consumption
1.3 Pictograms and symbols
In this manual, the following pictograms and symbols are used:
WARNING
Possible physical injury or serious damage to the unit, if the instructions are not
carefully followed.
WARNING
Hazardous electrical voltage.
WARNING
Danger of getting injured by hot surfaces.
Suggestions and recommendations to simplify indicated actions.
Recycling symbol.
Direction of view symbol.

TDR s auto-clean
EN 6 / 32
1.4 Safety instructions
WARNING
The outside of the unit can be very hot.
WARNING
The maximum load on top of the unit may never exceed 50 kg (110 lbs.).
WARNING
Risk of slippery floor: Spills may cause slippery surfaces, clean-up promptly.
WARNING
Always use the brakes on both front wheels:
1.4.1 General
The user of the unit will be fully responsible for abiding the locally prevailing safety- rules and
regulations.
The unit may be operated by qualified and authorized persons only. Anyone working on or with this
unit must be familiar with the contents of this manual and carefully follow all guidelines and
instructions. Never change the order of the steps to be performed. The management must instruct
the personnel on the basis of this manual and follow all instructions and regulations.
The pictograms, labels, instructions and warning signs attached to the unit, are part of the safety
measures. They may never be covered or removed, and have to be clearly visible during the entire
lifetime of the unit.
Immediately repair or replace damaged or illegible pictograms, warnings and instructions.
•To avoid short-circuiting, never clean the unit using a water hose. For cleaning instructions,
see section 8.
•During the grilling process, the unit can get very hot.
•When the door is opened the rotor stops and the heater is de-energized.
•The unit must be cleaned daily after use to ensure proper functioning and prevent fire
hazard (over heating).
•The fat collecting container must be emptied regularly, to prevent overflow.
•This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved.
•Children shall not play with the appliance.
•Cleaning and user maintenance shall not be made by children without supervision.

TDR s auto-clean
EN 7 / 32

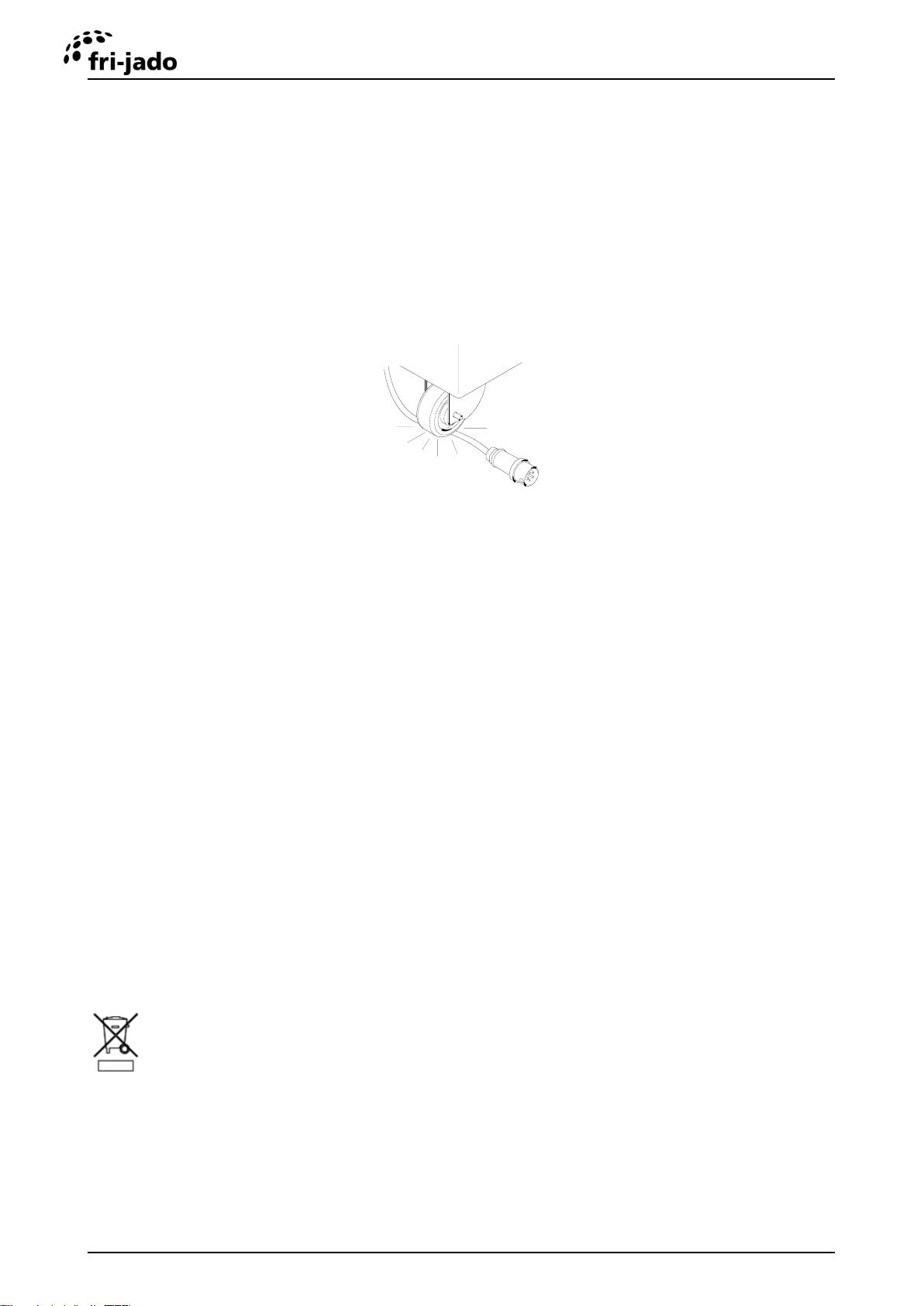

1.4.2 Moving
When moving the unit:
•Before moving the unit, first switch off the mains voltage by pulling the plug from the wall
socket and empty the fat collecting container. After that, cool-down the unit for at least ten
minutes.
•Disconnect the water supply and drain.
•The units equipped with wheels are not suited to pass ledges or obstacles higher than 10
mm (0.4 inch).
•When moving the unit, always push at the center of the unit. Never on top. Never at the
bottom.
•Make sure that the wheels can move freely, so they never touch the power lead.
1.5 Hygiene
The quality of a fresh product always depends on hygiene. Especially grilling products. With the
risk of salmonella contamination –especially for chicken products –you must make sure that
grilled products can never be mixed with uncooked products. Also contact between grilled products
and hands or tools that have been in contact with raw chicken meat, must be avoided at all times.
Hands or tools that have been in contact with raw chicken meat, must be cleaned thoroughly.
1.6 Service and technical support
The electrical schematics of your unit is included. In case of malfunctions you can contact your
dealer/service agent. Make sure you have the following data available:
•Model.
•Serial number.
This data can be found on the identification plate.
1.7 Storage
If the unit will not be used temporarily, and will be stored, follow these instructions:
•Clean the unit thoroughly.
•Wrap the unit from getting dusty.
•Store the unit in a dry, non-condensing environment.
1.8 Disposal
Dispose of the machine, any components or lubricants removed from it safely in
accordance with all local and national safety and environment requirements.

TDR s auto-clean
EN 8 / 32
2. Description of the unit
2.1 Technical description
The TDR s AC uses a combination of direct infra-red radiation and convection heat. The rotor is
being wheeled by a maintenance-free motor with a gear box. The fan provides an equally divided
heat. The glass panes are equipped with a heat reflecting layer to keep the heat inside the grill.
The plating of the unit is made of stainless steel. The product contact parts are made of stainless
steel AISI 304. The mains cable is provided with a plug.
The intelligent control keeps the temperature inside the unit fixed to level set by the operator.
During the entire process, the interior of the unit will be illuminated by halogen lamps. The
intelligent control has a capability to store many different programs. Each program can consist of a
pre-heat and additional steps in which the cooking time and temperature can be set.
Communication through USB / WIFI (optional) enables easy read-out, re-work and creating of
programs via a PC. For this, special software is available at Fri-Jado.
The unit has an automated cleaning program that cleanses the unit.
2.2 Intended use
The TDR s AC has been designed for grilling meat products and has a semi self-cleaning feature.
Any other use will not be regarded as intended use.
The manufacturer accepts no liability whatsoever for loss or injury caused by failing to strictly
adhere to the safety guidelines and instructions in this manual or due to carelessness during
installation, use, maintenance and repair of the unit referred to in this manual and any of its
accessories.
Use the unit in perfect technical condition only.
2.3 Accessories
Your unit contains the following standard accessories:
•Meat forks.
•Soap tablets holder.
•Deep Clean cartridge holder.
•User manual.
For optional accessories see www.frijado.com.

TDR s auto-clean
EN 9 / 32
3. INSTALLATION AND FIRST USE
All packing materials used for this unit are suited for recycling.
After unpacking, check the state of the unit. In case of damage, store the packing material, and
contact the transporter within fifteen working days after receiving the goods.

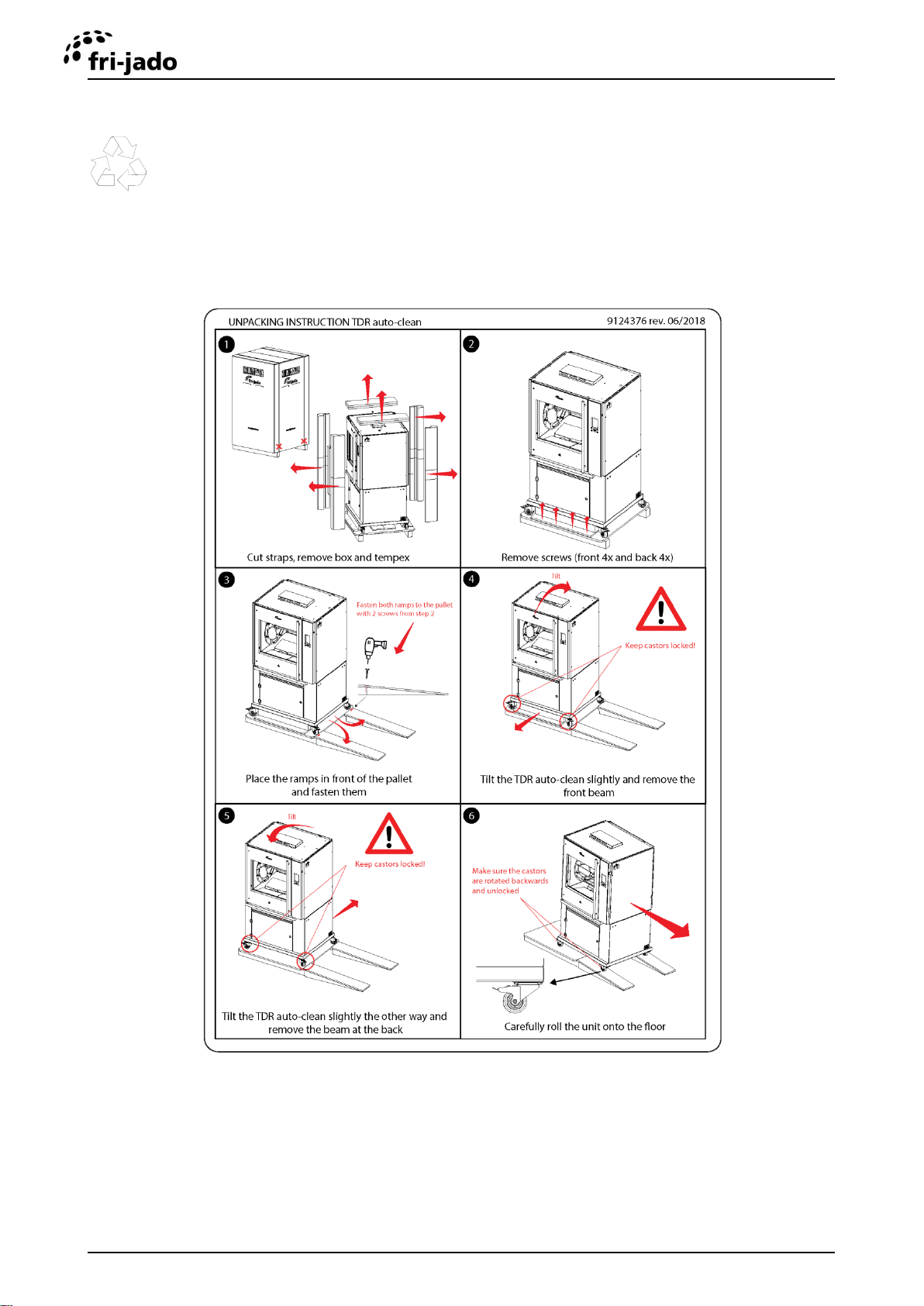

3.1 Unpacking the unit
(Single unit shown)
1. Unpack the unit as initiated on the unpacking instruction on the packaging.
2. Remove all remaining packing materials from the unit.
3. Remove the protective foil from the metal parts.
4. Take off the standard accessories.

TDR s auto-clean
EN 10 / 32

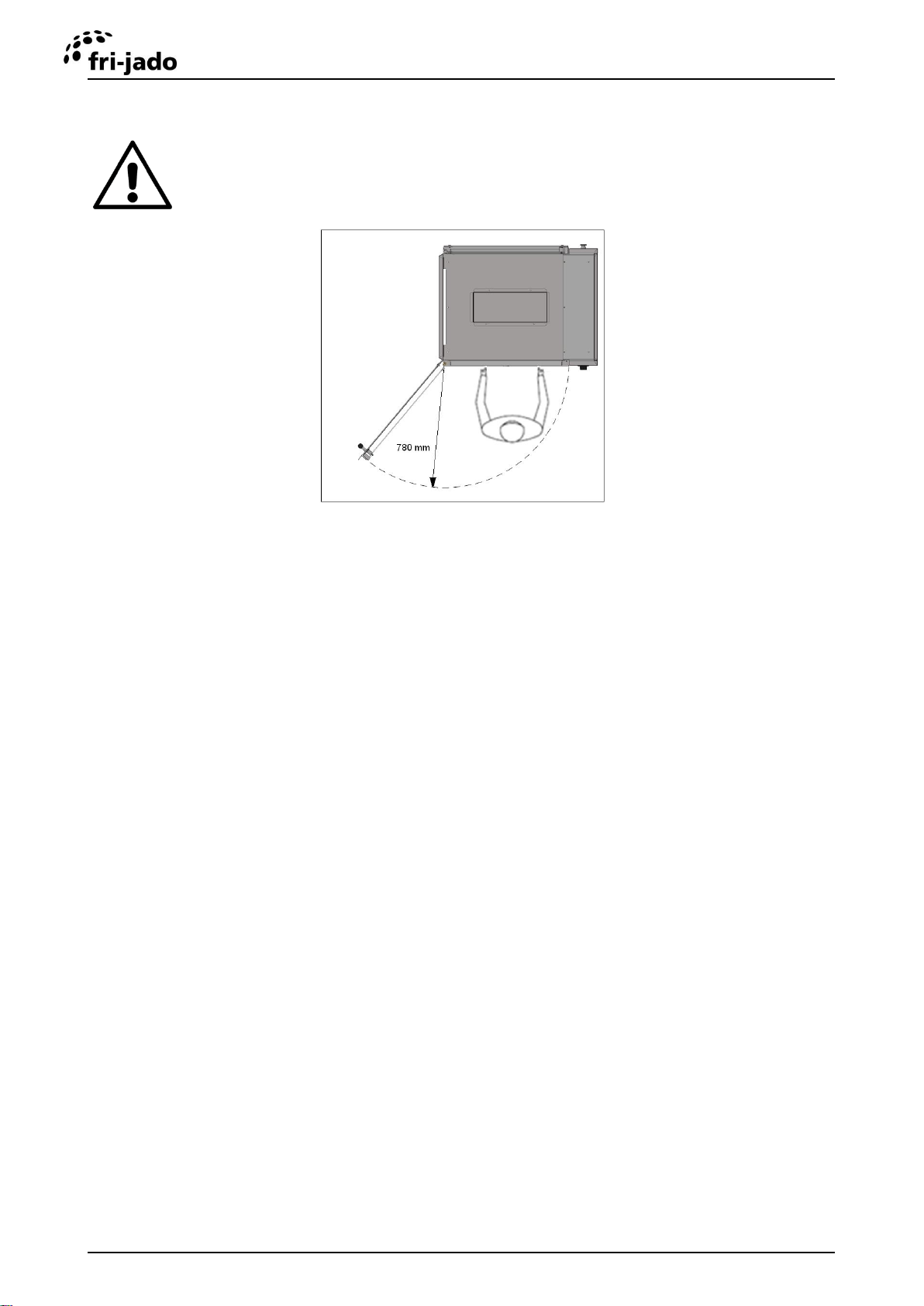

3.2 Installation and positioning
WARNING
Position the unit indoor on a flat and horizontal surface. A temporally inclined plane of
maximum 5° is allowed.
Positioning:
•The user must have sufficient freedom of movement to properly operate the unit.
•The ambient temperature of the unit must be between 10 and 30 °C (50 and 86 °F).
•Use proper lifting–and transport tools to move the unit.
•Place the unit, using a spirit level, flat on a solid surface. Mind the weight of the unit!
•The minimum free distance must be at least 250 mm (10 inch).
•The space between the unit and the surface it is put on, must be kept clear for proper
ventilation of the electrical compartment.
•Keep a distance of at least 500 mm (20 inch) of free space above the unit. Placing the unit
under a hood is required.
•In case of a wheeled unit, the floor must be flat and leveled.
•The products inside the unit must be clearly visible.
•Keep children away from the operating side of the unit.
Installation:
•Secure the unit to the building structure using the tether bracket, refer to the installation
manual.
•A water connection with an aerated valve with a ¾ inch thread connection, with a minimum
continuous flow rate of 15 liters / min, must be available near the unit. The water pressure
must be between 200 and 500 kPa (2 and 5 bar), preferably at least 300 kPa (3 bar). Refer
to the Installation Manual.
•Use the hose supplied with the machine.
•An open drainage with a diameter of at least 40 mm (1.6 inch) must be available near the
unit.
•The unit has a mains plug, and must be connected to a wall socket with the proper mains
voltage. The wall socket must be mounted by a certified electrician.

TDR s auto-clean
EN 11 / 32

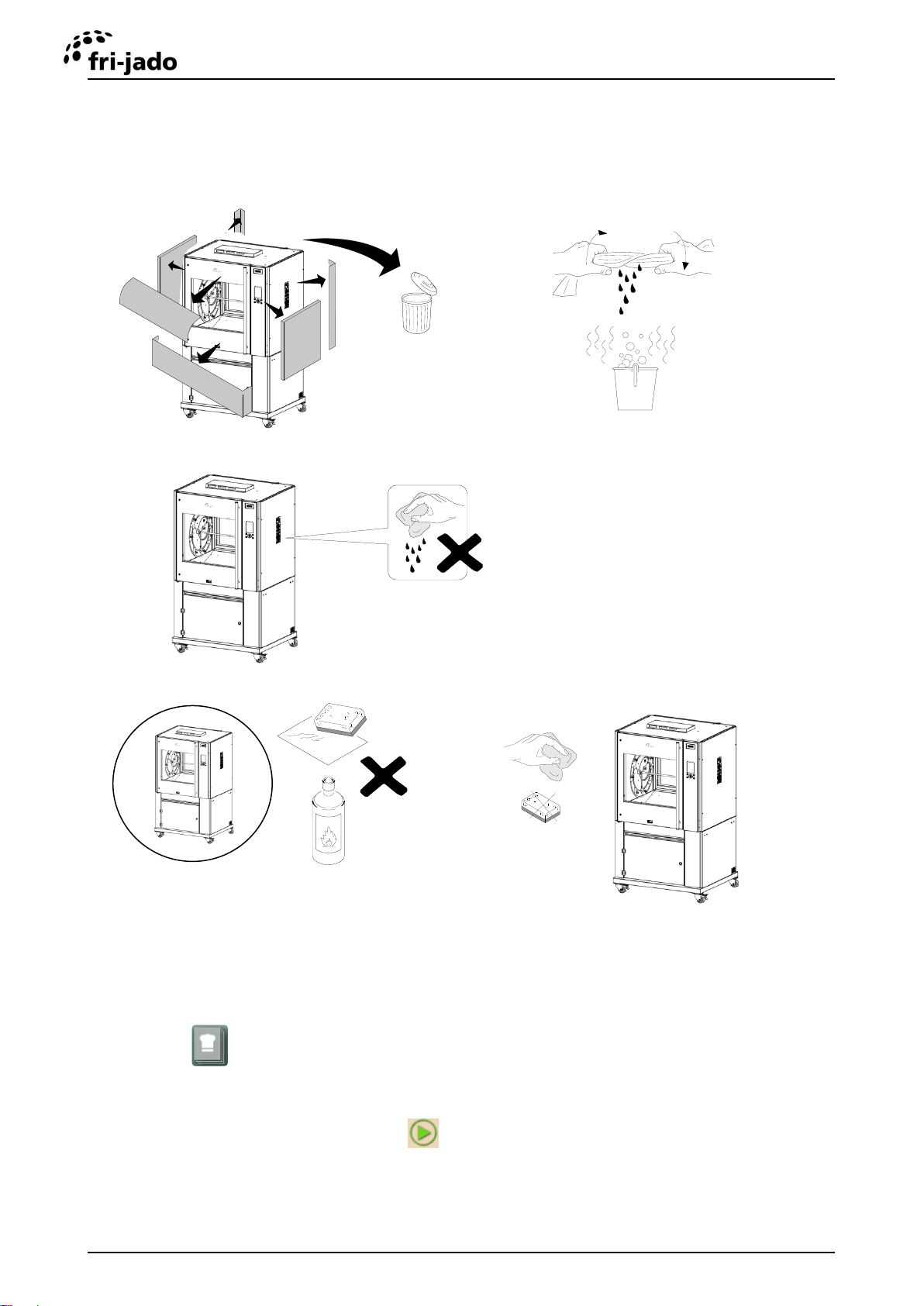

3.3 First use
When using the unit for the first time, clean the interior thoroughly with soap suds and heat up the
unit, see section 3.3.1. After commissioning discoloration of the cooking/grilling area can occur.
➊` ➋
➌
➍➎
3.3.1 Metal odor
To remove the metal odor that will appear at first use, the unit must be heated at the maximum
temperature (220°C/428°F) for at least half an hour.
1. Tap on the control screen and switch-on the unit.
2. Press to display the recipe screen.
3. Create a new program containing ONE step of maximum temperature and a duration
of at least 30 minutes (See section 7).
4. Select the new program and press to start (See section 5).
5. Allow the unit to fully execute the program.
The unit is now ready for use.

TDR s auto-clean
EN 12 / 32
4. OPERATION AND USE
4.1 Control Panel

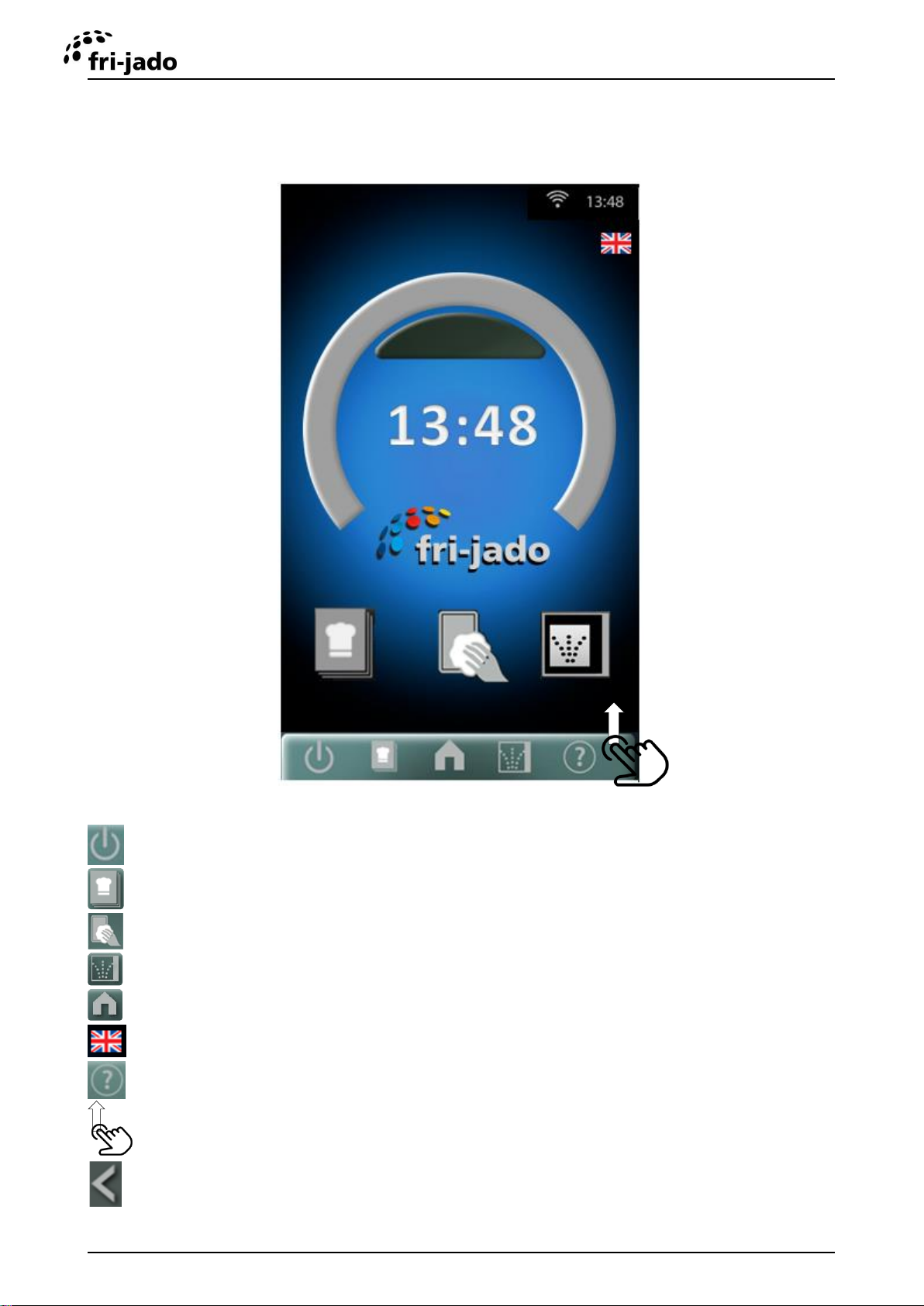

Main Functions:
ON / OFF
Recipes
Whip/clean touch screen (during count down)
Clean Rotisserie
Home screen
Language
Help function
Tap or swipe to select function or activate additional screen
Step Back (when shown at upper left corner)

TDR s auto-clean
EN 13 / 32

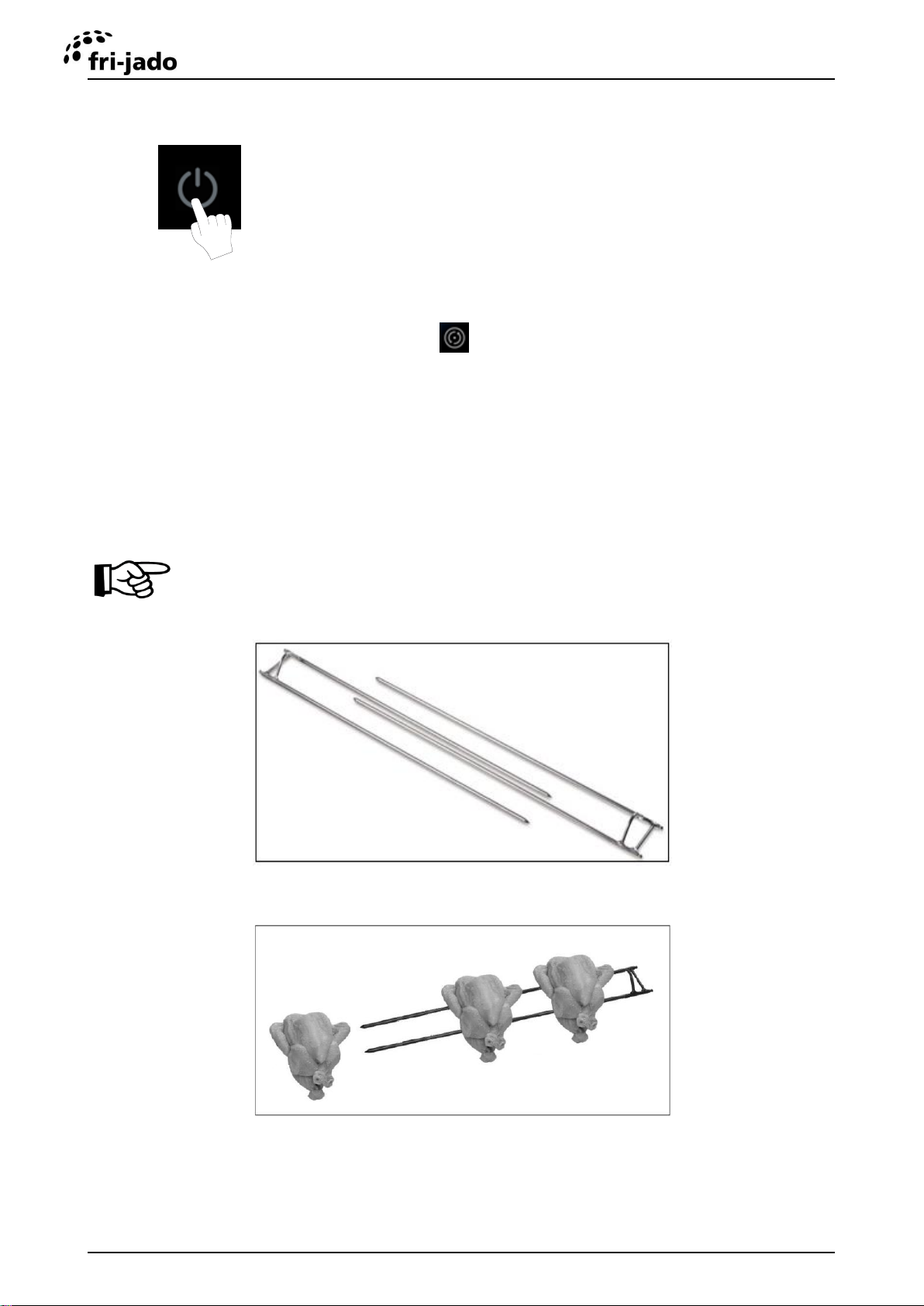

4.2 Switching-on the unit
4.3 Loading the unit
When the door is open press the rotor button to activate the rotor. This allow easy loading or
unloading the products.
Whilst loading the unit, make sure that the rotor gets evenly loaded, so that the mass of the
products is evenly spread over de rotor, causing an equal balance. Do not allow empty meat forks,
meat baskets and chicken racks etc. in the grilling process.
4.3.1 Loading the rotisserie using meat forks
The unit will be equipped with a set of meat forks.
Whole uncut chickens should always be grilled using the meat forks. This way their
natural fat will baste each other, giving a perfectly slender cooking result.
Refer to the You-Tube movie: “Fri-Jado instruction for binding and loading chicken”.
For preparing chicken or any other poultry, you can work as follows.
1. Insert one point of the meat fork through the chest at the position of the wings. Insert
the other point through the drum sticks. Don’t forget to include the wings.
2. Leave some space between the products, for an even exposure and browning.

TDR s auto-clean
EN 14 / 32
3. Put the meat forks onto the rotor disks in such a way that during grilling the chicken
breasts face the operator.
4. Put the points of the meat forks through the appropriate holes in the rotor disks.
5. The other end of the meat forks must be put through the corresponding holes in the
opposite rotor disk.
6. To insert the remaining meat forks in the unit, act as follows:
•Switch-on the unit using the on/off button.
•With the door opened, use the rotor button to move the rotor to easily insert the next
meat fork. Keep the rotor button pressed until the rotor reaches the desired position.
To load the next meat fork, press the rotor button to rotate the rotor to the next
loading position.
•Repeat these steps, until all products are loaded.
4.3.2 Loading the rotisserie using V-shape spits (accessory)
If you are using V-shape spits act as follows:
•Place the skewer into the small outside hole on the rotor end plate on your left (as you face
the oven). The back of the V-shape spit should be pointing towards you.
•Fit the other end on the spit into the small corresponding holes on the rotor end plate on
your right (as you face the oven).
•Make sure the spit is level. If spit is not level make sure you are using the correct holes on
the rotor end plates.

TDR s auto-clean
EN 15 / 32

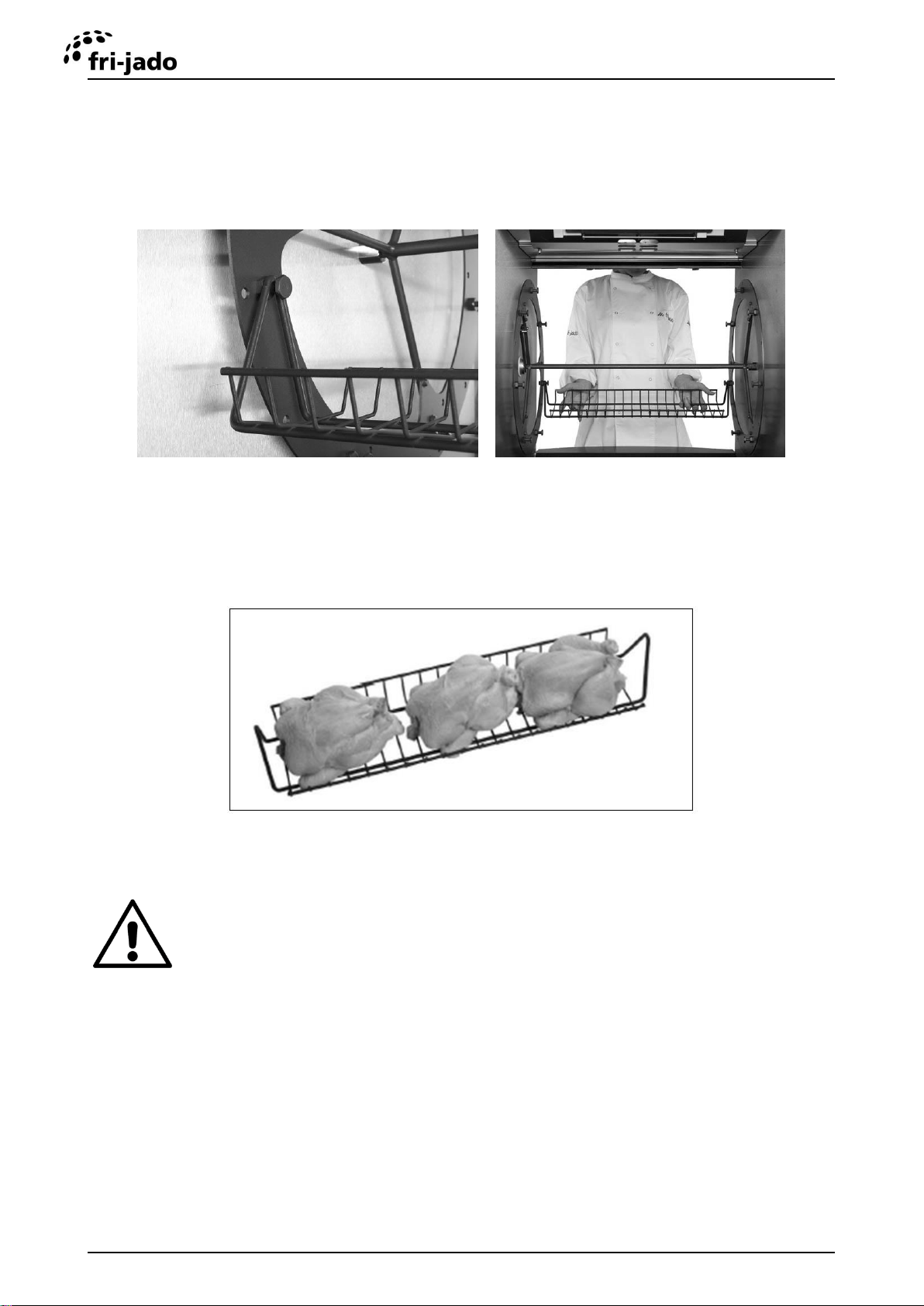

4.3.3 Loading the rotisserie using meat baskets (accessory)
If you are using meat baskets, act as follows:
•With the TDR 5 you must stick the ends of the meat baskets through the appropriate holes
of the rotor disks.
•With the TDR 7 and TDR 8 you must attach the meat baskets to the appropriate pins.
(type for TDR-8 is shown)
•Whilst loading the unit with meat baskets, you must see to it, that the rotor gets evenly
loaded, so that the mass of the products is evenly spread over de rotor, causing an equal
balance.
•Also see to it that no meat parts are sticking out of the baskets.
4.3.4 Loading the rotisserie using two different accessories
WARNING
After loading the rotor, at least make ONE full rotation, and check whether the rotor
can spin without obstructions.
If you want to load the unit using two different accessories at the same time, always fill the rotor
with ONE accessory fewer than the maximum allowed quantity. See to it that accessories of the
same type are placed consecutively.
Example: 4 meat forks + 3 meat baskets consecutively.

TDR s auto-clean
EN 16 / 32
4.4 Grilling time
Grilling time depends on a number of factors:
•The ambient temperature and draft in the direct vicinity of the unit.
•Grilling temperature.
•The initial product temperature.
•The sort of meat (fat or lean) and with or without additives.
•The mass and shape of the product.
•The total amount of meat to be grilled in one grilling cycle.
•The end result.
Seasonings
The use of herbs and seasoning adds a specific twist to every meal. Using them right
is of great importance for the end result.
Guidelines for seasoning are:
•Preferably use the special chicken and meat seasonings of the supplier of the Fri-
Jado Grill. There are special seasoning mixtures for poultry, lamb, pork, large
meat, game and fish.
•Season the products to be grilled when dry.
•Season the products 90 minutes before grilling at the most to prevent the spices
from abstracting too much fluid from the meat.
•Do not add oil or grease while grilling.
•Season chicken on the inside and on the outside.
4.5 Taking out the products
WARNING
After the grilling, the interior of the unit and the glass panes are very hot.
Always use oven gloves when taking out the meat forks or other accessories.

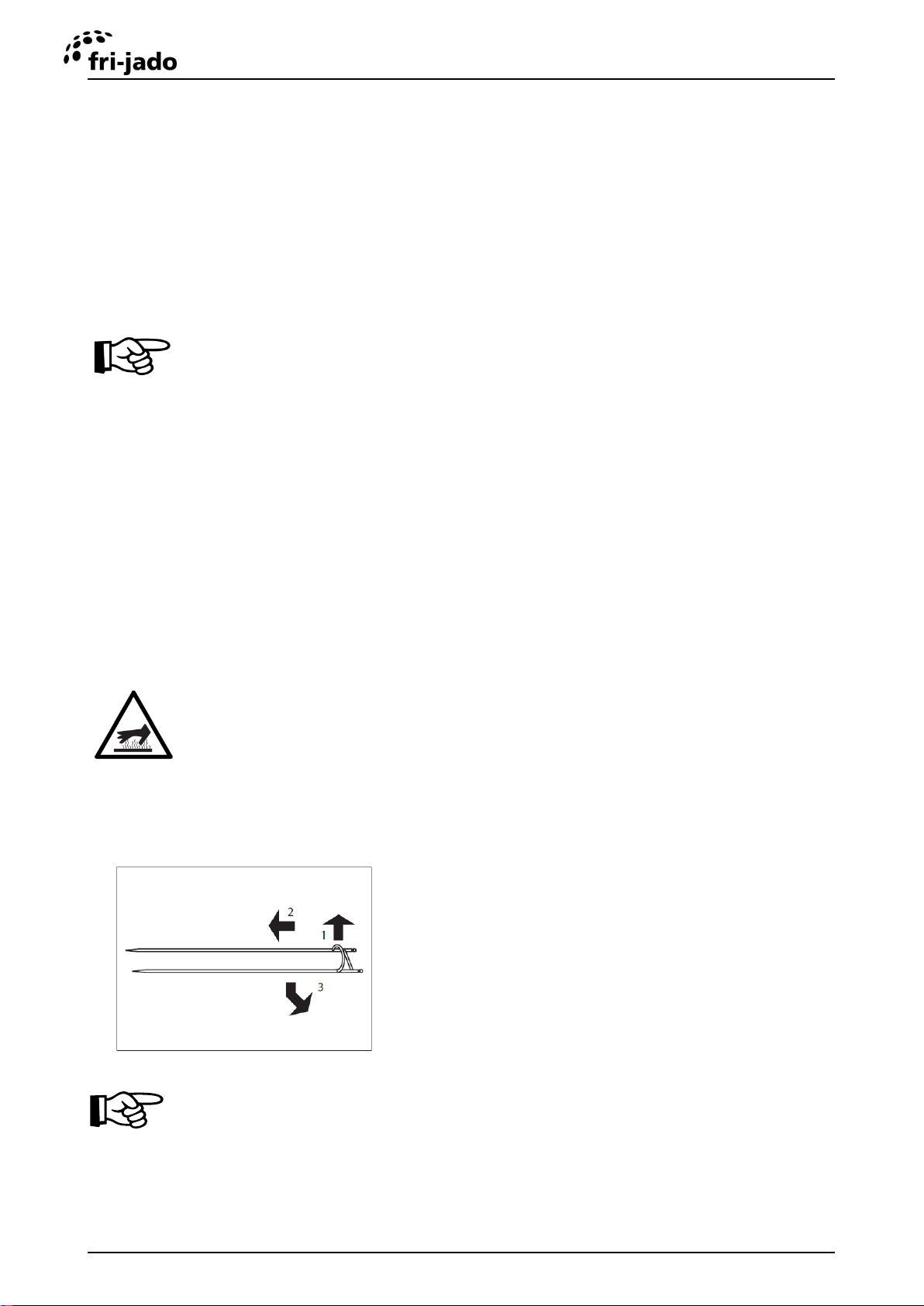

4.5.1 Taking out the meat forks
When taking out the meat forks, it is best to act as follows:
1. Hold the meat fork firmly.
2. Slightly lift the end with the grips and shift the meat
fork into the direction of its points.
This releases the meat fork.
3. Take the meat fork at its other end and take it out
of the unit.
4. Remove the products from the meat fork.
Refer to the You-Tube movie: “Fri-Jado instruction for unloading chicken from a
rotisserie”.
4.5.2 Taking out the V-shape spit (accessory)
For taking out the V-shape spit you can use the same principle as described in section 4.5.1.

TDR s auto-clean
EN 17 / 32
4.5.3 Taking out the meat basket (accessory)
When taking out the meat basket from the TDR it is best to act as follows:
1. Slightly lift both ends of the meat basket.
2. Move the basket towards either the left or right hand side of the unit. This action
unlocks one end of the basket.
3. Move the unlocked end towards you and take out the basket from the unit.
Depending on the number of prepared products you may have to empty the baskets before they
can be removed.
4.6 Emptying grease container / drawer
WARNING
Check the grease container / drawer after each cooking process and empty already
when about half full to avoid overflowing.
WARNING
Grease will be hot immediately after cooking. Allow grease to cool or use extreme
caution and wear insulated gloves or safety mitts.
Single Units:
1. Open the under-frame door.
2. Take the grease container out.
3. Empty the container.
4. Place the (emptied) container back.
5. Close the door.
Stacked Units:
1. Take the grease drawer out.
2. Empty the drawer.
3. Place the (emptied) drawer back.
4.7 Switching-off the unit

TDR s auto-clean
EN 18 / 32
5. OPERATE

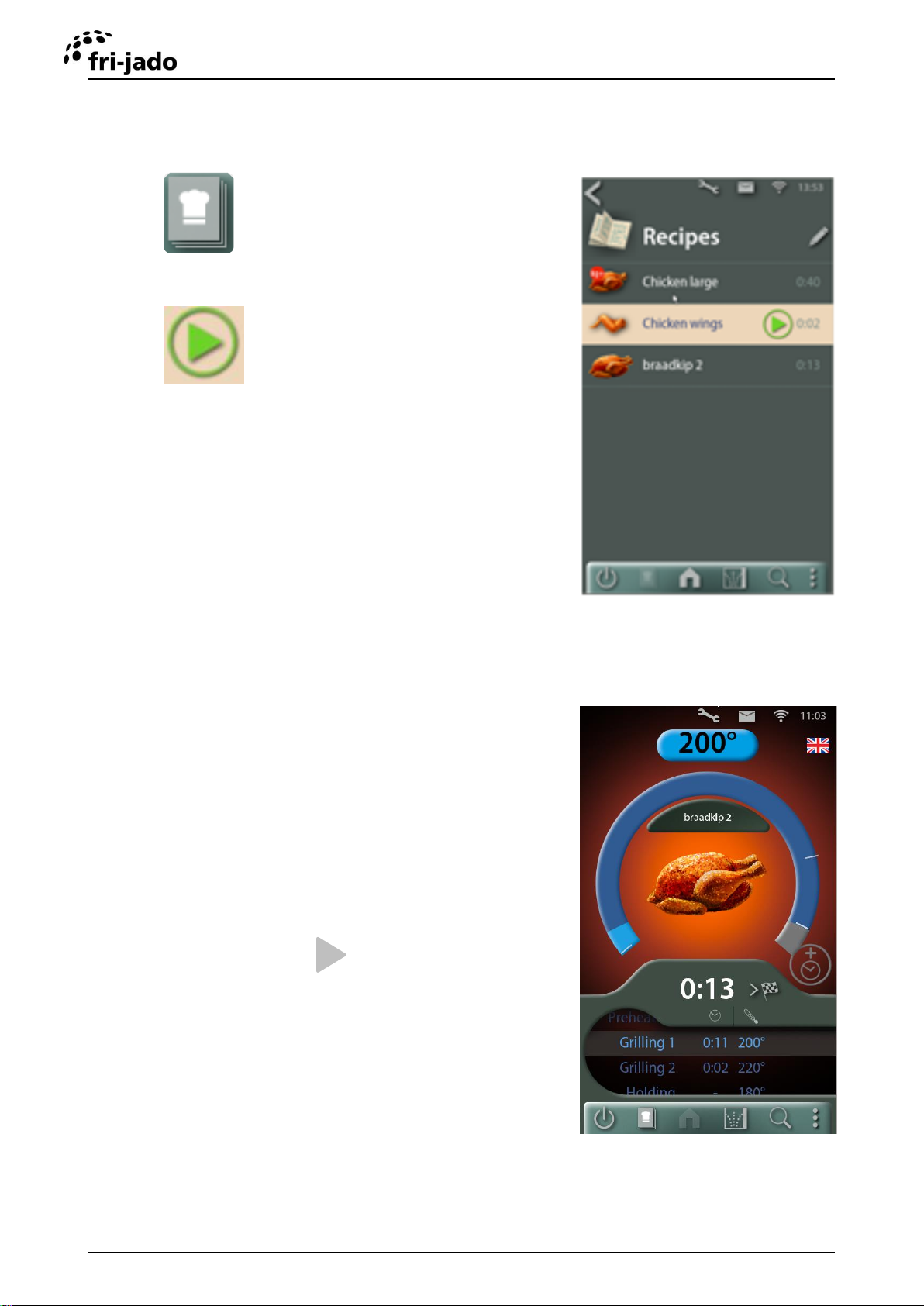

5.1 Starting a program
1. Press .
2. Select the required program. The total duration of the
program is shown in minutes next to the program name.
3. Press .
5.2 Pre-heating
When the pre-heat function is activated (at manager menu),
the unit will start this function after selecting a program.
The screen will display the set pre-heat temperature (at the
top).
Tap on the temp box to see the actual temp (approx. 5 sec.).
When the set temperature is reached, the screen will show:
“Preheat done. Waiting for oven to be loaded” and a sound is
activated.
Load the rotisserie and press .

TDR s auto-clean
EN 19 / 32
5.3 While cooking
WARNING
Opening the door during a grilling program or a cleaning program causes the unit to
stop and a warning is shown.
The unit will continue when the door is closed and pressed.
During the cooking process, the display shows a graph with
the:
•planned trajectory (dark blue time line).
•processed trajectory (light blue time line).
•program steps (white stripe).
•and the set temperature (at the top).
In the center the graph, the program name, current function
and remaining time are shown.
In the bottom of the screen the process steps are given.
When ‘cook correction’ is switched-on the remaining time will
be automatically adjusted.
5.4 Adding extra time to the active program
During the process extra time can be added (when activated
in the manager menu), by following the next steps:
1. Press .
2. Set extra time.
3. Select to save setting.
The display now shows the extra time, which will be added to
the last cooking step. The screen always shows the total
amount of extra time.

TDR s auto-clean
EN 20 / 32
5.5 Interrupt a program
Interrupt temporarily:
1. Press .
2. Press to resume the program.
Interrupt definitely:
Press and then .
5.6 Reset alarm signal
When an alarm signal has been set, a message will occur. Press to return to the main menu.
5.7 Power down
If no program is active and no key is touched within the next 60 minutes the unit will switch-off
automatically.
This option can be both switched-off or adjusted by a service engineer.
