Friend-Chip DMX16 User manual

STUDIO ELECTRONICS
__________________________________________
DMX16/32
Modular Matrix for Digital Audio Signals
User´s Manual
Version 7.xx

DMX Manual Page 03
Introduction
The DMX 16/32 is a modular patchbay system for digital audio signals, which allows signals of
various formats to share one matrix, and even connect to each other using format converting
modules.
The following modules are currently available:
MAES 4 I/O 110 ohm transformer balanced
MCO4 4 I/O 75 ohm RCA connectors
MOP4 4 I/O TOSLINK for SP DIF or ADAT
M2-2 2 I/O RCA, 2 I/O TOSLINK
MQA ADAT <> AES / SP DIF convert
MQT TDIF <> AES / SP DIF converter
MQ4 quad sample rate / format converter
Please visit our website for news !
Any combination of these modules may be assembled into one matrix. Each module has four
stereo inputs and four stereo outputs at its rear panel (except MQ4), and connects to the matrix
with four stereo inputs (sources) and four stereo outputs (destinations).
MQT and MQA convert between four stereo lines and 8 channel formats.

DMX Manual Page 04
Installation
Facing the unit from the rear, modules count from left to right. The first module on the left
connects to sources and destinations 01 to 04.
DMX 16 Frame
NOTE: Save the internal memory by midi sysex dump before installing new modules.
Start the system with a total reset after installation:
Press and hold down any CLEAR, while you power up the system.
DMX32 FRONT CONNECTORS:
The RCA and Toslink outputs at the front of the DMX32 unit double destination
31 and 32. Signals connected to the front inputs 31 or 32, override signals
connected to source 31 or 32 at the rear.

DMX Manual Page 05
Keys and Display
All functions, patches and device names can be programmed from the front panel. Therefore
most keys have more than one function. Labels above each key describe the main function.
Additional functions are selected by holding down the EDIT key while pressing the respective
key for the desired function.
For example: The monitor function is selected by holding down EDIT while pressing MONITOR.
The destinations of the matrix are displayed in the lower line, while assigned sources are
displayed in the upper line. The right part of the display FROM / TO shows the selected source
and destination. All four destinations of the addressed module and the assigned sources are
displayed on the left.

DMX Manual Page 06
Editing Patches
The DMX unit is ready for editing patches right after power-up.
- Select any SOURCE with the IJ keys.
- Select any DESTINATION with the ± keys.
- Press ENTER to connect the two selected devices.
- Select next SOURCE and next DESTINATION.
NOTE: Blinking indicates that the selected devices are not connected yet.
Still any other source and destination may be selected.
If a source is already connected to the selected destination,
this source is displayed in the left part of the display.
- ENTER changes the patch.
- EDIT cancels the selection and keeps the existing patch.

DMX Manual Page 07
Changing Patches
An existing patch can be changed as follows:
- Select the desired SOURCE with the IJ keys.
- Select the desired DESTINATION with the ± keys.
NOTE: If a source is already patched to the selected destination, this source
is displayed in the left part of the display.
See the picture in "Editing Patches":
destination 03 is already connected to source 05
while the selected source is source 17.
You may overwrite the existing patch, or cancel the new selection.
- Press ENTER to overwrite the existing patch.
- Press EDIT to cancel the selection and to keep the existing patch.

DMX Manual Page 08
Clearing Patches
Clearing a Single Patch
- Select the desired DESTINATION with the ± keys.
- Press and hold down EDIT.
-PressCLEAR while still holding down EDIT.
The assigned source is deleted.
Clearing the Complete Buffer and Matrix
- Press and hold down EDIT.
-PressBUFFER while still holding down EDIT and find the
following selection on display:
- Use the - KEY to avoid clearing buffer and matrix.
-PresstheIKEY to clear both, buffer and matrix.

DMX Manual Page 09
Display
Display Device Numbers
The display is split in two sections, as long as "DISPLAY DEVICE NUMBERS" is
selected. The right part FROM.xx / TO.xx shows the latest selected devices. The left
part shows all four destinations of the currently addressed module (lower line) and
the assigned sources (upper line).
Display Device Names
When "DISPLAY DEVICE NAMES" is selected, the names and numbers of the currently
selected source and destination are displayed.

DMX Manual Page 10

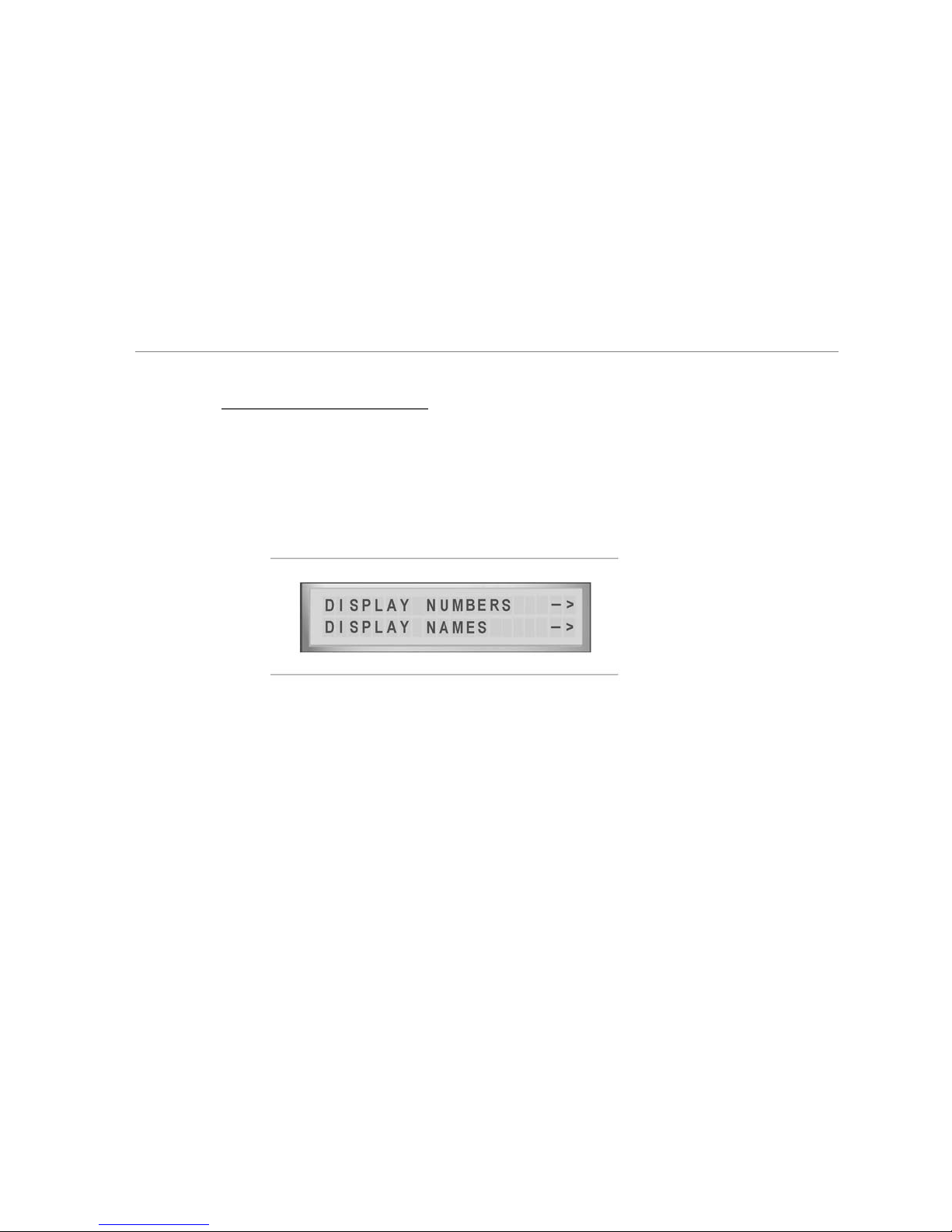

Changing Display Mode
Display mode may be changed at any time.
- Press and hold down EDIT.
- Press DISPLAY, while still holding EDIT,
find the following selection.
- Press the IKEY to select NUMBERS
- Press the - KEY to select NAMES
