Frigicoll Kaysun Casual CF Series User manual

OWNER’S MANUAL
Casual CF Series
KAY-CF 26 DN7
KAY-CF 35 DN7
KAY-CF 52 DN7
KAY-CF 71 DN7
KAY-CF 26 DR8
KAY-CF 35 DR8
KAY-CF 52 DR8
KAY-CF 71 DR8
IMPORTANT NOTE:
Read this manual carefully before installing or operating your new air conditioning unit. Make
sure to save this manual for future reference.

Table of Contents
Owner’s Manual
Safety Precautions ...................................... 04
Unit Specifications and Features ............... 06
SAFETY
FIRST
2 Manual Operation
(Without Remote) .......... 11
0
1

3
,
,
Care and Maintenance ..................................... 12
Troubleshooting ................................................ 14
European Disposal Guidelines ........................ 18
Caution: Risk of fire/
flammable materials
(For R-32 units only)
WARNING: Servicing shall only be performed as recommended by the equipment manufacturer.
Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the
supervision of theperson competent in the use of flammable refrigerants. For more details, please refer to
the Information on servicing on INSTALLATION MANUAL. (This is only required for the unit adopts R-32
Refrigerant)
3
4
5

4
Read Safety Precautions Before Installation
Incorrect installation due to ignoring instructions can cause serious damage or injury.
The seriousness of potential damage or injuries is classified as either a WARNING or
CAUTION.
WARNING
CAUTION

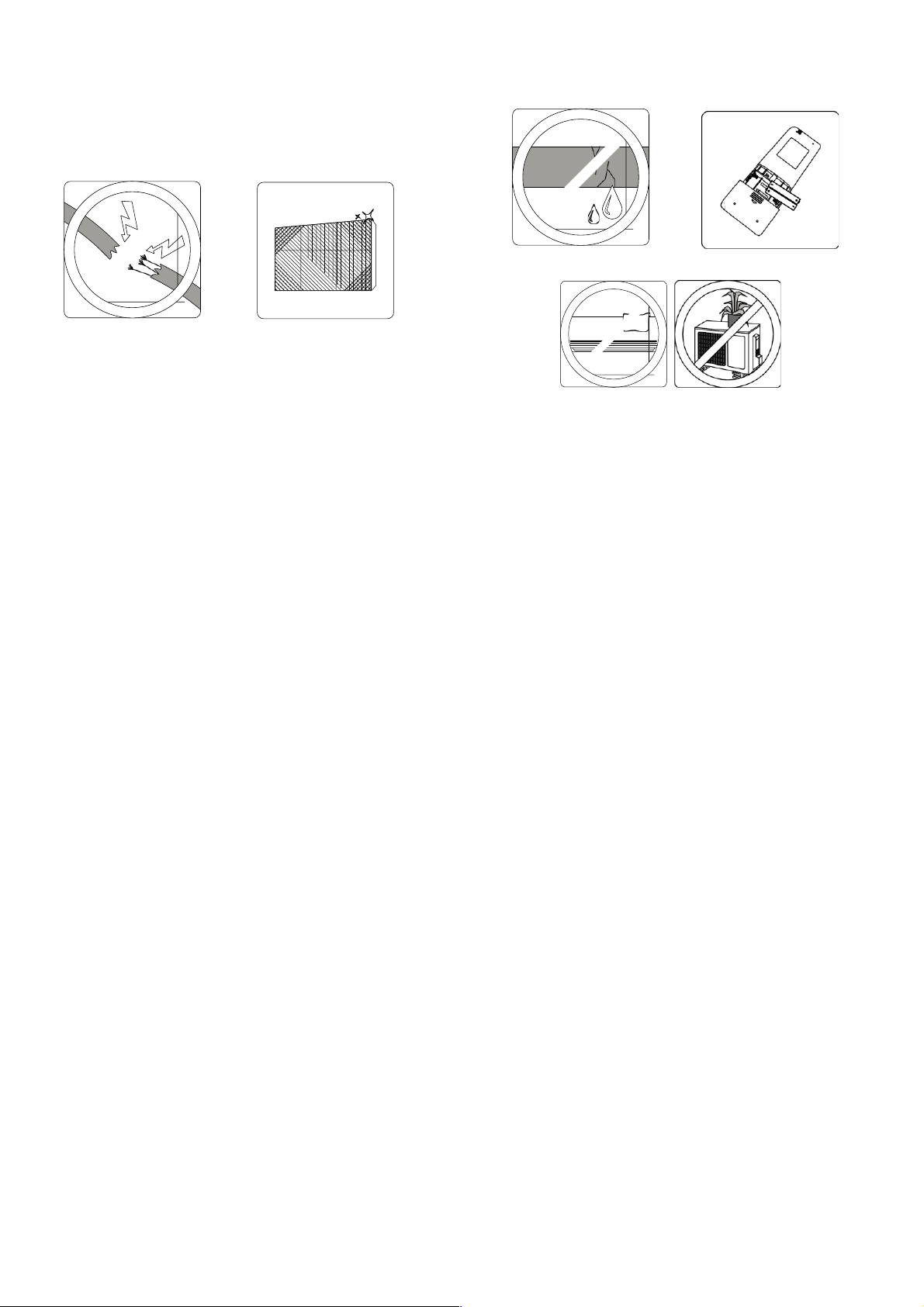

WARNINGS FOR PRODUCT USE
•
If an abnormal situation arises (like a burning smell), immediately turn off the unit and pull the
power plug. Call your dealer for instructions to avoid electric shock, fire or injury.
•
Do not insert fingers,rodsorotherobjectsinto the airinlet or outlet.Thismaycauseinjury, since
the fan may be rotating at high speeds.
•
Do not use flammable sprays such as hair spray, lacquer or paint near the unit. This may cause
fire or combustion.
•
Do not
operate the air conditioner in places near or around combustible gases. Emitted gas may
collect around the unit and cause explosion.
• Do not
operatetheairconditionerin a wetroom (e.g., bathroomorlaundry room).Thiscan
cause electrical shock and cause the product to deteriorate.
•
Do not
expose your body directly to cool air for a prolonged period.
Safety Precautions
WARNING
INSTALLATION WARNINGS
•
•
This symbol indicates that ignoring instructions may cause serious injury.
This symbol indicates that ignoring instructions may cause moderate injury
to your person, or damage to your appliance or other property.
Safety
P
r
ecautions

5
Explanation of symbols displayed on the indoor unit or outdoor unit
(For the unit adopts R-32 Refrigerant only):
WARNING
This symbol shows that this appliance used a flammable refrigerant. If the
refrigerant is leaked and exposed to an external ignition source, there is
a risk of fire.
CAUTION
This symbol shows that the operation manual should be read carefully.
CAUTION
This symbol shows that a service personnel should be handling this
equipment with reference to the installation manual.
CAUTION
CAUTION
This symbol shows that information is available such as the operating
manual or installation manual.
ELECTRICAL WARNINGS
• Only use the specified power cord. If the power cord is damaged, it must be replaced by the
manufacturer or certified serviceagent.
• Keep power plug clean. Remove any dust or grime that accumulates on or around the plug. Dirty
plugs can cause fire or electric shock.
• Do not pullpower cord to unplug unit.Hold the plug firmly and pull it from the outlet.Pulling
directlyon thecord candamage it,which canleadto fireor electricshock.
• Do not useanextensioncord,manuallyextendthepowercord,orconnectotherappliancesto
the same outlet as the air conditioner. Poor electrical connections, poor insulation, and insufficient
voltage can cause fire.
• Turnoffthedeviceandpulltheplugbeforecleaning.Failuretodosocancauseelectricalshock.
• Do not clean the air conditioner with excessive amounts of water.
• Do not clean the air conditioner with combustible cleaning agents. Combustible cleaning agents
can cause fire ordeformation.
• If the air conditioner is used together with burners or other heating devices, thoroughly ventilate
the room to avoid oxygen deficiency.
• Turnofftheairconditionerandunplugtheunitifyouarenotgoingtouseitforalongtime.
• Turn off and unplug the unit during storms.
• Make sure that water condensation can drain unhindered from the unit.
• Do not operatetheairconditionerwithwethands.Thismaycauseelectricshock.
• Do not usedeviceforanyotherpurposethanitsintendeduse.
• Do not climbontoorplaceobjectsontopoftheoutdoorunit.
• Do not allow the air conditioner to operate for long periods of time with doors or windows
open, or if the humidity is very high.
CLEANING AND MAINTENANCE WARNINGS
CAUTION
Safety
P
r
ecautions

6
,
Unit Parts
Front Panel
Power Cable (SomeUnits)
Louver
RemoteControl Remote Control
Holder (Some Units)
Display window(A)
Display window(C)
Display window(C) Display window(D)
fresh defrost run timer fresh defrost run timer
“fresh” when Fresh feature is activated (some units)
“defrost” when defrost feature is activated.
“run” when the unit is on.
“timer” when TIMER is set.
“ ” Not available for all units.
When ECO function (some units) is activated, the
illuminates gradually one by one as --
-- --set temperature -- ...... in one second interval.
In other modes, the unit will display your temperature setting.
Display Code
Meanings
In Fan and Dry mode, the unit will display the room temperature.
When error occurs, it displays error code.
“ ” for 3 seconds when:
• TIMER ON is set
• FRESH, SWING, TURBO, or SILENCE features are turned on
“ ” for 3 seconds when:
• TIMER OFF is set
• FRESH, SWING, TURBO, or SILENCE features are turned off
“ ” when anti-cold air feature is turned on
“ ” when defrosting
“ ” when unit is self-cleaning
“ ” when freeze protection is turned on
“ ” when Wireless Control feature is activated (some units)
NOTE: A
g
u
i
d
e
o
n
u
s
i
n
g
Unit Specifications and Features
1
Unit
Specifications
and Featur
es

7
the infrared remote is not included in this
literature package.

8
Achieving Optimal Performance
Optimal performance for the COOL, HEAT, and DRY modes can be achieved in the following
temperature ranges. When your air conditioner is used outside of these ranges, certain safety
protection features will activate and cause the unit to perform less than optimally.
Inverter Split Type
COOL mode HEAT mode DRY mode
RoomTemperature
17°C - 32°C
(63°F - 90°F)
0°C - 30°C
(32°F - 86°F)
10°C - 32°C
(50°F - 90°F)
Outdoor
Temperature
-15°C - 50°C
(5°F - 122°F)
-15°C - 30°C
(5°F - 86°F)
0°C - 50°C
(32°F - 122°F)
Unit
Specifications
and Featur
es

9
Other Features
• Auto-Restart
If the unit loses power, it will automatically
restart with the priorsettingsonce power has
been restored.
• Anti-mildew (some units)
When turning off the unit from COOL, AUTO
(COOL), or DRY modes, the air conditioner will
continue operate at very low power to dry up
condensed waterand preventmildewgrowth.
• Refrigerant Leakage Detection (some
units)
The indoor unit will automatically display
“EC” when the unit detects refrigerant
leakage.
• Wireless Control (some units)
Wireless control allows you to control
your air conditioner using your mobile
phone and a Wireless connection.
For the USB device access,
replacement, maintenance
operations must be carried out by
professional staff.
• Louver Angle Memory (some units)
When turning on your unit, the louver
will automatically resume its former
angle.
For a detailed explanation of your
unit’s advanced functionality (such as
TURBO mode and its self-cleaning
functions), refer to the Remote-
Control Manual.
For a detailed explanation of each function,
refer to the Remote-Control Manual.
NOTE ON ILLUSTRATIONS
Illustrations in this manual are for explanatory purposes. The actual shape of your indoor
unit may be slightly different. The actual shape shall prevail.
Unit
Specifications
and Featur
es

10
• Setting Angle of Air Flow
Setting vertical angle of air flow
While the unit is on, use the SWING/DIRECT
button to set the direction (vertical angle) of
airflow.
1. Press the SWING/DIRECT button once to
activate the louver. Each time you press
the button, it will adjust the louver by 6°.
Press the button until the direction you
prefer is reached.
2. To make the louver swing up and down
continuously, press and hold the SWING/
DIRECT button for 3 seconds. Press it
again to stop the automatic function.
Setting horizontal angle of air flow
The horizontal angle of the airflow must be set
manually. Grip the deflector rod (See Fig.B )
and manually adjust it to your preferred
direction.
For some units, the horizontal angle of the
airflow can be set by remote control. please
refer to the Remote-Control Manual.
Caution: Do not keep louver at too
vertical an angle for long periods of time.
This can cause water condensation to
drip on your furnishings.
Fig. A
Fig. B
NOTE ON LOUVER ANGLES
CAUTION
Unit
Specifications
and Featur
es

11
vi
ri
• Sleep Operation
The SLEEP function is used to decrease energy
use while you sleep (and don’t need the same
temperature settings to stay comfortable). This
function can only be activated via remote control.
Press the SLEEP button when you are ready to
go to sleep. When in COOL mode, the unit will
increase the temperature by 1°C (2°F) after 1
hour and will increase an additional 1°C (2°F)
after another hour. When in HEAT mode, the unit
will decrease the temperature by 1°C (2°F) after 1
hour and will decrease an additional 1°C (2°F)
after another hour.
It will hold the new temperature for 5 hours, then
the unit will turn off automatically.
Note: The SLEEP function is not available in
FAN or DRY mode.
temperature
Unit
Specifications
and Featur
es

12
If your remote control fails to work, your unit can
be operated manually with the MANUAL
CONTROL button located on the indoor unit.
Note that manual operation is not a long-term
solution, and that operating the unit with your
remote control is strongly recommended.
To operate your unit manually:
1. Open the front panel of the indoor unit.
2. Locate the MANUAL CONTROL button on
the right-hand side of the unit.
3. Press the MANUAL CONTROL button one
time to activate FORCED AUTO mode.
4. Press the MANUAL CONTROL button again
to activate FORCED COOLING mode.
5. Press the MANUAL CONTROL button a third
time to turn the unit off.
6. Close the frontpanel.

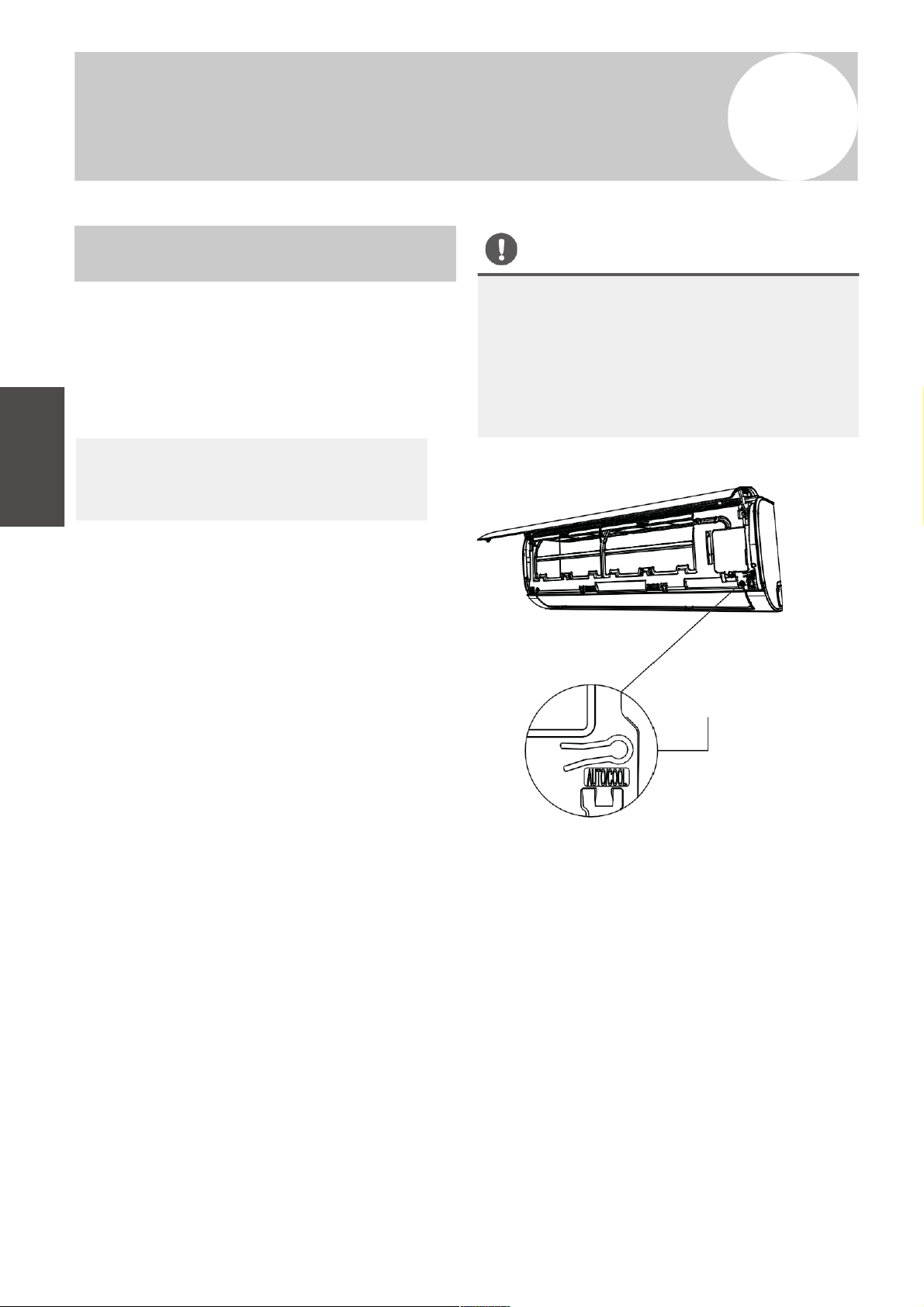

Manual control button
Manual Operation (Without Remote)
How to operate your unit without
the remote control
CAUTION
BEFORE MANUAL OPERATION
Unit must be turned off before manual
operation.
The manual button is intended for testing
purposes and emergency operation only. Please
do not use this function unless the remote control
is lost and it is necessary. To restore regular
operation, use the remote control to activate
the unit.
Manual
Operation
(Without
Remote)
2

13
CAUTION
Cleaning Your Indoor Unit
6. Rinsethe filterwithfreshwater,thenshake
off excess water.
7. Dry it in a cool, dry place, and refrain from
exposing it to direct sunlight.
8. Whendry,re-cliptheairfreshening filterto
the larger filter, then slide it back into the
indoor unit.
9. Close the front panel of the indoor unit.
Cleaning Your Air Filter
A clogged air conditioner can reduce the cooling
efficiency of your unit, and can also be bad for
your health. Make sure to clean the filter once
every two weeks.
1. Lift the front panel of the indoor unit.
2. First press the tab on the end of filter to
loosen the buckle, lift it up, then pull it
towards yourself.
3.
Now pull the filterout.
4. If your filter has a small air freshening filter,
unclip it from the larger filter. Clean this air
freshening filter with a hand-held vacuum.
5. Clean the large air filter with warm, soapy
water. Be sure to use a mild detergent.
Remove air freshening f ilter from back of
larger filter (some units)
Care and Maintenance
BEFORE CLEANING OR
MAINTENANCE
ALWAYS TURN OFF YOUR AIR CONDITIONER
SYSTEM AND DISCONNECT ITS POWER SUPPLY
BEFORE CLEANING OR MAINTENANCE.
Filter Tab
CAUTION
Only use a soft, dry cloth to wipe the unit clean.
If the unit is especially dirty, you can use a cloth
soaked in warm water to wipe it clean.
• Do not use chemicals or chemically treated
cloths to clean the unit
• Do not use benzene, paint thinner,
polishing powder or other solvents to clean
the unit. They can cause the plastic surface
to crack or deform.
• Do not use water hotter than 40°C (104°F)
to clean the front panel. This can cause the
panelto deform orbecome discolored.
Ca
re and
Maintenance
Donottouchairfreshening(Plasma)filterfor
at least 10 minutes after turning off the unit.
3

14
If you plan not to use your air conditioner for an
extendedperiodof time, dothe following:
Air Filter Reminders (Optional)
Air Filter Cleaning Reminder
After 240 hours ofuse,the display window on
Clean all filters
Turn on FAN function until
unit dries out completely
the indoor unit will flash “CL.” This is a reminder
to cleanyourfilter. After 15seconds,the unit will
revert to its previous display.
To reset the reminder, press the LED button
onyourremote control 4 times,or pressthe
MANUAL CONTROL button 3 times. If you don’t
Turn off the unit and
disconnectthepower
Remove batteries
from remote control
reset the reminder, the “CL” indicator will flash
again when you restart the unit.
Air Filter Replacement Reminder
After 2,880 hours of use, the display window on
the indoor unit will flash “nF.” This is a reminder
to replace your filter. After 15 seconds, the unit
will revert to its previous display.
To reset the reminder, press the LED button
onyourremote control 4 times,or pressthe
MANUAL CONTROL button 3 times. If you don’t
reset the reminder, the “nF” indicator will flash
again when you restart the unit.
Maintenance –
Long Periods of Non-Use
CAUTION
•
•
•
•
CAUTION
Maintenance –
Pre-Season Inspection
• Any maintenance and cleaning of outdoor
unit should be performed by an authorized
dealer or a licensed service provider.
• Anyunit repairsshould beperformed by an
authorized dealer or a licensed service
provider.
Ca
re and
Maintenance

15
After long periods of non-use, or before
periods of frequent use, do the
following:
Check fordamaged wires Clean all filters
Checkforleaks Replace batteries
Make sure nothing is blocking all air inlets and outlets

16
Common Issues
Thefollowingproblemsarenotamalfunctionandinmostsituations,willnotrequirerepairs.
Issue Possible Causes
Unit does not turn
on when pressing
ON/OFF button
The Unit has a 3-minute protection feature that prevents the
unit from overloading. The unit cannot be restarted within
three minutes of being turned off.
The unit changes
from COOL/HEAT
mode to FAN
mode
The unit may change its setting to prevent frost from forming
on the unit. Once the temperature increases, the unit will start
operating in the previously selected mode again.
The set temperature has been reached, at which point the
unit turns off the compressor. The unit will continue operating
when the temperature fluctuates again.
The indoor unit
emits white mist
In humid regions, a large temperature difference between the
room’s air and the conditioned air can cause white mist.
Both the indoor
and outdoor units
emit white mist
When the unit restarts in HEAT mode after defrosting, white
mist may be emitted due to moisture generated from the
defrosting process.
4
If ANY of the following conditions occurs, turn off your unit immediately!
• The power cord is damaged or abnormally warm
• You smell a burning odor
• The unit emits loud or abnormal sounds
• A power fuse blows or the circuit breaker frequently trips
• Water or other objects fall into or out of the unit
DO NOT ATTEMPT TO FIX THESE YOURSELF! CONTACT AN AUTHORIZED SERVICE PROVIDER
IMMEDIATELY!
SAFETY PRECAUTIONS
T
roubleshooting

17
Issue
Possible Causes
The indoor unit
makes noises
A rushing air sound may occur when the louver resets its
position.
A squeaking sound may occur after running the unit in HEAT
mode due to expansion and contraction of the unit’s plastic
parts.
Both the indoor
unit and outdoor
unit make noises
Low hissing sound during operation: This is normal and is
caused by refrigerant gas flowing through both indoor and
outdoor units.
Low hissing sound when the system starts, has just stopped
running, or is defrosting: This noise is normal and is caused by
the refrigerant gas stopping or changing direction.
Squeaking sound: Normal expansion and contraction of
plastic and metal parts caused by temperature changes during
operation can cause squeaking noises.
The outdoor unit
makes noises
The unit will make different sounds based on its current
operating mode.
Dust is emitted
from either the
indoor or outdoor
unit
The unit may accumulate dust during extended periods of
non-use,whichwill beemittedwhentheunit isturnedon.
This can be mitigated by covering the unit during long periods
of inactivity.
The unit emits a
bad odor
The unit may absorb odors from the environment (such as
furniture, cooking, cigarettes, etc.) which will be emitted
during operations.
Theunit’sfiltershave become moldyand should be cleaned.
The fan of the
outdoor unit does
not operate
During operation, the fan speed is controlled to optimize
product operation.
Operation
is erratic,
unpredictable,
or unit is
unresponsive
Interference from cell phone towers and remote boosters may
cause the unit to malfunction.
In this case, try thefollowing:
• Disconnect the power, then reconnect.
• Press ON/OFF button on remote control to restart
operation.
NOTE: If problem persists, contact a local dealer or your nearest customer service
center.Providethemwithadetaileddescriptionoftheunitmalfunctionas
well as your modelnumber.
T
roubleshooting

18
Troubleshooting
When troubles occur, please check the following points before contacting a repair
company.
Problem Possible Causes Solution
Poor Cooling
Performance
Temperature setting may
be higher than ambient
room temperature
Lower the temperature setting
The heat exchanger onthe
indoor or outdoor unit is
dirty
Clean the affected heat exchanger
The air filter is dirty
Remove the filter and clean it
accordingto instructions
The air inlet or outlet of
eitherunitis blocked
Turn the unit off, remove the
obstructionandturn itbackon
Doors and windows are
open
Make sure that all doors and
windows are closed while
operating the unit
Excessive heat is generated
by sunlight
Close windows and curtains
during periods of high heat or
bright sunshine
Too many sources ofheat in
the room (people,
computers, electronics,
etc.)
Reduce amount of heat sources
Low refrigerant due to leak
or long-term use
Check for leaks, re-seal if
necessary and top off refrigerant
SILENCE function is
activated (optional
function)
SILENCE function can lower
product performance by reducing
operating frequency. Turn off
SILENCE function.
T
roubleshooting

19
Problem
Possible Causes
Solution
The unit is not
working
Power failure
Waitforthepowertobe
restored
The power is turned off
Turn on thepower
The fuse is burned out
Replace the fuse
Remote control batteries are
dead
Replace batteries
The Unit’s 3-minute protection
has been activated
Wait three minutes after
restarting the unit
Timer is activated
Turn timer off
The unit starts and
stops frequently
There’stoomuchortoolittle
refrigerant in the system
Check for leaks and recharge
the system with refrigerant.
Incompressible gas or
moisture has entered the
system.
Evacuate and recharge the
system with refrigerant
The compressor is broken
Replace the compressor
Thevoltageis toohigh or
too low
Install a manostat to regulate
the voltage
Poor heating
performance
The outdoor temperature is
extremely low
Useauxiliary heating device
Cold air is entering through
doors and windows
Make sure that all doors and
windows are closed during use
Low refrigerant due to leak or
long-term use
Check for leaks, re-seal if
necessary and top off
refrigerant
Indicator lamps
continue flashing
The unit may stop operation or continue to run safely. If
the indicator lamps continue to flash or error codes appear,
wait for about 10 minutes. The problem may resolve itself.
Ifnot,disconnectthepower, thenconnectitagain.Turn
the unit on.
If the problem persists, disconnect the power and contact
your nearest customer service center.
Error code appears in
the window display
of indoor unit:
• E0, E1, E2…
• P1, P2, P3…
• F1, F2, F3…
NOTE: If your problem persists after performing the checks and diagnostics above, turn
off your unit immediately and contact an authorized service center.
T
roubleshooting

20
This appliance contains refrigerant and other potentially hazardous materials. When disposing of
this
appliance, the law requires special collection and treatment. Do not dispose of this product as
household waste or unsorted municipal waste.
When disposing of this appliance, you have the following options:
• Dispose of the appliance at designated municipal electronic waste collection facility.
• When buying a new appliance, the retailer will take back the old appliance free of charge.
• The manufacturer will take back the old appliance free of charge.
• Sell the appliance to certified scrap metal dealers.
5
DisposingofthisapplianceintheCasualorothernaturalsurroundingsendangersyourhealthandis
bad for the environment. Hazardous substances may leak into the ground water and enter the food
chain.
Special notice
Disposal
Information
