Frigidaire FDB520RHB2 User manual

P30L0081.eps P30C0162.eps P30B0045.eps P30U0024.eps P30M0046.eps P30F0022.eps
P30R0111.eps
Product No. FDB520RHB2 FDB520RHS2
Series Built-in 24" Built-in 24"
Color black white
Owner's Guide English 154595201 154595201
Owner's Guide Spanish 154595203 154595203
Owner's Guide French 154595202 154595202
Service Data Sheet 154737301 154737301
Energy Guide 154758439 154758439

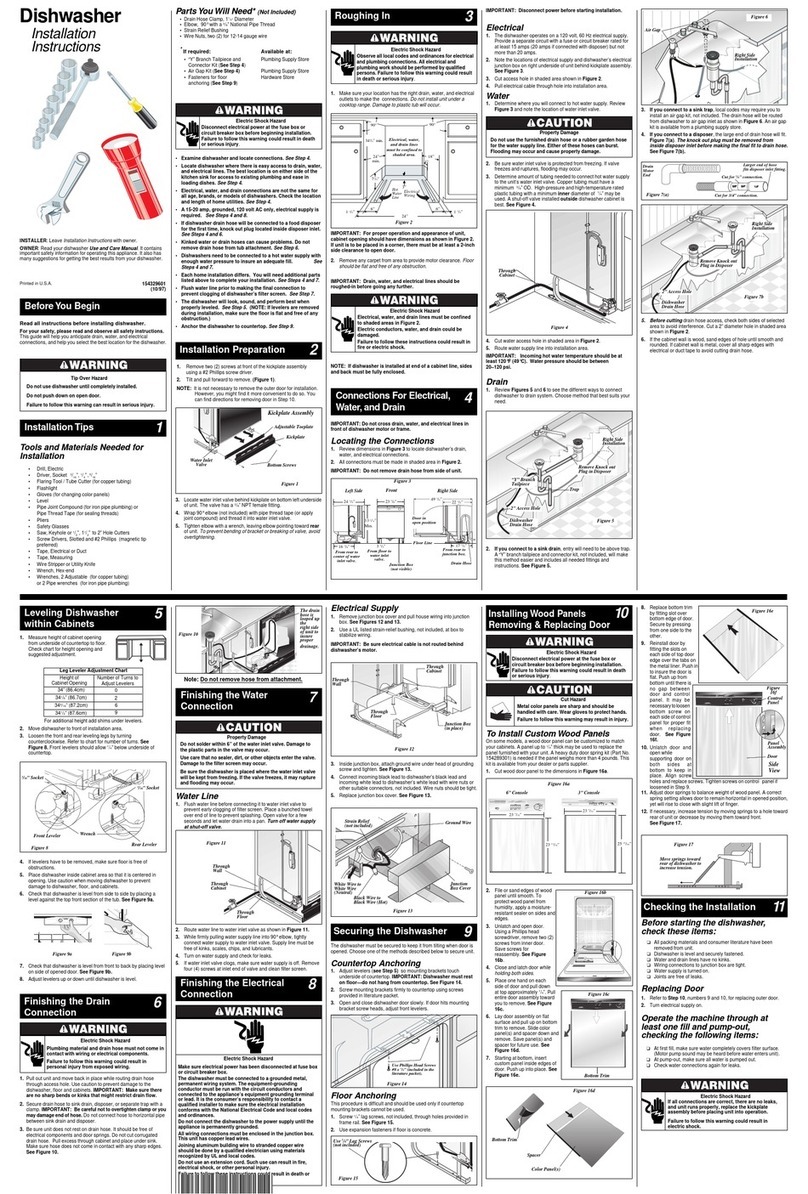

Installation Instructions 154427301 154427301
Market North America North America
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995554150
09/10/21
(EN/SERVICE/ECL)
821
24-INCH BUILT-IN
DISHWASHER
Model No.
FDB520RH
Copyright ©All rights reserved.

Publication No: 5995554150 FDB520RH
10/09 2
CONTROL PANEL

FDB520RH Publication No: 5995554150
# Functional Parts 3 10/09
* Non-Illustrated Parts
CONTROL PANEL
Model Index: AFDB520RH (FDB520RHS2)
BFDB520RH (FDB520RHB2)
POS. NO PART NO. DESCRIPTION
1 154645201 A - Panel, control, white
1 154645203 - B Panel, control, black
2 154737601 A - Overlay, control panel, white
2 154737603 - B Overlay, control panel, black
3 # 154783201 A B Control
4 154552101 A B Cover, control
8 # 154737701 A B Switch Assembly, 7 button
20 154433001 A B Vent assy, static dry
20* 154436201 A B Screw, dry duct, (3)
33 154553501 A B Gasket, cover
* # 154738101 A B Harness, wiring, main
* 154227501 A B Thermistor
* 154758439 A B Energy Guide
* 154294701 A B Screw, #7 plas .375, (6), disp. assy.
* 154409401 A B Screw, ground, #8-18 x .375

Publication No: 5995554150 FDB520RH
10/09 4
DOOR

FDB520RH Publication No: 5995554150
# Functional Parts 5 10/09
* Non-Illustrated Parts
DOOR
Model Index: AFDB520RH (FDB520RHB2)
BFDB520RH (FDB520RHS2)
POS. NO PART NO. DESCRIPTION
1 154430501 A B Spring, door, (2)
1A 154325201 A B Linkage, door spring, (2)
2 154093301 A B Screw, arm assy, (4)
3 154691401 A B Arm Assy, LH
3A 154691301 A B Arm Assy, RH
* 154647101 A B Hinge Pin, arm assy
* 154686401 A B Bearing, hinge pin
5 154079601 A B Nut, arm assy, and handle mtg.
7 154494601 A B Liner, door assy.
9 154574401 A B Dispenser, det/rinse aid, w/o reed
9* 154294701 A B Screw, #7 plas .375, (6), disp. assy.
9* 154719301 A B Shield, dispenser assy
10 154103702 A B Screw, latch mtg, (2)
12 # 154556703 A - Latch assy, black
12 # 154556701 - B Latch assy, white
20 154538303 A - Door, black
20 154538301 - B Door, white
20* 154754701 A B Screw, truss hd, 8-18 type AB, (2)
22 154388801 A B Cap, Rinse aid
49 154576501 A B Gasket, door, bottom
51 154320301 A B Clamp, drip loop, wire
* 154409401 A B Screw, ground, #8-18 x .375

Publication No: 5995554150 FDB520RH
10/09 6
TUB

FDB520RH Publication No: 5995554150
# Functional Parts 7 10/09
* Non-Illustrated Parts
TUB
Model Index: AFDB520RH (FDB520RHB2)
BFDB520RH (FDB520RHS2)
POS. NO PART NO. DESCRIPTION
1 # 154729301 A B Tub assy, w/frame parts, white, PW
* 154685101 A B Gasket, tub, corner, (2)
2 154662601 A B Strike, door
3 # 154561001 A B Gasket, tub
4 154200602 A B Screw, 10-16 x 3/8, hex
5 154333902 A B Roller, tub
6 5303943103 A B Screw, w/washer, (8)
22 154577401 A B Tubing, water inlet
23 5303318539 A B Clamp, tubing, (2)
24 # 154753201 A B Hose, drain
* 154380601 A B Clamp, hose, 1.5" open, worm gear, (5)
25 # 154767801 A B Float
28 154408701 A B Switch Assy, float
29 # 154290204 A B Thermostat, re-settable
30 154241101 A B Retainer, thermostat
30* 154297701 A B Screw, retainer-thermo
* 5300807270 A B Screw, (2), countertop mtg.
* 154041001 A B Screw, plask #1, 10-10 x 9/16
* 154200601 A B Screw, #10-16 x 3/8

Publication No: 5995554150 FDB520RH
10/09 8
MOTOR & PUMP
TUB
16
2
24
63
10
58
66
62
64
P30M0046
65
14
13
70
55
59
59A
60
TUB
24A
32 32A
61
1

FDB520RH Publication No: 5995554150
# Functional Parts 9 10/09
* Non-Illustrated Parts
MOTOR & PUMP
Model Index: AFDB520RH (FDB520RHB2)
BFDB520RH (FDB520RHS2)
POS. NO PART NO. DESCRIPTION
1 # 154665201 A B Element, heater
1* 154106202 A B Nut, heater, (2)
1* 154289801 A B Shield, heater terminal
2 154479601 A B Bracket, heater, (2)
10 154724001 A B Cover, volute
13 154246801 A B Gasket, sump
14 154728201 A B Sump Assembly
16 154246502 A B Retainer, sump
16* 154754901 A B Screw, sump mtg, 8-16, (4)
24 154568001 A B Spray arm, white, lower, w/heat shield
24A 154313601 A B Spray arm, center
24A* 154252001 A B Nut, spray arm, center
32 154406601 A B Tube, delivery
32* 154106801 A B Clamp, hose, 1.29" open, worm gear, (2)
32A 154406401 A B Gasket, delivery tube
55 154595901 A B Bracket, motor
55* 5303316032 A B Screw, truss ss, 8 .625, (7)
58 154246402 A B Check ball
59 154246901 A B O-ring, rear
59A 154247001 A B O-ring, front
60 # 154736201 A B Pump Assembly, drain, w/seal-impeller
60* 154617301 A B Flapper, valve, drain pump
60* 154741501 A B Screw, drain motor mtg, (3)
61 154606801 A B Nozzle, 3rd level, spray
62 154294101 A B Support, spray arm, lower
63 154776101 A B Base, soil director
64 154252301 A B Filter, soil director, white
65 154252401 A B Filter, polypro
66 154252701 A B Trap, glass
70 # 154594201 A B Motor & Pump Assy
* 154200601 A B Screw, #10-16 x 3/8
* 154297701 A B Screw, retainer-thermo

Publication No: 5995554150 FDB520RH
10/09 10
FRAME

FDB520RH Publication No: 5995554150
# Functional Parts 11 10/09
* Non-Illustrated Parts
FRAME
Model Index: AFDB520RH (FDB520RHB2)
BFDB520RH (FDB520RHS2)
POS. NO PART NO. DESCRIPTION
3 # 154637401 A B Valve, water
4 154669301 A B Brace, front frame
8 154589403 A - Toeplate, adjustable, black
8 154589401 - B Toeplate, adjustable, white
9 154589503 A - Kickplate Assy, black
9 154589501 - B Kickplate Assy, white
10 154754801 A - Screw, toeplate mtg, 8-18 AB hex hd, black, (2)
10 154371301 - B Screw, Phillips head, white
11 154200701 A B Screw, #10-32 x 3/8
11A 154200601 A B Screw, #10-16 x 3/8
15 154571101 A B Leg, leveling, (4)
20 154758501 A B Cover, junction box, w/label
* 154041001 A B Screw, plask #1, 10-10 x 9/16
* 154200602 A B Screw, 10-16 x 3/8, hex
* 154409401 A B Screw, ground, #8-18 x .375

Publication No: 5995554150 FDB520RH
10/09 12
RACKS

FDB520RH Publication No: 5995554150
# Functional Parts 13 10/09
* Non-Illustrated Parts
RACKS
Model Index: AFDB520RH (FDB520RHB2)
BFDB520RH (FDB520RHS2)
POS. NO PART NO. DESCRIPTION
1 154336020 A B Rack assy, lower, w/rollers
2 5300808994 A B Basket, silverware
3 154331502 A B Rack assy, upper
4 154522901 A B Wheel & bushing assy, upper rack, (8)
5 5300809927 A B Cap, slide, (4)
6 154597801 A B Slide, rack, upper, (2)
7 154174502 A B Wheel & bracket assy, lower rack
8 154728001 A B Base, funnel
9 154251801 A B Funnel
