Front Load Dryer Specifications
•Product Shipping Weight (approx.) – 140 Lbs.
•An electrical supply with grounded three-prong receptacle is
required. The power supply circuit must be installed in accordance
with current edition of National Electrical Code (ANSI/NFPA 70)
and local codes & ordinances. (Do not use same circuit as washer.)
•Voltage Rating – 120V / 60 Hz / 15 Amps
•Amps @ 120 Volts = 7 Amps
•Connected Load (kW Rating) @ 120 Volts = 0.5 kW
•Equipped with 120V 3-wire power supply cord, approx. 60" long.
•Always consult local and national electric & gas codes.
•Can be installed alone, with or without optional 15" Drawer Pedestal, or
stacked above matching Frigidaire® Affinity Washer, which requires
installation of optional Dryer Stacking Kit. (For installation details, refer
to instructions included with optional pedestal or stacking kit or on web.)

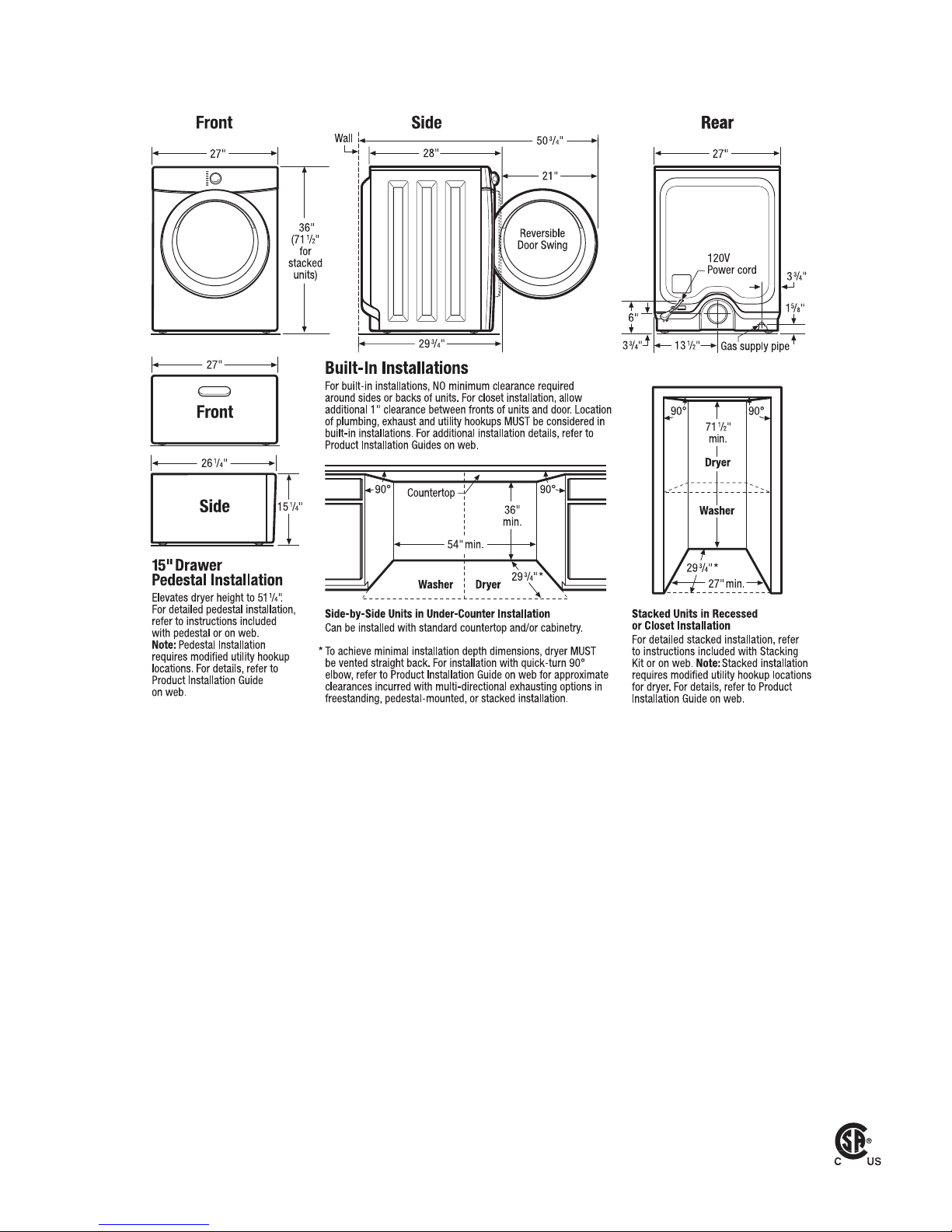

•Can be built in with matching Frigidaire® Affinity Washer in under-
counter, recessed or closet installation. (Refer to Built-In Installations
on this page for cutout dimensions. For additional installation details,
refer to Product Installation Guide on web.)
•Closet installation requires vented door with 2 unobstructed louvered
openings, minimum 60 sq. in. each, located 3" from top and bottom
of door. Full-length 120 sq. in. opening also acceptable. Allow
additional 1" clearance between fronts of units and closed door.
•Do NOT install in area exposed to dripping water or outdoor
weather conditions, or where gasoline or other flammables, including
automobiles, are kept or stored.
Front Load Laundry - Gas Dryers
Frigidaire Affinity
•Floor MUST be solid with 1" maximum slope. Do NOT install on
carpeted surface.
•Dryer MUST exhaust to outside of building, NOT into any
concealed space.
•Exhaust installation requires minimum 4"-diameter rigid or flexible
metal duct with approved vent hood having swing-out damper(s).
Do NOT use flexible plastic or metal foil duct and use shortest
run possible.
•Gas supply line should be 1/2" pipe and MUST have individual
shutoff valve.
•Leveling legs supplied to level dryer properly and reduce excessive
noise and vibration.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•Dryer Stacking Kit – (PN # 134700600).
•15" Classic White Drawer Pedestal – (PN # APWD15W).
•15" Classic Black Drawer Pedestal – (PN # APWD15E).
•15" Classic Red Drawer Pedestal – (PN # APWD15R).
•15" Classic Blue Drawer Pedestal – (PN # APWD15N).
•Mobile Home Installation Kit – (PN # 137067200).
•LP Gas Conversion Kit – (PN # PCK4200).
•Drying Rack – (PN # 137067300).
Front Load Dryers
FAQG7077K W/B/R/N Gas
FRIGIDAIRE®
USA
•
250 Bobby Jones Expressway
•
Martinez, GA 30907
•
1-800-FRIGIDAIRE •frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FAQG7077K 06/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
Specifications
subject to change.
