Frigidaire FCGD2000LS0 User manual

Commercial Dryer
IMPORTANT! Post instructions in a prominent
location to be followed in the event the user
smells gas. The information to be posted shall
be obtained by consulting with the local gas
supplier.
Warning: For you safety the information in
this manual must be followed to minimize the
risk of fire or explosion or to prevent property
damage, personal injury or death.
--Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
--WHAT TO DO IFYOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Clear the room, building or area of all
occupants.
• Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier,
call the fire department.
--Installation and service must be performed
by a qualified installar, service agency or the
gas supplier
FOR YOUR SAFETY
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
Printed in U.S.A.
www.frigidare.com PIN 137321800A (1004)

Table of Contents
Product registration ...............................................................
Important Safety Instructions ............................................ 2-4
Use & Care Guide ......................................................... 4-7
Drying Procedures ................................................ 4
Features.......................................................................... 5
Care and Cleaning ........................................................ 5-6
Common Drying Problems................................................. 6
Avoid Service Checklist..................................................... 7
Warranty......................................................................... 8
Operating Instructions ..................................................... 9
Installation Instructions ............................................ 10-16
Pro-installation Requirements ............................................. 10
Electrical Requirements ................................................ 10
ExhaustSystem Requirements ........................................ 10-11
Gas Supply Requirements ................................................... 12
Dryer Location .............................................................. 12
Rough-In Dimensions ..................................................... 13
Mobile Home Installation .............................................. 13
Unpacking ................................................................ 14
Electrical Installation ......................................... 14-16
General Installation ............................................... 16
Product Record
Read and Save These Instructions
Record Your Model and Serial Numbers
The model and serial numbers of your dryer are found on
the dryer serial plate located of the left side of the door
opening. Record and retain these numbers.
Noter los num_ros de mod_le et de s_rie
Model Number
Serial Number
Purchase Date
Important Safety Instructions
Your safety and the safety of others is very important.
We have provided many important safety messages in the Use and Care Installation Guide and on your appliance. Always read
and obey all safety messages.
_This isthe safety alert symbol. This symbol alerts you to hazards that can kill or hurt you or others. All safety messageswill be
preceded by the safety alert symbol and the word "DANGER" or "WARNING ". These words mean:
You will be killed or seriously injured if you don't follow instructions.
You can be killed or seriously injured if you don't follow instructions.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen
if the instructions are not followed.
For your safety the information in this manual must be followed to minimize the risk of fire or explosion or to
prevent property damage, personal injury or loss of life. Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
You can be killed or seriously injured if you don't follow these important Safety Instructions:
• To reduce the risk of fire, electrical shock, or injury to personswhen using this dryer, comply with the basic warnings listed below.
• Failure to comply with these warnings could result in serious personal injuries.
Read all of the following instructions before installing and using this appliance:
•Clothes dryer installation and service must be performed by a qualified installer, service agency or the gas supplier.
• Install the clothes dryer according to the manufacturer's instructions and local codes.
• The electrical service to the dryer must conform with local codes and ordinances and the latest edition of the National
Electrical Code, ANSI/NFPA 70, or in Canada, the Canadian electrical code C22.1 part 1.
• The gas serviceto the dryer must conform with local codes and ordinances and the latest edition of the National Fuel Gas
Code ANSI Z223.1, or in Canada, CAN/ACG B149.1-2000.
• The dryer isdesigned under ANSI Z 21.5.1 or ANSI/UL 2158 - CAN/CSA C22.2 No. 112 (latest editions).
• Do not install a clothes dryer with flexible plastic venting material. Flexible venting materials are known to collapse, be easily
crushed and trap lint. These conditions will obstruct clothes dryer airflow and increase the risk of fire.
• The instructions in this manual and all other literature included with this dryer are not meant to cover every possible condition
and situation that may occur. Good safe practice and caution MUST be applied when installing, operating and maintaining
any appliance.

ELECTR/C DRYERS:
14-30R
FUSED 30 AMP
120/240 V OR
120/208 V WALL
RECEPTACLE
DRYER
CORRECT
Use this way ONLY
Important Safety Instructions Con 't
DRYER
SER VI CE
CORD
Grounding type
wallrece
GAS DRYERS:
Do not under any
circumstances cut,
remove or bypass the
grounding prong
from this plug
Power supply cord with 3-prong
grounding plug
CORRECT Use this way ONLY
Avoid fire hazard or electrical shock. Do not usean adaptor plug or extension cord or remove grounding prong from
electrical power cord. Failure to follow this warning can cause serious injury, fire or death.
Prevent Fire
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
Do not dry items that have been previously cleaned in, soaked in, or spotted with gasoline, cleaning solvents, kerosene, waxes,
etc. Do not store these items on or near the dryer. These substances give off vapors that could ignite or explode.
Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to achemical
reaction that could cause a load to catch fire.
Do not dry articles containing rubber, plastic or similar materials such as bras, galoshes, bath mats, rugs, bibs, baby pants, plastic
bags and pillows that may melt or burn. Some rubber materials, when heated, can under certain circumstances produce fire by
spontaneous combustion.
Clean the lint screen before or after each load. The interior of the dryer, lint screen housing and exhaust duct should be cleaned
approximately every 18 months by qualified service personnel. An excessive amount of lint build-up in these areas could result
in inefficient drying and possible fire. See Care and Cleaning.
Do not operate the dryer if the lint screen is blocked, damaged or missing. Firehazard, overheating and damage to fabrics can
occur. If your dryer has a drying rack, always replace the lint screen when finished using the drying rack.
-Risk ef Fire- A clothes dryer produces combustible lint. Thedryer must be connected to an exhaust outdoors. Regularly inspect
the outdoor exhaust opening and remove any accumulation of lint around the outdoor exhaust opening and in the surrounding
area.
• Do not obstruct the flow of ventilating air. Do not stack or place laundry or throw rugs against the front or back of the dryer.
• Do not spray any type of aerosol into, on or near dryer at any time.
• Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or
product.
Failureto comply with these warnings could result in fire, explosion, serious bodily injury and/or damage to the rubber or plastic
parts of the dryer.
Protect Children
Do not allow children to play on or in the dryer. Close supervision of children isnecessary when the dryer isused near children.
As children grow, teach them the proper, safe use of all appliances.
Destroy the carton, plastic bag and other packing materials after the dryer isunpacked. Children might usethem for play. Cartons
covered with rugs, bedspreads or plastic sheets can become airtight chambers.
Keep laundry products out of children's reach. To prevent personal injury, observe all warnings on product labels.
Before the dryer is removed from service or discarded, remove the dryer door to prevent accidental entrapment.
Failure to comply with these warnings could result in serious personal injuries.
Prevent lnjury
To prevent shock hazard and assure stability during operation, the dryer must be installed and electrically grounded bya qualified
service person in accordance with local codes. Installation instructions are packed in the dryer for the installer's reference. Refer
to INSTALLATION INSTRUCTIONSfor detailed grounding procedures. If the dryer is moved to a new location, have it checked
and reinstalled by a qualified service person.
Toprevent personal injury or damage to the dryer, the electrical power cord of agasdryer must beplugged into aproperly grounded
and polarized 3-prong outlet. The third grounding prong must never be removed. Never ground the dryer to a gas pipe.
Do not use an extension cord or an adaptor plug.
3 Printedin U.S.A.

Important Safety Instructions Con 't
•ALWAYS disconnect the dryer from the electrical supply before attempting any service or cleaning. Failure to do so can result
in electrical shock or injury.
Do not use any type spray cleanser when cleaning dryer interior. Hazardous fumes or electrical shock could occur.
To prevent injury, do not reach into the dryer if the drum ismoving. Wait until the dryer has stopped completely before reaching
into the drum.
To prevent injury and damage to the dryer:
-A#repairs andservicing mustbe performedbyan autherizedservicer unless specifically recommended in this Owner's
Guide. Use only authorized factory parts.
-De nettamper with controls.
-De net install or store the dryer where it will be exposed to the weather.
A thermal limiter switch automatically turns off the motor in the unlikely event of an overheated situation (electric dryers only).
A service technician must replace the thermal limiter switch after correcting the fault.
Failure to comply with these warnings could result in serious personal injuries.
SAVE THESE INSTRUCTIONS
USE AND CARE GUIDE
Drying Procedures
Follow fabric care label instructions.
Place small items in a mesh bag.
Fill dryer drum 1/3 to 1/2 full.
Follow the guidelines below for preparing the load for drying.
Readthe Operating Instructions for operating your specific model.
Always read and fellow fabric care labels and laundry preduct labels.
To reduce the risk of fire, electrical shock, or injury to persons, read
important Safety instructions before operating th isdryer.
1, Prepare items for drying.
Dry items of similar fabric, weight and construction in the same load.
Separate dark items from light-colored items. Separate items that shed lint
from those that attract lint. If an item sheds lint, turn it inside out.
Besurebuckles, buttons and trim are heatproof and won't damage the drum
finish. Close zippers, fasten hooks and Velcro@-Iike fasteners. Tiestrings and
sashesto prevent snagging and tangling.
If possible, turn pockets inside out for even drying.
Check for stains which may not have been removed in washing. Dryer heat
may permanently set some stains. Repeat stain removal process before
drying.
Placesmall items in a mesh bag to prevent tangling and for easy removal.
2. Check that lint screen is dean and in place.
3. Load the dryer.
• The average load will fill the drum 1/3 to 1/2 full. Items need room to tumble
freely for even drying and lesswrinkling. De net overload dryer.
When drying large items, dry only 2 or 3 at a time. Fillout the load with small
and medium sized items.
For delicate or very small loads, add 2 lint-free towels for better drying, less
wrinkling, and to prevent grease stains caused by fabric softener sheets.
Do not overdry items. Overdrying can cause wrinkling, shrinkage, harshness,
and a build-up of static electricity, which can produce more lint.
If desired, add a dryer fabric softener sheet.
4. Close the dryer deer and select the cyde, temperature, dryness level and
options desired, See Operating Instructions for your specific model
information.
5. Press START te begin the cyde.
To add or remove items when the dryer isrunning open the door. The dryer
will stopwhen the door isopened. Allow the drum to come to acomplete stop
before reaching inside.
Close the door and press Start to resume the cycle.
6. When the cycle ends, remove items immediately and hang or fold.
4

Features
Place the front bar under
the lip of the lint screen opening.
End of Cycle Signal
A signal will sound at the end of the cycle and periodically during Extended Tumble
at the volume level selected. (some models)
Drum Light (some models)
A drum light will come on whenever the door isopened to illuminate the dryer drum
during loading and unloading. Closing the door turns off the light.
Reversible Dryer Door
Your dryer isequipped with a reversible door. The door can be hinged on the right or
left side. Refer to the INSTALLATIONINSTRUCTIONSfor directions on changing the
door.
Drying Rack (some models)
Use the drying rack to dry items which should not be tumble dried.
1. Open the dryer door and remove the lint screen.
2. Insert drying rack into the dryer drum. Placethe front bar under the lip of the lint
screen opening.
3. Placeitemsto be dried on top of the rack. Weight should not exceed 10 Ibs.Leave
space between items, but do not letitems hang overthe sidesor through the grids.
Do not tumble other items when using the drying rack.
4. Select Timed Dry. Use only the Air Fluff/No Heat option for items containing
plastic, foam rubber, rubber-like materials, feathers or down.
5. When items are dry, remove the rack and replace the lint screen. If lint screen is
not in place, tumbling items could enter the exhaust system and cause damage
to the dryer.
Care and Cleaning
Clean lint screen after every load.
To reduce risk of fire or serious injury to persons or property, comply
with the basic warnings listed in Important Safety Instructions and those listed
below.
• Before cleaning the dryer interior, unplug the electrical power cord to avoid
electrical shock hazards.
Do not useanytype spray cleanserwhen cleaning dryer interior. Hazardous fumes
or electrical shock could occur.
Inside
Clean the lint screen after every load. Lint build-up in the screen restricts air flow,
which causeslonger drying times. The screen islocated at the bottom of the door
opening. Remove by pulling straight up. Remove the lint and replace the screen.
CAUTION-Risk of Fire- A clothes dryer produces combustible lint, Thedryer must
be connected to an exhaust outdoors, Regularly inspect the outdoor exhaust
opening and remove anyaccumulation of lint around the outdoor exhaust opening
and in the surrounding area,
Occasionally a waxy build-up may form on the lint screenfrom using dryer-added
fabric softener sheets. Toremove this build-up, wash the lint screen inwarm, soapy
water. Drythoroughly and replace. Do not operate the dryer without the lint screen
in place.
If the dryer drum becomes stained from noncolorfast fabrics, clean the drum with
adamp cloth and amild liquid household cleanser. Removecleanserresidue before
drying the next load.
Every18 months an authorized servicershould cleanthe dryer cabinet interior and
exhaust duct. These areascancollect lint and dust over time. An excessiveamount
of lint build-up could result in inefficient drying and possible fire hazard.

Care and Cleaning con 't
\
Do not store or place laundry products on
top of dryer at any time. They can damage
the finish or controls.
Outside
• Clean the cabinetwith mild soapand water. Neveruse harsh, gritty or abrasive
cleansers.
If the cabinet becomes stained, clean with diluted chlorine bleach [1/2 cup (120
ml) in 1 quart (.95 liter) water]. Rinse several times with clear water.
Remove glue residue from tape or labelswith a mixture of warm water and mild
detergent. Or, touch residue with the sticky side of the tape or label.
When cleaning chrome parts use Windex with ammonia or any of the cleaning
items mentioned for cleaning the cabinet.
Before moving the dryer, placeastrip of cardboard or thin fiberboard under the
front leveling legsto prevent damage to floor.
Common Drying Problems
Many drying problems involve poor cleaning results, poor soil and stain removal, residues of lint and scum, and fabric
damage. Forsatisfactory drying results, follow these suggestions provided by The Soap and Detergent Association.
PROBLEM
Greasy, oily
stains
POSSIBLECAUSES
o Fabricsoftener sheet. SOLUTIONS PREVENTIVE MEASURES Add a few bath towels to small loads for
proper tumbling.
Some "silk-like" fabrics should be air dried.
Use proper drying temperature.
Place fabric softener sheet on top of load
before starting the dryer.
Rub fabric softener stains with bar
soap. Rinseand rewash.
Lint Overloading.
Overdrying causes static
electricity.
Lint screen not clean
when cycle began.
Lint is attached to "pills."
Reduce load size and rewash using
liquid fabric softener in the final rinse.
Or, add a fabric softener sheet and
tumble without heat.
Use lint brush or roller to remove lint.
Do not overload dryer.
Use fabric softener in washer or dryer to
reduce static electricity.
Remove items when they are slightly damp
to avoid overdrying.
Check that lint screen isclean and in place.
Pilling
(Fibers break
off, ball up and
cling to fabric.)
Pilling is normal with
synthetic and permanent
press fabrics. This is due
to abrasion from normal
wear.
Use a lint brush or shaver to remove
pills. Use fabric softener to lubricate fibers. When ironing, use spray starch or fabric
finish on collars and cuffs.
Turn items inside out to reduce abrasion.
Shrinking Overdrying. Irreversible condition. Follow fabric care label directions.
If shrinking is a concern, check load often.
Remove items while slightly damp and
hang or lay flat to complete drying.
Block knits into shape.
Wrinkling Overloading.
Leaving items in dryer
after cycle ends.
Reduce load size and tumble at
medium or low heat for 5-10 minutes.
Remove items immediately. Hang or
fold.
Do not overload dryer.
Remove items as soon as cycle ends.

Avoid Service Before calling for service, review this list. It may save both time and expense. The list includes
Checklist common occurrences that are not the result of defective workmanship or materials in this dryer.
0 CCURRENCE POSSIBLE CA USE SOLUTION
Dryer does notstart. Electrical power cord is not securely Make sure the plug fits tightly in wall outlet.
plugged in or plug may be loose.
House fuse blown or circuit breaker Reset circuit breaker or replace fuse.
tripped. Make sure electrical line is not overloaded and the dryer is
on a separate circuit.
Thermal limiter tripped. Call authorized service person for replacement.
Dryer runs but won't heat. There are 2 house fuses in the dryer circuit. Replace fuse.
If 1of the 2 fuses is blown, the drum may
turn but the heater will not operate.
Gas supply valve is not open (gas models). Check to make sure supply valve is open. See
INSTALLATION INSTRUCTIONSfor procedure.
Dryer does not have anough air supply to See INSTALLATION INSTRUCTIONS.
support the burner flame (gas models).
LPgas supply tank is empty or there has Refill or replace tank.
been a utility interruption of natural gas
(gas models). Dryer should heat when utility service is restored.
Drying cycle takes too long, Lint screen is clogged with lint. Make sure all lint has been removed from the dryer lint
outside ofthedryerfeels too screen before starting each cycle.
hot or smells hot. Exhaust duct requirements have not been
met. Exhaust duct must be at least 4 inches in diameter and
made of rigid or flexible metal.
When in place, the duct must have no more than four 90°
bends and must not exceed length listed in
INSTALLATION INSTRUCTIONS.
Electric dryer is connected to a 208 volt Drying time will be 20% longer than drying on a 240 volt
circuit, circuit.
Drying procedures have not been SeeDrying Procedures.
followed.
Outside exhaust hood or exhaust duct may Clean out any obstruction.
be clogged or restricted.
High humidity. Use a dehumidifier near the dryer.
Excessive wrinkling. Dryer is overloaded. Do not overload. See Drying Procedures.
Items left in dryer too long. Remove items as soon ascycle ends.
Insufficient sorting of items. SeeDrying Procedures.
Drying temperature too high. Follow fabric care label instructions.
Scratching or chipping of the
drum finish. Foreign objects such as coins, pins, clips or
buttons are inside the dryer.
Permanently attached items such as belt
buckles, zippers and fasteners may be
hitting the inside of the drum.
Always remove foreign objects from pockets before
laundering. Remove objects from drum and restart dryer.
It may be necessary to baste a scrap of material securely
around ornaments before drying to prevent scratching
and damage to the dryer.
Drum damage caused by foreign objects or permanently
attached items is not covered by the warranty.

Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux willpay
all costs, exceptas set forth below, for repairing or replacing any parts of this appliance that prove to be defective inmaterials or
workmanship when suchappliance is installed, used, and maintained in accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
1. Payment acceptance devices for commercial laundry products.
2. Products with original serial numbers that have been removed, altered or cannot be readily determined.
3. Normal wear and tear and gradual deterioration.
4. Product that has been transferred from its original owner to another party or removed outside the USA or Canada.
5. Rust on the interior or exterior of the unit.
6. Products purchased "as-is".
7. Food loss due to any refrigerator or freezer failures.
8. Damage caused at any time during shipment.
9. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances used other than in
accordancewith the provided instructions.
10. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
11. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are not
a part of the appliance when it is shipped from the factory.
12. Service calls to replace appliance light bulbs, air filters, water filters, other consumables, or knobs, handles, or other
cosmetic parts.
13. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage
expensefor service calls to remote areas, including the state of Alaska.
14. Damages to the finish of appliance and/or location that are incurred during installation, including but not limited to floors,
cabinets, walls, etc.
15. Damages caused by: services performed by unauthorized service companies; use of parts other than genuine Electrolux
parts or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse,
inadequate power supply, accidents, fires, or acts of God.
16. Labor costs after ninety (90) days from your original date of purchase incurred for product repair or replacement as provided
herein for appliances operated by a concessionaire or vendor in a trailer or other motorized vehicle or at varying locations.
DISCLAIMER OF IMPLIED WARRANTIES; LiMITATiON OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR
REPLACEMENTAS PROVIDEDHEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MER-
CHANTABILITY OR FITNESSFOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD
ALLOWED BY LAW, BUT NOT LESS THANONE YEAR. ELECTROLUX SHALL NOT BELIABLE FOR CONSEQUENTIAL OR
INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGEAND INCIDENTAL EXPENSES RESULTING FROM ANYBREACH OF
THIS WRITTEN LIMITED WARRANTY ORANY IMPLIED WARRANTY.SOME STATESAND PROVINCES DO NOTALLOW THE
EXCLU-SION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES,OR LIMITATIONS ON THE DURATION OF
IMPLIED WARRANTIES, SOTHESE LIMITATIONS OR EXCLUSIONS MAY NOTAPPLYTO YOU.THIS WRITTEN WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAYALSO HAVE OTHER RIGHTS THAT VARY FROM STATETO STATE.
If You Need Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period shouldservice be
required. If service is performed, it is in your best interest to obtain and keep all receipts. Service underthis warranty must be
obtained by contacting Electrolux at the addresses or phone numbers below.
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux willpay all
costs,except as set forth below, for repairing or replacing any parts of this appliance that prove to be defective inmaterials or
workmanship whensuch appliance is installed, used, and maintained in accordance with the provided instructions.This warranty
only applies in the USA andCanada. In the USA, your appliance is warranted by Electrolux Major Appliances North America,
a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp.
Electroluxauthorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under
this warranty mustbe performed by Electrolux or an authorizedservice company. Product features or specifications as described
or illustrated are subjectto change without notice.
USA 1.866.738.1640
Etectrolux Major Appliances North America
P.O. Box 212378Augusta, GA 30907
Canada 1.866.738.1640
Etectrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada L5V 3E4

OPERATING INSTRUCTIONS
Dry Temperature
Temperatura de secado
Medium Heat Low Heat
Temperatura Media Temperatura Baja
High Heat No Heat
Temperatura AIta No Calor
Cycle Signal
Senai de ciclo
Quiet Start Button
Silencio sa Boton de Encendido
Cool Down
Auto Dry LessDry Enfdamiento Timed Dry
Autosecado Menos Seco _ .............f_ 70 Secado nor
Regular More Dry .... T empo
Mas Seco \_J_ 60
50
Cool Down
Enfriamiento 30
DStart Enfriamiento
Empezar
Before Operating Your Dryer
Readyour dryer Owner's Guide. It has important safety and
warranty information. Italsohasmany suggestions for bestdrying
results.
Toreduce the risk of fire, electric shock, or injury
to persons, read the IMPORTANTSAFETYINSTRUCTIONSin your
dryer Owner's Guide before operating this appliance.
Operating Steps
Read Drying Procedures in your Owner's Guide. It explains
these operating steps in detail.
1. Prepare items for drying.
2. Check that lint screen is dean and in place.
3, Load the dryer, If desired, add adryer fabric softener sheet.
4. Close the dryer door.
5. Set Dry Temperature and Cycle Signal controls.
6. Turn cycle selector dockwise to desired setting.
7. Start dryer. PushStart Button for 2 seconds
8. When Cycle Signal control is on, a signal will sound at
the end of the cycle.
9. Remove ffems immediately and hang or fold.
10. Clean lint screen after every load.
Temperature Selection
Always follow directions on fabric care labels.
Toavoid fire hazard, do not useheat to dry items
containing feathers or down, foam rubber, plastics, or similarly
textured, rubber-like materials. Use No Heat setting only.
TheHIGH HEAT,MEDIUM HEAT,and LOW HEATtemperature
settings may be usedwith anycyclesetting. TheNOHEllTsetting
can be used only in the Timed Dry cycle.
The NO HEAT setting tumbles the load without heat. Use No
Heatto freshen clothing, pillows or blankets, or to dust draperies.
Cycle Selection
Turn cycle selector clockwise to desired cycle and setting.
Eachcycleendswith a cool down period. Theheat automatically
turns off and the load continues to tumble for 5-10 minutes. This
reduces wrinkling and makes items easier to handle during
unloading.
Drying time varies depending on load size,dampness of load and
fabric type. Room temperature and humidity, type of installation
and electrical voltage or gaspressure can also affect drying time.
Timed Dry Cycle
This cycle provides up to 70 minutes of drying time at the
temperature selection of your choice.
Auto Dry/Delicate Cycle
This cycle is best for permanent press, knit and delicate items.
Drying time is determined automatically at the temperature
selection of your choice.
• Medium heat issuggested for permanent press items.
• Low heat is suggested for knit and delicate items.
• Ifthe dried load cannot be removed promptly, the cycleselector
will advance to the Cool Down setting.
• Unheated tumbling continuesduring CoolDownfor40 minutes
to help reduce wrinkling.
• When the Cycle Signal ison, itwill sound briefly every 5minutes
as a reminder to remove the load.
Auto Dry/Regular Cycle
This cycle is best for cotton items that can be tumble dried.
Drying time is determined automatically at the temperature
selection of your choice. This cycle is best for items of similar
fabric, weight and construction.
• Foritems requiring more drying time, set cycleselector on More
Dry.
• Foritems requiring lessdrying time, set cycle selector on Less
Dry.
Energy Saving Tips
• Keepthe lint screen clean and exhaust the dryer correctly.
• Sort laundry properly and select proper temperature and cycle
settings. Choose an automatic dry cycle whenever possible for
accurate drying time.
• Dry only full loads. Single items and small loads usually take
longer to dry.
• Avoid overloading, adding wet itemsto apartially dry load, and
overdrying.
• Dryone load after another to take advantage of a warm dryer.
• Opening the door needlesslycauseswarm airto escape,which
prolongs drying time.
• If possible, usethe dryer on low humidity days.
• Install the dryer in an area where the room temperature is at
least 45% (7°C).

INSTALLATION INSTRUCTIONS
PRE-INSTALLATION REQUIREMENTS
Tools and Materials Required for installation:
1. Phillips head screwdriver.
2. Channel-lock adjustable pliers.
3. Carpenter's level.
4. Flat or straight blade screwdriver.
5. Duct tape.
6. Rigid or flexible metal 4 inch (10.2 cm) duct.
7. Vent hood.
8. Pipe thread sealer (Gas).
9. Plastic knife.
ELECTRICAL REQUIREMENTS
ELECTR/CDryer
CIRCUIT- Individual 30 amp. branch circuit fused with 30 amp.
time delay fuses or circuit breakers.
Use separately fused circuits for washers and dryers, and DO
NOToperate a washer and a dryer on the same circuit.
POWER SUPPLY- 3 wire or 4-wire, 240 volt, single phase, 60
Hz,Alternating Current.
POWER SUPPLYCORD KIT- 3 wire - the dryer MUSTemploy
a 3-conductor power supply cord NEMA 10-30 type SRDTrated
at 240 volt AC minimum, 30 amp., with 3 open end spade lug
connectors with upturned ends or closed loop connectors and
marked for use with clothes dryers. See ELECTRICAL
CONNECTIONSFORA 3-WIRE SYSTEM.
4 wire - The dryer MUSTemploy a 4-conductor power supply
cord NEMA 14-30 type SRDTor ST(as required) rated at 240
volt AC minimum, 30 amp., with 4 open end spade lug
connectors with upturned ends or closed loop connectors and
marked for use with clothes dryers. See ELECTRICAL
CONNECTIONSFORA 4-WIRE SYSTEM.
(Canada - 4-wire power supply cord isinstalled on dryer.)
WARNING -Risk of Shock, Appliance grounded to neutral
conductor through a link. Grounding through the neutral link is
prohibited for (1) New branch circuit installations (2) mobile
homes; (3) recreational vehicles; and (4) areaswhere local codes
do not permit grounding through the neutral, (1) disconnect the
link from the neutral, (2) use grounding terminal or lead to
ground appliance in accordance with localcodes and (3) connect
neutral terminal or lead to branch circuit neutral in usual manner
(if the appliance isto be connected by means of a cord kit, use
4-conductor cord for this purpose). USECOPPERCONDUCTOR
ONLY.
OUTLET RECEPTACLE- NEMA 10-30R receptacle to be located
so the power supply cord is accessible when the dryer is in the
installed position. (Canada - NEMA 14-30R receptacle.)
i
GASDryer 1
CIRCUIT- Individual 15 amp. branch circuit fused with a 15
amp. maximum time delay fuse or circuit breaker.
POWER SUPPLY - 3 wire, 120 volt single phase, 60 Hz,
Alternating Current.
POWER SUPPLYCORD - The dryer isequipped with a 120 volt
3-wire power cord. _,
NOTE: Do not under any
circumstances remove
grounding prong from plug.
G PRONG
EXHA LIST SYSTEM REQUIREMENTS
Use only 4 inch (10.2 cm) diameter (minimum) rigid or flexible
metal duct and approved vent hood which has a swing-out
damper(s) that open when the dryer is in operation. When the
dryer stops, the dampers automatically close to prevent drafts
and the entrance of insects and rodents. Toavoid restricting the
outlet, maintain a minimum of 12 inches (30.5 cm) clearance
between the vent hood and the ground or anyother obstruction.
The following are specific requirements for
proper and safe operation of your dryer. Failure to follow
these instructions can create excessive drying times and
fire hazards.
Do not install adothes dryer with flexible
plastic venting materials. If your present system is made up
of plastic duct or metal foil duct, replace it with a rigid or semi-
rigid metal duct. Flexibleventing materials are known to collapse,
be easily crushed and trap lint. These conditions will obstruct
clothes dryer airflow and increase the risk of fire. Ensure the
present duct is free of any lint prior to installing dryer
duct.
DO
(..........
Correct Incorrect
©
NEMA 10-30R NEMA 14-30R
DON'T
Incorrect
10

-Risk of Fire -A clothes dryer must be
exhausted outdoors. Do not exhaust dryer into a chimney__
wall, a ceiling, an attic, a crawl space or any concealed space
of a building A clothes dryer produces combustible lint. If the
dryer isnot exhausted outdoors some fine lint will be expelled
into the laundry area. An accumulation of lint in any area of the
home can create a health and fire hazard. The dryer must be
connected to an exhaust outdoors. Regularly inspect the
outdoor exhaust opening and remove any accumulation of lint
around the outdoor exhaust opening and in the surrounding
area.
Do not allow combustible materials (for
example: clothing, draperies/curtains, paper) to come in
contact with exhaust system. The dryer MUST NOT be
exhausted into a chimney, a wall, a ceiling, or any concealed
space of a building which can accumulate lint, resulting in a fire
hazard.
Exceeding the length of duct pipe or number
of elbows allowed in the "MAXIMUM LENGTH" charts can
cause an accumulation of lint in the exhaust system. Plugging
the system could create a fire hazard, aswell asincrease drying
times.
Do not screen the exhaust ends of the vent
system, nor use any screws, rivets or other fastening means
that extend into the duct and catch lint to assemble the
exhaust system. Lint can become caught in the screen, on the
screws or rivets, clogging the duct work and creating afire hazard
as well as increasing drying times. Use an approved vent hood
to terminate the duct outdoors, and sealall joints with duct tape.
All male duct pipe fittings MUSTbe installed downstream with
the flow of air.
Explosion hazard. Do not install the dryer
where gasoline or other flammables are kept or stored. If
the dryer is installed in a garage, it must be a minimum of 18
inches (45.7 cm) above the floor. Failure to do so can result in
death, explosion, fire or burns.
Number
of
90°
Turns
MAXIMUM LENGTH
of 4" (10.2 cm) Dia. Rigid Metal Duct
0
1
2
3
4
-FIRE HAZARD-
VENT HOOD TYPE
(Preferred)
__ _L°uvered
(10.2 era)
60 ft.(18.28 m)
52 ft.(15.84 m)
44 ft.(13.41 m)
32 ft.(9.75 m)
28 ft.(8.53 m)
(6.35 cm)
48 ft.(14.63 m)
40 ft.(12.19 m)
32 ft. (9.75 m)
24 ft. (7.31 m)
16 ft. (4.87 m)
INSTALL MALE FITTINGS IN CORRECT DIRECTION
In installations where the exhaust system isnot described in the
charts, the following method must be used to determine if the
exhaust system is acceptable:
1. Connect an inclined or digital manometer between the dryer
and the point the exhaust connects to the dryer.
2. Setthe dryer timer and temperature to air fluff (cool down)
and start the dryer.
3. Readthe measurement on the manometer.
4. The system back pressure MUSTNOTbe higher than 0.75
inches of water column. If the system back pressure is less
than 0.75 inches of water column, the system isacceptable.
Ifthe manometer reading ishigher than 0.75 inchesof water
column, the system is too restrictive and the installation is
unacceptable.
Although vertical orientation of the exhaust systemisacceptable,
certain extenuating circumstances could affect the performance
of the dryer:
*Only the rigid metal duct work should be used.
*Venting vertical through a roof may expose the exhaust
systemto down drafts causing an increasein vent restriction.
*Running the exhaust system through an uninsulated area
may cause condensation and faster accumulation of lint.
*Compression or crimping of the exhaust system will cause
an increase in vent restriction.
The exhaust systemshould be inspected and cleaned a minimum
of every 18 months with normal usage. The more the dryer is
used, the more often you should check the exhaust system and
vent hood for proper operation.
EXHAUST DIRECTION
All dryers shipped from the factory are set up for rear exhausting.
However, on electric dryers, exhausting can be to the right or
left side of the cabinet or the bottom of the dryer. On gasdryers,
exhausting can be to the right side of the cabinet or the bottom
of the dryer. Directional exhausting can be accomplished by
installing Exhaust Kit, P/N 131456800, available through your
parts distributor. Follow the instructions supplied with the kit.
EXHAUST DUCT LOCATING DIMENSIONS
AS OTHER SIDE
•Do not install flexible plastic or flexible foil venting material.
• If installing semi-rigid venting, do not exceed 8 ft. (2.4 m)
duct length 11

GAS SUPPLY REQUIREMENTS
Replace copper connecting pipe that is
not p/astic-coated, Stainless steel or plastic-coated brass
MUST be used,
1. Installation MUST conform with local codes, or in the
absence of local codes, with the National FuelGasCode,
ANSI Z223.1 (latest edition).
2. The gas supply line should be of 1/2 inch (1.27 cm) pipe.
3. If codes allow, flexible metal tubing may be used to
connect your dryer to the gas supply line. The tubing
MUST be constructed of stainless steel or plastic-coated
brass.
4. Thegas supply line MUSThave an individual shutoff valve.
5. A 1/8 inch (0.32 cm) N.RT. plugged tapping, accessible
for test gauge connection, MUSTbe installed immediately
upstream of the gas supply connection to the dryer.
6. The dryer MUST be disconnected from the gas supply
piping systemduring any pressuretesting of the gassupply
piping system attest pressures in excessof 1/2 psig (3.45
kPa).
7. The dryer MUST be isolated from the gas supply piping
system during any pressure testing of the gassupply
piping system at test pressures equal to or lessthan
1/2 psig (3.45 kPa).
LOCATION OF YOUR DRYER
DO NOTINSTALL YOUR DRYER:
1. In an area exposed to dripping water or outside weather
conditions.
2. In an area where it will come in contact with curtains,.
drapes, or anything that will obstruct the flow of
combustion and ventilation air.
3. On carpet. FloorMUSTbe solid with a maximum slope of
1 inch (2.54 cm).
INSTALLATION IN RECESSOR CLOSET
1. A dryer installed in a bedroom, bathroom, recessor closet,
MUSTbe exhausted outdoors.
2. No other fuel burning appliance shall be installed in the
same closet asthe Gas dryer.
3. Your dryer needsthe spacearound it for proper ventilation.
DO NOTinsta# your dryer in a closet with a solid door.
4. A minimum of 120 square inches (774.2 square cm) of
opening, equally divided at the top and bottom of the
door, is required. Air openings are required to be
unobstructed when a door is installed. A Iouvered door
with equivalent air openings for the full length of the door
is acceptable.
MINIMUM INSTALLATION CLEARANCES-Inches (cm)
SIDES REAR TOP FRONT
Alcove 0(0cm) 0(0cm)
Closet 0 (0 cm) 0 (0 cm) 1 (2.54 cm)
Closet door ventilation required: 2 Iouvered openings each
60 square inches (387 square centimeters) -- 3 inches (7.6
cm) from bottom and top of door.
This dryer MUST be exhausted outdoors.
5. The following illustrations show minimum clearance
dimensions for proper operation in a recess or closet
installation. 12
NOTE: Under counter and stack models -Oinches (0 cm)
for sides, rear, and top.
"" O"
--_,_- (Ocm)
n
II
1" (2.s4cm)
--0- 0"(0 cm)
la
II _ll4-
UNDER COUNTERINSTALLATION
If an under counter* installation isdesired, the dryer MUST
have a top sheet kit installed, P/N 131629100. Kit is available
from an authorized parts distributor.
*Custom-sized countertop isrequired.

UNDER COUNTER & STACK MODELS
ROUGH-IN DIMENSIONS
_ -[223
33/4"
(9.5 cm)
_ELECTRICCONNECTION
29/16'---_
(6.5cm)
(34.4 cm) I
©/L__
318"(0.96 cm) DIA.
GAS PiPE
UNDER
COUNTER
34 5/8"
(87.9 cm)
1"(2.54cm)
REAR VIEW
36""
(91.5cm)
DOOR OPEN 90°
D
47 1/2"
(120.7 cm)
4 3/8"
(11.1 cm) -_
OPTIONAL
VENTKNOCKOUT_,_
27'
(68.6 cm)
SIDE VIEW
J
33/4"
(9.5 cm)
MOBILE HOME INSTALLATION
1. Dryer MUST be exhausted outside (outdoors, not beneath
the mobile home) using metal ducting that will not support
combustion. Metal ducting must be 4 inches (10.16 cm)in
diameter with no obstructions. Rigid metal duct ispreferred.
2. If dryer is exhausted through the floor and area beneath the
mobile home isenclosed,the exhaust systemMUST terminate
outside the enclosure with the termination securely fastened
to the mobile home structure.
3. When installing a gas dryer into a mobile home, a provision
must be made for outside make up air. This provision isto be
not lessthan twice the area of the dryer exhaust outlet.
4. This dryer MUST be fastened to the floor. Mobile Home
Installation Kit No. 137067200 isavailable from your dealer.
5. Refer to pages 2 and 3 for other important venting
requirements.
6. Installation MUST conform to current Manufactured Home
Construction & SafetyStandard (which isa FederalRegulation
Title 24 CFR-Part 32-80) or when such standard is not
applicable, with American National Standard for Mobile
Homes. In Canada, the CSA Z240 is applicable.
The dryer is designed under ANSI Z 21.5. for
HOME USEonly.Z_
Correct
Do,
\/
Incorrect
L
Correct Incorrect
Incorrect
13

UNPACKING
1. Using the four shipping carton corner posts(two on each side), carefully
lay the dryer on its left side and remove foam shipping base.
To prevent damage, do not use the control panel as a
means to pick up or move the dryer.
NOTE: On under counter model clothes dryers, the top panel
may be removed for installation.
2. Return the dryer to an upright position.
FOAM
_KING
REVERSING DOOR SWING
Your dryer isdesigned sothe door swing may be reversedat anytime without additional
parts. Conversion is accomplished by transferring hinges to the opposite side of the
cabinet.
To change the direction of the door opening:
1. Open the dryer door. Remove the four hinge hole plugs from the left side of the
door opening. Placenearby for future installation. NOTE: You may need a plastic
knife to help pull out the plugs. Be careful not to scratch the paint.
2. Removethe four screws that secure the door hinges to the dryer front panel (see
below). NOTE: Removeone screw from eachof the two hinges first. Hold the door
firmly before removing the last two screws.
3. Rotatethe door 180° and reinstall the door hinges to the dryer front panel with the
four screws.
4. Install the four hinge hole plugs in the open screw holes on the right side of the
door opening.
ELECTRICAL INSTALLATION
REMOVE 4 SCREWS
i (ONE FROM EACH
HINGE FIRST)
The following are specific requirements
for proper and safe electrical installation of your dryer.
Failure to follow these instructions can create electrical
shock and/or a fire hazard.
Thisappliance MUSTbe properly grounded. Electricalshock
can result if the dryer is not properly grounded. Follow the
instructions in this manual for proper grounding.
Do not usean extension cord with this dryer. Someextension
cords are not designed to withstand the amounts of electrical
current this dryer utilizes and can melt, creating electrical shock
and/or fire hazard. Locatethe dryerwithin reachof the receptacle
for the length power cord to be purchased, allowing some slack
in the cord. Refer to the pro-installation requirements in this
manual for the proper power cord to be purchased.
P_ A U.L. approved strain relief must be installed onto power
cord. If the strain relief is not attached, the cord can be pulled
out of the dryer and can be cut by any movement of the cord,
resulting in electrical shock.
Do not use an aluminum wired receptacle with a copper
wired power cord and plug (or vice versa). A chemical reaction
occurs between copper and aluminum and can cause electrical
shorts. The proper wiring and receptacle is a copper wired
power cord with a copper wired receptacle.
NOTE: Dryersoperating on 208 volt power supply will havelonger
drying times than operating on 240 volt power supply.
6rounding requirements - Electric dryer (USA)
Improper connection of the equipment grounding
conductor can result in a risk of electrical shock. Check with a
licensed electrician ifyou are in doubt asto whether the appliance
isproperly grounded.
For a grounded, cord-connected dryer:
1. The dryer MUST be grounded. Inthe event of a malfunction
or breakdown, grounding will reduce the risk of electrical
shock by a path of least resistance for electrical current.
2. After you purchase and install a 3 wire or 4wire power supply
cord having an equipment-grounding conductor and a
grounding plug that matches you wiring system, the plug
MUST be plugged into an appropriate,
copper wired receptacle that is properly installed and
grounded in accordance with all local codes and ordinances.
If in doubt, call a licensed electrician.
3. DO NOT modify the plug you've installed on this appliance.
If it will not fit the outlet, have a proper outlet installed by a
qualified electrician.
For a permanently connected dryer:
1. The dryer MUST be connected to a grounded metal,
permanent wiring system; or an equipment grounding
conductor must be run with the circuit conductors and
connected to the equipment-grounding terminal or lead on
the appliance.
14

Grounding requirements -E/ectric dryer (CANADA)
ELECTRICALSHOCK HAZARD improper
connection of the equipment grounding conductor can result in
a risk of electrical shock. Check with a licensed electrician if
you are in doubt as to whether the appliance is properly
grounded.
For a grounded, cord-connected dryer:
1. The dryer MUSTbe grounded. Inthe event of a malfunction
or breakdown, grounding will reduce the risk of electrical
Grounding requirements -
Gas dryer (USA and Canada)
1. The dryer is equipped with a three-prong (grounding) plug for
your protection against shock hazard and should be plugged
directly into a properly grounded three-prong receptacle.
2. The plug must be plugged into an appropriate outlet that is
properly installed and grounded in accordance with all local
codes and ordinances. If in doubt, call a licensed electrician.
3. DO NOT modifythe plug provided with this appliance. If it will
not fit the outlet, have a proper outlet installed by a qualified
electrician.
shock by a path of least resistance for electrical current.
2. Sinceyourdryerisequippedwith a powersupplycord having
an equipment-grounding conductor and a grounding plug,
the plug must be plugged into an appropriate outlet that is
properly installed and grounded in accordance with all local
codes and ordinances. If in doubt, call a licensed electrician.
3. DO NOT modify the plug provided with this appliance. If it
will not fit the outlet, have a proper outlet installed by a
qualified electrician.
Grounding type
wall receptaclefDonotunderany
circumstances cut, {
remove or bypass the {
groundingprongfrom{
thisplug _2
Power supply cord with
3-prong grounding plug
E/ectrica/ connection (non-Canada) 3-wire cord
-ELECTRICAL SHOCK HAZARD - Failure
to disconnect power source before servicing could result in
personal injury or even death.
1. Turn off power supply to outlet.
2. Remove the screw securing the terminal block access
cover in the upper corner on the back of the dryer.
3. Install a UL-approved strain relief according to the power
cord/strain relief manufacturer's instructions in the power
cord entry hole below the access panel. At this time, the
strain relief should be loosely in place.
4. Thread an UNPLUGGED,UL-approved, 30 amp. power
cord, NEMA 10-30 type SRDT,through the strain relief.
5. Attach the power cord neutral (center wire) conductor to
the SILVERcolored center terminal on the terminal block.
Tighten the screw securely.
6. Attach the remaining two power cord outer conductors to
the outer, BRASScolored terminals on the terminal block.
Tighten both screws securely.
-ELECTRICAL SHOCKHAZARD - Do
not make a sharp bend or crimp wiring/conductor at
connections.
7. Follow manufacturer's guidelines for firmly securing the
strain relief and power cord.
8. Reinstall the terminal block cover.
3-wire
receptacle
(NEMA type
10-30R)
DO NOT remove
internal ground in a
3-wire system!
_lf moving dryer a
from 4-
wire system and installing it in a 3-wire
system, move the internal ground from the
center terminal back to the GREENscrew
next to the terminal block.
Neutral
/terminal
Electrica/ connection (non-Canada)4-wire cord
-ELECTRICAL SHOCK HAZARD - Failure to disconnect power source before servicing could result in personal
injury or even death.
1. Turn off power supply to outlet.
2. Remove the screw securing the terminal block access cover in the upper corner on the back of the dryer.
3. Install a UL-approved strain relief according to the power cord/strain relief manufacturer's instructions in the power cord
entry hole below the access panel. At this time, the strain relief should be loosely in place.
15

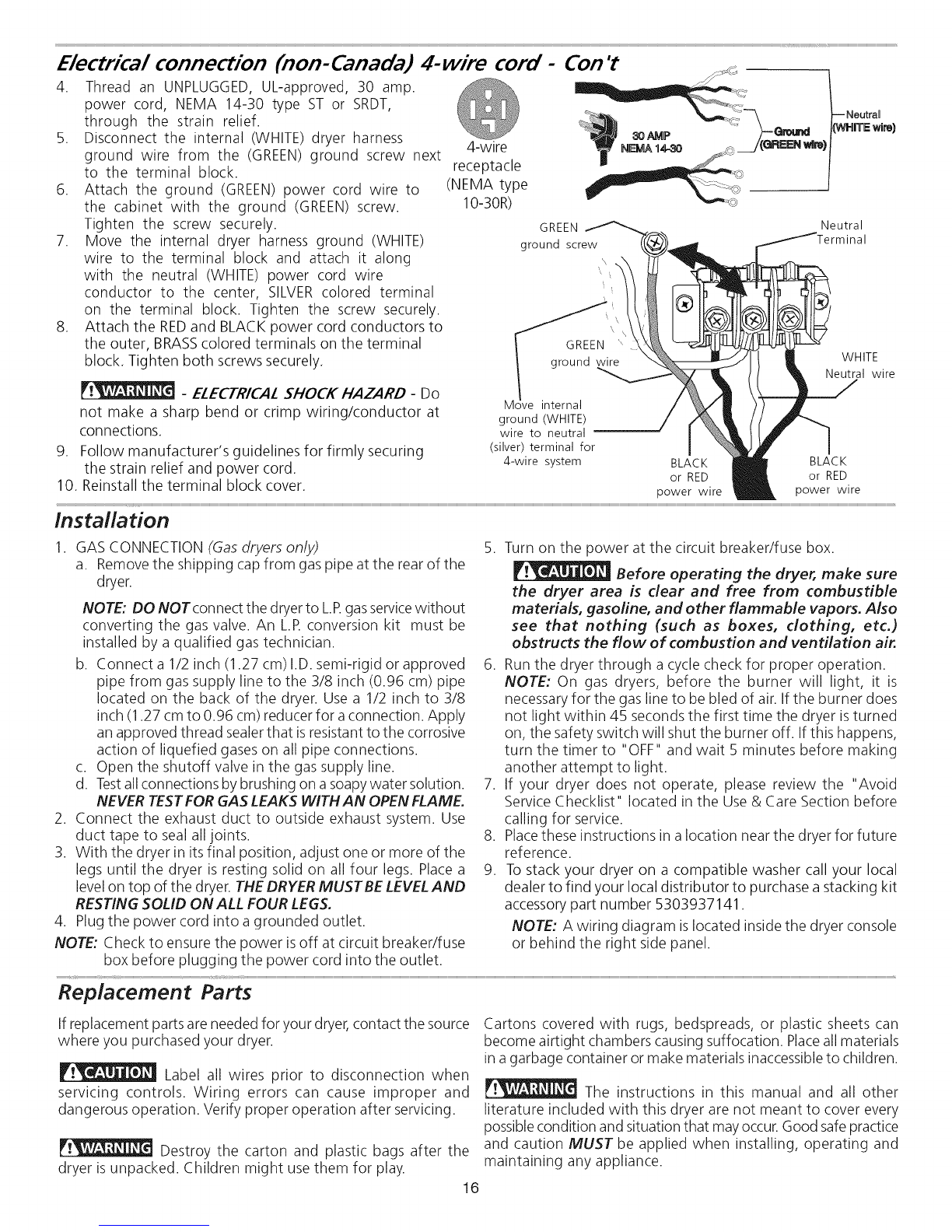

Elect#ca/connection (non-Canada) 4-wire cord- Con't
4. Thread an UNPLUGGED, UL-approved, 30 amp.
power cord, NEMA 14-30 type ST or SRDT,
through the strain relief.
5. Disconnect the internal (WHITE) dryer harness
ground wire from the (GREEN)ground screw next
to the terminal block.
6. Attach the ground (GREEN) power cord wire to
the cabinet with the ground (GREEN) screw.
Tighten the screw securely.
7. Move the internal dryer harness ground (WHITE)
wire to the terminal block and attach it along
with the neutral (WHITE) power cord wire
conductor to the center, SILVER colored terminal
on the terminal block. Tighten the screw securely.
8. Attach the REDand BLACK power cord conductors to
the outer, BRASScolored terminals on the terminal
block. Tighten both screws securely.
- ELECTRICAL SHOCK HAZARD - Do
not make a sharp bend or crimp wiring/conductor at
connections.
9. Follow manufacturer's guidelines for firmly securing
the strain relief and power cord.
10. Reinstall the terminal block cover.
4-wire
receptacle
(NEMA type
10-30R)
GREEN
ground screw
!veiniiii:wi e
ground (WHITE)
wire to neutral
(silver) terminal for
4-wire system
Neutral
WHITE
Neutral wire
BLACK BLACK
or RED or RED
power wire power wire
Installation
1. GAS CONNECTION (Gas dryers only)
a. Remove the shipping cap from gas pipe at the rear of the
dryer.
NOTE: DO NOTconnect the dryer to L.Rgasservicewithout
converting the gas valve. An L.R conversion kit must be
installed by a qualified gas technician.
b. Connect a 1/2 inch (1.27 cm)I.D, semi-rigid or approved
pipe from gas supply line to the 3/8 inch (0.96 cm) pipe
located on the back of the dryer. Use a 1/2 inch to 3/8
inch (1.27 cm to 0.96 cm) reducer for aconnection. Apply
an approved thread sealerthat isresistant to the corrosive
action of liquefied gases on all pipe connections.
c. Open the shutoff valve in the gas supply line.
d. Testallconnections by brushing on a soapywater solution.
NEVER TESTFOR GAS LEAKS WITH AN OPENFLAME.
2. Connect the exhaust duct to outside exhaust system. Use
duct tape to seal all joints.
3. With the dryer in its final position, adjust one or more of the
legs until the dryer is resting solid on all four legs. Place a
levelon top of the dryer. THE DRYERMUSTBE LEVELAND
RESTING SOLID ON ALL FOUR LEGS.
4. Plug the power cord into a grounded outlet.
NOTE: Check to ensure the power isoff at circuit breaker/fuse
box before plugging the power cord into the outlet.
5. Turn on the power at the circuit breaker/fuse box.
Before operating the dryer, make sure
the dryer area is clear and free from combustible
materials, gasoline, and other flammable vapors. Also
see that nothing (such as boxes, clothing, etc.)
obstructs the flow of combustion and ventilation air.
6. Run the dryer through a cycle check for proper operation.
NOTE: On gas dryers, before the burner will light, it is
necessary for the gas line to be bled of air. If the burner does
not light within 45 seconds the first time the dryer isturned
on, the safety switch will shut the burner off. Ifthis happens,
turn the timer to "OFF" and wait 5 minutes before making
another attempt to light.
7. If your dryer does not operate, please review the "Avoid
Service Checklist" located in the Use & Care Section before
calling for service.
8. Placethese instructions in a location near the dryer for future
reference.
9. To stack your dryer on a compatible washer call your local
dealer to find your local distributor to purchase a stacking kit
accessorypart number 5303937141.
NOTE: A wiring diagram islocated inside the dryer console
or behind the right side panel.
Replacement Parts
If replacement parts are needed for your dryer, contact the source
where you purchased your dryer.
Label all wires prior to disconnection when
servicing controls. Wiring errors can cause improper and
dangerous operation. Verify proper operation after servicing.
Destroy the carton and plastic bags after the
dryer is unpacked. Children might usethem for play. 16
Cartons covered with rugs, bedspreads, or plastic sheets can
become airtight chambers causing suffocation. Placeall materials
in a garbage container or make materials inaccessibleto children.
The instructions in this manual and all other
literature included with this dryer are not meant to cover every
possiblecondition and situation that may occur.Good safe practice
and caution MUST be applied when installing, operating and
maintaining any appliance.
