Frigidaire Madrid VWWF-1/0307 Owner's manual

Vous avez besoin d’aide? Contactez nous!
Si vous éprouvez des dicultés avec cet appareil, veuillez nous contacter
[e-mail]
ou par téléphone, lundi au vendredi 9h -17h HNE
1-888-840-9999 ou 514-631-7799
Nos représentants sont à votre disposition pour répondre à toutes les questions.
Nous pouvons vous guider lors de la première utilisation
et vous fournir des explications sur toutes les caractéristiques.
Appelez-nous ou envoyer un courriel.
Les manuels peuvent êtres téléchargés à : www.nuvatek.com
Need Assistance? Please contact us!
If you encounter any diculty with this product please email us
[e-mail]
or call us, Monday to Friday 9:00 AM to 5:00 PM EST
1-888-840-9999 or 514-631-7799
Our representatives are ready to help you with any questions.
We can guide you through rst time use and product features.
Just give us a call or send us an email.
Manuals can be downloaded at : www.nuvatek.com
DO NOT
RETURN THIS PRODUCT
TO THE STORE
NE PAS
RETOURNER CE PRODUIT
AU MAGASIN

WARRANTY
ELECTRIC FIREPLACE
LIMITED WARRANTY: This manufacturer’s product warranty extends to the original con-
sumer purchaser of the product. Neither the retailer nor any other company involved in the
sale or promotion of this product is a co-warrantor of this manufacturer warranty.
WARRANTY DURATION: All materials and workmanship are warranted to the original
consumer purchaser for a period of one (1) year from the original purchase date.
WARRANTY COVERAGE: This product is warranted against defective materials or work-
manship when used under normal conditions. This warranty is void if the product has been
damaged by accident, in shipment, unreasonable use, misuse, neglect, improper service,
commercial use, repairs by unauthorized personnel or other causes not arising out of de-
fects in materials or workmanship. There is no warranty with respect to the following, which
may be supplied with this product, including without limitation: glass parts, brackets, bulbs,
grommet etc. This warranty extends only to the original consumer purchase. This warranty
is effective only if the product is purchased and operated in the USA or Canada, and does
not extend to any units which have been used in violation of written instructions furnished
by manufacturer or to units which have been altered or modied or to damage to products
or parts thereof which have had the serial number removed, altered, defaced or rendered
illegible.
WARRANTY DISCLAIMERS: This warranty is in lieu of all warranties expressed or implied
and no representative or person is authorized to assume for manufacturer any other liability
in connection with the sale of our products. There shall be no claims for defects or failure
under any theory of tort, contractor commercial law including, but not limited to, negligence,
gross negligence, strict liability, breach of warranty and breach of contract.
WARRANTY PERFORMANCE: During the above one (1) year warranty period, a product
with a defect will be either repaired or replaced with a reconditioned comparable model (at
manufacturer’s option). The repaired or replacement product will be in warranty for the bal-
ance of the one (1) year warranty period and an additional six (6) month period. No charge
will be made for such repair or replacement.
SERVICE AND REPAIR: If service is required for an appliance, you should rst contact
Nuvatek Distribution customer service at [email protected] or by calling 1-855-286-
8688.
NOTE: Manufacturer cannot assume responsibility for loss or damage during incoming
shipment. For your protection, carefully package the product for shipment, and insure it
with the carrier. Be sure to enclose the following items with your appliance: your full name,
return address and daytime phone number; a note describing the problem you experienced;
a copy of your sales receipt or other proof of purchase to determine warranty status. C.O.D. shipments
cannot be accepted.
1 Year Limited Warranty

1
Madrid
Wide Screen Log Flame Wall Hanging Electric Fireplace
Item No: VWWF-1/0307
Read these instructions carefully before attempting to assemble, install, operate
or maintain the product. Protect yourself and others by observing all safety
information. Failure to comply with instructions could result in personal injury
and / or property damage. Retain instructions for future reference.
IMPORTANT INSTRUCTIONS & OPERATING
MANUAL

2
GENERAL SAFETY INFORMATION
When using this fireplace, basic precautions should always be taken to reduce the risk
of fire, electric shock and injury to persons, including the following:
CAUTION – Due to the high temperature, keep electrical cords, drapery and other furnishings at
least 3 feet from the front, side and rear of the fireplace.
1. Carefully read all instructions before using the fireplace and retain for future reference.
2. Remove the unit from its packaging and check to make sure it is in good condition before
use.
3. Do not let children play with any parts of the packing (such as plastic bags, etc.).
4. Check the household voltage to ensure that it matches the fireplace’s rated specification.
5. Before using the fireplace, carefully check the power cord and plug for any damage.
6. Be sure that the room is equipped with a working smoke detector.
7. Before unplugging the power cord, turn off the power. When touching the unit, keep your
hands dry to prevent electric shock.
8. Do not place the fireplace near curtains or other inflammable objects. Keep combustible
materials, such as pillows, bedding, papers, clothes, and curtains at least 3 feet away from
the front, side and rear of the fireplace.
9. Do not block air intakes or exhaust in any manner to prevent fire.
10. Do not use on soft or uneven surfaces, like a bed, where openings may become blocked.
11. Exhibit extreme caution when any fireplace is in the vicinity of children and infants.
12. Never leave children or infants unattended while the fireplace is on or plugged in.
13. When not in use, always unplug the fireplace.
14. Prevent water from entering the housing of the fireplace during operation or while in storage.
15. Always store the fireplace in a dry area free from any moisture. This fireplace is not intended
for use in bathrooms, laundry areas, or similar indoor locations. Never place the fireplace
where it may fall into a bath tub or get exposed to water in any way.
16. Do not use in places where gasoline, paint, or other inflammable liquids are used or stored.
17. Do not run the cord under carpets. Do not cover the cord with throw rugs, runners, or similar
products. Arrange the cord away from traffic areas such that it will not be tripped over by
anyone.
18. Do not operate any fireplace with a damaged cord, a damaged plug, after the fireplace
malfunctions, or if it has been dropped or damaged in any manner. Return the fireplace to
an authorized service facility for examination, electrical or mechanical adjustment, or repair.
19. Do not insert fingers or allow foreign objects to enter any ventilation or exhaust opening as
this may lead to an electric shock or fire, or may even damage the fireplace.
20. This fireplace becomes hot during use. To avoid burns, do not let bare skin touch hot
surfaces. If necessary, use the handles when moving this fireplace.
21. Use this fireplace only as described in this manual. Any other uses not recommended by the
manufacturer may cause fire, electric shock, or personal injury and may void warranty
privileges.
22. Always plug fireplaces directly into a wall outlet. Never use an extension cord, power strip,
surge protector, multiple outlet adapter, cord reel or outlet-type air freshener. The use of
such devices creates a fire hazard.
23. Faulty wall outlet connections may cause the wall outlet to overheat. Be sure that the
fireplace plug properly fits into the outlet before each use. During use, make sure the
fireplace plug does not overheat. If necessary, have a qualified electrician check and / or
replace the wall outlet.
24. Do not place the fireplace near a bed for objects such as pillows or blankets can fall off the

3
bed and be ignited by the fireplace.
25. Never clean this fireplace while it is plugged in. To disconnect, turn control to OFF, then
remove the plug from the outlet. Never pull the cord. Always hold the plug firmly and then
remove from the outlet.
26. This fireplace is intended for supplemental heat and / or decorative purposes. Continuous
use for several hours can impact the performance and life of the fireplace.
27. It is not intended to be used in commercial, industrial or agricultural settings.
28. Do not use outdoors.
Getting Started
•Remove the fireplace from the box.
•Remove the packaging. Place it inside the box or safely dispose elsewhere.
Package Contents
•Electric Fireplace
•Screws and Screw Anchors
•Remote Control
•Instruction Manual
Features
•Wide screen wall mount fireplace
•Soothing, mesmerizing wooden log flame effect
•Dual heat setting (750Watts / 1500Watts)
•Built-in timer
•Flames operate with & without heat
•Adjustable flame brightness
•Heat resistant tempered glass panel
•Built-in overheating protection, auto safety shut-off
•1500 Watts
Quick Reference Guide
•Prior to installation, please ensure that the voltage and capacity of your power outlet is
compatible with your fireplace.
•Your fireplace may emit a slight, harmless odor during its first use. This odor is a normal
reaction caused by the initial heating of internal fireplace parts and it will not occur again.
•It is normal for fireplace to make a rattling sound for a short duration of time during its
first use.
•If your fireplace does not emit heat, please ensure the fireplace switch is on. For further
information, please refer to the Troubleshooting section of this manual.

4
Helpful Advice Before Installation
•Please retain all packaging until you have checked and counted all the parts and other
package contents.
•The package contains small apparatus which should be kept away from young children
and infants.
•We suggest that you move all the smaller parts into a container to reduce the risk of
losing them.
•At least 2 people are required to install this fireplace.
•It is recommended to place your fireplace near an existing outlet, for ease of electric
connection.
•Store your fireplace in a dry, safe and dust-free place while drilling, for fireplace
installation.
•Do not attempt to wire new outlets or circuits. To reduce the risk of fire, electric shock or
injury to persons, always have a licensed electrician perform maintenance and other
repairs.

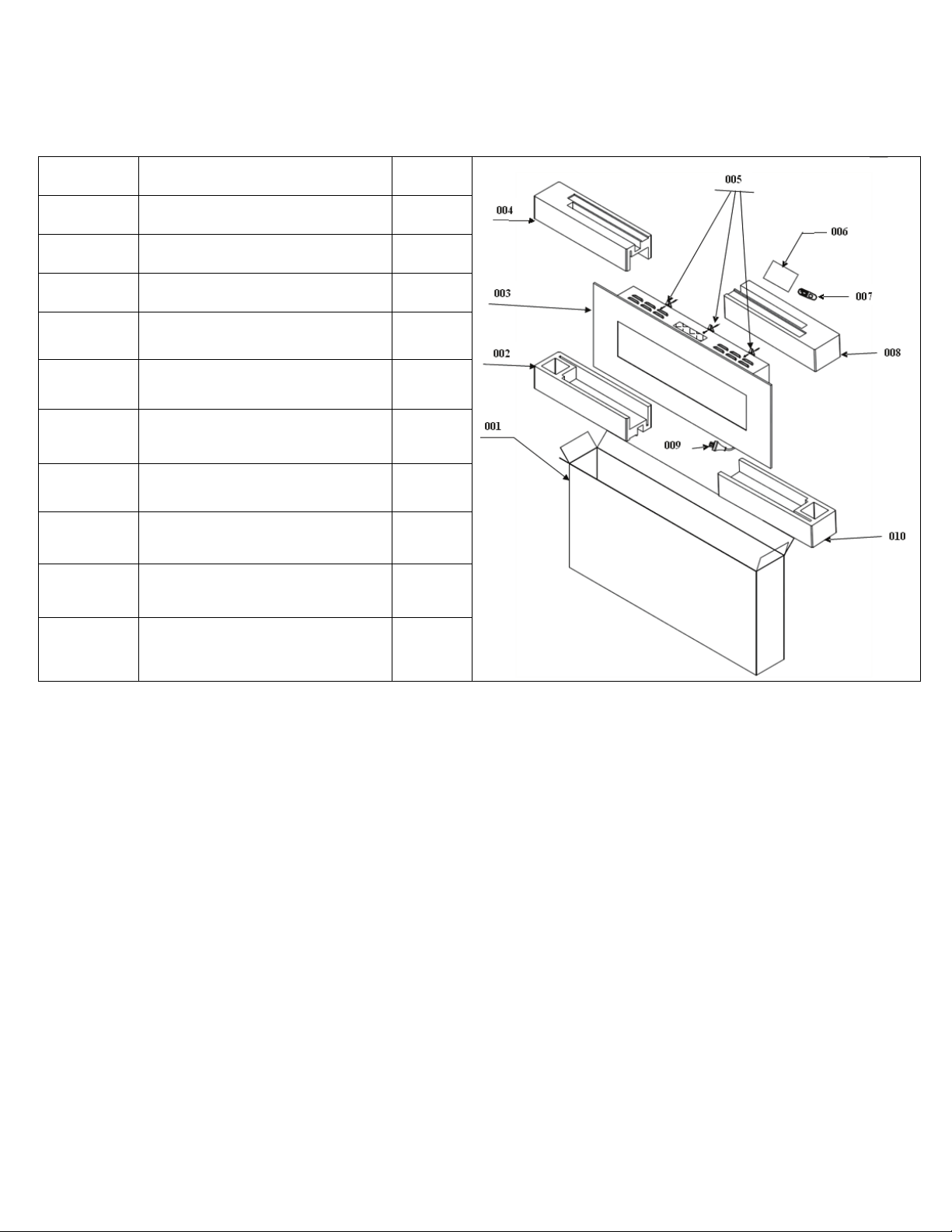

Sr. No Item Description Quantity
001 Carton 1
002 Foam Protection (Left Bottom) 1
003 Electric Fireplace 1
004 Foam Protection (Left Top) 1
005 Mounting Screws and Wall Plugs
ST5x40
6
006 Instruction Manual 1
007 Remote Control 1
008 Foam Protection (Right Top) 1
009 Cable Plug 1
010 Foam Protection (Right Bottom) 1

5
Tools Needed
•Power drill
•Screwdriver
Installation
•Do not connect the fireplace to the power supply until properly fixed to the wall and the
instructions are carefully read.
•Make sure the area to be drilled does not have any hidden electrical wires or water and
gas pipes.
•The minimum distances must be observed as shown in the diagrams below.
•During installation of the fireplace, avoid any possible damage to concealed cables.
•Please be careful when drilling holes.
•This fireplace is designed to be permanently fixed to a wall. Choose a wall that is sturdy
enough to hold the weight of the fireplace such as a brick or cinder block wall. If
positioning on drywall, it must be fixed to studs. If you are not sure if the wall is stable
enough, then consult a hardware expert. The wall bracket must be fixed horizontally
with the cable routed to the bottom right of the fireplace.

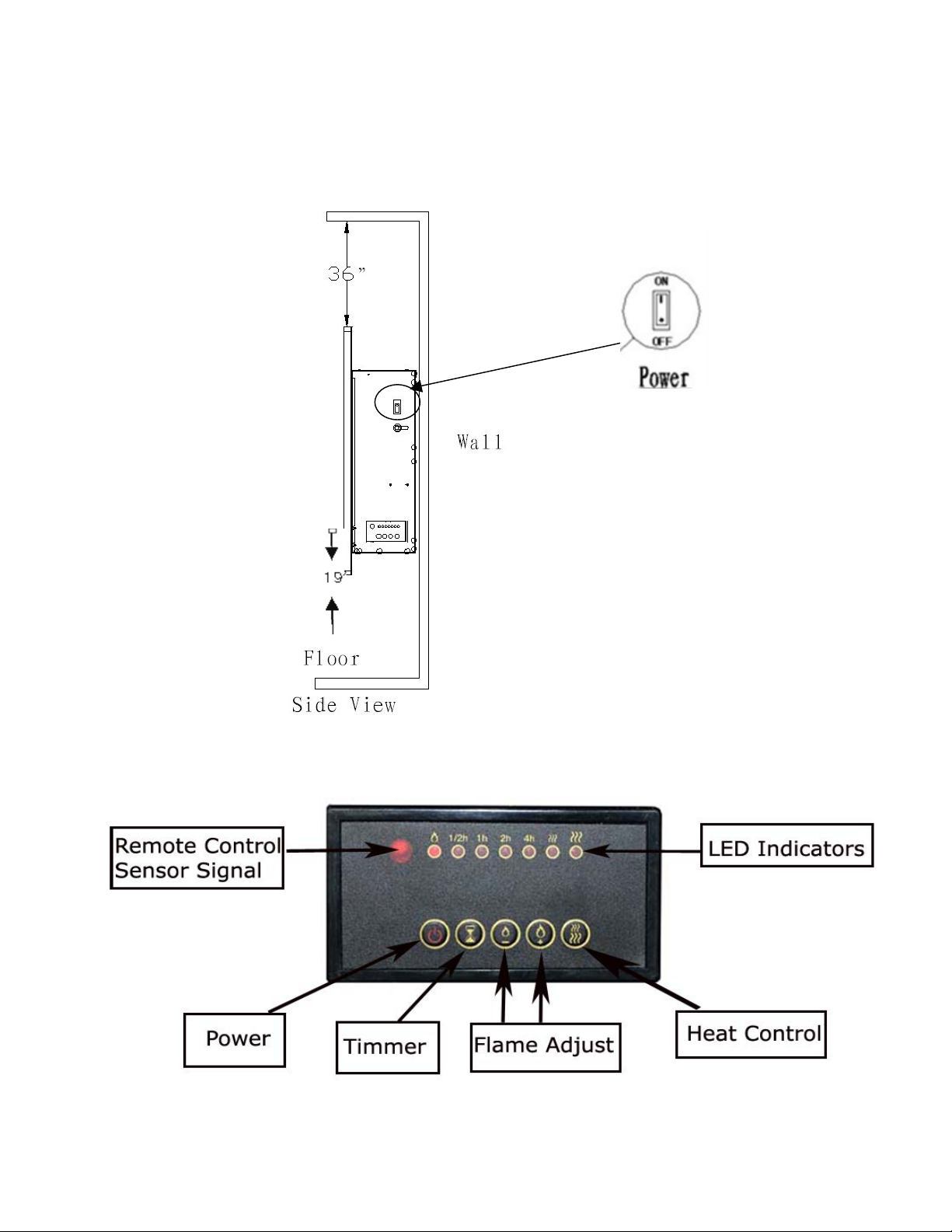

•For optimum viewing of the fuel bed, it is recommended that there be a distance of 2 feet
from the bottom of the fireplace relative to the floor (see figure for recommended fixed
dimensions).
19”
Floor

6
Step One
•Keep the top of the fireplace at least 3 feet away from the ceiling or other objects for
optimum heat ventilation.

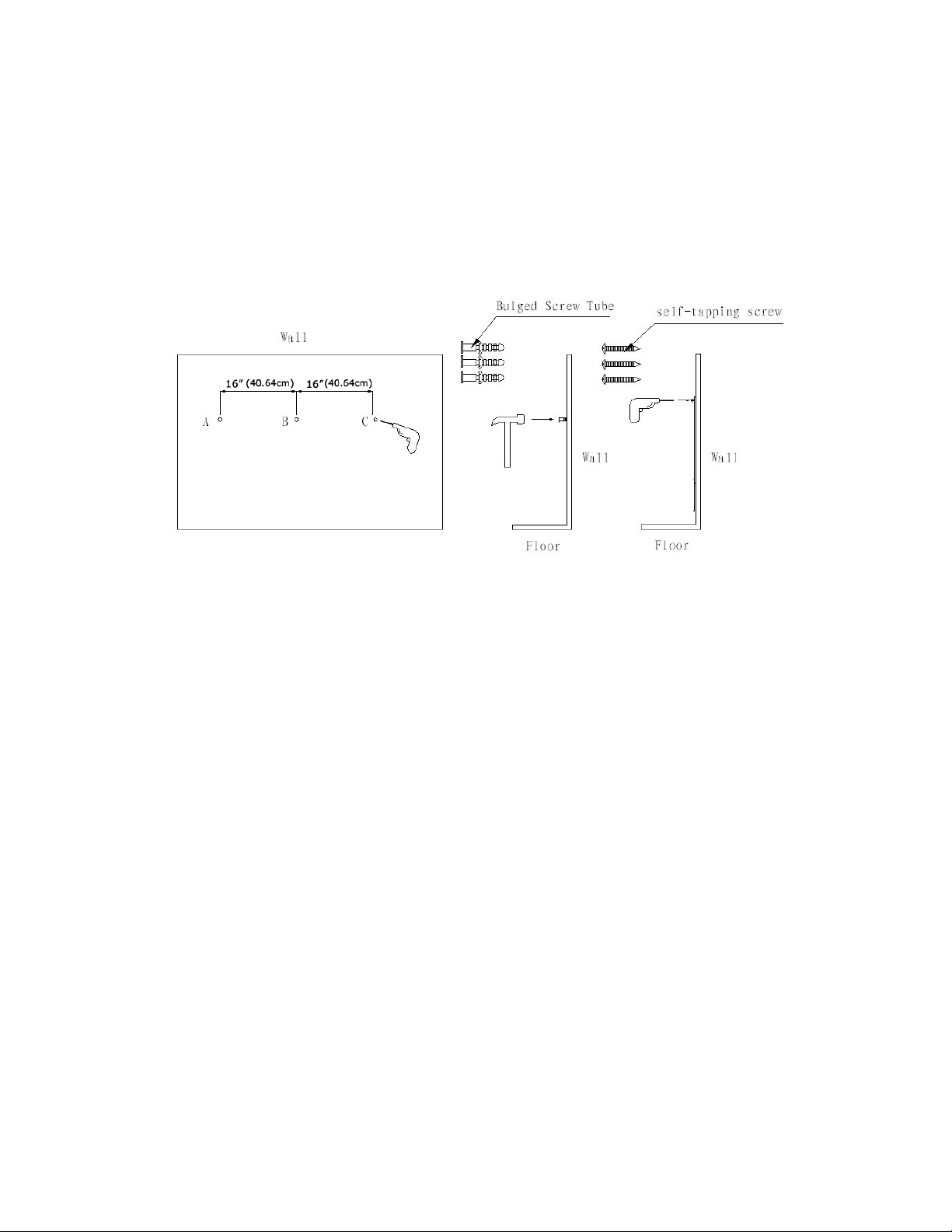

•For optimum viewing, place four marks on the wall with respect to the recommended
fixed dimensions for the top screws (see figure below).
•Note: use a level when marking the positions of the holes to ensure that the bracket is
mounted horizontally.
Step Two
•Make sure the area to be drilled does not have any hidden electrical wires or water and
gas pipes.
•The wall fixings provided is for concrete walls only; please use suitable fixings for your
wall type. If in doubt, contact a qualified hardware expert.
•Place the three bulged screw tubes into the drilled holes and then screw in the self-
tapping screws. Screw the extended wooden screws into the 0.20” screw anchors so
they protrude out of the wall to angle the fireplace. Make sure that the screws are
secured in place.
•Have 2 people lift the fireplace and hook it onto the mounted bracket.
•Check the fireplace for stability to see if it is securely mounted.
Instructions for Use

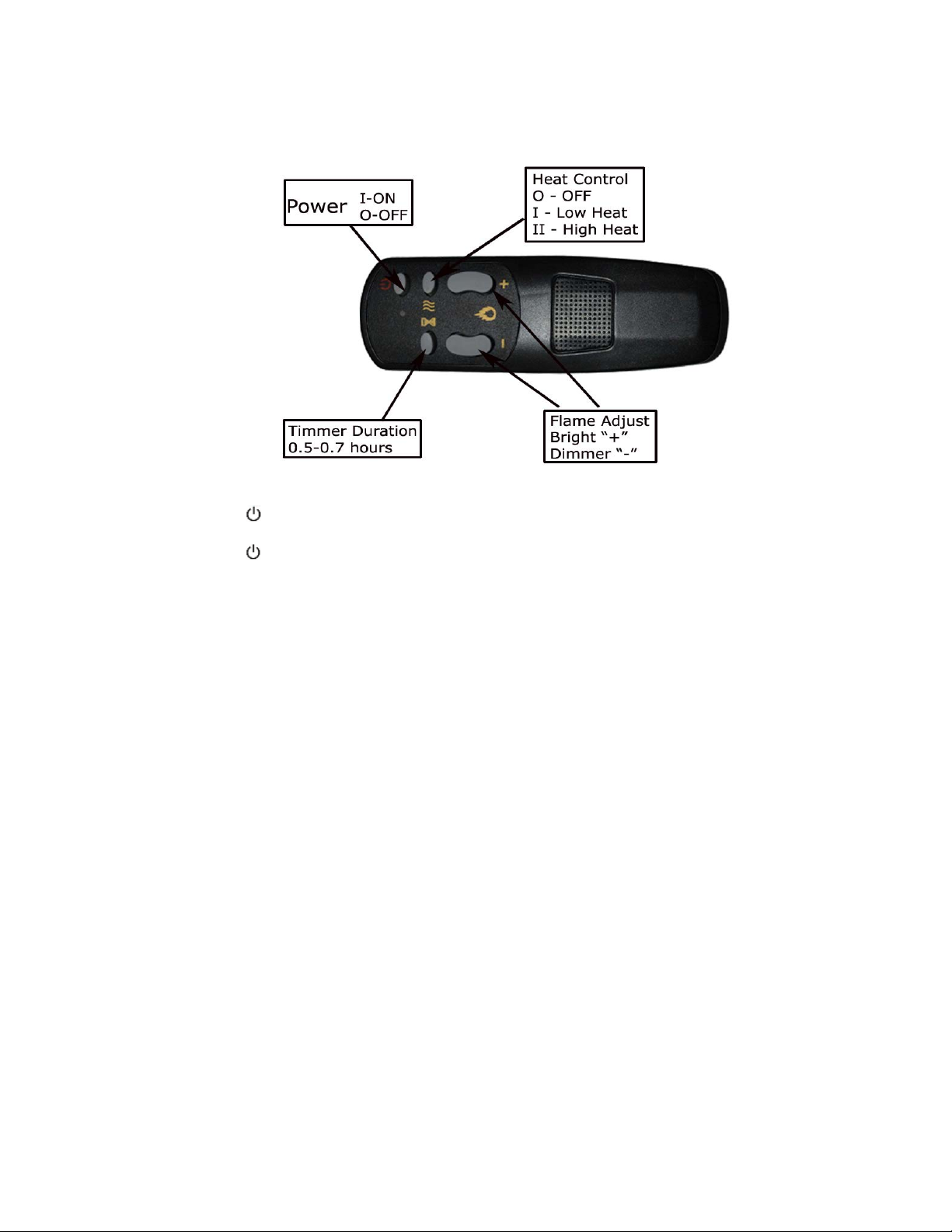

This fireplace can be operated either by the switches located on the right side panel of
the fireplace or the supplied remote control.

7
Turning On
•Plug the fireplace into a power outlet.
•Turn on the power switch which is located on the right side of the fireplace.
Description of Control Panel

8
Description of Remote Control
Power Switch
•Plug the fireplace into a power outlet. The fireplace is now in Standby mode.
•Press the
Plug the fireplace into a power outlet. T
button once to turn on the fireplace and flame effect. An indicator light will
light up to indicate that the function is on. This will also turn on the flame effect.
•Press the button once to turn off the flame effect. This will put the fireplace back into
Standby mode.
Heat Control
•Press the “Heat Control” button once for the low heat setting. Ten seconds later, the
fireplace will begin to dispense warm air (750W).
•Press the “Heat Control” button again to have the fireplace dispense hot air (1500W).
•Press the “Heat Control” button again, and after ten seconds the heat will turn off.
Simulate Flames
•Press either the +or -button to brighten or dim the flames.
Timer
•Press the “Timer” button to set the fireplace to turn off after certain duration of time.
Timer duration ranges from 0.5hrs to 7.5hrs. The LED indicator lights up when the
fireplace is in Timer mode.
Note: All of the above functions can be operated by either the Control Panel or the Remote Control.
Remote Control
•The remote control requires 2 AAA batteries, which are not included.
•Point the remote control directly at the fireplace.
•The range is about 11.5 feet.

9

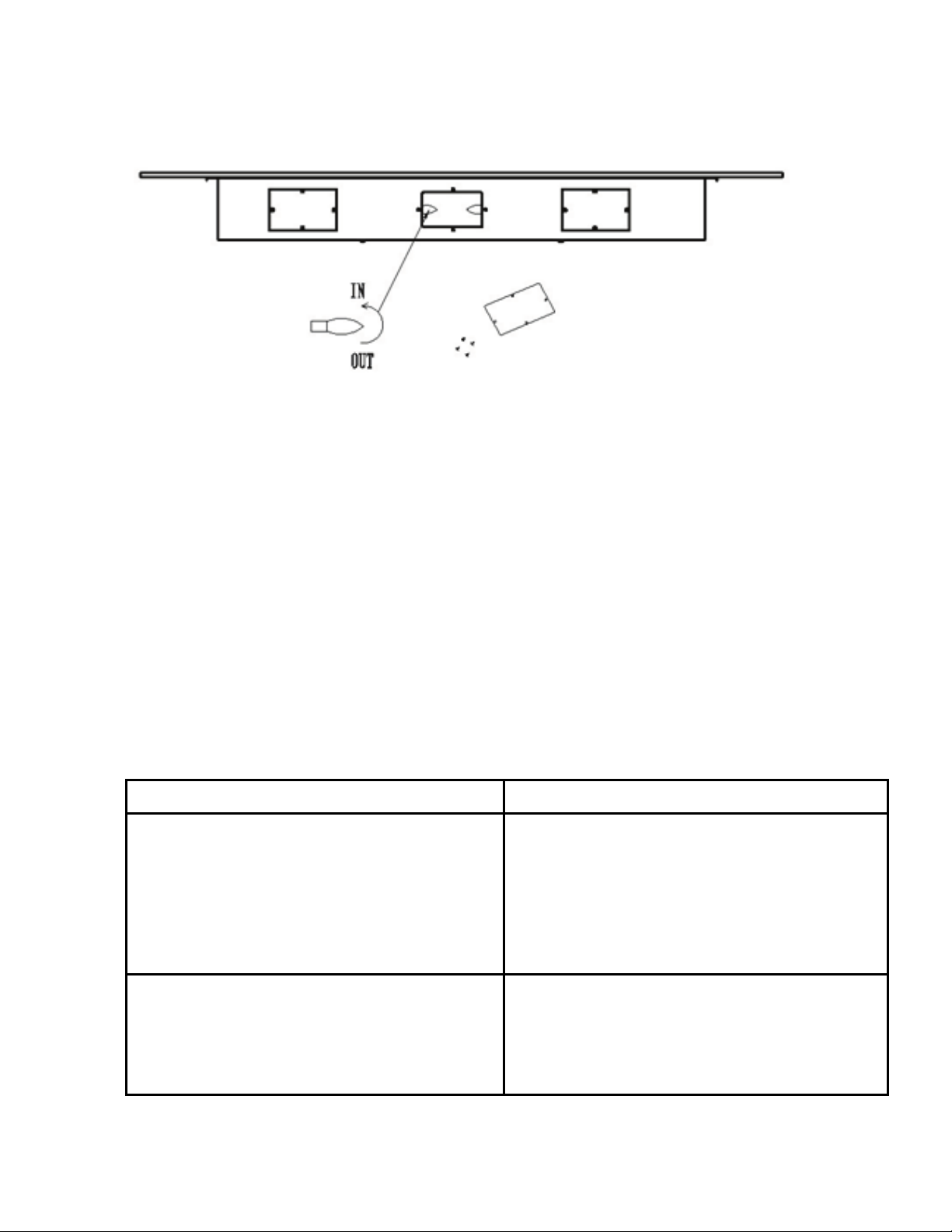

Replacing the Light Bulb
•This fireplace consists of 4 bulbs (E-12, 40W) that illuminate a flame effect. The light
bulbs need to be replaced if you notice a dark section of the flame or when the flames
lose clarity.
•Warning - Always disconnect from the power outlet before removing bulbs to reduce the
risk of fire, electric shock or damage to property.
•Warning - The bulb reaches high temperatures during operation. Allow it to cool down
before replacing it.
•This process requires 2 people.
•Un-mount the fireplace and carefully lay it flat on the floor.
•Access the bulb by removing the four screws located on the back panel.
•Replace the bulb with a new one. Extra caution should be taken because the bulb can
be hot.
•Close the panel lid using screws.
•Warning – Do not use fireplace without properly putting the lid back in place.
•For assembly, reverse this process.
Troubleshooting
Problem
Possible Solution
Unit does not work / does not heat
!
Check if the unit is plugged in the power
outlet.
!
Check if the unit is in Standby mode. If so,
turn the unit ON.
!Check if the heat is turned OFF.
!Check for safety cut-off operation.
No flame effect
!
Check if the unit is plugged in the power
outlet.
!
Check if the unit is in Standby mode. Turn
the unit ON.

10
Cleaning & Maintenance
•Disconnect from the power supply before attempting any maintenance or cleaning in
order to reduce the risk of fire, electric shock to persons or damage to property.
•Warning - Always disconnect from the power supply before cleaning fireplace.
•For general cleaning, use a soft, clean duster. Never use abrasive cleaners. The glass
viewing screen should be cleaned thoroughly with a soft cloth. Do NOT use proprietary
glass cleaners.
•Periodically check all fixings and tighten if necessary.
Technical Specification
•Supply: 110-120V, 60Hz
•Rated Power: 1500W
•Bulb: 4 x 40W E12
