Frigidaire Valencia Owner's manual

1
Valencia
Wide Screen Log Flame Wall Hanging Electric Fireplace
Item No: VWWF-1/0306
Read these instructions carefully before attempting to assemble, install, operate or maintain
the product. Protect yourself and others by observing all safety information. Failure to comply
with instructions could result in personal injury and / or property damage. Retain instructions
for future reference.
IMPORTANT INSTRUCTIONS & OPERATING MANUAL

2
GENERAL SAFETY INFORMATION
When using this fireplace, basic precautions should always be taken to reduce the risk of fire, electric
shock and injury to persons, including the following:
CAUTION –Due to the high temperature, keep electrical cords, drapery and other furnishings at least 3
feet from the front, side and rear of the fireplace.
1. Carefully read all instructions before using the fireplace and retain for future reference.
2. Remove the unit from its packaging and check to make sure it is in good condition before use.
3. Do not let children play with any parts of the packing (such as plastic bags, etc.).
4. Check the household voltage to ensure that it matches the fireplace’s rated specification.
5. Before using the fireplace, carefully check the power cord and plug for any damage.
6. Be sure that the room is equipped with a working smoke detector.
7. Before unplugging the power cord, turn off the power. When touching the unit, keep your hands dry
to prevent electric shock.
8. Do not place the fireplace near curtains or other inflammable objects. Keep combustible materials,
such as pillows, bedding, papers, clothes, and curtains at least 3 feet away from the front, side and
rear of the fireplace.
9. Do not block air intakes or exhaust in any manner to prevent fire.
10. Do not use on soft or uneven surfaces, like a bed, where openings may become blocked.
11. Exhibit extreme caution when any fireplace is in the vicinity of children and infants.
12. Never leave children or infants unattended while the fireplace is on or plugged in.
13. When not in use, always unplug the fireplace.
14. Prevent water from entering the housing of the fireplace during operation or while in storage.
15. Always store the fireplace in a dry area free from any moisture. This fireplace is not intended for use
in bathrooms, laundry areas, or similar indoor locations. Never place the fireplace where it may fall
into a bath tub or get exposed to water in any way.
16. Do not use in places where gasoline, paint, or other inflammable liquids are used or stored.
17. Do not run the cord under carpets. Do not cover the cord with throw rugs, runners, or similar
products. Arrange the cord away from traffic areas such that it will not be tripped over by anyone.
18. Do not operate any fireplace with a damaged cord, a damaged plug, after the fireplace malfunctions,
or if it has been dropped or damaged in any manner. Return the fireplace to an authorized service
facility for examination, electrical or mechanical adjustment, or repair.
19. Do not insert fingers or allow foreign objects to enter any ventilation or exhaust opening as this may
lead to an electric shock or fire, or may even damage the fireplace.
20. This fireplace becomes hot during use. To avoid burns, do not let bare skin touch hot surfaces. If
necessary, use the handles when moving this fireplace.
21. Use this fireplace only as described in this manual. Any other uses not recommended by the
manufacture may cause fire, electric shock, or personal injure and may void warranty privileges.
22. Always plug fireplaces directly into a wall outlet. Never use an extension cord, power strip, surge
protector, multiple outlet adapter, cord reel or outlet-type air freshener. The use of such devices
creates a fire hazard.

3
23. Faulty wall outlet connections may cause the wall outlet to overheat. Be sure that the fireplace plug
properly fits into the outlet before each use. During use, make sure the fireplace plug does not
overheat. If necessary, have a qualified electrician check and / or replace the wall outlet.
24. Do not place the fireplace near a bed for objects such as pillows or blankets can fall off the bed and
be ignited by the fireplace.
25. Never clean this fireplace while it is plugged in. To disconnect, turn control to OFF, then remove the
plug from the outlet. Never pull the cord. Always hold the plug firmly and then remove from the
outlet.
26. This fireplace is intended for supplemental heat and / or decorative purposes. Continuous use for
several hours can impact the performance and life of the fireplace.
27. It is not intended to be used in commercial, industrial or agricultural settings.
28. Do not use outdoors.
Getting Started
Remove the fireplace from the box.
Remove the packaging. Place it inside the box or safely dispose elsewhere.
Package Contents
Electric Fireplace
Screws and Screw Anchors
Remote Control
Instruction Manual
Features
Wide screen wall mount fireplace
Soothing, mesmerizing wooden log flame effect
Dual heat setting (750Watts / 1500Watts)
Built-in timer
Flames operate with & without heat
Adjustable flame brightness
Heat resistant tempered glass panel
Built-in overheating protection, auto safety shut-off
1500 Watts
Quick Reference Guide
Prior to installation, please ensure that the voltage and capacity of your power outlet is
compatible with your fireplace.
Your fireplace may emit a slight, harmless odor during its first use. This odor is a normal reaction
caused by the initial heating of internal fireplace parts and it will not occur again.
It is normal for fireplace to make a rattling sound for a short duration of time during its first use.
If your fireplace does not emit heat, please ensure the fireplace switch is on. For further
information, please refer to the Troubleshooting section of this manual.

4
Helpful Advice Before Installation
Please retain all packaging until you have checked and counted all the parts and other package
contents.
The package contains small apparatus which should be kept away from young children and
infants.
We suggest that you move all the smaller parts into a container to reduce the risk of losing them.
At least 2 people are required to install this fireplace.
It is recommended to place your fireplace near an existing outlet, for ease of electric connection.
Store your fireplace in a dry, safe and dust-free place while drilling, for fireplace installation.
Do not attempt to wire new outlets or circuits. To reduce the risk of fire, electric shock or injury
to persons, always have a licensed electrician perform maintenance and other repairs.
Tools Needed
Power drill
Screwdriver
Sr. No
Item Description
Quantity
001
Carton
1
002
Electric Fireplace
1
003
Foam Protection (Left)
1
004
Mounting Screws and Screw
Tube ST5x40
6
005
Instruction Manual
1
006
Remote Control
1
007
Cable Plug
1
008
Foam Protection (Right)
1

5
Installation
Do not connect the fireplace to the power supply until properly fixed to the wall and the
instructions are carefully read.
Make sure the area to be drilled does not have any hidden electrical wires or water and gas
pipes.
The minimum distances must be observed as shown in the diagrams below.
During installation of the fireplace, avoid any possible damage to concealed cables.
Please be careful when drilling holes.
This fireplace is designed to be permanently fixed to a wall. Choose a wall that is sturdy enough
to hold the weight of the fireplace such as a brick or cinder block wall. If positioning on drywall,
it must be fixed to studs. If you are not sure if the wall is stable enough, then consult a hardware
expert. The wall bracket must be fixed horizontally with the cable routed to the bottom right of
the fireplace.

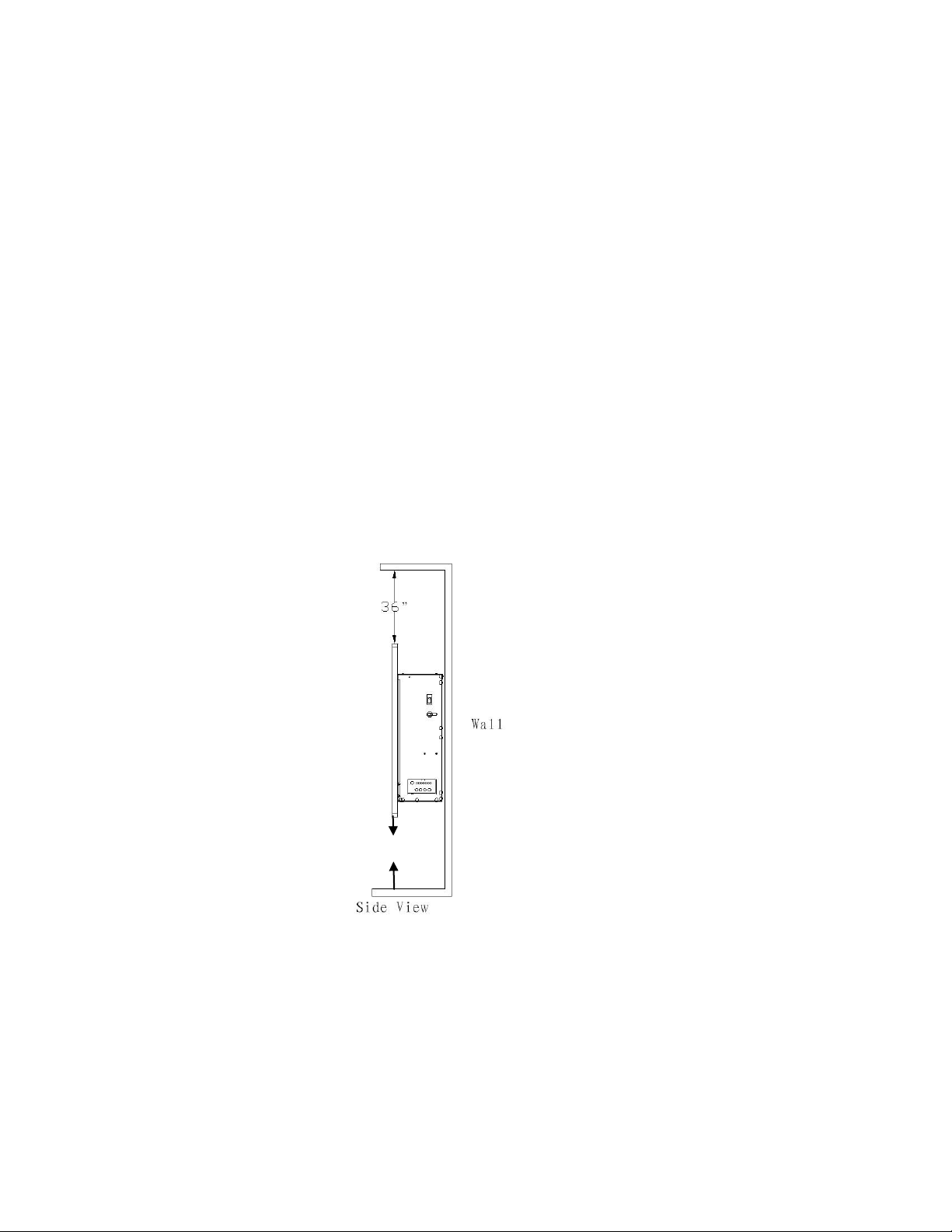

For optimum viewing of the fuel bed, it is recommended that there be a distance of 2 feet from
the bottom of the fireplace relative to the floor (see figure for recommended fixed dimensions).
19”
Floor

6
Step One
Keep the top of the fireplace at least 3 feet away from the ceiling or other objects for optimum
heat ventilation.

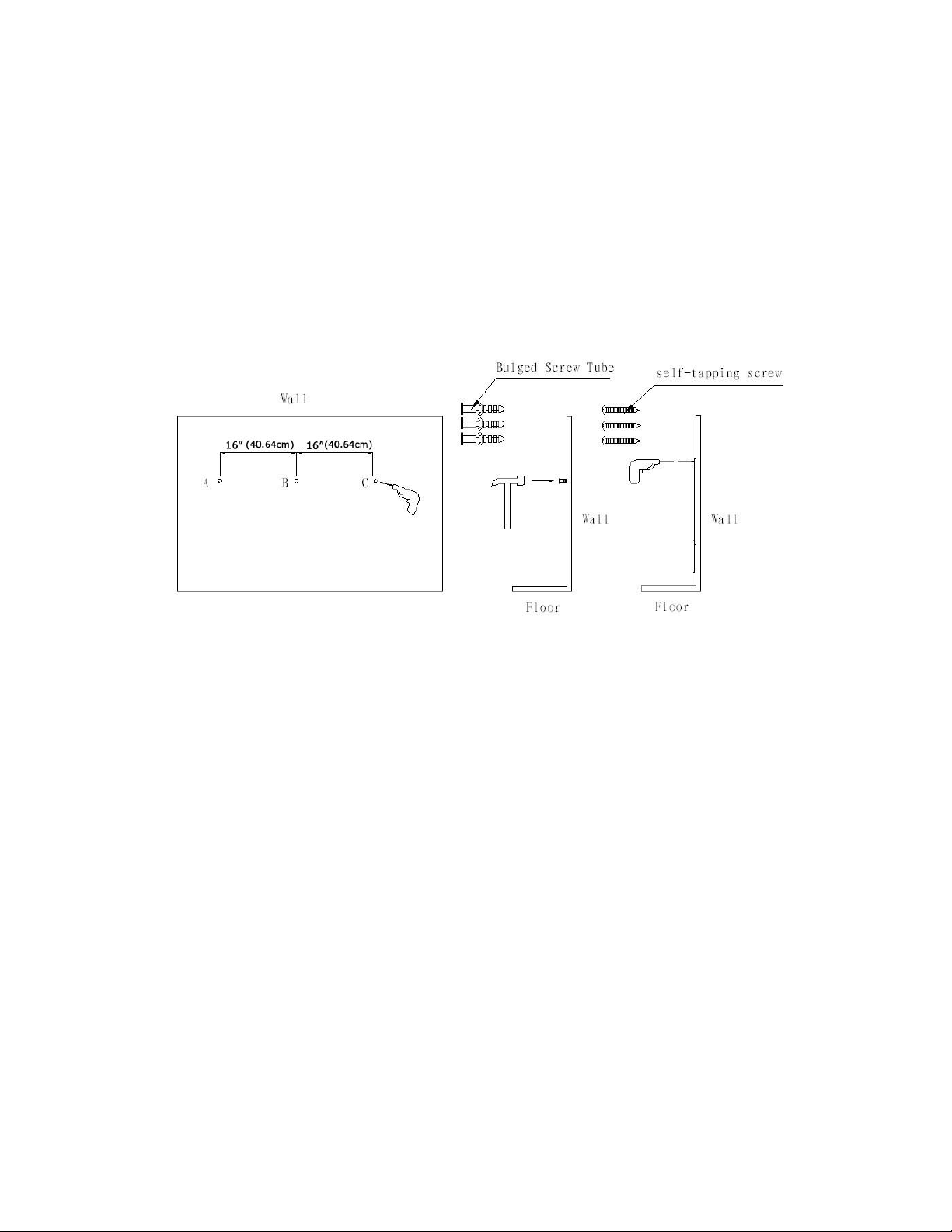

For optimum viewing, place four marks on the wall with respect to the recommended fixed
dimensions for the top screws (see figure below).
Note: use a level when marking the positions of the holes to ensure that the bracket is mounted
horizontally.
Step Two
Make sure the area to be drilled does not have any hidden electrical wires or water and gas
pipes.
The wall fixings provided is for concrete walls only; please use suitable fixings for your wall type.
If in doubt, contact a qualified hardware expert.
Place the three bulged screw tubes into the drilled holes and then screw in the self-tapping
screws. Screw the extended wooden screws into the 0.20” screw anchors so they protrude out
of the wall to angle the fireplace. Make sure that the screws are secured in place.
Have 2 people lift the fireplace and hook it onto the mounted bracket.
Check the fireplace for stability to see if it is securely mounted.
Instructions for Use
This fireplace can be operated either by the switches located on the right side panel of the
fireplace or the supplied remote control.

7

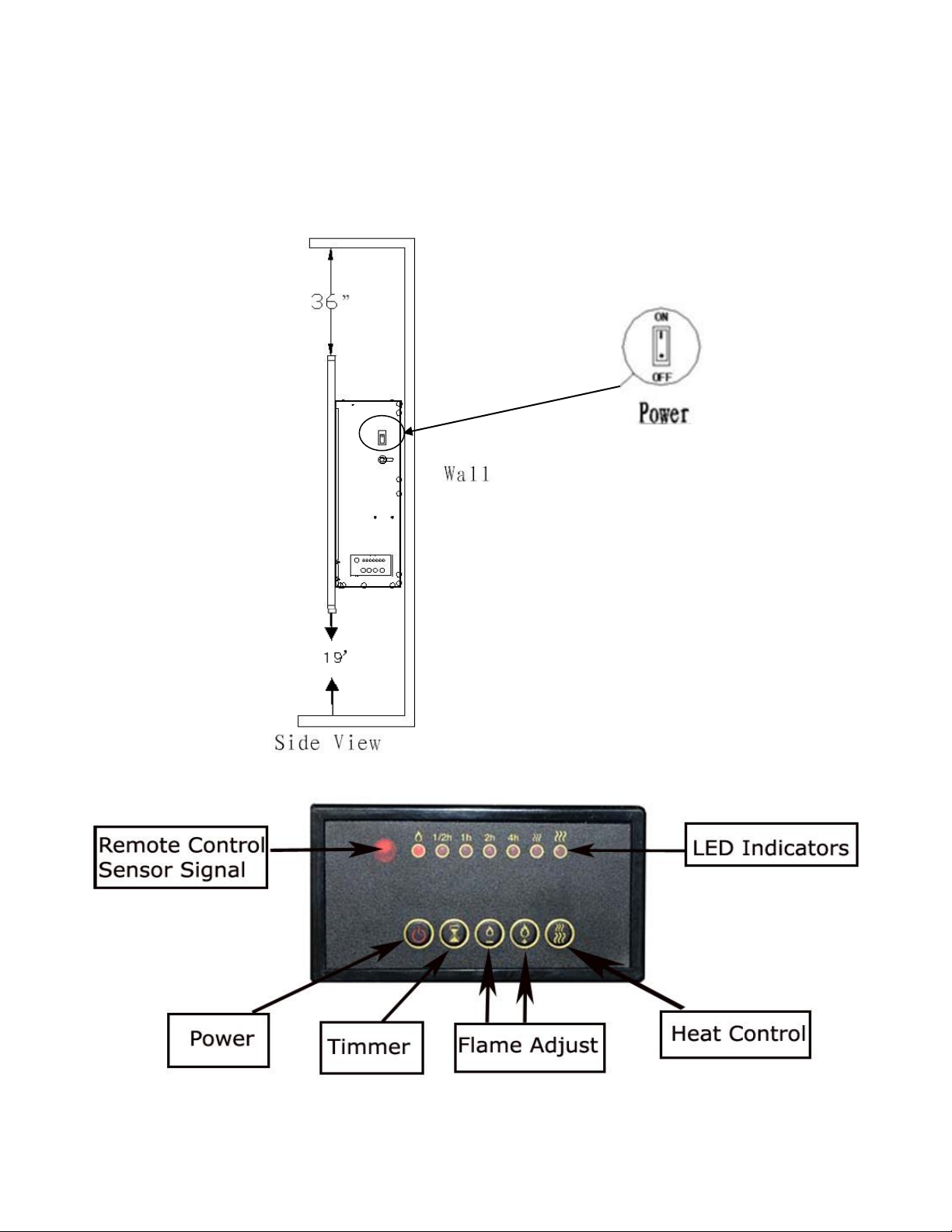

Turning On
Plug the fireplace into a power outlet.
Turn on the power switch which is located on the right side of the fireplace.
Floor
Description of Control Panel

8

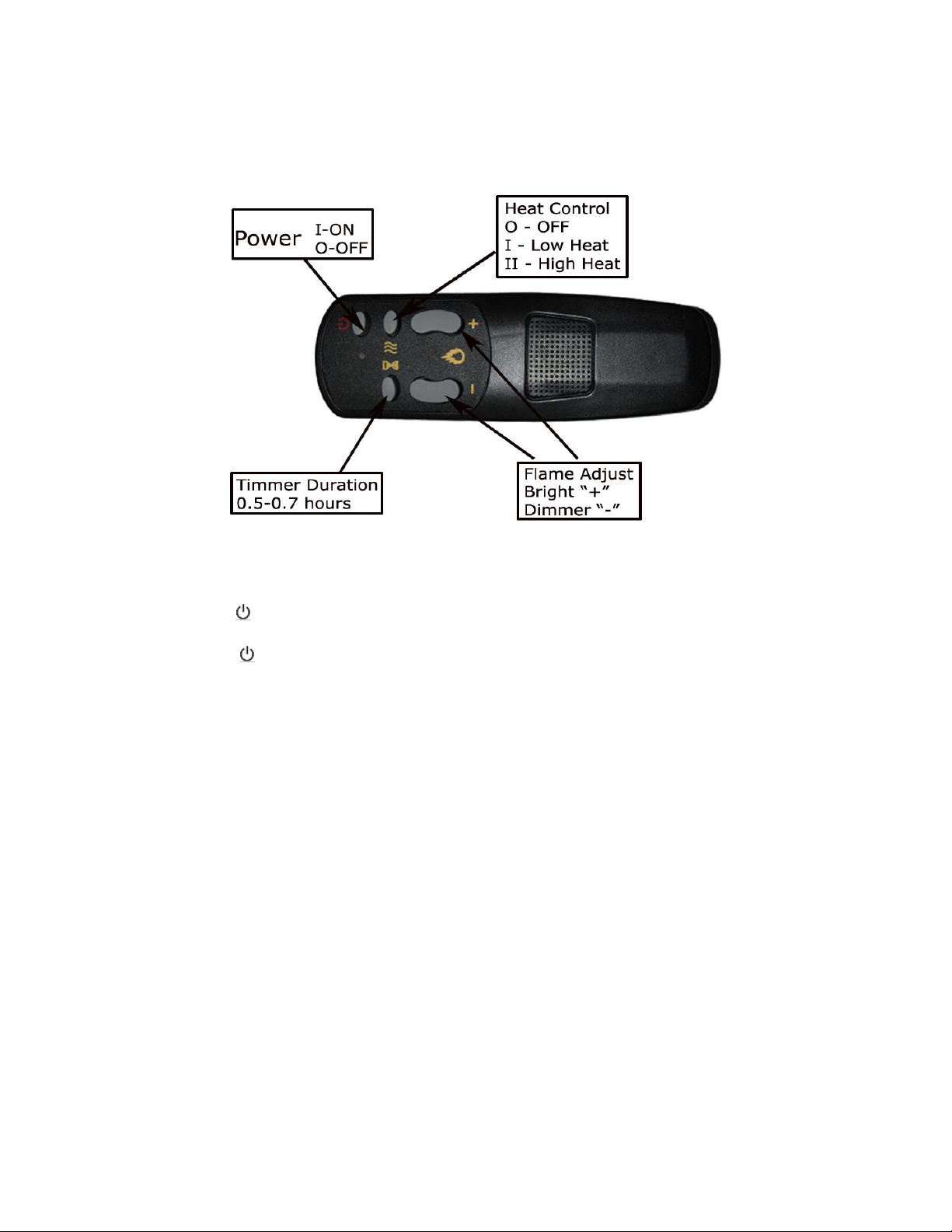

Description of Remote Control
Power Switch
Plug the fireplace into a power outlet. The fireplace is now in Standby mode.
Press the button once to turn on the fireplace and flame effect. An indicator light will light up
to indicate that the function is on. This will also turn on the flame effect.
Press the button once to turn off the flame effect. This will put the fireplace back into
Standby mode.
Heat Control
Press the “Heat Control” button once for the low heat setting. Ten seconds later, the fireplace
will begin to dispense warm air (750W).
Press the “Heat Control” button again to have the fireplace dispense hot air (1500W).
Press the “Heat Control” button again, and after ten seconds the heat will turn off.
Simulate Flames
Press either the 〝+〞or 〝-〞button to brighten or dim the flames.
Timer
Press the “Timer” button to set the fireplace to turn off after certain duration of time. Timer
duration ranges from 0.5hrs to 7.5hrs. The LED indicator lights up when the fireplace is in Timer
mode.
Note: All of the above functions can be operated by either the Control Panel or the Remote Control.

9
Remote Control
The remote control requires 2 AAA batteries, which are not included.
Point the remote control directly at the fireplace.
The range is about 11.5 feet.
Replacing the Light Bulb
This fireplace consists of 4 bulbs (E-12, 40W) that illuminate a flame effect. The light bulbs need
to be replaced if you notice a dark section of the flame or when the flames lose clarity.
Warning - Always disconnect from the power outlet before removing bulbs to reduce the risk of
fire, electric shock or damage to property.
Warning - The bulb reaches high temperatures during operation. Allow it to cool down before
replacing it.
This process requires 2 people.
Un-mount the fireplace and carefully lay it flat on the floor.
Access the bulb by removing the four screws located on the back panel.
Replace the bulb with a new one. Extra caution should be taken because the bulb can be hot.
Close the panel lid using screws.
Warning –Do not use fireplace without properly putting the lid back in place.
For assembly, reverse this process.

10
Troubleshooting
Problem
Possible Solution
Unit does not work / does not heat
·Check if the unit is plugged in the power outlet.
·Check if the unit is in Standby mode. If so, turn
the unit ON.
·Check if the heat is turned OFF.
·Check for safety cut-off operation.
No flame effect
·Check if the unit is plugged in the power outlet.
·Check if the unit is in Standby mode. Turn the
unit ON.
Cleaning & Maintenance
Disconnect from the power supply before attempting any maintenance or cleaning in order to
reduce the risk of fire, electric shock to persons or damage to property.
Warning - Always disconnect from the power supply before cleaning fireplace.
For general cleaning, use a soft, clean duster. Never use abrasive cleaners. The glass viewing
screen should be cleaned thoroughly with a soft cloth. Do NOT use proprietary glass cleaners.
Periodically check all fixings and tighten if necessary.
Technical Specification
Supply: 110-120V, 60Hz
Rated Power: 1500W
Bulb: 4 x 40W E12
