Frigidaire FCWD3027AW Owner's manual

Frigidaire.com USA 1-800-944-9044 Frigidaire.ca Canada 1-800-265-8352
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Important Safety Instructions. . . . . . . . . . . . . . . . . . . . . 3
Cooking Recommendations . . . . . . . . . . . . . . . . . . . . . 9
Before Setting Oven Controls . . . . . . . . . . . . . . . . . . . . 12
Setting Oven Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Before You Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
use
&
care
DOUBLE
WALL OVEN
A22383504 (Aug 2021)

2INTRODUCTION
INTRODUCTION
Welcome to our family
Thank you for bringing Frigidaire into your home! We
see your purchase as the beginning of a long relation-
ship together.
This manual is your resource for the use and care of
your product. Please read it before using your appli-
ance. Keep it handy for quick reference. If something
doesn’t seem right, the troubleshooting section will
help you with common issues.
FAQs, helpful tips and videos, cleaning products, and
kitchen and home accessories are available at www.
frigidaire.com.
We are here for you! Visit our website, chat with an
agent, or call us if you need help. We may be able to
help you avoid a service visit. If you do need service,
we can get that started for you.
Let’s make it official! Be sure to register your product.
Keep your product info here so it’s easy to find.
Model Number:
Serial Number:
Purchase Date:
Serial Number Location
Read all the safety instructions in the front of your
Use & Care Manual.
Remove all packaging materials from your appli-
ance before cooking.
Confirm that the electrical power to the appliance
is turned on.
Wipe out the inside of the oven cavity with a damp
cloth.
Apply a thin layer of cooking oil to the sides of the
oven racks to keep them gliding smoothly.

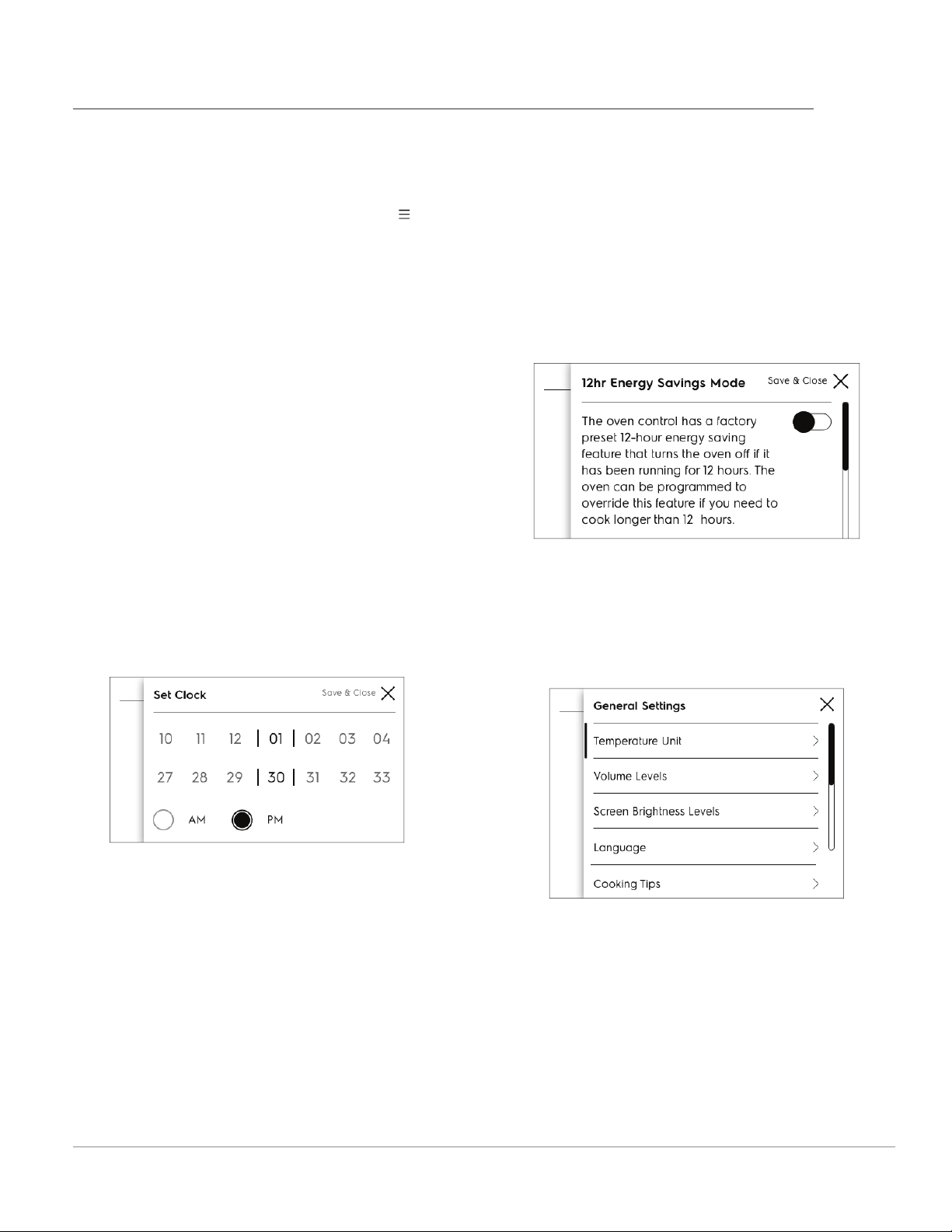

Set the clock. See (“Clock” on page 16) for
instructions.
Before cooking, set the oven to bake at 350°F
(177ºC) for 30 minutes (“Quick Start” on page
21). Some noise and odors are normal on the
first cooking cycle.
Remember to complete your product registration!
Installation Checklist
9
Serial Number Location

3
IMPORTANT SAFETY INSTRUCTIONS
DEFINITIONS
This is the safety alert symbol. It is
used to alert of potential personal injury
hazards. Obey all safety messages that
follow this symbol to avoid possible injury
or death.
WARNING
Indicates a potentially hazardous situa-
tion which, if not avoided, may result in
death or serious injury.
CAUTION
Indicates a potentially hazardous situa-
tion which, if not avoided, may result in
minor or moderate injury.
IMPORTANT
Indicates installation, operation or main-
tenance information which is important
but not hazard-related.
Read all instructions before using this ap-
pliance.
This manual contains important safety
symbols and instructions. Please pay at-
tention to these symbols and follow all
instructions given.
Do not attempt to install or operate your
appliance until you have read the safety
precautions in this manual. Safety items
throughout this manual are labeled with a
WARNING or CAUTION statement based
on the risk type.
Warnings and important instructions ap-
pearing in this guide are not meant to
cover all possible conditions and situations
that may occur. Common sense, caution,
and care must be exercised with installing,
maintaining, or operating your appliance.
NOTE
Indicates a short, informal reference –
something written down to assist the
memory or for future reference.
WARNING
Tip Over Hazard
• A child or adult can tip the
oven and be killed.
• Install the anti-tip device
to oven and/or structure
per installation instructions.
• Ensure the anti-tip device is
re-engaged when the oven is moved.
• Do not operate the oven without the
anti-tip device in place and engaged.
• Failure to follow these instructions can
result in death or serious burns to
children and adults.
Refer to the installation
instructions supplied with
your appliance for proper
installation.
Anti-tip mounting holes
Check for proper installation with a visual
check that the anti-tip screws are present. Test
the installation with light downward pressure
on the open oven door. The oven should not
tip forward.

4IMPORTANT SAFETY INSTRUCTIONS
GROUNDING INSTRUCTIONS
WARNING
• Avoid fire hazard or electrical shock.
Failure to follow this warning may
cause serious injury, fire, or death.
• Avoid fire hazard or electrical shock.
Do not use an adapter plug, use an
extension cord, or remove grounding
prong from the power cord. Failure to
follow this warning may cause serious
injury, fire, or death.
Proper Installation—Be sure your appliance
is properly installed and grounded by a
qualified technician. In the United States,
install in accordance with the National
Fuel Gas Code ANSI Z223.1/NPFA No. 54,
latest edition and National Electrical Code
NFPA No. 70 latest edition, and local elec-
trical code requirements. In Canada, install
in accordance with CAN/CGA B149.1 and
CAN/CGA B149.2 and CSA Standard C22.1,
Canadian Electrical code, Part 1-latest
editions and local electrical code require-
ments. Install only per installation instruc-
tions provided in the literature package for
this appliance.
For personal safety, this appliance must be
properly grounded. For maximum safety,
the power cord must be securely connect-
ed to an electrical outlet or junction box
that is the correct voltage, is correctly
polarized and properly grounded, and pro-
tected by a circuit breaker in accordance
with local codes.
It is the personal responsibility of the
consumer to have the appropriate outlet
or junction box with the correct, proper-
ly grounded wall receptacle installed by
a qualified electrician. It is the responsi-
bility and obligation of the consumer to
contact a qualified installer to assure that
the electrical installation is adequate and
IMPORTANT INSTRUCTIONS FOR
UNPACKING AND INSTALLATION
IMPORTANT
Read and follow the below instructions
and precautions for unpacking, installing,
and servicing your appliance.
Remove all tape and packaging before us-
ing the appliance. Destroy the carton and
plastic bags after unpacking the appliance.
Never allow children to play with pack-
aging material. Do not remove the wiring
label and other literature attached to the
appliance. Do not remove model/serial
number plate.
Cold temperatures can damage the elec-
tronic control. When using this appliance
for the first time, or when the appliance
has not been used for an extended period
of time, be sure the appliance has been in
temperatures above 32ºF (0ºC) for at least
3 hours before turning on the power to the
appliance.
All materials used in construction of cab-
inets, enclosures, and supports surround-
ing the product must have a temperature
rating above 194°F (90°C).
Never modify or alter the construction of
the appliance by removing the leveling
legs, panels, wire covers, anti-tip brackets/
screws, or any other part of the appliance.
Be sure to have an appropriate foam-type
fire extinguisher available, visible, and easi-
ly accessible located near the appliance.

5
IMPORTANT SAFETY INSTRUCTIONS
is in conformance with all local codes and
ordinances.
See the installation instructions packaged
with this appliance for complete installa-
tion and grounding instructions.
IMPORTANT INSTRUCTIONS FOR USING
THE APPLIANCE
WARNING
• Storage In or On Appliance—Flamma-
ble materials should not be stored in
an oven or microwave, near surface
burners or elements, or in the stor-
age or warmer drawer (if equipped).
This includes paper, plastic, and cloth
items, such as cookbooks, plastic
ware, and towels, as well as flammable
liquids. Do not store explosives, such
as aerosol cans, on or near the appli-
ance.
• Do not leave children alone - Children
should not be left alone or unattend-
ed in the area where appliance is in
use. They should never be allowed to
sit or stand on any part of the appli-
ance, including the storage drawer,
lower broiler drawer, warmer drawer,
or lower double oven.
• Do not store items of interest to chil-
dren in the cabinets above the appli-
ance or on the backguards of ranges.
Children climbing on or near the ap-
pliance to reach items could be seri-
ously injured.
• Do not allow children to climb or play
around the appliance. The weight of
a child on an open oven door may
cause the appliance to tip, resulting in
serious burns or other injury. An open
drawer when hot may cause burns.
WARNING
• Stepping, leaning, or sitting on the
door or drawers of this appliance
can result in serious injuries and also
cause damage to the appliance.
• Never cover any slots, holes or pas-
sages in the oven bottom or cover
and entire rack with materials such
as aluminum foil. Aluminum foil lin-
ings may also trap heat, causing a fire
hazard.
• Do not use oven or warmer drawer (if
equipped) for storage.
• Never use your appliance as a space
heater to heat or warm the room.
Doing so may result in carbon monox-
ide poisoning and overheating of the
appliance.
CAUTION
• When heating fat or grease, watch it
closely. Grease may catch fire if it be-
comes too hot.
• Do not use water or flour on grease
fires. Smother fire or flame or use dry
chemical or foam-type extinguisher.
Cover the fire with a pan lid or use
baking soda.
• Use dry potholders. Moist or damp
potholders on hot surfaces may result
in burns from steam. Do not let pot-
holders touch hot cooking areas. Do
not use towels or other bulky cloths.
• Do not heat unopened food contain-
ers - Build-up of pressure may cause
container to burst and result in injury.

6IMPORTANT SAFETY INSTRUCTIONS
CAUTION
• Wear proper apparel - Loose-fitting
or hanging garments should never be
worn while using the appliance. Do
not let clothing or other flammable
materials contact hot surfaces.
• Do not touch surface burners or ele-
ments, areas near these burners or el-
ements, interior surfaces of the oven,
or the warmer drawer (if equipped).
Surface burners and elements may
be hot even though they appear cool.
Areas near surface burners and ele-
ments may become hot enough to
cause burns. During and after use,
do not touch, or let clothing or oth-
er flammable materials touch these
areas until they are cool. These areas
may include the cooktop, surfaces
facing the cooktop, oven vent areas,
oven door, and oven window.
• Do not attempt to operate the ap-
pliance during a power failure. If the
power fails, always turn o the appli-
ance. If the appliance is not turned
o and the power resumes, electric
surface elements may resume opera-
tion when power is restored. Once the
power resumes, reset the clock and
the oven function.
IMPORTANT INSTRUCTIONS FOR USING
YOUR OVEN
Protective liners—Do not use aluminum
foil, aftermarket oven liners, or any other
materials or devices to line oven bottom,
oven racks, or any other part of the appli-
ance. Only use aluminum as recommend-
ed for baking, such as lining cookware or
as a cover placed on food. Any other use
of protective liners or aluminum foil may
result in a risk of electric shock or fire or a
short circuit.
Use care when opening oven door, lower
oven door, or warmer drawer (some mod-
els). Stand to the side of the appliance
when opening the door of a hot oven. Let
hot air or steam escape before you remove
or replace food in the oven.
Keep oven vent ducts unobstructed.
Touching surfaces in this area when the
oven is on may cause severe burns. Do not
place plastic or heat-sensitive items on or
near the oven vent. These items can melt
or ignite.
Placement of oven racks - Always place
oven racks in desired location while oven
is cool. If rack must be moved while oven
is hot, do not let potholder contact hot
burner or element in oven. Use potholders
and grasp the rack with both hands to re-
position. Remove all cookware and utensils
before moving the rack.
Do not use a broiler pan without its insert.
Broiler pans and inserts allow dripping fat
to drain away from the high heat of the
broiler. Do not cover the broiler insert with
aluminum foil; exposed fat and grease
could ignite.
Do not cook food on the oven bottom. Al-
ways cook in proper cookware and always
use the oven racks.

7
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT INSTRUCTIONS FOR CLEAN-
ING YOUR APPLIANCE
CAUTION
Before manually cleaning any part of the
appliance, be sure all controls are turned
o and the appliance is cool. Cleaning a
hot appliance can cause burns.
Clean the appliance regularly to keep all
parts free of grease that could catch fire.
Do not allow grease to accumulate. Greasy
deposits in the fan could catch fire.
Always follow the manufacturer’s rec-
ommended directions for use of kitchen
cleaners and aerosols. Be aware that ex-
cess residue from cleaners and aerosols
may ignite causing damage and injury.
Clean ventilating hoods frequently -
Grease should not be allowed to accu-
mulate on hood or filter. Follow the man-
ufacturer’s instructions for cleaning vent
hoods.
IMPORTANT INSTRUCTIONS FOR SELF
CLEANING OVENS
CAUTION
Before using self clean, remove the broil-
er pan, any food, utensils, and cookware
from the oven, storage drawer or warm-
ing drawer (if equipped). Remove oven
racks unless otherwise instructed.
Do not clean the oven door gasket. The
door gasket is essential for a good seal.
Care should be taken not to rub, damage,
or move the gasket.
Do not use oven cleaners. No commer-
cial oven cleaner or oven liner protective
coating of any kind should be used in or
around any part of the appliance.
Use the self clean cycle to clean only the
parts listed in this manual.
Some birds are extremely sensitive to the
fumes given o during the self clean cy-
cle of any oven. Move birds to another
well-ventilated room.

8IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT INSTRUCTIONS FOR
SERVICE AND MAINTENANCE
Do not repair or replace any part of the
appliance unless specifically recommend-
ed in the manuals. All other servicing
should be done only by a qualified tech-
nician. This reduces the risk of personal
injury and damage to the appliance.
Always contact your dealer, distributor,
service agent, or manufacturer about
problems or conditions you do not under-
stand.
Ask your dealer to recommend a qualified
technician and an authorized repair ser-
vice. Know how to disconnect the power
to the appliance at the circuit breaker or
fuse box in case of an emergency.
Remove the oven door from any unused
oven if it is to be stored or discarded.
Do not touch a hot oven light bulb with
a damp cloth. Doing so could cause the
bulb to break. Handle halogen lights
(if equipped) with paper towels or soft
gloves. Disconnect the appliance or shut
o the power to the appliance before re-
moving and replacing the bulb.
WARNING
California Residents: for cancer and re-
productive harm information, visit
www.P65Warnings.ca.gov

9
COOKING RECOMMENDATIONS
Bakeware
The material of bakeware aects how evenly and quickly it transfers heat from the pan to the food.
Material Attributes Recommendation
Shiny metal bakeware Shiny, aluminum, and non-coat-
ed bakeware is the best for even
heating. It is suitable for all baked
goods.
Recommended cooking temperatures
and times are based on shiny metal
bakeware.
Dark metal bakeware Dark bakeware cooks hotter than
shiny bakeware.
Reduce the cooking temperature by
25°F (13-14°C) when using dark bake-
ware.
Glass bakeware Glass bakeware cooks hotter
than shiny bakeware.
Glass is convenient, as the same
piece of bakeware can be used
for cooking, serving, and storing
food.
Reduce the cooking temperature by
25°F (13-14°C) when using glass bake-
ware.
Insulated bakeware Insulated bakeware cooks cooler
than shiny bakeware.
Insulated bakeware is designed
for baking in gas ovens.
When using insulated bakeware, the
recipe baking time may be longer than
usual.

10 COOKING RECOMMENDATIONS
Cooking Conditions
Conditions in your kitchen can aect the performance of your appliance when cooking food.
Condition Attributes Recommendation
Aging cookware As pans age and become
discolored, cooking times may
need to be reduced slightly.
If food is too dark or overcooked, use the
minimum cook time in the recipe or packag-
ing.
If food is too light or undercooked, use the
middle to maximum cook time in the recipe
or packaging.
High altitude Air is drier and air pressure is
lower.
Water boils at a lower tem-
perature, and liquids evapo-
rate faster.
Foods may take longer to
bake.
Doughs may rise faster.
Adjust cooking temperature, cooking time, or
recipes as needed.
Increase amount of liquid in baking recipes.
Increase cook time on cooktop. Cover dishes
to reduce evaporation.
Increase bake time or oven temperature.
Reduce amount of baking soda or baking
powder in recipe. Reduce rising time or
punch down dough and allow it to rise twice.
Cooking Results
Small adjustments may help you achieve the best results.
Result Recommendation
Food too light Use the middle to maximum cook time recommended on packaging or recipe.
Food too dark Use the minimum cook time recommended on packaging or recipe.
Cooking Tips
Use these additional tips to get the best results from your appliance.
Situation Recommendation
Baking
Rack placement Follow the instructions in particular oven mode starting in “Setting Oven Con-
trols” on page 20.
Preheat Fully preheat the oven before baking items like cookies, cakes, biscuits and
breads. Insert food immediately after the beep.
Checking food Use the window and oven light when checking food. Opening the door may
reduce baking performance.
Bake or Convection Bake Convection bake is the best function to use for baking on multiple racks. For
best performance, see.”Convection Bake” on page 24
Food placement Allow at least 2 inches (5 cm) of space between bakeware for proper air cir-
culation.

11
COOKING RECOMMENDATIONS
Material Recommendation
Broiling / Roasting
Broiling pan For best results when broiling, use a broil pan with an insert designed to drain
the fat from the food, help avoid spatter, and reduce smoking. The broiler pan will
catch grease spills, and the insert helps prevent grease splatters.
Convection Cooking
Convection attri-
butes
Convection cooking uses a fan to circulate hot air around the oven and food. It
browns food more evenly and reduces hot spots in the oven.
Convection saves time when using multiple racks or cooking several food items at
once.
Convection bake Reduce cooking temperature by 25° F (13-14° C) from the recipe unless the recipe
is written for convection baking.
Preheat the oven for best results.

12 BEFORE SETTING OVEN CONTROLS
Figure 1: Oven vent
Flat oven racks may be used for most cooking
needs and may be placed in most oven rack posi-
tions.
at
oven rack
Figure 2: Oven rack types
CAUTION
Always use pot holders or oven mitts when using
the oven. When cooking, the oven interior, oven
exterior, oven racks, and cooktop will become
very hot which can cause burns.
Remove all oven racks before starting a self clean
cycle. If oven racks are left inside the oven during
a cleaning cycle, the slide ability of the oven
racks may be damaged and all of the oven racks
will lose their shiny finish.
To prevent possible damage to the oven, do not
attempt to close the oven door until all the oven
racks are fully positioned back inside the oven
cavity.
WARNING
Protective Liners — Do not use aluminum foil
or any other material or liners to line the oven
bottom, walls, racks or any other part of the
range. Doing so will alter the heat distribution,
produce poor baking results, and possibly cause
permanent damage to the oven interior. Improp-
er installation of these liners may result in risk of
electric shock or fire. During self clean, tempera-
tures in the oven will be hot enough to melt foil.
Oven Vent Location
The oven is vented as shown below. When the oven
is on, warm air is released through the vent. This
venting is necessary for proper air circulation in the
oven and good baking results. Do not block oven
vent. Never close o the openings with aluminum
foil or any other material. Steam or moisture may
appear near the oven vent. This is normal. Types of Oven Rack
IMPORTANT
Your Frigidaire wall oven has many features that
allow you to customize the way your oven works.
Take time to read this section for important
safety information and to become familiar with
the many menu option settings starting on page
13.
WARNING
Do not line the oven walls, racks, bottom or any
other parts of the range with aluminum foil. Do-
ing so will alter heat distribution, produce poor
baking results and may cause permanent damage
to the oven interior. During self-clean tempera-
tures the oven will be hot enough to melt foil.
IMPORTANT
Remove all oven racks and clean according to
instructions provided in the Care & Cleaning
section of this manual. Never pick up hot oven
racks or parts.

13
BEFORE SETTING OVEN CONTROLS
Using Menu Options to Customize Your
Cooking Experience
When you first install your appliance, the screen
will prompt you to set your preferences. You can
always change them later using the menu .
1. Touch the Menu Options bars and scroll to find
the desired option.
2. Select option and set your preference.
3. Save and go back or Save & Close.
You can press the Xto close without saving chang-
es.
Clock
When the appliance is first plugged in or when the
power supply to the appliance has been interrupt-
ed, the display will show 12:00. It is recommended
to always set the clock for the correct time of day
before using the appliance.
1. Touch Menu Options bars and scroll to Clock.
You will see options to turn o the clock dis-
play when the oven is o, to change from 12-
hour to 24-hour time, and to set the clock.
2. Touch Set Clock and set time using graph.
3. Set AM or PM
4. Save & Close
Energy Saving Mode
The oven control has a factory preset built-in 12-
Hour Energy Saving feature that will turn o the
oven if the oven is left on for more than 12 hours.
The control may be programmed to override this
feature to bake continuously.
1. Scroll to Energy Saving Mode and touch.
2. Follow the information to override the Energy
Saving feature if necessary.
3. Save & Close.
General Settings
1. Scroll to General Settings and touch.
2. Dierent options will appear.
3. Select an option to see how it is set and change
if desired.
Temperature Display
The electronic oven control is set to display °F
when shipped from the factory. The display may
be changed to show either °F or ºC oven tempera-
tures.
Temperature Display > OFahrenheit
OCelcius
1. Select Fahrenheit or Celcius.
2. Save & Close

14 BEFORE SETTING OVEN CONTROLS
Screen Brightness
Volume
Volume allows the oven control to operate with
strong tones, quiet tones, or no tones. Use the slid-
er to set the volume.
Oven Temperature Calibration
Your appliance has been factory calibrated and tested to
ensure an accurate baking temperature. For the first few
uses, follow your recipe times and temperature recom-
mendations carefully. If you think the oven is cooking
too hot or too cool for your recipe times, you can adjust
the control so the oven cooks hotter or cooler than the
temperature displayed.
Important: Do not use oven thermometers such as
those found in grocery stores to check the temperature
settings inside your oven. These oven thermometers may
vary as much as 20 to 40 degrees from actual tempera-
tures.
1. Scroll to Oven Temperature Calibration and touch.
2. Option to adjust is shown.
3. Use slide to increase or decrease default oven
temperature.
4. Save and go back or Save & Close.
The oven temperature may be increased as much as
+35°F (+19°C) or decreased -35°F (-19°C) from the facto-
ry calibrated settings.
NOTE
These temperature options are also available in
Custom Preheat menu on the main screen
1. Choose brightness and Save & Close.
Language
1. Select desired language.
2. Save & Close.
Favorites
Scroll to Favorites and touch.
• Quick Start Options > Oven 350°F (can
change the default when Quick Start is
selected)
1. Change temperature if desired.
2. Save.
• Temperature Options > Adjust Custom Preheat
default.
1. 325°F / 163°C
2. 375°F / 191°C
3. 400°F / 204°C
Cooking Tips
You can switch whether cooking tips are displayed
or not by choosing On or O.

15
BEFORE SETTING OVEN CONTROLS
Sabbath Mode
1. Scroll to Sabbath Mode.
2. Read and follow all instructions to set and
when finished cancel. See “Setting the Sabbath
Feature for the
Jewish Sabbath and Holidays
(some models)” on page 28 for complete
details on how Sabbath mode works with your
oven controls.
Factory Reset
1. Scroll to Factory Reset and touch
2. Follow screen prompts
Note: Your appliance was set with predetermined
(default) oven control settings. Over time, users
may have made changes to these settings. The fol-
lowing options may have been modified since the
appliance was new:
• 12 or 24 hr display mode
• Screen Brightness
• Language
• Favorites
• Show Clock
• All Food Probe settings
• Continuous bake or 12 hour energy savings
mode
• Silent or audible control
• Oven temperature display (Fahrenheit or Cel-
sius)
• Oven temperature adjustments (UPO)
If Reset is touched all the settings will return to
default.
3. Are you sure?
4. Reset.
5. OKAY

16 BEFORE SETTING OVEN CONTROLS
Lock Screen
As a safety measure the oven doors and controls
can be locked. Follow screen directions to lock and
unlock.
From the Settings Menu, Select Lock Screen, then
touch and hold LOCK for 3 seconds.
When the doors and controls are locked the screen
will show the time of day, a note that the oven is
locked, and an UNLOCK key. Once the controls and
door are locked, there is no access to any cooking
functions. This ensures that the oven will remain
locked and safe.
To unlock the oven door, press the UNLOCK key,
Once the controls and door are locked, there is no
access to any cooking functions.
To unlock the oven door and control, press UN-
LOCK and follow directions on the screen. You will
be shown a code to use for unlocking the doors
and controls.
About the Appliance
1. Scroll to About the Appliance and touch.
2. Touch headings to see information.
Important information about the appliance such as
the the software version number and contact infor-
mation for support is listed here.

17
SETTING OVEN CONTROLS
ON / OFF
When ON/OFF is pressed, the display opens to the
Quick Start screen.
NOTE
In addition to ON/OFF, touching the screen will
also activate the display.
BACK
Pressing the Back key will return to the previous
screen without implementing any changes you may
have selected.
TIMER
Pressing Timer will access the timer function. The
timer will count down the amount of time you
specify, and a tone will sound when the timer
reaches zero. You can set a timer from 1 minute to
11 hours and 59 minutes.
Enter the desired time and press START. While
the timer is running, you can pause or cancel the
countdown. You can also add or subtract time by
pressing + or -.
If the oven is on when ON/OFF is pressed, it will
turn o completely, canceling any functions that
are running at the time.
LIGHT
Press the Light key to turn the oven light on or o.
Table 1: Minimum and maximum control settings
Feature Mode Min Temp/
Time
Max Temp/
Time
Bake 170°F (77°C) 550°F (288°C)
Broil 400°F (205°C) 550°F (288°C)
Conv Bake 170°F (77°C) 550°F (288°C)
Keep
Warm
140°F (60°C) 200°F (93°C)
Timer 0:01 Min 11:59 Hr./Min.
Clock Time 12 Hr.
24 Hr
1:00 Hr./Min.
0:00 Min
11:59 Hr./Min.
23:59 Hr./Min.
Delay Start 0:01 Min. 1:00 Hr./Min.
Cook Time 12 Hr.
24 Hr
0:01 Min
0:01 Min
11:59 Hr./Min.
11:59 Hr./Min.
Self clean 2 hours 4 hours

18 SETTING OVEN CONTROLS
Use the scroll bar to find your oven mode as shown
in the oven mode table on the right. When you
select a cooking mode simply follow the tips for
setting the particular mode.
Important: Valuable tips to help you get the best
results are included in the display and also can be
found in this Use & Care Manual.
To select other cooking options, touch
Oven Modes and scroll to the desired fea-
ture:
Quick Start
When ON/OFF is pressed the display opens to the
Quick Start screen.
From the Quick Start screen, you can immediately
start the Bake function by pressing START. You can
adjust the temperature by pressing +or -.
Modes
• Bake (page 19)
• Convection Bake (page 21)
• Broil (page 22)
• Keep Warm (page 24)
• Delay Start (page 24)
• Self Clean (page 25)

19
SETTING OVEN CONTROLS
Setting Bake
Bake uses heat that rises from the oven bottom for
best baking results.
A reminder tone will sound indicating when the set
bake temperature is reached and to place the food
in the oven.
Bake may be set for any oven temperature be-
tween 170°F (77°C) to 550°F (288°C).
Baking Tips
• Fully preheat the oven before baking items like
cookies, cakes, biscuits and breads.
• For all baking except layer cakes, pans should
be pulled to the front of the rack. Place layer
cake pans as shown.
• Use the convection bake function for best re-
sults when baking cookies or cakes on multiple
racks.
• For best results when baking layer cakes using
two oven racks, place racks in positions 2 (flat)
and 5 (glide) and place pans centered on each
rack.
• When using any single rack for baking cookies,
cakes, biscuits, or muns use rack position 3.
• Allow at least 2 inches (5 cm) of space between
bakeware for proper air circulation.
• Leave oven lights o while baking.
CAUTION
Always use pot holders or oven mitts when using
the oven. When cooking the oven interior, oven
racks, and cooktop will become very hot which
can cause burns.
To set Bake
1. Press ON/OFF key.
2. Touch Oven Modes and touch Bake. The de-
fault temperature 350°F will show in the dis-
play. You can also use the controls on the Quick
Start screen.
3. To set the temperature to 375, use the num-
bered keys to program the new temperature of
375 and touch START.
4. The screen shows the current temperature and
a Cook Time button.
5. Touch Cook Time to set a cooking time if need-
ed.
NOTE: If a cook time is set the oven will turn o
automatically when the time expires.
6. Touch START.
7. When cooking has ended, O will be in display.
8. Press ON/OFF to return display to show the
time of day.
To cancel cooking anytime touch CANCEL.
Press ON/OFF to turn o the oven and show time
of day in the display.
To cancel cooking anytime touch CANCEL.
1
2
3
4
5
6

20 SETTING OVEN CONTROLS
Setting Cook Time
Use Cook Time to set the amount of time need-
ed for most oven functions. The oven will turn on
immediately (or after a specified delay) and stop
automatically after the set cook time ends.
In most cases you will see a cooking tip suggesting
to set Cook Time after the oven is preheated.
When the programmed cook time ends:
• O will appear in the display window
• an alert tone will sound
• the oven will turn o automatically
The O message and an OKAY button will display
until OKAY is touched.
NOTE: The maximum cook time setting is 11 hours
and 59 minutes unless the oven is set for continu-
ous cooking.
To change the oven temperature or cook time
after baking has started:
• Touch + or - on either side of the set tempera-
ture.
• Touch TEMP to access the keypad.
