Frigidaire FEB27T5DBB Instruction Manual

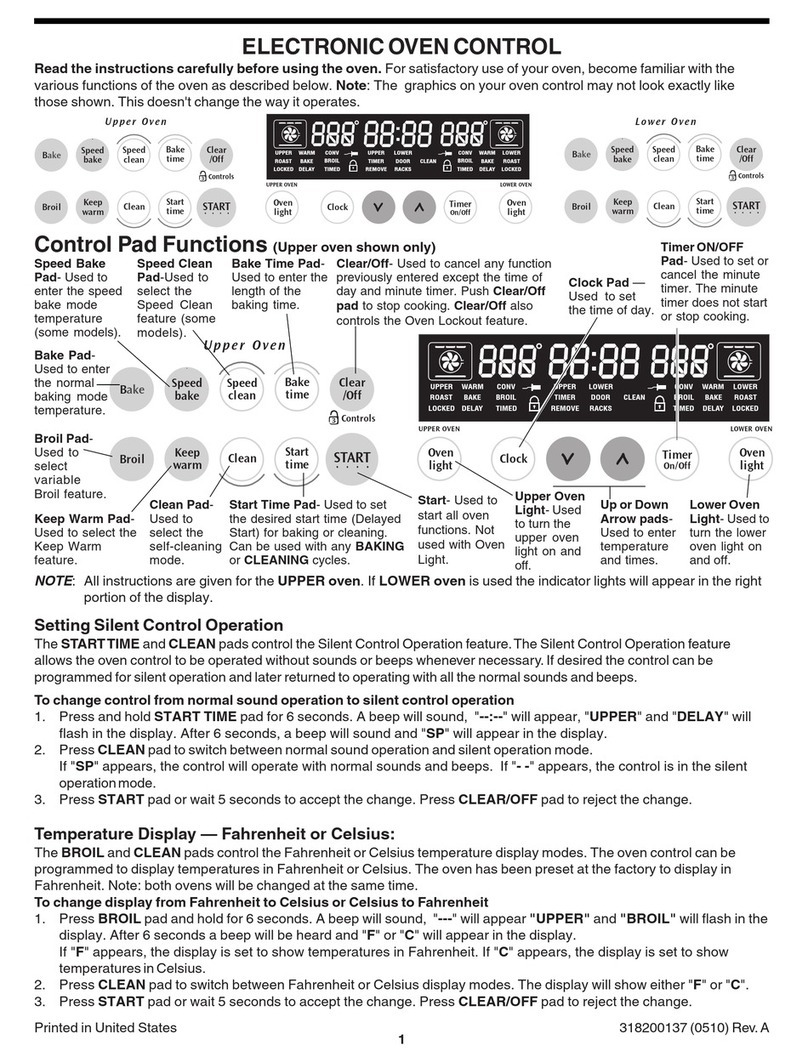

UPPER OVEN LOWEROVEN
Low er OvenUpperOven
Cl
ean
Cl
ean
Cl
ock
Keep
warm
Controls
Clear
/O ff
Keep
warm
Controls
Clear
/O ff
Bake
t
ime
Start
time
Sel
f-CleaningOvens
Oven
light
Ti
mer
On/Off
Bake
time
Oven
light
STAR T STAR T
Broil
Bake
Start
time
Broil
Bake
Product No. FEB27T5DBB FEB27T5DSB
37054741E4062 37054741E4012
Series 27" double 27" double
Color black white
Market North America North America
Wiring Diagram 318046119 318046119
Owner's Guide 318200924 318200924
Installation Instructions 316201514 316201514
Service Data Sheet 318047305 318047305
Timer Guide 318200132 318200132
FEB27T5D.eps CFEB30T5DSA.eps BUFEB27T5DCB.eps BLFEB27T5DSA.eps
DFEB30S5DSA.eps 318046119.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995442984
05/07/28
(EN/SERVICE/)
377
DOUBLE ELECTRIC
WALL OVEN
Model No.
FEB27T5D
Copyright ©2005 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995442984 FEB27T5D
07/05 2
CONTROL PANEL

FEB27T5D Publication No: 5995442984
# Functional Parts 3 07/05
* Non-Illustrated Parts
CONTROL PANEL
Model Index: AFEB27T5D (FEB27T5DBB)
BFEB27T5D (FEB27T5DSB)
POS. NO PART NO. DESCRIPTION
2A 318257301 A B Shield, oven top
2B 318260101 A B Cover, box
19 318274415 A - Control Panel Assembly, glass, black, w/touch pad
19 318274414 - B Control Panel Assembly, glass, white, w/touch pad
20 # 316429702 A B Control, electronic, 5800W1, dual oven
* 316021107 A B Screw, hex head, 8-32, silver
23 318262900 A B Bracket, control mtg., (2)
97 316429800 A B Board, relay, dual oven
* 318231704 A B Harness, wiring, control-relay
* 5303211311 A B Screw, 8 x 0.500

Publication No: 5995442984 FEB27T5D
07/05 4
UPPER OVEN

FEB27T5D Publication No: 5995442984
# Functional Parts 5 07/05
* Non-Illustrated Parts
UPPER OVEN
Model Index: AFEB27T5D (FEB27T5DBB)
BFEB27T5D (FEB27T5DSB)
POS. NO PART NO. DESCRIPTION
1 318259210 A B Back, main
2 318258910 A B Shield, insulation, upper
6 318262602 A B Rack, oven, (2)
9 5303317977 A B Pan, broiler
10 5303317976 A B Insert, broiler pan
12 # 318089917 A B Switch, light
14 318224000 A B Receptacle, oven light
14* 318268099 A B Insulation, oven light
15 5303013071 A B Bulb/Lamp, oven light
16 3201911 A B Cover, oven light, glass
17 5304400195 A B Retainer, light cover
29 318147411 A B Bumper, (2)
37 # 316217002 A B Probe, oven temp
41 5303310526 A B Cover, hinge cutout
54 318222400 A B Housing, oven light
58A 318285060 A B Insulation, rear & bottom, oven wrapper
58B 318285059 A B Insulation, top & sides, oven wrapper
58D 318285058 A B Insulation, 1/2" thick, 43 x 9.5
59 318072560 A B Duct, oven vent
59A 318261600 A B Bracket, vent tube
66 # 318255601 A B Element, broil, 3400W
67 # 318255103 A B Element, bake, 2300W
68 5304403015 A B Support, hanger, (2), broil element
70 318259100 A B Shield, insulation, sides, (2)
71 318260001 A B Panel, rear box
76 318056222 A B Front, oven
80 5303320846 A B Plate, oven mtg
81 318192400 A B Spring, oven
82 318258710 A B Shield, insulation, lower
83 318261502 A B Liner, ovenassy
86 5303310524 A B Receptacle, hinge
89 # 318261202 A B Motor, latch assy
* 318231705 A B Harness, latch
99 318252800 A B Support, side
108# 318073018 A B Motor, blower
* 08016432 A B Screw, truss head, 8-18 x 0.375
108A 318251300 A B Bracket, fan support
119# 318004900 A B Switch, thermal
127 318317100 A B Adapter Assembly, vent tube, w/converter
131 318272900 A B Box, vent
132 318003000 A B Plate, shield
142 318123910 A B Deflector
143 318172904 A B Support, wire/glass
163 318014111 A B Spacer
185 318014700 A B Spacer, oven shield, (4)
219# 318003614 A B Thermostat, safety
264 318257711 A B Trim, oven, black, front
310 5304440067 A B Cabinet Mounting Kit
311 318246010 A B Bracket, cabinet mtg, (2)

Publication No: 5995442984 FEB27T5D
07/05 6
UPPER OVEN

FEB27T5D Publication No: 5995442984
# Functional Parts 7 07/05
* Non-Illustrated Parts
UPPER OVEN
Model Index: AFEB27T5D (FEB27T5DBB)
BFEB27T5D (FEB27T5DSB)
POS. NO PART NO. DESCRIPTION
311* 5304438005 A B Screw, 6 x 1, black
312 318246702 A B Tool, cabinet bracket, RH
312 318246703 A B Tool, cabinet bracket, LH
* 3201861 A B Screw, 6 x 0.375, (4)
* 5303211311 A B Screw, 8 x 0.500
* 5303300265 A B Screw, 8-18 x 0.500, chrome, (3)
* 5303323277 A B Screw, 8-18 X 13/32
* 5304436875 A B Screw, 8-18 X 1/2, black

Publication No: 5995442984 FEB27T5D
07/05 8
LOWER OVEN

FEB27T5D Publication No: 5995442984
# Functional Parts 9 07/05
* Non-Illustrated Parts
LOWER OVEN
Model Index: AFEB27T5D (FEB27T5DBB)
BFEB27T5D (FEB27T5DSB)
POS. NO PART NO. DESCRIPTION
1 318259210 A B Back, main
2 318258910 A B Shield, insulation, upper
6 318262602 A B Rack, oven, (2)
12 # 318089917 A B Switch, light
14 318224000 A B Receptacle, oven light
14* 318268099 A B Insulation, oven light
15 5303013071 A B Bulb/Lamp, oven light
16 3201911 A B Cover, oven light, glass
17 5304400195 A B Retainer, light cover
29 318147411 A B Bumper, (2)
37 # 316217002 A B Probe, oven temp
41 5303310526 A B Cover, hinge cutout
54 318222400 A B Housing, oven light
56 318259914 A - Trim, side filler, black, RH
56 318259912 - B Trim, side filler, white, RH
56A 318259915 A - Trim, side filler, black, LH
56A 318259913 - B Trim, side filler, white, LH
58A 318285060 A B Insulation, rear & bottom, oven wrapper
58B 318285059 A B Insulation, top & sides, oven wrapper
58D 318285058 A B Insulation, 1/2" thick, 43 x 9.5
59 318072560 A B Duct, oven vent
59A 318261600 A B Bracket, vent tube
62 316056000 A B Terminal Block
62* 5303323139 A B Screw, 10-24 x 0.906
62* 5303323144 A B Nut, 10-32
66 # 318255601 A B Element, broil, 3400W
67 # 318255103 A B Element, bake, 2300W
68 5304403015 A B Support, hanger, (2), broil element
70 318259100 A B Shield, insulation, sides, (2)
71 318260001 A B Panel, rear box
76 318056222 A B Front, oven
80 5303320846 A B Plate, oven mtg
81 318192400 A B Spring, oven
82 318258710 A B Shield, insulation, lower
83 318261502 A B Liner, ovenassy
86 5303310524 A B Receptacle, hinge
87 318260601 A B Bracket, cable mtg.
89 # 318261202 A B Motor, latch assy
* 318231705 A B Harness, latch
90 318259711 A - Trim, oven front, black, bottom
90 318259710 - B Trim, oven front, white, bottom
99 318256200 A B Bracket, side, bottom, (2)
108# 318073018 A B Motor, blower
* 08016432 A B Screw, truss head, 8-18 x 0.375
108A 318251300 A B Bracket, fan support
119# 318004900 A B Switch, thermal
127 318317100 A B Adapter Assembly, vent tube, w/converter
142 318123910 A B Deflector
143 318172904 A B Support, wire/glass

Publication No: 5995442984 FEB27T5D
07/05 10
LOWER OVEN

FEB27T5D Publication No: 5995442984
# Functional Parts 11 07/05
* Non-Illustrated Parts
LOWER OVEN
Model Index: AFEB27T5D (FEB27T5DBB)
BFEB27T5D (FEB27T5DSB)
POS. NO PART NO. DESCRIPTION
163 318014111 A B Spacer
185 318014700 A B Spacer, oven shield, (4)
219# 318003614 A B Thermostat, safety
264 318257811 A B Trim, oven, black, front
* # 318078543 A B Box & wires assy
* 318231740 A B Harness, wiring, main
* 3201861 A B Screw, 6 x 0.375, (4)
* 5303211311 A B Screw, 8 x 0.500
* 5303323277 A B Screw, 8-18 X 13/32
* 5304436875 A B Screw, 8-18 X 1/2, black

Publication No: 5995442984 FEB27T5D
07/05 12
DOORS

FEB27T5D Publication No: 5995442984
# Functional Parts 13 07/05
* Non-Illustrated Parts
DOORS
Model Index: AFEB27T5D (FEB27T5DBB)
BFEB27T5D (FEB27T5DSB)
POS. NO PART NO. DESCRIPTION
3 318260211 A B Trim, oven door, black, upper
3A 318260401 A B Trim, oven door, side, (2)
4 318261350 A - Glass Assy., oven door, black, outer, w/trim
4 318261351 - B Glass Assy., oven door, white, outer, w/trim
6 318260510 A B Baffle, door
7 318285057 A B Insulation, oven door
7A 318285061 A B Insulation, (2)
8 318212200 A B Glass, oven door, heat barrier
9 318259611 A B Liner, oven door, upper
10 5304416408 A B Screw, 10-24 x 1.750, handle mtg
12 318053125 A B Seal, upper door
17 318264700 A B Spacer, glass, (2)
23 318024722 A B Hinge, upper door, (2)
29 318014402 A B Spacer, door
39 318264500 A - Handle, oven door, black
39 318264501 - B Handle, oven door, white
40 318242700 A B Bracket, glass holder, (2)
56 5304436875 A B Screw, 8-18 X 1/2, black
64 318165800 A B Spacer, (2)
* 5303323277 A B Screw, 8-18 X 13/32

Publication No: 5995442984 FEB27T5D
07/05 14
WIRING DIAGRAM
