Frigidaire FGB24L2A User manual

FGB24L2A.eps LA9822G019A.eps P22b0008.eps BFGB24L2EC.eps
DFGB24L2ASB.eps 318046309.eps
Product No. FGB24L2ABB FGB24L2ASB
37454412C1062 37454412C1012
Series 24" gas 24" gas
Color black white
Market North America North America
Wiring Diagram 318046309 318046309
Owner's Guide 318200953 318200953

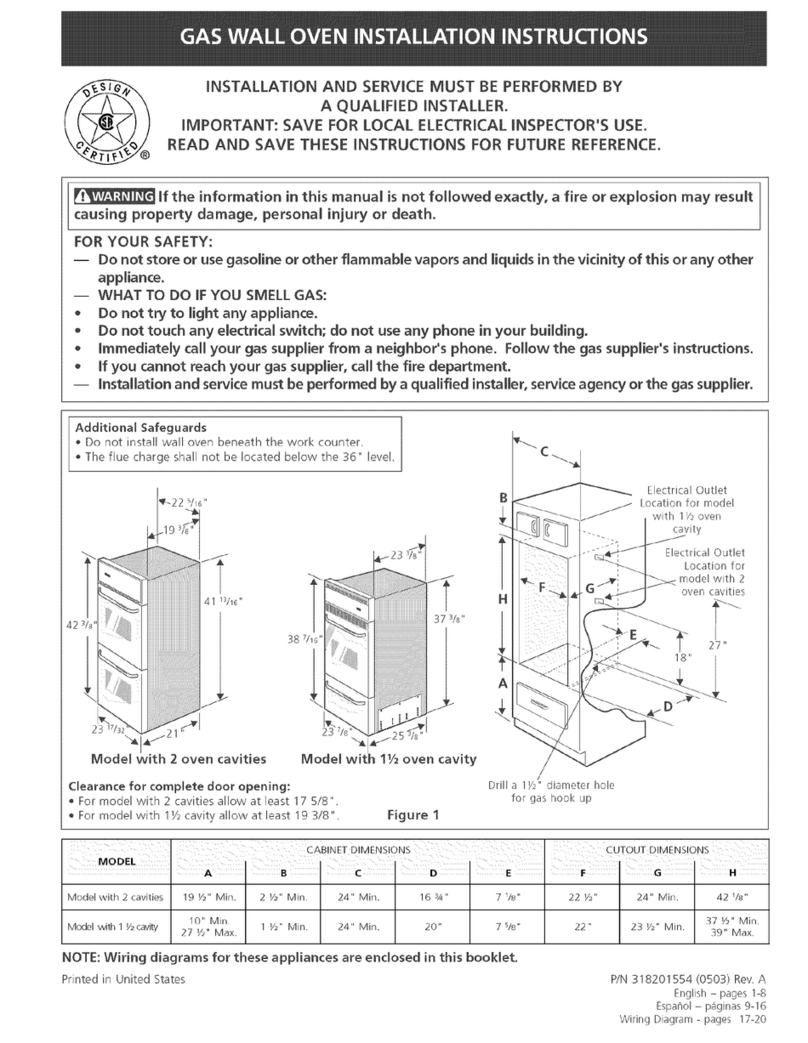

Installation Instructions 318201554 318201554
Service Data Sheet 318047420 318047420
Timer Guide 318200144 318200144
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995474557
06/09/19
(EN/SERVICE/ECL)
377
SINGLE GAS WALL
OVEN
Model No.
FGB24L2A
Copyright ©2006 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995474557 FGB24L2A
09/06 2
CONTROL PANEL

FGB24L2A Publication No: 5995474557
# Functional Parts 3 09/06
* Non-Illustrated Parts
CONTROL PANEL
Model Index: AFGB24L2A (FGB24L2ASB)
BFGB24L2A (FGB24L2ABB)
POS. NO PART NO. DESCRIPTION
19 318234105 A - Panel, control, white
19 318234106 - B Panel, control, black
20 # 318185336 A - Clock/Timer, EOC, white, ES100
20 # 318185337 - B Clock/Timer, EOC, black, ES100
20* 318214400 A - Overlay, clock, white
20* 318214401 - B Overlay, clock, black
21 318176501 A - Trim, top, white
21 318176500 - B Trim, top, black
23 318015037 A B Bracket, clock/timer mtg
24 # 316005607 A - Switch, rocker, white
24 # 316005602 - B Switch, rocker, black
42 5303271089 A - Trim, center vent, white
42 318027101 - B Trim, center vent, black
65 318038804 A B Cover, control housing
68 5303302397 A B Housing, control
99 5303131766 A - Screw, 6-32 x 0.375, top trim
99 5303307406 - B Screw, 6-32 x 3/8, black, (2)
100 318112200 A B Plate, mounting, rocker switch
* 5303211311 A B Screw, 8 x 0.500
* 5303308458 A B Screw, 10-24, (4)

Publication No: 5995474557 FGB24L2A
09/06 4
BURNER

FGB24L2A Publication No: 5995474557
# Functional Parts 5 09/06
* Non-Illustrated Parts
BURNER
Model Index: AFGB24L2A (FGB24L2ASB)
BFGB24L2A (FGB24L2ABB)
POS. NO PART NO. DESCRIPTION
14 # 5303210167 A B Regulator, pressure
14* 5303311306 A B Screw, 8-18 x 0.375, (8)
17 # 3203702 A B Valve, safety
18 # 5303210787 A B Burner,oven
19 # 318177710 A B Ignitor, oven burner
20 3203676 A B Baffle, oven burner
21 3201885 A B Nut, Keps, 10-24
28 # 5303295305 A B Valve, shut off
49 5303308469 A B Bracket, safety valve
* 08002868 A B Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box
* 5303300195 A B Screw, 10-32 x 0.375, terminal block, (2)

Publication No: 5995474557 FGB24L2A
09/06 6
BODY

FGB24L2A Publication No: 5995474557
# Functional Parts 7 09/06
* Non-Illustrated Parts
BODY
Model Index: AFGB24L2A (FGB24L2ASB)
BFGB24L2A (FGB24L2ABB)
POS. NO PART NO. DESCRIPTION
2 318101903 A B Wrapper, top
2A 5303305035 A B Shield, insulation
4 318161500 A B Box, oven burner
6 318345203 A B Rack, oven, (2)
8 318121400 A B Panel, oven bottom
14 318224000 A B Receptacle, oven light
15 5303013071 A B Bulb/Lamp, light
25 318179000 A B Shield, insulation, base
36 318176001 A B Flue
37 # 316217002 A B Probe, oven temp
39 318144007 A B Cord, service
41 5303310526 A B Cover, hinge cutout
54 318222400 A B Housing, oven light
57 318071130 A B Shield, rear wall
58 318285032 A B Insulation, oven bottom
58B 318285003 A B Insulation, oven back
58C 318285015 A B Insulation, top & sides, oven wrapper
76 318056122 A B Front-oven
80 318192400 A B Spring, oven
81 5303323710 A B Bracket, oven
83 318089403 A B Liner, oven assy
86 5303310524 A B Receptacle, hinge
87 5303308475 A B Bracket, safety valve
97 318066804 A B Wrapper, back & sides
98 318176802 A - Trim, side, inner, RH
98 318176812 - B Trim, side, black, inner, RH
98A 318176803 A - Trim, side, inner, LH
98A 318176813 - B Trim, side, black, inner, LH
99 318284201 A B Panel, adjustable, side, (2)
101 5303308474 A B Shield, vent
102 3203688 A B Support, oven front
103 5303316734 A - Trim, base, white, lower
103 5303316735 - B Trim, base, black, lower
104 318170200 A B Flue
121 318145005 A B Wrapper, base
132 3201437 A B Strain relief
227 5303323958 A B Retainer, oven bottom
232 318147412 A B Bumper, base
233 318166801 A - Plug, button, white
233 318166800 - B Plug, button, black
* 318232517 A B Wiring Harness, main
* 5303323136 A B Screw ground
* 08002868 A B Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box
* 08011955 A B Screw, 10-24 x 0.375, square drive
* 08016432 A B Screw, truss head, 8-18 x 0.375
* 5303211311 A B Screw, 8 x 0.500
* 5303323277 A B Screw, 8-18 X 13/32
* 5303325980 A B Screw, 10-32 x 0.437

Publication No: 5995474557 FGB24L2A
09/06 8
DOOR/DRAWER

FGB24L2A Publication No: 5995474557
# Functional Parts 9 09/06
* Non-Illustrated Parts
DOOR/DRAWER
Model Index: AFGB24L2A (FGB24L2ASB)
BFGB24L2A (FGB24L2ABB)
POS. NO PART NO. DESCRIPTION
3 318026520 A B Trim, oven door, black
4 318051515 A - Glass, oven door, white, outer
4 318051516 - B Glass, oven door, black, outer
6 318073600 A B Shield, air wash
7 318362110 A B Insulation, door, top & bottom, (2)
7A 318362111 A B Insulation, door, sides, (2)
8 5303323828 A B Glass-oven door
9 318156604 A B Liner, oven door
10 5303311217 A B Screw, handle, door
12 # 5303316768 A B Seal, oven door, lower oven
17 318162601 A B Support, glass
18 318053204 A B Seal, rope, lower oven
23 318024702 A B Hinge, oven door, lower oven
29 318014403 A B Spacer, door
33 5303308464 A - Glass-drawer, front
33 3203715 - B Glass-drawer, front
34 318116000 A B Panel, front frame
35 318107000 A B Drawer, broiler
36 318332200 A B Roller, nylon
37 3203722 A B Rail, drawer, RH
37A 3203723 A B Rail, drawer, LH
39 318362800 A - Handle Assembly, door, white, w/spacer
39 318362802 - B Handle Assembly, door, black, w/spacer
43 318107800 A B Liner, broiler door
44 318088300 A B Spring, broiler
45 318024400 A B Hinge, broiler, RH
45A 318024401 A B Hinge, broiler, LH
46 318126200 A B Pan, broiler
47 318126300 A B Insert, broiler pan
54 5304436875 A B Screw, 8-18 X 1/2, black
59 3202113 A B Plug, button
* 5303300414 A B Spacer, cork & rubber
* 5303323277 A B Screw, 8-18 X 13/32

Publication No: 5995474557 FGB24L2A
09/06 10
WIRING DIAGRAM
