Frigidaire FEB500CESE User manual

PRODUCT NO. FACTORY NO. COLOR MARKET
FEB500CESE 38254412B6015 WHITE U.S.A.
FEB500CEBE 38254412B6065 BLACK U.S.A.
GAS WALL OVEN
Model No.
FEB500CE
©2000 White Consolidated Industries, Inc.
All rights reserved
FACTORY PARTS CATALOG
ELECTRIC WALL OVEN
WIRING DIAGRAM #- 318046004
OWNER’S GUIDE #- 318200912
INSTALLATION INSTR. # - 318201509
TIMER INSTR. GUIDE # - 318200109
FRIGIDAIRE HOME PRODUCTS
7075 ORDAN DRIVE
MISSISSAUGA, ONTARIO
CANADA, L5T 1K6
TEL: [phone]
Publication No.
5995344925
001016
-EN/SERVICE
377

Publication No. FEB500CE
5995344925
10/00 2
CONTROL PANEL
68
12 23
20
14
LA00CP82412-1
42
32
21
64
99
19
18
99
15
15A
18A
78
69
24
65

FEB500CE Publication No.
5995344925
# = Functional Part 310/00
* = Non-Illustrated Part
CONTROL PANEL
POS. NO PART NO DESCRIPTION
12 # 318058300 A B Thermostat-oven
14 5303320424 A B Light/Lamp
15 5303302286 A B Support backguard RH
15A 5303302287 A B Support backguard LH
18 5303311208 AEnd Cap RH white
18 5303311231 BEnd Cap RH black
18A 5303311209 AEnd Cap LH white
18A 5303311232 BEnd Cap LH black
19 318129702 APanel-control white
19 318129703 BPanel-control black
20# 318013914 AClock/Timer
20# 318013915 BClock/Timer
21 5303320425 ATrim-canopy white
21 5303300408 BTrim-canopy black
23 318015701 A B Bracket clock mtg
24 # 316005607 ASwitch-rocker white
24 # 316005602 BSwitch-rocker black
32 318017206 AKnob-thermostat white
32 318017205 BKnob-thermostat black
42 5303316649 ATrim-vent white
42 5303316651 BTrim-vent black
64 318112200 A B Plate
65 318038804 A B Cover-control housing
68 5303302397 A B Housing control
69 5303323134 A B Screw 8-32 X 3/16
78 5303302394 ACover, oven vent white
78 5303302396 BCover, oven vent black
99 5303316956 AScrew, 6-32 X 3/8, white
99 5303307406 BScrew, 6-32 X 3/8, black
*5303211311 A B Screw #8 X ½
A = FEB500CE (FEB500CESE)
B = FEB500CE (FEB500CEBE)

FEB500CE Publication No.
5995344925
10/00 4
CAVITY / ELEMENTS
27
54
58B
82
121
LA00B82412-1
6
67
98
98A
56
56
103
66 68
83
127
99
99
14 15 16
17
80
80
71
189
76
97
58A
81
227
10
101
86
9
119
59
2
82
231
62
41
41
86

FEB500CE Publication No.
5995344925
# = Functional Part 510/00
* = Non-Illustrated Part
CAVITY / ELEMENTS
POS. NO PART NO DESCRIPTION
2 5303298946 A B Shield oven-top
6 5303296873 A B Rack-oven
95303317977 A B Pan-broiler
10 5303317976 A B Insert broiler pan
14 5308011085 A B Socket-light/lamp
15 3201908 A B Lamp-oven light
16 3201911 A B Glass-oven light lens
17 5304400195 A B Retainer-lens
27 5303284616 A B Clip thermo-bulb
41 5303310526 A B Cover hinge cutout/ Plaque décorative
54 5303310514 A B Housing-oven light
56 5303302711 ATrim-bodyside white
56 5303298951 BTrim-bodyside black
58A 5303304702 A B Insulation oven wrapper
58B 5303299688 A B Insulation oven back
59 318072507 A B Tube-oven vent
62# 5303310518 A B Terminal block
66# 5303322963 A B Element-broil
67# 3202440 A B Element-bake
68 5304403015 A B Support-element
71 318071111 A B Shield-wire
76 318056124 A B Front-oven
80 5303301261 A B Spring-oven
81 5303323710 A B Bracket-oven
82 5303305035 A B Shield insulation/ Panneau isolant
83 318089509 A B Liner-oven assy
86 5303310524 A B Channel-hinge
97 318066602 A B Wrapper-back side
98 318029322 A B Trim side inner RH
98A 318029323 A B Trim side inner LH
99 5303299686 A B Support-adjustable
101 318039512 ABracket-trim
101 318039511 BBracket-trim
103 318028711 ATrim-base white
103 318028710 BTrim-base black
119 3202388 A B Switch-thermal
121 318145001 A B Wrapper-base
127 5303310542 A B Adapter assy
189 318042500 A B Retainer plate
227 5303323955 A B Clip-retainer
231 5303300421 A B Cover-capillary
*08002868 A B Screw, 10-24 X ½
*5303211311 A B Screw, #8 X ½
*# 5303319468 A B Box & wires assy
*5303324184 A B Screw, 8 X 5/16
*5303320422 A B Screw, 6-20 X 5/16
*5303302745 A B Screw, 10-16 X 1 1/8/ Vis
*5303935083 AScrew, 10-16 X 1 ¼ white/ Vis
A = FEB500CE (FEB500CESE)
B = FEB500CE (FEB500CEBE)

FEB500CE Publication No.
5995344925
10/00 6
DOOR
17
6
60
59
3
23
16
23
7
9
39
18
12
LA00D82412-1
20
54
4
20
29
29
10

FEB500CE Publication No.
5995344925
# = Functional Part 710/00
* = Non-Illustrated Part
DOOR
POS. NO PART NO DESCRIPTION
3 318026102 ATrim-oven door white
3318026520 BTrim-oven door black
4 5303302707 AGlass-oven door white
4 3202420 BGlass-oven door black
6 318073600 A B Shield-air wash
7 5303308470 A B Insulation oven door
9 318156604 A B Liner-oven door
10 5303311217 A B Screw, 1024X2 3/16-handle door
12 5303316768 A B Seal-oven door lower
16 5303323828 A B Glass-oven door
17 318162601 A B Spacer-glass lower
18 318053204 A B Seal-rope
20 318014301 ASpacer-handle white
20 318014300 BSpacer-handle black
23 5303325091 A B Hinge-oven door
29 5303210003 A B Spacer-handle mtg (2)
39 316091104 AHandle-door white
39 316091103 BHandle-door black
54 5303308456 A B Screw, 8-18 X 17/32 (black)
59 3202113 A B Button plug
60 5303316982 A B Spacer-foam
*5303308456 A B Screw, 8-18 X 0.531
A = FEB500CE (FEB500CESE)
B = FEB500CE (FEB500CEBE)

Publication No. FEB500CE
5995344925
10/00 8

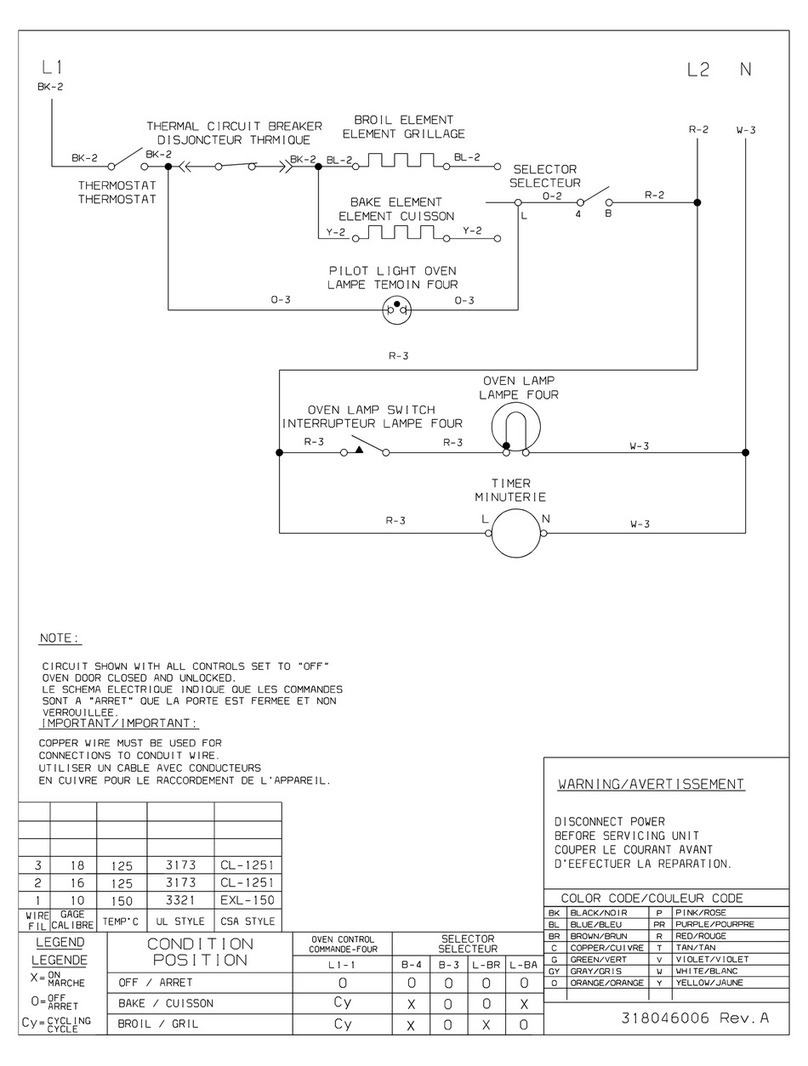

WIRING DIAGRAM
