Frigidaire FEB789WC User manual

PRODUCT NO. FACTORY NO. COLOR MARKET
FEB789WCCG 38254791G50S7 STAINLESS U.S.A.
ELECTRIC WALL OVEN
Model No.
FEB789WC
©1999 White Consolidated Industries, Inc.
All rights reserved
FACTORY PARTS CATALOG
ELECTRIC WALL OVEN
WIRING DIAGRAM # - 318046208
OWNER’S GUIDE # - 318200914
INSTALLATION INSTR. # - 318064320
ELECTRONIC TIMER INSTR. # - 318130806
FRIGIDAIRE HOME PRODUCTS
7075 ORDAN DRIVE
MISSISSAUGA, ONTARIO
CANADA, L5T 1K6
TEL: [phone]
Publication No.
5995319075
990305
-EN/SERVICE
377

Publication No. FEB789WC
5995319075
03/99 2
CONTROL PANEL
19
19A 19B
51
LA9923G10
42
20
99
23
21
79
78
96
97

FEB789WC Publication No.
5995319075
# = Functional Part 303/99
* = Non-Illustrated Part
CONTROL PANEL
A=FEB789WC (FEB789WCCG)
POS. NO PART NO DESCRIPTION
19 318030205 APanel-control black
19A 318041800 APanel-control stainless (Included on 19B)
19B 318041700 APanel-control & name plate Assy.
20 # 318010700 AClock/Timer
21 318028300 ATrim-top
23 318111602 ABracket timer
42 318027310 ATrim-vent
51 316082300 AName plate black (Included on 19B)
78 318037200 ACover, oven vent stainless
79 318029602 ATrim-top stainless
80 318111500 ARelay (9 Volts)
96 316037700 ASeal, vent cover
97 316037800 ATape, vent cover
99 5303300265 AScrew, 8-18 X ½ chrome
*5303307406 AScrew, 6-32 X 3/8, black
*3201861 AScrew, 6 X 3/8
*218490900 ACleaner stainless steel
*5303211311 AScrew, #8 X ½
*5303302745 AScrew, 10-16 X 1 1/8
*5303308450 AScrew, 8 X 3/8
*5303311528 AScrew, 6-20 X 3/8
*08002868 AScrew, 10-24 X ½

FEB789WC Publication No.
5995319075
03/99 4
CAVITY / ELEMENTS
81
17
82
124
59 264
103
222
62
71
1
LA9923V16
6
6B
67
66 68
83
58B
58A
2A
187
88
62
89
108
119
10
9
127
37 12
129
128
70
185
99
98A
56
265A
70
185
98
56 265
99
14
54
41
86
41
86
15 16
80
80
150A
150
107
76
2
131
132
132A
188
188
6A

FEB789WC Publication No.
5995319075
# = Functional Part 503/99
* = Non-Illustrated Part
CAVITY / ELEMENTS
A=FEB789WC (FEB789WCCG)
POS. NO PART NO DESCRIPTION
1318066700 ABack-main
2 318102000 AShield oven top
2A 318071500 AShield oven top
6 318025300 ARack-oven
6A 5303311206 ARack-broiler pan
6B 318025200 AShelf-oven
95303317977 APan-broiler
10 5303317976 AInsert broiler pan
12# 318089910 ASwitch-light
14 5308011085 ASocket-light/lamp
15 3201908 ALamp-oven light
16 3201911 AGlass-oven light lens
17 5304400195 ARetainer-lens
28 3015722 AClip-wire
37# 316111203 AProbe-oven temp
41 5303310526 ACover-hinge cutout
54 5303310514 AHousing-oven light
56 318145502 ATrim-bodyside black
58A 5303311218 AInsulation wrapper
58B 5303311219 AInsulation oven back
59 318072511 ATube-oven vent
62# 5303310518 ATerminal block
66# 5303322963 AElement-broil
67# 5303299718 AElement-bake
68 5304403015 ASupport-element
70 5303300142 AShield-insulation
71 318071100 AShield-rear wall
76 318056104 AFront-oven
80 5303301261 ASpring-oven
81 5303320846 APlate-oven mtg
82 318071800 AShield-oven bottom
83 318089519 ALiner-oven assy
86 5303310524 ASupport-door hinge
88 5303311222 ARod-latch
89# 5303317196 AMotor-latch/lock
89* 318120702 ASwitch-latch
98 318029800 ATrim side inner RH
98A 318029801 ATrim side inner LH
99 318055420 ASupport-adjustable
103 5303316773 ATrim-base black
103* 318028800 ATrim-base (Models under counter)
107 5303318711 ACover fan
108 318073001 AMotor-fan
109 5303311203 AFan blade
111 5303311205 ANut fan retainer
119# 318004900 ASwitch-thermal
124 318076902 ABox-vent
125# 5303311202 AMotor-convection
127 5303310542 AAdapter assy
128 5303311163 ABushing
129 5303311164 ASpring
131 318102203 ACover-control housing
132 318101700 AEnd-cover control
132A 318101701 AEnd-cover control
150 318072207 ABracket-support
150A 318072206 ABracket-support
185 318014700 ASpacer-oven shield
187 318013501 ATube (rod latch)
188 08007817 ASpacer
222 318080000 APlate, plug hole convection element
263 5303320346 AWasher
264 318143811 AHidden wires shield
265 318029500 ATrim-bodyside stainless
265A 318029501 ATrim-bodyside stainless
*5303302745 AScrew, 10-16 X 1-1/8, black
*318078511 ABox & wires assy
*5304407813 AWasher
*3131048 AScrew, 8 x 5/8
*3201861 AScrew, 6 x 3/8
*08002868 AScrew, 10-24 x ½
*5303308449 AFastener
*5303320422 AScrew, 6-20 X 5/16
*5303211311 AScrew #8 X ½
*5303324184 AScrew, 8 X 5/16

Publication No. FEB789WC
5995319075
03/99 6
DOOR
61
59
23
17
23
9
18
12
10
16
16
22
22
31
4
39
7
15
LA9923D11
29
29
32
32
32
6
20
54
20
13

FEB789WC Publication No.
5995319075
# = Functional Part 703/99
* = Non-Illustrated Part
DOOR
A=FEB789WC (FEB789WCCG)
POS. NO PART NO DESCRIPTION
4318041200 AGlass-oven door, black
6318073503 AShield-wool
75303311214 AInsulation, oven door
9318048503 ALiner-oven door
10 5303316953 AScrew-handle, door 10-32 x 2-1/4
12 318053100 ASeal-oven door
13 318009200 APanel-oven door stainless
15 318091101 ABracket-glass
16 318042300 AGlass-oven door, heat
17 318042000 ASpacer-glass
18 318053000 ASeal-rope
20 318086020 ASpacer-handle
22 5303310511 ARetainer-glass
23 5303311259 AHinge-oven door, .
29 318014400 ASpacer-door
31 318065100 ALatch-door
32 318056700 ADeflector (3)
39 318039800 AHandle-door, stainless
54 5303300265 AScrew,8-18 x ½
59 3202113 AButton-plug
61 5303316982 AFoam spacer
*5303300414 ASpacer,cork & rubber
*5303323277 AScrew, 8-18 x 13/32
*5303308450 AScrew, 8 x 3/8

Publication No. FEB789WC
5995319075
01/99 8

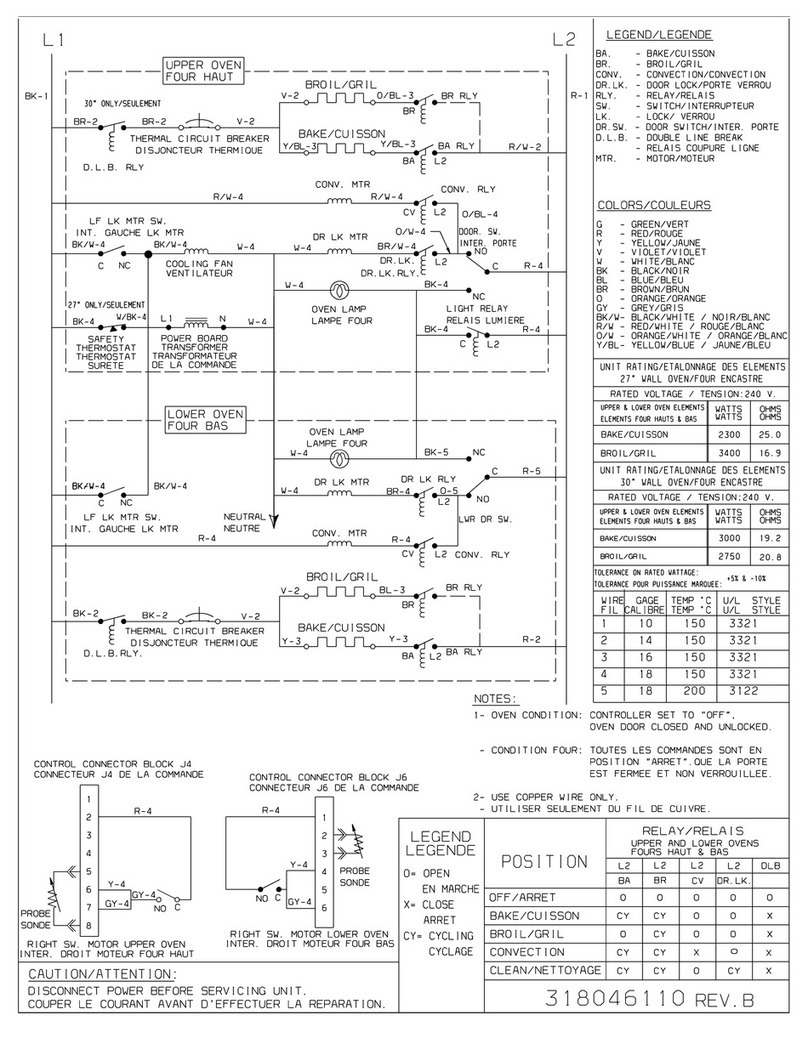

WIRING DIAGRAM
