PRODUCT NO. BASE MODEL NO. FACTORY NO. COLOR MARKET
FEB24S2ABA FEB24S2A 38254412B1061 black North America
FEB24S2ASA FEB24S2A 38254412B1011 white North America
Publication No.
5995363404
020108
-EN/SERVICE /ECL
377

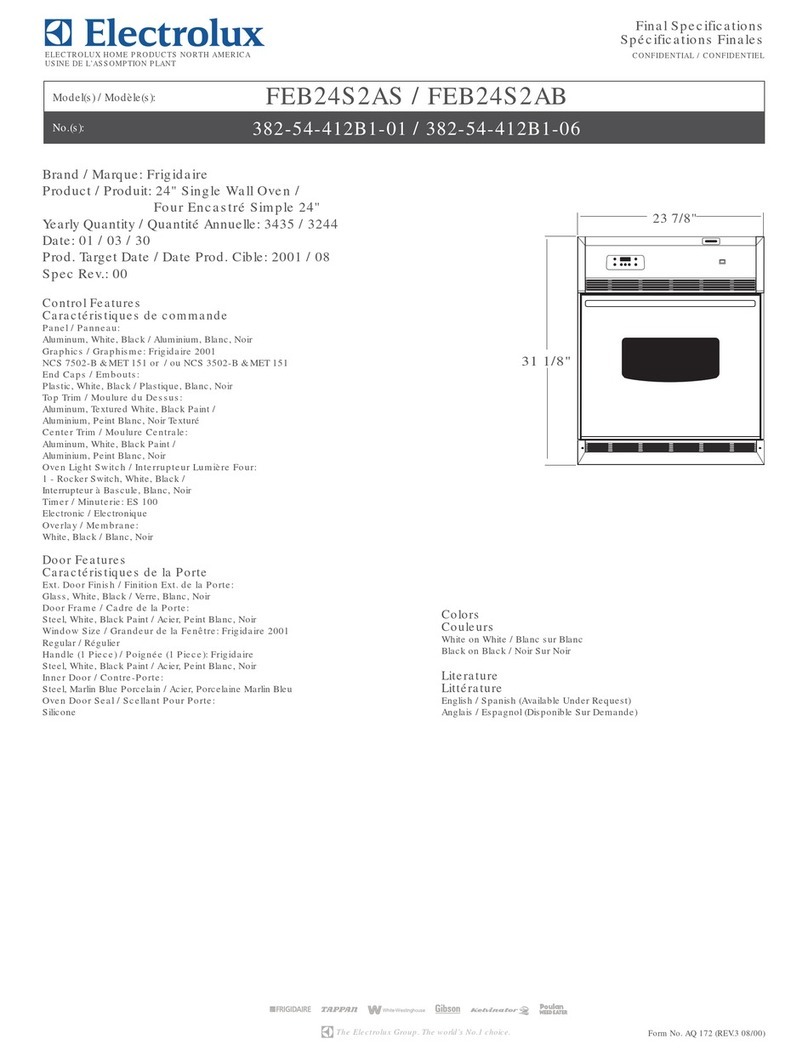

ELECTRIC
WALL OVEN
Model No.
FEB24S2A
©2002 White Consolidated Industries, Inc.
All rights reserved
FACTORY PARTS CATALOG
RANGE
WIRING DIAGRAM - # 318046007
OWNER’S GUIDE - # 318200919
TIMER INSTRUCTION SHEET - # 318200140
INSTALLATION INSTRUCTIONS - # 318201509
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O. BOX 212378, Augusta, GA 30917

01/02 2
Publication No. FEB24S2A
5995363404
CONTROL PANEL

# = Functional Parts 3 01/02
* = Non-Illustrated Parts
FEB24S2A Publication No.
5995363404
CONTROL PANEL
A = FEB24S2A (FEB24S2ASA)
B = FEB24S2A (FEB24S2ABA)
POS. NO PART NO DESCRIPTION
15 5303302286 A B Support,backguard ,RH
15A 5303302287 A B Support,backguard ,LH
18 5303311208 A - End Cap,white ,RH
18 5303311231 - B End Cap,black ,RH
18A 5303311209 A - End Cap,white ,LH
18A 5303311232 - B End Cap,black ,LH
19 318179800 A - Panel,control ,white
19 318179801 - B Panel,control ,black
20 # 318185300 A - Clock/Timer,EOC ,white
20 # 318185301 - B Clock/Timer,EOC ,black
21 5303320425 A - Trim,top ,white
21 5303300408 - B Trim,top ,black
23 318015036 A B Bracket,clock/timer mtg
24 # 316005607 A - Switch,rocker ,white
24 # 316005602 - B Switch,rocker ,black
42 5303316649 A - Trim,vent ,white
42 5303316651 - B Trim,vent ,black
65 318038804 A B Cover,control housing
68 5303302397 A B Housing,control
78 5303302394 A - Cover,oven vent ,white
78 5303302396 - B Cover,oven vent ,black
100 318112200 A B Plate,mounting ,rocker switch
* 5303211311 A B Screw,8 x 0.500
* 5303316956 A - Screw,6-32 x 3/8 ,white ,(2)
* 5303307406 - B Screw,6-32 x 3/8 ,black ,(2)

01/02 4
Publication No. FEB24S2A
5995363404
BODY

# = Functional Parts 5 01/02
* = Non-Illustrated Parts
FEB24S2A Publication No.
5995363404
BODY
A = FEB24S2A (FEB24S2ASA)
B = FEB24S2A (FEB24S2ABA)
POS. NO PART NO DESCRIPTION
2 318195900 A B Wrapper,outer ,top
2A 5303305035 A B Shield,insulation
6 5303296873 A B Rack,oven
9 5303317977 A B Pan,broiler
10 5303317976 A B Insert,broiler pan
14 # 5308011085 A B Receptacle,oven light
15 # 3201908 A B Light,oven
16 3201911 A B Cover,oven light ,glass
17 5304400195 A B Retainer,light cover
37 # 318198500 A B Probe,oven temp
41 5303310526 A B Cover,hinge cutout
54 5303310514 A B Housing,oven light
56 5303302711 A - Trim,bodyside ,white
56 5303298951 - B Trim,bodyside ,black
58A 318133710 A B Insulation,oven wrapper
58B 318133704 A B Insulation,oven back
59 318072507 A B Tube,oven vent
62 # 5303310518 A B Terminal Block
66 # 5303322963 A B Element,broil
67 # 5303323865 A B Element,bake
68 5304403015 A B Support,element hanger
71 318071111 A B Shield,rear wall
76 318056124 A B Front,oven
80 318192400 A B Spring,oven
81 5303323710 A B Bracket,oven
83 318089520 A B Liner,oven
86 5303310524 A B Receptacle,hinge
97 318066602 A B Wrapper,back & sides
98 318029322 A B Trim-side,inner,RH
98A 318029323 A B Trim-side,inner,LH
99 5303299686 A B Support,adjustable
101 318039512 A - Bracket,trim ,white
101 318039511 - B Bracket,trim ,black
103 318028711 A - Trim,base ,white
103 318028710 - B Trim,base ,black
119# 3202388 A B Switch,thermal
121 318145001 A B Wrapper,base
127 5303310542 A B Adapter,vent tube ,with converter
189 318042500 A B Plate,retainer
227 5303323955 A B Clip,retainer
* # 318078522 A B Box & wires assy
* 318092304 A B Harness,main
* 08002868 A B Screw,10-24 x 0.500 ,probe,thrm brkt ,shield,drwr,box
* 5303302745 A B Screw,10-16x1-1/8 ,square drive
* 5303211311 A B Screw,8 x 0.500
* 5303324184 A B Screw (8X5/16)
* 5303935083 A - Screw 10-16X1-1/4
* 5303307406 - B Screw,6-32 x 3/8 ,black ,(2)

01/02 6
Publication No. FEB24S2A
5995363404
DOOR

# = Functional Parts 7 01/02
* = Non-Illustrated Parts
FEB24S2A Publication No.
5995363404
DOOR
A = FEB24S2A (FEB24S2ASA)
B = FEB24S2A (FEB24S2ABA)
POS. NO PART NO DESCRIPTION
3 318026102 A - Trim-oven door,white
3 318026520 - B Trim,oven door
4 318210907 A - Glass,oven door ,white ,outer
4 318210908 - B Glass,oven door ,black ,outer
6 318073600 A B Shield,air wash
7 318133740 A B Insulation,oven door
9 318156604 A B Liner,oven door
10 5303311217 A B Screw,handle ,door
12 # 5303316768 A B Seal,oven door
16 318211700 A B Glass,oven door ,inner
17 318162601 A B Support,glass
18 318053204 A B Seal,rope ,lower oven
20 318014301 A - Spacer,handle ,white ,(2)
20 318014300 - B Spacer,handle ,black ,(2)
23 318024702 A B Hinge,oven door
29 318014400 A B Spacer,door
39 316091104 A - Handle,door ,white ,oven
39 316091103 - B Handle,door ,black ,oven
59 3202113 A B Plug,button
60 5303316982 A B Foam seal,(3)
* 08002868 A B Screw,10-24 x 0.500 ,probe,thrm brkt ,shield,drwr,box
* 5303211311 A B Screw,8 x 0.500

01/02 8
Publication No. FEB24S2A
5995363404
WIRING DIAGRAM
