ELECTRONIC OVEN CONTROL

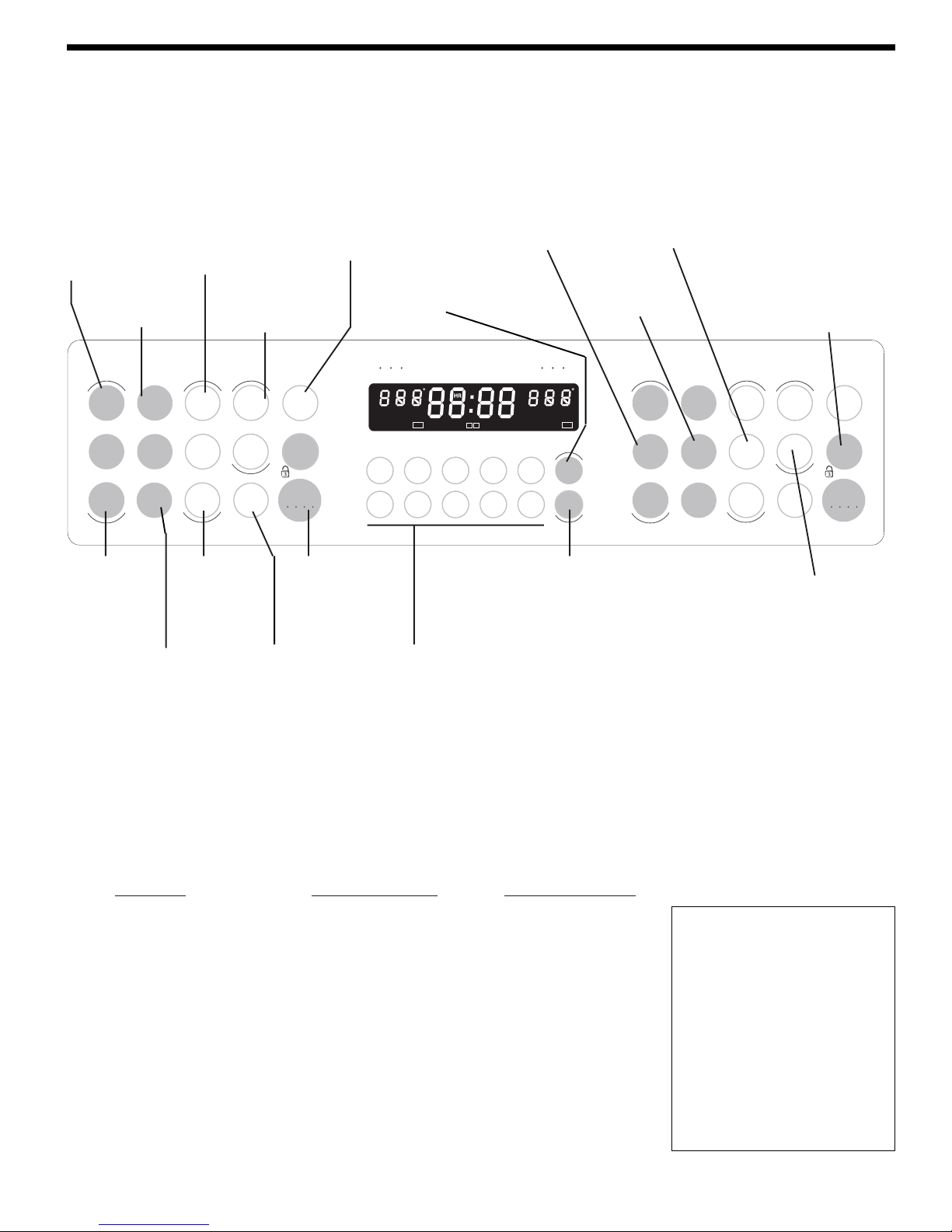

Control Pad Features
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become
familiar with the various features and functions of the oven as described below. Detailed instructions for each feature
and function follow later in this Use & Care Guide.
Minimum and Maximum Control Pad Settings
All of the features listed below have minimum and maximum time or temperature settings that may be entered into the control.
An ENTRY acceptance beep will sound each time a control pad is touched (the Oven Lockout pad is delayed 3 seconds).
An ENTRY ERROR tone (3 short beeps) will sound if the entry of the temperature or time is below the minimum or above the
maximum settings for the feature.
Broil— Used to
select the
variable broil
function.
Warm & Hold—
Used to set the
Warm & Hold
feature.
Clock— Used to
set the time of day.
0 Thru 9 Number Pads—
Use to enter temperature
and times.
Timer On/Off — Used to set or cancel
the minute timer. The minute timer
does not start or stop cooking. Also,
TIMER SET/OFF Pad is used to set
the Continuous Bake Feature.
Convection
Bake— Use to
select the
Convection
Bake feature.
Start — Use to
start all oven
features (not used
with Oven Light).
Convection
Convert— Use to
select the Convection
Convert feature.
Preheat—Used
to preheat the
oven.
Convection
Roast— Use
to select the
convection
roasting mode.
FEATURE MINIMUM VALUE MAXIMUM VALUE
PREHEAT TEMP. 170°F/77°C 550°F/288°C
BAKE TEMP. 170°F/77°C 550°F/288°C
BROIL TEMP. 400°F/204°C HI-550°F/288°C
KITCHEN TIMER 12 Hr. 0:01 Min. 11:50 Hr./Min.
24 Hr. 0:01 Min. 11:50 Hr./Min.
CLOCK TIME 12 Hr. 1:00 Hr./Min. 12:59 Hr./Min.
24 Hr. 0:00 Hr./Min. 23:59 Hr./Min.
OVEN COOK TIME 12 Hr. 0:01 Min. 11:50 Hr./Min.
24 Hr. 0:01 Min. 11:50Hr./Min.
CONVECTION BAKE 325°F/163°C 550°F/288°C
CONVECTION ROAST 300°F/149°C 550°F/288°C
Versión en español
Si desea obtener una copia en
español de este Manual del
Usuario, sírvase escribir a la
dirección que se incluye a
continuación. Solicite la P/N
318200133E.
Spanish Owner's Guides
Frigidaire Company
P. O. Box 9061
Dublin, Ohio 43017-0961
Speed
Clean— Use
to select the
Speed Clean
feature.
Bake Time— Used
to enter the length of
the baking time.
Oven Interior
Light— Used to turn
oven interior light
ON and OFF.
Bake—Used to
select the bake
function.
Maxx Clean—
Use to select
the Maxx
Clean feature.
ClearOff— Used to clear
any function previously
entered except the time of
day and minute timer. Press
STOP CLEAR to stop
cooking. Also the STOP
CLEAR pad is used to
activate oven lockout setting.
Start Time — Used to
set the desired start time
for baking. May be used
with COOK TIME to
program a delayed bake
cycle.
Clean— Use to
select the Self-
Clean feature.
318200133 (0407) Rev. A

2
TIME
TIME
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Setting the Clock
Setting the Clock
The CLOCK
Clock
pad is used to set the clock. The clock may be set for 12 or 24 hour time
of day operation. The clock has been preset at the factory for the 12 hour operation. When
the range is first plugged in, or when the power supply to the range has been interrupted, the
timer in the display will flash with "PF" (power failure, See Figure 1).
When PF appears in the display, press
Clear
/Off
.A beep will sound and PF will disappear.
To set the clock (example below for 1:30)

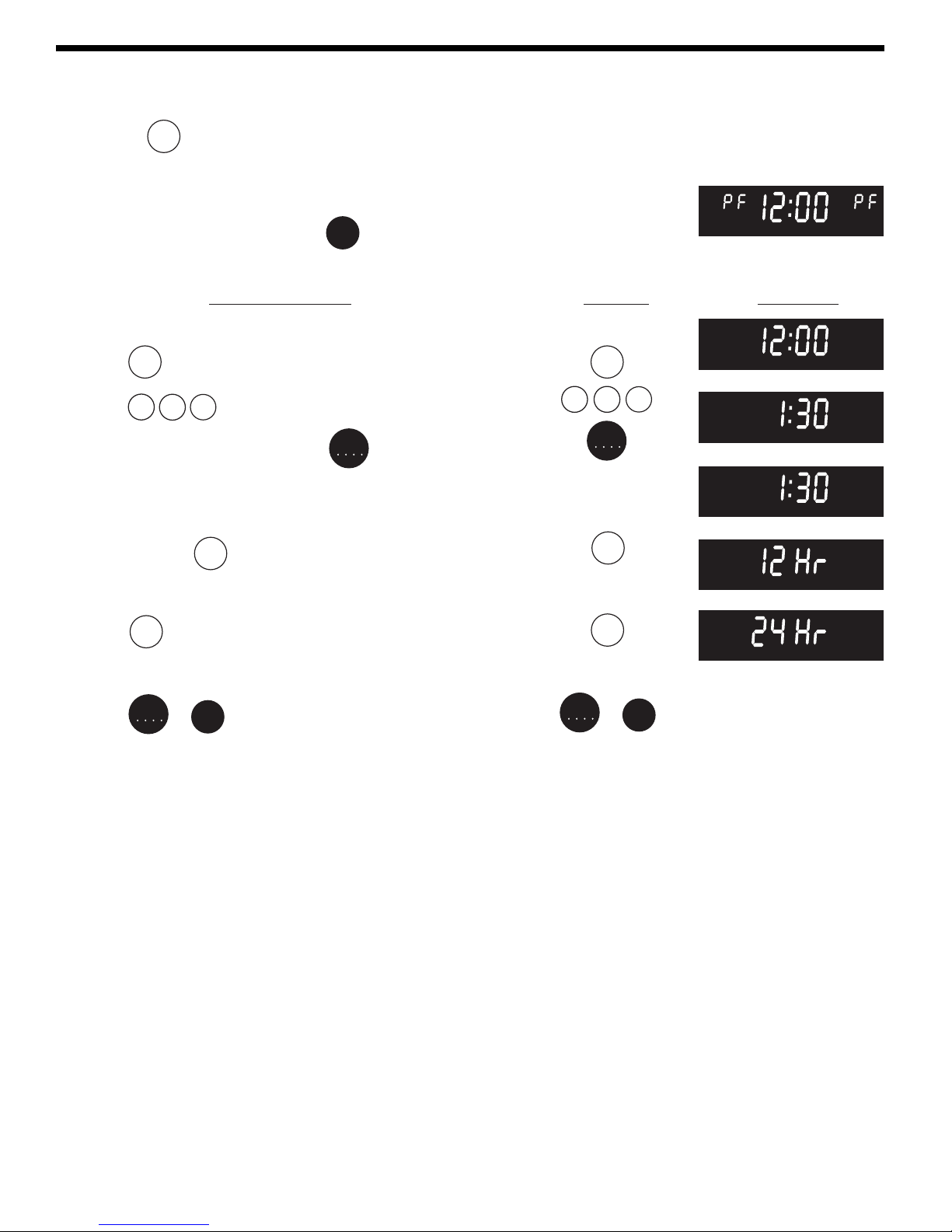

1. Press Clock ."TIME" will appear in the display (Figure 2).
2. Press 130pads to set the time of day to 1:30 (Figure 3).
"TIME" will stay in the display. Press
START
. "TIME" will disappear
and the clock will start (Figure 4).
Changing between 12 or 24 hour time of day display
1. Press and hold
Clock
for 7 seconds (Figure 3). After 7 seconds,
"12Hr" (Figure 5) or "24Hr" (Figure 6) will appear in the display and
the control will beep once.
2. Press
Clean
to switch between the 12 and 24 hour time of day
display. The display will show either "12Hr" (Figure 5) or "24Hr"
(Figure 6).
3. Press
START
or
Clear
/Off
or wait 5 seconds to accept the change.
4. Reset the correct time as described in To set the Clock above.
Please note that if the 24 hour time of day mode was chosen, the
clock will now display time from 0:00 through 23:59 hours.
Clock
13
0
START
Clock
for 7 seconds
Clean
START
or
Clear
/Off
INSTRUCTIONS PRESS DISPLAY

3
TIMER
TIMER
TIMER
TIMER
Setting KitchenTimer
The KITCHEN TIMER
Timer
On/O
O
ff
pad controls the Kitchen Timer feature. The Kitchen Timer serves as an extra timer in the kitchen
that will beep when the set time has run out. It does not start or stop cooking. The Kitchen Timer feature can be used during
any of the other oven control functions. Refer to “Minumum and Maximum Control Pad Settings” for time amount settings.

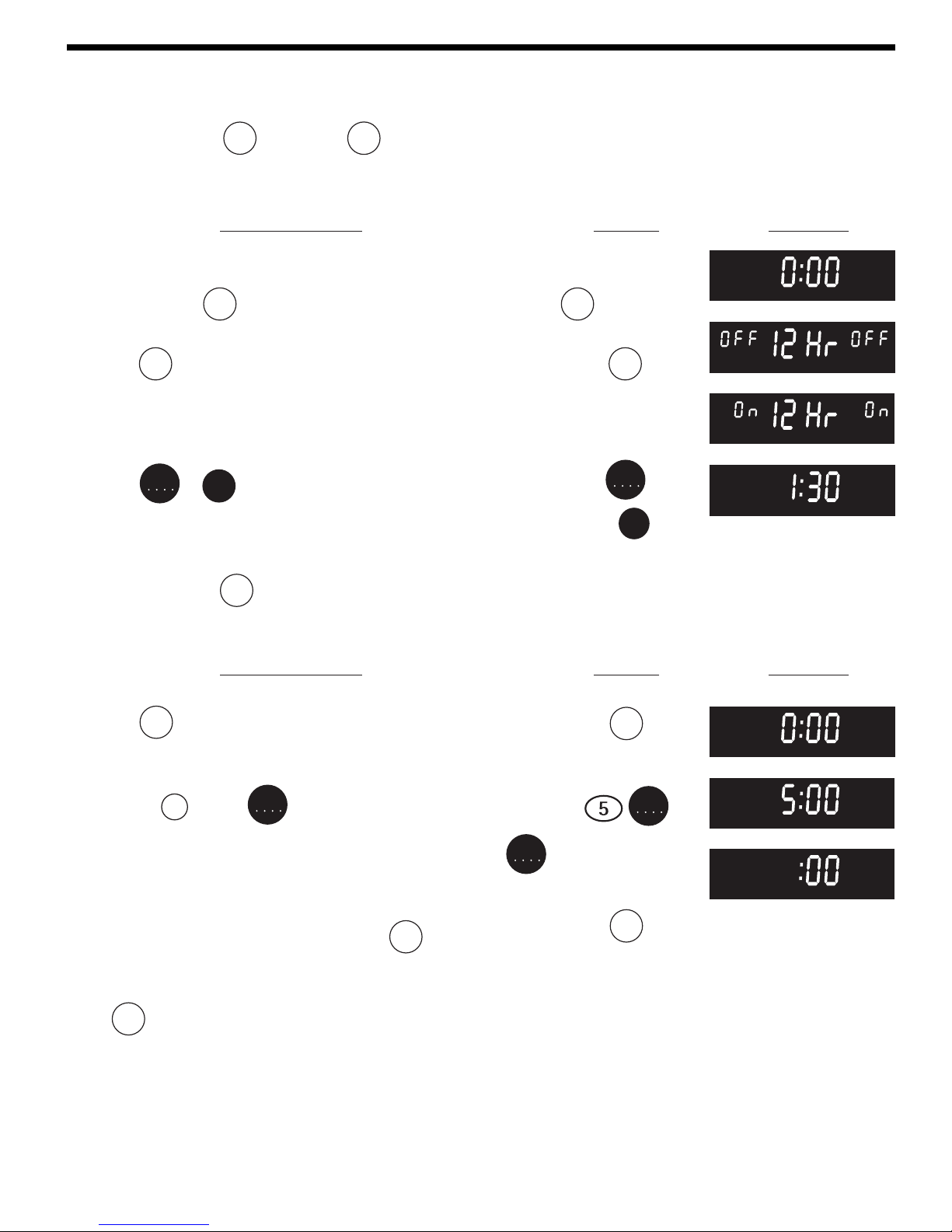

To set the Kitchen Timer (example: 5 minutes)
1. Press
Timer
On/O
O
ff
. "0:00" will appear and "TIMER" will flash in the
display (Figure 5).
2. Press the number pads to set the desired time in the display
(example 5). Press
START
. The time will begin to count down with
"5:00" and "TIMER" will stay in the display (Figure 6). Note: If
START
is not pressed the timer will return to the time of day.
3. When the set time has run out, ":00" and "TIMER" will show in the
display (Figure 7). The oven will beep until
Timer
On/O
O
ff
is pressed.
To cancel the KitchenTimer before the set time has run out
Press
Timer
On/O
O
ff
twice until the clock displays ":0:00" and "TIMER". The
display will return to the time of day.
Setting the Clock
Setting Continuous Bake or 12 Hour Energy Saving
The KITCHEN TIMER
Timer
On/O
O
ff
and CLEAN
Clean
pads control the Continuous Bake or 12 Hour Energy Saving features. The
oven control has a factory preset built-in 12 Hour Energy Saving feature that will shut off the oven if the oven control is
left on for more than 11 hours and 59 minutes. The oven can be programmed to override this feature for Continuous
Baking.
To set the control for Continuous Bake or 12 Hour
Energy Saving features
1. Press and hold
Timer
On/O
O
ff
for 7 seconds (Figure 1). After 7 seconds
"Off 12Hr Off will appear in the display (Figure 2).
2. Press
Clean
to switch between the 12 Hour Energy Saving and
continuous bake features. Note: "On 12Hr On" (Figure 3) in the
display indicates the control is set for the 12 Hour Energy Saving
mode and "Off 12Hr Off" indicates the control is set for the
Continuous Bake feature (Figure 2).
3. Press
START
or
Clear
/Off
or wait 5 seconds to accept the change.
(Figure 4; display will return to time of day).
Timer
On/O
O
ff
for 7 seconds
Clean
START
or
Clear
/Off
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
INSTRUCTIONS PRESS DISPLAY
INSTRUCTIONS PRESS DISPLAY
Timer
On/O
O
ff
START
Timer
On/O
O
ff

4
Setting Oven Lockout Feature
The
Clear
/Off
pad controls the Oven Lockout feature. The Oven Lockout feature automatically locks the oven door and prevents
the Oven from being turned on. It does not disable the interior oven lights.
Clear
/Off
for 3 seconds
Clear
/Off
for 3 seconds
To activate the Oven Lockout feature
1. Press and hold
Clear
/Off
for 3 seconds (Figure 1).
2. After 3 seconds "Off" will appear in the display and a beep will
sound. Once the oven door is locked "LOCK" will appear in the
display (Figure 1).
To reactivate normal oven operation:
1. Press and hold
Clear
/Off
for 3 seconds. A beep will sound. "Off" will
disappear from the display and "LOCK" will stay until the oven door
has completely unlocked (Figure 2).
2. The wall oven is again fully operational (Figure 3).
Consumer Defined Control
Note: The Consumer Defined Control features are adjustments to the control that will not affect cooking results. These include
the Oven Lockout, Temperature Display and Silent Control Operation features
Figure 1
Figure 2
INSTRUCTIONS PRESS DISPLAY
Figure 3
Setting Silent Control Operation
The START TIME Start
time and CLEAN
Clean
pads control the Silent Control operation feature.The Silent Control operation
feature allows the oven control to be operated without sounds or beeps whenever necessary. If desired the control can be
programmed for silent operation and later returned to operating with all the normal sounds and beeps.
INSTRUCTIONS PRESS DISPLAY
To change control from normal sound operation to
silent control operation
1. To tell if your range is set for normal or silent operation press and
hold Start
time for 7 seconds. "On bEEp On" will appear in the display
(Figure 4).
2. Press
Clean
to switch between normal sound operation and silent
operation mode. The display will show either "On bEEp On"
(Figure 4) or "Off bEEp Off"(Figure 5).
If "On bEEp On" appears (Figure 4), the control will operate with
normal sounds and beeps. If "Off bEEp Off" appears (Figure 5),
the control is in the silent operation mode.
3. Press
START
or wait 5 seconds to accept the change.
Start
time
for 7 seconds
Clean
START
Figure 4
Figure 5
LOCK LOCK
LOCK
LOCK LOCK
LOCK

5
Consumer Defined Control Features
Setting Temperature Display — Fahrenheit or Celsius
The BROIL Broil and FLEX CLEAN
Clean
pads control the Fahrenheit or Celsius temperature display modes. The oven
control can be programmed to display temperatures in Fahrenheit or Celsius. The oven has been preset at the factory to
display in Fahrenheit.
To change display from Fahrenheit to Celsius or
Celsius to Fahrenheit
1. To tell if the display is set for Fahrenheit or Celsius press Broil
(figure 1) and hold for 7 seconds; Wait untill "F" or "C" appears.
If "F" appears, the display is set to show temperatures in
Fahrenheit (Figure 2). If "C" appears, the display is set to show
temperatures in Celsius (Figure 3).
2. Press
Clean
to switch between Fahrenheit or Celsius display
modes. The display will show either "F" (Figure 2) or "C"
(Figure 3).
3. Press
START
or
Clear
/Off
or wait 5 seconds to accept the change.
INSTRUCTIONS PRESS DISPLAY
Broil
for 7seconds
Clean
START
or
Clear
/Off
Figure 1
Figure 2
Figure 3
BROIL

6
BAKE
BAKE
PRE-
BAKE
PRE-
BAKE
ON
BAKE
ON
PRE-
BAKE
PRE-
BAKE
ON
PRE-
BAKE
PRE-
BAKE
ON
BAKE
ON
Setting Oven Controls
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
To set the Preheat temperature for 350°F
1. Arrange the interior oven racks.
2. Press
Pre
Heat
. "- - - °" and "BAKE" will appear in the display
(Figure1).
3. Press 350. "350°" and "BAKE" will appear in the display
(Figure 2).
4. Press
START
. "PRE", "BAKE" and "
ON
" will appear in the display
as the oven heats and reaches 350°F (Figure 3).
Note: After the oven has reached the desired temperature (this
example, 350°F) the control will beep and the "PRE" light will turn off
and oven temperature will be displayed (Figure 4). If you missed
hearing the beep, you can tell that oven has reached preheat temperature
if "PRE" has disapeared from the display. Once the oven has
preheated, PLACE FOOD IN THE OVEN. The "BAKE" light will stay
on.
Press
Clear
/Off
when baking is complete or to cancel the preheat feature.
To change Preheat temperature while oven is
preheating (example: changing from 350 to 425°F)
If it is necessary to change the preheat temperature while the oven is
preheating to the original temperature:
1. While preheating, press
Pre
Heat
."BAKE" will flash in the display
(Figure 5)
2. Enter the new preheat temperature. Press 4
2
5. "425°"
and "BAKE" will appear in the display.
3. Press
START
. "PRE" and "
ON
" will appear in the display as the
oven heats to 425°F (Figure 6). A beep will sound once the oven
temperature reaches 425°F and the display will show "425°" and
"BAKE" (Figure 7).
4. When baking is complete press
Clear
/Off
.

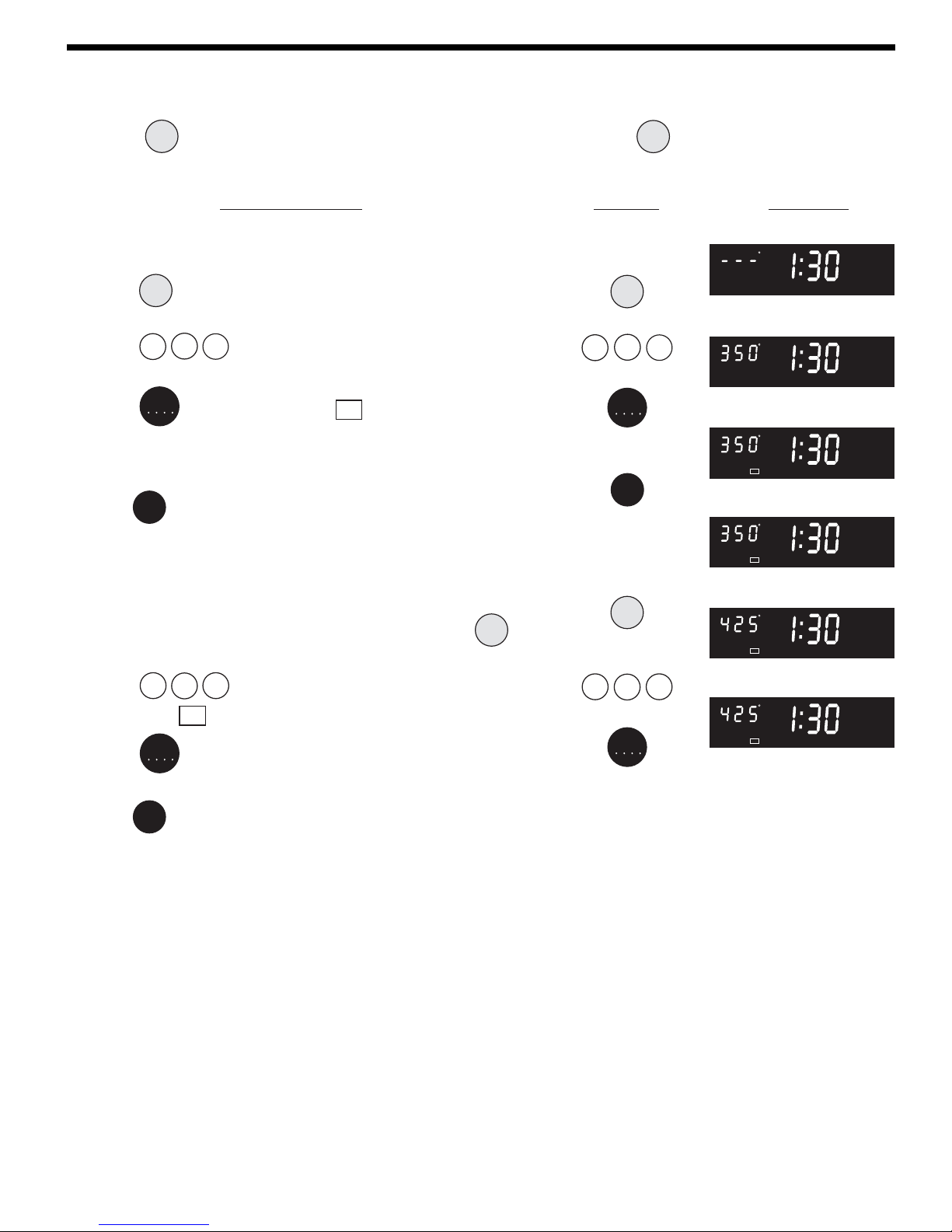

INSTRUCTIONS PRESS DISPLAY
Setting Preheat
The PREHEAT
Pre
Heat
pad controls the Preheat feature. The Preheat feature will bring the oven up to temperature and then
indicate when to place the food in the oven. Use this feature when recipes call for preheating. Preheating is not necessary
when roasting or cooking casseroles. The oven can be programmed to preheat at any temperature between 170°F to 550°F
(77°C to 288°C).
Pre
Heat
350
START
Clear
/Off
Pre
Heat
4
2
5
START
Clear
/Off

7
Figure 3
Figure 5
Figure 6
Figure 1
Figure 2

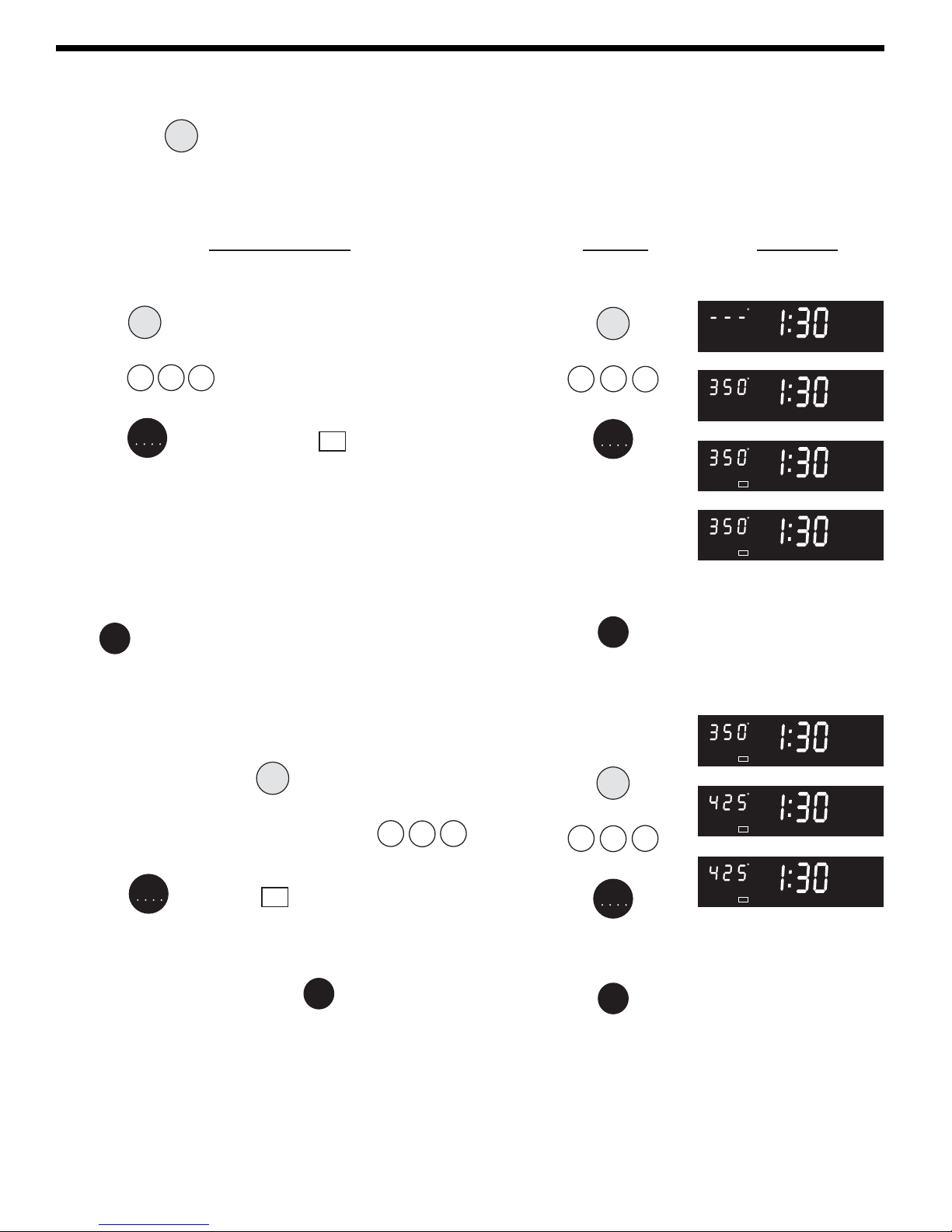

INSTRUCTIONS PRESS DISPLAY
Figure 4
Setting Oven Controls
Setting Bake
The BAKE Bake pad controls normal baking. If preheating is necessary, refer to the
Pre
Heat
Preheat Feature for instructions.
The oven can be programmed to bake at any temperature from 170° F to 550° F (The sample shown below is for 350°F).
To set the Bake Temperature to 350°F
1. Arrange interior oven racks and place food in oven.
2. Press
Bake
, "- - - °" will appear and "BAKE" will flash in the
display (Figure 1).
3. Press 350(Figure 2). "BAKE" will continue to flash
and "350°" will appear in the display.
4. Press
START
. "PRE", "BAKE" and "
ON
" will appear in the
display as the oven heats to 350°F (Figure 3). A beep will sound
once the oven temperature reaches 350°F. The display will
show "350°" and "BAKE"(Figure 4).
Pressing
Clear
/Off
will cancel the Bake feature at any time.
To change the Bake Temperature (example:
changing from 350° to 425°F)
1. After the oven has already been set to bake at 350°F and the
oven temperature needs to be changed to 425°F, press
Bake
(Figure 4) and "BAKE" will flash in the display.
2. Press 4
2
5(Figure 5). "BAKE" will continue to flash
"425°" and "
ON
" will appear in the display.
3. Press
START
. "BAKE" and "425°" will stay in the display (See
Figure 6).
Pressing
Clear
/Off
will cancel the Bake feature at any time.
Bake
350
START
Clear
/Off
Bake
4
2
5
START
BAKE
BAKE
PRE-
BAKE
PRE-
BAKE
ON
BAKE
ON
BAKE
ON
BAKE
ON

8
CONV
BAKE
CONV
BAKE
CONV PRE-
BAKE
PRE-
BAKE
ON
CONV
BAKE
ON
To set the oven for Convection Bake and temperature to
350°F
1. Arrange interior oven racks and place food in oven.
2. Press
Conv
bake
. "CONV BAKE" will flash and "- - -°" will appear in the
display (Figure 1).
3. Press 350. "CONV BAKE" and "350°"will appear in the
display (Figure 2).
4. Press
START
. "CONV BAKE", "PRE" and "
ON
" will appear in the
display (Figure 3).The temperature will be decreased to 325° F.
A beep will sound once the oven temperature reaches 325° F and the
display will show "325°", "CONV BAKE" and "
ON
" (Figure 4).
Note: The convection fan will start AS SOON AS the oven is set for
Convection Bake.
Press
Clear
/Off
to stop Convection Bake or cancel Convection Bake at any
time.
Note: As soon as the
START
pad is pressed the set temperature will be
decreased by 25°F (14°C).
Figure 1
Figure 2
Figure 3
INSTRUCTIONS PRESS DISPLAY
Conv
bake
350
START
Clear
/Off
Figure 4
Setting Oven Controls
Setting Convection Bake
The CONVECTION BAKE Conv
bake pad controls the Convection Bake feature. Use
the Convection Bake feature when cooking speed is desired. The oven can be
programmed for Convection baking at any temperature between 325° F (149° C)
to 550° F (288° C).
Convection baking uses a fan to circulate the oven's heat evenly and continuously
within the oven. This improved heat distribution allows for fast, even cooking and
browning results. It also gives better baking results when using 2 or 3 racks at the
same time. Breads and pastries brown more evenly. Convection Bake cooks
most foods faster and more evenly than conventional baking.
General Convection Bake Instructions
Benefits of Convection Bake:
—Some foods cook up to 30% faster,
saving time and energy.
—Multiple rack baking.
—No special pans or bakeware needed.
Foods for CONVECTION BAKE pad
*Decrease normal cook time by:
Frozen foods, pies, ............. 15-25 %
pastries and pizza
Refrigerator cookies ............ 15-35 %
Refrigerator biscuits ............ 15-30 %
Rolls & Breads.................... 20-25%
Fresh Pies/Pastries ............ 10-20 %
Begin with the maximum reduction in
cook times and adjust as needed.
*Recommended reduction in cook times
based on brands of food items tested.
Cook times may vary with your specific
brand of food item.
1. When using Convection Bake, decrease your normal cooking times as shown
aside. Adjust the cook time for desired doneness as needed. Time reductions
will vary depending on the amount and type of food to be cooked. Cookies and
biscuits should be baked on pans with no sides or very low sides to allow
heated air to circulate around the food. Food baked on pans with a dark finish
will cook faster.
2. Preheating is not necessary when cooking casseroles with Convection Bake.
3. When using Convection Bake with a single rack, place oven rack in position
2 or 3. If cooking on multiple racks, place the oven racks in positions 2 and
3.

9
CONV
TIMED BAKE
ON OVEN 1TIME
Setting Oven Controls
Setting Convection Roast
This method of cooking enables you to obtain the best results when roasting. Allow your oven to preheat before roasting.
A beep will let you know when the convection roast temperature is reached. The oven can be programmed to convection
roast at any temperature from 300°F to 550°F (149°C to 288°C). Remember to use tested recipes with times adjusted for
convection roasting when using the convection mode. Times may be reduced by as much as 30% when using the
convection feature.

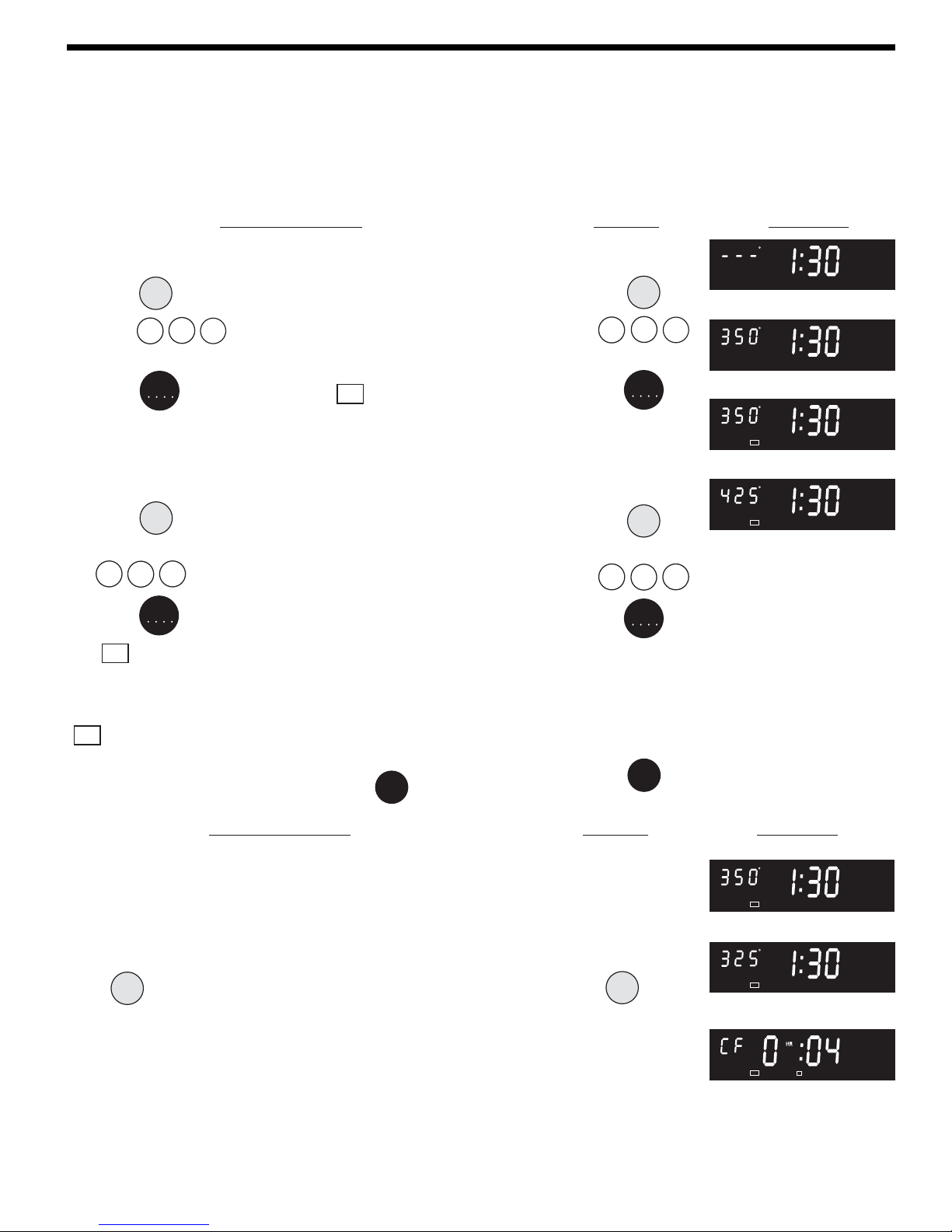

INSTRUCTIONS PRESS DISPLAY
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Conv
roast
3
5
0
START
Conv
roast
4
2
5
START
Clear
/Off
To Set the oven to Convection Roast at 350°F
1. Arrange oven racks.
2. Press
Conv
roast
, "- - - °"will be displayed; "CONV" will flash (Figure 1).
3. Enter 35
0
using the number pads. "CONV"and "350°"
will be displayed (Figure 2).
4. Press
START
, "CONV", "PRE" and "
ON
" will be displayed. A beep
will sound once the oven temperature reaches 350° (Figure 3).
To change the preset Convection Roast Temperature
(example: 425°F)
1. Press
Conv
roast
, "CONV"will flash.
2. Enter the desired roasting temperature using the number pads
4
2
5(Figure 4).
3. Press
START
the current oven temperature, "CONV", "PRE"and
"
ON
" will be displayed.
After the oven has reached the desired temperature, "PRE" will
diappear the control will beep and "CONV"light will stay on. The
"
ON
" light will turn on and off as the oven maintains its temperature.
When convection roasting is complete press
Clear
/Off
.
Setting Convection Convert
This function is used to convert a normal baking to a convection
baking.
Be sure your oven is baking in a normal baking mode (Figure 5).
Press
Conv
convert
. "CONV"should now be displayed and the temperature
decreased to convection baking temperature (Figure 6).
Note: For a timed convection convert.
After 75% of the cook time, the controll will beep 3 times and "CF"
(check food) will appear in the display (Figure 7). At this time the oven
control will sound 3 long beeps at regular intervals until baking has
finished.
Figure 7
Conv
convert
INSTRUCTIONS PRESS DISPLAY
CONV PRE-
PRE-
ON
CONV PRE-
PRE-
ON
PRE-
BAKE
PRE-
BAKE
ON
CONV
CONV
CONV
BAKE
ON

10
BAKE
BAKE
PRE-
BAKE
PRE-
BAKE
ON
PRE-
BAKE
PRE-
BAKE
ON
OVEN
1
TIME
TIME
PRE-
BAKE
PRE-
BAKE
ON OVEN 1TIME
TIME
TIMED
PRE-
BAKE
PRE-
BAKE
ON OVEN 1TIME
Setting Timed Bake,Timed Convection Bake or Timed Convection Roast
The BAKE Bake or CONVECTION BAKE Conv
bake or CONVECTION ROAST
Conv
roast
and BAKE TIME Bake
time pads control the
Timed Bake feature. The automatic timer of the Timed Bake feature will turn the oven OFF after cooking for the desired
amount of time you selected.
Setting Oven Controls
To program the oven to begin baking immediately and to shut off
automatically (example : Bake at 350°F for 30 minutes)
1. Be sure the clock is set for the correct time of day.
2. Arrange interior oven rack(s) and place the food in the oven.
3. Press Bake , "- - - °" will appear and "BAKE" will flash in the
display (Figure 1).
4. Press 35
0
(Figure 2). "BAKE" will continue to flash and
"350°" will appear in the display.
5. Press
START
. "PRE","BAKE" and "350°" will appear in the
display (See Figure 3).
6. Press Bake
time . "OVEN 1" and "TIME" will flash; The current time
will change to 0 hr :00 (Figure 4).
7. Enter the desired baking time by pressing 30.
Note: Baking time can be set for any amount of time between 1
minute to 11 hours and 50 minutes.
8. Press
START
. "PRE", "TIMED", "BAKE" and "
ON
" should now be
displayed. Once the Timed Bake feature has started, the current
time remaining will be displayed (Figure 6).
Press
Clear
/Off
when baking has finished or at any time to cancel the
Timed Bake feature.
When the timed bake finishes:
1. "End" and the time of day will show in display. The oven will shut
off automatically (Figure 7).
2. The control will beep 3 times. And "End"will remain in the display
until
Clear
/Off
is pressed.

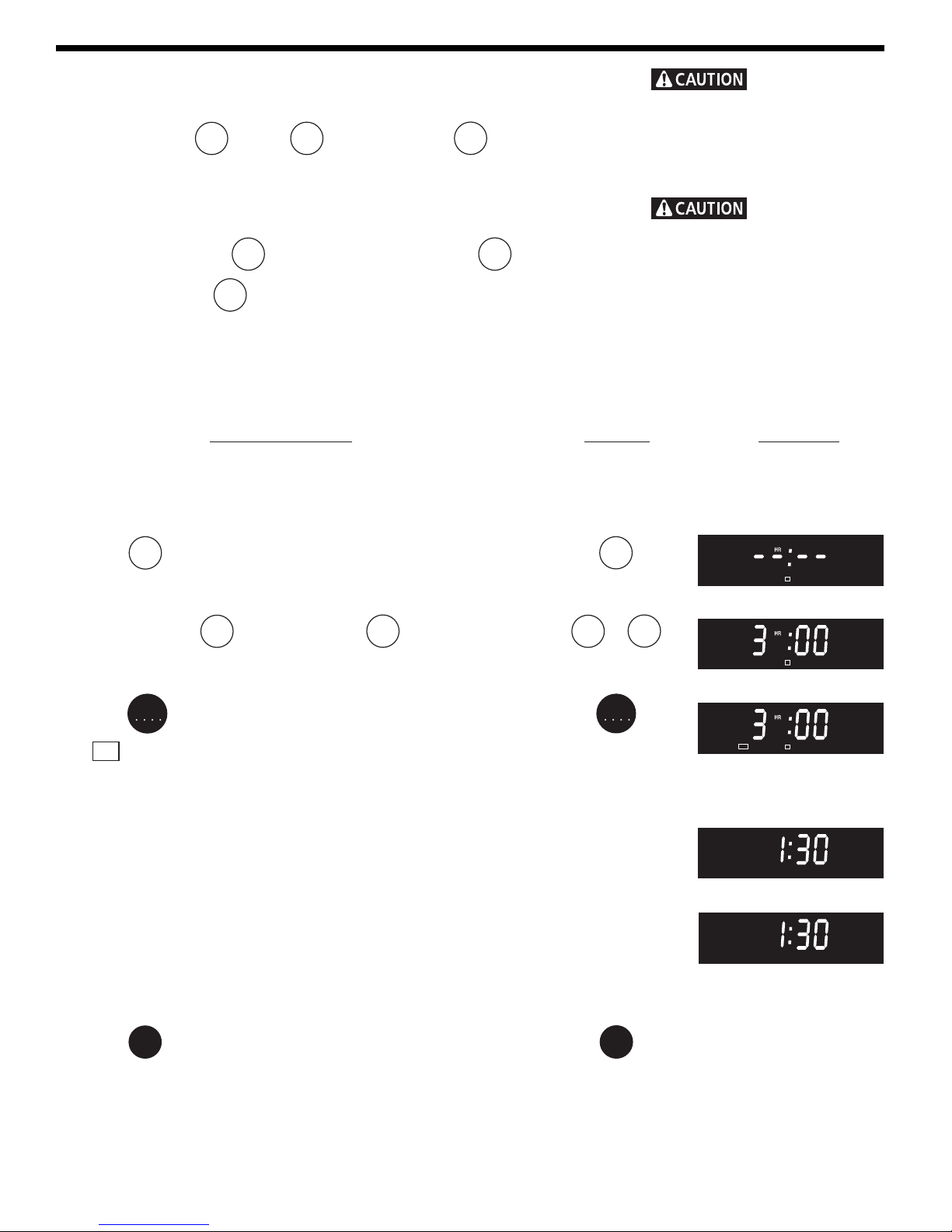

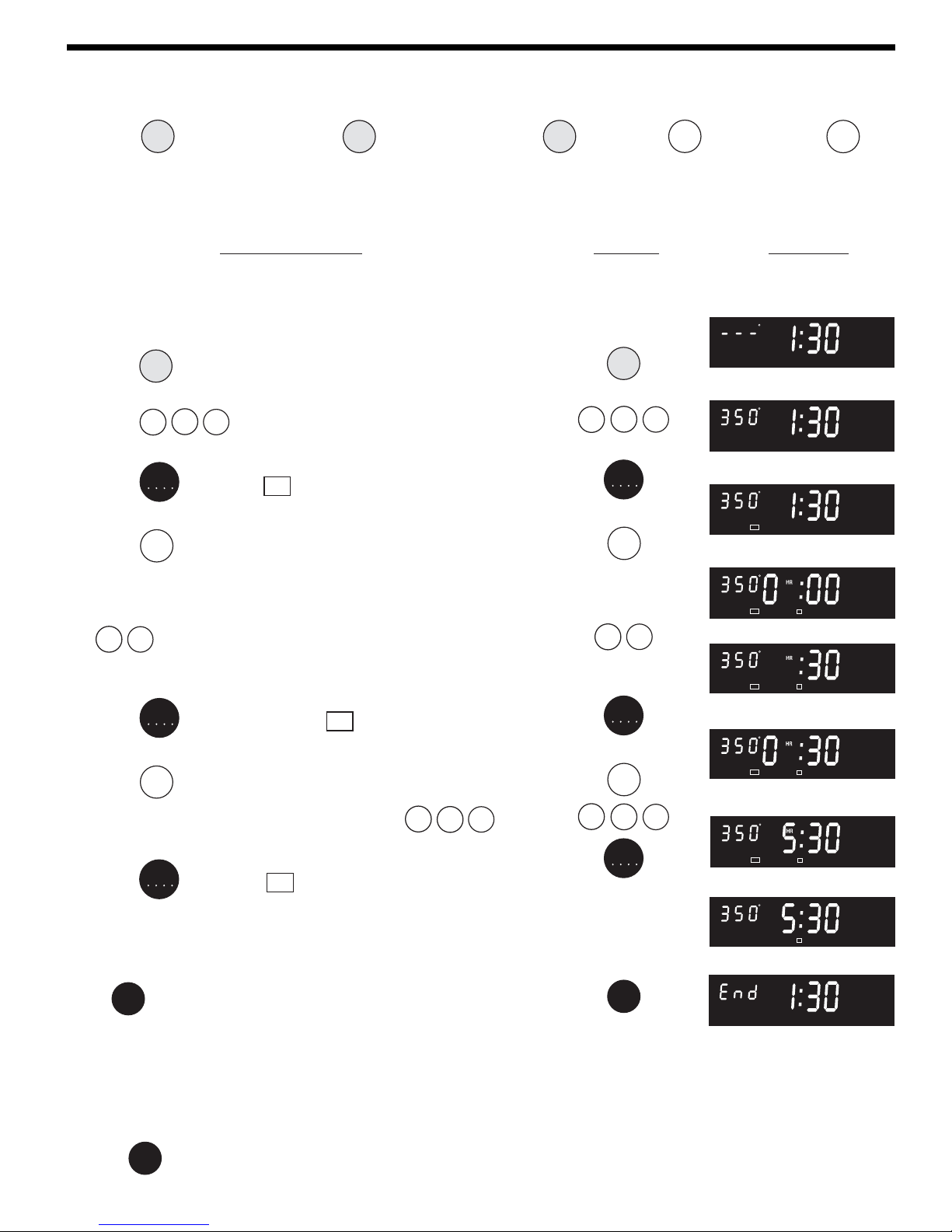

INSTRUCTIONS PRESS DISPLAY
Use caution with the TIMED BAKE or DELAYED TIME BAKE features. Use the automatic timer when cooking
cured or frozen meats and most fruits and vegetables. Foods that can easily spoil such as milk, eggs, fish, meat or poultry,
should be chilled in the refrigerator first. Even when chilled, they should not stand in the oven for more than 1 hour before
cooking begins, and should be removed promptly when cooking is completed. Eating spoiled food can result in sickness from
food poisoning.
NOTE: Remember that the lowest BAKE temperature is 170°F
and that the lowest CONVECTION BAKE temperature is 325°F.
Figure 1
Figure 2
Figure 4
Figure 5
Figure 6
Figure 7
Figure 3
Bake
350
START
Bake
time
30
START
Clear
/Off
Clear
/Off
