Frigidaire GLEB30T9F User manual

GLEB30T9F.tif CFEB30T5DSC.eps BUPLEB30T9FCA.eps BLGLEB30T9DSD.eps
DGLEB30S9FSA.eps 318046121.eps
Product No. GLEB30T9FBA GLEB30T9FQA GLEB30T9FSA
37056361H6061 37056361H6041 37056361H6011
Series 30" double 30" double 30" double
Color black bisque white
Market North America North America North America
Wiring Diagram 318046121 318046121 318046121
Owner's Guide 318200924 318200924 318200924
Installation Instructions 318201514 318201514 318201514
Service Data Sheet 318047306 318047306 318047306
Timer Guide 318200135 318200135 318200135
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995470977
06/07/27
(EN/SERVICE/ECL)
377
DOUBLE ELECTRIC
WALL OVEN
Model No.
GLEB30T9F
Copyright ©2006 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995470977 GLEB30T9F
07/06 2

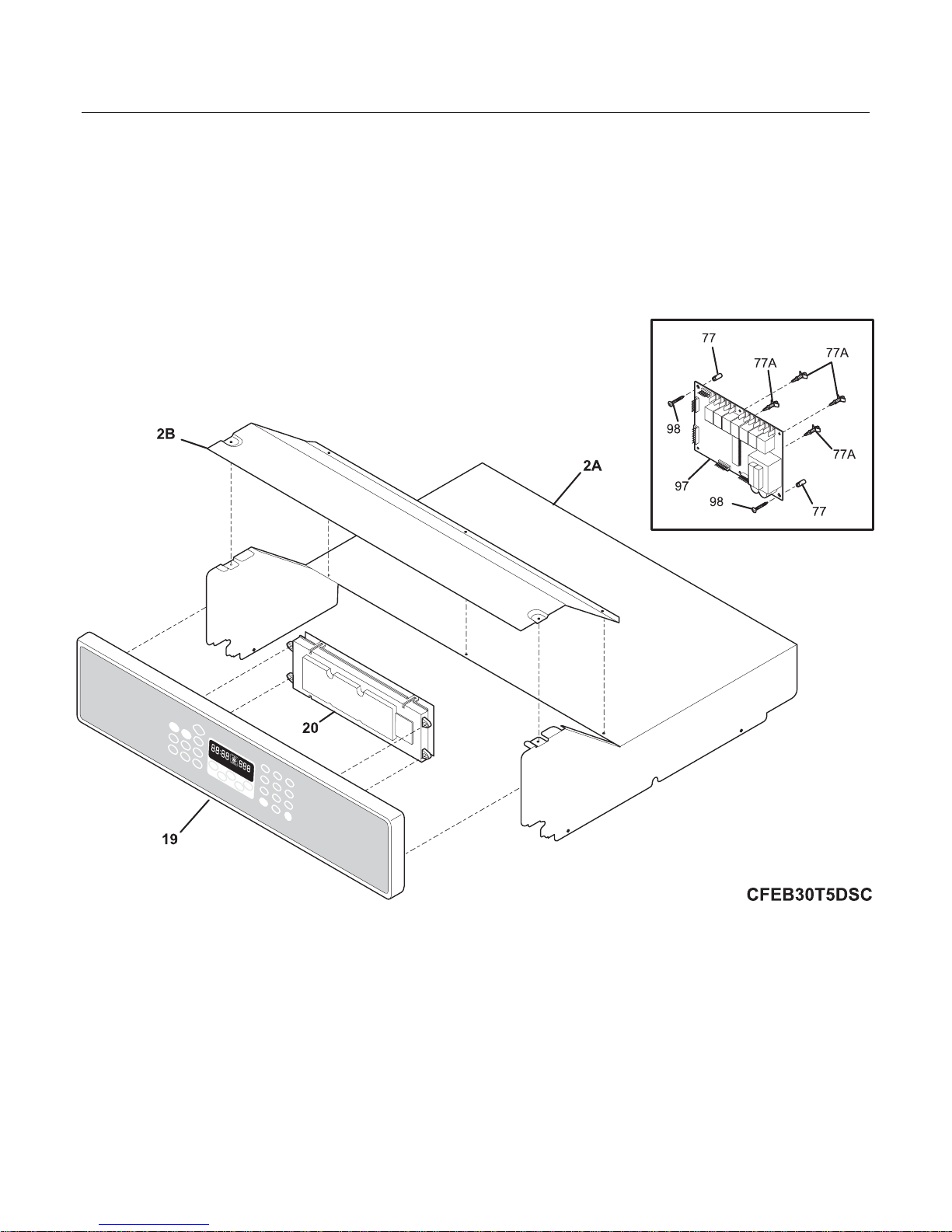

CONTROL PANEL

GLEB30T9F Publication No: 5995470977
# Functional Parts 3 07/06
* Non-Illustrated Parts
CONTROL PANEL
Model Index: AGLEB30T9F (GLEB30T9FSA)
BGLEB30T9F (GLEB30T9FBA)
CGLEB30T9F (GLEB30T9FQA)
POS. NO PART NO. DESCRIPTION
2A 318257300 A B C Shield, oven top
2B 318260100 A B C Cover, box
19 318342907 A - - Control Panel Assembly, glass, white, w/touch pad
19 318342909 - B - Control Panel Assembly, glass, black, w/touch pad
19 318342908 - - C Control Panel Assembly, glass, bisque, w/touch pad
20 # 316443805 A B C Control, electronic, ES610W3, dual oven
77 316247900 A B C Spacer, power board, (2)
77A 316114100 A B C Spacer, (2)
97 316443901 A B C Board, relay, dual oven
98 5303297477 A B C Screw, 6-20 x 1 1/4
* 318231751 A B C Harness, wiring, control-relay
* 5303211311 A B C Screw, 8 x 0.500

Publication No: 5995470977 GLEB30T9F
07/06 4
UPPER OVEN

GLEB30T9F Publication No: 5995470977
# Functional Parts 5 07/06
* Non-Illustrated Parts
UPPER OVEN
Model Index: AGLEB30T9F (GLEB30T9FSA)
BGLEB30T9F (GLEB30T9FBA)
CGLEB30T9F (GLEB30T9FQA)
POS. NO PART NO. DESCRIPTION
1 318259204 A B C Back, main
2 318258902 A B C Shield, insulation, upper
6 318345208 A B C Rack, oven
6A 318219500 A B C Rack, broiler pan
8 318262001 A B C Cover, element
8A 318318600 A B C Bracket, element, hidden bake
9 5303317977 A B C Pan, broiler
10 5303317976 A B C Insert, broiler pan
12 # 318089917 A B C Switch, light
14 318224000 A B C Receptacle, oven light
14* 318268099 A B C Insulation, oven light
15 5303013071 A B C Bulb/Lamp, light
16 08011086 A B C Lens, oven light, glass
17 5304400195 A B C Retainer, light cover
29 318147411 A B C Bumper, (2)
37 # 316217002 A B C Probe, oven temp
41 5303310526 A B C Cover, hinge cutout
54 318222400 A B C Housing, oven light
58A 318285055 A B C Insulation, oven wrapper
58B 318285056 A B C Insulation, oven back
58D 318133789 A B C Insulation, 1/2" thick, 26.75 x 19
* 318294903 A B C Insullation, 9.5x26.75x.5
58D 318285058 A B C Insulation, 1/2" thick, 43 x 9.5
59 318072560 A B C Duct, oven vent
59A 318261600 A B C Bracket, vent tube
66 # 318255600 A B C Element, broil, 2750W
67 318254901 A B C Element, bake, 3400W, 8 pass
68 5304403015 A B C Support, hanger, (2), broil element
70 318259100 A B C Shield, insulation, sides, (2)
71 318260007 A B C Panel, rear box
71* 318340200 A B C Bracket, insul. panel
76 318056217 A B C Front, oven
80 5303320846 A B C Plate, oven mtg
81 318192400 A B C Spring, oven
82 318258707 A B C Shield, insulation, lower
83 318261400 A B C Liner, oven assy
86 5303310524 A B C Receptacle, hinge
89 # 318261211 A B C Motor, latch assy
* # 318231750 A B C Harness, wiring, main, latch
* # 318199744 A B C Wiring Harness, latch, BAS
* # 318199746 A B C Wiring Harness, latch, NO BAS
99 318252800 A B C Support, side
* 5303300265 A B C Screw, 8-18 X 1/2, (2)
107 318219401 A B C Cover, fan
108# 318073018 A B C Motor, blower
* 08016432 A B C Screw, truss head, 8-18 x 0.375
108A 318251300 A B C Bracket, fan support
109 316136400 A B C Blade, fan

Publication No: 5995470977 GLEB30T9F
07/06 6
UPPER OVEN

GLEB30T9F Publication No: 5995470977
# Functional Parts 7 07/06
* Non-Illustrated Parts
UPPER OVEN
Model Index: AGLEB30T9F (GLEB30T9FSA)
BGLEB30T9F (GLEB30T9FBA)
CGLEB30T9F (GLEB30T9FQA)
POS. NO PART NO. DESCRIPTION
111 316136600 A B C Nut, fan retainer
119# 318004900 A B C Switch, thermal
125# 316415800 A B C Motor, fan
125* 5303316994 A B C Insulation, 3.81 x 3.13
126 318142100 A B C Washer, motor, RH, convection
127 318317100 A B C Adapter Assembly, vent tube, w/converter
131 318272900 A B C Box, vent
132 318003000 A B C Plate, shield
142 318123910 A B C Deflector
143 318172904 A B C Support, wire
161# 318255503 A B C Element, convection, 350 W
163 318014111 A B C Spacer
185 318014700 A B C Spacer, oven shield, (4)
263 316136500 A B C Washer, flat
264 318257701 A B C Trim, oven, black, front
272 318249401 A B C Tube, protector
310 5304440067 A B C Cabinet Mounting Kit
311 318246010 A B C Bracket, cabinet mtg, (2)
311* 5304438005 A B C Screw, 6 x 1, black
312 318246702 A B C Tool, cabinet bracket, RH
312 318246703 A B C Tool, cabinet bracket, LH
* 318165800 A B C Spacer
* 5303211311 A B C Screw, 8 x 0.500
* 5303323277 A B C Screw, 8-18 X 13/32
* 5304436875 A B C Screw, 8-18 X 1/2, black

Publication No: 5995470977 GLEB30T9F
07/06 8
LOWER OVEN

GLEB30T9F Publication No: 5995470977
# Functional Parts 9 07/06
* Non-Illustrated Parts
LOWER OVEN
Model Index: AGLEB30T9F (GLEB30T9FSA)
BGLEB30T9F (GLEB30T9FBA)
CGLEB30T9F (GLEB30T9FQA)
POS. NO PART NO. DESCRIPTION
1 318259204 A B C Back, main
2 318258902 A B C Shield, insulation, upper
6 318345208 A B C Rack, oven
8 318262001 A B C Cover, element
8A 318318600 A B C Bracket, element, hidden bake
12 # 318089917 A B C Switch, light
14 318224000 A B C Receptacle, oven light
14* 318268099 A B C Insulation, oven light
15 5303013071 A B C Bulb/Lamp, light
16 08011086 A B C Lens, oven light, glass
17 5304400195 A B C Retainer, light cover
29 318147411 A B C Bumper, (2)
37 # 316217002 A B C Probe, oven temp
41 5303310526 A B C Cover, hinge cutout
54 318222400 A B C Housing, oven light
56 318259912 A - - Trim, side filler, white, RH
56 318259914 - B - Trim, side filler, black, RH
56 318259916 - - C Trim, side filler, bisque, RH
56A 318259913 A - - Trim, side filler, white, LH
56A 318259915 - B - Trim, side filler, black, LH
56A 318259917 - - C Trim, side filler, bisque, LH
58A 318285055 A B C Insulation, oven wrapper
58B 318285056 A B C Insulation, oven back
58D 318285058 A B C Insulation, 1/2" thick, 43 x 9.5
59 318072560 A B C Duct, oven vent
59A 318261600 A B C Bracket, vent tube
62 316056000 A B C Terminal Block
62* 5303323139 A B C Screw, 10-24 x 0.906
62* 5303323144 A B C Nut, 10-32
66 # 318255600 A B C Element, broil, 2750W
67 318254901 A B C Element, bake, 3400W, 8 pass
68 5304403015 A B C Support, hanger, (2), broil element
70 318259100 A B C Shield, insulation, sides, (2)
71 318260007 A B C Panel, rear box
71* 318340200 A B C Bracket, insul. panel
76 318056217 A B C Front, oven
80 5303320846 A B C Plate, oven mtg
81 318192400 A B C Spring, oven
82 318258707 A B C Shield, insulation, lower
83 318261400 A B C Liner, oven assy
86 5303310524 A B C Receptacle, hinge
87 318260600 A B C Bracket, cable mtg.
89 # 318261211 A B C Motor, latch assy
* # 318231750 A B C Harness, wiring, main, latch
* # 318199744 A B C Wiring Harness, latch, BAS
* # 318199746 A B C Wiring Harness, latch, NO BAS
90 318259700 A - - Trim, oven front, white, bottom
90 318259701 - B - Trim, oven front, black, bottom

Publication No: 5995470977 GLEB30T9F
07/06 10
LOWER OVEN

GLEB30T9F Publication No: 5995470977
# Functional Parts 11 07/06
* Non-Illustrated Parts
LOWER OVEN
Model Index: AGLEB30T9F (GLEB30T9FSA)
BGLEB30T9F (GLEB30T9FBA)
CGLEB30T9F (GLEB30T9FQA)
POS. NO PART NO. DESCRIPTION
90 318259702 - - C Trim, oven front, bisque, bottom
99 318256200 A B C Bracket, side, bottom, (2)
* 5303300265 A B C Screw, 8-18 X 1/2, (2)
107 318219401 A B C Cover, fan
108# 318073018 A B C Motor, blower
* 08016432 A B C Screw, truss head, 8-18 x 0.375
108A 318251300 A B C Bracket, fan support
109 316136400 A B C Blade, fan
111 316136600 A B C Nut, fan retainer
119# 318004900 A B C Switch, thermal
125# 316415800 A B C Motor, fan
125* 5303316994 A B C Insulation, 3.81 x 3.13
126 318142100 A B C Washer, motor, RH, convection
127 318317100 A B C Adapter Assembly, vent tube, w/converter
142 318123910 A B C Deflector
143 318172904 A B C Support, wire
161# 318255503 A B C Element, convection, 350 W
163 318014111 A B C Spacer
185 318014700 A B C Spacer, oven shield, (4)
263 316136500 A B C Washer, flat
264 318257801 A B C Trim, oven, black, front
272 318249401 A B C Tube, protector
* # 318078543 A B C Box & wires assy
* 318231748 A B C Harness, wiring, main
* 5303323136 A B C Screw ground
* 318165800 A B C Spacer
* 5303211311 A B C Screw, 8 x 0.500
* 5303323277 A B C Screw, 8-18 X 13/32
* 5304436875 A B C Screw, 8-18 X 1/2, black

Publication No: 5995470977 GLEB30T9F
07/06 12
DOORS

GLEB30T9F Publication No: 5995470977
# Functional Parts 13 07/06
* Non-Illustrated Parts
DOORS
Model Index: AGLEB30T9F (GLEB30T9FSA)
BGLEB30T9F (GLEB30T9FBA)
CGLEB30T9F (GLEB30T9FQA)
POS. NO PART NO. DESCRIPTION
3 318260201 A B C Trim, oven door, black, upper
3A 318260401 A B C Trim, oven door, side, (2)
4 318261301 A - - Glass Assy., oven door, white, outer, w/trim
4 318261300 - B - Glass Assy., oven door, black, outer, w/trim
4 318261302 - - C Glass Assy., oven door, bisque, outer, w/trim
6 318260520 A B C Baffle, door
7 318285057 A B C Insulation, oven door
7A 318285062 A B C Insulation, oven door
8 316117500 A B C Glass, oven door, heat barrier
9 318259601 A B C Liner, oven door, upper
10 5304416408 A B C Screw, 10-24 x 1.750, handle mtg
12 318053130 A B C Seal, oven door, upper
17 316402403 A B C Spacer, door glass, (2)
23 318024722 A B C Hinge, door, (2)
29 318014402 A B C Spacer, door
39 5304457012 A - - Handle, door, white, w/spacer
39 5304457011 - B - Handle, door, black, w/spacer
39 5304457013 - - C Handle, door, bisque, w/spacer
40 318242700 A B C Bracket, glass holder, (2)
56 5304436875 A B C Screw, 8-18 X 1/2, black
64 318165800 A B C Spacer
* 08016432 A B C Screw, truss head, 8-18 x 0.375
* 5303211311 A B C Screw, 8 x 0.500
* 5303300265 A B C Screw, 8-18 X 1/2, (2)
* 5303323277 A B C Screw, 8-18 X 13/32

Publication No: 5995470977 GLEB30T9F
07/06 14
WIRING DIAGRAM
COLOR CODE/CODIGOS DE COLOR/CODE
DE COULEUR
G.-GREEN/VERDE/VERT
W.-WHITE/BLANCO/BLANC
R.-RED/ROJO/ROUGE
O.-ORANGE/NARANJA/ORANGE
Y.-YELLOW/AMARILLO/JAUNE
BR.-BROWN/MORENO/BRUN
BL.-BLUE/AZUL/BLEU
BK.-BLACK/NEGRO/NOIR
318046121 REV:B
CAUTION: DISCONNECT POWER BEFORE SERVICING UNIT.
ATENCION:CORTAR EL CORIENTE ANTES DE REALIZAR ELMANTENIMIENTO DEL ELECTRODOMESTICO.
ATTENTION:COUPEZ L`ALIMENTATION AVANT D`EFFECTUER LA REPARATION.
TERMINAL BLOCK
BLOQUE DE CONEXION
BLOC DE CONNECTION
L2
N
L1
BK-7
OR/O/OU
(BK-8)*
W-5
J3
ELECTRONIC OVEN CONTROL/CONTROL
DE HORNO ELECTRONICO/
COMMANDE FOUR ELECTRONIQUE
ES 610/615
DLB IN
DLB OUT
CONV.
BAKE
BROIL
J5
1
BROIL ELEMENT/
ELEMENTO DE
ASADO/ELEMENT
GRIL
BL-6 OR/O/OU (BL-8)*
BAKE ELEMENT/ELEMENTO
DE HORNO/ELEMENT
CUISSON
Y-6
Y-6
t
V-14
V-14
LATCH MOTOR/MOTOR DE
CERROJO/MOTEUR VERROU
BK-5
BR-5
DOOR SWITCH/INTERRUPTOR DE
PUERTA/INTERRUPTEUR DE PORTE
SW.A
SEE LEGEND/
VER LEYENDA/
VOIR LEGENDE
THERMAL CIRCUIT BREAKER
INTERRUPTOR DE CIRCUITO
TERMICO
DISJONCTEUR THERMIQUE
TEMPERATURE PROBE/
SONDA DETEMPERATURA/
SONDE THERMIQUE
BK-14
NO
W-5
BK-14
R/W-7 OR/O/OU (R/W-8)*
OVEN CIRCUIT // CIRCUITO DE HORNO // CIRCUIT DU FOUR
BR-5
COOLING FAN/VENTILADOR DE ENFRIAMIENTO/
VENTILATEUR REFROIDISSEMENT
BK-5
BK-5
R-5
W-5
OVEN LAMP/LUZ DE HORNO/
LAMPE DE FOUR
W-5
HIGH SPEED/ALTA VELOCIDAD/HAUTE VITESSE
R-6
OR/O/OU
(R-7)*
CODE GAUGE TEMP. C CSA UL
CODIGO MEDIDA
CODE CALIBRE
1 18 125 CL1251 3173
2 16 125 CL1251 3173
3 14 125 CL1251 3173
4 12 125 CL1251 3173
5 18 150 EXL-150 3321
6 16 150 EXL-150 3321
7 14 150 EXL-150 3321
8 12 150 EXL-150 3321
9 10 150 EXL-150 3321
10 18 200 SEW-1 3122
11 16 200 SEW-1 3122
12 12 250 3252
13 16 250 3252
14 20 150 EXL-150 3321
15 8 150 EXL-150 3321
16 8 60
17 10 60
18 10 200 SEW-1 3122
19 20 125 CL1251 3173
20 20 200 SEW-1 3122
21 22 125 CL-1251 3173
22 22 150 EXL-150 3321
23 18 200 3573
12v 12v
120v
HALOGEN/HALOGENO/
HALOGENE
SW.A
SW.A
LATCH MOTOR
MOTOR DE CERROJO
MOTEUR VERROU
W-5
1
UPPER OVEN
J7
1J2
1
J6
1
1
J1
1
DLB IN
DLB OUT
CONV.
BAKE BROIL
L1L1
LOWER OVEN J4
P6
J3
1
1
J4
1
J5
1
P10
1
P8
1
J2
1
1
P1
1
P2
C
OVEN LAMP/LUZ DE HORNO/
LAMPE DE FOUR
CONVECTION FAN/VENTILADOR DE CONVECCION/
CONVECTION VENTILATEUR
BK-5 BK-5
BK-14
BK-14
BK-14
t
V-14
TEMPERATURE PROBE/
SONDA DETEMPERATURA/
SONDE THERMIQUE
DOOR SWITCH/INTERRUPTOR DE
PUERTA/INTERRUPTEUR DE PORTE
SW.A
SEE LEGEND/
VER LEYENDA/
VOIR LEGENDE
BK-14
NO
BK-14
C
BK-14
BK-14
LATCH MOTOR/MOTOR DE
CERROJO/MOTEUR VERROU
BK-5
BR-5
BR-5
BK-5
BK-5
R-5
W-5
OVEN LAMP/LUZ DE HORNO/
LAMPE DE FOUR
W-5
W-5
OVEN LAMP/LUZ DE HORNO/
LAMPE DE FOUR
CONVECTION FAN/VENTILADOR DE CONVECCION/
CONVECTION VENTILATEUR
BK-5 BK-5
BROIL ELEMENT/
ELEMENTO DE
ASADO/ELEMENT
GRIL
BAKE ELEMENT/ELEMENTO
DE HORNO/ELEMENT
CUISSON
THERMAL CIRCUIT BREAKER/
INTERRUPTOR DE CIRCUITO
TERMICO/
DISJONCTEUR THERMIQUE
CONVECTION ELEMENT/
ELEMENTO DE CONVECCION/
ELEMENT CONVECTION
V-14
OPTION
OPCION
OPTION
OPTION
OPCION
OPTION
OPTION
OPCION
OPTION
UPPER OVEN/HORNO SUPERIOR/FOUR SUPERIEUR
LOWER OVEN /HORNO INFERIOR/FOUR INFERIEUR
EXAMPLE/EJEMPLO/EXAMPLE: (R-8)*
* WHEN USING 4000 W. BROIL ELEMENT
* CUANDO SE USA 4000 W. ELEMENTO DE ASADO
* QUAND UTILISE AVEC 4000 W. ELEMENT GRILLAGE
Y-6
BL-6 OR/O/OU (BL-8)*
BL-6
OR/O/OU
(BL-7)*
R-6
OR/O/OU
(R-7)*
LOW SPEED/BAJA VELOCIDAD/BASSE VITESSE
HIGH SPEED/ALTA VELOCIDAD/HAUTE VITESSE
LOW SPEED/BAJA VELOCIDAD/BASSE VITESSE
BK-14
R-7
OR/O/OU
(R-8)*
W-5
3
C
NO
BK-8
W-6
R-8
G-8
GND
BX
OUTSIDE
EXTERIOR
EXTERIEUR
INTSIDE
INTERIOR
INTERIEUR
AUX.
Y-6
BL-6
OR/O/OU
(BL-8)*
BK-5
OPTION
OPCION
OPTION
N
AUX.
RELAY
RELE
RELAIS
TMR
DLB OUT
REL
BD
THERMAL CIRCUIT BREAKER/
INTERRUPTOR DE CIRCUITO
TERMICO/
DISJONCTEUR THERMIQUE
LEGEND/LEYENDA/LEGENDE
CONVECTION ELEMENT/ELEMENTO DE
CONVECCION/ELEMENT CONVECTION
O-6 O-6
CONVECTION ELEMENT/
ELEMENTO DE CONVECCION/
ELEMENT CONVECTION
2500 W.
350 W.
O-6
O-6
SEE LEGEND
VER LEYENDA
VOIR LEGENDE
SEE LEGEND
VER LEYENDA
VOIR LEGENDE
REL BD
COOLING FAN/VENTILADOR DE ENFRIAMIENTO/
VENTILATEUR REFROIDISSEMENT
BK/W-5
BK-5 W-5
W-5
BK-5
LOW
OV
UPR
OV
L2
IN
R-6
OR/O/OU
(R-8)*
R-6
OR/O/OU
(R-8)*
R/W-5
BK-5
