SERVICE DATA SHEET 318047418 (0504) Rev. A
Electric Wall Oven with Electronic Oven Control
°
.
To avoid the possibility of personal injury and/or property damage, it is important that safe servicing practices be
observed. The following are examples of some, but not all, of these practices.
1. Do not attempt a product repair if you have any doubts as to your ability to complete it in a safe and satisfactory
manner.
2. Before servicing or moving an appliance, remove power cord from electric outlet, trip circuit breaker to OFF, or
remove fuse and turn off gas supply.
3. Never interfere with the proper installation of any safety device.
4. USE ONLY REPLACEMENT PARTS CATALOGED FOR THIS APPLIANCE. SUBSTITUTIONS MAY DEFEAT COMPLIANCE
WITH SAFETY STANDARDS SET FOR HOME APPLIANCES.
5. GROUNDING: The standard color coding for safety ground wires is GREEN OR GREEN WITH YELLOW STRIPES.
Ground leads are not to be used as current carrying conductors. IT IS EXTREMELY IMPORTANT THAT THE SERVICE
TECHNICIAN REESTABLISH ALL SAFETY GROUNDS PRIOR TO COMPLETION OF SERVICE. FAILURE TO DO SO
WILL CREATE A POTENTIAL HAZARD.
6. Prior to returning the product to service, ensure that:
• All electric connections are correct and secure.
• All electrical leads are properly dressed and secured away from sharp edges, high-temperature components,
and moving parts.
• All non-insulated electrical terminals, connectors, heaters, etc. are adequately spaced away from all metal
parts and panels.
• All safety grounds (both internal and external) are correctly and securely reassembled.
• All panels are properly and securely reassembled.
SAFE SERVICING PRACTICES
This service data sheet is intended for use by persons having electrical and mechanical training and a level of
knowledge of these subjects generally considered acceptable in the appliance repair trade. The manufacturer
cannot be responsible, nor assume any liability, for injury or damage of any kind arising from the use of
this data sheet.
NOTICE

2
MICROWAVE INFORMATION
SPECIFICATION
ITEM DESCRIPTION
Power Requirements
Control Complement
Oven Cavity Light
120 Volts
14.3 Amperes, 1700 watts
60 Hertz
Single phase, 3 wire grounded
Touch Control System
Clock ( 1:00 - 12:59 )
Timer (0 - 99 min. 99 seconds)
Microwave Power for Variable
Cooking Repetition Rate;
P-HI ........................................ Full power throughout the cooking time
P-90 .......................................................... approx. 90% of Full Power
P-80 .......................................................... approx. 80% of Full Power
P-70 .......................................................... approx. 70% of Full Power
P-60 ....................................................... .. approx. 60% of Full Power
P-50 .......................................................... approx. 50% of Full Power
P-40 .......................................................... approx. 40% of Full Power
P-30 .......................................................... approx. 30% of Full Power
P-20 .......................................................... approx. 20% of Full Power
P-10 .......................................................... approx. 10% of Full Power
P-0 ........................................... No power throughout the cooking time
Add 1 minute pad, Sensor cooking pads, Defrost pads, Number selection
pads, Power Level pad, Timer/Clock pad,STOP/Clear pad, One touch
cooking pads, and Start pad.
Yes
GENERAL INFORMATION
GROUNDING INSTRUCTIONS
This oven is equipped with a three prong grounding plug. It must be
plugged into the wall oven receptacle that is properly installed and
grounded in accordance with the National Electrical Code and local
codes and ordinances.
In the event of an electrical short circuit, grounding reduces the risk
of electric shock by providing an escape wire for the electric
current.
WARNING: Improper use of the grounding plug can result in
a risk of electric shock.
Electrical Requirements
The electrical requirements are a 120 volt 60 Hz, AC only, a branch
circuit protection fuse, 20 amp is provided in series with the ac
outlet on top of the wall oven support.
*Note: Branch circuit fuse 20 amp shall be replaced with class cc type.

3
MICROWAVE INFORMATION
OVEN DIAGRAM
1. One touch door open button. Push to open door.
2. Door latches. The oven will not operate unless
the door is securely closed.
3. Removable turntable support.
4. Removable turntable. The turntable will rotate
clockwise or counterclockwise.
5. Oven lamp. It will light when oven is operating or
door is opened.
6. Oven door with see-through window.
7. Ventilation openings. (Rear)
8. Auto-Touch control panel.
9. Time display: Digital display, 99 minutes 99
seconds.
10. Wave guide cover.
11. Power supply cord
1
65
210
11
9
7
8
3
4
TOUCH CONTROL PANEL
NOTE:
The directed features are disabled after one minute when the oven is not in use.
These features are automatically enabled when the door is opened and closed or
the STOP/ CLEAR pad is pressed.
DOOR OPEN MECHANISM
DESCRIPTION AND FUNCTION OF COMPONENTS
The door is opened by pushing the open button on the control
panel, refer to the Figure D-1. When the open button is pushed, the
open button pushes up the switch lever, and then the switch lever
pushes up the latch head. The latch heads are moved upward and
released from latch hook. Now the door will open.
Door S ensing
Switch
Monitor S witc h
SwitchLever
Primary Interlock
Switch
Latch Heads
Door

4
MICROWAVE INFORMATION
DESCRIPTION AND FUNCTION OF COMPONENTS
The primary interlock switch is mounted in the lower position of the latch hook and the door sensing switch in the
secondary interlock system is mounted in the upper position of the latch hook. They are activated by the latch
heads on the door. When the door is opened, the switches interrupt the power to all high voltage components. A
cook cycle cannot take place until the door is firmly closed thereby activating both interlock switches. The
secondary interlock system consists of the door sensing switch and secondary interlock relay located on the
control circuit board.
The monitor switch is activated (the contacts opened) by the latch head on the door while the door is closed. The
switch is intended to render the oven inoperative, by means of blowing the C/T fuse, when the contacts of the
secondary interlock relay (RY2) and primary interlock switch fail to open when the door is opened.
Functions:
1. When the door is opened, the monitor switch contact close (to the ON condition) due to their being normally
closed. At this time the secondary interlock relay (RY2) and primary interlock switch are in the OFF condition
(contacts open) due to their being normally open contact switches.
2. As the door goes to a closed position, the monitor switch contacts are first opened and then the door sensing
switch and the primary interlock switch contacts close. (On opening the door, each of these switches operate
inversely.)
3. If the door is opened, and the secondary interlock relay (RY2) and primary interlock switch contacts fail to
open, the C/T fuse blows simultaneously with closing of the monitor switch contacts.
CAUTION: BEFORE REPLACING A BLOWN C/T FUSE TEST THE DOOR SENSING SWITCH, SECONDARY
INTERLOCK RELAY (RY2), RELAY (RY1), PRIMARY INTERLOCK SWITCH AND MONITOR SWITCH FOR PROPER
OPERATION. (REFER TO CHAPTER “TEST PROCEDURE”).
NOTE: C/T FUSE AND MONITOR SWITCH ARE REPLACED AS AN ASSEMBLY.
DOOR SENSING AND PRIMARY INTERLOCK SWITCHES
MONITOR SWITCH
TURNTABLE MOTOR
The turntable motor rotates the turntable located on the bottom of the oven cavity, so that the foods on the
turntable cook evenly during cooking. The turntable may turn in either direction.
COOLING FAN MOTOR
The cooling fan motor drives a blade which draws external cool air. This cool air is directed through the air vanes
surrounding the magnetron and cools the magnetron. This air is channeled through the oven cavity to remove
steam and vapors given off from the heating foods. It is then exhausted through the exhausting air vents at the
oven cavity.
CAVITY TEMPERATURE FUSE
The cavity temperature fuse located on the top of the oven cavity, is designed to prevent damage to the oven by
fire. If the food load is overcooked, by either error in cook time or defect in the control unit, the cavity
temperature fuse will open. Under normal operation, the cavity temperature fuse remains closed. However, when
abnormally high temperatures are reached within the oven cavity, the cavity temperature fuse will open at
302OF(150OC) causing the oven to shut down. NOTE: This is fuse. It does not reset.

5
MICROWAVE INFORMATION
DESCRIPTION AND FUNCTION OF COMPONENTS
C/T TEMPERATURE FUSE
The C/T fuse located near the magnetron is designed to prevent damage to the magnetron if an over heated
condition develops in the tube due to cooling fan failure, obstructed air guide, dirty or blocked air intake, etc.
Under normal operation, the C/T fuse remains closed. However, when abnormally high temperatures are reached
within the magnetron, the C/T fuse will open at 302OF(150OC) causing the oven to shut down.
1. The C/T fuse blows when the contacts (COM-NO) of the secondary interlock relay (RY2) and primary interlock
switch remain closed with the oven door open and when the monitor switch closes.
2. If the wire harness or electrical components are shortcircuited, this monitor fuse blows to prevent an electric
shock or fire hazard.
NOTE: This is fuse. It does not reset.
LOWER OVEN INFORMATION
NOTE: The Controller's are not field repairable. Only temperature settings can be changed. See oven calibration.
1. This self-cleaning controller offers Bake, Broil, Preheat, Convection Bake and Convection Roasting modes,Timed
and Delayed Baking, and Cleaning functions.
2. Convection operates with an element and a fan dedicated to convection.
3. This Controller has a touch sensitive membrane.
ES510 ELECTRONIC OVEN CONTROL
ES510
L1
BAKE
L2 OUT
L2 IN
BROIL
CONV ELEMENT
P5
P1
P2
P3
P9
P7
P8
P6P12
1
Even-Cook Convection Oven
Speed
clean
Maxx
clean
Broil
Pre
Heat
Keep
Warm
Bake
Conv
roast
Start
time
Bake
time
Conv
bake
Conv
convert Oven
light Timer
On/Off
Clock Clear
/Off
Controls
START
0
7 8 9
4 5
6
1 2 3
Clean

6
LOWER OVEN INFORMATION

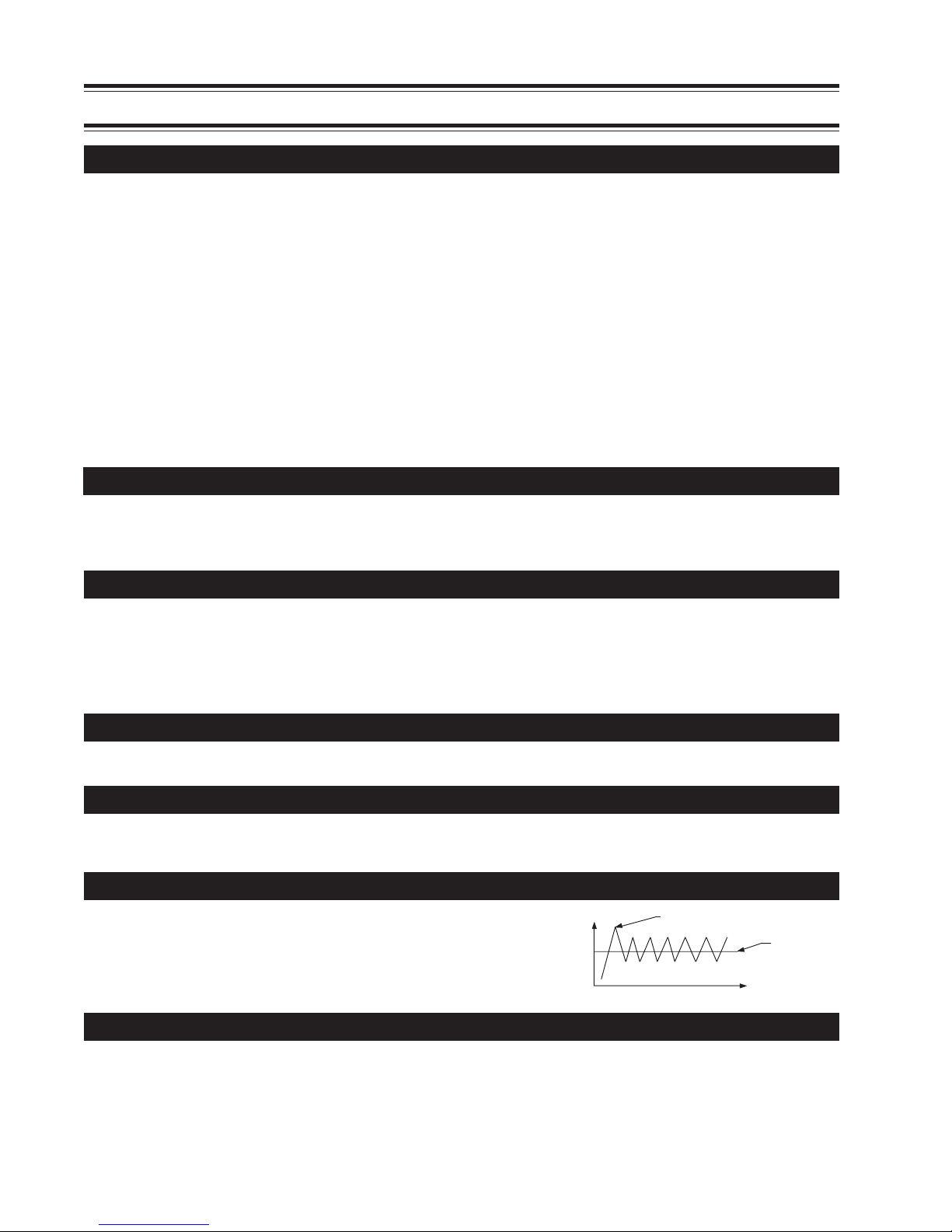

set point
First rise overshoot
T°
t (sec)
The convection oven uses the addition of a fan and an element to heat and to move the air already in the oven. Moving
the heated air helps to destratify the heat and cause uniform heat distribution. Cooking times can be reduced by as
much as 30%. The air is drawn in through a fan shroud and the element located on the rear wall of the oven. It is
then discharged around the outer edges of this shroud. The air circulates around the food and then enters the shroud
again. As with conventional electric ranges, there is still an oven vent which discharges through the bottom of the control
panel.
To set the control in convection mode, follow these steps:
1.Press the CONV. BAKE/ROAST pad.
2. Enter the desired temperature on the keypad (set point).
3. Press the START pad.
The oven will automatically start and the fan will begin to run. To cancel the convection baking/roasting function, press
the CANCEL pad.
NOTE:The fan runs continuously while in the convection mode. The fan and the convection element will stop if the
door is opened while convection baking/roasting. The bake element will continue to operate if the door is opened.
It is normal to see a temperature overshoot in the
first rise of all modes when you monitor the temperature.
FIRST RISE
When these modes are selected, the door locks right after start button is pushed.
CLEAN AND TIMED CLEAN
During a cleaning process, the oven uses bake and broil elements.
CLEAN
During a normal bake mode, the controller preheats the oven with the bake element. When the desired temperature
is reached, the controller adds top heat by cycling the broil element on for 12 to 18 seconds per minute. The bake
element is on for the remaining time of the minute. Both elements use full power when they are on but they are never
on at the same time.
NORMAL BAKE
During a preheat mode, the oven uses a bake element to reach the controller set point. The element uses full power
when it's on. When the set point is reached, the preheat mode is converted to a normal bake mode.
PREHEAT
CONVECTION MODE
OVEN CALIBRATION
Set the electronic oven control for normal baking at 350°F/176°C. Obtain an average oven temperature after a
minimum of 5 cycles. Press Cancel to end bake mode.
Note: Changing calibration affects all the cooking modes but not the clean mode.

7
LOWER OVEN INFORMATION
(F10) Control has sensed a potential
runaway oven condition. Control
may have shorted relay, RTD sensor
probe may have gone bad.
(F11) Shorted keypad.
(F13) Control's internal checksum may
have become corrupted.
(F14) Misconnected flat cables.
(F30) Open RTD sensor probe/ wiring
problem. Note: EOC may initially
display an "F1", thinking a
runaway condition exists.
(F31) Shorted RTD sensor probe / wiring
problem. Note: "F3" is displayed
when oven is in active mode or an
attempt to enter an active mode is
made.
(F90 Door motor mechanism failure.
to
F94)
Likely Failure Condition/Cause Suggested Corrective Action
Fault Code
Series
1. Check RTD sensor probe and replace if necessary. If oven is
overheating, disconnect power. If oven continues to overheat
when the power is reapplied, replace EOC. Severe overheating
may require the entire oven to be replaced, should damage
be extensive.
2. Press CLEAR key.
3. Disconnect power, wait 30 seconds and reapply power. If
fault returns upon power-up, replace EOC.
4. Disconnect power; verify flat cable connections (P6 or P12).
1. Press CLEAR key.
2. Check wiring in probe circuit for possible open condition.
Check RTD resistance at room temperature (compare to
probe resistance chart). If resistance does not match the
chart, replace the RTD sensor probe.
3. Let the oven cool down and restart the function
1. Press CLEAR key.
2. If CLEAR key does not eliminate problem, turn off power for
30 seconds, then turn on power.
3. Check wiring of Lock Motor, and Lock Switch and Door
Switch circuits.
4. Unplug P5, apply power (L1) directly to the Lock Motor, if the
motor does not rotate, replace Lock Motor Assembly. Plug
P5.
5. Check Lock Switch A for proper operation (do they open and
close, check with ohmmeter). The Lock Motor may be
powered as in above step to open and close Lock Switch. If
the Lock Switch is defective, replace Motor Lock Assembly.
6. If all above steps fail to correct situation, replace control.
F3
F1
F9
ELECTRONIC OVEN CONTROL (EOC) FAULT CODE DESCRIPTIONS
ELECTRONIC OVEN CONTROL

8
LOWER OVEN INFORMATION
CoolingFan
DLB
L2 out
CIRCUIT ANALYSIS MATRIX
Bake
P3
Conv.
P9
Lock Motor Switches
A
Bake
Broil
Clean
Unlocked
Locking
Locked
Unlocking
Conv. Bake
X
X
X
X
P5-10
&
P5-11
Door Switch
P5-12
COM-NO
X
Broil
P2
ELEMENTS
Conv.Fan
P5-7
Light
P5-4
Door Motor
P5-6
P5-10
&
P5-13
Conv. Roast
Light
Door Open
Door Closed
X
X*
X
X*
X*
X
X
X
X
X
X
NC
NO
NO
NC
NO
NC
NC
NO
* Denotes Top heat Relay will operate in this condition only
X
X
X
X
X
OVEN TEMPERATURE
SENSOR
RTD SCALE
Temp. °F Temp. °C Resistance (ohms)
32 ± 1.9 0.0 ± 1.1 1000 ± 4.0
75 ± 2.5 23.9 ± 1.4 1091 ± 5.3
250 ± 4.4 121.1 ± 2.4 1453 ± 8.9
350 ± 5.4 176.7 ± 3.0 1654 ± 10.8
450 ± 6.9 232.2 ± 3.8 1852 ± 13.5
550 ± 8.2 287.8 ± 4.6 2047 ± 15.8
650 ± 9.6 343.3 ± 5.3 2237 ± 18.5
900 ± 13.6 482.2 ± 7.6 2697 ± 24.4
2 SPEEDS COOLING FAN
A relay and a thermostat (170°/140°) control the speeds of the blower.
ELECTRICAL RATING
27" Wall Oven 30" Wall Oven
(ES510) (ES510)
KW Rating 240/208 V See nameplate See nameplate
Broil Element Wattage 3400W / 2553W 2750W / 2066W
Bake Element Wattage 2700W / 2028W 3400W / 2553W
Conv. Element Wattage 350W / 263W 350W / 263W

9
LOWER OVEN INFORMATION
FAN BLADE
The fan blade is mounted in the rear of the unit and has a "D" shaped mounting hole. Only minimum clearance exists
between the oven back, fan blade, and fan shroud. Be careful not to bend blade when removing or installing.
Access to the fan blade is gained by removing the fan shroud, held in place by three screws, from the inside of the oven.
The fan blade is held in place with a hex nut that has left handed threads. When removing this nut, gently hold the
fan blade, and turn the nut clockwise. If one of the blades becomes deformed, it may be bent back into shape using
a flat surface as a reference.
A flat washer is located on the motor shaft between the snap ring on the shaft and the fan blade.
NOTE:If the fan blade is bent and motor vibrations increase, the noise made by the fan will be greater.
MOUNTING PLATE OVEN
The fan motor on the rear of the unit is mounted to the main back (with three screws). There is a mounting plate held
in place between the main back (with 2 screws) and the rear oven wall (with 2 screws). Should it be necessary to replace
the oven cavity, you must remove the 2 screws located inside the unit at the rear of the oven cavity.
CONVECTION FAN MOTOR
The 120 volt fan motor is located on the outside of the rear of the oven.
EXPLODED VIEW OF CONVECTION SYSTEM
CONVECTION FAN
MOTOR ASSEMBLY
MOUNTING PLATE
OVEN CAVITY
CONVECTION
FAN BLADE
FAN NUT
CONVECTION
ELEMENT
CONVECTION
FAN COVER FAN COVER
SCREWS

10
LOWER OVEN INFORMATION
Motor Cooling Fan
Door Locking
Mechanism
Assembly
Safety
Thermostat
Upper Air Channel
Access Plate
DOOR LOCK MECHANISM
The appliance is equipped with an electronic oven control
and has an auto locking door latch feature. When the self
clean cycle is programmed, the door is locked by a motor
operated latch system. The interior of oven doesn't need to
heat up to 500°F/260°C before the door locks. However,
until the temperature inside oven reaches 500°F/260°C, the
self-clean program can be canceled and door will unlock
immediately. After oven reaches temperatures over 500°F/
260°C, the door will not unlock until temperature drops
below 500°F/260°C.
If a problem appears and the door stays locked it is
possible for the servicer to unlock the door without
removing the appliance from its place. Follow the steps
below:
1. Trip the circuit breaker to OFF position.
2. Remove the 2 screws, which are fixing the oven door
latch, located between the control panel and the oven
door.
3. When the screws are removed it is possible to unlock
the latch with a flat screwdriver, or one of the tools
supplied with the wall oven which are used to take off
the oven from the cabinet. Insert the tool tip through the
slot on top of the oven door. During this step it's
important to take care to not damage the appliance.
4. As soon as the latch is in the unlock position, you can
open the door.
FAN RELAY
The convection fan motor runs continuously while in the convection mode unless the door is opened. If the fan does
not operate, check the following:
• Display illuminated on the electronic control.
• Voltage output between terminals P5-7 and Neutral.
• 120 Volts available at fan motor.
• Fan motor coil resistance 15 ohms ± 10%.
• Door/light switch.
5. Replace the motor latch:
1. To have access to the door latch assembly, remove the 3 screws under the control panel which are fixing it.
2. Remove the access plate located on the upper air channel by removing the screw.
3. Replace the motor latch by a new one and reassemble in reverse order.

11
LOWER OVEN INFORMATION

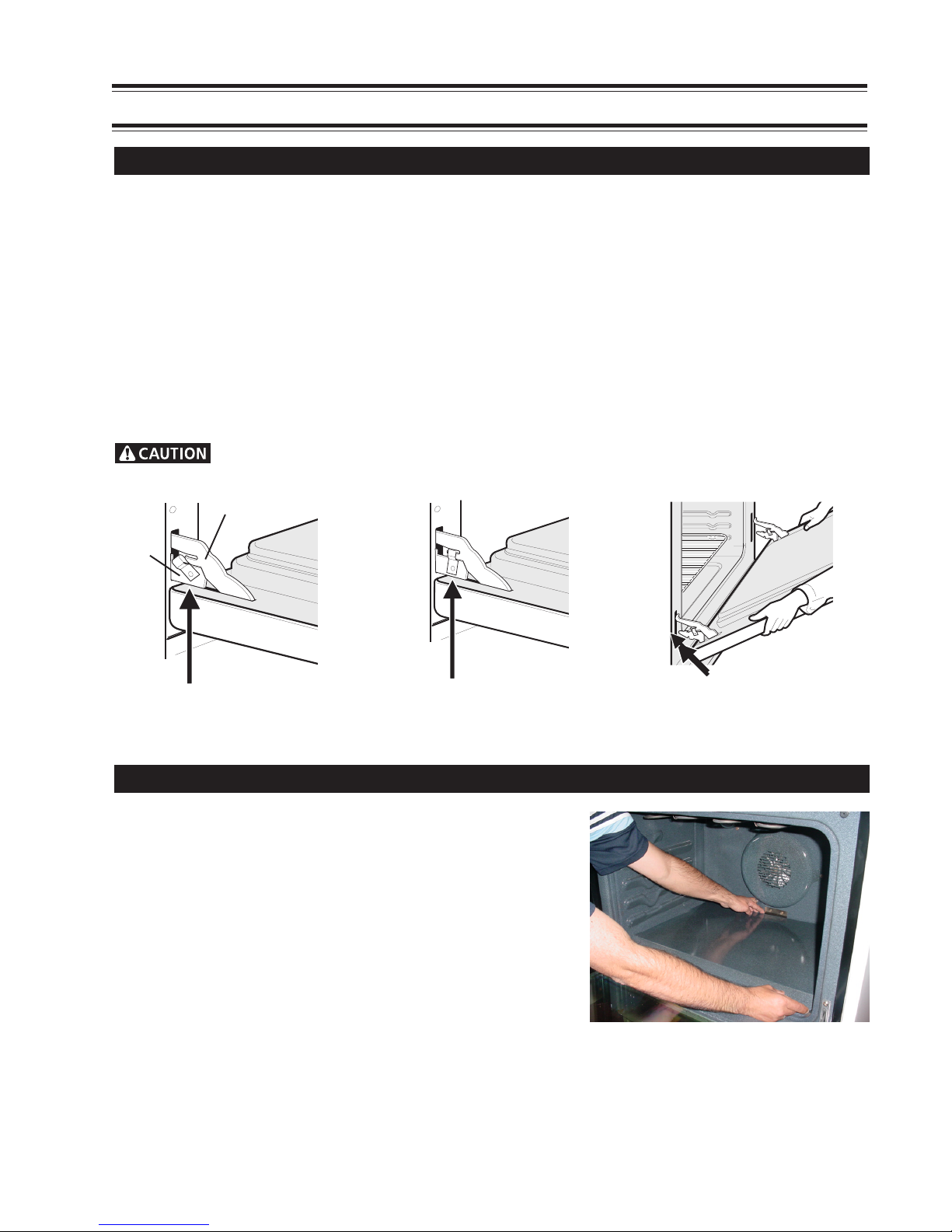

OVEN DOOR REMOVAL AND REPLACEMENT
To Remove the Oven Door:
1. Open the door to the fully opened position.
2. Pull up the lock located on each hinge support and engage it in the hinge lever. You may have to apply a little
downward pressure on the door to pull the locks fully over the hooks.
3. Grab the door by the sides, pull the bottom of the door up and toward you to disengage the hinge supports.
Keep pulling the bottom of the door toward you while rotating the top of the door toward the range to com-
pletely disengage the hinge levers.
To Replace the Oven Door:
1. Grab the door by the sides; place the hinge supports in the hinge slots. Open the door to the fully opened
position.
2. Disengage the lock from the hinge levers on both sides.
Note: Make sure the hinge supports are fully engaged before unlocking the hinge levers.
3. Close the oven door.
The door is heavy. After removing door, lay it flat on the floor with the inside of the door facing down.
Lock in normal position Lock engaged for door
removal
HINGE SLOT
Door removed
from the range
“”HIDDEN BAKE” COVER REMOVAL AND REPLACEMENT (SOME MODELS)
To remove the “hidden bake” cover:
1. In order to remove the “hidden bake” cover, pull the back
edge with one hand about 1/2" inch and lift up the “hidden
bake” cover with both hands. (See picture)
2. When re-installing the “hidden bake” cover, be sure to put it
all the way to the back of the oven and lay it down on the 2
shoulder screws. Then push the front edge of the cover in its
place below the front bracket.
To have easier access to the oven floor, you can remove the oven
door by following the instructions above.
IMPORTANT: Always replace the “hidden bake” cover before the
next use.
Hinge
support
Hinge
lever

12
NOTES
