TABLE OF CONTENTS
www.frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352
Gas Range
316901203 Rev C (Oct 2010)
Important Safety Instructions ........................... 3-6
Features at a Glance ......................................... 7
Before Setting Oven Controls ........................... 8-9
Before Setting Surface Controls ........................ 10
Setting Surface Controls ................................... 11
Oven Control Functions (330/330i) .................... 12
Setting Oven Controls ..................................13-19
Self-Cleaning ..............................................20-21
Care & Cleaning ..........................................22-24
Before You Call ............................................ 25-26
Major Appliance Warranty ................................ 27

2
Thank you for choosing Frigidaire.
This Use & Care Guide is part of our commitment to customer
satisfaction and product quality throughout the service life of
your new appliance.We view your purchase as the beginning
of a relationship. To ensure our ability to continue serving you,
please use this page to record important product information.
©2009 Electrolux Home Products, Inc. All rights reserved. Printed in the USA
Registering your product with Frigidaire enhances our ability
to serve you. You can register online at
www.frigidaire.com or by dropping your Product
Registration Card in the mail.
PRODUCT RECORD AND REGISTRATION
Product Registration
Product Registration ...................................................... 2
Important Safety Instructions ............................ 3-6
Features at a Glance .............................................. 7
Before Setting Oven Controls ............................... 8-9
Removing, replacing & arranging the oven racks ........... 8
Effortless™ Oven Rack system and assembly ................ 9
Before Setting Surface Controls ............................ 10
Cookware material types .......................................... 10
Setting Surface Controls ....................................... 11
Setting a surface burner ........................................... 11
Home canning ......................................................... 11
Oven Controls Functions ........................................ 12
Setting Oven Controls ...................................... 13-19
Setting the clock ...................................................... 13
Changing between continuous bake or 12-Hour
Energy Saving features ............................................ 13
Changing temperature display (F° or C°).................... 13
Setting silent control feature ..................................... 13
Setting oven lockout feature ..................................... 14
Setting minute timer ................................................ 14
Setting bake ........................................................... 15
Setting timed bake and delayed timed bake ............ 15-16
Setting Quick Bake (some models) ............................ 17
Setting broil ............................................................ 18
Adjusting oven temperature ..................................... 19
Operating oven light ................................................. 19
Self-Cleaning .................................................... 20-21
Care & Cleaning ............................................... 22-24
Cleaning recommendations table............................... 22
Cleaning the cooktop and surface burners .................. 23
Replacing the oven light ........................................... 23
Removing & replacing oven door ............................... 24
Before You Call - Solutions to common problems ... 25-26
Appliance Warranty .............................................. 27
Contents

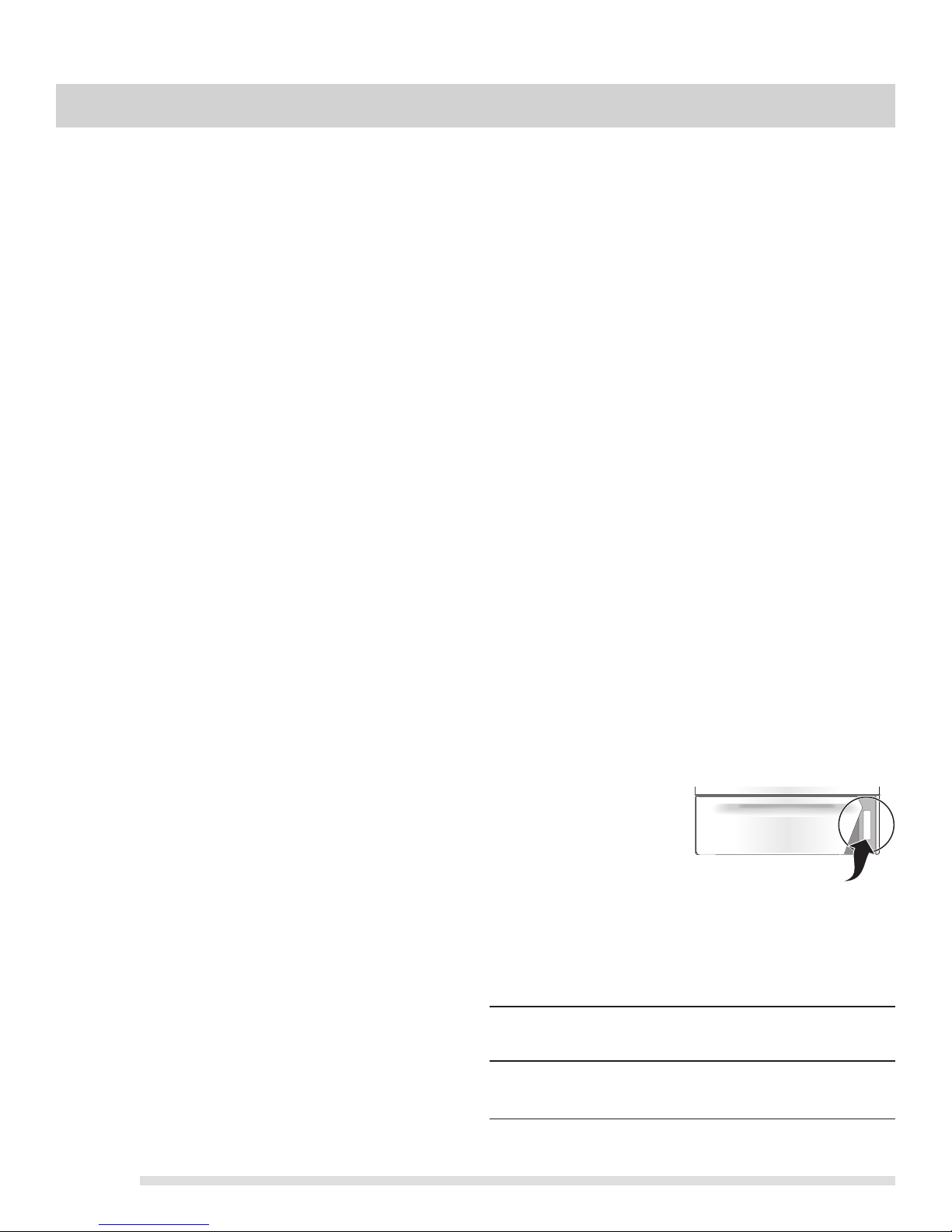

Serial plate location:
open storage drawer (some models) or
remove lower front panel (some models).
Serial plate location
Purchase date
Model number
Serial number
Record model & serial numbers here
Need help??
Visit the Frigidaire web site at www.frigidaire.com
Before you call for service, there are a few things you can
do to help us serve your better.
Read this Use & Care manual.
It contains instructions to help you use and maintain your
range properly.
If you received a damaged range ...
immediately contact the dealer (or builder) that sold you the
range.
Save time and money.
Check the section titled “Before You Call”. This section helps
step you through some common problems that might occur.
If you do need service, help is only a phone call away. Call
Frigidaire Customer Services at 1-800-944-9044.

3
Read all instructions before using this appliance.
Do not attempt to install or operate your appliance until you
have read the safety precautions in this manual. Safety
items throughout this manual are labeled with a WARNING
or CAUTION statement based on the risk type.
WARNING indicates a potentially hazardous
situation which, if not avoided, may result in death
or serious injury.
Save these instructions for future reference.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
IMPORTANT
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in minor
or moderate injury.
CAUTION
IMPORTANT indicates installation, operation,
maintenance or valuable information that is not hazard
related.
Definitions
Important Safety Instructions
WARNING
• All ranges can tip.
• Injury to persons could result.
• Install anti-tip device packed
with range.
• See Installation Instructions.
To reduce the risk of tipping, the
range must be secured by properly
installed anti-tip bracket provided with
the range. To check if the bracket is
installed properly, visually check that
rear leveling leg is inserted into and
fully secured by the anti-tip bracket by
removing lower front panel or storage
drawer from the range.
For models equipped with a warmer drawer or lower
oven, grasp the top rear edge of the range and carefully
attempt to tilt it forward. Refer to the installation
instructions for proper anti- tip bracket installation.
•Remove all tape and packaging before using the
range. Destroy the carton and plastic bags after
unpacking the range. Never allow children to play with
packaging material.
•Proper Installation—Be sure your appliance is
properly installed and grounded by a qualified
technician in accordance with the National Fuel Gas
Code ANSI Z223.- latest edition, or in Canada CAN/
CGA B149.1, and CAN/CGA B149.2, and the the
National Electrical Code ANSI/NFPA No.70-latest
edition, or in Canada CSA Standard C22.1, Canadian
Electrical Code, Part 1, and local code requirements.
Install only per installation instructions provided in the
literature package for this range. Ask your dealer to
recommend a qualified technician and an authorized
repair service. Know how to disconnect the power to the
range at the circuit breaker or fuse box in case of an
emergency.
If the information in this manual is not followed
exactly, a fire or explosion may result causing
property damage, personal injury or death.
FORYOURSAFETY:
— Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of
this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
the fire department.
— Installation and service must be performed
by a qualified installer, servicer or the gas
supplier.
WARNING
•Never modify or alter the construction of a range
by removing the leveling legs, panels, wire covers,
anti-tip brackets/screws, or any other part of the
range.

4
IMPORTANT SAFETY INSTRUCTIONS
DO NOT LEAVE CHILDREN ALONE —children should
not be left alone or unattended in the area where
appliance is in use. They should never be allowed to sit
or stand on any part of the appliance, including the
storage drawer, lower broiler drawer, warmer drawer or
lower double oven.
• Do not use water or flour on grease fires—
smother the fire with a pan lid, or use baking
soda, a dry chemical or foam-type extinguisher.
• When heating fat or grease, watch it closely. Fat
or grease may catch fire if allowed to become too hot.
• Use dry potholders - moist or damp potholders
on hot surfaces may result in burns from steam.
Do not let potholders touch hot heating elements. Do
not use a towel or other bulky cloth instead of a
potholder.
• Do not heat unopened food containers - buildup
of pressure may cause container to burst and
result in injury.
For electric ignition models only: Do not attempt to
operate the range during a power failure. If the
power fails, always turn off the range. If the range is not
turned off and the power resumes, the range will begin
to operate again. Once the power resumes, reset the
clock and oven function.
IMPORTANT
WARNING
NEVER use this appliance as a space heater to
heat or warm the room. Doing so may result in
carbon monoxide poisoning.
NEVER cover any slots, holes or passages in the
oven bottom or cover an entire rack with materials
such as aluminum foil. Doing so blocks air flow
through the oven and may cause carbon monoxide
poisoning. Aluminum foil linings may trap heat,
causing a fire hazard.
Stepping, leaning or sitting on the door or
drawers of a range can result in serious injuries
and also cause damage to the appliance. DO NOT
allow children to climb or play around the range. The
weight of a child on an open oven door may cause the
range to tip, resulting in serious burns or other injury.
Storage in or on appliance—flammable materials
should not be stored in an oven, near surface
units or in the storage drawer, warmer drawer or
lower oven. This includes paper, plastic and cloth
items, such as cookbooks, plasticware and towels, as
well as flammable liquids. Do not store explosives, such
as aerosol cans, on or near the range.
CAUTION
Do not store items of interest to children in the
cabinets above a range or on the backguard of
the range. Children climbing on the range to reach
items could be seriously injured.
• DO NOT TOUCH SURFACE BURNERS, AREAS NEAR
THESEBURNERS,OVEN BURNERS OR INTERIOR
SURFACES OF THE OVEN. Both surface and oven
burners may be hot even though flames are not
visible. Areas near surface burners may become hot
enough to cause burns. During and after use, do not
touch, or let clothing or other flammable materials
touch these areas until they have had sufficient time
to cool. Among these areas are the cook top,
surfaces facing the cook top, the oven vent openings
and surfaces near these openings, oven door and
window.
• Wear proper apparel—loose-fitting or hanging
garments should never be worn while using the
appliance. Do not let clothing or other flammable
materials contact hot surfaces.
• Remove the oven door from any unused range if it
is to be stored or discarded.
•User servicing—Do not repair or replace any part of
the appliance unless specifically recommended in
the manuals. All other servicing should be done only by a
qualified technician, This may reduce the risk of personal
injury and damage to the range.
CAUTION

5
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic Enforcement
Act requires the Governor of California to publish a list of
substances known to the state to cause cancer, birth
defects or other reproductive harm, and requires
businesses to warn customers of potential exposure to such
substances.
IMPORTANT INSTRUCTIONS FOR USING
YOUR COOKTOP
• Know which knob controls each surface burner.
Place a pan of food on the burner before turning it on,
and turn the burner off before removing the pan.
• Always turn knob to the full LITE position when
igniting top burners. Visually check that burner has lit.
Then adjust the flame so it does not extend beyond the
edge of the utensil.
• Utensil handles should be turned inward and not
extend over adjacent surface burners—To reduce
the risk of burns, ignition of flammable materials, and
spillage due to unintentional contact with the utensil, the
handle of the utensil should be positioned so that it is
turned inward, and does not extend over adjacent
surface burners.
• Never leave surface burners unattended at high
heat settings—Boilovers cause smoking and greasy
spillovers that may ignite, or a pan that has boiled dry
may melt.
• Glazed cooking utensils—Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for cook top service without breaking
due to the sudden change in temperature. Check the
manufacturer’s recommendations for cook top use.
• When flaming foods under a ventilating hood, turn
the fan on.
WARNING
Use Proper Flame Size—Adjust flame size so it does
not extend beyond the edge of the utensil. The use of
undersized utensils will expose a portion of the burner
flame to direct contact and may result in ignition of
clothing. Proper relationship of utensil to flame will also
improve efficiency.
IMPORTANT INSTRUCTIONS FOR USING
YOUR OVEN
• Use care when opening oven door , warmer
drawer or lower oven door—Stand to the side of the
range when opening the door of a hot oven. Let hot air or
steam escape before you remove or replace food in the
oven.
• Keep Oven Vent Ducts Unobstructed. The oven vent
is located below the backguard. Touching the surfaces in
this area when the oven is operating may cause severe
burns. Also, do not place plastic or heat-sensitive items
on or near the oven vent. These items could melt or
ignite.
• Placement of Oven Racks. Always place oven racks in
desired location while oven is cool. If rack must be
moved while oven is hot use extreme caution. Use
potholders and grasp the rack with both hands to
reposition. Do not let potholders contact the hot heating
elements in the oven. Remove all utensils from the rack
before moving.
• Do not use the broiler pan without its insert. The
broiler pan and its insert allow dripping fat to drain and
be kept away from the high heat of the broiler.
• Do not cover the broiler insert with aluminum foil.
Exposed fat and grease could ignite.
•Protective liners—Do not use aluminum foil to line the
oven bottom. Only use aluminum foil as recommended in
this manual. Improper installation of these liners may
result in risk of electric shock, or fire.
• Air curtain or other overhead range hoods, which
operate by blowing a downward air flow on to a range,
shall not be used in conjunction with gas ranges other
than when the hood and range have been designed,
tested and listed by an independent test laboratory for
use in combination with each other.

6
IMPORTANT SAFETY INSTRUCTIONS
Avoid fire hazard or electrical shock. Do not use an
adapter plug, an extension cord, or remove grounding
prong from electrical power cord. Failure to follow this
warning can cause serious injury, fire or death.
This appliance is equipped with a 3-prong grounding
plug for your protection against shock hazard and
should be plugged directly into a properly grounded
receptacle. DO NOT cut or remove the grounding prong
from this plug.
For personal safety, the range must be properly
grounded. For maximum safety, the power cord must
be plugged into an electrical outlet that is correctly
polarized and properly grounded.
If a 2-prong wall receptacle is the only available outlet,
it is the personal responsibility of the consumer to have
it replaced with a properly grounded 3-prong wall
receptacle installed by a qualified electrician.
Grounding Instructions
WARNING
See the INSTALLATION INSTRUCTIONS packaged with this
range for complete installation and grounding instructions.
IMPORTANT INSTRUCTIONS FOR CLEANING
YOUR RANGE
•Clean the range regularly to keep all parts free of
grease that could catch fire. Pay particular attention
to the area around each surface element. Do not allow
grease to accumulate.
• Kitchen cleaners and aerosols—Always follow the
manufacturer’s recommended directions for use.
Be aware that excess residue from cleaners and aerosols
may ignite causing damage and injury.
• Clean ventilating hoods frequently—Grease should
not be allowed to accumulate on the hood or filter.
Follow the manufacturer’s instructions for cleaning hoods.
SELF-CLEANING OVENS
• Clean in the self-cleaning cycle only the parts
listed in this Use & Care Manual. Before self-cleaning
the oven, remove the broiler pan and any utensils or
foods from the oven.
• Do Not Use Oven Cleaners—No commercial oven
cleaner or oven liner protective coating of any kind should
be used in or around any part of the oven.
• Do Not Clean Door Gasket—The door gasket is
essential for a good seal. Care should be taken not to
rub, damage or move the gasket.
•The health of some birds is extremely sensitive to the
fumes given off during the self-cleaning cycle of any
range. Move birds to another well-ventilated room.
If your gas range model is designed to allow for L.P.
conversion, the L.P. conversion kit may be obtained from
your local appliance dealer and should be installed by a
qualified service technician. Before installing the kit be sure
to follow the L.P. Installation Instructions carefully.
Personal injury or death from electrical shock may occur
if the range is not installed by a qualified installer or
electrician.
Any additions, changes or conversions required in order
for this appliance to satisfactorily meet the application
needs must be made by a qualified technician.
Conversion to Liquefied Petroleum Gas
WARNING

7

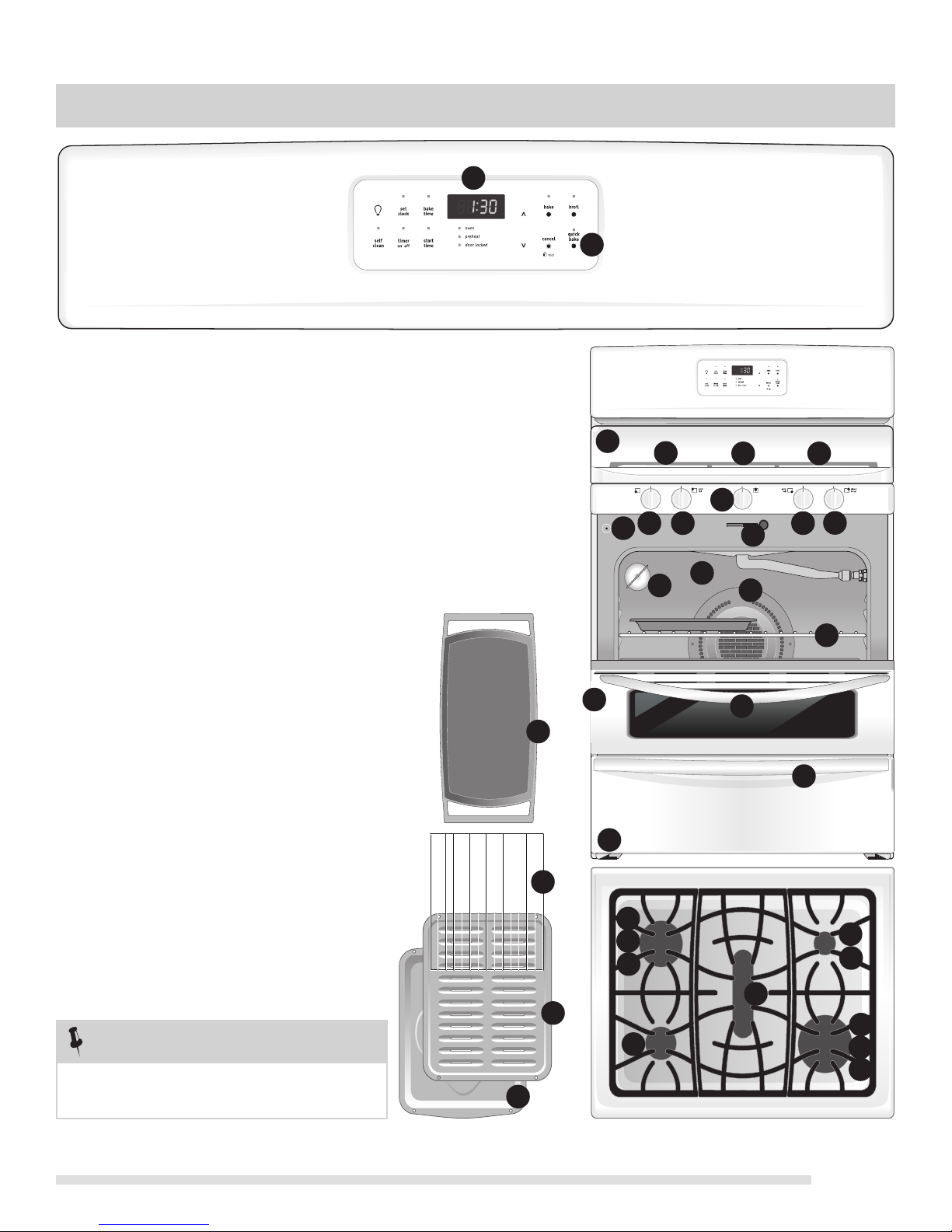

Your gas range features include:
1. Electronic oven control with kitchen timer.
2. Quick Bake Cooking System control (some models).
3. Left front burner valve and control knob.
4. Left rear burner valve and control knob.
5. Center accent burner valve and control knob (some models).
6. Right front burner valve and control knob.
7. Right rear burner valve and control knob.
8. Burner grates (colors vary with model).
9. Center burner grate (some models).
10. Oven interior light with removable cover.
11. Automatic oven door light switch (some models).
12. Self-cleaning oven interior.
The features shown for your appliance may
vary according to model type & color.
FEATURES AT A GLANCE
NOTE
1
2
3 4
5
6
9
7
8
10
11
14
15
16
17
18
19
20
21
28
29
30
12
13. Self-clean door latch.
14. Adjustable interior oven rack(s). Effortless Oven
Rack™ system (not shown-some models).
15. Quick Bake cooking system fan (some models).
16. Large 1-piece oven door handle.
17. Full width oven door with window.
18. Storage drawer with large 1-piece door handle
(some models) or lower cover panel (some models).
19. Easy to clean upswept cooktop.
20. 5,000 BTU simmer burner (some models).
21. 9,500 BTU standard burner (some models).
22. 9,500 BTU center or accent burner (some models).
23. 12,000 BTU Quick Boil burner (some models).
24. 14,000 BTU Quick Boil burner (some models) or
8
13
17,000 BTU Quick Boil burner (some models).
25. Burner drip pan (not shown-some models).
26. Broil pan (some models).
27. Broil pan insert (some models).
28. Roasting rack (optional-some models).
29. Cast-iron griddle grate (in place of middle
grate; optional-some models).
30. Leveling legs and anti-tip bracket
(included).
23
21
22
26
21
23
24
21
27
24

8

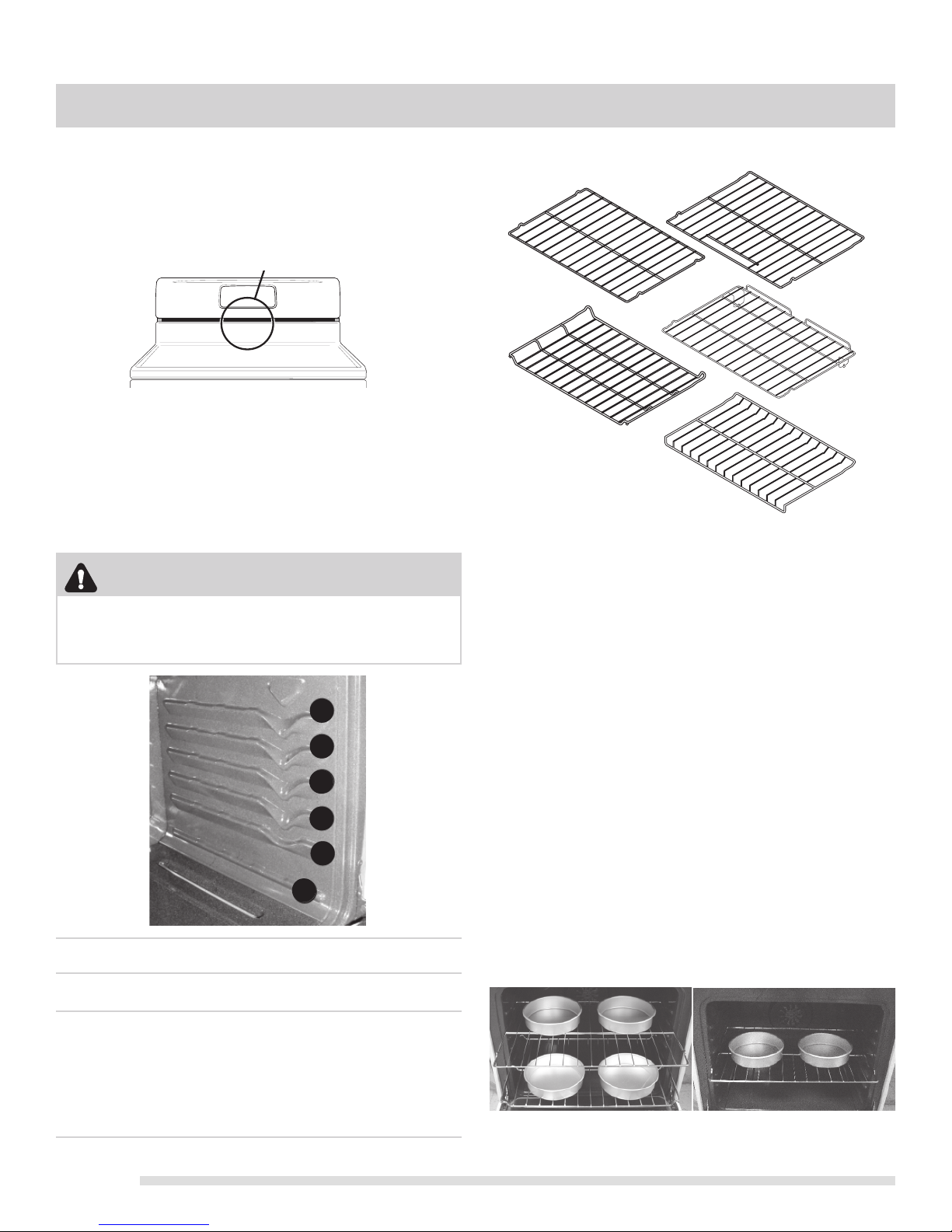

BEFORE SETTING OVEN CONTROLS
Types of oven racksOven vent location
The oven vent is located below the control panel (See
Fig. 1). When the oven is on, warm air passes through this
vent. This venting is necessary for proper air circulation in
the oven and good baking results. Do not block the oven
vent.
oven vent location
Fig. 1
Recommended rack positions by food type
Food type Position
Broiling meats See broil
Cookies, cakes, pies, biscuits & muffins 3 or 4
Frozen pies, angel food cake, yeast, bread
and casseroles 1 or 2
Small cuts of meat or poultry 1 or 2
Turkey, roast or ham 1
flat
oven rack
flat handle
oven rack
bottom
oven rack
offset
oven rack
The flat oven rack or flat handle oven rack (some
models) may be used for most cooking needs. The
Effortless™ Oven Rack (some models) is described later
in this section. The offset oven rack (some models) is
designed to place the base of the rack about 1/2 of a rack
position lower than normal. This rack design provides
several additional possible positions between the standard
positions.To maximize oven cooking space place the
bottom oven rack (some models) in the lowest rack
position for baking or and when roasting large cuts of meat.
Removing, replacing & arranging racks
To remove - pull the rack forward until it stops. Lift up
front of rack and slide out.
To replace - fit the rack onto the guides on the oven walls.
Tilt the front of the rack upward and slide the rack back into
place.
Arranging - always arrange the oven racks when the oven
is cool (prior to operating the oven).
2
3
4
5
6
1
CAUTION
Effortless™
Oven
Rack
Air circulation in the oven
For best baking results allow 2-4" (5-10 cm) around the
cookware for proper air circulation and be sure pans and
cookware do not touch each other, the oven door, sides or
back of the oven cavity. Hot air must be able to circulate
around the pans and cookware in the oven for even heat to
reach around the food.
Baking layer cakes with 1 or 2 oven racks
For best results when baking cakes using 2 oven racks,
place cookware on rack positions 2 & 5 (See Figs. 2 & 3).
For best results when using a single oven flat rack, place
cookware on rack positions 2, 3 or 4 (See Figs. 2 & 4).
Fig. 3 Fig. 4
Always use oven mitts when using the oven. When
using the appliance, oven racks and cooktop will become
very hot which can cause burns.
Fig. 2

9
Effortless™ Oven Rack system
Some models are equipped with a special oven rack system
that automatically partially extends the oven rack from the
interior oven glides to assist in easier access to your food
items. This feature works whenever the oven door is
opened or closed.
CAUTION
REMOVE ALL OVEN RACKS and accessories before
starting a self-clean cycle. If the oven racks are left
in the oven during the self-clean cycle, the glide ability of
the Effortless™ Oven Rack system will be damaged and
will cause oven racks to loose their shiny finish and or
turn blue. Remove ALL oven racks and clean according
to instructions provided in the Care & Cleaning section of
this manual.
Make sure the oven and oven racks are COMPLETLY cool
and safe to touch before attempting to assemble or
disassemble the Effortless™ Oven Rack system. Never
pick up hot oven rack parts.
To assemble the Effortless™ Oven Rack system:
1. Locate all required parts. You will need the supplied
oven rack (Effortless™ Oven Rack is a flat rack with a
special dark coating on the left and right rack
sides) and the 2 supplied chrome connector arms.
2. Open the oven door. Be sure the oven is completely
cool before proceeding.
3. Place the oven rack in positions 2, 3 or 4 only (see
previous page to verify positions).Be sure the rack
connector brackets are at the rear of the range and
pointing towards oven bottom (See Fig. 2).
4. Assemble one connector arm at a time. With the oven
door open and the oven rack in place, install one end of
the connector arm to the hole in the door connector
bracket (Fig. 1) and the other end in the hole in the
rack connector bracket (Fig. 2 and as in Fig. 3). The
oven rack may need to be adjusted in or out in the rack
position to match the length of the connector arm.
5. While holding the connector arm in place, twist the
connector arm so the ends of the connector arm point
upwards (See Figs. 4 & 5). The connector arm should
now be locked into position.
6. Repeat steps 4 and 5 for the other connector arm.
7. Once both connector arms are properly in place, be
sure to test the oven rack operation by gently closing
the oven door. The oven rack should move in and out of
the oven freely when the door is opened or closed.
IMPORTANT
BEFORE SETTING OVEN CONTROLS
Only the Effortless™ Oven Rack system should be
used in oven rack position 2. Placing ANY other rack
in oven rack position 2 will prevent the oven door
from fully closing and may damage the oven door,
oven cavity or the door connector brackets.
If the rack system is not assembled with the connector
arms the Effortless™ Oven rack may be used in oven rack
positions 2 thru 6. Do not attempt to use the Effortless™
Oven rack in rack position 1.
Fig. 6 - Effortless™ Oven Rack after assembly
left and right
door connector
brackets
with connector arm ends
shown in locked position
(pointing upwards)
connector
arm
connector
arm
Fig. 5
Fig. 4
door
connector
bracket
rack connector
bracket
connector
arm
connector
arm
oven
rack
open oven
door
Fig. 2
Fig. 1
Fig. 3 - assembly
of the Effortless™
Oven Rack

10
The size and type of utensil used, and the amount and
type of food being cooked will influence the setting
needed for best cooking results.
NOTE
Cookware material types
The most popular materials available are:
Aluminum - Excellent heat conductor. Some types of food
will cause it to darken (Anodized aluminum cookware
resists staining & pitting).
Copper - Excellent heat conductor but discolors easily.
Stainless - Slow heat conductor with uneven cooking
results. Is durable, easy to clean and resists staining.
Cast Iron - A slow heat conductor however will retain heat
very well. Cooks evenly once cooking temperature is
reached.
Porcelain-enamel on metal - Heating characteristics will
vary depending on base material.
Glass - Slow heat conductor.
Using proper cookware
For best cooking results,
cookware should have flat
bottoms that rests level on the
burner grate. Before using
cookware, check for flatness by
rotating a ruler across the
bottom of the cookware (Fig. 1).
Fig. 2
BEFORE SETTING SURFACE CONTROLS
Set proper burner flame size
For most cooking; start on the highest setting and then
turn to a lower setting to complete the process. Use the
recommendations below as a guide for determining proper
flame size for various types of cooking (Fig. 2)
For deep fat frying; use a thermometer and adjust the
surface knob accordingly. If the fat is too cool, the food will
absorb the fat and be greasy. If the fat is too hot, the food
will brown so quickly that the center will be undercooked.
Do not attempt to deep fat fry too much food at once as the
food will neither brown or cook properly.
Flame Size* Type of Cooking
High Flame Start most foods; bring water to a boil;
pan broiling.
Medium Flame Maintain a slow boil; thicken sauces,
gravies; steaming.
Low Flame Keep foods cooking; poach; stewing.
Never extend the flame beyond the outer edge of the
cooking utensil. A higher flame wastes energy, and
increases your risk of being burned by the flame (Fig. 3).
*These settings are based for medium-weight metal or
aluminum pans with lids. Settings may vary when using
other types of pans.
The color of the flame is the key to proper burner adjustment.
A good flame is clear, blue and hardly visible in a well-lighted
room. Each cone of flame should be steady and sharp. Adjust
or clean burner if flame is yellow-orange.
CAUTION
Correct flame
setting
Incorrect
flame setting
Fig. 3
Do not place flammable items such as plastic salt and
pepper shakers, spoon holders or plastic wrappings on
the cooktop when it is in use. These items could melt or
ignite. Potholders, towels or wooden spoons could catch
fire if placed too close to the range cooktop.
CAUTION
IMPORTANT
Do not place aluminum foil, or ANY material that
can melt on the range cooktop. If these items melt
they may damage the cooktop.
Fig. 1

11
SETTING SURFACE CONTROLS
Setting surface controls
Your gas appliance may be equipped with many different
sized surface burners. The ability to heat food quicker and
in larger volumes increases as the burner size increases.
The smaller simmer burner (some models) is best suited
for simmering delicate sauces, etc.
The standard size (9,000 BTU) burners may be used for
most surface cooking needs.
The larger quick boil burner or burners (some models)
are best used when bringing large quantities of liquid to
temperature and when preparing larger quantities of food.
It is important to select cookware that is suitable for the
amount and type of food being prepared. Select a burner
and flame size appropriate for the cookware size.
Setting a surface burner
1. Place cooking utensil on center of surface burner
grate. Make sure the cooking untensil is centered and
stable on the grate.
2. Push the desired surface control knob in and turn
counterclockwise out of the OFF position (Fig. 1).
3. Release the knob and rotate to the LITE position.
Visually check that the gas burner has lit.
Fig. 1
DO NOT cook with the surface control knob left in the
LITE position. The electronic ignitor will continue to spark
if the control knob is left in the LITE position.
When setting any surface control knob to the LITE
position, all electronic surface ignitors will spark at the
same time. However, only the surface burner you are
setting will ignite.
NOTES
4. Push the control knob in and turn counterclockwise to
the desired flame size. Use the control knob markings
and adjust the flame as needed.
IMPORTANT
• Do not place aluminum foil, or ANY material that
can melt on the range cooktop. If these items melt
they may permantely damage the cooktop surface.
•In the event of an electrical power outage, the surface
burners can be lit manually. To light a surface burner,
hold a lit match to the burner head, then slowly turn
the surface control knob to LITE. After burner lights
push in and turn knob to desired setting. Use caution
when lighting surface burners manually.
Do not place flammable items such as plastic salt and
pepper shakers, spoon holders or plastic wrappings on
the cooktop when it is in use. These items could melt or
ignite. Potholders, towels or wooden spoons could catch
fire if placed too close to the range cooktop.
CAUTION
Home Canning
Be sure to read and observe all the following points when
home canning with your appliance. Check with the USDA
(United States Department of Agriculture) website and be
sure to read all the information they have available as well
as follow their recommendations for canning procedures.
• Use only quality flat bottom canners when home canning.
Use a straight-edge to check canner bottom (see
“Cookware material types” in the Before setting
surface controls section).
• Start with hot tap water to bring water to boil more
quickly.
• Use the highest heat seating when first bringing the water
to a boil. Once boiling is achieved, reduce heat to lowest
possible setting to maintain that boil.

12
Up and down arrow pads— Use with the
feature or function pads to set oven
temperature, bake time, start time, clean time
(when programming an automatic start time),
setting or adjusting the clock and minute timer.
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN.
For satisfactory use of your oven, become familiar with the various pad functions of the oven as described below.

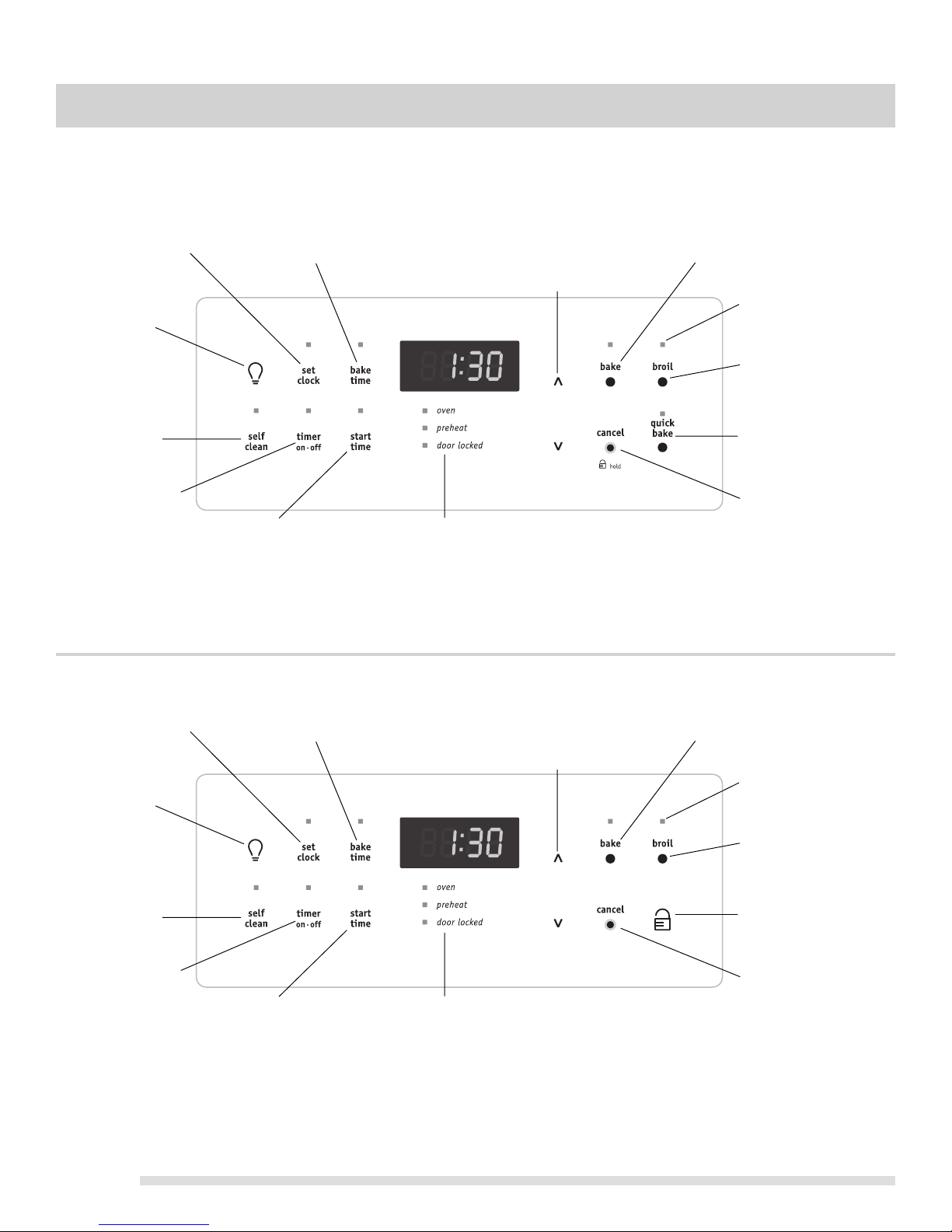

OVEN CONTROL FUNCTIONS
Oven control (for models with Quick Bake™ only)
Broil pad— Use to
select the variable
broil feature.
Bake pad—Use
to select the bake
feature.
Start time pad—
Used to set the
desired start time
for baking & Self-
Clean. May be used
with Bake time to
program a delayed
bake cycle.
Bake time pad—
Used to enter the
length of baking time
needed.
Self-clean pad—
Use to set a Self-
Clean cycle.
Oven, preheat & door locked lights* — The "Oven" light
will glow each time the oven turns on to maintain the set oven
temperature. The "Preheat" light will glow when the oven is
first set to operate, or if the desired temperature is reset higher
than the actual oven temperature. The "Door locked" light will
flash when the oven door locks and unlocks, the oven door
lockout is active or when the Self-Clean cycle feature is active.
Feature indicator
lights— These lights
show which feature is
active.
Set clock pad—
Used to set the time
of day.
Cancel pad— Use
to clear any feature
previously entered
except the time of
day and minute
timer. Press Cancel
to stop cooking.
Timer On/Off pad—
Use to set or cancel
the minute timer. The
minute timer does not
start or stop cooking.
Also,
Timer On/Off pad is
used to set the
continuous bake
function.
Oven light pad—
Use to turn the
interior oven light
ON or OFF.
Door lock icon pad
activates oven door
lockout settings.
Broil pad— Use to
select the variable
broil feature.
Up and down arrow pads— Use with the
feature or function pads to set oven
temperature, bake time, start time, clean time
(when programming an automatic start time),
setting or adjusting the clock and minute timer.
Bake pad—Use
to select the bake
feature.
Start time pad—
Used to set the desired
start time for baking &
Self-Clean. May be
used with Bake time
to program a delayed
bake cycle.
Bake time pad—
Used to enter the
length of baking time
needed.
Self-clean pad—
Use to set a Self-
Clean cycle.
Oven, preheat & door locked lights* — The "Oven" light
will glow each time the oven turns on to maintain the set oven
temperature. The "Preheat" light will glow when the oven is
first set to operate, or if the desired temperature is reset higher
than the actual oven temperature. The "Door locked" light will
flash when the oven door locks and unlocks, the oven door
lockout is active or when the Self-Clean cycle feature is active.
Feature indicator
lights— These lights
show which feature is
active.
Set clock pad—
Used to set the time
of day.
Cancel pad— Use
to clear any feature
previously entered
except the time of
day and minute
timer. Press Cancel
to stop cooking. Also
the Cancel pad is
used to activate
oven door lockout
setting.
Timer On/Off pad—
Use to set or cancel
the minute timer. The
minute timer does not
start or stop cooking.
Also,
Timer On/Off pad is
used to set the
continuous bake
function.
Oven light pad—
Use to turn the
interior oven light
ON or OFF.
Quick Bake™ pad
activates the Quick
Bake™ feature.
Oven control (for all other models)

13
Setting the clock
When the appliance is first plugged in or when the power
supply to the appliance has been interrupted, the display
will flash "12:00". It is recommended to always set the
clock for the correct time of day before using the appliance.
The clock cannot be changed during any timed bake or
self-clean cycle.
NOTE
The OVEN indicator light on the electronic display will turn
ON and OFF when using the Bake feature and during
preheat. This is normal and indicates that the oven is
cycling to maintain the selected baking temperature.
When the preheat indicator light turns OFF, your oven is
ready.
Changing temperature display (°F or °C)
The electronic oven control is set to display °F (Fahrenheit)
when shipped from the factory. The oven can be
programmed for any temperature from 170°F to 550°F
(77°C to 287°C).
To change the temperature to display °C (Celsius) or
from °C to °F (control should not be set for Bake or
Self-clean when setting this feature):
1. Press . "— —" appears in the display.
2. Press and hold the until "HI" appears in the
display.
3. Press and hold until °F or °C appears in the
display.
4. Press the or to change °F to °C or °C to °F.
5. Press any control pad to return to normal operating
mode.
NOTE
Setting a silent control panel
When choosing a function, a beep will be heard each time a
pad is pressed. If desired, the control can be programmed
for silent operation. Press and hold . After 7
seconds, the control will beep once. This will block the
controls from sounding when a pad is pressed. To return
the sound, press and hold again for 7 seconds until
the control beeps once.
Changing between continuous bake
setting or 12-Hour Energy Saving feature
The oven control has a built-in 12-Hour Energy Saving
feature that will shut off the oven if the control is left on for
more than 12 hours. The oven can be programmed to
override this feature for continuous baking.
Changing to continuous bake setting:
1. Press and hold down for 5 seconds until tone is
heard, " — — hr" will appear in display for continuous
cooking. The current time of day will return to the
display.
2. To cancel the continuous bake setting, press
and hold for 5 seconds until tone is heard. "12hr" will
appear in display indicating that the control has
returned to the 12-Hour Energy Saving feature.
To set the clock:
1. Press once (do not hold pad down).
2. Within 5 seconds, press and hold the or until
the correct time of day appears in the display.
SETTING OVEN CONTROLS

14
Setting the minute timer
1. Press .
2. Press the to increase the time in one minute
increments. Press and hold the to increase the
time in 10 minute increments. The timer can be set for
any amount of time from 1 minute to 11 hours and 59
minutes.
Note: If the pad is pressed first, the timer will
advance to 11 hours and 59 minutes.
3. When the set time has run out, the timer will beep 3
times and will continue to beep 3 times every 60
seconds until is pressed.
To change the timer while it is in use
While the timer is active and shows in the display, press
and hold the or to increase or decrease the time
remaining.
To cancel the minute timer before the set time has
run out
Press once .
NOTES
The indicator light located above the pad will glow
while the minute timer is active.
The minute timer will display hours and minutes until 1
hour remains on the timer. Once less than 1 hour
remains, the display will count down in minutes and
seconds. Once the timer has less than 1 minute
remaining only seconds will display.
The minute timer DOES NOT start or stop the cooking
process. It serves as an extra timer in the kitchen that
will beep when the set time has run out. The minute
timer can be used alone or while using any of the other
oven features. When the minute timer is in use with any
other feature, the minute timer will be shown in the
display. To view other functions, press the pad for that
function.
To set the oven lockout feature
(for models without Quick Bake feature)
1. Press and hold for 3 seconds. “Loc” will appear in
display, the “Door Locked” indicator light will flash and
the motor driven door lock will begin to close
automatically. Allow about 15 seconds for the oven
door to lock. Once the oven door is locked, the current
time of day will appear in the display.
2. To cancel the Oven Lockout feature, press and
hold for 3 seconds. The control will unlock the oven
door and resume normal operation.
DO NOT open the oven door while the indicator light
is flashing. Allow about 15 seconds for the oven door to
lock. Once the oven door is locked, the current time of
day will appear in the display.
If any control pad is pressed with the oven lockout
feature active, “Loc” will appear in the display until the
control pad is released.
NOTES
Setting oven lockout
The control can be programmed to lock the oven door and
lockout the oven control pads.
To set the oven lockout feature
(for models with Quick Bake)
1. Press and hold for 3 seconds. “Loc” will appear
in display, the “Door Locked” indicator light will flash
and the motor driven door lock will begin to close
automatically. Allow about 15 seconds for the oven
door to lock. Once the oven door is locked, the current
time of day will appear in the display.
2. To cancel the ovenlockout feature, press and
hold for 3 seconds. The control will unlock the oven
door and resume normal operation.
SETTING OVEN CONTROLS

15
Setting timed bake and delayed timed
bake features
The and pads operate the features that will
turn the oven ON and OFF at the times you select in
advance. The oven can be programmed to start
immediately and shut off automatically (timed bake) or to
begin baking at a later time with a delayed start time
(delayed timed bake).
Setting bake
The oven can be programmed to bake at any temperature
from 170°F to 550°F (77°C to 287°C). The factory preset
automatic bake temperature is 350°F (177°C).
To set bake
1. Press . "— — —" appears in the display.
2. Within 5 seconds, press the or . The display
will show "350°F (177°C)." By pressing and holding
the or , the temperature can then be adjusted
in 5°F increments (1°C if the control is set to display
Celsius).
3. As soon as the or pad is released, the oven
will begin heating to the selected temperature. When
the displayed temperature reaches the desired baking
temperature, the preheat indicator light will turn OFF
and the control will beep 3 times.
4. To cancel bake, press .
To change the oven temperature after bake has
started
1. Press . Visually check the bake temperature and
that it needs to be changed.
2. Press the or pad to increase or decrease the
set temperature to the desired new oven temperature.
Use caution with the timed bake and delayed timed bake
features. Foods that can easily spoil such as milk, eggs,
fish, meat or poultry, should be chilled in the refrigerator
first. Even when chilled, they should not stand in the
oven for more than 1 hour before cooking begins, and
should be removed promptly when cooking is completed.
CAUTION
The timed bake feature may be set with the Quick Bake
cooking feature. Timed bake will not operate when using
the broil feature.
NOTE
To program the oven to begin baking immediately
and to shut off automatically (timed bake)
1. Be sure that the clock shows the correct time of day.
2. Place the food in the oven.
3. Press . " — — — ° " appears in the display.
4. Within 5 seconds, press the or . The display will
show "350°F (177°C)." By holding the or , the
temperature can then be adjusted in 5°F increments
(1°C if the control is set to display Celsius).
5. Press . ":00" will appear in the display.
6. Press the or until the desired baking time
appears in the display.
7. The oven will turn ON and begin heating.
SETTING OVEN CONTROLS

16
To program oven for a delayed start time and to
shut-off automatically (delayed Timed Bake)
1. Be sure that the clock shows the correct time of day.
2. Place the food in the oven.
3. Press . " — — — ° " appears in the display.
4. Within 5 seconds, press the or . The display will
show "350°F (177°C)." By holding the or , the
temperature can then be adjusted in 5°F increments
(1°C if the control is set to display Celsius).
5. Press . ":00" will appear in the display.
6. Press the or until the desired baking time
appears.
7. Press . The time of day will appear in the display.
8. Press the or until the desired start time appears
in the display.
9. Once the controls are set, the control calculates the
time when baking will stop in order to start at the time
you have set.
10. The oven will turn ON at the delayed start time and
begin heating.
When the set bake time runs out
1. "End" will appear in the display window and the oven
will shut-off automatically.
2. The control will beep 3 times every 60 seconds as a
reminder until is pressed.
To change the oven temperature or bake time after
baking has started
1. Press the function pad you want to change.
2. Press the or to adjust the setting.
Use caution with the timed bake and delayed timed bake
features. Foods that can easily spoil such as milk, eggs,
fish, meat or poultry, should be chilled in the refrigerator
first. Even when chilled, they should not stand in the
oven for more than 1 hour before cooking begins, and
should be removed promptly when cooking is completed.
CAUTION
NOTE
During a delayed timed bake the preheat indicator light
will not function until the set time to start cooking is
reached.
SETTING OVEN CONTROLS
FOOD POISONING HAZARD. Do not let food sit for more
than one hour before or after cooking. Doing so can result
in food poisoning or sickness.
WARNING

17
Quick Bake (some models)
Benefits of the Quick Bake feature
— Foods may cook up to 25 to 30% faster, saving time and
energy.
— Multiple rack baking.
— No special pans or bakeware needed.
How Quick Bake works
Quick Bake uses a fan to circulate the oven's heat
uniformly and continuously around the oven. This improved
heat distribution allows for fast, even cooking and browning
results. It also gives better baking results when using two
racks at the same time.
Heated air flows around the food from all sides, sealing in
juices and flavors. Meats cooked with Quick Bake are
juicer. Poultry is crisp on the outside while staying tender
and moist on the inside. Breads and pastry brown more
evenly. Most foods baked in a standard oven can be cooked
faster and more evenly with Quick Bake.
Suggestions for Quick Bake
When baking
1. For optimum cooking results it is recommended to
preheat the oven when baking foods such as cookies,
biscuits and breads.
2. Reduce oven temperature 25°F from recipe’s
recommended oven temperature. Follow the remainder
of the recipe’s instructions using the minimum
recommended cook time.
3. When using 2 oven racks at the same time, place in
positions 2 & 5 for best results (See Fig. 1).
When roasting
1. Preheating is not necessary when roasting foods using
Quick Bake.
2. Since Quick Bake cooks food faster, reduce the cook
time by 25% from the recommended cook time of your
recipe. Check the food at this time. If necessary,
increase cook time until the desired doneness is
obtained.
3. Do not cover foods when dry roasting - this will keep
the air from circulating around the food.

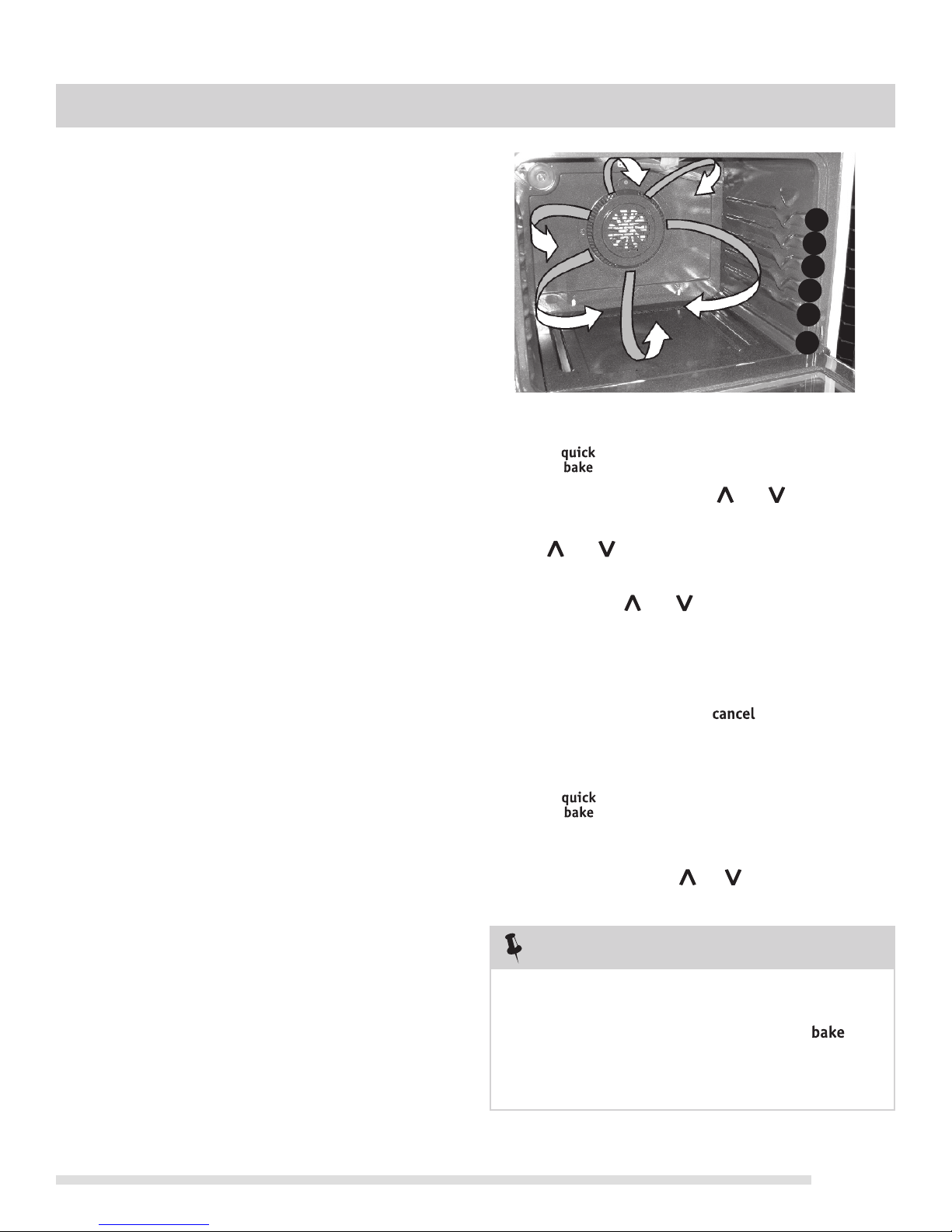

Fig. 1
6
1
2
3
4
5
To set Quick Bake
1. Press . "— — —" appears in the display.
2. Within 5 seconds, press the or . The display
will show "350°F (177°C)." By pressing and holding
the or , the temperature can be adjusted in
5°F increments (1°C if control is set to display Celsius).
3. As soon as the or pad is released, the oven
will begin heating to the selected temperature. When
the set temperature reaches baking temperature, the
preheat indicator light will turn OFF and the control will
beep 3 times.
4. To cancel Quick Bake, press .
To change the oven temperature after Quick Bake
has started
1. Press . Once the oven has reached set
temperature be sure to double check the bake
temperature at this time.
2. If necessary, press the or pad to increase or
decrease the oven set temperature .
NOTES
When using Quick Bake cook time reductions may vary
depending on the amount and type of food being cooked.
Layer cakes will have better results using the pad.
The Quick Bake fan will take 6 minutes to begin
rotating once the Quick Bake feature has been
activated.
Setting Quick Bake
The oven may be programmed to Quick Bake at any
temperature from 300°F to 550°F (147°C to 287°C). The
factory preset Quick Bake temperature is 350°F (177°C).
SETTING OVEN CONTROLS

18
To set Broil
1. Arrange the oven rack while oven is still cool.
2. Press . " — — "will appear in display.
3. Press and hold the or until the desired broil
setting level appears in the display. Press the for HI
broil or the for LO broil. Most foods may be broiled
at the HI broil setting. Select the LO broil setting to
avoid excess browning or drying of foods that should be
cooked to the well-done stage.
4. For optimum browning, preheat the oven for 5
minutes before adding food.
5. Place the insert on the broil pan (if equipped), then
place the food on the broil pan insert (if equipped).
6. Place the broiler pan and insert on the oven rack (if
equipped-See Figs. 1 & 2).
7. Close the oven door.
8. Broil on one side until food is browned. Turn and broil
food on 2nd side. For recommended broil settings and
times refer to Fig. 3.
9. When broiling is finished press .
Use the broil feature to cook meats that require direct
exposure to flame heat for optimum browing results.
When broiling always remember to arrange the oven
racks while oven is still cool. Position the oven rack as
suggested in the broil settings table (See Fig. 3).
Setting broil
Insert
Broil pan
Fig. 1
Fig. 3
Fig. 2
NOTE
Always pull the oven rack out to the stop position before
turning or removing the food.
4
5
6
SETTING OVEN CONTROLS
To insure proper results when broiling use ONLY Electrolux
Home Products, Inc. approved broil pan & insert.
CAUTION
The broiler pan and the insert (some models) allows
grease to drain and be kept away from the high heat of
the broiler. DO NOT use the pan without the insert. DO
NOT cover the insert with foil; the exposed grease could
ignite. DO NOT use the broil pan without the insert or
cover the insert with aluminum foil. The exposed fat
could ignite.
WARNING
Should an oven fire occur, close the oven door and turn
the oven OFF. If the fire continues, use a fire
extinguisher. DO NOT put water or flour on the fire. Flour
may be explosive.
Suggested broil settings table (gas oven)
Food Rack position Setting Cook time in minutes
1st side 2nd side Doneness
Steak 1” thick 5th or 6th* Hi 8 6 Medium
Steak 1” thick 5th or 6th* Hi 10 8 Medium-well
Steak 1” thick 5th or 6th* Hi 12 8 Well
Pork chops 3/4” thick 5th Hi 12 8 Well
Chicken-bone in 4th Lo 25 15 Well
Chicken-boneless 5th Lo 10 8 Well
Fish 5th Hi as directed Well
Shrimp 4th Hi as directed Well
Hamburger 1” thick 6th* Hi 12 10 Medium
Hamburger 1” thick 5th Hi 14 12 Well
*Use the off-set rack if you choose to use oven rack position 6.

19
Operating the oven light
The interior oven light will automatically turn ON when the
oven door is opened.
Press to turn the interior oven light ON and OFF
whenever the oven door is closed.
The interior oven light is located at the upper left rear wall
of the oven interior and is covered with a glass shield held
by a wire holder. The glass shield must be in place
whenever the oven is in use.
To change the interior oven light, see "Changing the oven
light" in the Care & Cleaning section.
Your appliance has been factory calibrated and tested to
ensure an accurate baking temperature. For the first few
uses, follow your recipe times and temperature
recommendations carefully. If you think the oven is cooking
too hot or too cool for your recipe times, you can adjust the
control so the oven cooks hotter or cooler than the
temperature displayed.
To adjust oven temperature:
1. Press .
2. Set the temperature to 550°F (287°C) by pressing and
holding the .
3. Within 2 seconds, press and hold until the 2
digit display appears. Release .The display now
indicates the amount of degrees offset between the
original factory temperature setting and the current
temperature setting. If the oven control has the original
factory calibration, the display will read "0."
4. The temperature can now be adjusted up or down 35°F
(19°C), in 5°F increments by pressing and holding the
or . Adjust until the desired amount of offset
appears in the display. When lowering the oven
temperature, a minus sign (-) will appear before the
number to indicate that the oven will be cooler by the
displayed amount of degrees.
5. When you have made the desired adjustment, press
to go back to the time of day display.
Adjusting the oven temperature
Oven temperature adjustments made will not affect the
broil or self-cleaning feature temperatures.
If the display is set for Celsius, adjustments made will be in
1°C increments each press of the or keys.
DO NOT USE oven thermometers such as those found in
grocery stores to check the temperature settings inside your
oven. These oven thermometers may vary as much as 20 to
40 degrees from actual temperatures.
NOTES
SETTING OVEN CONTROLS

20
SELF-CLEANING
Self-cleaning
A self-cleaning oven cleans itself with high temperatures
(well above normal cooking temperatures) which eliminate
soils completely or reduces them to a fine powdered ash
you can wipe away with a damp cloth. During the self-cleaning cycle, the outside of the range
can become very hot to the touch. DO NOT leave small
children unattended near the appliance.
The health of some birds is extremely sensitive to the
fumes given off during the Self-cleaning cycle of any
range. Move birds to another well-ventilated room.
DO NOT force the oven door open. This can damage the
automatic door locking system. Use caution when
opening the door after the Self-Cleaning cycle is
completed. The oven may still be VERY HOT.
Adhere to the following self-clean precautions:
• DO NOT use oven cleaners or oven protective
coatings in or around any part of the oven interior.
• DO NOT clean the oven door gasket (See Fig. 1). The
woven material of the oven door gasket is essential
for a good seal. Care should be taken not to rub,
damage or remove the gasket.
• DO NOT use any cleaning materials on the oven door
gasket. Doing so could cause damage.
• Remove the broiler pan and insert, all utensils
and ANY ALUMINUM FOIL. These items cannot
withstand high cleaning temperatures and will
melt.
• Completely remove ALL OVEN RACKS and ANY
ACCESSORIES. If the oven racks are not
removed they will lose their special coating
properties and no longer slide in and out of the
oven cavity effortlessly.
• Remove any excessive spillovers. Any spills on
the oven bottom should be wiped-up and removed
before starting the self-cleaning cycle. To clean,
use hot, soapy water and a cloth. Large spillovers
can cause heavy smoke or fire when subjected to
high temperatures. DO NOT allow food spills with a
high sugar or acid content (such as milk, tomatoes,
sauerkraut, fruit juices or pie filling) to remain on the
surface as they may leave a dull spot even after
cleaning.
•Clean any soil from the oven frame, the door liner
outside the oven door gasket and the small area at
the front center of the oven bottom. These areas
heat sufficiently to burn soil on. Clean with soap and
water. These areas are shown in white (See Fig. 1).
CAUTION
Fig. 1
IMPORTANT
