Frigidaire FGF374CCBH User manual

© 1998 White Consolidated Industries, Inc.
All rights reserved
FACTORY PARTS CATALOG
GAS RANGE
P.O. Box 212378
Augusta, Georgia 30917
PRODUCT NO. BASE MODEL NO. COLOR MARKET
FGF374CCBH FGF374CC BLACK/BLACK USA
FGF374CCBJ FGF374CC BLACK/BLACK USA
FGF374CCSK FGF374CC WHITE/WHITE USA
FGF374CCSL FGF374CC WHITE/WHITE USA
FGF374CCTJ FGF374CC ALMOND/ALMOND USA
FGF374CCTK FGF374CC ALMOND/ALMOND USA
Publication No.
5995310702
980721
-EN/SERVICE /VLM
369
WIRING DIAGRAM # - 316002151
OWNER’S GUIDE # - 316000241
INSTALLATION GUIDE # - 316002979 GAS - RANGE
FGF374CCBH
FGF374CCBJ
FGF374CCSK
FGF374CCSL
FGF374CCTJ
FGF374CCTK

8/98 2
Publication number
5995310702 FGF374CC
CAUTION: Use the part number on all orders, not the position number.
BACKGUARD

# - Fast Moving Parts
* - Non Illustrated Parts 3 6/98
Publication number
FGF374CC 5995310702
CAUTION: Use the part number on all orders, not the position number.
BACKGUARD
A = FGF374CC (FGF374CCBH)
B = FGF374CC (FGF374CCBJ)
C = FGF374CC (FGF374CCSK)
D = FGF374CC (FGF374CCSL)
E = FGF374CC (FGF374CCTJ)
F = FGF374CC (FGF374CCTK)
POS. NO PART NO DESCRIPTION
* 316021108 A B C D E F Screw,cup pt ,#8-18 x 3/8 ,hinge ,
ind lght brkt,manifold pnl
* 316021110 A B C D E F Screw-8-18x1/2 Tr Sqd black
* # 316001420 A B C D E F Harness-wiring,backguard
1 316028701 A B C D E F Shield-backguard,rear wall
2 316051600 A B C D E F Shield-backguard, inner
2A 316053800 A B C D E F Shield-backguard,inner top
3 3131275 A B C D E F Lamp-fluorescent,backguard
4 3051222 A B C D E F Receptacle-lamp,RH
4A 3051223 A B C D E F Receptacle-lamp,LH
5 # 316053200 A B C D E F Receptacle-starter
6 # 3206218 A B C D E F Starter-lamp
10 # 316099800 A B C D E F Ballast-lamp
15 316049104 A B C D E F Support-backguard,RH
15A 316049105 A B C D E F Support-backguard,LH
18 316026900 A B ---- EndCap,black ,RH
18 316026904 - - C D - - End Cap,white ,RH
18 316026906 ----EF EndCap,almond ,RH
18A 316026901 A B ---- EndCap,black ,LH
18A 316026905 - - C D - - End Cap,white ,LH
18A 316026907 ----EF EndCap,almond ,LH
19 316024517 A B ---- Panel-control,metal
19 316024518 - - C D - - Panel-control,white
19 316024519 ----EF Panel-control,almond
20 # 316080011 A B C D E F Clock/Timer,slew
20* 316089306 - - C D - - Overlay-clock
20* 316089307 A B ---- Overlay-clock
20* 316089308 ----EF Overlay-clock
21 316024900 A B ---- Trim-canopy/shield,black
21 316024902 - - C D - - Trim-canopy/shield,white
21 316024903 ----EF Trim-canopy/shield,almond
22 316059903 A B C D E F Support-receptacle
23 316060002 A B C D E F Bracket-clock mtg
24 # 316005612 A B ---- Switch-rocker,oven light ,gray
24 # 316005607 - - C D - - Switch-rocker,oven light ,white
24 # 316005608 ----EF Switch-rocker,oven light ,almond
36 316109502 A B ---- Knob-top valve, black
36 316109503 - - C D - - Knob-top valve, white
36 316109504 ----EF Knob-top valve, almond
40 316009268 A B ---- Panel-manifold
40 316009285 - - C D - - Panel-manifold
40 316009287 ----EF Panel-manifold
42 316055300 - - C D - - Trim-vent
42 316055301 A B - - E F Trim-vent
56 316074907 A B C D E F Deflector-flue,black
58 316043400 A B C D E F Insulator-ballast,(2)
60 316021105 A B ---- Screw, 8-18 x ½, black
60 316021116 - - C D - - Screw, 8-18 x ½, white
60 316021117 ----EF Screw, 8-18 x ½, almond
64 316062400 A B C D E F Retainer plate,64

8/98 4
Publication number
5995310702 FGF374CC
CAUTION: Use the part number on all orders, not the position number.

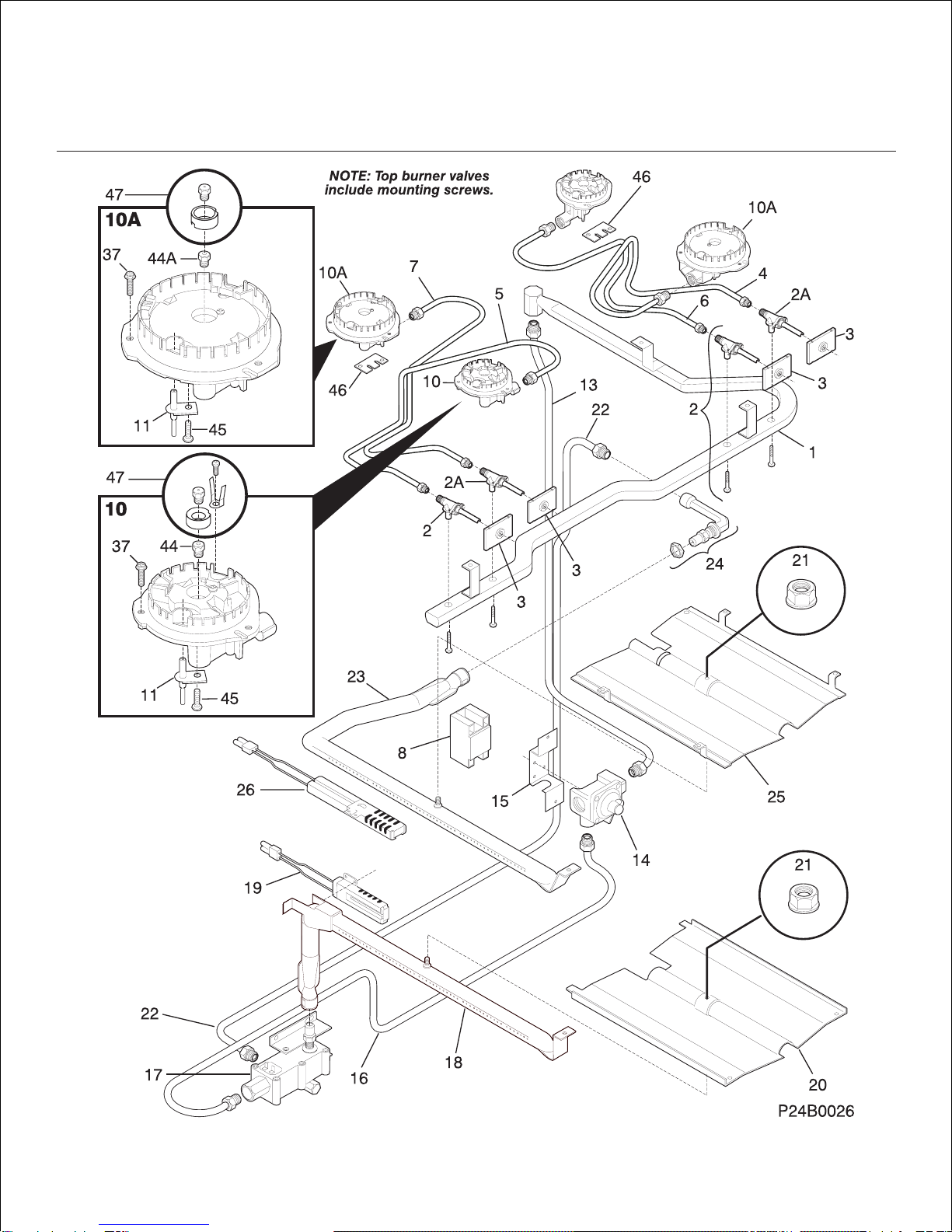

BURNER

# - Fast Moving Parts
* - Non Illustrated Parts 5 6/98
Publication number
FGF374CC 5995310702
CAUTION: Use the part number on all orders, not the position number.
BURNER
A = FGF374CC (FGF374CCBH)
B = FGF374CC (FGF374CCBJ)
C = FGF374CC (FGF374CCSK)
D = FGF374CC (FGF374CCSL)
E = FGF374CC (FGF374CCTJ)
F = FGF374CC (FGF374CCTK)
POS. NO PART NO DESCRIPTION
* 5303271648 A B C D E F Screw,wafer hd sq dr ,8-18AB x 1/2
1 # 316066201 A B C D E F Manifold Pipe
2 # 5303935130 A B C D E F Valve-top burner
2* 316048200 A B C D E F Screw-top valve mtg,hex washer head ,
1/4-20 x 0.31,w/gasket
2A # 5303935132 A B C D E F Valve-top burner,large ,(2)
3 # 316103600 A B C D E F Switch-ignitor,(4)
4 # 316059612 A B C D E F Tube-burner,red ,RF
5 # 316059613 A B C D E F Tube-burner,green ,LF
6 # 316059614 A B C D E F Tube-burner,nat. ,RR
7 # 316059615 A B C D E F Tube-burner,black ,LR
8 # 5303280394 A B C D E F Spark Module
8* 5303289034 A B C D E F Harness-wiring,module/igniter
10 # 5303935025 A B C D E F Burner Assy-top,sealed ,small ,9000 BTU
10A 5303935075 A B C D E F Burner Assy-top,sealed ,large ,
1,100 BTU,(2), includes ,
11,37,44,45,&50
11 # 316011200 A B C D E F Ignitor-top burner,(4) ,w/mtg bracket
13 # 316065005 A B C D E F Tube,aluminum ,rgltr to manf ,
with fittings
14 # 316091706 A B C D E F Regulator-pressure
14* 316021104 A B C D E F Screw-regulator/brkt,hex ,8-18 x 3/8 , ( 3)
15 316091600 A B C D E F Bracket-regulator
16 # 316065003 A B C D E F Tube-valve to rgltr,3/8
17 # 5303208499 A B C D E F Valve-safety,dual
18 # 3131290 A B C D E F Burner-oven
19 # 5303935066 A B C D E F Ignitor-oven
20 3131284 A B C D E F Baffle-oven burner
21 5303013272 A B C D E F Nut,hex head sems
22 # 316065002 A B C D E F Tube-valve to mixer
23 # 316087900 A B C D E F Burner-broiler
24 # 316070400 A B C D E F Mixer Elbow
25 5303210379 A B C D E F Baffle-broiler
26 # 5308067970 A B C D E F Ignitor-broiler
37 316069301 A B C D E F Screw-burner mtg
44 5303210090 A B C D E F Orifice-top burner,small
44A 316010804 A B C D E F Orifice-top burner, large
45 316011100 A B C D E F Screw-ignitor mtg,self-tapping ,M3x5.8
46 316074700 A B C D E F Plate-burner tube
47 5303307190 A B C D E F LP Conversion Kit

8/98 6
Publication number
5995310702 FGF374CC
CAUTION: Use the part number on all orders, not the position number.

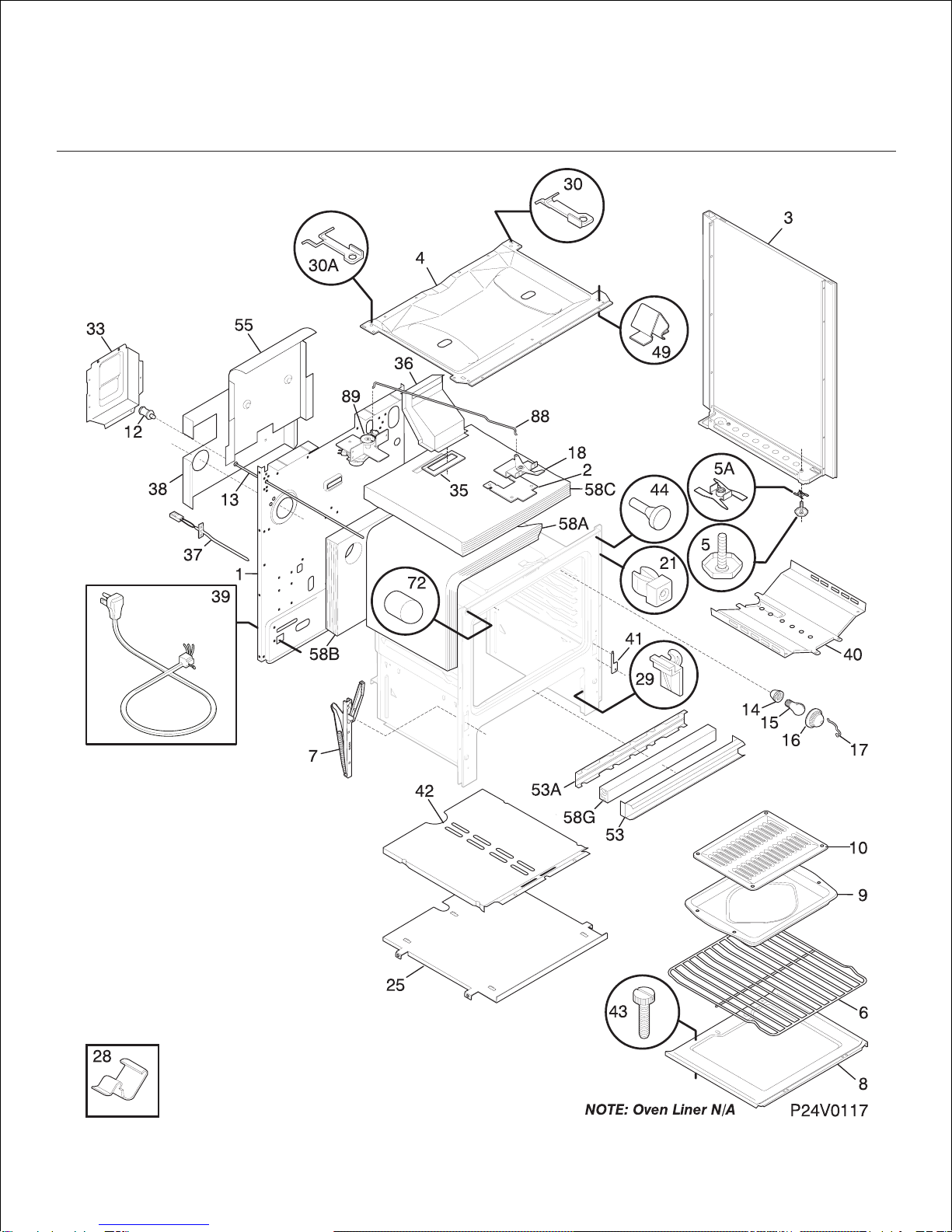

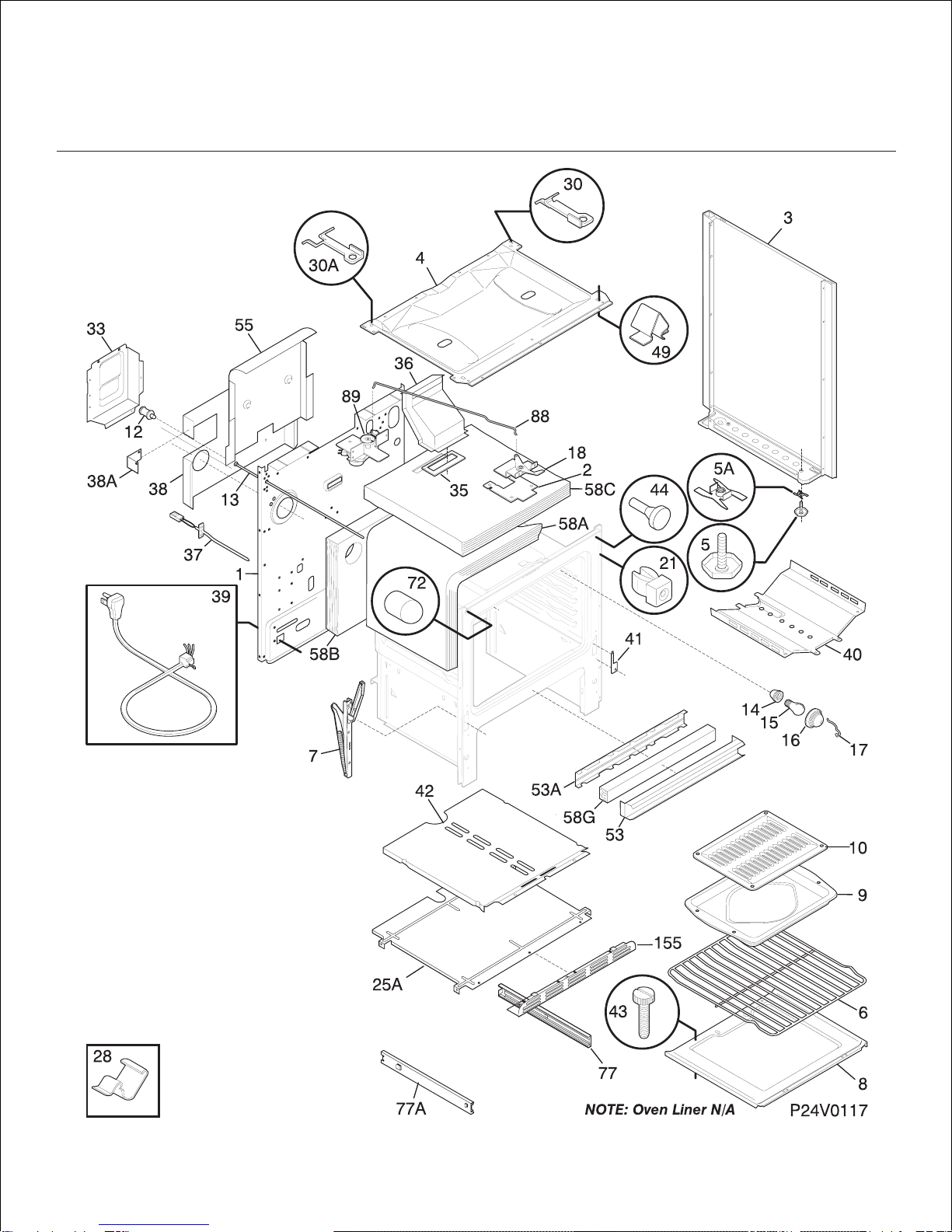

BODY

# - Fast Moving Parts
* - Non Illustrated Parts 7 6/98
Publication number
FGF374CC 5995310702
CAUTION: Use the part number on all orders, not the position number.
BODY
A = FGF374CC (FGF374CCBH)
B = FGF374CC (FGF374CCBJ)
C = FGF374CC (FGF374CCSK)
D = FGF374CC (FGF374CCSL)
E = FGF374CC (FGF374CCTJ)
F = FGF374CC (FGF374CCTK)
POS. NO PART NO DESCRIPTION
* 08067757 A B C D E F Cover Plate, burner box opening
* 316001618 A B C D E F Harness-wiring,main
* 316021108 A B C D E F Screw,cup pt ,#8-18 x 3/8 ,hinge ,
ind lght brkt,manifold pnl
1 316029412 A B C D E F Back-main
2 3131314 A B C D E F Shield-oven top
3 316081026 A B ---- Panel-bodyside,black ,RH
3 316081028 - - C D - - Panel-bodyside,white ,RH
3 316081030 ----EF Panel-bodyside,almond ,RH
3* 316081027 A B ---- Panel-bodyside,black ,LH
3* 316081029 - - C D - - Panel-bodyside,white ,LH
3* 316081031 ----EF Panel-bodyside,almond ,LH
4 316011912 A B C D E F Burner Box,black
5 5303203397 A B C D E F Screw-leveling
5* 3934058 A B C D E F Anti-tip Kit
5* 316078600 A B C D E F Screw,anti-tip ,(4)
5A 5303288460 A B C D E F Nut,T-type ,leveling screw
6 316067902 A B C D E F Rack-oven
7 316007002 A B C D E F Hinge-oven door,(2)
8 5303212540 A B C D E F Panel-oven bottom
8* 316064600 A B C D E F Support-oven bottom
9 316073800 A B C D E F Pan-broiler
10 3205234 A B C D E F Insert-broiler pan
12 # 316027701 A B C D E F Switch-oven light
13 316026800 A B C D E F Rod-light switch /door
14 3014073 A B C D E F Socket-light/lamp,oven
15 5303013071 A B C D E F Light Bulb/Lamp
16 08011086 A B C D E F Lens-light/lamp,glass ,oven
17 316087500 A B C D E F Retainer-lens
18 # 316036300 A B C D E F Latch-door
21 3014099 A B C D E F Spacer-bodyside,(8)
25 5303288580 A B C D E F Shield-heat,lower
28 3011813 - B C D E F Clip-wire,bodyside
29 3051162 A B C D E F Glide-drawer,front
30 316059200 A B C D E F Bracket-main top,RH
30A 316059201 A B C D E F Bracket-main top,LH
33 316014401 A B C D E F Shield,rear wall
35 08067965 A B C D E F Gasket-flue
36 5303272844 A B C D E F Flue
37 # 316111200 A B C D E F Probe-oven temp
38 316051700 A B C D E F Shield-heat
39 3202006 A B C D E F Cord-electric power
39* 08067961 A B C D E F Fastener-power cord
40 3200836 A B C D E F Shield-heat baffle
40* 5303288570 A B C D E F Screw-heat shield,hd shldr sqdr ,
8-18 X 1/2
41 3131570 A B C D E F Cover-hinge cutout
42 5303288578 A B C D E F Shield-bake burner
43 3131732 A B C D E F Screw-oven bottom,8-18 x 1.438

8/98 8
Publication number
5995310702 FGF374CC
CAUTION: Use the part number on all orders, not the position number.
BODY

# - Fast Moving Parts
* - Non Illustrated Parts 9 6/98
Publication number
FGF374CC 5995310702
CAUTION: Use the part number on all orders, not the position number.
BODY
A = FGF374CC (FGF374CCBH)
B = FGF374CC (FGF374CCBJ)
C = FGF374CC (FGF374CCSK)
D = FGF374CC (FGF374CCSL)
E = FGF374CC (FGF374CCTJ)
F = FGF374CC (FGF374CCTK)
44 3131903 A B C D E F Bumper-door/drawer,rubber
49 3051124 A B C D E F Clip-spring mtg
53 5303288579 A B C D E F Shield-main front
53A 08067992 A B C D E F Shield-insulation
55 316107800 A B C D E F Shield-flue
58A 316047705 A B C D E F Insulation,oven wrapper
58B 316054200 A B C D E F Insulation,oven back
58G 08067973 A B C D E F Insulation,main front
72 5303285692 A B C D E F Cover-light/switch rod
88 316026400 A B C D E F Rod-latch,auto
89 # 316028101 A B C D E F Motor-latch/lock

8/98 10
Publication number
5995310702 FGF374CC
CAUTION: Use the part number on all orders, not the position number.
TOP/DRAWER

# - Fast Moving Parts
* - Non Illustrated Parts 11 6/98
Publication number
FGF374CC 5995310702
CAUTION: Use the part number on all orders, not the position number.
TOP/DRAWER
A = FGF374CC (FGF374CCBH)
B = FGF374CC (FGF374CCBJ)
C = FGF374CC (FGF374CCSK)
D = FGF374CC (FGF374CCSL)
E = FGF374CC (FGF374CCTJ)
F = FGF374CC (FGF374CCTK)
POS. NO PART NO DESCRIPTION
* 316021108 A B C D E F Screw,cup pt ,#8-18 x 3/8 ,hinge ,
ind lght brkt,manifold pnl
* 316021110 A B C D E F Screw-8-18x1/2 Tr Sqd black
* 316021112 - - C D - - Screw-8-18x1/2 Tr Sqd White
* 316021113 ----EF Screw-8-18x1/2 Tr Sqd Almond
* 5303280311 A B C D E F Screw,waf hd sdr ,10-32 x 5/16 ,(2)
1 316011501 A B C D E F Drawer-utility
2 3131975 A B C D E F Shield-panel
4 316056203 A B ---- Panel-drawer,black
4 316056201 - - C D - - Panel-drawer,white
4 316056202 ----EF Panel-drawer,almond
7 3051163 A B C D E F Glide-drawer,rear
16 5303307708 A B ---- Main Top,black
16 5303307709 - - C D - - Main Top,white
16 5303307710 ----EF Main Top,almond
19 # 316011415 A B ---- Pan-burner,black ,small ,(2)
19 # 316011413 - - C D - - Pan-burner,gray ,small ,(2)
19 # 316011414 ----EF Pan-burner,almond ,small ,(2)
19A# 316011419 A B ---- Pan-burner,black ,large ,(2)
19A# 316011417 - - C D - - Pan-burner,gray ,large ,(2)
19A# 316011418 ----EF Pan-burner,almond ,large ,(2)
20 # 316085305 A B ---- Grate,(4)
20 # 316085304 - - C D E F Grate,(4)
22 # 316098502 - - C - E - Cap-burner,grey
22 # 316011014 A ----- Cap-burner,matte black ,(4) ,small
22 # 316098501 - B ---- Cap-burner,black ,(2)
22 # 316098508 ---D-F Cap-burner,small ,gray
22A# 316011015 A ----- Cap-burner,matte black ,large ,(2)
22A# 316098505 - B ---- Cap-burner,black ,large
22A# 316098509 ---D-F Cap-burner,gloss gray
39 316026105 A B ---- Handle-drawer,black
39 316026106 - - C D - - Handle-drawer,white
39 316026107 ----EF Handle-drawer,almond
44 3131903 A B C D E F Bumper-door/drawer,rubber
48 316077401 A B C D E F Shield-maintop,(2)
60 5303288574 A B C D E F Screw,truss head ,8-10 x 0.375 ,handle ,
(3)

8/98 12
Publication number
5995310702 FGF374CC
CAUTION: Use the part number on all orders, not the position number.
DOOR

# - Fast Moving Parts
* - Non Illustrated Parts 13 6/98
Publication number
FGF374CC 5995310702
CAUTION: Use the part number on all orders, not the position number.
DOOR
A = FGF374CC (FGF374CCBH)
B = FGF374CC (FGF374CCBJ)
C = FGF374CC (FGF374CCSK)
D = FGF374CC (FGF374CCSL)
E = FGF374CC (FGF374CCTJ)
F = FGF374CC (FGF374CCTK)
POS. NO PART NO DESCRIPTION
* 3203618 A B C D E F Rivet-pop,warning-plate
* 316021110 A B C D E F Screw-8-18x1/2 Tr Sqd black
* 316065301 A B C D E F Plate warning/caution
* 5303212671 A B C D E F Screw,cr pan hd sems ,8-32BP x 1.00
* 5303271648 A B C D E F Screw,wafer hd sq dr ,8-18AB x 1/2
* 5303280311 A B C D E F Screw,waf hd sdr ,10-32 x 5/16 ,(2)
* 5303285179 A B C D E F Screw-oven door,wafer head ,8-32T x 1/2
3 316067802 A B ---- Trim-oven door,black
3 316067804 - - C D - - Trim-oven door,white
3 316067803 ----EF Trim-oven door,almond
4 316089000 A B ---- Glass-oven door,black ,outer
4 316089005 - - C D - - Glass-oven door,white ,outer
4 316089004 ----EF Glass-oven door,almond ,outer
5 316088700 A B C D E F Glass-oven door,inner
6 316088401 A B C D E F Shield-wool
7 316076403 A B C D E F Insulation-door
8 316088600 A B C D E F Glass-oven door,airwash
9 316066610 A B C D E F Liner-oven door
10 5303280308 A B C D E F Screw-handle mtg,wafer head ,10-24T x 2
12 # 5303131601 A B C D E F Seal-oven door
14 3131361 - - C D E F Reflector,aluminum foil
14 5303208656 A B ---- Reflector,aluminum foil
14A 5303208655 A B ---- Reflector,aluminum foil ,(2)
14A 3131360 - - C D E F Reflector,aluminum foil ,(2)
15 316081401 A B C D E F Bracket-glass mtg
16 316085700 A B C D E F Glass-oven door,heat barrier
39 316091117 A B ---- Handle-door,black ,oven
39 316091115 - - C D - - Handle-door,white ,oven
39 316091116 ----EF Handle-door,almond ,oven
39* 316008401 A B C D E F Washer,3/4 x 1/4 ,steel ,(2)
52 316081303 A B ---- Shield-oven door,black ,top
52 316081301 - - C D - - Shield-oven door,white ,top
52 316081302 ----EF Shield-oven door,almond ,top

8/98 14
Publication number
5995310702 FGF374CC
CAUTION: Use the part number on all orders, not the position number.
WIRING DIAGRAM
