Frigidaire Gallery FGGF3054M Instruction sheet

frigidaire.com
Signature Features
30" Gas
Quick Preheat
Preheat in less than six minutes.
1
True Convection
Multi-rack baking is faster and more
even with True Convection.
Quick Boil
Boils water faster.
Eortless™ Temperature Probe
with Auto Keep Warm
The Effortless™ Temperature Probe
allows you to set the desired finished
temperature and alerts you when that
temperature has been reached. At
that point, the oven holds the desired
temperature of the meat by moving
to a Keep Warm function for better
cooking results.
Product Dimensions
Height (Max.) 47-3/4"
Width 29-7/8"
Depth (Including Handle) 28-13/32"
More Easy-To-Use Features
Express-Select® Controls
Easily go from warm to boil.
Pizza Button
Easily bake perfect pizza with the touch
of a button.
SpaceWise® Half Rack
Flexible rack system that adjusts to cook
multiple dishes at once. Remove the
half rack and you’ll have extra height for
tall dishes.
One-Touch Keep Warm Setting
Just one touch of a button keeps
food warm until everything — and
everyone — is ready.
Eortless™ Oven Rack
Bottom rack extends when you open
the door for easy access.
Smudge-Proof™ Stainless Steel2
Real Stainless Steel with a protective
coating reduces fingerprints and
smudges so it’s easy to clean.
Eortless™ Convection
Takes the guesswork out of convection
cooking — our oven does the converting
for you.
Sabbath Mode (Star-K® Certified)
Available in:
Stainless
(F)
White
(W)
Black
(B)
Burners
Right Front
Right Rear
Left Front
Left Rear
Center Extra Zone
BTU
17,000
5,000
9,500
15,000
10,000
1Based on single rack cooking performance,
not set temperature, using Quick Preheat.
2Select model only.
Freestanding Ranges
FGGF3054M F/ W/ B

Specifications
subject to change.
Accessories information available
on the web at frigidaire.com
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FGGF3054M 05/13 © 2013 Electrolux Home Products, Inc.
Freestanding Ranges
FGGF3054M F/ W/ B 30" Gas

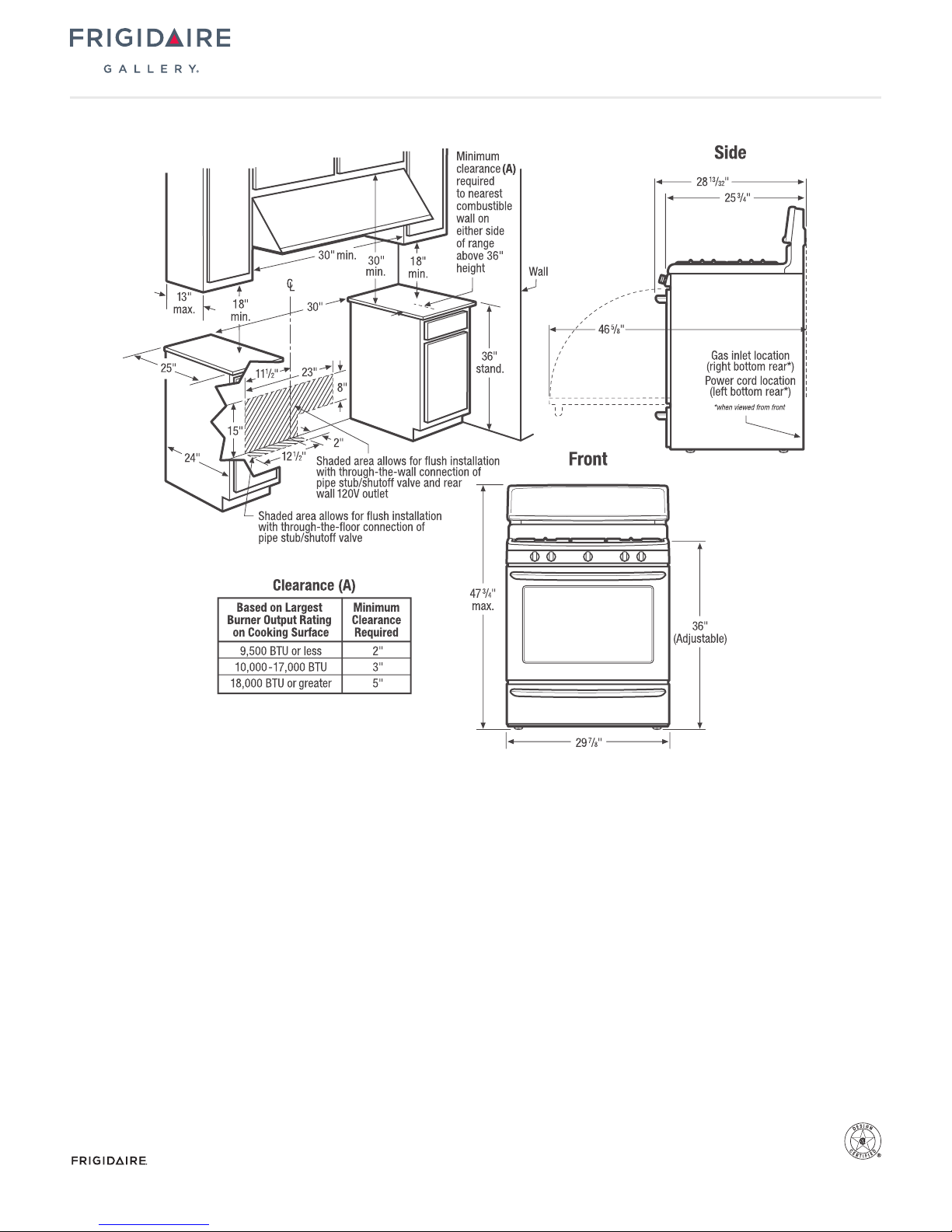

Cutout Dimensions
Height (Standard)
Width (Min.)
Depth (Min.)
36"
30"
24"
Product Dimensions
A - Height (Max.)
B - Width
C - Depth (Including Handle)
Depth with Door Open 90˚
47-3/4"
29-7/8"
28-13/32"
46-5/8"
30" Gas Freestanding Ranges
Frigidaire Baseline
C
A
36"
(Adjustable)
B
NOTE: For planning purposes only. Always consult local and national electric and gas codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
1For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe operation.
Features
Oven Control / Timing System
Surface Type
Sealed Gas Burners
Grates
Window
Exterior Door Finish
Handle Design
Exterior Finish (Side Panels)
Convection System
Oven Cleaning System
Drawer Functionality
Oven Controls
Bake / Broil
Eortless™ Convection Conversion
Convection Bake / Broil / Roast
Quick Bake Convection
Quick Preheat
My Favorite
Eortless™ Temperature Probe
Pizza Button
Keep Warm
Add-a-Minute
Delay Start
Self Clean
Quick Clean Option
Delay Clean
Kitchen Timer / Timed Cook Option
Auto Oven Shut-O
Oven Lock-Out
Cooktop Features
Right Front Burner (BTU)
Right Rear Burner (BTU)
Left Front Burner (BTU)
Left Rear Burner (BTU)
Center Extra Zone Burner (BTU)
Oven Features
Capacity (Cu. Ft.)
Oven Light
Rack Configuration
Baking System
Broiling System
Bake Burner / Broil Burner (BTU)
Drawer Racks
Optional Accessories
LP Gas Conversion Kit
Certifications
Sabbath Mode (Star-K® Cert.)
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Gas Supply Connection Location
Voltage Rating
Conn. Load (kW Rating) @ 120 Volts1
Amps @ 120 Volts
Shipping Weight (Approx.)
Express-Select® Controls
Black Porcelain (F),
Color-C. Porc. (W/B)
Yes
Continuous Cast Iron
w/ Black Matte Finish
Extra-Large
Smudge-Proof™ Stainless
Steel (F), Color-Coord. (W/B)
Stainless Steel (F),
Color-Coordinated (W/B)
Black (F),
Color-Coordinated (W/B)
True Convection
Self Clean
Storage
Yes / Variable
(400 – 500 °F)
Yes
Yes / Yes / Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
2, 3, 4 Hours
Yes / Yes
6 Hours
Yes
17,000
5,000
9,500
15,000
Oval 10,000
5.0
1
1 Heavy Duty, 1 SpaceWise®
Half Rack, 1 Eortless™
Even Baking Technology
Even Broil
18,000 / 13,500
PN # GRLP3
Yes
17-5/8" x 24-3/8" x 19-3/4"
Left Bottom Rear
Right Bottom Rear
120V / 60Hz / 15A
1.8
15
220 Lbs.

Specifications
subject to change.
30" Gas Freestanding Ranges
Gallery
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FGGF3054M 05/13 © 2013 Electrolux Home Products, Inc.
Freestanding Range Specifications
• Product Shipping Weight (approx.) – 220 Lbs.
• Voltage Rating – 120V / 60 Hz / 15 Amps
• Connected Load (kW Rating) @ 120 Volts = 1.8 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
• Amps @ 120 Volts = 15
• Always consult local and national electric and gas codes.
• Make sure wall coverings around range can withstand heat generated
by range.
• Linoleum or any other synthetic floor covering located beneath range,
must be capable of withstanding minimum heat of 90° F above room
temperature without shrinking, warping or discoloring. Insulating pad
or 1/4"-thick plywood required between range and a carpeted floor.
• Do not obstruct flow of combustion air at oven vent nor around base
or beneath lower front panel of range. Range requires fresh air for
proper burner combustion.
• Do not install range beneath any downward-blowing, overhead vent
hood or air curtain.
• Range ships with 3/4" factory regulator.
• Range is LP Gas convertible. (Optional LP Gas Conversion
Kit available.)
• Floor beneath range MUST be solid and level.
• Overhead cabinetry should not exceed a 13" maximum depth.
• Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum
width of appliance.
• Range can be installed flush to wall with 0" minimum rear clearance.
• Minimum clearance required (from edge of rangetop to nearest
combustible wall on either side of range above 36" height) is based
on largest burner output rating on cooking surface.
• To reduce risk of fire when using overhead cabinetry, install
range hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
• Follow all dimension requirements provided to prevent property
damage, potential fire hazard, and incorrect countertop and
cabinet cuts.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
• LP Gas Conversion Kit – (PN # GRLP3)
Freestanding Ranges
FGGF3054M F/ W/ B 30" Gas

USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_SSR FR 04/13 © 2013 Electrolux Home Products, Inc.
General Installation Guidelines
with Side-by-Side Refrigerator
Top
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
Specifications
subject to change.

Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_TMR FR 04/13 © 2013 Electrolux Home Products, Inc.
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
Top
General Installation Guidelines
with Top Mount Refrigerator

Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_FDR FR 04/13 © 2013 Electrolux Home Products, Inc.
Top
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
General Installation Guidelines
with French Door Refrigerator

Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_ARAF FR 04/13 © 2013 Electrolux Home Products, Inc.
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
Top
General Installation Guidelines
with All Refrigerator or All Freezer
