Frigidaire FGHS2634KQ - Gallery 26 cu. Ft. Refrigerator User guide

Product No. FGHS2634KB0 FGHS2634KQ0 FGHS2634KW0 FGHS2644KF0
Series Gallery Gallery Gallery Gallery
Color black bisque white stainless
Volts 115 115 115 115
Wiring Diagram 241912901 241912901 241912901 241912901
Owner's Guide 241979200 241979200 241979200 241979200
Market North America North America North America North America
Energy Guide 241935574 241935574 241935574 241935575
Service Data Sheet 240389638 240389638 240389638 240389638
N58L00003.eps F58FFDAAA0.eps F58RFDACA0.eps F58BAAAAE1.eps
F58SJCAAD1.eps F58TEACAE0.eps E58CAAAAC0.eps F58XFCAAA0.eps
N58YBAAAA7.eps N58I1151-1.eps W241912901.eps S241912901.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995536108
09/03/24
(EN/SERVICE/KHB)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FGHS2634K /
FGHS2644K
Copyright ©2009 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995536108 FGHS2634K / FGHS2644K
03/09 2
FREEZER DOOR
22C
11
1
4A
68
4B
4B
13A
22A
21A
F58FFDAAA0
18
79
79 80
80

FGHS2634K / FGHS2644K Publication No: 5995536108
# Functional Parts 3 03/09
* Non-Illustrated Parts
FREEZER DOOR
Model Index: AFGHS2634K (FGHS2634KB0)
BFGHS2634K (FGHS2634KQ0)
CFGHS2634K (FGHS2634KW0)
DFGHS2644K (FGHS2644KF0)
POS. NO PART NO. DESCRIPTION
1 241786006 A - - - Gasket-frzr door, black, magnetic
1 241786002 - B C D Gasket-frzr door, white, magnetic
4A 240334201 A B C D Bin-door, frzr-upper
4B 240351601 A B C D Bin-door
11 241837173 A - - - Door-frzr, black
11 241837172 - B - - Door-frzr, bisque,complete assy
11 241837171 - - C - Door-frzr, white, complete assy
11 241837184 - - - D Door-frzr, stainless, complete assy
13A 241942604 A B C D Door Stop, black, frzr
18 241982303 A - - - Handle-door, black
18 241982302 - B - - Handle-door, bisque
18 241982301 - - C - Handle-door, white
18 241930101 - - - D Handle-door, stainless
18* 241601002 A B C D Wrench, allen
21A 240442706 A B C D Screw-#10-32 X 3/4, zinc
22A 241990302 A B C D Bearing-hinge(frz), closer
22C 241760402 A - - - Bearing, hinge, top
22C 241760401 - B C D Bearing, hinge, top
68 241946601 A B C D Chute-ice
79 218755402 A B C D Screw-set, 10-32 x 0.375
80 218755504 A B C D Screw-shoulder, #10 AB, handle mounting
* 240352102 A B C D Connector-water, straight
* 240451503 A B C D Screw, ind hex wshr hd, 8-32 x 0.375, trilobe
* # 241834703 A B C D Harness-wiring, door
* 5303918371 A B C D Dispenser heater kit, 115

Publication No: 5995536108 FGHS2634K / FGHS2644K
03/09 4
REFRIGERATOR DOOR
21A
22
13
15
12
22B
2
7
49
49
4
4
F58RFDACA0
18
79
79
80
80

FGHS2634K / FGHS2644K Publication No: 5995536108
# Functional Parts 5 03/09
* Non-Illustrated Parts
REFRIGERATOR DOOR
Model Index: AFGHS2634K (FGHS2634KB0)
BFGHS2634K (FGHS2634KQ0)
CFGHS2634K (FGHS2634KW0)
DFGHS2644K (FGHS2644KF0)
POS. NO PART NO. DESCRIPTION
2 241786005 A - - - Gasket-refr door, black, magnetic
2 241786001 - B C D Gasket-refr door, white, magnetic
4 240323001 A B C D Bin-door, pseudo, bottom
7 240326203 A B C D Door-dairy
12 242015201 A B C D Label-nameplate
13 241942603 A B C D Door Stop, black, ref
15 241837255 A - - - Door-refr, black
15 241837254 - B - - Door-refr, bisque, complete assy
15 241837253 - - C - Door-refr, white, complete assy
15 241837266 - - - D Door-refr, stainless steel, complete assy
18 241982303 A - - - Handle-door, black
18 241982302 - B - - Handle-door, bisque
18 241982301 - - C - Handle-door, white
18 241930101 - - - D Handle-door, stainless
18* 241601002 A B C D Wrench, allen
21A 240442706 A B C D Screw-#10-32 X 3/4, zinc
22 241990301 A B C D Bearing-hinge, gray
22B 241760404 A - - - Bearing, hinge, top
22B 241760403 - B C D Bearing, hinge, top
49 240356402 A B C D Bin-door, gallon
79 218755402 A B C D Screw-set, 10-32 x 0.375
80 218755504 A B C D Screw-shoulder, #10 AB, handle mounting

Publication No: 5995536108 FGHS2634K / FGHS2644K
03/09 6

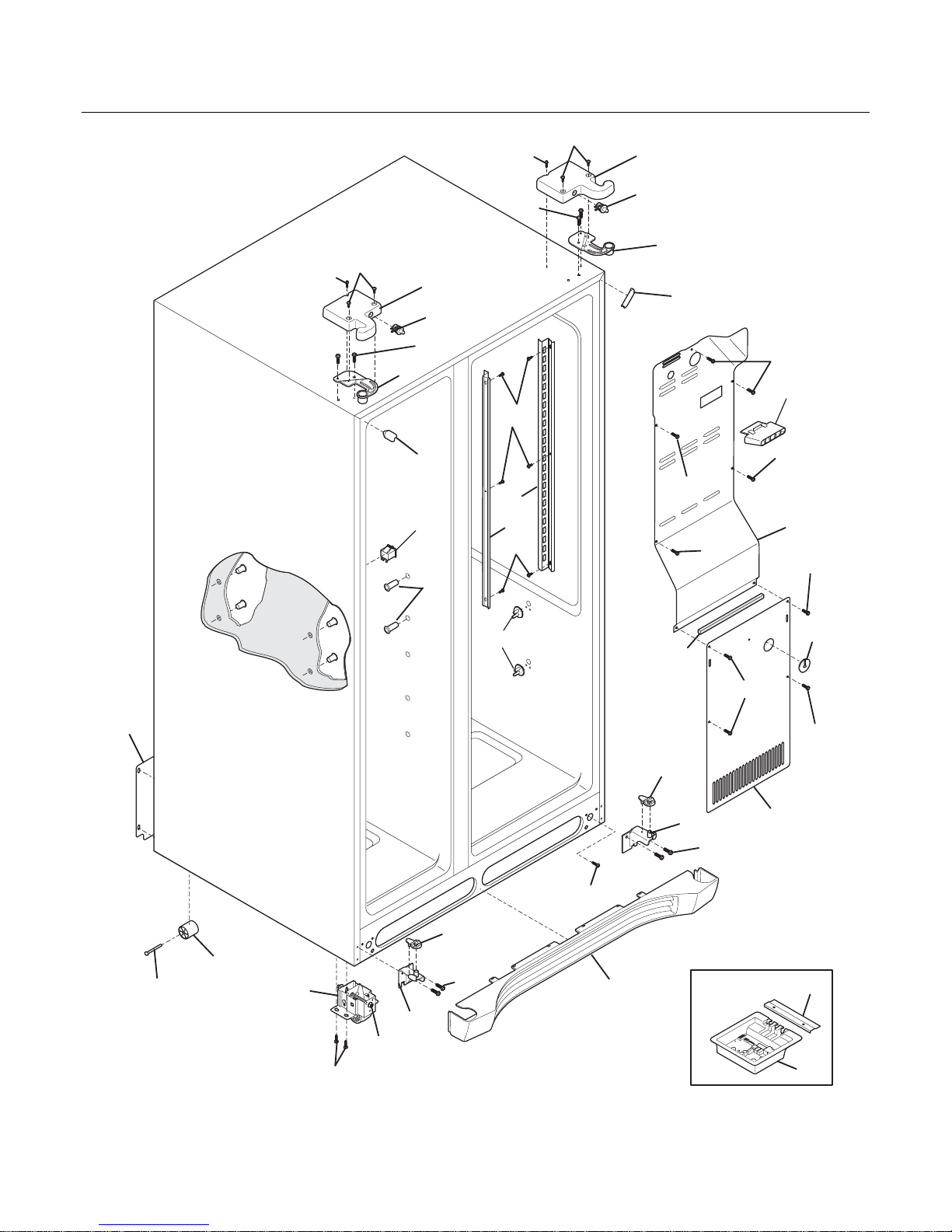

CABINET
92
93
93
92
90
89
83
82
81
81
72 54
50
47A
45
45
45
45
45
45
45
43
42
42
41
40
40A
21D
21D
58
58
38
38A
37
37
28
30A
30
22
22
21C
21C
11
10A
10
100
F58BAAAAE1
14A 47
91

FGHS2634K / FGHS2644K Publication No: 5995536108
# Functional Parts 7 03/09
* Non-Illustrated Parts
CABINET
Model Index: AFGHS2634K (FGHS2634KB0)
BFGHS2634K (FGHS2634KQ0)
CFGHS2634K (FGHS2634KW0)
DFGHS2644K (FGHS2644KF0)
POS. NO PART NO. DESCRIPTION
10 240435912 A B C D Cover-air duct
10A 241719711 A B C D Cover-evap coil, lower
11 5303208309 A B C D Plug-hole, factory test
14A# 241547901 A B C D Switch-light/lamp, frzr door
21C 218252201 A B C D Screw, #8 truss hd, 10-32CA x 0.500
21D 241548003 A B C D Screw, 10-32 x 3/8
22 241917801 A B C D Plate-door closer
22* 218755402 A B C D Screw-set, 10-32 x 0.375
28 240335502 A B C D Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241917901 A B C D Bracket-lower hinge, RH, w/hinge pin
30A 241917902 A B C D Bracket-lower hinge, LH, w/hinge pin
37 240337610 A - - D Trim-cabinet corner, black, (2)
37 240337611 - B - - Trim-cabinet corner, bisque, (2)
37 240337608 - - C - Trim-cabinet corner, white, (2)
38 241761301 A B C D Bracket-upper hinge, RH
38A 241761302 A B C D Bracket-upper hinge, LH
40 241946705 A - - D Cover-upper hinge, black, RH
40 241946703 - B - - Cover-upper hinge, bisque, RH
40 241946701 - - C - Cover-upper hinge, white
40* 241835801 A B C D Harness-wiring
40A 241946706 A - - D Cover-upper hinge, black, LH
40A 241946704 - B - - Cover-upper hinge, bisque, LH
40A 241946702 - - C - Cover-upper hinge, white, LH
40A* 241891901 A B C D Harness-wiring, freezer
41 241550801 A B C D Grommet-shelf mtg, 1.40" long
41* 241550701 A B C D Grommet-shelf mtg, .96" long
42 240578902 A B C D Screw, hex head, 1/4-20 x 5/8
43 240335006 A B C D Roller Assy, front, (2)
45 241500303 A B C D Screw, hex washer head, 8-18AB x 0.500
47 242001902 A B C D Channel-shelf mtg, side, LH
47A 242001901 A B C D Channel-shelf mtg, side, RH
50 242000411 A B C D Board-main power
50* 241867901 A B C D Harness-wiring
54 241532401 A B C D Channel
58 218781101 A B C D Screw, pan head, 8-18 x 0.625
72 241969403 A - - - Grille/Kickplate, black
72 241969402 - B - - Grille/Kickplate, bisque
72 241969401 - - C - Grille/Kickplate, white
72 241969405 - - - D Grille/Kickplate
81 5304455650 A B C D Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B C D Roller, compressor base, rear, (2)
83 5304455655 A B C D Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241733902 A B C D Cover-access, w/label
90 218249808 A B C D Seal-coil cover
91 240380101 A B C D Duct-ice maker
92 241710601 A B C D Screw, hex washer hd, 1/4 x 7/8, hinge mtg
93 241911704 A - - D Switch, plunger style
93 241911701 - B C - Switch, plunger style
100 240423701 A B C D Support, crisper cover, front, (4)
100* 240350802 A B C D Support, crisper cover, rear, (4)
* 241852501 A B C D Clip, wiring harness
* 5303321321 A - - D Paint, touch-up, black
* 5304414035 - B - - Paint, touch-up, bisque
* 5303321319 - - C - Paint, touch-up, white

Publication No: 5995536108 FGHS2634K / FGHS2644K
03/09 8

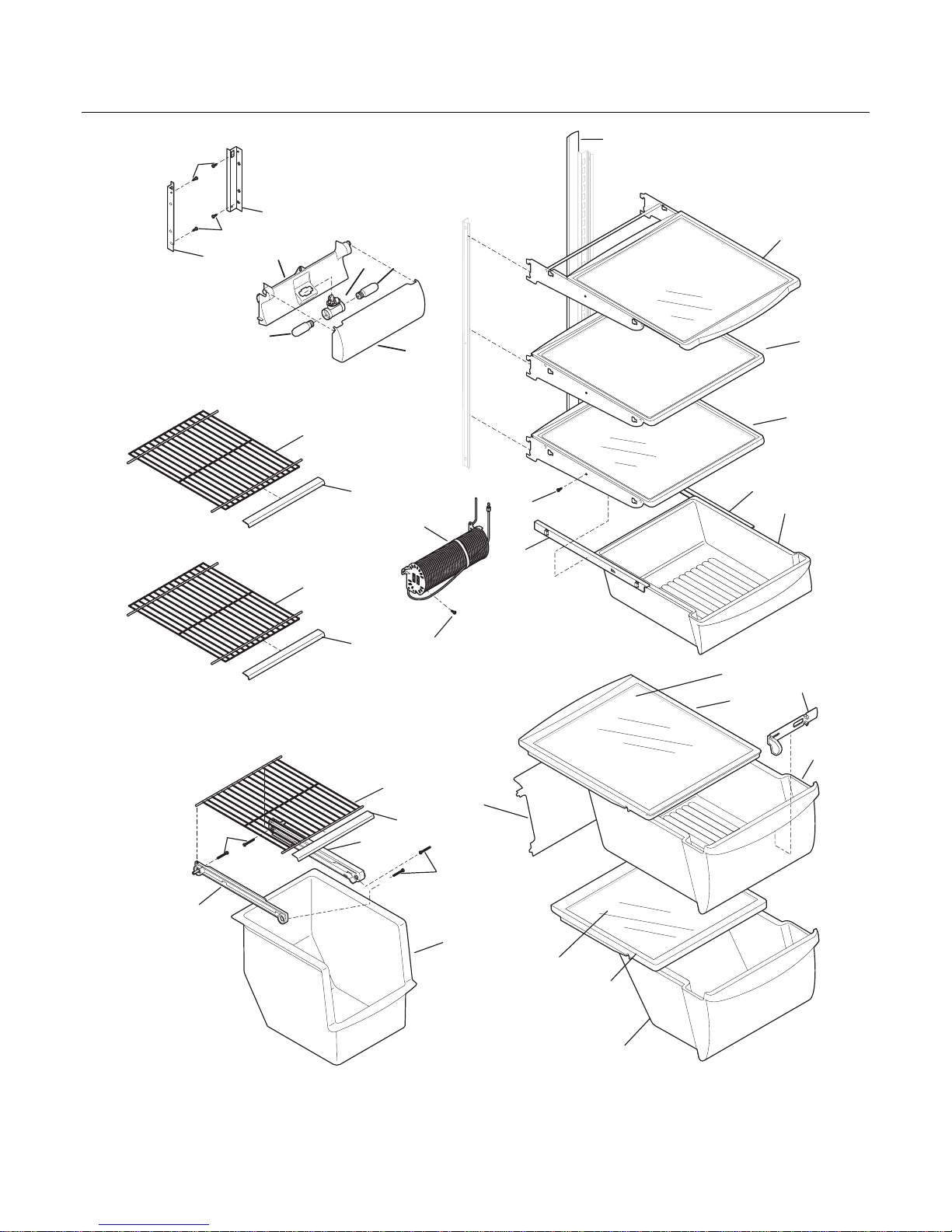

SHELVES
49
51
25
26
47
100
25A
27
47A
52
101
101
11
39
26A
F58SJCAAD1
42
62
123
42
11B
11A
39B
39B
24A
24
24
97
21
126
81
81
126
140
108
107
16
15
15

FGHS2634K / FGHS2644K Publication No: 5995536108
# Functional Parts 9 03/09
* Non-Illustrated Parts
SHELVES
Model Index: AFGHS2634K (FGHS2634KB0)
BFGHS2634K (FGHS2634KQ0)
CFGHS2634K (FGHS2634KW0)
DFGHS2644K (FGHS2644KF0)
POS. NO PART NO. DESCRIPTION
11 241657602 A B C D Shelf, flip up, wire
11A 241657502 A B C D Shelf, fixed, freezer
11B 241657504 A B C D Shelf, fixed, upper, freezer
15 241552801 A B C D Light Bulb
16 241622802 A B C D Socket-light, frz light
16* 241987501 A B C D Harness-wiring
21 5304455658 A B C D Screw, hx wshr hd sems, 8-15A x 0.625
24 240355256 A B C D Shelf-"Spill-Safe", fixed
24A 240350136 A B C D Shelf-"Spill-Safe", cantilever, sliding
25 240599301 A B C D Cover-crisper pan, upper
25* 240362101 A B C D Clip-slide, cover-crisper
25A 240350903 A B C D Cover-crisper pan, lower
26 240351061 A B C D Pan-crisper, upper
26* 240349801 A B C D Clip-slide, pan-crisper
26* 241595202 A B C D Clip-slide, pan-crisper
26A 240362201 A B C D Control-humidity
27 240351239 A B C D Pan-crisper, lower
39 240430706 A B C D Trim-shelf, 11.21", front
39B 240430702 A B C D Trim-shelf, 12.39", front
42 240356501 A B C D Track, meat pan hanger, RH
42 240365401 A B C D Track, meat pan hanger, LH
47 240350649 A B C D Insert-pan cover, glass
47A 240350603 A B C D Insert-pan cover, glass
49 240564401 A B C D Basket-sliding
51 240343002 A B C D Hanger-basket, RH
52 240343102 A B C D Hanger-basket, LH
62 240342830 A B C D Pan-meat
81 5304455650 A B C D Screw, hex washer head, 8-15A x 0.625, low profile
97 241532007 A B C D Water Tank
100 240326304 A B C D Cover-water tank
101 218493101 A B C D Screw, hex washer head, 8-18AB x 1-3/4
107 241753601 A B C D Shield-light, upper
108 241753701 A B C D Housing-light, upper, fresh food
123 215005101 A B C D Screw, hanger/rlr mtg, 8-10 x 7/16
126 241674401 A B C D Channel, auger mtg, LH
126 241674402 A B C D Channel, auger mtg, RH
140 241812502 A B C D Channel, wtr tube cover
* 241868101 A B C D Air Guide
* 241935574 A B C - Energy Guide
* 241935575 - - - D Energy Guide

Publication No: 5995536108 FGHS2634K / FGHS2644K
03/09 10

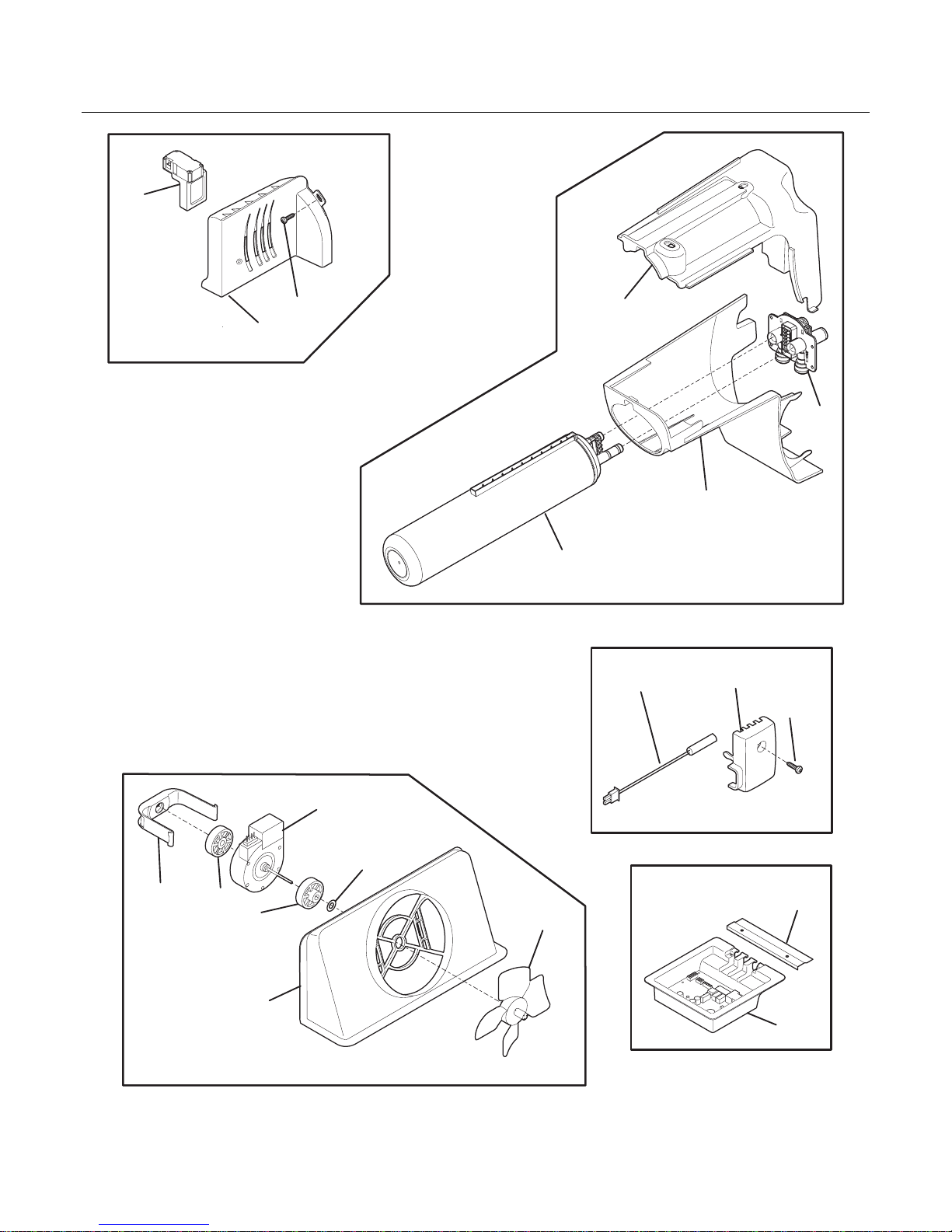

CONTROLS
81
137
139
210
210A
60
115
23
58
22
54
50
149
14
13
9
9A
8
5
F58TEACAE0

FGHS2634K / FGHS2644K Publication No: 5995536108
# Functional Parts 11 03/09
* Non-Illustrated Parts
CONTROLS
Model Index: AFGHS2634K (FGHS2634KB0)
BFGHS2634K (FGHS2634KQ0)
CFGHS2634K (FGHS2634KW0)
DFGHS2644K (FGHS2644KF0)
POS. NO PART NO. DESCRIPTION
5 # 5308000010 A B C D Fan Blade, red, evaporator fan
8 215474201 A B C D Washer, "slinger", nylon, evap fan shaft
9 241563601 A B C D Bushing-motor mtg
9A 241845301 A B C D Bushing-motor mtg
13 241509402 A B C D Motor, evaporator fan
14 241517701 A B C D Clip, evap fan motor
22 240597203 A B C D Sensor
23 241845401 A B C D Housing-sensor
50 242000411 A B C D Board-main power
50* 241867901 A B C D Harness-wiring
54 241532401 A B C D Channel
58 5304455650 A B C D Screw, hex washer head, 8-15A x 0.625, low profile
60 241794301 A B C D Diffuser-air
60* 241945101 A B C D Insulation-air duct
81 5304455658 A B C D Screw, hx wshr hd sems, 8-15A x 0.625
115 241853801 A B C D Damper Assy, w/seal
137 241791601 A B C D Filter-water, carbon
139 242009601 A B C D Base-water filter
149 241563501 A B C D Shroud-fan orfice
149* 241528306 A B C D Seal, shroud
210 241983801 A B C D Housing-water filtr
210A 241998301 A B C D Mount-water filter
* 3205266 A B C D Edge Protector, wiring harness
* 241852501 A B C D Clip, wiring harness

Publication No: 5995536108 FGHS2634K / FGHS2644K
03/09 12

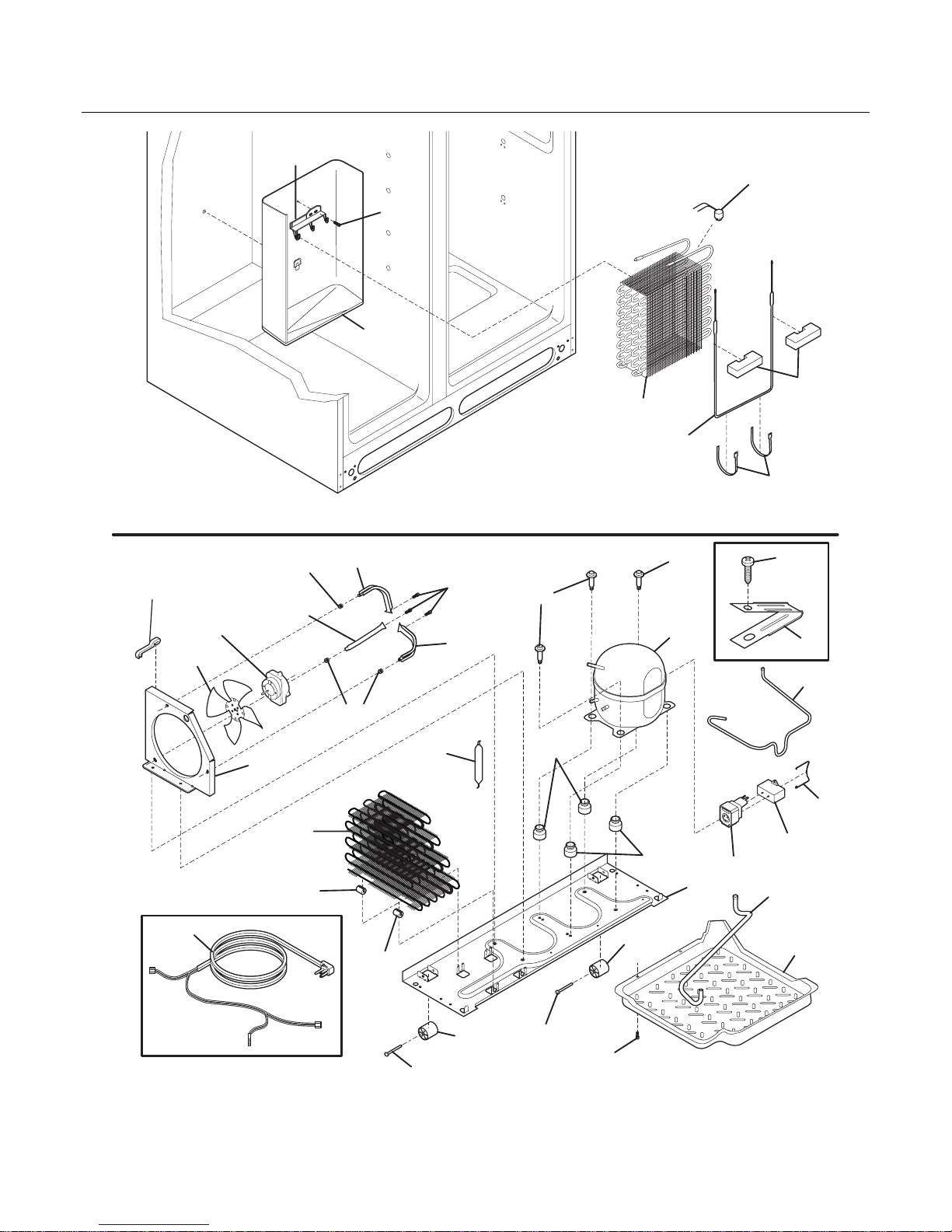

SYSTEM
85
84
83
83
82
82
70
62
61
60
59B
59B
59A
59A
59A
59
58
55
45
45
44
41
34
34
32
30
29
26
E58CAAAAC0
25
25
23
23
22
21
16
15
14
6
4
3
1
86

FGHS2634K / FGHS2644K Publication No: 5995536108
# Functional Parts 13 03/09
* Non-Illustrated Parts
SYSTEM
Model Index: AFGHS2634K (FGHS2634KB0)
BFGHS2634K (FGHS2634KQ0)
CFGHS2634K (FGHS2634KW0)
DFGHS2644K (FGHS2644KF0)
POS. NO PART NO. DESCRIPTION
1 240333603 A B C D Condenser
3 218679607 A B C D Block-evap coil, styrofoam, (2)
4 # 218944001 A B C D Drier-filter, R134a System
6 # 241516901 A B C D Cord-service
6* 241834802 A B C D Harness-wiring, machine compt
6* # 241519902 A B C D Harness-wiring
14 # 240316107 A B C D Heater-defrost
15 # 5303918284 A B C D Evaporator Kit
16 5308000110 A B C D Strap-evap/heater, aluminum, (2)
21 # 5303918214 A B C D Thermostat-defrost, kit
22 240330011 A B C D Base-compressor mtg
22* 218252201 A B C D Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 A B C D Grommet-compr mtg, (4)
25 240491503 A B C D Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241697602 A B C D Pan-defrost
29 # 5303918372 A B C D Compressor Kit
30 # 241941003 A B C D Starter
32 216954300 A B C D Clip, controller
34 240405201 A B C D Grommet, rubber, black, cond tube/wire
41 240555002 A B C D Screw-#8-32 X 3/8
44 215174700 A B C D Clamp-service cord, strain relief, galv steel
45 5304455650 A B C D Screw, hex washer head, 8-15A x 0.625, low profile
55 218909915 A B C D Capacitor, run, 220 VAC, 15 microfarad
58 240433203 A B C D Screw, hex washer head, 8-18 x 3/8
59 240315502 A B C D Shroud-cond fan
59* 240346701 A B C D Tape-foam seal, shroud
59* 240359403 A B C D Screw-fan shroud, (2)
59A 240346501 A B C D Bracket-support, cond mtr, (3)
59B 240346601 A B C D Grommet-bracket, (3)
60 # 241584301 A B C D Motor-condenser fan
61 241639501 A B C D Blade-condenser fan
62 240429402 A B C D Trough-drain
70 218990801 A B C D Bracket-evap/cvr mtg
82 5304418225 A B C D Roller, compressor base, rear, (2)
83 5304455655 A B C D Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 241957901 A B C D Tube-drain, lower
85 241856901 A B C D Tube-connector, suction
86 240409302 A B C D Spacer-cond tube, black
* 241852501 A B C D Clip, wiring harness
* # 5303918328 A B C D Heat Exchanger Kit, suction line, service
* 5303918222 A B C D Hot Tube Repair Kit, service

Publication No: 5995536108 FGHS2634K / FGHS2644K
03/09 14
ICE & WATER DISPENSER
4
F58XFCAAA0
8
2
23
82
82
82
38C
1

FGHS2634K / FGHS2644K Publication No: 5995536108
# Functional Parts 15 03/09
* Non-Illustrated Parts
ICE & WATER DISPENSER
Model Index: AFGHS2634K (FGHS2634KB0)
BFGHS2634K (FGHS2634KQ0)
CFGHS2634K (FGHS2634KW0)
DFGHS2644K (FGHS2644KF0)
POS. NO PART NO. DESCRIPTION
1 218976419 A B C D Tube-water inlet, valve to door
1* 218976429 A B C D Tube-water inlet, 97.50", brown/tan
1* 218976915 A B C D Tube-water inlet, inlet valve, to filter
1* 240561701 A B C D Seal-water inlet, inlet valve, to ice maker
2 241973804 A - - D Switch Assembly, overlay, black
2 241973806 - B - - Switch Assembly, overlay, bisque
2 241973805 - - C - Switch Assembly, overlay, white
4 241946808 A - - - Cover-module, black
4 241946807 - B - - Cover-module, bisque
4 241946806 - - C - Cover-module, white
4 241946809 - - - D Cover-module
8 241753408 A - - - Module-dispenser, black
8 241753410 - B - - Module-dispenser
8 241753409 - - C - Module-dispenser, white
8 241753412 - - - D Module-dispenser, gray
23 241947003 A - - - Drip Tray, black
23 241947002 - B - - Drip Tray, bisque
23 241947001 - - C - Drip Tray, white
23 241947006 - - - D Drip Tray
38C# 241973702 A B C D Board-control
82 240363402 A B C D Screw-#8-18 X 1/2, #6 hd plask
* 5303918371 A B C D Dispenser heater kit, 115

Publication No: 5995536108 FGHS2634K / FGHS2644K
03/09 16

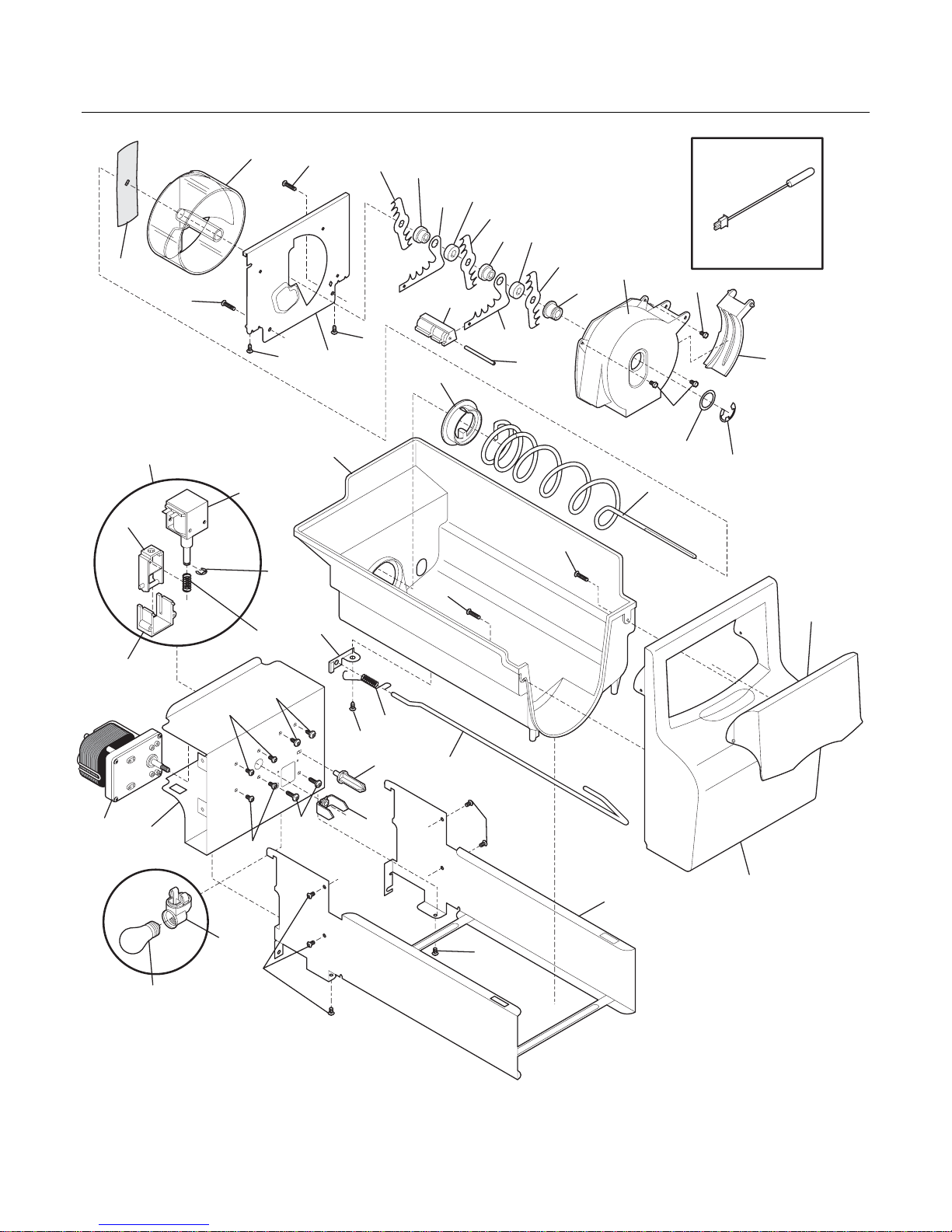

ICE CONTAINER
45 4
45A
48
47
46
45B
45C
45D
50
18 20
15
16
44
44
44
51
26
26
26
26
10
26
43
43
43
49 7
N58YBAAAA7
57
3
2
23
39
39
6
17
53
52
37A 34
33
37B
34 33
37C
54
35A
35B
41
56
55
13
25
25
39
22

FGHS2634K / FGHS2644K Publication No: 5995536108
# Functional Parts 17 03/09
* Non-Illustrated Parts
ICE CONTAINER
Model Index: AFGHS2634K (FGHS2634KB0)
BFGHS2634K (FGHS2634KQ0)
CFGHS2634K (FGHS2634KW0)
DFGHS2644K (FGHS2644KF0)
POS. NO PART NO. DESCRIPTION
2 241716101 A B C D Auger-ice
3 241685201 A B C D Cam-drive
4 241734001 A B C D Container-ice, bucket only
6 241685101 A B C D Drum-ice disp
7 241734202 A B C D Front-ice container
10 241726501 A B C D Bar-drive
13 241685301 A B C D Gate
15 241555401 A B C D Light Bulb
16 241559801 A B C D Socket-light
17 241684501 A B C D Drive Blade
18 241676201 A B C D Motor-auger
18* 241522901 A B C D Harness-wiring, icmkr/container
20 241734902 A B C D Cover, motor
22 240597203 A B C D Sensor
22* 241519401 A B C D Clip, sensor
23 241684001 A B C D Plate-front
25 241690701 A B C D Screw, hex washer head, 8-32T x 0.375
26 215503203 A B C D Screw, cr pan hd, 10-16 x 0.500
33 241684801 A B C D Spacer
34 241689801 A B C D Spacer
35A 241684301 A B C D Fixed Blade, round
35B 241684201 A B C D Fixed Blade, square
37A 241684101 A B C D Blade, crusher #1
37B 241684102 A B C D Blade, crusher #2
37C 241684103 A B C D Blade, crusher #3
39 241690501 A B C D Screw
41 241685601 A B C D Housing-crusher
43 218359202 A B C D Screw, pan head, 8-32 x 0.250
44 241842101 A B C D Screw, 8-32 x 1/4
45 # 241675701 A B C D Solenoid Assy, 115V
45A 241675901 A B C D Spring-solenoid
45B 241676001 A B C D E-Ring-solenoid
45C 241676101 A B C D Actuator-solenoid
45D# 241675801 A B C D Solenoid, 115V
46 241716002 A B C D Control Rod
47 241731801 A B C D Spring-control rod
48 241684602 A B C D Bracket-control rod
49 241734501 A B C D Rail Assy
50 241675601 A B C D Guide-solenoid
51 241676301 A B C D Rotation Stop
52 241684901 A B C D Spacer-fixed blades
53 241690402 A B C D Pin-spiral, fixed blades
54 241685001 A B C D Nut-auger
55 241690306 A B C D Washer
56 241690201 A B C D E-ring
57 241734101 A B C D Door-access
* 240507202 A B C D Deflector-ice container
* 241860812 A B C D Ice Container Assy, w/moving parts

Publication No: 5995536108 FGHS2634K / FGHS2644K
03/09 18

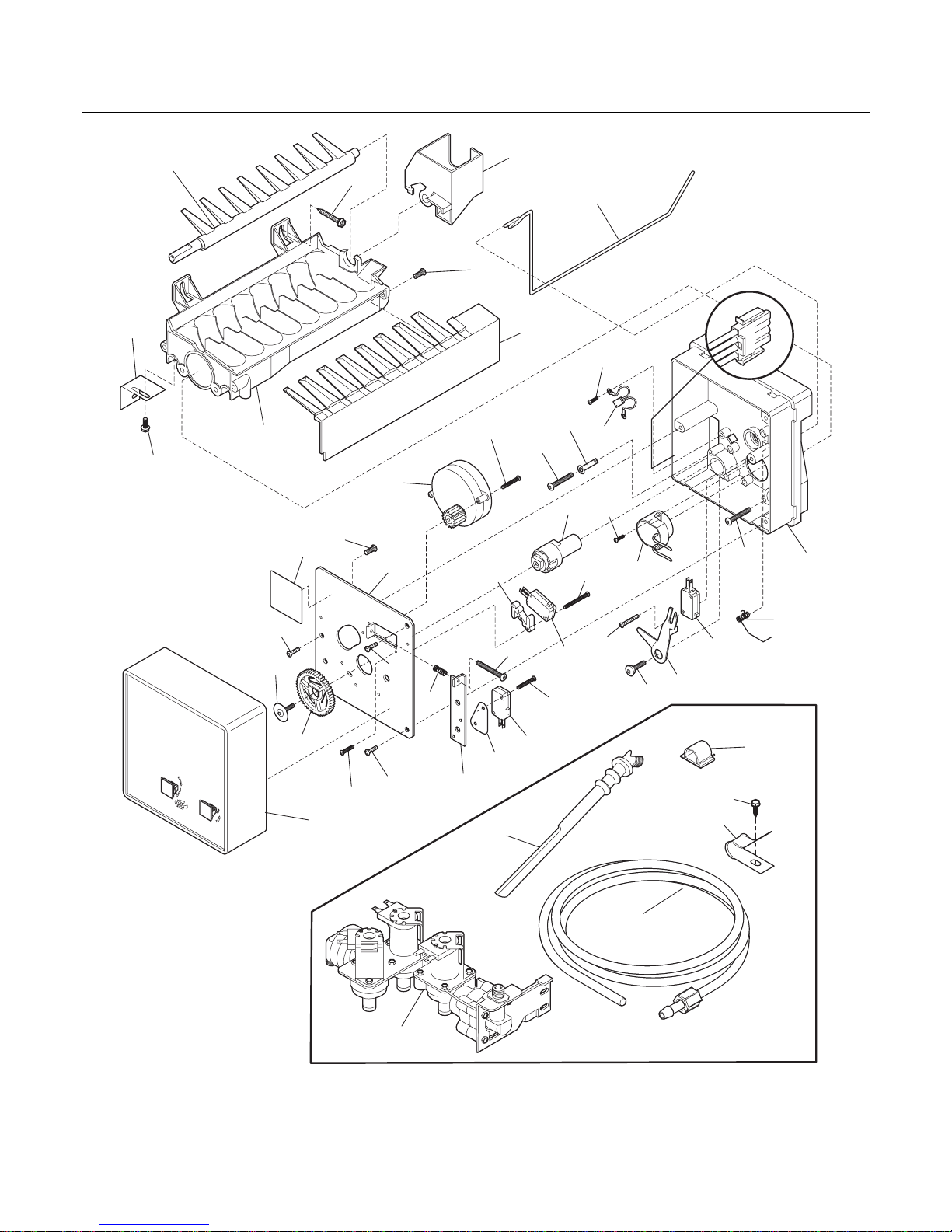

ICE MAKER
ON OFF
MOVE ARM UP UNTIL
LOCKED INTO PLACE
MOVE ARM UP UNTIL
LOCKED INTO PLACE
45
51
42
64
29
7
6
16
20
21
19
22
60
18
17
62
61
9
10
23
23
34
28
34
34
3
11
29
14
30
27 13
26
26
15 15
2
15
31
32
36
4
35
5
33
8
24
25
12
55 INSTALLATION PARTS
N58I1151-1
1

FGHS2634K / FGHS2644K Publication No: 5995536108
# Functional Parts 19 03/09
* Non-Illustrated Parts
ICE MAKER
Model Index: AFGHS2634K (FGHS2634KB0)
BFGHS2634K (FGHS2634KQ0)
CFGHS2634K (FGHS2634KW0)
DFGHS2644K (FGHS2644KF0)
POS. NO PART NO. DESCRIPTION
1 218976419 A B C D Tube-water inlet, valve to door
1* 218976429 A B C D Tube-water inlet, 97.50", brown/tan
1* 218976915 A B C D Tube-water inlet, inlet valve, to filter
1* 240561701 A B C D Seal-water inlet, inlet valve, to ice maker
2 5304456650 A B C D Spring-shutoff arm, ice maker
3 5304456657 A B C D Nameplate
4 5304456658 A B C D Gear
5 5304456659 A B C D Plate-mounting
6 5304456691 A B C D Screw, M 3x20 #3, valve plate
7 # 5304445222 A B C D Motor-ice maker Svo
7* 5304445223 A B C D Spring Beam
8 5304456661 A B C D Spacer-hold switch
9 5304456662 A B C D Cam
10 5304456689 A B C D Washer, nylon
11 # 5304456663 A B C D Thermal Cutoff, ice maker, complete assy
12 5304456664 A B C D Harness-wiring
13 5304456665 A B C D Thermostat, ice maker
14 5304455676 A B C D Screw, plask, 4x14x3/4
15 # 5304456667 A B C D Switch-micro, (3)
16 5304456668 A B C D Support
17 5304456669 A B C D Mold-ice maker, w/therm cut off
18 5304456670 A B C D Ejector-ice
18* 241522901 A B C D Harness-wiring, icmkr/container
19 5304456671 A B C D Bearing & Inlet, fill cup
20 5304455677 A B C D Screw, 8-32 x 3/8
21 5304456672 A B C D Ice Stripper
22 5304456673 A B C D Shut-off Arm
23 5304456674 A B C D Screw, M 4x25 #2, mold-to-support, (2)
24 5304456675 A B C D Lever Arm
25 5304456676 A B C D Screw, M 4x12.8 #2, lever arm/sprt
26 5304455680 A B C D Screw, plask, 4-14 x 3/8
27 5304456677 A B C D Screw, M 3x25 #3, hold switch mtg, (2)
28 5304456660 A B C D Screw, M 4x6 #2
29 5304456678 A B C D Screw, M 3x12 #3, (2)
30 5304456679 A B C D Screw-timing adj, M 4x25 #3
31 5304456680 A B C D Insulator
32 5304456681 A B C D Plate-valve switch
33 5304456682 A B C D Spring, timing adjust
34 5304456683 A B C D Screw, M 4x12 #2, (3)
35 5304456684 A B C D Screw
36 5304456685 A B C D Cover-ice maker
36* 5304456690 A B C D Label, ID plate
42 218515403 A B C D Clip-grille
45 5304455650 A B C D Screw, hex washer head, 8-15A x 0.625, low profile
51 241796401 A B C D Tube-water fill, extension
55 # 241734301 A B C D Valve-water, triple solenoid
55* 218709101 A B C D Screw, hex head, 10-32 x 0.500

Publication No: 5995536108 FGHS2634K / FGHS2644K
03/09 20
ICE MAKER
ON OFF
MOVE ARM UP UNTIL
LOCKED INTO PLACE
MOVE ARM UP UNTIL
LOCKED INTO PLACE
45
51
42
64
29
7
6
16
20
21
19
22
60
18
17
62
61
9
10
23
23
34
28
34
34
3
11
29
14
30
27 13
26
26
15 15
2
15
31
32
36
4
35
5
33
8
24
25
12
55 INSTALLATION PARTS
N58I1151-1
1
