Frigidaire FGHS2667K User manual

N58L00002.eps F58FFDAAA0.eps F58RFDACA0.eps E58BAAAAE0.eps
F58SKDIBK10.eps F58TEBCAE0.eps N58CAAAAC14.eps F58XFAAAA0.eps
N58YDAAAC4.eps N58I115TServo.eps W241912901.eps S241912901.eps
Product No. FGHS2667KB0 FGHS2667KE0 FGHS2667KP0 FGHS2667KW0
Series Gallery Gallery Gallery Gallery
Color black black white white
Volts 115 115 115 115
Wiring Diagram 241912901 241912901 241912901 241912901
Owner's Guide 241979200 241979200 241979200 241979200
Market North America North America North America North America
Energy Guide 241935564 241935564 241935564 241935564
Service Data Sheet 240389638 240389638 240389638 240389638
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995532743
09/02/06
(EN/SERVICE/DCS)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FGHS2667K
Copyright ©All rights reserved.

Publication No: 5995532743 FGHS2667K
02/09 2
FREEZER DOOR
22C
11
1
4A
68
4B
4B
13A
22A
21A
F58FFDAAA0
18
79
79 80
80

FGHS2667K Publication No: 5995532743
# Functional Parts 3 02/09
* Non-Illustrated Parts
FREEZER DOOR
Model Index: AFGHS2667K (FGHS2667KB0)
BFGHS2667K (FGHS2667KE0)
CFGHS2667K (FGHS2667KP0)
DFGHS2667K (FGHS2667KW0)
POS. NO PART NO. DESCRIPTION
1 241786006 A B - - Gasket-frzr door, black,magnetic
1 241786002 - - C D Gasket-frzr door, white, magnetic
4A 240334201 A B C D Bin-door, frzr-upper
4B 240351601 A B C D Bin-door
11 241837180 A - - - Door-frzr, black, completeassy
11 241837181 - B - - Door-frzr, black, completeassy
11 241837182 - - C - Door-frzr, white, complete assy
11 241837174 - - - D Door-frzr, white,completeassy
13A 241942604 A B C D Door Stop, black, frzr
18 241930103 A B - - Handle-door, black
18 241930102 - - C D Handle-door, white
21A 240442706 A B C D Screw-#10-32 X 3/4, zinc
22A 241990302 A B C D Bearing-hinge(frz), closer
22C 241760402 A B - - Bearing, hinge, top
22C 241760401 - - C D Bearing, hinge, top
68 241946601 A B C D Chute-ice
79 218755402 A B C D Screw-set, 10-32 x 0.375
80 218755504 A B C D Screw-shoulder, #10 AB, handle mounting
* 240352102 A B C D Connector-water, straight
* 240451503 A B C D Screw, ind hex wshr hd, 8-32 x 0.375, trilobe
* 5303918371 A B C D Dispenser heater kit, 115
* # 241834703 A B C D Harness-wiring, door

Publication No: 5995532743 FGHS2667K
02/09 4

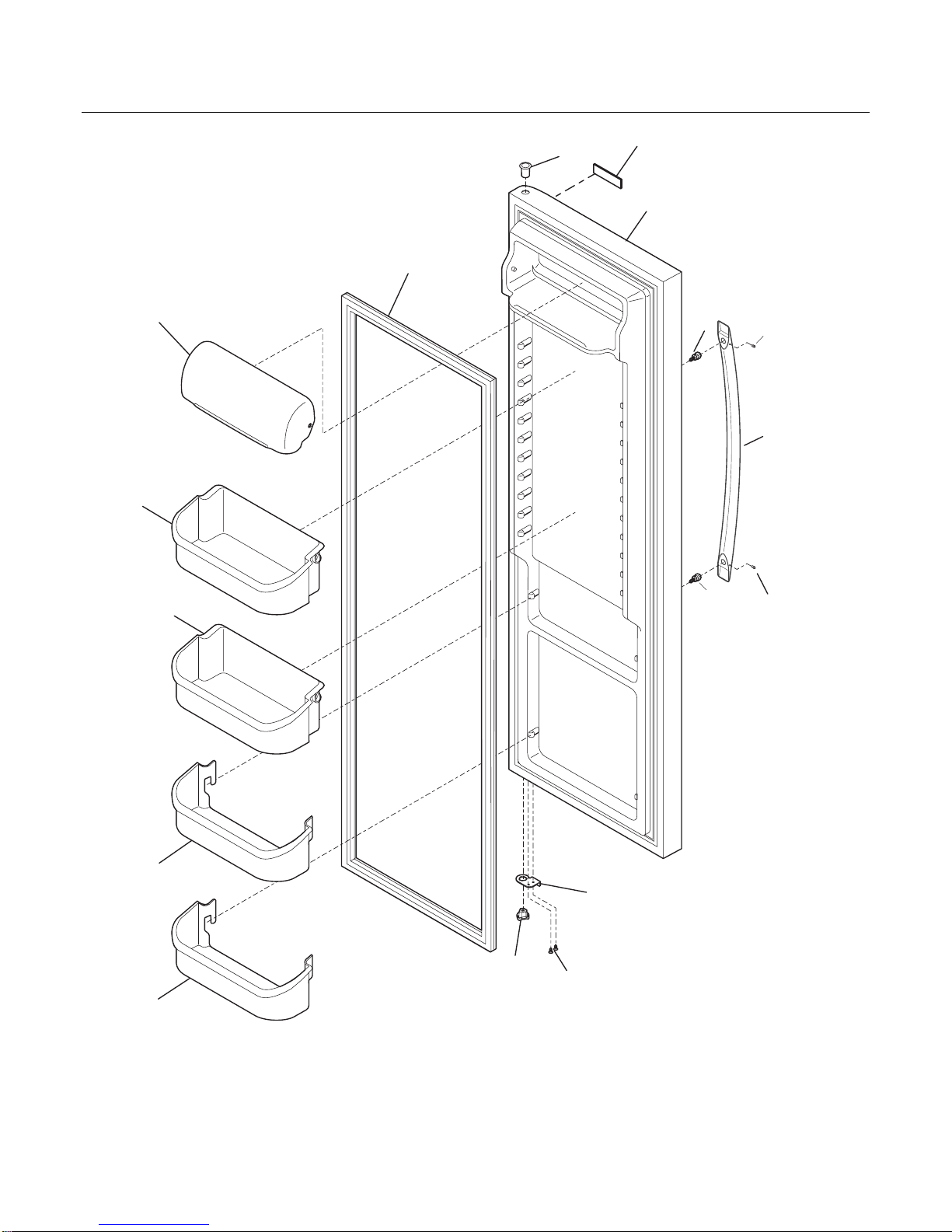

REFRIGERATOR DOOR
21A
22
13
15
12
22B
2
7
49
49
4
4
F58RFDACA0
18
79
79
80
80

FGHS2667K Publication No: 5995532743
# Functional Parts 5 02/09
* Non-Illustrated Parts
REFRIGERATOR DOOR
Model Index: AFGHS2667K (FGHS2667KB0)
BFGHS2667K (FGHS2667KE0)
CFGHS2667K (FGHS2667KP0)
DFGHS2667K (FGHS2667KW0)
POS. NO PART NO. DESCRIPTION
2 241786005 A B - - Gasket-refr door, black, magnetic
2 241786001 - - C D Gasket-refr door, white, magnetic
4 240323002 A B C D Bin-door, pseudo, bottom
7 240326203 A B C D Door-dairy
12 242015201 A B C D Label-nameplate
13 241942603 A B C D Door Stop, black, ref
15 241837262 A - - - Door-refr, black, complete assy
15 241837263 - B - - Door-refr, black, complete assy
15 241837264 - - C - Door-refr, white, complete assy
15 241837256 - - - D Door-refr, white, complete assy
18 241930103 A B - - Handle-door, black
18 241930102 - - C D Handle-door, white
21A 240442706 A B C D Screw-#10-32 X 3/4, zinc
22 241990301 A B C D Bearing-hinge, gray
22B 241760404 A B - - Bearing, hinge, top
22B 241760403 - - C D Bearing, hinge, top
49 241808221 A B C D Bin-door, gallon
79 218755402 A B C D Screw-set, 10-32 x 0.375
80 218755504 A B C D Screw-shoulder, #10 AB, handle mounting

Publication No: 5995532743 FGHS2667K
02/09 6
CABINET
92
93
93
92
90
89
83
82
81
81
72 54
50
47
45
45
45
45
45
45
45
43
42
42
41
40
40A
21D
21D
58
58
38
38A
37
37
28
30A
30
22
22
21C
21C
11
10A
10
66
66A
100
E58BAAAAE0
14A

FGHS2667K Publication No: 5995532743
# Functional Parts 7 02/09
* Non-Illustrated Parts
CABINET
Model Index: AFGHS2667K (FGHS2667KB0)
BFGHS2667K (FGHS2667KE0)
CFGHS2667K (FGHS2667KP0)
DFGHS2667K (FGHS2667KW0)
POS. NO PART NO. DESCRIPTION
10 240435914 A B C D Cover-air duct
10A 241719711 A B C D Cover-evap coil, lower
11 5303208309 A B C D Plug-hole, factory test
14A# 241547901 A B C D Switch-light/lamp, frzr door
21C 218252201 A B C D Screw, #8 truss hd, 10-32CA x 0.500
21D 241548003 A B C D Screw, 10-32 x 3/8
22 241917801 A B C D Plate-door closer
28 240335502 A B C D Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241917901 A B C D Bracket-lower hinge, RH, w/hinge pin
30A 241917902 A B C D Bracket-lower hinge, LH, w/hinge pin
37 240337610 A B - - Trim-cabinet corner, black, (2)
37 240337608 - - C D Trim-cabinet corner, white, (2)
38 241761301 A B C D Bracket-upper hinge, RH
38A 241761302 A B C D Bracket-upper hinge, LH
40 241946705 A B - - Cover-upper hinge, black, RH
40 241946701 - - C D Cover-upper hinge, white
40* 241835801 A B C D Harness-wiring
40A 241946706 A B - - Cover-upper hinge, black, LH
40A 241946702 - - C D Cover-upper hinge, white, LH
40A* 241891901 A B C D Harness-wiring, freezer
41 241550801 A B C D Grommet-shelf mtg, 1.40" long
41* 241550701 A B C D Grommet-shelf mtg, .96" long
42 240578902 A B C D Screw, hex head, 1/4-20 x 5/8
43 240335006 A B C D Roller Assy, front, (2)
45 241500303 A B C D Screw, hex washer head, 8-18AB x 0.500
47 241513001 A B C D Channel-shelf mtg, side, (2)
50 242000406 A B C D Board-main power
50* 241867901 A B C D Harness-wiring
54 241532401 A B C D Channel
58 218781101 A B C D Screw, pan head, 8-18 x 0.625
66 241756801 A B C D Damper-meat keeper
66* 241512807 A B C D Seal
66A 241756901 A B C D Housing-damper
72 241969403 A B - - Grille/Kickplate, black
72 241969401 - - C D Grille/Kickplate, white
81 5304455650 A B C D Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B C D Roller, compressor base, rear, (2)
83 5304455655 A B C D Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241733905 A B C D Cover-access, w/label
90 218249808 A B C D Seal-coil cover
92 241710601 A B C D Screw, hex washer hd, 1/4 x 7/8, hinge mtg
93 241911704 A B - - Switch, plunger style
93 241911701 - - C D Switch, plunger style
100 240423701 A B C D Support, crisper cover, front, (4)
100* 240350802 A B C D Support, crisper cover, rear, (4)
* 241852501 A B C D Clip, wiring harness
* 241868101 A B C D Air Guide

Publication No: 5995532743 FGHS2667K
02/09 8

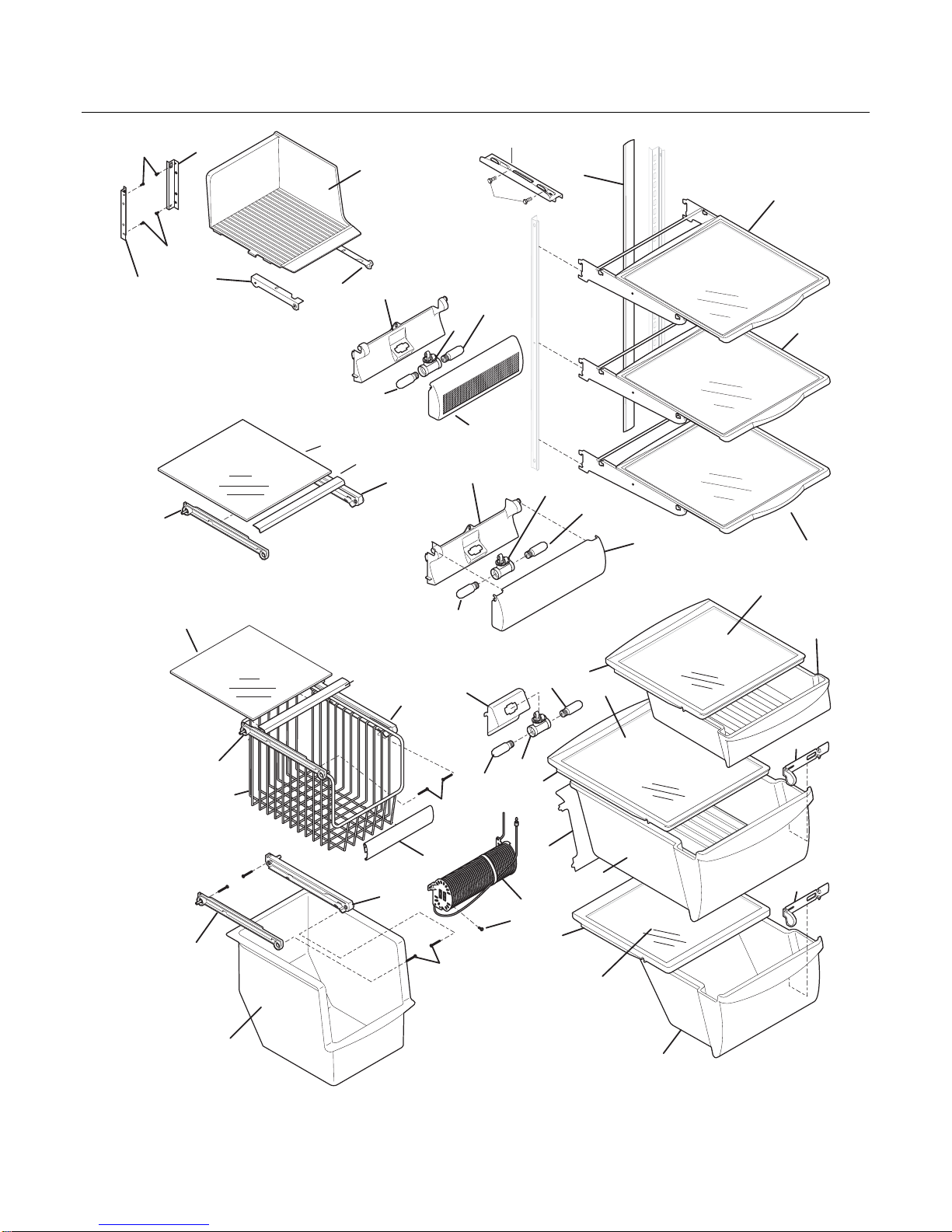

SHELVES
51A
140
126
126
122
121
120
109
108
107B
101
100
97
81
81
62
101
52
52A
52
51
51
49B
49
47B
47A
47
26A
27
26A
26
25B
25A
25
24
24
24
21
16
16
16
15
15
15
15
15
2
F58SKDIBK10
11A
39
11D
39
108A
107
15
81
11C

FGHS2667K Publication No: 5995532743
# Functional Parts 9 02/09
* Non-Illustrated Parts
SHELVES
Model Index: AFGHS2667K (FGHS2667KB0)
BFGHS2667K (FGHS2667KE0)
CFGHS2667K (FGHS2667KP0)
DFGHS2667K (FGHS2667KW0)
POS. NO PART NO. DESCRIPTION
2 241510607 A B C D Trim-basket
11A 240350604 A B C D Shelf-freezer, glass, upper
11C 240324101 A B C D Shelf-pizza
11D 240350605 A B C D Shelf-freezer, glass, lower
15 241552801 A B C D Light Bulb
16 241622802 A B C D Socket-light
16*# 241797601 A B C D Harness-wiring
21 5304455658 A B C D Screw, hx wshr hd sems, 8-15A x 0.625
24 240350136 A B C D Shelf-"Spill-Safe", cantilever, sliding
25 240599301 A B C D Cover-crisper pan, upper
25* 240362101 A B C D Clip-slide, cover-crisper
25A 240350902 A B C D Cover-crisper pan, lower
25B 241969501 A B C D Cover-meat pan
26 240351061 A B C D Pan-crisper, upper
26A 240362201 A B C D Control-humidity
26* 240349801 A B C D Clip-slide, pan-crisper
26* 241595202 A B C D Clip-slide, pan-crisper
27 240351240 A B C D Pan-crisper, lower
39 240367602 A B C D Trim-shelf, front
47 240350649 A B C D Insert-pan cover, glass
47A 240350603 A B C D Insert-pan cover, glass
47B 240443384 A B C D Insert-pan cover, glass
49 240564401 A B C D Basket-sliding
49B 240530504 A B C D Basket-sliding, upper, full
51 240343002 A B C D Hanger-basket, RH
51A 240395502 A B C D Hanger-basket, RH
52 240343102 A B C D Hanger-basket, LH
52A 240395602 A B C D Hanger-basket, LH
62 241969601 A B C D Pan-meat
81 5304455650 A B C D Screw, hex washer head, 8-15A x 0.625, low profile
97 241532007 A B C D Water Tank
100 240326304 A B C D Cover-water tank
101 218493101 A B C D Screw, hex washer head, 8-18AB x 1-3/4
107 241753601 A B C D Shield-light, upper
107B 241513402 A B C D Shield-light, meat pan
108 241513301 A B C D Cover-wiring, meat pan light
108A 241753701 A B C D Housing-light, upper, fresh food
109 241513202 A B C D Base-crisper light socket
120 241691901 A B C D Shelf-ice cream
121 241561001 A B C D Rail-ice cream shelf, LH
122 241692001 A B C D Rail-ice cream shelf, LH
126 241674401 A B C D Channel, auger mtg, LH
126 241674402 A B C D Channel, auger mtg, RH
140 241812501 A B C D Channel, wtr tube cover
* 241781601 A B C D Seal-return air
* 241868101 A B C D Air Guide
* 241935564 A B C D Energy Guide

Publication No: 5995532743 FGHS2667K
02/09 10
CONTROLS
81
208
137
139
210
210A
60
209
115
23
58
22
54
50
149
14
13
9
9A
8
5
F58TEBCAE0

FGHS2667K Publication No: 5995532743
# Functional Parts 11 02/09
* Non-Illustrated Parts
CONTROLS
Model Index: AFGHS2667K (FGHS2667KB0)
BFGHS2667K (FGHS2667KE0)
CFGHS2667K (FGHS2667KP0)
DFGHS2667K (FGHS2667KW0)
POS. NO PART NO. DESCRIPTION
5 # 5308000010 A B C D Fan Blade, red, evaporator fan
8 215474201 A B C D Washer, "slinger", nylon, evap fan shaft
9 241563601 A B C D Bushing-motor mtg
9A 241845301 A B C D Bushing-motor mtg
13 241509402 A B C D Motor, evaporator fan
14 241517701 A B C D Clip, evap fan motor
22 240597203 A B C D Sensor
23 241845401 A B C D Housing-sensor
50 242000406 A B C D Board-main power
50* 241867901 A B C D Harness-wiring
54 241532401 A B C D Channel
58 5304455650 A B C D Screw, hex washer head, 8-15A x 0.625, low profile
60 242010601 A B C D Housing-diffuser & air filter
60* 241794401 A B C D Diffuser-air
81 5304455658 A B C D Screw, hx wshr hd sems, 8-15A x 0.625
115 241853801 A B C D Damper Assy, w/seal
137 241791601 A B C D Filter-water, carbon
139 242009601 A B C D Base-water filter
149 241563501 A B C D Shroud-fan orfice
149* 241528306 A B C D Seal, shroud
208 241754301 A B C D Sleeve, air filter, front
209 241754002 A B C D Filter-air
210 241983801 A B C D Housing-water filtr
210A 241998301 A B C D Mount-water filter
* 3205266 A B C D Edge Protector, wiring harness
* 241852501 A B C D Clip, wiring harness

Publication No: 5995532743 FGHS2667K
02/09 12

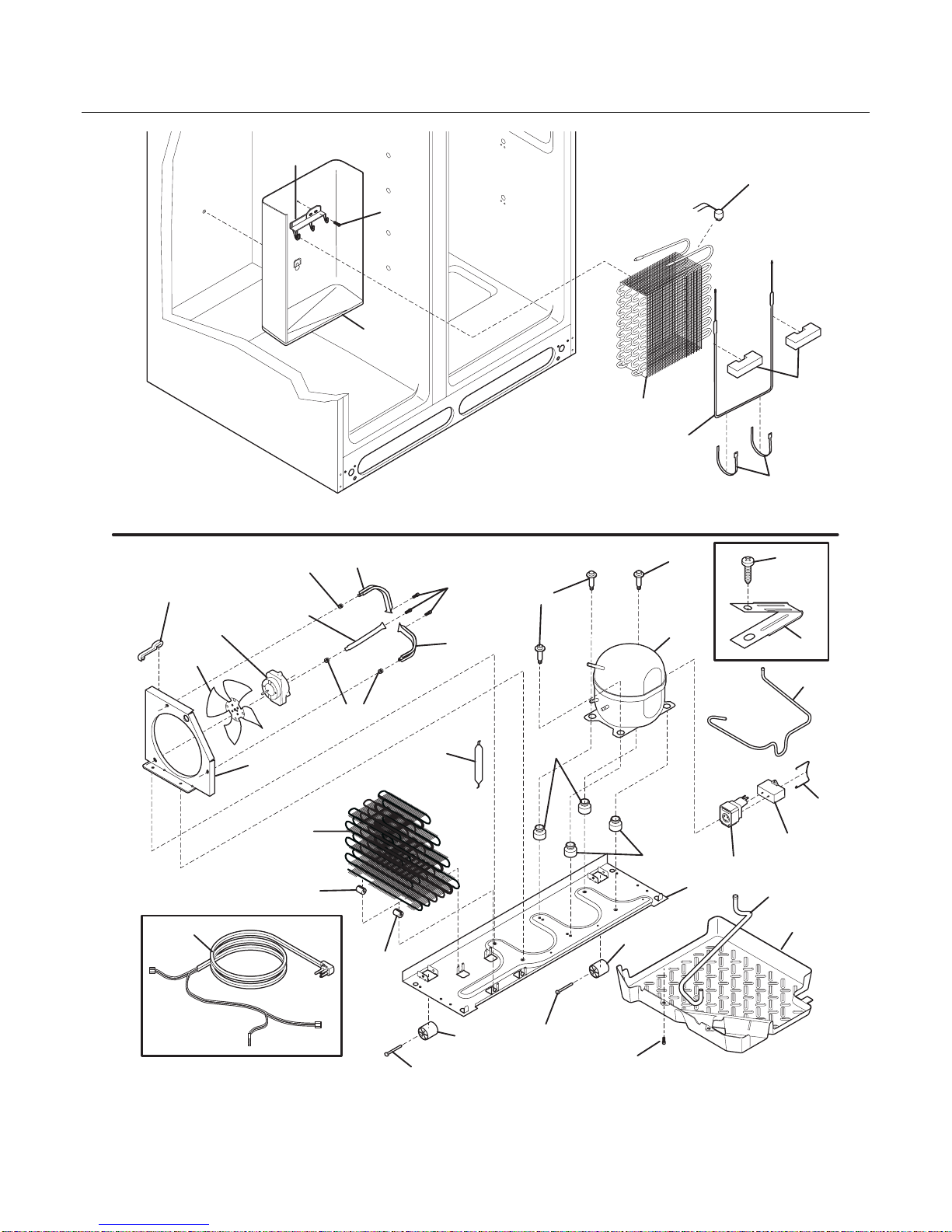

SYSTEM
85
84
83
83
82
82
70
62
61
60
59B
59B
59A
59A
59A
59
58
55
45
45
44
41
34
34
32
30
29
26
N58CAAAAC14
25
25
23
23
22
21
16
15
14
6
4
3
1
86

FGHS2667K Publication No: 5995532743
# Functional Parts 13 02/09
* Non-Illustrated Parts
SYSTEM
Model Index: AFGHS2667K (FGHS2667KB0)
BFGHS2667K (FGHS2667KE0)
CFGHS2667K (FGHS2667KP0)
DFGHS2667K (FGHS2667KW0)
POS. NO PART NO. DESCRIPTION
1 240333603 A B C D Condenser
3 218679607 A B C D Block-evap coil, styrofoam, (2)
4 # 218944001 A B C D Drier-filter, R134a System
6 # 241516901 A B C D Cord-service
6* # 241519902 A B C D Harness-wiring
6* 241834802 A B C D Harness-wiring, machine compt
14 # 240316107 A B C D Heater-defrost
15 # 5303918284 A B C D Evaporator Kit
16 5308000110 A B C D Strap-evap/heater, aluminum, (2)
21 # 5303918214 A B C D Thermostat-defrost, kit
22 240330011 A B C D Base-compressor mtg
22* 218252201 A B C D Screw, #8 truss hd, 10-32CA x 0.500
23 241659701 A B C D Grommet, compressor
25 240491503 A B C D Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241697602 A B C D Pan-defrost
29 # 5303918329 A B C D Compressor, kit, w/electricals
30 # 241707701 A B C D Starter, PTC
32 241650901 A B C D Clamp, elec cont mtg, compressor
34 240405201 A B C D Grommet, rubber, black, cond tube/wire
41 240555002 A B C D Screw-#8-32 X 3/8
44 215174700 A B C D Clamp-service cord, strain relief, galv steel
45 5304455650 A B C D Screw, hex washer head, 8-15A x 0.625, low profile
55 218909913 A B C D Capacitor, run, 220 VAC, 15 microfarad
58 240433203 A B C D Screw, hex washer head, 8-18 x 3/8
59 240315502 A B C D Shroud-cond fan
59* 240346701 A B C D Tape-foam seal, shroud
59* 240359403 A B C D Screw-fan shroud, (2)
59A 240346501 A B C D Bracket-support, cond mtr, (3)
59B 240346601 A B C D Grommet-bracket, (3)
60 # 241584301 A B C D Motor-condenser fan
61 241639501 A B C D Blade-condenser fan
62 240429402 A B C D Trough-drain
70 218990801 A B C D Bracket-evap/cvr mtg
82 5304418225 A B C D Roller, compressor base, rear, (2)
83 5304455655 A B C D Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 241957901 A B C D Tube-drain, lower
85 241856901 A B C D Tube-connector, suction
86 240409302 A B C D Spacer-cond tube, black
* 241852501 A B C D Clip, wiring harness
* # 5303918328 A B C D Heat Exchanger Kit, suction line, service
* 5303918222 A B C D Hot Tube Repair Kit, service

Publication No: 5995532743 FGHS2667K
02/09 14
ICE & WATER DISPENSER
4
F58XFAAAA0
8
2
4A
23
82
82
82
38C
1

FGHS2667K Publication No: 5995532743
# Functional Parts 15 02/09
* Non-Illustrated Parts
ICE & WATER DISPENSER
Model Index: AFGHS2667K (FGHS2667KB0)
BFGHS2667K (FGHS2667KE0)
CFGHS2667K (FGHS2667KP0)
DFGHS2667K (FGHS2667KW0)
POS. NO PART NO. DESCRIPTION
1 218976419 A B C D Tube-water inlet, valve to door
1* 218976429 A B C D Tube-water inlet, 97.50", brown/tan
1* 218976915 A B C D Tube-water inlet, inlet valve, to filter
1* 240561703 A B C D Seal-water inlet, inlet valve, to ice maker
2 241973811 A B - - Switch Assembly, overlay, black
2 241973812 - - C D Switch Assembly, overlay, white, top
4 241946803 A B - - Cover-module, black
4 241946801 - - C D Cover-module, white
4A 241946901 A B C D Trim, Facade
8 241753413 A B C D Module-dispenser, clear
23 241947003 A B - - Drip Tray, black
23 241947001 - - C D Drip Tray, white
38C# 241973702 A B C D Board-control
82 240363402 A B C D Screw-#8-18 X 1/2, #6 hd plask
* 5303918371 A B C D Dispenser heater kit, 115

Publication No: 5995532743 FGHS2667K
02/09 16
ICE CONTAINER
45
4
45A
48
47
46
45B
45C
45D
50
18 20
15
16
44
44
44
51
26
26
26
26
10
26
43
43
43
49
7
3
2
23
39
70
39
6
17
53
52
37A 34
33
37B
34 33
37C
54
35A
35B
41
56
55
13
25
25
22
N58YDAAAC4
39

FGHS2667K Publication No: 5995532743
# Functional Parts 17 02/09
* Non-Illustrated Parts
ICE CONTAINER
Model Index: AFGHS2667K (FGHS2667KB0)
BFGHS2667K (FGHS2667KE0)
CFGHS2667K (FGHS2667KP0)
DFGHS2667K (FGHS2667KW0)
POS. NO PART NO. DESCRIPTION
2 241716101 A B C D Auger-ice
3 241685201 A B C D Cam-drive
4 241561302 A B C D Container-ice, bucket only
6 241685101 A B C D Drum-ice disp
7 241561402 A B C D Front-ice container
10 241726501 A B C D Bar-drive
13 241685301 A B C D Gate
15 241555401 A B C D Light Bulb
16 241559801 A B C D Socket-light
17 241684501 A B C D Drive Blade
18 # 241676201 A B C D Motor-auger
18* 241522901 A B C D Harness-wiring, icmkr/container
20 241675502 A B C D Cover-motor
22 240597203 A B C D Sensor
23 241684001 A B C D Plate-front
25 241690701 A B C D Screw, hex washer head, 8-32T x 0.375
26 215503203 A B C D Screw, cr pan hd, 10-16 x 0.500
33 241684801 A B C D Spacer
34 241689801 A B C D Spacer
35A 241684301 A B C D Fixed Blade, round
35B 241684201 A B C D Fixed Blade, square
37A 241684101 A B C D Blade, crusher #1
37B 241684102 A B C D Blade, crusher #2
37C 241684103 A B C D Blade, crusher #3
39 241690501 A B C D Screw
41 241685601 A B C D Housing-crusher
43 218359202 A B C D Screw, pan head, 8-32 x 0.250
44 215005101 A B C D Screw, hanger/rlr mtg, 8-10 x 7/16
45 241675701 A B C D Solenoid Assy, 115V
45A 241675901 A B C D Spring-solenoid
45B 241676001 A B C D E-Ring-solenoid
45C 241676101 A B C D Actuator-solenoid
45D 241675801 A B C D Solenoid, 115V
46 241716002 A B C D Control Rod
47 241731801 A B C D Spring-control rod
48 241684602 A B C D Bracket-control rod
49 241734501 A B C D Rail Assy
50 241675601 A B C D Guide-solenoid
51 241676301 A B C D Rotation Stop
52 241684901 A B C D Spacer-fixed blades
53 241690402 A B C D Pin-spiral, fixed blades
54 241685001 A B C D Nut-auger
55 241690306 A B C D Washer
56 241690201 A B C D E-ring
70 241561502 A B C D Plate-mounting
70* 241551602 A B C D Screw, hex head, 8-18B x 0.875
70* 241716801 A B C D Clip
* 218817300 A B C D Shield-light
* 241860810 A B C D Ice Container Assy, w/moving parts

Publication No: 5995532743 FGHS2667K
02/09 18
ICE MAKER
14 15
2
41
24
25
51
64
6
640
43
7
6
16
67
21
19
22
66
60
18
17
39
23
23
34
34
34
11
38
29
30
27
9
15
15
31
32
36
4
35
5
37
8
1
55 INSTALLATION PARTS
N58I115TServo
12
33
13
45
42

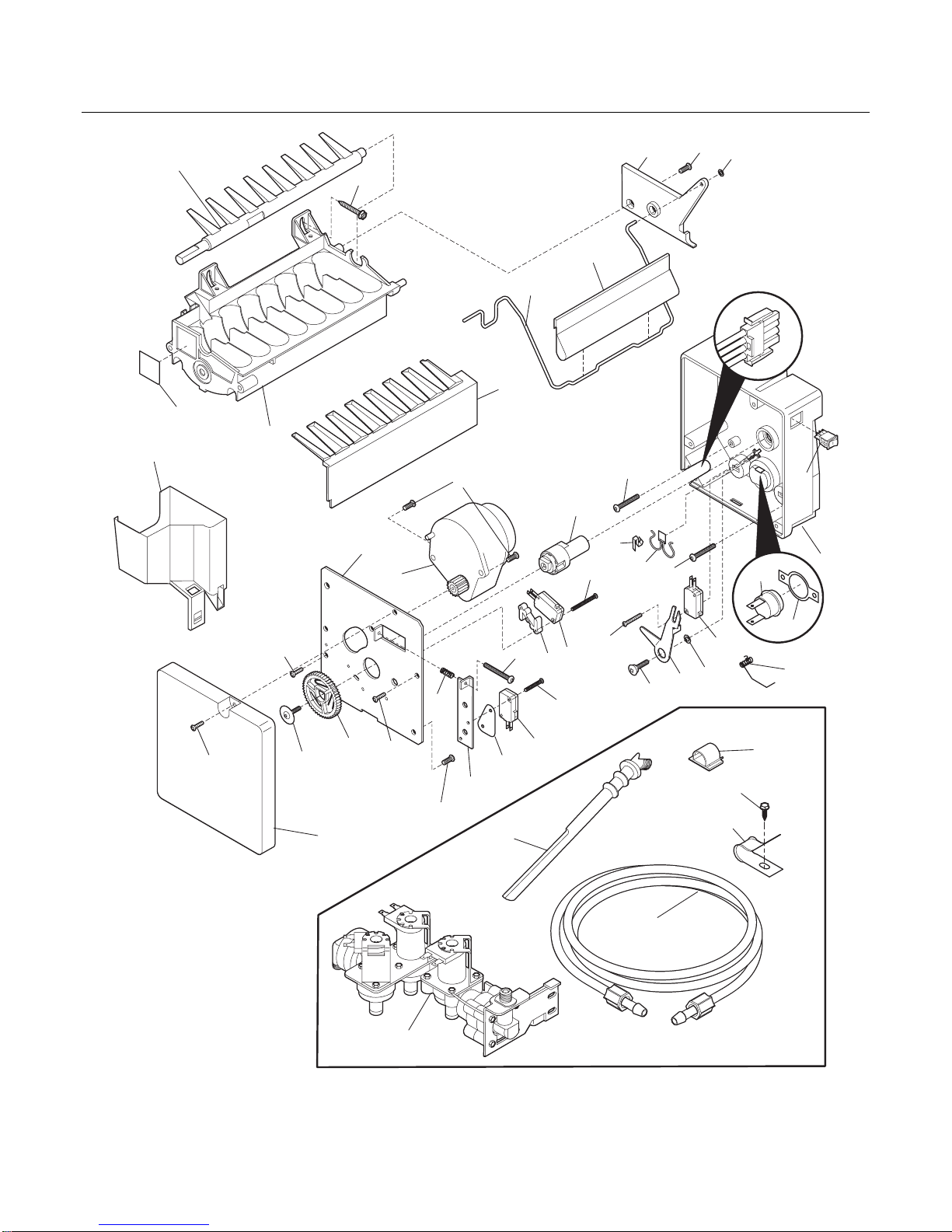

FGHS2667K Publication No: 5995532743
# Functional Parts 19 02/09
* Non-Illustrated Parts
ICE MAKER
Model Index: AFGHS2667K (FGHS2667KB0)
BFGHS2667K (FGHS2667KE0)
CFGHS2667K (FGHS2667KP0)
DFGHS2667K (FGHS2667KW0)
POS. NO PART NO. DESCRIPTION
1 218976419 A B C D Tube-water inlet, valve to door
1* 218976429 A B C D Tube-water inlet, 97.50", brown/tan
1* 218976915 A B C D Tube-water inlet, inlet valve, to filter
1* 240561703 A B C D Seal-water inlet, inlet valve, to ice maker
2 5304456650 A B C D Spring-shutoff arm, ice maker
4 5304458380 A B C D Gear
5 5304458383 A B C D Plate-mounting
6 5304458386 A B C D Screw
7 # 5304458382 A B C D Motor-ice maker Svo
8 5304458388 A B C D Spacer-hold switch
9 5304456662 A B C D Cam
11 # 5304458400 A B C D Thermal Cutoff, ice maker
12 5304458379 A B C D Harness-wiring
13 5304456665 A B C D Thermostat, ice maker
14 5304458384 A B C D Screw
15 # 5304456667 A B C D Switch-micro, (3)
16 5304458395 A B C D Housing, control
17 5304456669 A B C D Mold-ice maker, w/therm cut off
18 5304458377 A B C D Ejector-ice
18* 241522901 A B C D Harness-wiring, icmkr/container
19 5304458378 A B C D Cup-water inlet
21 5304458390 A B C D Ice Stripper
22 5304458375 A B C D Shut-off Arm
23 5304458394 A B C D Screw
24 5304458391 A B C D Lever Arm
25 5304456676 A B C D Screw, M 4x12.8 #2, lever arm/sprt
27 5304458385 A B C D Screw
29 5304458393 A B C D Screw
30 5304458387 A B C D Screw
31 5304458381 A B C D Insulator
32 5304456681 A B C D Plate-valve switch
33 5304456682 A B C D Spring, timing adjust
34 5304455684 A B C D Screw, plazscrew, 8-10 x 1/2, (3)
35 5304456684 A B C D Screw
36 5304458376 A B C D Cover-ice maker
37 5304408583 A B C D Spring-timing adj
38 5304458398 A B C D Clip
39 5304458399 A B C D Conductor-heat
40 5304458401 A B C D Clip-retainer
41 5304456689 A B C D Washer, nylon
42 218515403 A B C D Clip-grille
43 241720601 A B C D Extension
45 5304455650 A B C D Screw, hex washer head, 8-15A x 0.625, low profile
51 241796403 A B C D Tube-water fill, extension
55 # 241734301 A B C D Valve-water, triple solenoid
55* 218709101 A B C D Screw, hex head, 10-32 x 0.500
55* 240363602 A B C D Screw-shoulder

Publication No: 5995532743 FGHS2667K
02/09 20
ICE MAKER
14 15
2
41
24
25
51
64
6
640
43
7
6
16
67
21
19
22
66
60
18
17
39
23
23
34
34
34
11
38
29
30
27
9
15
15
31
32
36
4
35
5
37
8
1
55 INSTALLATION PARTS
N58I115TServo
12
33
13
45
42
