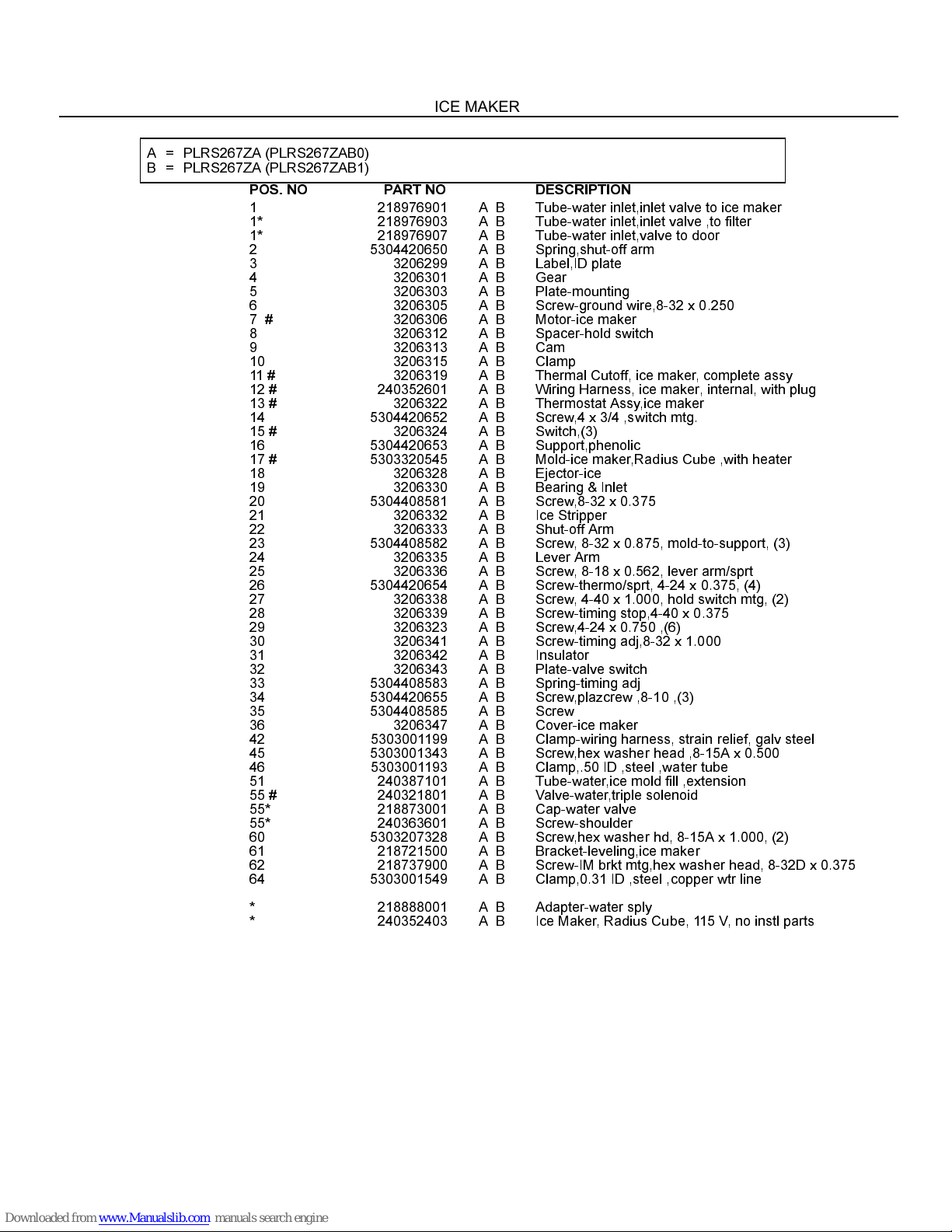

Frigidaire PLRS267ZA User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
PLRS267ZAB0 PLRS267ZA R134a Professional black 115
PLRS267ZAB1 PLRS267ZA R134a Professional black 115
MARKET
North America
Publication No.
5995354486
010609
-EN/SERVICE/KHB
357
SIDE BY SIDE
REFRIGERATOR
Model No.
PLRS267ZA
©2001 White Consolidated Industries, Inc.
All rights reserved
WIRING DIAGRAM - # 240443001
OWNER’S GUIDE - # 240389301
SERVICE DATA SHEET - #240389604
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O. BOX 212378, Augusta, GA 30917
FACTORY
PARTS CATALOG

06/01 2
Publication No. PLRS267ZA
5995354486
FREEZER DOOR

# = Fast-moving Parts 3 06/01
* = Non-Illustrated Parts
PLRS267ZA Publication No.
5995354486
FREEZER DOOR
A = PLRS267ZA (PLRS267ZAB0)
B = PLRS267ZA (PLRS267ZAB1)
POS. NO PART NO DESCRIPTION
1 # 240390606 A B Gasket-frzr door,black ,magnetic
4A 240334202 A B Bin-door,frzr-upper
4B 240351602 A B Bin-door
4C 240351702 A B Bin-door,frzr-dispenser
11 240451816 A B Panel-frzr door,stainless steel, complete assy
13A 240456906 A B Door Stop,black ,frzr
18 240409801 A B Handle-door, stainless steel, with insert
21A 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile
22A 240328202 A B Bearing-hinge,closer
22C 240328404 A B Bearing-hinge,black ,upper
68 240467701 A B Chute-ice
79 218755402 A B Screw-set,10-32 x 0.375
80 218755501 A B Screw-shoulder,#10 AB ,handle mounting
96 240345504 A B Plug-foam hole,black
* 218490900 A B Cleaner,stainless steel
* 240323202 A B Harness-wiring,door
* 240352101 A B Connector-water,straight
* 5303918256 A B Dispenser heater kit

06/01 4
Publication No. PLRS267ZA
5995354486
REFRIGERATOR DOOR

# = Fast-moving Parts 5 06/01
* = Non-Illustrated Parts
PLRS267ZA Publication No.
5995354486
A = PLRS267ZA (PLRS267ZAB0)
B = PLRS267ZA (PLRS267ZAB1)
POS. NO PART NO DESCRIPTION
2 # 240390605 A B Gasket-refr door,black ,magnetic
4 240323002 A B Bin-door,Pseudo ,bottom
7 240326203 A B Door-dairy
12 240449704 A B Nameplate,black
13 240456905 A B Door Stop,black ,ref
15 240451909 A B Panel-refr door, stainless steel, complete assy
18 240409801 A B Handle-door, stainless steel, with insert
21A 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile
22 240328201 A B Bearing-hinge,closer
22B 240328403 A B Bearing-hinge,upper
27A 240396102 A B Retainer,tall bottle
49 240430305 A B Bin-door,gallon
79 218755402 A B Screw-set,10-32 x 0.375
80 218755501 A B Screw-shoulder,#10 AB ,handle mounting
96 240345504 A B Plug-foam hole,black
* 218490900 A B Cleaner,stainless steel
REFRIGERATOR DOOR

06/01 6
Publication No. PLRS267ZA
5995354486
CABINET

# = Fast-moving Parts 7 06/01
* = Non-Illustrated Parts
PLRS267ZA Publication No.
5995354486
A = PLRS267ZA (PLRS267ZAB0)
B = PLRS267ZA (PLRS267ZAB1)
POS. NO PART NO DESCRIPTION
10 240435902 A B Cover-air duct
10A 240475902 A B Cover-evap coil,lower
11 5303208309 A B Plug-hole,factory test
14 # 240413601 A B Switch-light/lamp
14A# 215486600 A B Switch-light/lamp
21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500
22 240457701 A B Plate-door closer
23 240402701 A B Screw-#10-32 x 1/4 flat hd
28 240335501 A B Bolt-roller adj,hex wshr hd, 1/4-20 x 4.020,(2),special
30 240419101 A B Bracket-lower hinge, ref
30A 240419102 A B Bracket-lower hinge
37 240337603 A B Trim-cabinet corner,black
38 240327201 A B Bracket-upper hinge
40 240327003 A B Cover-upper hinge,black
41 240358701 A B Grommet-shelf mtg,1.40" long
41* 240358801 A B Grommet-shelf mtg,.875" long
42 240315301 A B Screw-hinge mtg,hex head ,1/4-20 x 0.75
43 240335003 A B Roller Assy,front ,(2)
45 5303001343 A B Screw,hex washer head ,8-15A x 0.500
47 240349401 A B Channel-shelf mtg,side ,(2)
58 218749600 A B Screw,#10 pan hd ,8-18 x .5
66 240470201 A B Cover-damper
66A 240470301 A B Damper-meat keeper
66B 240355901 A B Insulation-damper
72 240324406 A B Grille/Kickplate, black
81 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile
82 5304418225 A B Roller,comp base ,rear ,(2)
83 215164200 A B Pin-roller,(2)
89 240326104 A B Cover-access,w/ label
89* 241500301 A B Screw,#8 18 x .500 ,(3)
90 218249805 A B Seal-coil cover
91 240380101 A B Duct-ice maker
92 5303001479 A B Screw-hinge mtg,hex hd ,1/4-20 x 0.875
100 240423701 A B Support-crspr cover,(4)
100* 240350802 A B Support-crspr cover,(4)
150 240368701 A B Guide-control bulb
* 240396801 A B Clamp,tube/wiring ,nylon ,black/natural
* 5303305345 A B Paint,touch-up ,black
CABINET

06/01 8
Publication No. PLRS267ZA
5995354486
SHELVES

# = Fast-moving Parts 9 06/01
* = Non-Illustrated Parts
PLRS267ZA Publication No.
5995354486
A = PLRS267ZA (PLRS267ZAB0)
B = PLRS267ZA (PLRS267ZAB1)
POS. NO PART NO DESCRIPTION
2 240434602 A B Trim-basket
11 240350668 A B Shelf-freezer,glass ,lower
11A 240350667 A B Shelf-freezer,glass ,upper
11C 240324101 A B Shelf-pizza
15A 215812200 A B Light Bulb/Lamp,25W
16A 218906801 A B Socket-light/lamp
24 240355203 A B Shelf-"Spill-Safe",fixed
24B 240350106 A B Shelf-"Spill-Safe",cantilever ,sliding
25 240350701 A B Cover-crisper pan,upper
25* 240362101 A B Clip-slide,cover-crisper
25A 240350901 A B Cover-crisper pan,lower
26 240351005 A B Pan-crisper,upper
26* 240349801 A B Clip-slide,pan-crisper
26A 240362201 A B Control-humidity
27 240351205 A B Pan-crisper,lower
39 240367602 A B Trim-shelf,front
42 240356501 A B Hanger-meat pan,RH
42A 240349701 A B Hanger-meat pan,LH
42A* 240349901 A B Block-meat pan
42A* 240350001 A B Spring-meat pan rail
47 240350602 A B Insert-pan cover,glass
47A 240350603 A B Insert-pan cover,glass
49 240338402 A B Basket-sliding
49A 240338502 A B Basket-sliding,upper ,half
49B 240338504 A B Basket-sliding,upper ,full
51 240343001 A B Hanger-basket,RH
51A 240395501 A B Hanger-basket,RH
52 240343101 A B Hanger-basket,LH
52A 240395601 A B Hanger-basket,LH
54 240351901 A B Plug-hanger,right hand
55 240352001 A B Plug-hanger,left hand
62 240342805 A B Pan-meat
66 5303295947 A B Rack-wine
81 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile
97 240453003 A B Water Tank Assy,with tubes
100 240326302 A B Cover-water tank
101 218493100 A B Screw,hex washer head ,8-18AB x 1-3/4
101* 215005000 A B Screw, hex wshr hd, 8-18AB x 0.750, gusset/hanger
109 240351301 A B Base-crisper light socket
120 240342902 A B Shelf-ice cream
123 215005100 A B Screw-roller/hanger,8-10 x 0.438
126 218867401 A B Channel,auger mtg ,LH
126 218867402 A B Channel,auger mtg ,RH
SHELVES

06/01 10
Publication No. PLRS267ZA
5995354486
CONTROLS
