Frigidaire FGTC2349K S User manual

E23CS75DSS0.eps N58FKGBGA0.eps N58RKGCHB0.eps N58BABAAD4.eps
N58SDDLEH12.eps N58TBBAAB5.eps N58CACBAA3.eps N58XEBAAA2.eps
N58YDAAAC4.eps N58I115TServo.eps W241638600.eps S241638600.eps
Product No. FGTC2349KS1
Series counter depth
Color stainless
Volts 115

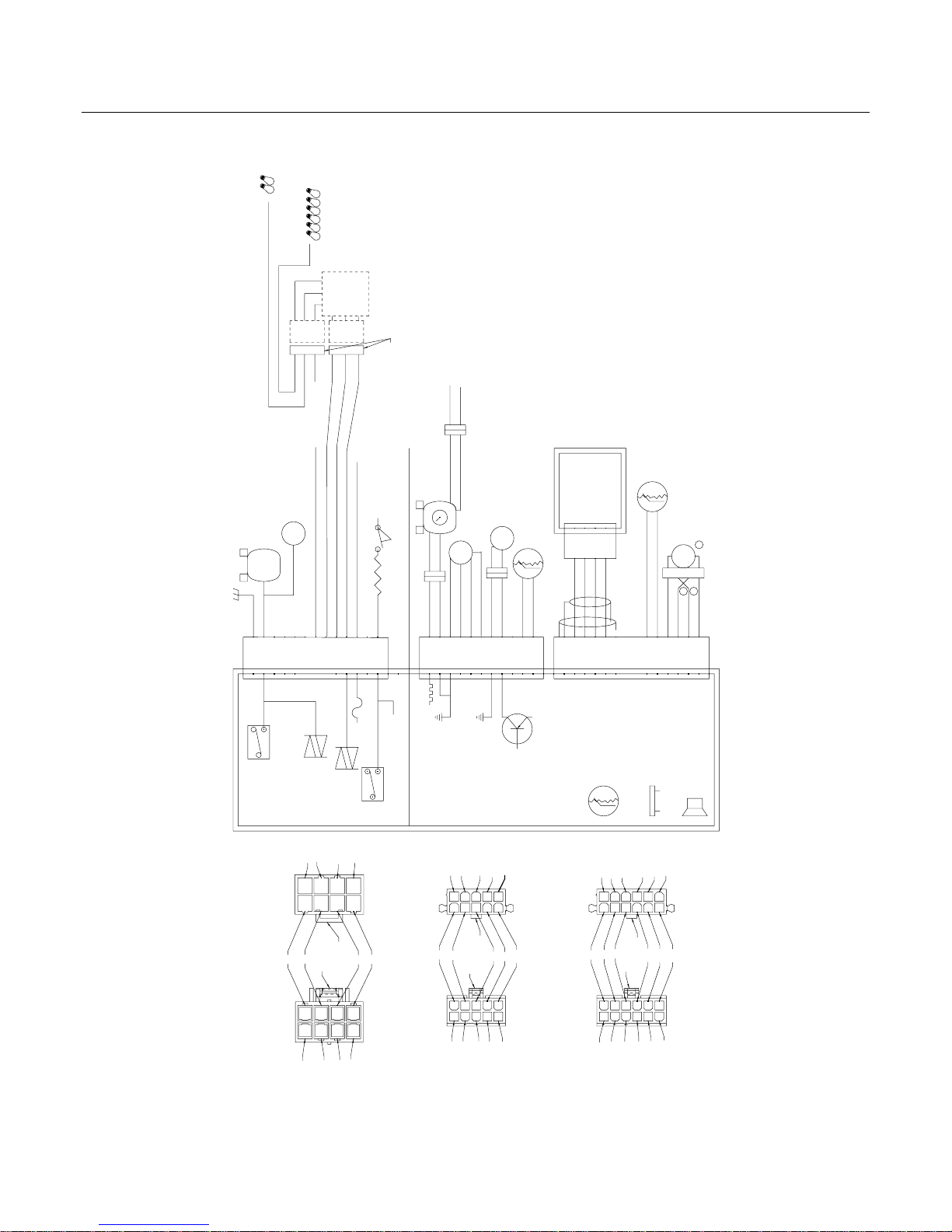

Wiring Diagram 241638600
Owner's Guide 241857500
Market North America
Energy Guide 241935573
Service Data Sheet 241639000
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995536389
09/03/25
(EN/SERVICE/DCS)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FGTC2349K
Copyright ©All rights reserved.

Publication No: 5995536389 FGTC2349KS1
03/09 2
FREEZER DOOR
5
5
21
21
21
21
21B
37
18
37A
37B
22C
11
1
4B
68
4B
13A
22A
21A
N58FKGBGA0

FGTC2349KS1 Publication No: 5995536389
# Functional Parts 3 03/09
* Non-Illustrated Parts
FREEZER DOOR
POS. NO PART NO. DESCRIPTION
1 241510204 Gasket-frzr door, black, magnetic
4B 241808225 Bin-door, pseudo, frzr
5 241545001 Bin-tilt out, tilt-out
11 241615189 Door-frzr, black, complete assy
13A 240581906 Door Stop, black, frzr
18 241533607 Handle-frzr door, aluminum
21 218781101 Screw, pan head, 8-18 x 0.625
21A 240598402 Screw, 10-32 x 1/2
21B 241543202 Screw, #10-16 x 2
22A 240328202 Bearing-hinge(frz), closer
22C 240328404 Bearing-hinge, black, upper
37 241533707 Trim-door, brushed aluminu, side
37A 241534207 Trim-door, aluminum, top
37B 241533807 Trim-door, aluminum, bottom
68 241525101 Chute-ice
* 240411502 Clip-dispenser cover
* 240451503 Screw, ind hex wshr hd, 8-32 x 0.375, trilobe
* 240552102 Harness-wiring, door
* 241806601 Connector-water, straight
* 5303918256 Dispenser heater kit

Publication No: 5995536389 FGTC2349KS1
03/09 4

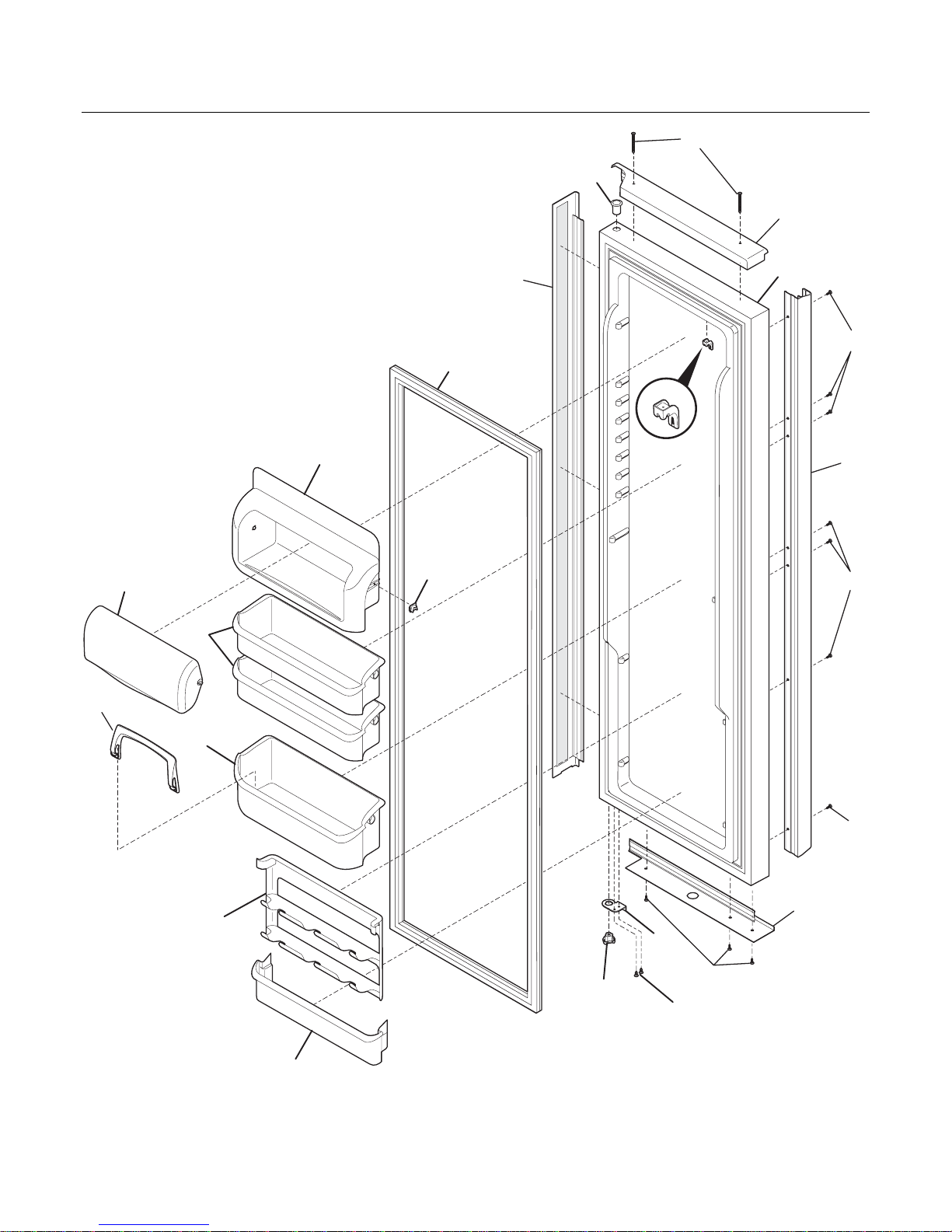

REFRIGERATOR DOOR
N58RKGCHB0
70
50
49A
49
48
22B
22
21A
15
13
76
5
2
21
21
21
18
21
37B
37
21B
37A
27A

FGTC2349KS1 Publication No: 5995536389
# Functional Parts 5 03/09
* Non-Illustrated Parts
REFRIGERATOR DOOR
POS. NO PART NO. DESCRIPTION
2 # 241510203 Gasket-refr door, black, magnetic
5 241516102 Rack-can
6 241515901 Lug-dairy compartment
7 241515601 Door-dairy
13 240581905 Door Stop, black, ref
15 241534515 Door-refr, black, complete assy
18 241533608 Handle-refr door, aluminum
21 218781101 Screw, pan head, 8-18 x 0.625
21A 240598402 Screw, 10-32 x 1/2
21B 241543202 Screw, #10-16 x 2
22 240328203 Bearing-hinge, black, closer
22B 240328404 Bearing-hinge, black, upper
27A 241812702 Retainer, tall bottle
37 241533708 Trim-door, aluminum, side
37A 241534208 Trim-door, aluminum, top
37B 241533808 Trim-door, aluminum, bottom
48 241808224 Bin-door, ref
49 241808222 Bin-door, 2 liter
49* 241779903 Liner, bin, 2 liter
49A 241808223 Bin-door, gallon, w/trim
49A* 241780003 Liner, bin, gallon
50 241508401 Cover-magnet
70 241515801 Compartment-dairy, removable

Publication No: 5995536389 FGTC2349KS1
03/09 6
CABINET
100
92
92
90
89
83
82
81
81
72
66
54
50
47
45
45
45
45
45
45
45
43
42
42
41
38
38A
37
37
28
30A
30
23
23
22
22
21C
21C
11
10A
10
N58BABAAD4
14A
21C
21C
40
40A

FGTC2349KS1 Publication No: 5995536389
# Functional Parts 7 03/09
* Non-Illustrated Parts
CABINET
POS. NO PART NO. DESCRIPTION
10 241509804 Cover-air duct
10A 241719711 Cover-evap coil, lower
11 5303208309 Plug-hole, factory test
14A 241547901 Switch-light/lamp, frzr door
21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 Plate-door closer
23 240402702 Screw-#10-32 x 1/4 flat hd
28 240335502 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603703 Bracket-lower hinge, ref
30A 241603704 Bracket-lower hinge
37 240337610 Trim-cabinet corner, black, (2)
38 241617905 Bracket-upper hinge
38A 241617906 Bracket-upper hinge
40 241519208 Cover-upper hinge, silver metallic
40A 241519207 Cover-upper hinge, silver metallic
41 241550801 Grommet-shelf mtg, 1.40" long
41* 241550701 Grommet-shelf mtg, .96" long
42 240578902 Screw, hex head, 1/4-20 x 5/8
43 240335006 Roller Assy, front, (2)
45 241500303 Screw, hex washer head, 8-18AB x 0.500
47 241513001 Channel-shelf mtg, side, (2)
50 241511112 Board-main power
50* 241524802 Seal, housing
50* 241532501 Clip-harness
54 241532401 Channel
66 241513601 Damper Assy
72 240324414 Grille/Kickplate, metallic gray
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 Roller, compressor base, rear, (2)
83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241733902 Cover-access, w/label
90 218249808 Seal-coil cover
92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 Support, crisper cover, front, (4)
100* 240350802 Support, crisper cover, rear, (4)
* 5303321321 Paint, touch-up, black
* 241591701 Louver

Publication No: 5995536389 FGTC2349KS1
03/09 8

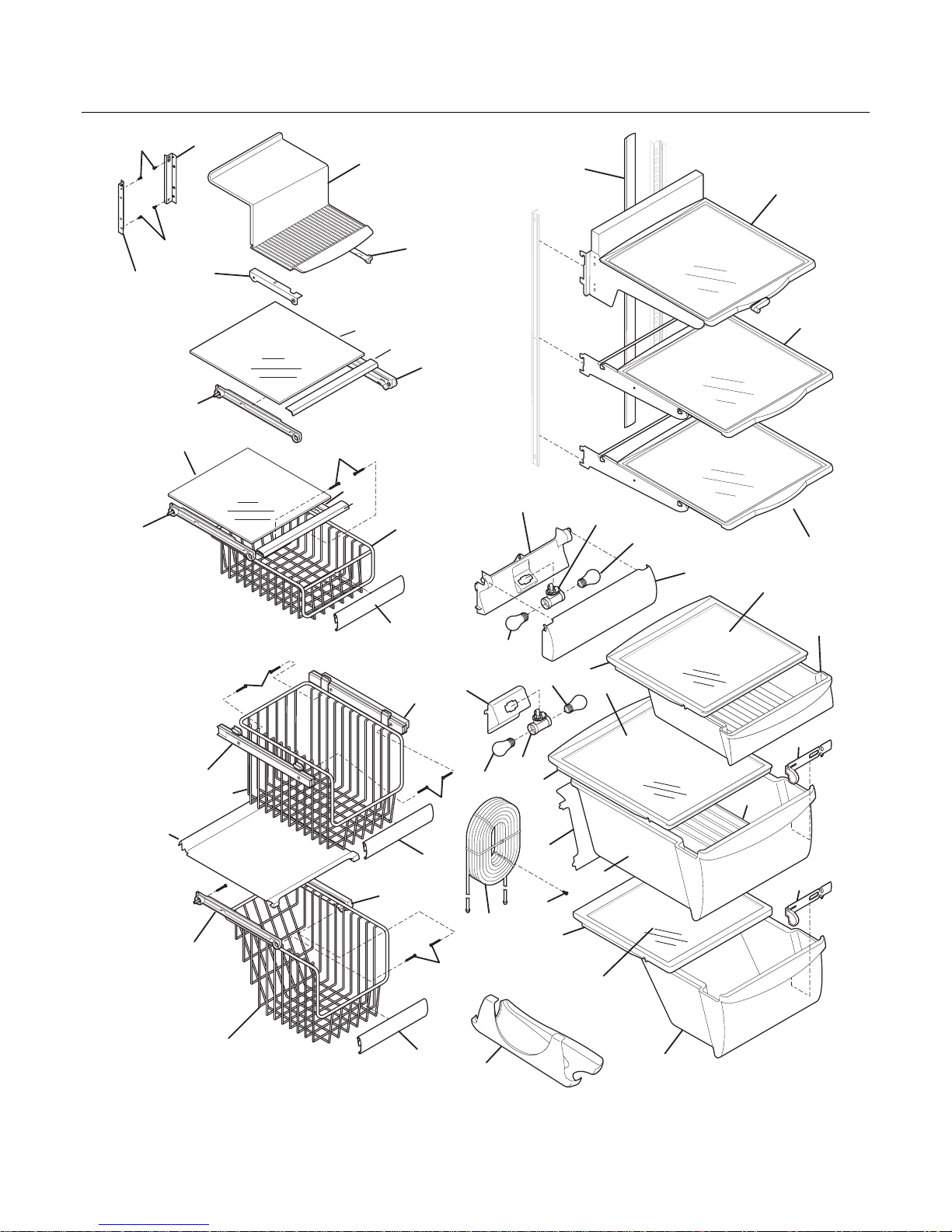

SHELVES
51A
140
136
126
126
122
121
120
109
108
107
101
101
100
97
81
81
62
60
52B
52A
52
81
52
51B
51
51
49B
49A
49
47B
47A
47
27A
27
26A
143
26
25B
25A
25
24C
24
24
21
16
16
15
15
15
15
2
2
2
N58SDDLEH12
11A
39
41
11
39

FGTC2349KS1 Publication No: 5995536389
# Functional Parts 9 03/09
* Non-Illustrated Parts
SHELVES
POS. NO PART NO. DESCRIPTION
2 241510608 Trim-basket
11 240443357 Shelf-freezer, glass, lower
11A 240443358 Shelf-freezer, glass, upper
15 241552801 Light Bulb
16 241622802 Socket-light, frz light
16* 241513101 Harness-wiring
21 5304455658 Screw, hx wshr hd sems, 8-15A x 0.625
24 240350137 Shelf-"Spill-Safe", cantilver, sliding
24C 240424615 Shelf-"Spill-Safe", "Aspect", complete
25 240599302 Cover-crisper pan, upper
25* 240362101 Clip-slide, cover-crisper
25A 240350902 Cover-crisper pan, lower
25B 240599801 Cover-meat pan
26 240351062 Pan-crisper, upper
26* 240349801 Clip-slide, pan-crisper
26* 241595202 Clip-slide, pan-crisper
26A 241638201 Control-humidity
26A* 241638101 Frame-humidity control
27 240351241 Pan-crisper, lower
27A 240362201 Control-humidity
39 240367603 Trim-shelf, 11.65", front
41 241637601 Baffle-air
47 240350649 Insert-pan cover, glass
47A 240350603 Insert-pan cover, glass
47B 240443356 Insert-pan cover, glass
49 241515001 Basket-sliding
49A 241528001 Basket-sliding, upper, half
49B 241514901 Basket-sliding, upper, full
51 241514501 Hanger-basket, RH
51A 241514701 Hanger-shelf glass, RH
51B 240579803 Hanger-basket, RH
52 241514601 Hanger-basket, LH
52A 241514801 Hanger-shelf glass, LH
52B 240579804 Hanger-basket, LH
60 218362501 Screw, hex washer head, 8-18AB x 1.250, spacer, (2)
62 240599718 Pan-meat
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
97 241532005 Water Tank
100 240326304 Cover-water tank
101 218493101 Screw, hex washer head, 8-18AB x 1-3/4
107 241513402 Shield-light, meat pan
108 241513301 Cover-wiring, meat pan light
109 241513202 Base-crisper light socket
120 241691701 Shelf-ice cream
121 241504701 Rail-ice cream shelf, LH
122 241504702 Rail-ice cream shelf, RH
126 241674401 Channel, auger mtg, LH
126 241674402 Channel, auger mtg, RH
136 241657701 Dispenser-can, white
140 240430505 Channel, wtr tube cover
143 240423301 Divider-crisper pan
* 241935573 Energy Guide

Publication No: 5995536389 FGTC2349KS1
03/09 10
CONTROLS
201
199
198
151
155
154
206
149
139
138
137
116
115
81
81
81
75
60
23
22
205
21
17
16
15
15
14
13
9
8
5
N58TBBAAB5
54
50
75A

FGTC2349KS1 Publication No: 5995536389
# Functional Parts 11 03/09
* Non-Illustrated Parts
CONTROLS
POS. NO PART NO. DESCRIPTION
5 # 5308000010 Fan Blade, red, evaporator fan
8 215474201 Washer, "slinger", nylon, evap fan shaft
9 241518301 Bushing, motor mounting
13 241509402 Motor, evaporator fan
13* 241510501 Seal-diffuser
14 241517701 Clip, evap fan motor
15 241552801 Light Bulb
16 241622802 Socket-light, frz light
17 241516201 Box-control, front
17*# 241510802 Harness-wiring, frz light
21 # 240596705 Control, electronic
22 240597203 Sensor
23 241512901 Cover-sensor
23* 5304455649 Screw, pan hd, 6-20 x 0.438
50 241511112 Board-main power
50* 241524802 Seal, housing
50* 241532501 Clip-harness
54 241532401 Channel
60 241510301 Diffuser-air
75 241517802 Shield-light
75A 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
81 5304455658 Screw, hx wshr hd sems, 8-15A x 0.625
115 241518501 Damper, motorized
116 241518601 Seal-damper, foam
137 240396401 Filter, water, carbon cassette, front, with o'rings
137* 240396701 Bypass, water filter, Optional Part
138 240397301 Button-filter release
139 240396002 Base-water filter
139* 240526901 O-ring, wtr filter base
149 241517601 Shroud-evap fan mtg
149* 241528304 Seal, foam, evap fan assy
151 241526001 Filter housing
154 241525801 Duct-air
155 241526102 Motor-air filter
155* 241527202 Harness-wiring, filter fan
198 240397401 Retainer
199 240397501 Rod
199* 240398401 Spring-filter release rod
201 241816703 Switch-membrane
205 241525901 Air Filter Door
206 241504902 Filter-air
* 3205266 Edge Protector, wiring harness
* 241537401 Shield

Publication No: 5995536389 FGTC2349KS1
03/09 12
SYSTEM
86
85
30
84
83
83
82
82
70
62
61
60
59B
59B
59A
59A
59A
59
58
57
45
45
44
41
34
34
29
26
25
25
23
23
22
21
16
15
14
6
4
3
1
N58CACBAA3
50

FGTC2349KS1 Publication No: 5995536389
# Functional Parts 13 03/09
* Non-Illustrated Parts
SYSTEM
POS. NO PART NO. DESCRIPTION
1 240333603 Condenser
3 218679607 Block-evap coil, styrofoam, (2)
4 # 218944001 Drier-filter, R134a System
6 # 241516901 Cord-service
6* # 241510802 Harness-wiring, frz light
6* # 241519902 Harness-wiring
6* # 241527202 Harness-wiring, filter fan
6* # 241636203 Harness-wiring, machine compt
14 # 241940201 Heater-defrost
15 # 5303918284 Evaporator Kit
16 5308000110 Strap-evap/heater, aluminum, (2)
21 # 5303918214 Thermostat-defrost, kit
22 240330011 Base-compressor mtg
22* 218252201 Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 Grommet-compr mtg, (4)
25 240491503 Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241697501 Pan-defrost drain
29 # 5303918396 Compressor Kit
30 # 241577505 Invertor
34 240405201 Grommet, rubber, black, cond tube/wire
41 240555002 Screw-#8-32 X 3/8
44 215174700 Clamp-service cord, strain relief, galv steel
45 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
50 241635501 Housing-control, apollo lighting
50* 241641501 Screw
57 240542601 Clip-wiring harness
58 240433203 Screw, hex washer head, 8-18 x 3/8
59 240315502 Shroud-cond fan
59* 240346701 Tape-foam seal, shroud
59* 240359403 Screw-fan shroud, (2)
59A 240346501 Bracket-support, cond mtr, (3)
59B 240346601 Grommet-bracket, (3)
60 # 241584301 Motor-condenser fan
61 241639501 Blade-condenser fan
62 240429402 Trough-drain
70 218990801 Bracket-evap/cvr mtg
82 5304418225 Roller, compressor base, rear, (2)
83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 241957901 Tube-drain, lower
85 241871501 Tube-connector, suction
86 240409302 Spacer-cond tube, black
* 5303918222 Hot Tube Repair Kit, service
* # 5303918327 Heat Exchanger Kit, suction line

Publication No: 5995536389 FGTC2349KS1
03/09 14
ICE & WATER DISPENSER
87A
87
56
43
39
38A
38
35
30C
30A
30B
30
24A
24
23
17
17
10
8
4
14
1
N58XEBAAA2
38C
17
41

FGTC2349KS1 Publication No: 5995536389
# Functional Parts 15 03/09
* Non-Illustrated Parts
ICE & WATER DISPENSER
POS. NO PART NO. DESCRIPTION
1 218976409 Tube, water, door
1* 218976418 Tube-water inlet, inlet valve, to filter
1* 218976421 Tube-water inlet, valve to door
1* 218976915 Tube-water inlet, inlet valve, to filter
1* 240561702 Seal-water inlet, inlet valve, to ice maker
4 241678905 Cover-module, silver metallic
4* 240363402 Screw-#8-18 X 1/2, #6 hd plask
8 241680504 Module-dispenser
10 241688901 Spring-torsion
14 241543418 Label-module cover, silver metallic
17 241679801 Screw
23 241659204 Drip Tray, silver metallic
24 241685704 Actuator, stainless
24A 241682304 Actuator-ice, stainless
30 241688401 Door Assy-ice chute
30A 241688501 Door center
30B 241688601 Insulation-door
30C 241688701 Door seal
35 241689301 Damper-rotary
38 241527601 Board-power
38A# 241689101 Switch-micro, single pole, double throw
38C# 241708307 Board-control
38C* 241680001 Harness-ribbon cable
39 241688801 Pin-hinge
41 241689001 Spring-actuator
43 215296301 Screw, plask h/l, #6 x 3/8
56 241689201 Screw-micro switch, pan head
87 241688302 Bearing Plate
87A 241688301 Bearing Plate
* 240411502 Clip-dispenser cover
* 241686201 Insulator-electrical
* 5303918256 Dispenser heater kit

Publication No: 5995536389 FGTC2349KS1
03/09 16
ICE CONTAINER
45
4
45A
48
47
46
45B
45C
45D
50
18 20
15
16
44
44
44
51
26
26
26
26
10
26
43
43
43
49
7
3
2
23
39
70
39
6
17
53
52
37A 34
33
37B
34 33
37C
54
35A
35B
41
56
55
13
25
25
22
N58YDAAAC4
39

FGTC2349KS1 Publication No: 5995536389
# Functional Parts 17 03/09
* Non-Illustrated Parts
ICE CONTAINER
POS. NO PART NO. DESCRIPTION
2 241684701 Auger-ice
3 241685201 Cam-drive
4 241515202 Container-ice, bucket only
6 241685101 Drum-ice disp
7 241515302 Front-ice container
10 241726501 Bar-drive
13 241685301 Gate
15 241555401 Light Bulb
16 241559801 Socket-light
17 241684501 Drive Blade
18 # 241676201 Motor-auger
18* 241522901 Harness-wiring, icmkr/container
20 241675502 Cover-motor
22 240597203 Sensor
22* 241519401 Clip, sensor
23 241684001 Plate-front
25 241690701 Screw, hex washer head, 8-32T x 0.375
26 215503203 Screw, cr pan hd, 10-16 x 0.500
33 241684801 Spacer
34 241689801 Spacer
35A 241684301 Fixed Blade, round
35B 241684201 Fixed Blade, square
37A 241684101 Blade, crusher #1
37B 241684102 Blade, crusher #2
37C 241684103 Blade, crusher #3
39 241690501 Screw
41 241685601 Housing-crusher
43 218359202 Screw, pan head, 8-32 x 0.250
44 241842101 Screw, 8-32 x 1/4
45 # 241675701 Solenoid Assy, 115V
45A 241675901 Spring-solenoid
45B 241676001 E-Ring-solenoid
45C 241676101 Actuator-solenoid
45D# 241675801 Solenoid, 115V
46 241684402 Control Rod
47 241731801 Spring-control rod
48 241684602 Bracket-control rod
49 241676501 Rail Assy
50 241675601 Guide-solenoid
51 241676301 Rotation Stop
52 241684901 Spacer-fixed blades
53 241690402 Pin-spiral, fixed blades
54 241685001 Nut-auger
55 241690306 Washer
56 241690201 E-ring
70 241504601 Plate-mounting
70* 215005101 Screw, hanger/rlr mtg, 8-10 x 7/16
70* 241551602 Screw, hex head, 8-18B x 0.875
70* 241716801 Clip
* 240562101 Insulator
* 241914703 Ice Container Assy, w/moving parts

Publication No: 5995536389 FGTC2349KS1
03/09 18
ICE MAKER
14 15
2
41
24
25
51
64
6
640
43
7
6
16
67
21
19
22
66
60
18
17
39
23
23
34
34
34
11
38
29
30
27
9
15
15
31
32
36
4
35
5
37
8
1
55 INSTALLATION PARTS
N58I115TServo
12
33
13
45
42

FGTC2349KS1 Publication No: 5995536389
# Functional Parts 19 03/09
* Non-Illustrated Parts
ICE MAKER
POS. NO PART NO. DESCRIPTION
1 218976409 Tube, water, door
1* 218976418 Tube-water inlet, inlet valve, to filter
1* 218976421 Tube-water inlet, valve to door
1* 218976915 Tube-water inlet, inlet valve, to filter
1* 240561702 Seal-water inlet, inlet valve, to ice maker
2 5304456650 Spring-shutoff arm, ice maker
4 5304458380 Gear
5 5304458383 Plate-mounting
6 5304458386 Screw
7 # 5304458382 Motor-ice maker Svo
8 5304458388 Spacer-hold switch
9 5304456662 Cam
11 # 5304458400 Thermal Cutoff, ice maker
12 5304458379 Harness-wiring
13 5304456665 Thermostat, ice maker
14 5304458384 Screw
15 # 5304456667 Switch-micro, (3)
16 5304458395 Housing, control
17 5304456669 Mold-ice maker, w/therm cut off
18 5304458377 Ejector-ice
18* 241522901 Harness-wiring, icmkr/container
19 5304458378 Cup-water inlet
21 5304458390 Ice Stripper
22 5304458375 Shut-off Arm
23 5304458394 Screw
24 5304458391 Lever Arm
25 5304456676 Screw, M 4x12.8 #2, lever arm/sprt
27 5304458385 Screw
29 5304458393 Screw
30 5304458387 Screw
31 5304458381 Insulator
32 5304456681 Plate-valve switch
33 5304458403 Retainer-thermostat
34 5304456678 Screw, M 3x12 #3, (2)
35 5304456684 Screw
36 5304458376 Cover-ice maker
37 5304456682 Spring, timing adjust
38 5304458398 Clip
39 5304458399 Conductor-heat
40 5304458401 Clip-retainer
41 5304458389 Screw
42 218515403 Clip-grille
43 241720601 Extension
45 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
51 241796402 Tube-water fill, extension
55 # 241734301 Valve-water, triple solenoid
55* 218709101 Screw, hex head, 10-32 x 0.500
55* 240363602 Screw-shoulder
60 5304455651 Screw, hex washer head, 8-15A x 0.500
64 5304455846 Clamp, .31 ID, steel, water tube
66 5304458374 Bracket-ice maker
67 5304458392 Switch-on/off
* 241583301 Deflector-air, ice maker
* 241806601 Connector-water, straight
* 5304456660 Screw, M 4x6 #2
* 5304456689 Washer, nylon
* # 241709801 Ice Maker, radius cube, 115 V, no instl parts

Publication No: 5995536389 FGTC2349KS1
03/09 20
WIRING SCHEMATIC
DC DAMPER MOTOR
NTC-FF
U.I DISPLAY
TDO
RD1 COM
+5
J1-2 J1-1 J1-3
J1-4
RED
GRN
BLK
NATURAL
BARE
J1-7
J1-8
J1-9
J1-10
J1-11
J1-12
GRAY CABLE
RD1 TDO
COM
+5
SHEILD
NTC-AMBIENT
ALARM
DEFROST JUMPER OPEN=ADC SHORT-TIMER
J1
A
M
1
2
3
4
A
A
RED/YEL
BLK/YEL
BRN/YEL
WHT/YEL
GRY
GRY
J1-1
J1-2
J1-3
J1-4
J1-5
J1-6
NTC-FREEZER
AIR FILTER FAN
EVAPORATOR FAN
GRY
GRY
J2-9
J2-8
RED
BLK
WHT/RED
BLK/RED
DK. BLU/WHT
RED/WHT
YEL/WHT
BRN/WHT
RED/BLK
BLK
FG
VCC+12V
VS
COM
RED BLK
VARIBLE SPEED DC CONTROLLEDLO-VOLT DC
VCC COMPRESSOR
(N) WHT
(L) PUR
A/C
LT.BLU
BLK
INPUT
J2-7
J2-6
J2-10 J2-5
J2-4
J2-3
J2-2
J2-1
J2
+5
LO-VOLT DC
HI-VOLT AC
DTT
BRN
DEFROST HEATER J3-7
J3-8 J3-6
J3-3
J3-5
J3-1
J3-4 J3-2
BLK
YEL/GRY
LT. BLU YEL/PNK
ORG/WHT
L1
FF LIGHTS N
FREEZER LIGHT SENSE
FROM IWD. FAST ICE/FREEZE
CONDENSER FAN
STANDARD COMPRESSOR
M
RED
GRN/YEL
HI-VOLT AC
DEFROST CURRENT SENSE
3A
J3 VCC
COMPRESSOR ONLY
STANDARD COMPRESSOR ONLY
M
M
5
6
7
8
5
6
7
8
5
4
3
2
1
5
4
3 2
1
6
5
4
3
2
1
6
5
4
3
2
1
CATCH
LATCH
CATCH
LATCH
CATCH
LATCH
12 11
10
9
8
7
10
9
8
7
6
1
2
3
4
YEL/BLK
YEL/GRY
OPEN
YEL/PNK
YEL/RED
APOLLO LIGHTING CONTROL
FZ LIGHTS
YEL/RED
YEL/BLK
LT. BLU
J1
J2
J2-3 J2-2 J2-1 J1-3 J1-2 J1-1
2
1
3
3
2
1
WHEN APOLLO NOT PRESENT CONNECT THESE TOGETHER
