Frigidaire FRT14B4A User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRT14B4AW0 FRT14B4A R134a white (right) 115
FRT14B4AZ0 FRT14B4A R134a white (left) 115
MARKET
North America
Publication No.
5995359014
010920
-EN/SERVICE/KHB
390
TOP MOUNT
REFRIGERATOR
Model No.
FRT14B4A
©2001 White Consolidated Industries, Inc.
All rights reserved
FACTORY
PARTS CATALOG
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O. Box 212378, Augusta, GA 30917
WIRING DIAGRAM - 240379007
OWNER’S GUIDE - 240400105
SERVICE DATA SHEET - 240379007

09/01 2
Publication No. FRT14B4A
5995359014
DOOR

# = Fast-moving Parts 3 09/01
* = Non-Illustrated Parts
FRT14B4A Publication No.
5995359014
A = FRT14B4A (FRT14B4AW0)
B = FRT14B4A (FRT14B4AZ0)
POS. NO PART NO DESCRIPTION
1 # 240514601 A B Gasket-frzr door,white ,magnetic
2 # 240514602 A B Gasket-refr door,white ,magnetic
4 240331404 A B Rack-door,18.65"
4A 240331407 A B Rack-door,9.04"
5 240311502 A B Support-door rack,2 liter ,RH
5A 240331502 A B Support-door rack,gallon ,RH
6 240311501 A B Support-door rack,2 liter ,LH
6A 240331501 A B Support-door rack,gallon ,LH
7 240337701 A B Door-dairy,w/o graphics ,white
8 240331405 A B Rack-door,16.21"
10 240381301 A B Plug-button,hinge brg hole ,white ,(2)
11 240415401 A B Door,frzr ,white ,complete assy
12 240415201 A B Label-nameplate,white
13 240312403 A B Door Stop,white ,ref
13A 240312404 A B Door Stop,white ,frzr
14 240494001 A B Plug-button,white
15 240415501 A B Door,refr ,white ,complete assy
18A 218428101 A B Handle-door,white ,w/block & screw
21 240383401 A B Screw,truss hd quad ,#10-16 x .500
21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500
22 240311201 A B Bearing-hinge,natural color ,(8)
72 218397000 A B Button-handle mtg,dovetail
73 218396700 A B Block-handle mtg,dovetail
74 215503200 A B Screw,cr pan hd ,10-16 x 0.500
96 240345503 A B Plug-foam hole,white
DOOR

09/01 4
Publication No. FRT14B4A
5995359014

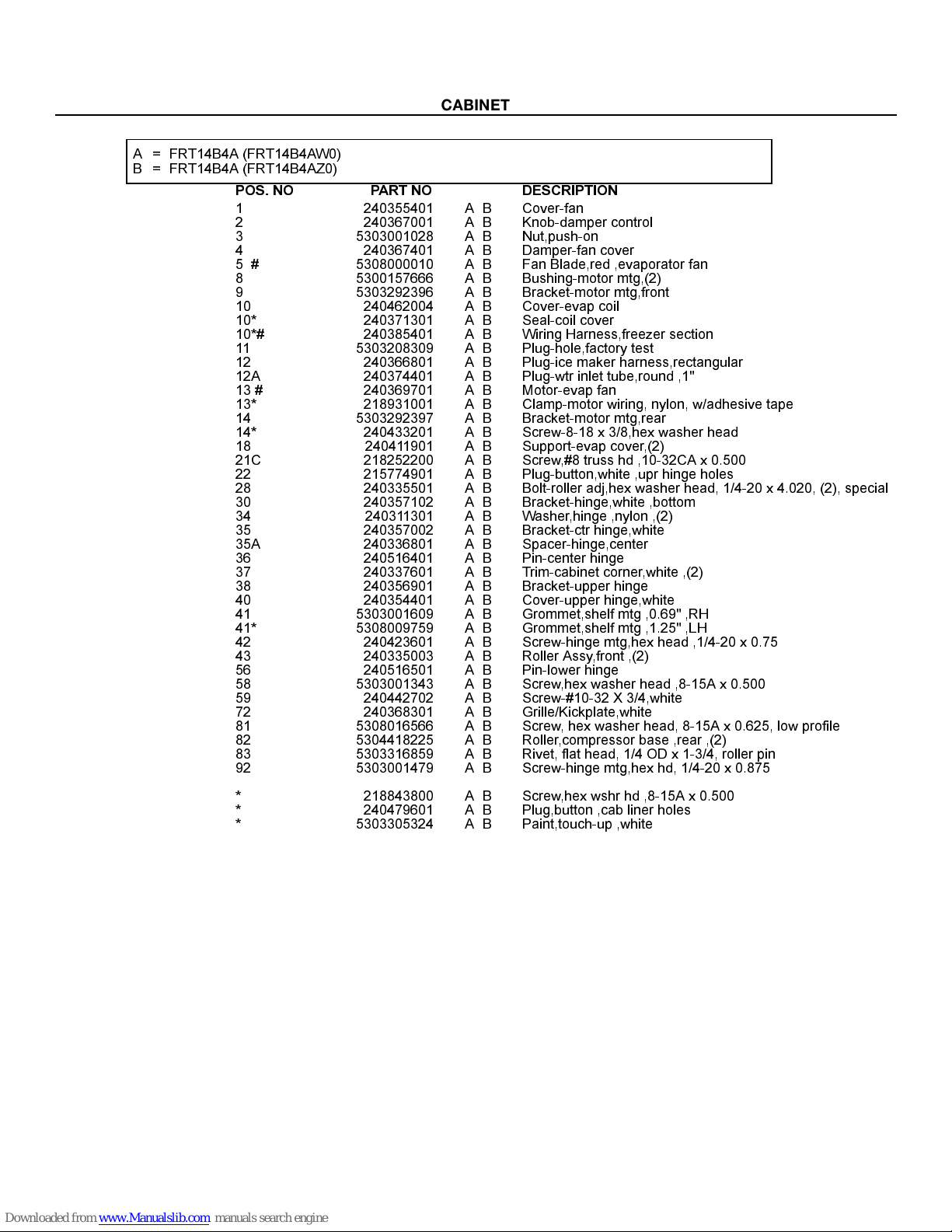

CABINET

# = Fast-moving Parts 5 09/01
* = Non-Illustrated Parts
FRT14B4A Publication No.
5995359014
A = FRT14B4A (FRT14B4AW0)
B = FRT14B4A (FRT14B4AZ0)
POS. NO PART NO DESCRIPTION
1 240355401 A B Cover-fan
2 240367001 A B Knob-damper control
3 5303001028 A B Nut,push-on
4 240367401 A B Damper-fan cover
5 # 5308000010 A B Fan Blade,red ,evaporator fan
8 5300157666 A B Bushing-motor mtg,(2)
9 5303292396 A B Bracket-motor mtg,front
10 240462004 A B Cover-evap coil
10* 240371301 A B Seal-coil cover
10*# 240385401 A B Wiring Harness,freezer section
11 5303208309 A B Plug-hole,factory test
12 240366801 A B Plug-ice maker harness,rectangular
12A 240374401 A B Plug-wtr inlet tube,round ,1"
13 # 240369701 A B Motor-evap fan
13* 218931001 A B Clamp-motor wiring, nylon, w/adhesive tape
14 5303292397 A B Bracket-motor mtg,rear
14* 240433201 A B Screw-8-18 x 3/8,hex washer head
18 240411901 A B Support-evap cover,(2)
21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500
22 215774901 A B Plug-button,white ,upr hinge holes
28 240335501 A B Bolt-roller adj,hex washer head, 1/4-20 x 4.020, (2), special
30 240357102 A B Bracket-hinge,white ,bottom
34 240311301 A B Washer,hinge ,nylon ,(2)
35 240357002 A B Bracket-ctr hinge,white
35A 240336801 A B Spacer-hinge,center
36 240516401 A B Pin-center hinge
37 240337601 A B Trim-cabinet corner,white ,(2)
38 240356901 A B Bracket-upper hinge
40 240354401 A B Cover-upper hinge,white
41 5303001609 A B Grommet,shelf mtg ,0.69" ,RH
41* 5308009759 A B Grommet,shelf mtg ,1.25" ,LH
42 240423601 A B Screw-hinge mtg,hex head ,1/4-20 x 0.75
43 240335003 A B Roller Assy,front ,(2)
56 240516501 A B Pin-lower hinge
58 5303001343 A B Screw,hex washer head ,8-15A x 0.500
59 240442702 A B Screw-#10-32 X 3/4,white
72 240368301 A B Grille/Kickplate,white
81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B Roller,compressor base ,rear ,(2)
83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
92 5303001479 A B Screw-hinge mtg,hex hd, 1/4-20 x 0.875
* 218843800 A B Screw,hex wshr hd ,8-15A x 0.500
* 240479601 A B Plug,button ,cab liner holes
* 5303305324 A B Paint,touch-up ,white
CABINET

09/01 6
Publication No. FRT14B4A
5995359014
SHELVES

# = Fast-moving Parts 7 09/01
* = Non-Illustrated Parts
FRT14B4A Publication No.
5995359014
A = FRT14B4A (FRT14B4AW0)
B = FRT14B4A (FRT14B4AZ0)
POS. NO PART NO DESCRIPTION
10 215667501 A B Tray-ice,plastic
11 5303282284 A B Shelf-freezer,"table type"
12 240362502 A B Diffuser-air,top
13 240362601 A B Diffuser-air,bottom
14 240505801 A B Switch-light/lamp
15 240436701 A B Light Bulb/Lamp, A-15, 40 W, 120 V, miniature
16 # 241500701 A B Socket-light/lamp
17 240368001 A B Box-control
17*# 240388701 A B Wiring Harness,control box
18 240360801 A B Knob-control
21 # 5304421256 A B Control-temperature
22A 240468201 A B Tube, sensor sleeve, 31 inch, plastic, white
23 # 215846606 A B Timer-defrost, 60 Hz, 120 V, 10 hour/30 min
23* 5303001259 A B Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
24 240360902 A B Shelf,sliding ,wire
25 240364706 A B Cover-crisper pan
25* 240494301 A B Retainer-crisper cover
26 240364501 A B Pan,crisper ,(2)
30 240361801 A B Cover,meat pan hanger ,drop through
31 240354201 A B Pan-meat,white ,no graphics
34 3018945 A B Container-ice
81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
SHELVES

09/01 8
Publication No. FRT14B4A
5995359014
SYSTEM

# = Fast-moving Parts 9 09/01
* = Non-Illustrated Parts
FRT14B4A Publication No.
5995359014
A = FRT14B4A (FRT14B4AW0)
B = FRT14B4A (FRT14B4AZ0)
POS. NO PART NO DESCRIPTION
1 # 240406402 A B Condenser,static
1* 240405201 A B Grommet, mounting, rubber, black, holds tube/wire
1* 5303208866 A B Spacer-cond tube,black
2 5308000296 A B Bracket,condenser mtg ,(4)
2* 5308009617 A B Washer,ext tooth lock ,#10 ,grounding
4 # 218944001 A B Drier-filter,R134a System
6 # 240375401 A B Wiring Harness, machine compt, w/ service cord
6* # 240385401 A B Wiring Harness,freezer section
6* # 240388701 A B Wiring Harness,control box
14 # 5303918203 A B Defrost Heater Kit
15 # 5303918257 A B Evaporator Kit
16 5308000110 A B Strap-evap/heater,aluminum ,(2)
17 240434001 A B Trough-drain
18 240362301 A B Insulation Block,RH
20 240362401 A B Insulation Block,LH
21 # 5303918202 A B Thermostat-defrost,kit
22 240330005 A B Base-compressor
22* 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500
23 216498900 A B Grommet,compressor
25 240420301 A B Screw, shoulder typ CF,1/4-28 x 0.965, hex washer hd
26 240346901 A B Pan-defrost drain
27 5303001348 A B Nut,lock ,1/4-20 ,drain pan mtg
28 5303916001 A B Pan Retainer Kit,Service
29 # 5303918233 A B Compressor,R134a ,w/ electricals
30 # 218721113 A B Starter-PTC
32 218740800 A B Clamp,elec cont mtg ,compressor
41 5308000039 A B Screw, hex washer head, 8-32CA x 0.500, serrated head
44 5303001199 A B Clamp-wiring harness, strain relief, galv steel
45 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
55 # 218909901 A B Capacitor-run,220 VAC ,15 microfarad
57 240403601 A B Clip-wiring harness
82 5304418225 A B Roller,compressor base ,rear ,(2)
83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 240367101 A B Tube-drain,lower
85 240346202 A B Tube-connector,suction
* 218843800 A B Screw,hex wshr hd ,8-15A x 0.500
* 240396801 A B Clamp,tube/wiring ,nylon ,black/natural
* # 5303918263 A B Heat Exchanger Kit,suction line
* # 5303918234 A B Hot Tube Repair Kit,Service
SYSTEM

09/01 10
Publication No. FRT14B4A
5995359014
WIRING SCHEMATIC

# = Fast-moving Parts 11 09/01
* = Non-Illustrated Parts
FRT14B4A Publication No.
5995359014
WIRING DIAGRAM
