Frigidaire FRS23H5AS User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRS23H5ASB6 FRS23H5AS R134a stainless/black 115
MARKET
North America
Publication No.
5995384780
030128
-EN/SERVICE/KHB
357
SIDE BY SIDE
REFRIGERATOR
Model No.
FRS23H5AS
©2003 Electrolux Home Products, Inc.
All rights reserved
WIRING DIAGRAM - # 240389608
OWNER’S GUIDE - # 240389310
SERVICE DATA SHEET - #240389608
ELECTROLUX HOME PRODUCTS, INC.
P.O. BOX 212378, Augusta, GA 30917
FACTORY
PARTS CATALOG

01/03 2
Publication No. FRS23H5ASB6
5995384780
FREEZER DOOR

# = Fast-moving Parts 3 01/03
* = Non-Illustrated Parts
FRS23H5ASB6 Publication No.
5995384780
FREEZER DOOR
POS. NO PART NO DESCRIPTION
1 # 240390608 Gasket-frzr door, black, magnetic
4A 240367301 Bin-door, frzr-upper
4B 240359001 Bin-door
11 240451870 Door-frzr, stainless steel, complete assy
13A 240537106 Door Stop,black, frzr
18 240359108 Handle-door, black, LH
21 218781100 Screw,pan head, 8-18 x 0.625
21A 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
21C 240521302 Screw, #8-18 x 3/4
22A 240561602 Bearing-hinge, closer
22C 240328404 Bearing-hinge, black, upper
37 240359203 Trim-handle, 30.13", black, lower
68 240465801 Chute-ice
72 240421701 Button-handle mtg, dovetail
73 218396700 Block-handle mtg, dovetail
74 215503200 Screw, cr pan hd, 10-16 x 0.500
* 218490900 Cleaner,stainless steel
* 240545101 Connector-water,straight
* 240552101 Harness-wiring,door
* 5303918256 Dispenser heater kit

01/03 4
Publication No. FRS23H5ASB6
5995384780

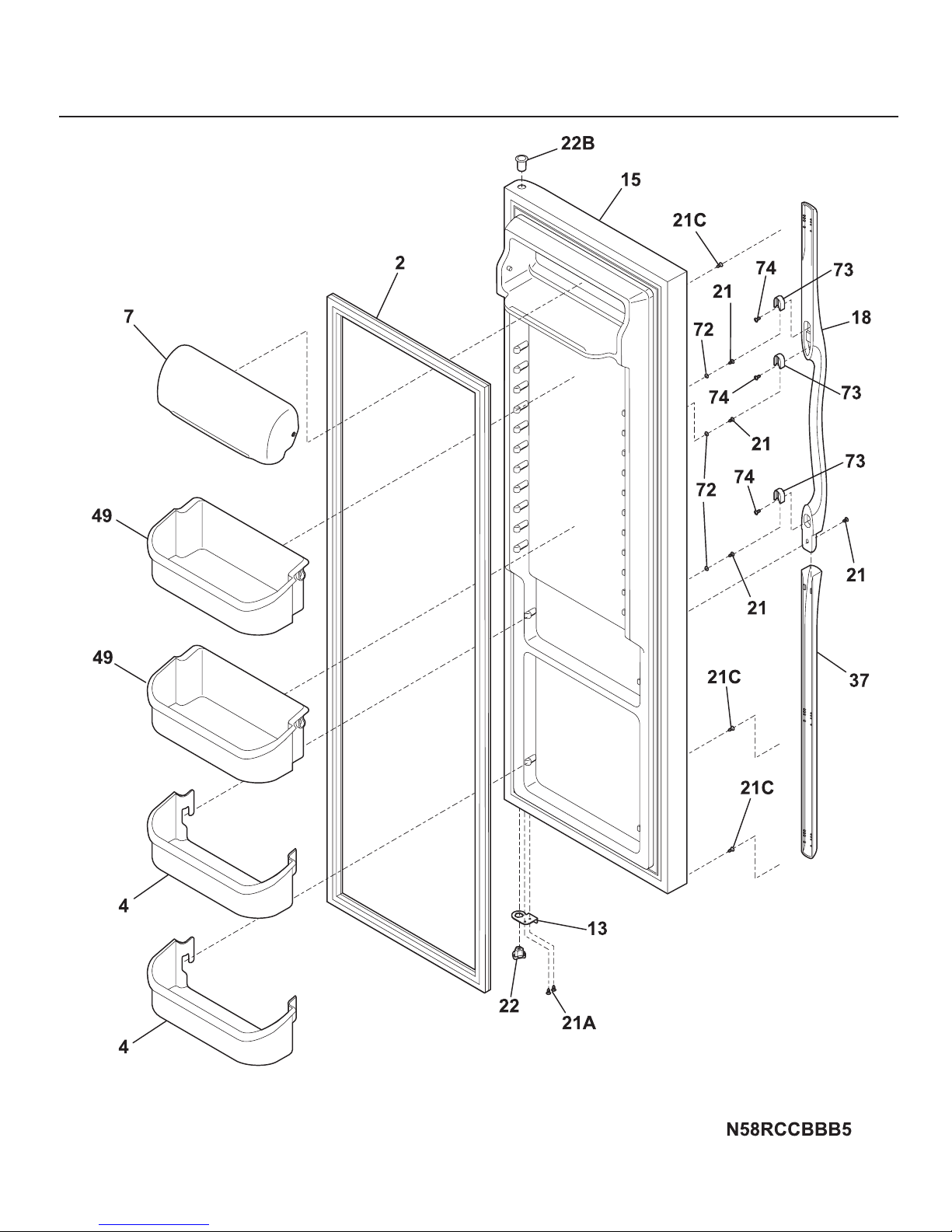

REFRIGERATOR DOOR

# = Fast-moving Parts 5 01/03
* = Non-Illustrated Parts
FRS23H5ASB6 Publication No.
5995384780
POS. NO PART NO DESCRIPTION
2 # 240390607 Gasket-refr door, black, magnetic
4 240363701 Bin-door, 2-liter
7 240338303 Door, dairy, clear
13 240537105 Door Stop, black, ref
15 240451939 Door-refr, stainless steel, complete assy
18 240359103 Handle-door, black, RH
21 218781100 Screw, pan head, 8-18 x 0.625
21A 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
21C 240521302 Screw,#8-18 x 3/4
22 240561601 Bearing-hinge,closer
22B 240328403 Bearing-hinge,upper
37 240359203 Trim-handle,30.13" ,black ,lower
49 240324501 Bin-door,gallon
72 240421701 Button-handle mtg,dovetail
73 218396700 Block-handle mtg,dovetail
74 215503200 Screw,cr pan hd ,10-16 x 0.500
* 218490900 Cleaner,stainless steel
REFRIGERATOR DOOR

01/03 6
Publication No. FRS23H5ASB6
5995384780
CABINET

# = Fast-moving Parts 7 01/03
* = Non-Illustrated Parts
FRS23H5ASB6 Publication No.
5995384780
POS. NO PART NO DESCRIPTION
10 240435901 Cover-air duct
10A 240475901 Cover-evap coil,lower
11 5303208309 Plug-hole,factory test
14 240505801 Switch,light/lamp
14A# 215486600 Switch-light/lamp
21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500
22 240457701 Plate-door closer
23 240402701 Screw-#10-32 x 1/4 flat hd
28 240335501 Bolt-roller adj,hex wshr hd, 1/4-20 x 4.020, (2), special
30 240419103 Bracket-lower hinge, ref
30A 240419104 Bracket-lower hinge
37 240337603 Trim-cabinet corner,black ,(2)
38 240327202 Bracket-upper hinge
40 240327007 Cover-upper hinge,black
41 240358701 Grommet-shelf mtg,1.40" long
41* 240358801 Grommet-shelf mtg,.875" long
42 240315301 Screw-hinge mtg,hex head ,1/4-20 x 0.75
43 240335003 Roller Assy,front ,(2)
45 241500301 Screw,hex washer head ,8-18AB x 0.500
47 240349401 Channel-shelf mtg,side ,(2)
58 218749600 Screw,#10 pan hd ,8-18 x .5
66 240504901 Cover-damper
66* 240518802 Pin-push, push-in, plastic
66A 240505001 Damper-meat keeper
66B 240355901 Insulation-damper
72 240324405 Grille/Kickplate, black
81 5308016566 Screw, hex wshr hd, 8-15A x 0.625, low profile
82 5304418225 Roller, compressor base, rear, (2)
83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 240326103 Cover, access, system compt, with label
90 218249807 Seal-coil cover
91 240380101 Duct-ice maker
92 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875
100 240423701 Support, crisper cover, front, (4)
100* 240350802 Support, crisper cover, rear, (4)
150 240368701 Guide-control bulb
* 218515401 Clip
* 240396801 Clamp, tube/wiring, nylon, black/natural
* 240479601 Plug, button, cab liner holes
* 240481601 Shim-lower hinge
* 5303305345 Paint, touch-up, black
CABINET

01/03 8
Publication No. FRS23H5ASB6
5995384780
SHELVES

# = Fast-moving Parts 9 01/03
* = Non-Illustrated Parts
FRS23H5ASB6 Publication No.
5995384780
POS. NO PART NO DESCRIPTION
2 240434603 Trim-basket
11 240338801 Shelf-freezer,flip-up
11A 240338703 Shelf-freezer,fixed wire
24 240355211 Shelf-"Spill-Safe",fixed
24A 240355209 Shelf-"Spill-Safe",fixed
24B 240350107 Shelf-"Spill-Safe",cantilever ,sliding
25 240354502 Cover-crisper pan,upper
25* 240362101 Clip-slide,cover-crisper
25A 240354602 Cover-crisper pan,lower
26 240354705 Pan-crisper,upper
26* 240349801 Clip-slide,pan-crisper
26A 240351101 Control-humidity
27 240354805 Pan-crisper,lower
39 240430705 Trim-shelf,front
39A 240430701 Trim-shelf,front
42 240356501 Track,meat pan hanger ,RH
42A 240349701 Hanger-meat pan,LH
42A* 240349901 Block-meat pan rail,LH
42A* 240350001 Spring-meat pan rail
47 240350635 Insert-pan cover,glass
47A 240350614 Insert-pan cover,glass
49 240530401 Basket-sliding
49B 240530501 Basket-sliding,upper ,half
51 240343002 Hanger-basket,RH
52 240343102 Hanger-basket,LH
62 240355505 Pan-meat
81 5308016566 Screw,hex washer head, 8-15A x 0.625, low profile
97 240545303 Water Tank Assy,coiled tubing, front filter
100 240326301 Cover-water tank
101 218493100 Screw,hex washer head ,8-18AB x 1-3/4
123 215005100 Screw,hanger/rlr mtg ,8-10 x 0.438
126 218867401 Channel,auger mtg ,LH
126 218867402 Channel,auger mtg ,RH
140 240430501 Channel,wtr tube cover
SHELVES

01/03 10
Publication No. FRS23H5ASB6
5995384780

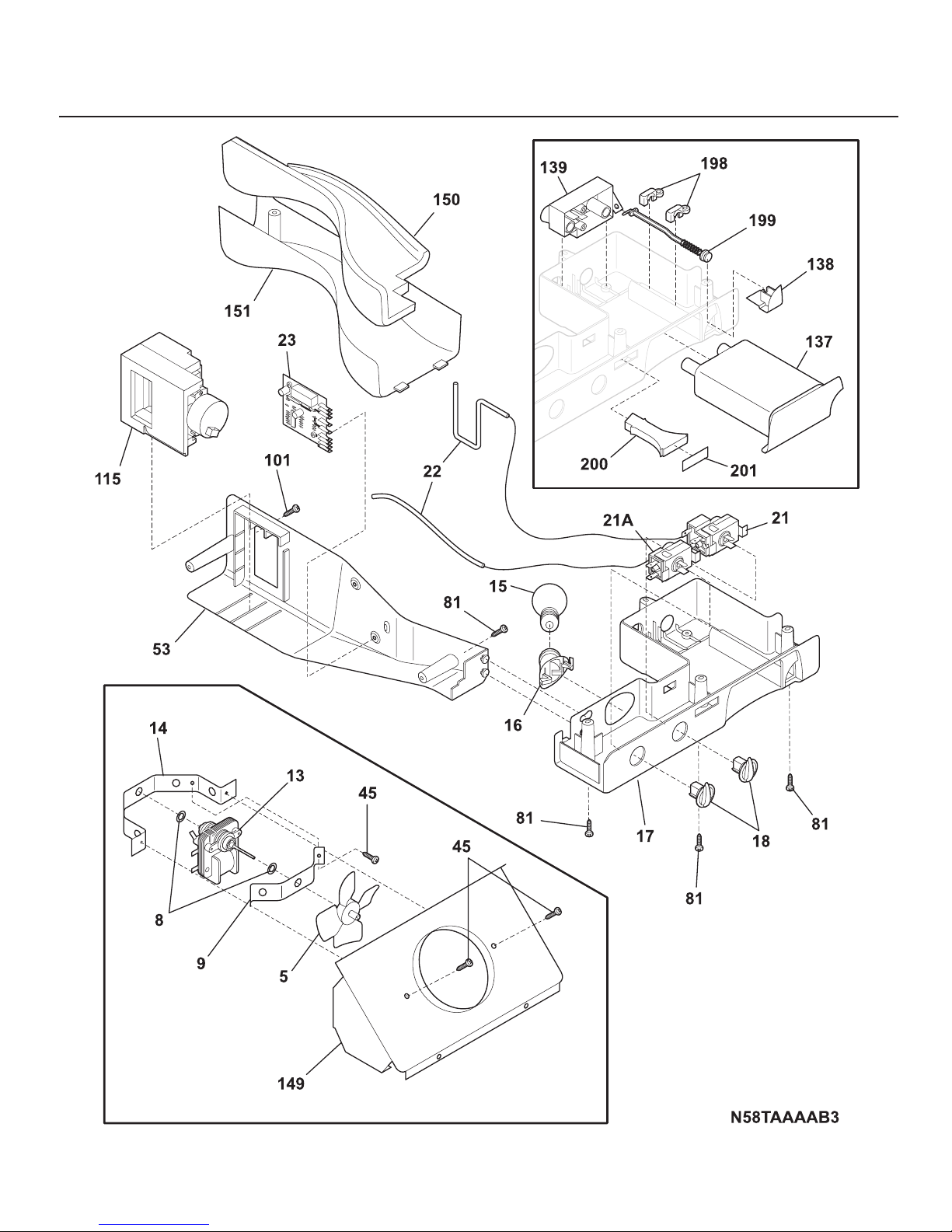

CONTROLS
