Frigidaire FRT21FS6D User manual

Product No. FRT21FS6DK0 FRT21FS6DQ0 FRT21FS6DS0 FRT21FS6DW0
Series R134a R134a R134a R134a
Color stainless lh bisque stainless white
Volts 115 115 115 115
Wiring Diagram 240398801 240398801 240398801 240398801
Owner's Guide 240400111 240400111 240400111 240400111
Market North America North America North America North America
Energy Guide 241585906 241585906 241585906 241585906
Service Data Sheet 240379014 240379014 240379014 240379014
Installation Instructions 240568300 240568300 240568300 240568300
N05L00006.eps N05DAACKA1.eps N05BBAAAD0.eps N05SACAFE11.eps
N05CABBAB6.eps 115-1.eps 240398801.eps 240398601.eps
ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378, Augusta, GA 30917
Publication No.
5995412680
04/07/06
(EN/SERVICE/WC)
390
TOP-MOUNT
REFRIGERATOR WITH
ICE-MAKER
Model No.
FRT21FS6D
Copyright ©2004 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995412680 FRT21FS6D
07/04 2

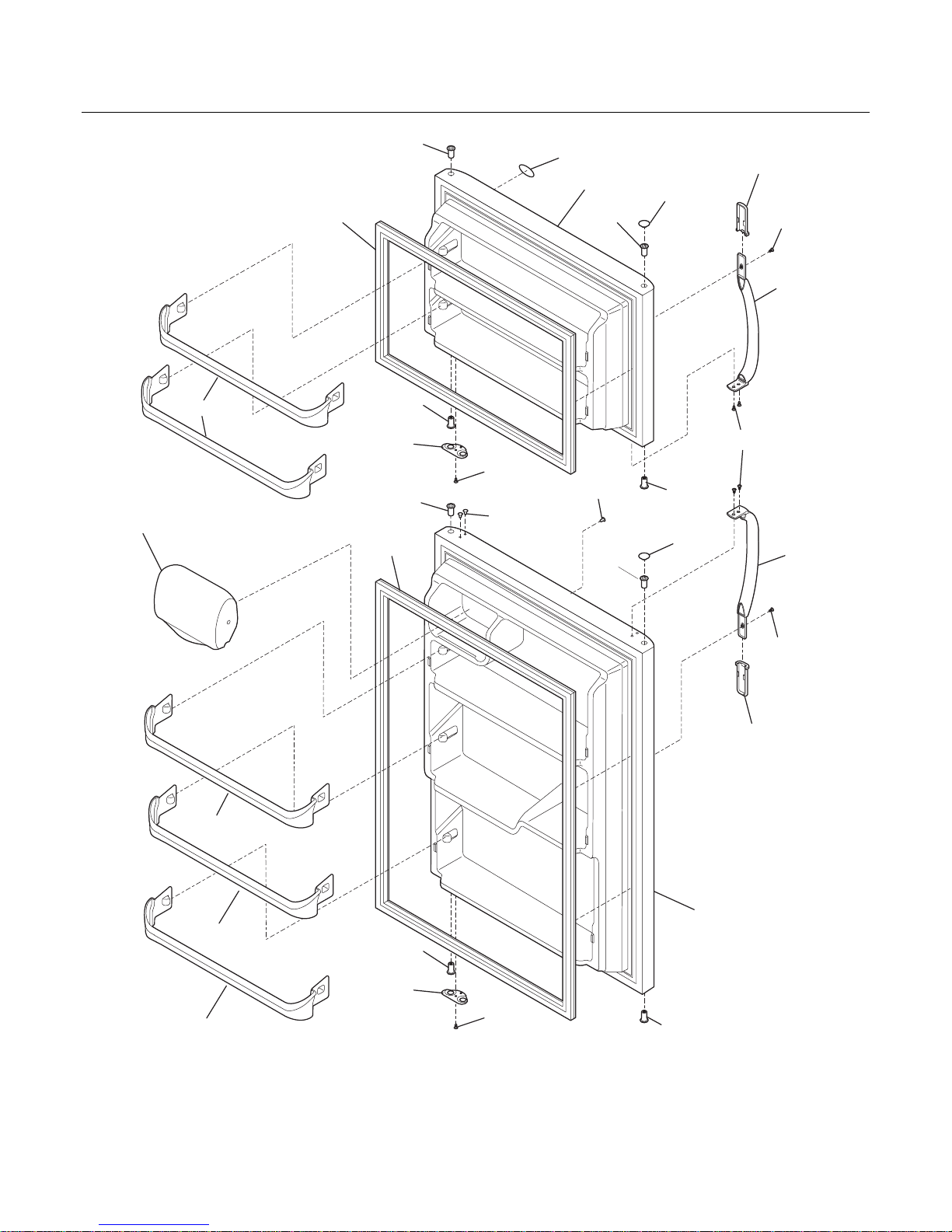

DOOR
10
22
22
10
22
22
22
11
12
18
21
37
21
22
22
13A
13
21C
21C
21
37
18
22
1
7
2
N05DAACKA1
15
8
4
4
4B
14
14

FRT21FS6D Publication No: 5995412680
# Functional Parts 3 07/04
* Non-Illustrated Parts
DOOR
Model Index: AFRT21FS6D (FRT21FS6DK0)
BFRT21FS6D (FRT21FS6DQ0)
CFRT21FS6D (FRT21FS6DS0)
DFRT21FS6D (FRT21FS6DW0)
POS. NO PART NO. DESCRIPTION
1 # 240514611 A - C - Gasket, seal, black, frzr door, magnetic
1 # 240514607 - B - D Gasket, seal, white, frzr door, magnetic
2 # 240514612 A - C - Gasket, seal, black, refr door, magnetic
2 # 240514608 - B - D Gasket, seal, white, refr door, magnetic
4 240534901 A B C D Rack-door
4B 240534701 A B C D Rack-door, 4B
7 240337703 A B C D Door-dairy, w/o graphics, clear
8 240534801 A B C D Rack-door
10 240381302 - B - - Plug-button, bisque, hinge brg hole, (2)
10 240381301 - - - D Plug-button, white, hinge brg hole, (2)
11 240450357 A - - - Door, frzr, stainless steel, LH
11 240450305 - B - - Door, frzr, bisque
11 240450336 - - C - Door, frzr, stainless steel, RH
11 240450301 - - - D Door, frzr, white
12 240415204 A - C - Label-nameplate, black
12 240415203 - B - - Label-nameplate, bisque
12 240415201 - - - D Label-nameplate, white
13 240312405 A - C - Door Stop, black, refr
13 240312407 - B - - Door Stop, bisque, ref
13 240312403 - - - D Door Stop, white, ref
13A 240312406 A - C - Door Stop, black, frzr
13A 240312408 - B - - Door Stop, bisque, frzr
13A 240312404 - - - D Door Stop, white, frzr
14 240494002 - B - - Plug-button, bisque
14 240494001 - - - D Plug-button, white
15 240450466 A - - - Door, refr, stainless steel, LH
15 240450405 - B - - Door, refr, bisque
15 240450465 - - C - Door, refr, stainless steel, RH
15 240450401 - - - D Door, refr, white
18 218668003 A - C - Handle-door, black
18 218668004 - B - - Handle-door, bisque
18 218668001 - - - D Handle-door, white
21 240383401 A B C D Screw, truss hd quad, #10-16 x .500
21C 218252200 A B C D Screw, #8 truss hd, 10-32CA x 0.500
22 240527102 A - C - Bearing-hinge, black
22 240527101 - B - D Bearing-hinge, natural color
37 215870636 A - C - Trim-handle, 2.47", black, w/satin AL band
37 215870633 - B - - Trim-handle, 2.47", bisque, w/satin AL band
37 215870629 - - - D Trim-handle, 2.47", white, w/satin AL band
37* 218676004 A B C D Band-decorative, satin aluminum, handle trim
* 218490901 A - C - Cleaner, stainless steel

Publication No: 5995412680 FRT21FS6D
07/04 4

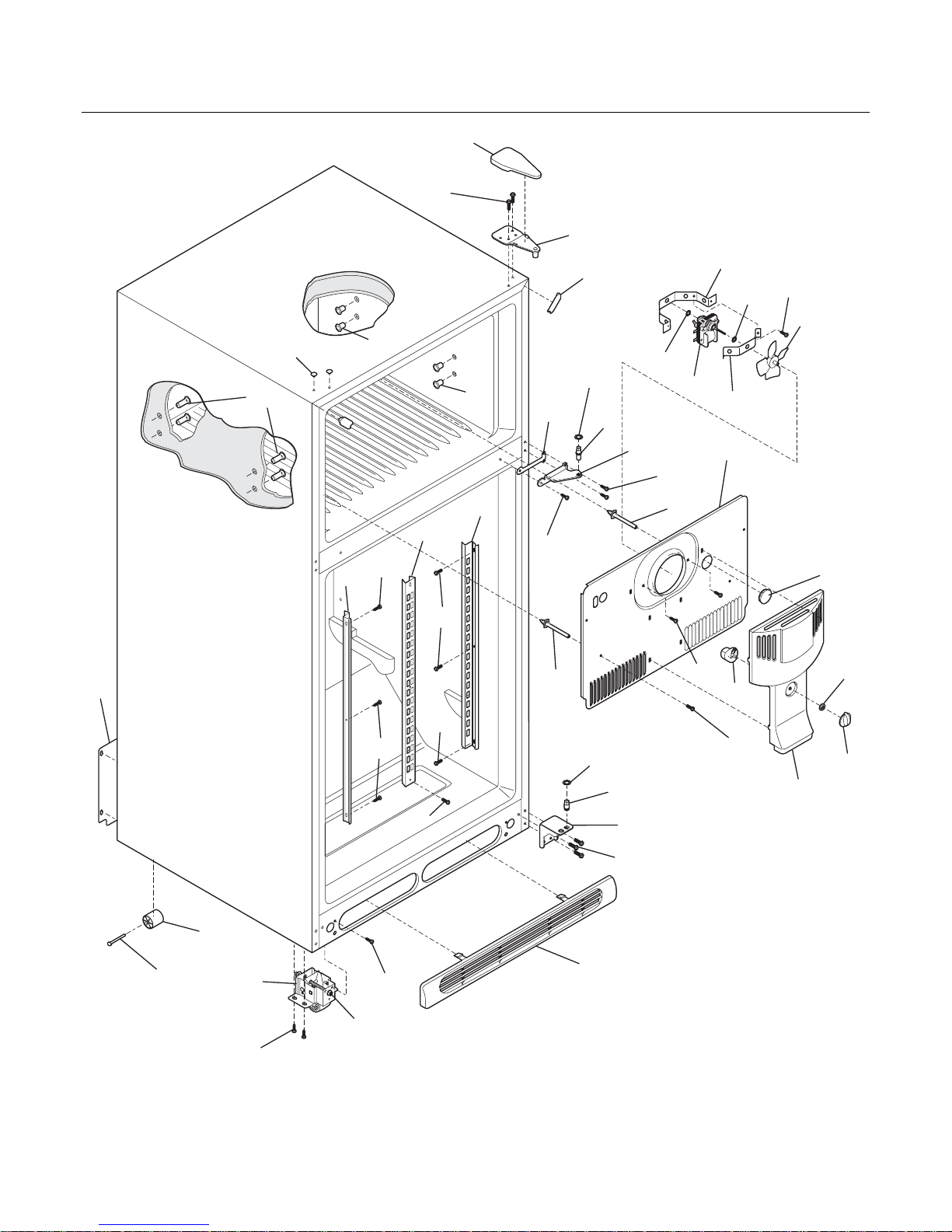

CABINET
58
49
49
49
49
49
47
47
48
83
82
89
11
10
1
81
40
92
38
37
13
5
58
35A 36
34
35
59
59
56
42
30
72
N05BBAAAD0
43
28
21C
21C
41
41
22
41
8
8
9
14
34
18
18
4
2
3

FRT21FS6D Publication No: 5995412680
# Functional Parts 5 07/04
* Non-Illustrated Parts
CABINET
Model Index: AFRT21FS6D (FRT21FS6DK0)
BFRT21FS6D (FRT21FS6DQ0)
CFRT21FS6D (FRT21FS6DS0)
DFRT21FS6D (FRT21FS6DW0)
POS. NO PART NO. DESCRIPTION
1 240355402 A B C D Cover-fan
2 240367001 A B C D Knob-damper control
3 5303001028 A B C D Nut, push-on
4 241523701 A B C D Damper-fan cover
5 5308000010 A B C D Fan Blade, red, evaporator fan
8 5300157666 A B C D Bushing-motor mtg, (2)
9 5303292396 A B C D Bracket-motor mtg, front
10 240313610 A B C D Cover-evap coil, w/o light
10* 240568606 A B C D Seal-coil cover
11 5303208309 A B C D Plug-hole, factory test
13 # 240369701 A B C D Motor-evap fan
13* 218931001 A B C D Clamp-motor wiring, nylon, w/adhesive tape
14 5303292397 A B C D Bracket-motor mtg, rear
14* 240433201 A B C D Screw, hex washer head, 8-18 x 0.375
18 240411901 A B C D Support-evap cover, (2)
21C 218252200 A B C D Screw, #8 truss hd, 10-32CA x 0.500
22 215774918 A - C - Plug-button, black, upr hinge holes
22 215774919 - B - - Plug-button, bisque, upr hinge holes
22 215774901 - - - D Plug-button, white, upr hinge holes
28 240335501 A B C D Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 240314003 A - C - Bracket-lower hinge, black
30 240314004 - B - - Bracket-lower hinge, bisque
30 240314002 - - - D Bracket-lower hinge, white
34 240311303 A B C D Washer, hinge, nylon, (2)
35 240313803 A - C - Bracket-ctr hinge, black
35 240313804 - B - - Bracket-ctr hinge, bisque
35 240313802 - - - D Bracket-ctr hinge, white
35A 240336802 A B C D Spacer-hinge, center
36 240516401 A B C D Pin-center hinge
37 240337603 A - C - Trim-cabinet corner, black, (2)
37 240337604 - B - - Trim-cabinet corner, bisque, (2)
37 240337601 - - - D Trim-cabinet corner, white, (2)
38 240313701 A B C D Bracket-upper hinge
40 240354404 A - C - Cover-upper hinge, black
40 240354403 - B - - Cover-upper hinge, bisque
40 240354401 - - - D Cover-upper hinge, white
41 5303001609 A B C D Grommet, shelf mtg, 0.69", RH
41* 5308009759 A B C D Grommet, shelf mtg, 1.25", LH
42 240578901 A B C D Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335003 A B C D Roller Assy, front, (2)
47 218233300 A B C D Channel-shelf mtg, side, (2)
48 5303292395 A B C D Channel-shelf mtg, center
49 218362500 A B C D Screw, hex washer head, 8-18AB x 1.250
56 240516501 A B C D Pin-lower hinge
58 5303001343 A B C D Screw, hex washer head, 8-15A x 0.500
59 240442703 A - C - Screw-#10-32 X 3/4, black
59 240442704 - B - - Screw-#10-32 X 3/4, bisque

Publication No: 5995412680 FRT21FS6D
07/04 6
CABINET
58
49
49
49
49
49
47
47
48
83
82
89
11
10
1
81
40
92
38
37
13
5
58
35A 36
34
35
59
59
56
42
30
72
N05BBAAAD0
43
28
21C
21C
41
41
22
41
8
8
9
14
34
18
18
4
2
3

FRT21FS6D Publication No: 5995412680
# Functional Parts 7 07/04
* Non-Illustrated Parts
CABINET
Model Index: AFRT21FS6D (FRT21FS6DK0)
BFRT21FS6D (FRT21FS6DQ0)
CFRT21FS6D (FRT21FS6DS0)
DFRT21FS6D (FRT21FS6DW0)
POS. NO PART NO. DESCRIPTION
59 240442702 - - - D Screw-#10-32 X 3/4, white
72 240368207 A - C - Grille/Kickplate, black
72 240368206 - B - - Grille/Kickplate, bisque
72 240368205 - - - D Grille/Kickplate, white
81 5308016566 A B C D Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B C D Roller, compressor base, rear, (2)
83 5303316859 A B C D Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241574607 A B C D Cover-access, w/label
89* 241500301 A B C D Screw, hex washer head, 8-18AB x 0.500
92 216850900 A B C D Screw, hex washer hd, 1/4 x 7/8, hinge mtg
* 218990901 A B C D Clip-wire
* 5303305345 A - C - Paint, touch-up, black
* 5304414035 - B - - Paint, touch-up, bisque
* 5303305324 - - - D Paint, touch-up, white

Publication No: 5995412680 FRT21FS6D
07/04 8

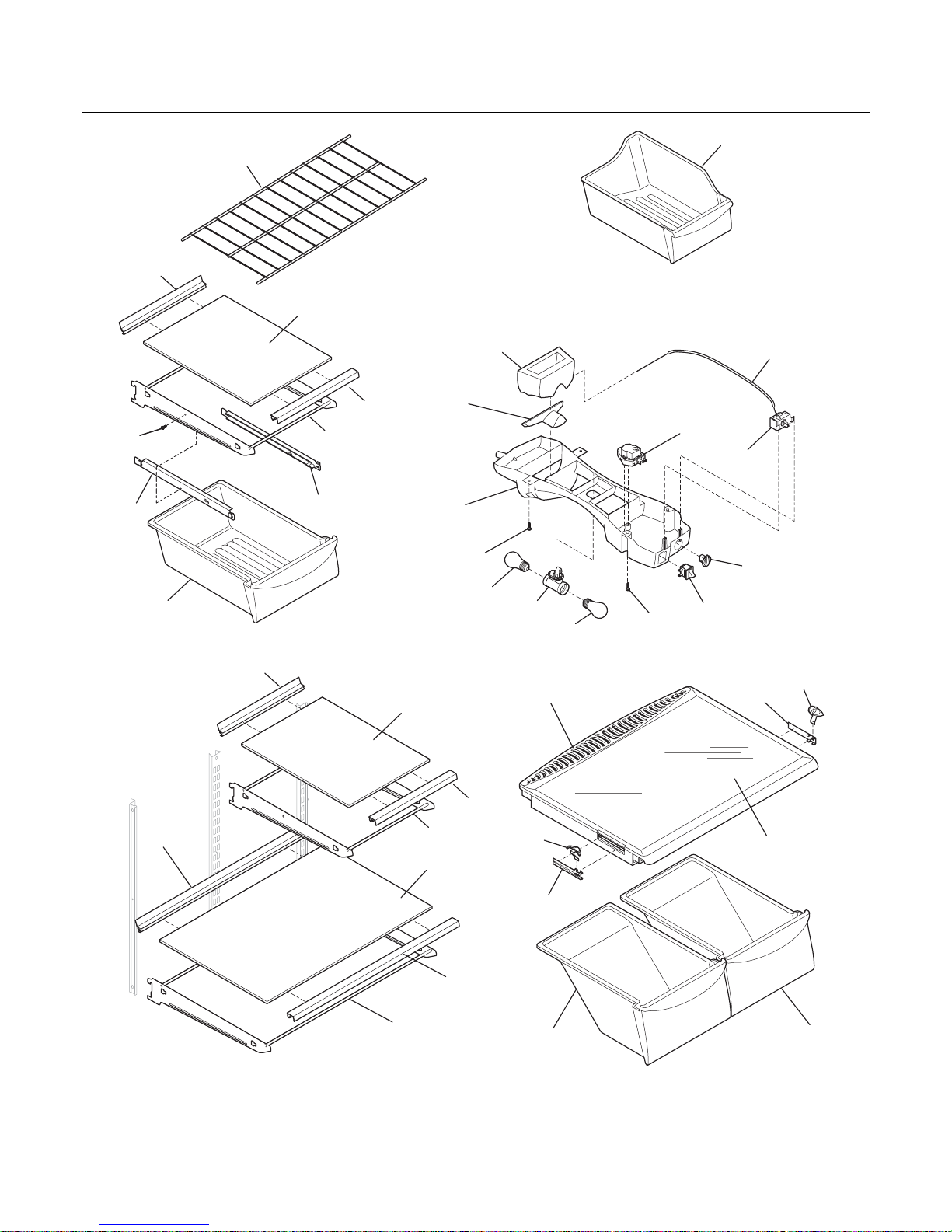

SHELVES
25
25B
25B
25C
25C
26
47
N05SACAFE11
26
11
31
42
42
123
81
81
23
21
22A
13
12
14
18
17
34
15
15
16
123
37
36
43
44
24
29
40
41
37
36
43
44

FRT21FS6D Publication No: 5995412680
# Functional Parts 9 07/04
* Non-Illustrated Parts
SHELVES
Model Index: AFRT21FS6D (FRT21FS6DK0)
BFRT21FS6D (FRT21FS6DQ0)
CFRT21FS6D (FRT21FS6DS0)
DFRT21FS6D (FRT21FS6DW0)
POS. NO PART NO. DESCRIPTION
11 240358003 A B C D Shelf, freezer, full-width, wire
12 240545901 A B C D Diffuser-air, top
13 240362601 A B C D Diffuser, air, bottom
14 # 241554901 A B C D Switch-light/lamp
15 241555401 A B C D Light Bulb
16 240364201 A B C D Socket-light/lamp, dual
17 240368101 A B C D Control Box
18 240360801 A B C D Knob, temp control
21 # 5304421256 A B C D Control, temperature
22A 5303916855 A B C D Tube, sensor sleeve, plastic, clear
23 # 240371001 A B C D Timer-defrost
23* 5303001259 A B C D Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
24 240373105 A B C D Frame-shelf, cantilever, full width
25 240364718 A B C D Cover-crisper pan
25B 240361201 A B C D Control-humidity
25C 240361301 A B C D Damper, humidity cont.
26 240343803 A B C D Pan, crisper, (2)
29 240357701 A B C D Trim-shelf, 24.48", front
31 240530903 A B C D Pan-meat, w/o graphics, clear
34 240385201 A B C D Container, ice bin
36 240373106 A B C D Frame, cantil shelf, half width
37 240357702 A B C D Trim, shelf, 11.95", front
40 240443323 A B C D Glass-shelf, 24.45" x 17.60", full shelf
41 240357801 A B C D Trim-shelf, 24.48", rear
42 240530601 A B C D Track, meat pan hanger, LH
42 240530701 A B C D Track, meat pan hanger, RH
43 240443318 A B C D Glass-shelf, 11.92" x 17.60", half shelf
44 240357802 A B C D Trim, shelf, 11.95", rear
47 240350654 A B C D Insert-pan cover, glass
81 5308016566 A B C D Screw, hex washer head, 8-15A x 0.625, low profile
123 215005100 A B C D Screw, hanger/rlr mtg, 8-10x 0.438

Publication No: 5995412680 FRT21FS6D
07/04 10

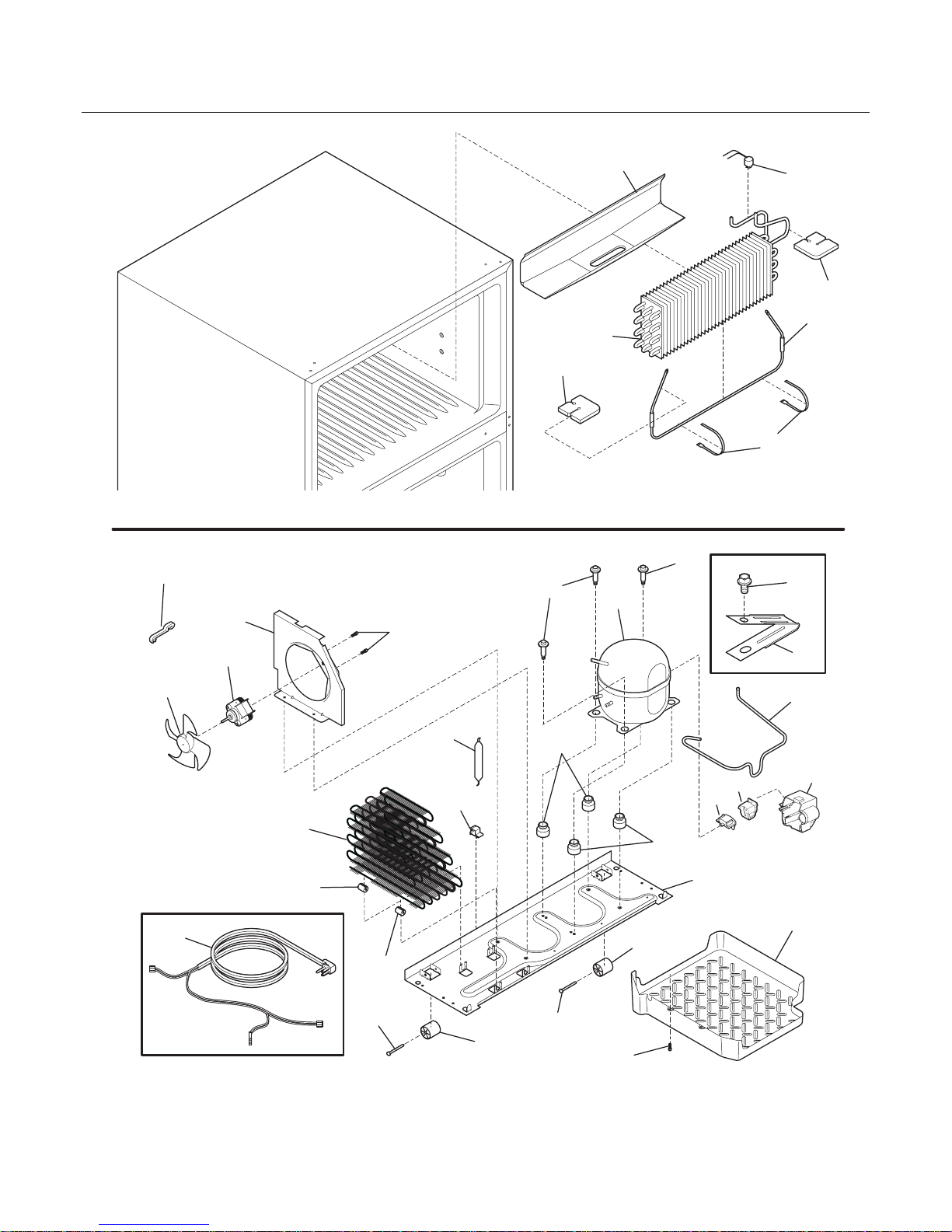

SYSTEM
17
21
15
20
14
20
16
60
59
61
58
1
34
34
83
44
41
82
83
82
N05CABBAB6
22
23
23
85
4
6
29
26
56
45
57
25
25
30
31
86

FRT21FS6D Publication No: 5995412680
# Functional Parts 11 07/04
* Non-Illustrated Parts
SYSTEM
Model Index: AFRT21FS6D (FRT21FS6DK0)
BFRT21FS6D (FRT21FS6DQ0)
CFRT21FS6D (FRT21FS6DS0)
DFRT21FS6D (FRT21FS6DW0)
POS. NO PART NO. DESCRIPTION
1 # 240444401 A B C D Condenser, dynamic
4 # 218944001 A B C D Drier-filter, R134a System
6 # 240581701 A B C D Harness-wiring, machine compt
6* # 240388701 A B C D Wiring Harness, control box
6* # 240524701 A B C D Wiring Harness, freezer section
14 # 5303918247 A B C D Defrost Heater Kit
15 # 5303918274 A B C D Evaporator Kit
16 5308000110 A B C D Strap-evap/heater, aluminum, (2)
17 241551801 A B C D Trough-drain
20 240518402 A B C D Insulation, evap block, foam, LH/RH
21 # 5303918202 A B C D Thermostat-defrost, kit
22 240330001 A B C D Plate-compr mtg
22* 218252200 A B C D Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 A B C D Grommet-compr mtg, (4)
25 240491501 A B C D Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF
26 240332602 A B C D Pan-defrost drain
29 # 5303918297 A B C D Compressor, w/electricals
30 # 5304433579 A B C D Relay
31 # 5304433578 A B C D Overload Protector
34 240405201 A B C D Grommet, rubber, black, cond tube/wire
41 240555001 A B C D Screw-#8-32 X 3/8
44 215174700 A B C D Clamp-service cord, strain relief, galv steel
45 5308016566 A B C D Screw, hex washer head, 8-15A x 0.625, low profile
56 240582001 A B C D Cover-terminal
57 240542601 A B C D Clip-wiring harness
58 218897002 A B C D Screw, hex washer head, 8-32 x 0.375
59 5304430246 A B C D Bracket-cond motor assy
59* 240346701 A B C D Tape-foam seal, shroud
59* 240359401 A B C D Screw-fan shroud, (2)
60 # 240525401 A B C D Motor-condenser fan
61 # 240524101 A B C D Fan Blade, galv steel, condenser fan
82 5304418225 A B C D Roller, compressor base, rear, (2)
83 5303316859 A B C D Rivet, flat head, 1/4 OD x 1-3/4, roller pin
85 240493101 A B C D Tube-connector, suction
86 240409302 A B C D Spacer-cond tube, black
* 240396801 A B C D Clamp, tube/wiring, nylon, black/natural
* # 5303918210 A B C D Heat Exchanger Kit, suction line
* # 5304421289 A B C D Hot Tube Repair Kit, Service

Publication No: 5995412680 FRT21FS6D
07/04 12

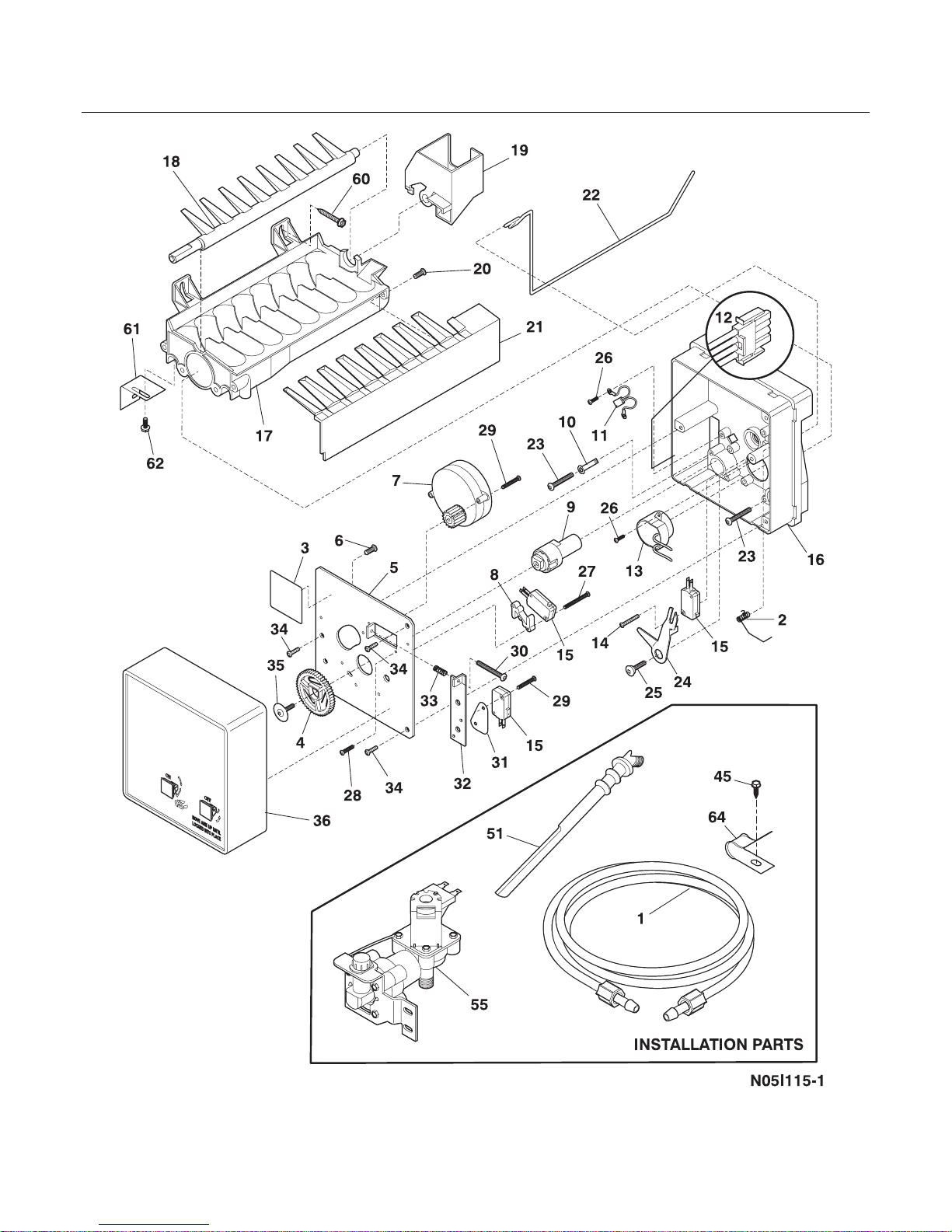

ICE MAKER

FRT21FS6D Publication No: 5995412680
# Functional Parts 13 07/04
* Non-Illustrated Parts
ICE MAKER
Model Index: AFRT21FS6D (FRT21FS6DK0)
BFRT21FS6D (FRT21FS6DQ0)
CFRT21FS6D (FRT21FS6DS0)
DFRT21FS6D (FRT21FS6DW0)
POS. NO PART NO. DESCRIPTION
1 218976901 A B C D Tube-water inlet, inlet valve, to ice maker
2 5304420650 A B C D Spring, shut-off arm
2* 5308000039 A B C D Screw, hex washer head, 8-32CA x 0.500, serrated head
3 3206299 A B C D Label, ID plate
4 3206301 A B C D Gear
5 3206303 A B C D Plate-mounting
6 3206305 A B C D Screw-ground wire, 8-32 x 0.250
7 # 3206306 A B C D Motor-ice maker
8 3206312 A B C D Spacer-hold switch
9 3206313 A B C D Cam
10 3206315 A B C D Clamp
11 # 3206319 A B C D Thermal Cutoff, ICE MAKER, complete assy
12 # 5304420651 A B C D Wiring Harness, ICE MAKER, internal, with plug
13 # 3206322 A B C D Thermostat Assy, ICE MAKER
14 5304420652 A B C D Screw, 4 x 0.750, switch mtg.
15 # 3206324 A B C D Switch, (3)
16 5304420653 A B C D Support, phenolic
17 # 5303320545 A B C D Mold-ice maker, Radius Cube, with heater
18 3206328 A B C D Ejector-ice
19 3206330 A B C D Bearing & Inlet
20 5304408581 A B C D Screw, 8-32 x 0.375
21 3206332 A B C D Ice Stripper
22 3206333 A B C D Shut-off Arm
23 5304408582 A B C D Screw, 8-32 x 0.875, mold-to-support, (3)
24 3206335 A B C D Lever Arm
25 3206336 A B C D Screw, 8-18 x 0.562, lever arm/sprt
26 5304420654 A B C D Screw-thermo/sprt, 4-24 x 0.375, (4)
27 3206338 A B C D Screw, 4-40 x 1.000, hold switch mtg, (2)
28 3206339 A B C D Screw-timing stop, 4-40 x 0.375
29 3206323 A B C D Screw, 4-24 x 0.750, (6)
30 3206341 A B C D Screw-timing adj, 8-32 x 1.000
31 3206342 A B C D Insulator
32 3206343 A B C D Plate-valve switch
33 5304408583 A B C D Spring-timing adj
34 5304420655 A B C D Screw, plazscrew, 8-10, (3)
35 5304408585 A B C D Screw
36 3206347 A B C D Cover-ice maker
45 5308016566 A B C D Screw, hex washer head, 8-15A x 0.625, low profile
45* 218843800 A B C D Screw, hex wshr hd, 8-15A x 0.500
51 240387101 A B C D Tube-water, ice mold fill, extension
55 # 240380301 A B C D Valve-water, single solenoid, 50/60 Hz, 105/120 V
60 218362500 A B C D Screw, hex washer head, 8-18AB x 1.250
61 218721500 A B C D Bracket-leveling, ICE MAKER
62 218737900 A B C D Screw-IM brkt mtg, hex washer head, 8-32D x 0.375
64 5303001549 A B C D Clamp, 0.31 ID, steel, copper wtr line
* 218888001 A B C D Adapter-water supply, nut & sleeve, compression ftg
* 240352403 A B C D Ice Maker, Radius Cube, 115 V, no instl parts

Publication No: 5995412680 FRT21FS6D
07/04 14
WIRING SCHEMATIC

FRT21FS6D Publication No: 5995412680
# Functional Parts 15 07/04
* Non-Illustrated Parts
WIRING DIAGRAM
