Frigidaire FRS23LH5D User manual

Product No. FRS23LH5DB0 FRS23LH5DQ0 FRS23LH5DS0 FRS23LH5DW0
Series R134a R134a R134a R134a
Color black bisque stainless white
Volts 115 115 115 115
Wiring Diagram 241526901 241526901 241526901 241526901
Owner's Guide 241581300 241581300 241581300 241581300
Market North America North America North America North America
Energy Guide 241538736 241538736 241538736 241538736
Service Data Sheet 240389616 240389616 240389616 240389616
N58L00001.eps N58FACBBB4.eps N58RACBBB7.eps N58BAAAAA0.eps
N58SJCAAB1.eps N58TAAAAA4.eps N58CAAAAC0.eps N58XDAAAA1.eps
N58YBAAAA0.eps N58I115.eps W241526901A.eps S241526901A.eps
ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378, Augusta, GA 30917
Publication No.
5995412334
04/06/28
(EN/SERVICE/KHB)
357
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FRS23LH5D
Copyright ©2004 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995412334 FRS23LH5D
06/04 2
FREEZER DOOR

FRS23LH5D Publication No: 5995412334
# Functional Parts 3 06/04
* Non-Illustrated Parts
FREEZER DOOR
Model Index: AFRS23LH5D (FRS23LH5DB0)
BFRS23LH5D (FRS23LH5DQ0)
CFRS23LH5D (FRS23LH5DS0)
DFRS23LH5D (FRS23LH5DW0)
POS. NO PART NO. DESCRIPTION
1 # 240390608 A - C - Gasket-frzr door, black, magnetic
1 240390604 - B - D Gasket-frzr door, white
4A 240367301 A B C D Bin-door, frzr-upper
4B 240359001 A B C D Bin-door
11 240451829 A - - - Door-frzr, black, complete assy
11 240451825 - B - - Door-frzr, bisque,complete assy
11 240554255 - - C - Door-frzr, stainless, complete assy
11 240451819 - - - D Door-frzr, white, completeassy
13A 240537106 A - - - Door Stop, black, frzr
13A 240537104 - B - - DoorStop, bisque, frzr
13A 240581906 - - C - Door Stop, black, frzr
13A 240537102 - - - D Door Stop, white, frzr
18 218762703 A - C - Handle-door, black
18 218762706 - B - - Handle-door, bisque
18 218762701 - - - D Handle-door, white
21A 5308016566 A B - D Screw, hex washer head, 8-15A x 0.625, low profile
21A 240598401 - - C - Screw, 10-32 x 1/2
21C 218781100 A B C D Screw, pan head, 8-18 x 0.625
22A 240328204 A - C - Bearing-hinge, closer
22A 240328202 - B - D Bearing-hinge, closer
22C 240328404 A - C - Bearing-hinge, black, upper
22C 240328402 - B - D Bearing-hinge, upper
37 218811620 A - C - Trim-handle, black, upper
37 218811632 - B - - Trim-handle, bisque, upper
37 218811618 - - - D Trim-handle, white, upper
37* 218676004 A B C D Band-decorative, satin aluminum, handle trim
37A 218811617 A - C - Trim-handle, black, lower
37A 218811631 - B - - Trim-handle, bisque, lower
37A 218811615 - - - D Trim-handle, white, lower
37A* 215782300 A B C D Lock-handle trim, snap-in
68 241525101 A B C D Chute-ice
* 218490901 - - C - Cleaner, stainless steel
* 240352102 A B C D Connector-water, straight
* 240552101 A B C D Harness-wiring, door
* 5303918256 A B C D Dispenser heater kit

Publication No: 5995412334 FRS23LH5D
06/04 4

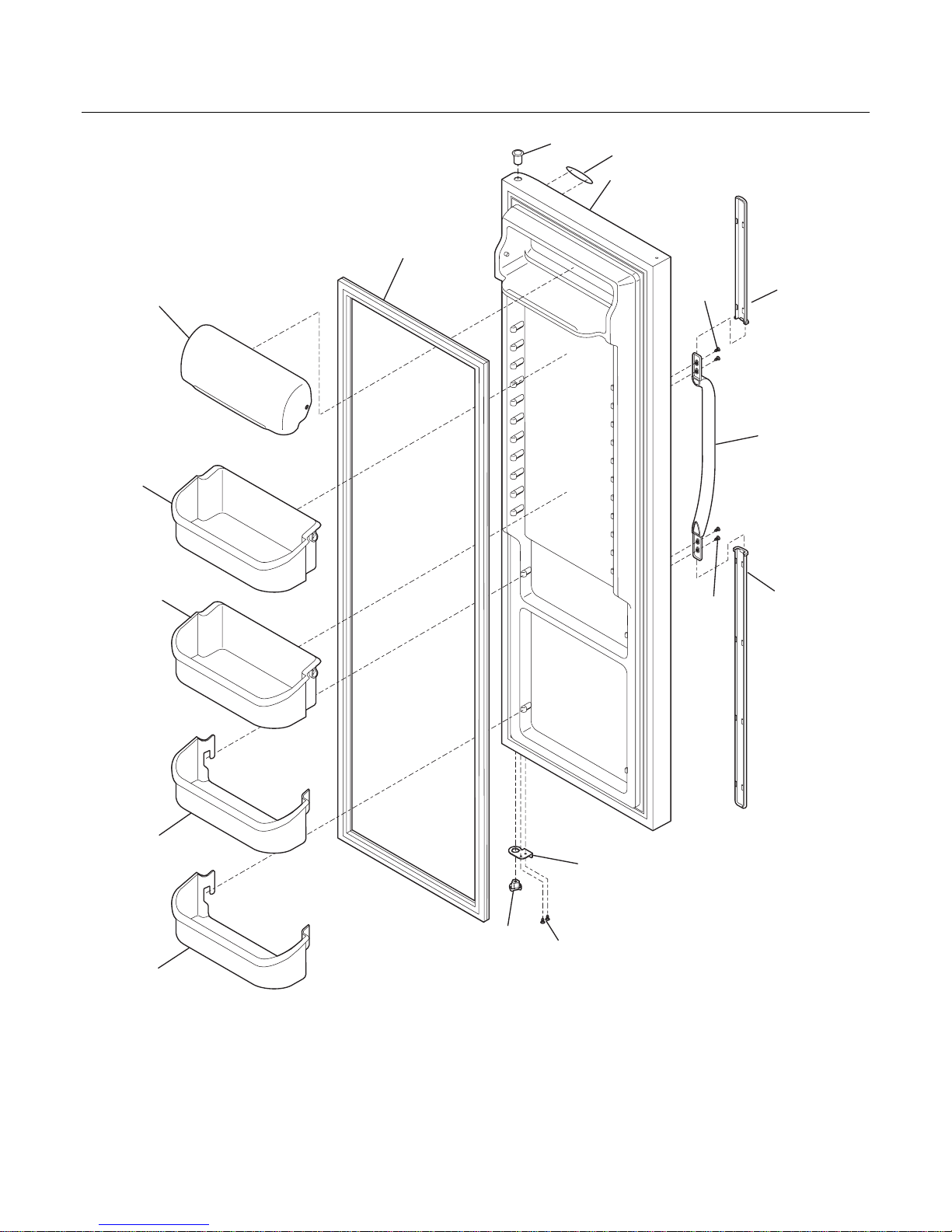

REFRIGERATOR DOOR
21A
22
13
15
22B
2
7
49
49
4
4
21C
21C 37A
37
18
N58RACBBB7
12

FRS23LH5D Publication No: 5995412334
# Functional Parts 5 06/04
* Non-Illustrated Parts
REFRIGERATOR DOOR
Model Index: AFRS23LH5D (FRS23LH5DB0)
BFRS23LH5D (FRS23LH5DQ0)
CFRS23LH5D (FRS23LH5DS0)
DFRS23LH5D (FRS23LH5DW0)
POS. NO PART NO. DESCRIPTION
2 # 240390607 A - C - Gasket-refr door, black, magnetic
2 # 240390603 - B - D Gasket-refr door, white, magnetic
4 240363701 A B C D Bin-door, 2-liter
7 240338303 A B C D Door, dairy, clear
12 240572601 A B C D Label-nameplate
13 240537105 A - - - Door Stop, black, ref
13 240537103 - B - - Door Stop, bisque, ref
13 240581905 - - C - Door Stop, black, ref
13 240537101 - - - D Door Stop, white, ref
15 240451920 A - - - Door-refr, black, complete assy
15 240451916 - B - - Door-refr, bisque, complete assy
15 240451995 - - C - Door-refr, stainless, complete assy
15 240451912 - - - D Door-refr, white, complete assy
18 218762703 A - C - Handle-door, black
18 218762706 - B - - Handle-door, bisque
18 218762701 - - - D Handle-door, white
21A 5308016566 A B - D Screw, hex washer head, 8-15A x 0.625, low profile
21A 240598401 - - C - Screw, 10-32 x 1/2
21C 218781100 A B C D Screw, pan head, 8-18 x 0.625
22 240328203 A - C - Bearing-hinge, closer
22 240328201 - B - D Bearing-hinge, closer
22B 240328404 A - C - Bearing-hinge, black, upper
22B 240328401 - B - D Bearing-hinge, upper
37 218811620 A - C - Trim-handle, black, upper
37 218811632 - B - - Trim-handle, bisque, upper
37 218811618 - - - D Trim-handle, white, upper
37* 218676004 A B C D Band-decorative, satin aluminum, handle trim
37A 218811617 A - C - Trim-handle, black, lower
37A 218811631 - B - - Trim-handle, bisque, lower
37A 218811615 - - - D Trim-handle, white, lower
37A* 215782300 A B C D Lock-handle trim, snap-in
49 240324502 A B C D Bin-door, gallon
* 218490901 - - C - Cleaner, stainless steel

Publication No: 5995412334 FRS23LH5D
06/04 6
CABINET

FRS23LH5D Publication No: 5995412334
# Functional Parts 7 06/04
* Non-Illustrated Parts
CABINET
Model Index: AFRS23LH5D (FRS23LH5DB0)
BFRS23LH5D (FRS23LH5DQ0)
CFRS23LH5D (FRS23LH5DS0)
DFRS23LH5D (FRS23LH5DW0)
POS. NO PART NO. DESCRIPTION
10 240435905 A B C D Cover-air duct
10A 240475906 A B C D Cover-evap coil, lower
11 5303208309 A B C D Plug-hole, factory test
14 # 240505801 A B C D Switch, light/lamp
14A# 215486600 A B C D Switch-light/lamp
21C 218252200 A B C D Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 A - C - Plate-door closer
22 240457701 - B - D Plate-door closer
23 240402701 A B C D Screw-#10-32 x 1/4 flat hd
28 240335501 A B C D Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 240419101 A B C D Bracket-lower hinge, ref
30A 240419102 A B C D Bracket-lower hinge
37 240337603 A - C - Trim-cabinet corner, black, (2)
37 240337604 - B - - Trim-cabinet corner, bisque, (2)
37 240337601 - - - D Trim-cabinet corner, white, (2)
38 240327201 A B C D Bracket-upper hinge
40 240327007 A - C - Cover-upper hinge, black
40 240327006 - B - - Cover-upper hinge, bisque
40 240327005 - - - D Cover-upper hinge, white
41 241550801 A B C D Grommet-shelf mtg, 1.40" long
41* 241550701 A B C D Grommet-shelf mtg, .96" long
42 240578901 A B C D Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335003 A B C D Roller Assy, front, (2)
45 241500301 A B C D Screw, hex washer head, 8-18AB x 0.500
47 218659500 A B C D Channel-shelf mtg, side, (2)
58 218781100 A B C D Screw, pan head, 8-18 x 0.625
66B 240374301 A B C D Diffuser-air
66B* 240518802 A B C D Pin-push, push-in, plastic
72 240324405 A - C - Grille/Kickplate, black
72 240324403 - B - - Grille/Kickplate, bisque
72 240324401 - - - D Grille/Kickplate, white
81 5308016566 A B C D Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B C D Roller, compressor base, rear, (2)
83 5303316859 A B C D Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 240326103 A B C D Cover, access, system compt, with label
90 218249807 A B C D Seal-coil cover
91 240380101 A B C D Duct-ice maker
92 216850900 A B C D Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 A B C D Support, crisper cover, front, (4)
100* 240350802 A B C D Support, crisper cover, rear, (4)
150 240368701 A B C D Guide-control bulb
* 240396801 A B C D Clamp, tube/wiring, nylon, black/natural
* 240481601 A B C D Shim-lower hinge
* 5303305345 A - C - Paint, touch-up, black
* 5303305324 - B - D Paint, touch-up, white

Publication No: 5995412334 FRS23LH5D
06/04 8
SHELVES

FRS23LH5D Publication No: 5995412334
# Functional Parts 9 06/04
* Non-Illustrated Parts
SHELVES
Model Index: AFRS23LH5D (FRS23LH5DB0)
BFRS23LH5D (FRS23LH5DQ0)
CFRS23LH5D (FRS23LH5DS0)
DFRS23LH5D (FRS23LH5DW0)
POS. NO PART NO. DESCRIPTION
11 240338801 A B C D Shelf-freezer, flip-up
11A 240338701 A B C D Shelf-freezer, fixed wire
11B 240338703 A B C D Shelf-freezer, fixed wire
24 240355211 A B C D Shelf-"Spill-Safe", fixed
25 240354502 A B C D Cover-crisper pan, upper
25* 240362101 A B C D Clip-slide, cover-crisper
25A 240354602 A B C D Cover-crisper pan, lower
26 240354705 A B C D Pan-crisper, upper
26* 240349801 A B C D Clip-slide, pan-crisper
26A 240351101 A B C D Control-humidity
27 240354807 A B C D Pan-crisper, lower
39 240430705 A B C D Trim-shelf, front
39B 240430701 A B C D Trim-shelf, front
42 240356501 A B C D Track, meat pan hanger, RH
42 240365401 A B C D Track, meat pan hanger, LH
47 240350635 A B C D Insert-pan cover, glass
47A 240350614 A B C D Insert-pan cover, glass
49 240564301 A B C D Basket-sliding
51 240343002 A B C D Hanger-basket, RH
52 240343102 A B C D Hanger-basket, LH
62 240355506 A B C D Pan-meat
81 5308016566 A B C D Screw, hex washer head, 8-15A x 0.625, low profile
97 240545302 A B C D Water Tank Assy, coiled tubing, rear filter
100 240326301 A B C D Cover-water tank
101 218493100 A B C D Screw, hex washer head, 8-18AB x 1-3/4
123 215005100 A B C D Screw, hanger/rlr mtg, 8-10x 0.438
126 218867405 A B C D Channel, auger mtg, LH
126 218867406 A B C D Channel, auger mtg, RH
140 240430501 A B C D Channel, wtr tube cover
* 240389616 A B C D Service Data Sheet
* 241538736 A B C D Energy Guide

Publication No: 5995412334 FRS23LH5D
06/04 10

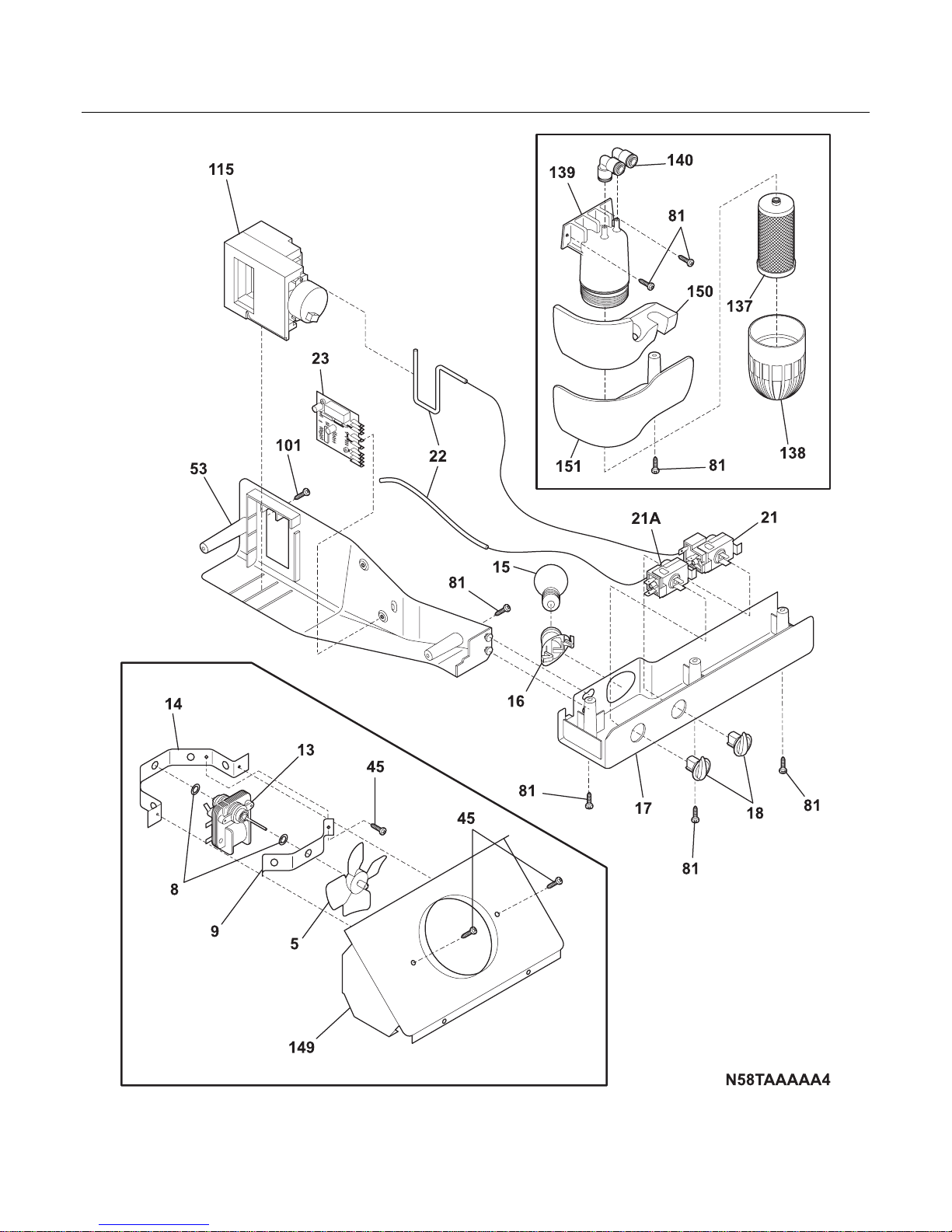

CONTROLS

FRS23LH5D Publication No: 5995412334
# Functional Parts 11 06/04
* Non-Illustrated Parts
CONTROLS
Model Index: AFRS23LH5D (FRS23LH5DB0)
BFRS23LH5D (FRS23LH5DQ0)
CFRS23LH5D (FRS23LH5DS0)
DFRS23LH5D (FRS23LH5DW0)
POS. NO PART NO. DESCRIPTION
5 # 5308000010 A B C D Fan Blade, red, evaporator fan
8 5300157666 A B C D Bushing-motor mtg, (2)
9 5303292396 A B C D Bracket-motor mtg, front
13 # 240369701 A B C D Motor-evap fan
14 5303292397 A B C D Bracket-motor mtg, rear
15 241555401 A B C D Light Bulb
16 # 241513901 A B C D Socket-light
17 240374006 A B C D Box-control, front
17* 241537802 A B C D Harness-wiring, control box
18 240360801 A B C D Knob, temp control
21 # 241586501 A B C D Control-temperature
21A 5304421067 A B C D Control-temperature, frzr section
22 218660702 A B C D Tube-insulator
23 # 241508001 A B C D Control-defrost, adaptive timer, PC board
23* 5303001259 A B C D Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
45 5303001343 A B C D Screw, hex washer head, 8-15A x 0.500
53 240369501 A B C D Box-control
81 5308016566 A B C D Screw, hex washer head, 8-15A x 0.625, low profile
101 218493100 A B C D Screw, hex washer head, 8-18AB x 1-3/4
115 241546902 A B C D Damper Assy, w/seal
137# 240389101 A B C D Filter-water, carbon, with o'rings
137* 218710300 A B C D Wrench-filter
138 240434401 A B C D Cup-water filter
138* 218904301 A B C D O-ring, wtr filter cup
139 240434301 A B C D Housing-water filtr
140 240545201 A B C D Elbow-water tube
149 240331607 A B C D Shroud-fan orfice
150 240394102 A B C D Insulation-water filter cover
151 240376002 A B C D Cover-water filter

Publication No: 5995412334 FRS23LH5D
06/04 12

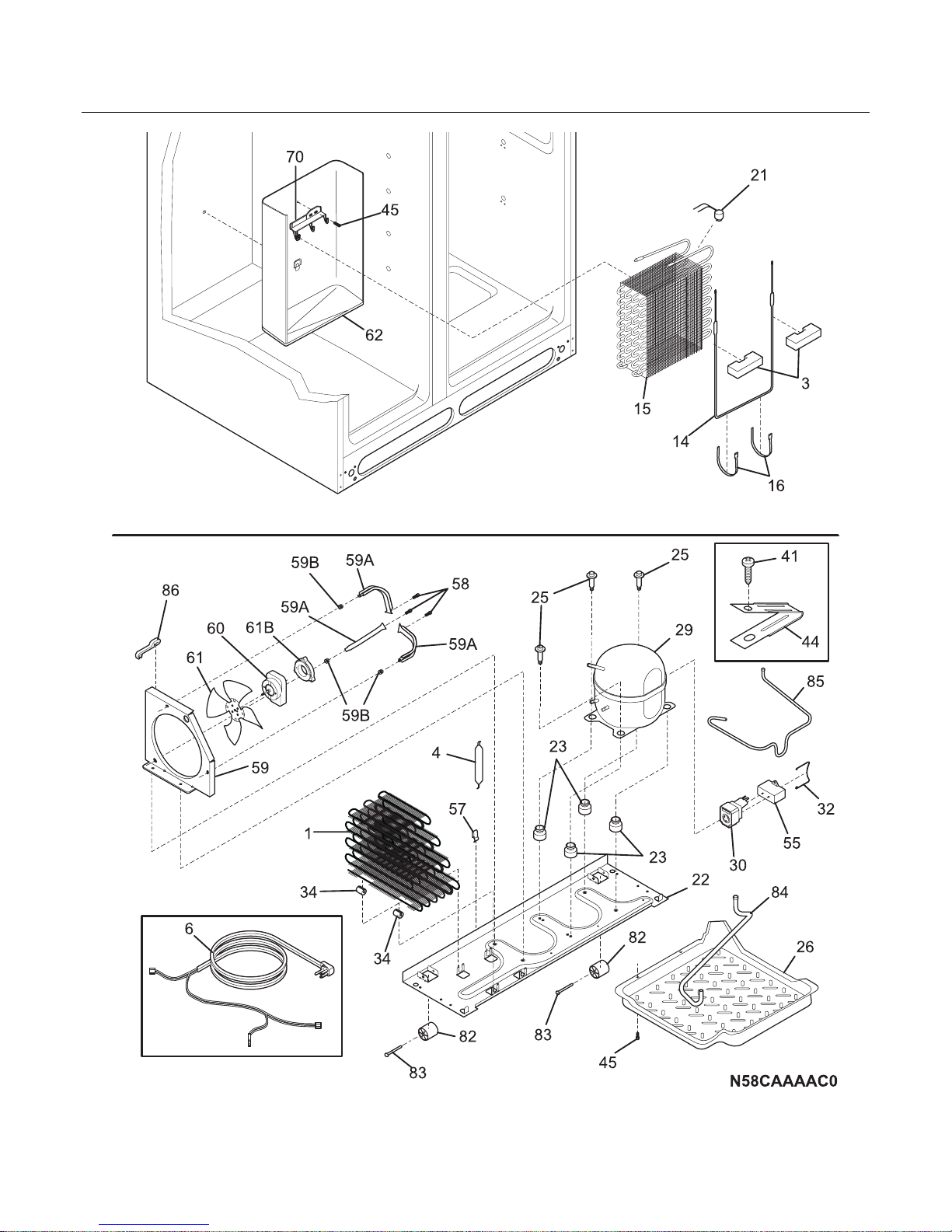

SYSTEM

FRS23LH5D Publication No: 5995412334
# Functional Parts 13 06/04
* Non-Illustrated Parts
SYSTEM
Model Index: AFRS23LH5D (FRS23LH5DB0)
BFRS23LH5D (FRS23LH5DQ0)
CFRS23LH5D (FRS23LH5DS0)
DFRS23LH5D (FRS23LH5DW0)
POS. NO PART NO. DESCRIPTION
1 240333602 A B C D Condenser
3 218679606 A B C D Block-evap coil, styrofoam, (2)
4 # 218944001 A B C D Drier-filter, R134a System
6 240346402 A B C D Harness-wiring, machine compt
6* 240449601 A B C D Harness-wiring
6* 241537802 A B C D Harness-wiring, control box
14 # 5303918253 A B C D Defrost Heater Kit
15 # 5303918286 A B C D Evaporator Kit
16 5308000110 A B C D Strap-evap/heater, aluminum, (2)
21 # 5303918214 A B C D Thermostat-defrost, kit
22 240330007 A B C D Base-compressor mtg
22* 218252200 A B C D Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 A B C D Grommet-compr mtg, (4)
25 240491501 A B C D Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF
26 240332602 A B C D Pan-defrost drain
29 # 5303918299 A B C D Compressor, w/electricals
30 # 241527802 A B C D Starter
32 241527901 A B C D Clamp, elec cont mtg, compressor
34 240405201 A B C D Grommet, rubber, black, cond tube/wire
41 240555001 A B C D Screw-#8-32 X 3/8
44 215174700 A B C D Clamp-service cord, strain relief, galv steel
45 5308016566 A B C D Screw, hex washer head, 8-15A x 0.625, low profile
55 218909915 A B C D Capacitor-run, 220 VAC, 15 microfarad
57 240542601 A B C D Clip-wiring harness
58 240569201 A B C D Screw, 8-18 x 0.500
59 240315501 A B C D Shroud-cond fan
59* 240346701 A B C D Tape-foam seal, shroud
59* 240359401 A B C D Screw-fan shroud, (2)
59A 240346501 A B C D Bracket-support, cond mtr, (3)
59B 240346601 A B C D Grommet-bracket, (3)
60 # 241537901 A B C D Motor-condenser fan
60* 240569501 A B C D Screw, 8-18 X 1 3/4, (2)
61 241536201 A B C D Blade-condenser fan
61B 240564001 A B C D Bracket-support, cond mtr, (3)
62 240429401 A B C D Trough-drain
70 218990801 A B C D Bracket-evap/cvr mtg
82 5304418225 A B C D Roller, compressor base, rear, (2)
83 5303316859 A B C D Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 A B C D Tube-drain, lower
85 240553501 A B C D Tube-connector, suction
86 240409302 A B C D Spacer-cond tube, black
* # 5303918213 A B C D Heat Exchanger Kit, suction line
* 5303918222 A B C D Hot Tube Repair Kit, Service

Publication No: 5995412334 FRS23LH5D
06/04 14
ICE & WATER DISPENSER

FRS23LH5D Publication No: 5995412334
# Functional Parts 15 06/04
* Non-Illustrated Parts
ICE & WATER DISPENSER
Model Index: AFRS23LH5D (FRS23LH5DB0)
BFRS23LH5D (FRS23LH5DQ0)
CFRS23LH5D (FRS23LH5DS0)
DFRS23LH5D (FRS23LH5DW0)
POS. NO PART NO. DESCRIPTION
1 218976409 A B C D Tube-water
1* 218976901 A B C D Tube-water inlet, inlet valve, to ice maker
1* 218976904 A B C D Tube-water inlet, valve to filter
1* 218976907 A B C D Tube-water inlet, valve to door
1* 240561701 A B C D Seal-water inlet, inlet valve, to ice maker
4 5304433186 A - C - Cover-module, black
4 5304433187 - B - - Cover-module, bisque
4 5304433188 - - - D Cover-module, white
8 5304421639 A - C - Module-dispenser, black
8 5304421638 - B - - Module-dispenser, bisque
8 5304421632 - - - D Module-dispenser, white
10 5304426649 A B C D Spring-torsion
14 240570206 A - C - Label-module cover, black
14 240570205 - B - - Label-module cover, bisque
14 240570204 - - - D Label-module cover, white
15 5304421616 A B C D Light Bulb
16 240548901 A B C D Socket-light
17 5304421619 A B C D Screw
17A 5304433185 A B C D Screw, switch mtg.
23 240323603 A - C - Drip Tray, black
23 240323602 - B - - Drip Tray, bisque
23 240323601 - - - D Drip Tray, white
24 5304422026 A - C - Actuator-water, black
24 5304422027 - B - - Actuator-water, bisque
24 5304421825 - - - D Actuator-water, white
24A 5304422025 A - C - Actuator-ice, black
24A 5304422028 - B - - Actuator-ice, bisque
24A 5304421826 - - - D Actuator-ice, white
30 5304421628 A B C D Door Assy-ice chute
30A 5304421624 A B C D Door center
30B 5304421625 A B C D Insulation-door
30C 5304421629 A B C D Door seal
35 5304421620 A B C D Damper-rotary
38A# 5304421617 A B C D Switch-micro, single pole, double throw
38A* 5304430839 A B C D Harness-wiring
38C 5304430836 A B C D Switch
38C* 5304430837 A B C D Harness-wiring
39 5304421627 A B C D Pin-hinge
41 5304421829 A B C D Spring-actuator
43 215296300 A B C D Screw, plask h/l, #6 x 3/8
56 5304421830 A B C D Screw-micro switch, pan head
82 240363401 A B C D Screw-#8-18 X 1/2, #6 hd plask
87 5304421622 A B C D Bearing Plate
87A 5304421621 A B C D Bearing Plate
88 5304421615 A B C D Shield-light
* 5303918256 A B C D Dispenser heater kit

Publication No: 5995412334 FRS23LH5D
06/04 16
ICE CONTAINER

FRS23LH5D Publication No: 5995412334
# Functional Parts 17 06/04
* Non-Illustrated Parts
ICE CONTAINER
Model Index: AFRS23LH5D (FRS23LH5DB0)
BFRS23LH5D (FRS23LH5DQ0)
CFRS23LH5D (FRS23LH5DS0)
DFRS23LH5D (FRS23LH5DW0)
POS. NO PART NO. DESCRIPTION
2 5304428402 A B C D Auger-ice
3 5304404343 A B C D Cam-drive
4 218815300 A B C D Container-ice, bucket only
6 5304404346 A B C D Drum-ice disp
7 218815400 A B C D Front-ice container
10 5304404337 A B C D Bar-drive
13 5304404359 A B C D Gate
15 241555401 A B C D Light Bulb
16 240433701 A B C D Receptacle, E27A lampholder, 115 V
17 5304404345 A B C D Drive Blade
18 # 5304440392 A B C D Motor-auger
18*# 240352601 A B C D Wiring Harness, internal, with plug
20 5304404332 A B C D Cover-motor
21 215285100 A B C D Nut-drive
23 5304404347 A B C D Plate-front
25 5304404362 A B C D Screw, hex washer head, 8-32T x 0.375
26 215503200 A B C D Screw, cr pan hd, 10-16 x 0.500
33 5304404351 A B C D Spacer
34 5304404349 A B C D Spacer
35A 5304404353 A B C D Fixed Blade, round
35B 5304404352 A B C D Fixed Blade, square
37A 5304404348 A B C D Blade, crusher #1
37B 5304404350 A B C D Blade, crusher #2
37C 5304404356 A B C D Blade, crusher #3
39 5304404365 A B C D Screw
41 5304404358 A B C D Housing-crusher
44 218359200 A B C D Screw, pan head, 8-32 x 0.250
45 # 5304404333 A B C D Solenoid Assy
45A 5304406816 A B C D Spring-solenoid
45B 5304406817 A B C D E-Ring-solenoid
45C 5304406818 A B C D Actuator-solenoid
45D 5304406819 A B C D Solenoid
46 5304404341 A B C D Control Rod
47 5304404342 A B C D Spring-control rod
48 5304404340 A B C D Bracket-control rod
48* 5304404364 A B C D Screw-bracket
49 5304404880 A B C D RailAssy
50 5304404334 A B C D Guide-solenoid
51 5304404336 A B C D Rotation Stop
52 5304404354 A B C D Spacer-fixed blades
53 5304404355 A B C D Pin-spiral, fixed blades
54 5304404357 A B C D Nut-auger
55 5304404360 A B C D Washer
56 5304404361 A B C D E-ring
57 5304404363 A B C D Door-access
58 5304404331 A B C D Screw-solenoid
* 240323808 A B C D Ice Container Assy, w/moving parts
* 240507202 A B C D Deflector-ice container

Publication No: 5995412334 FRS23LH5D
06/04 18
ICE MAKER

FRS23LH5D Publication No: 5995412334
# Functional Parts 19 06/04
* Non-Illustrated Parts
ICE MAKER
Model Index: AFRS23LH5D (FRS23LH5DB0)
BFRS23LH5D (FRS23LH5DQ0)
CFRS23LH5D (FRS23LH5DS0)
DFRS23LH5D (FRS23LH5DW0)
POS. NO PART NO. DESCRIPTION
1 218976409 A B C D Tube-water
1* 218976901 A B C D Tube-water inlet, inlet valve, to ice maker
1* 218976904 A B C D Tube-water inlet, valve to filter
1* 218976907 A B C D Tube-water inlet, valve to door
1* 240561701 A B C D Seal-water inlet, inlet valve, to ice maker
2 5304420650 A B C D Spring, shut-off arm
3 3206299 A B C D Label, ID plate
4 3206301 A B C D Gear
5 3206303 A B C D Plate-mounting
6 3206305 A B C D Screw-ground wire, 8-32 x 0.250
7 # 3206306 A B C D Motor-ice maker
8 3206312 A B C D Spacer-hold switch
9 3206313 A B C D Cam
10 3206315 A B C D Clamp
11 # 3206319 A B C D Thermal Cutoff, ICE MAKER, complete assy
12 # 240352601 A B C D Wiring Harness, internal, with plug
13 # 3206322 A B C D Thermostat Assy, ICE MAKER
14 5304420652 A B C D Screw, 4 x 0.750, switch mtg.
15 # 3206324 A B C D Switch, (3)
16 5304420653 A B C D Support, phenolic
17 # 5303320545 A B C D Mold-ice maker, Radius Cube, with heater
18 3206328 A B C D Ejector-ice
19 3206330 A B C D Bearing & Inlet
20 5304408581 A B C D Screw, 8-32 x 0.375
21 3206332 A B C D Ice Stripper
22 3206333 A B C D Shut-off Arm
23 5304408582 A B C D Screw, 8-32 x 0.875, mold-to-support, (3)
24 3206335 A B C D Lever Arm
25 3206336 A B C D Screw, 8-18 x 0.562, lever arm/sprt
26 5304420654 A B C D Screw-thermo/sprt, 4-24 x 0.375, (4)
27 3206338 A B C D Screw, 4-40 x 1.000, hold switch mtg, (2)
28 3206339 A B C D Screw-timing stop, 4-40 x 0.375
29 3206323 A B C D Screw, 4-24 x 0.750, (6)
30 3206341 A B C D Screw-timing adj, 8-32 x 1.000
31 3206342 A B C D Insulator
32 3206343 A B C D Plate-valve switch
33 5304408583 A B C D Spring-timing adj
34 5304420655 A B C D Screw, plazscrew, 8-10, (3)
35 5304408585 A B C D Screw
36 3206347 A B C D Cover-ice maker
42 5303001199 A B C D Clamp-wiring harness, strain relief, galv steel
42* 218515402 A B C D Clip, (2), tube mtg.
45 5308016566 A B C D Screw, hex washer head, 8-15A x 0.625, low profile
45* 5303001343 A B C D Screw, hex washer head, 8-15A x 0.500
46 5303001193 A B C D Clamp, .50 ID, steel, water tube
46* 5308000133 A B C D Clamp, nylon, .625 ID
51 240387101 A B C D Tube-water, ice mold fill, extension

Publication No: 5995412334 FRS23LH5D
06/04 20
ICE MAKER
