Frigidaire GRFS2853AF Owner's manual

Frigidaire.com USA 1-800-374-4432 Frigidaire.ca Canada 1-800-265-8352
use
&
care
REFRIGERATOR
A17856403 (February 2022)
Introduction.......................................................2
Important Safety Information ....................3
Features..............................................................7
Installation .........................................................9
Door Removal.................................................. 11
Door Handle Installation............................. 16
Water Supply Connection.......................... 17
Controls And Settings................................. 19
Automatic Ice & Water Dispenser ......... 26
Ice Maker .........................................................30
Storage Features.......................................... 32
Storing Food and Saving Energy........... 38
Normal Operating Sounds........................ 39
Filter Replacement ......................................40
Care & Cleaning ............................................43
Troubleshooting ..........................................45
Limited Warranty .........................................50

2INTRODUCTION
Doors
Handles are secure and tight
Door seals completely to cabinet on
all sides
Leveling
Refrigerator is level side-to-side and
slightly elevated in front to assist with
door and drawer closing (front should
be higher than back)
Cabinet is setting solid on all corners
Electrical Power
House power turned on
Refrigerator plugged in
Ice Maker(s)
House water supply connected to
refrigerator.
WARNING: Potable water supply
only.
No water leaks present at all
connections - recheck in 24 hours
Ice maker(s) is/are turned ON
Ice & water dispenser operates
correctly
Final Checks
Shipping material removed
Refrigerator and freezer temperatures
set
Registration card sent in
Installation Checklist

Welcome to our family
Thank you for bringing Frigidaire into
your home! We see your purchase as the
beginning of a long relationship together.
This manual is your resource for the use
and care of your product. Please read
it before using your appliance. Keep it
handy for quick reference. If something
doesn’t seem right, the troubleshooting
section will help you with common issues.
FAQs, helpful tips and videos, cleaning
products, and kitchen and home accessories
are available at www.frigidaire.com.
We are here for you! Visit our website,
chat with an agent, or call us if you need
help. We may be able to help you avoid
a service visit. If you do need service, we
can get that started for you.
Let’s make it ocial! Be sure to register
your product.
Keep your product info here so it’s easy
to find.
Model Number
Serial Number
Purchase Date

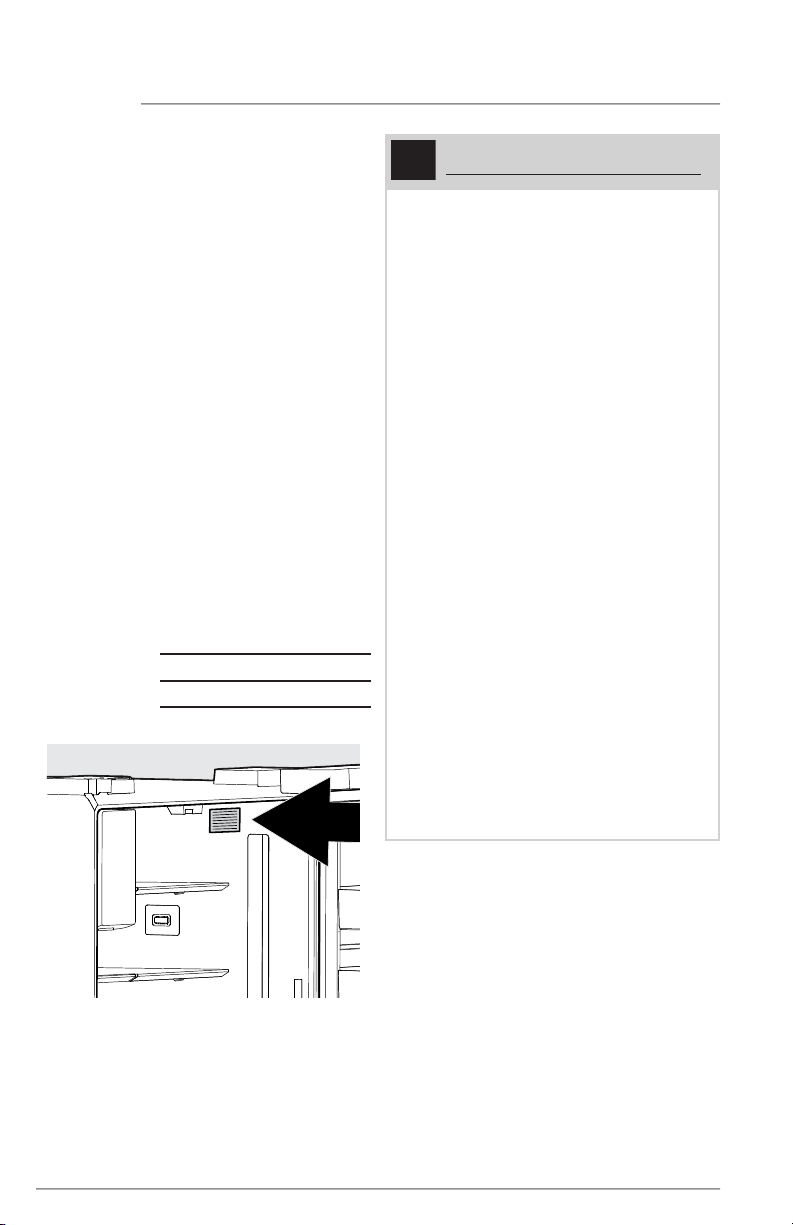

Serial Number Location

3
WARNING
WARNING indicates a potentially
hazardous situation which, if not avoided,
could result in death or serious injury.
IMPORTANT
IMPORTANT indicates installation, oper-
ation or maintenance information which
is important but not hazard-related.
DANGER
DANGER indicates an imminently
hazardous situation which, if not avoided,
will result in death or serious injury.
CAUTION
CAUTION indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
Safety Definitions
This is the safety alert symbol. It is
used to alert of potential personal injury
hazards. Obey all safety messages that
follow this symbol to avoid possible injury
or death.
WARNING
Please read all instructions before using
this appliance.
IMPORTANT SAFETY INFORMATION
CAUTION
CAUTION Risk of fire or explosion.
Dispose of refrigerator properly
in accordance with the applicable
federal or local regulations. Flammable
refrigerant used.
CAUTION Risk of fire or explosion
due to puncture of refrigerant tubing.
Follow handling instructions carefully.
Flammable refrigerant used.
DANGER
DANGER Risk of fire or explosion.
Flammable refrigerant used. Do not use
mechanical devices to defrost refrigera-
tor. Do not puncture refrigerant tubing.
DANGER Risk of fire or explosion.
Flammable refrigerant used. To be re-
paired only by trained service person-
nel. Use only manufacturer-authorized
service parts. Any repair equipment
used must be designed for flammable
refrigerants. Follow all manufacturer
repair instructions. Do not puncture
refrigerant tubing.
WARNING
CALIFORNIA RESIDENTS ONLY
WARNING! Cancer and Reproductive Harm
www.P65Warnings.ca.gov

4
IMPORTANT
CFC/HCFC Disposal
Your old refrigerator may have a cool-
ing system that used CFCs or HCFCs
(chlorofluorocarbons or hydrochlorofluo-
rocarbons). CFCs and HCFCs are believed
to harm stratospheric ozone if released to
the atmosphere. Other refrigerants may
also cause harm to the environment if
released to the atmosphere.
If you are throwing away your old refrig-
erator, make sure the refrigerant is re-
moved for proper disposal by a qualified
technician. If you intentionally release
refrigerant, you may be subject to fines
and imprisonment under provisions of
environmental legislation.
Proper Disposal of Refrigerators/Freezers
We strongly encourage responsible appliance
recycling/disposal methods. Check with your
utility company or visit www.energystar.gov/
recycle for more information on recycling
your old refrigerator.
Before you throw away your old
refrigerator/freezer:
• Remove doors.
• Leave shelves in place so children
may not easily climb inside.
• Have refrigerant removed by a
qualified service technician.
IMPORTANT SAFETY INFORMATION
Safety Instructions
• DO NOT store or use gasoline,
or other flammable liquids in
the vicinity of this or any other
appliance. Read product labels for
warnings regarding flammability and
other hazards.
• DO NOT operate the refrigerator in
the presence of explosive fumes.
• Avoid contact with any moving parts
of automatic ice maker.
• Remove all staples from the carton.
Staples can cause severe cuts, and
also destroy finishes if they come
in contact with other appliances or
furniture.
Child Safety
Destroy or recycle the carton, plastic
bags, and any exterior wrapping material
immediately after the refrigerator is
unpacked. Children should NEVER use
these items to play. Cartons covered with
rugs, bedspreads, plastic sheets or stretch
wrap may become airtight chambers, and
can quickly cause suocation.
WARNING
Do not use electrical appliances inside
the food storage compartments of the
appliance unless they are of the type
recommended by the manufacturer.
Proper Disposal of your
Refrigerator or Freezer
Risk of child entrapment
Child entrapment and suocation are
not problems of the past. Junked or
abandoned refrigerators or freezers are
still dangerous – even if they will sit for
“just a few days”. If you are getting rid
of your old refrigerator or freezer, please
follow the instructions below to help
prevent accidents.

5
Electrical information
• The refrigerator must be plugged
into its own dedicated 115 Volt, 60
Hz., 15 Amp, AC only electrical outlet.
The power cord of the appliance
is equipped with a three-prong
grounding plug for your protection
against electrical shock hazards.
It must be plugged directly into
a properly grounded three-prong
receptacle. The receptacle must be
installed in accordance with local
codes and ordinances. Consult
a qualified electrician. Avoid
connecting refrigerator to a Ground
Fault Interrupter (GFI) circuit. Do
not use an extension cord or adapter
plug.
• If the power cord is damaged, it
should be replaced by an authorized
service technician to prevent any
risk.
• Never unplug the refrigerator by
pulling on the power cord. Always
grip the plug firmly, and pull straight
out from the receptacle to prevent
damaging the power cord.
• Unplug the refrigerator before
cleaning to avoid electrical shock.
• Performance may be aected if
the voltage varies by 10% or more.
Operating the refrigerator with
insucient power can damage the
compressor. Such damage is not
covered under your warranty.
• Do not plug the unit into an
electrical outlet controlled by a wall
switch or pull cord to prevent the
refrigerator from being turned o
accidentally.
IMPORTANT
To turn o power to your refrigerator
you must unplug the power cord from
the electrical outlet.
Grounding type wall receptacle
Power cord with
3-prong grounded plug
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
CAUTION
To avoid personal injury or property
damage, handle tempered glass shelves
carefully. Shelves may break suddenly
if nicked, scratched, or exposed to
sudden temperature change.
IMPORTANT SAFETY INFORMATION

6
IMPORTANT
Accessories are available for your appliance and may be purchased at
Frigidaire.com or by calling 1-800-374-4432 (Frigidaire.ca or 1-800-265-8352 in
Canada) or from an authorized seller.

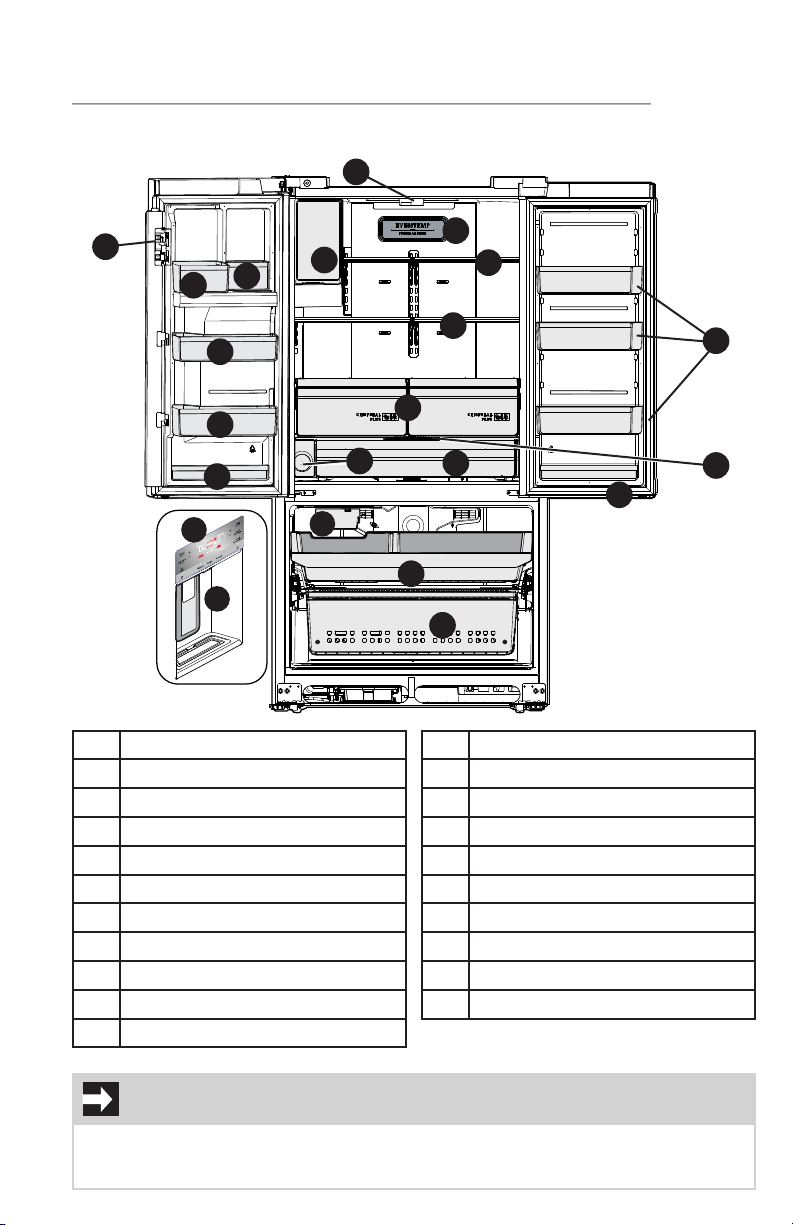

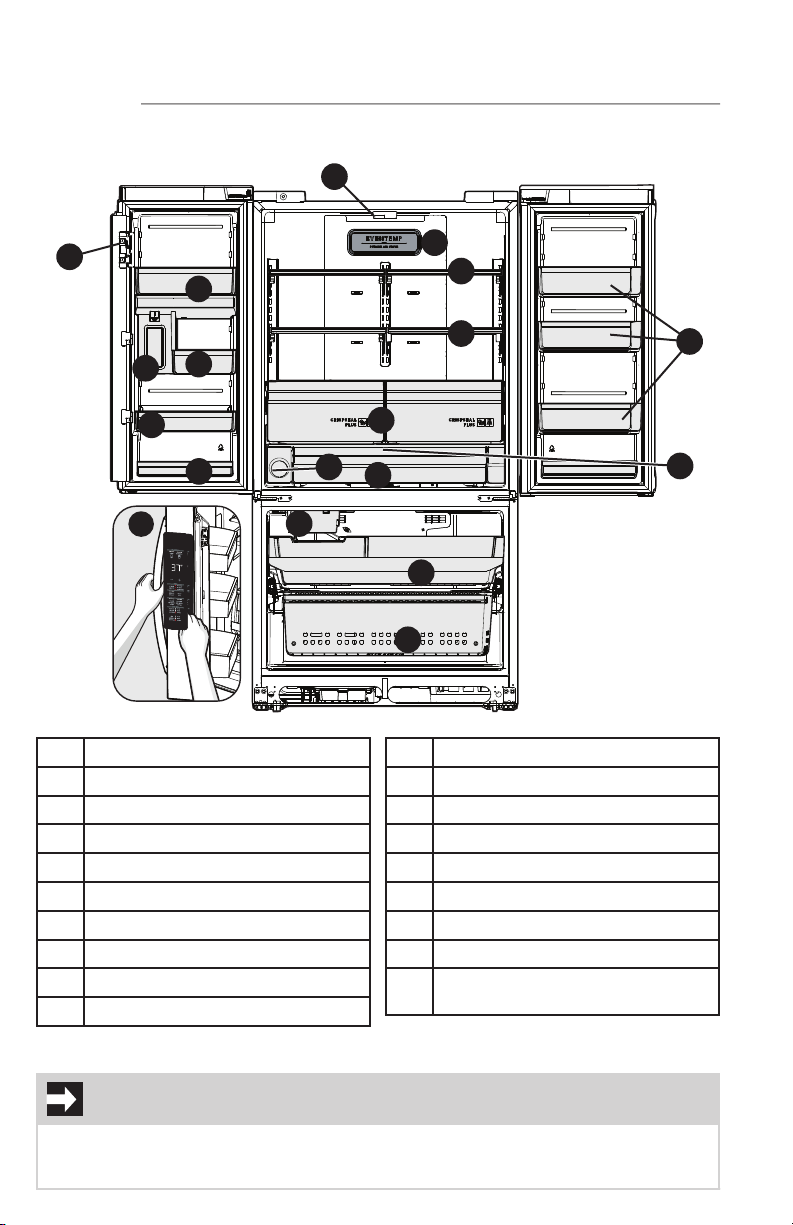

Internal Water Dispenser Model
AWater Filter
BCondiment Bin
CL-Shaped Bin
DDairy Bin
EFlipper Mullion
FInternal Water Dispenser
GStandard Bin
HFlipper Guide
IAir Filter
JSlide Under ½ width shelves
KEdge-to-edge Glass Shelving
LStandard Bins
MCrisper Drawers
NAdjustable Temp Drawer (ATD)
O ATD Controls
P Upper Freezer Basket
QLower Freezer Basket
RFreezer Ice Maker
SDispenser Control Display
(functions)
FEATURES
B
C
D
E
F
G
H
I
J
M
N
L
P
Q
R
K
AO
S

7
External Water Dispenser Model
AWater Filter
BCondiment Bin
CL-Shaped Bin
DDairy Bin
EFlipper Mullion
FGallon Bin
GSlim Bin
HFresh Food Ice Maker & Bin
IFlipper Guide
JAir Filter
KSlide Under ¼& ½ width shelves
LEdge-to-edge Glass Shelving
MStandard bin
NCrisper Drawers
OAdjustable Temp Drawer (ATD)
P ATD Controls
Q Upper Freezer Basket
RLower Freezer Basket
SFreezer Ice Maker
TExternal control display
UIce & Water Dispenser
FEATURES
Quick
Freeze
IMPORTANT
Accessories are available for your appliance and may be purchased at
Frigidaire.com or by calling 1-800-374-4432 (Frigidaire.ca or 1-800-265-8352 in
Canada) or from an authorized seller.
A
B
B
C
D
E
FG
H
I
J
K
M
N
L
O
Q
R
P
S
T
U

8
CAUTION
Do Not install the refrigerator where
the temperature will drop below 55°F
(13°C) or rise above 110°F (43°C).
The compressor will not be able to
maintain proper temperatures inside
the refrigerator.
This Use & Care Manual provides general
installation and operating instructions
for your model. We recommend
using a service or kitchen contracting
professional to install your refrigerator.
Use the refrigerator only as instructed in
this Use & Care Manual. Before starting
the refrigerator, follow these important
first steps.
Location
• Choose a place that is near a
grounded, non-GFCI, electrical
outlet. Do Not use an extension cord
or an adapter plug.
• If possible, place the refrigerator
out of direct sunlight and away from
the range, dishwasher, or other heat
sources.
• The refrigerator must be installed
on a floor that is level and strong
enough to support a fully loaded
refrigerator.
• Consider water supply availability
for models equipped with an
automatic ice maker.
Top Hinge
Cover Front
Screw
Top Hinge
Cover Rear
Screw
Lower
Hinge
Screw
Top
Hinge
Screw

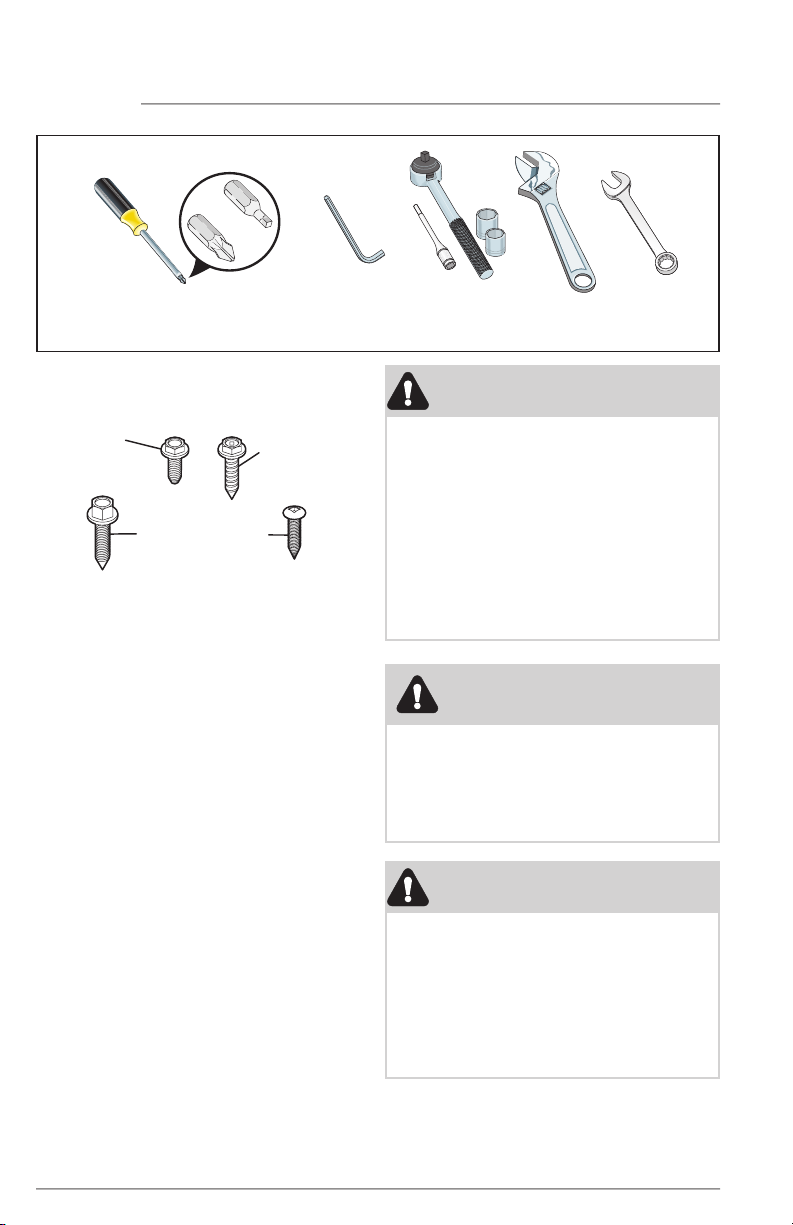

Components Provided:
Tools Necessary:
Phillips Head
or
Quadrex Head
Screwdriver
(OR) OR
⅜" and ¼"
Socket
Wrench
Adjustable
Wrench
OR
⅜"
Fixed
Wrench
ANDAND
6mm
Allen Wrench
INSTALLATION
WARNING
Installation
Allow the following clearances
for ease of installation, proper air
circulation, and plumbing and electrical
connections:
• Sides & Top ³⁄8inch (9.5 mm)
• Back 1 inch (25.4 mm)
WARNING
This appliance is intended for use
in residential household and similar
interior applications such as:
• Kitchen / Kitchenette
• Pantry Room
• Basement
• Enclosed Garage
• Other interior residential type
environments

9
NOTE
If your refrigerator is placed with the
door hinge side against a wall, you may
have to allow additional space so the
door can be opened wider.
NOTE
Product is shipped with doors adjusted
to the lowest position on the hinges.
INSTALLATION
Door opening
Your refrigerator should be positioned
to allow easy access to a counter
when removing food. For best use of
refrigerator drawers and freezer baskets,
the refrigerator should be in a position
where both can be fully opened.
Cabinet Leveling & Refrigerator
Door Alignment (if necessary)
Guidelines for final positioning of refrigerator:
• All four corners of the cabinet must
rest firmly on the floor.
• The front should be slightly elevated
to ensure that doors close and seal
properly.
• Doors should align with each other
and be level.
Most of these conditions can be met by
raising or lowering the adjustable front rollers.
To level the cabinet using the front rollers:
1. Slightly open freezer drawer to
reveal adjustable rollers at bottom of
cabinet.
2. Use the front roller height adjusting
screws to make initial cabinet
adjustments. Use a 3/8 inch socket
wrench to turn the adjustment
screws (1 per side).
To raise unit: Turn adjustment
screw clockwise.
To lower unit: Turn adjustment screw
counterclockwise.
Door
Door
To make final door height adjustments:
1. Open freezer drawer to access
hinges for fresh food doors.
2. Insert 6mm AllenTM wrench into the
shaft of the lower hinge. (Included
with unit)
To lower door: turn adjustment
screw counter-clockwise if looking
at the door from below.
To raise door: turn adjustment
screw clockwise if looking at the
door from below.
Raise
Lower
Anti-tip
Leg
3. Ensure both doors are bind-free with
their seals touching the cabinet on all
four sides and that cabinet is stable.
4. After unit is leveled, lower the anti-
tip leg until it firmly contacts the
floor. An adjustable wrench may be
necessary for adjustment.

10 INSTALLATION
Adjusting Flipper Mullion Screw
2. Adjust flipper mullion height. For
proper connection with the flipper
mullion guide, there should be a
separation about the thickness of
a coin (0.060 inches, or 1.5 mm)
between the guide and flipper
mullion.
3. Re-tighten screws.
To adjust the flipper mullion:
1. Loosen the two screws located on
the flipper mullion hinge.
Adjusting Flipper Mullion Height
Flipper
Mullion
Screws
Flipper Mullion
Adjust Flipper Mullion for proper
connection with the mullion guide by
ensuring the flipper mullion is folded and
perpendicular to the fresh food door. If
the mullion guide is not in the correct
position, it could prevent the door from
closing completely.
WRONG
Flipper
Mullion
Mullion
Guide
Thickness
of a Coin

11
WARNING
Make sure the electrical power cord is
unplugged from the wall outlet.
Getting through narrow spaces
If your refrigerator will not fit through an
entrance area, you can remove the doors.
Check first by measuring the entrance.
To prepare for removing the doors:
1. Make sure the electrical power cord
is unplugged from the wall outlet.
2. Remove any food from the door
shelves and close the doors.
DOOR REMOVAL
Right Door Non-Dispenser Unit
Right Door Dispenser Unit
Left Door Dispenser Unit
Left Door Non- Dispenser Unit
To remove refrigerator doors:
1. Remove the three screws from both
hinge covers on the left and right
top of the cabinet, taking care not
to damage electrical connections or
sensors.
2. After the hinge covers are removed,
disconnect any harnesses between
the cabinet and doors by grasping
both sides of the connector firmly,
depress the latch and pull apart.

12 DOOR REMOVAL
5. Pull the water tube out of the
conduit from the top of the cabinet.
Press
Press
Press
Press
6. Open both doors to a 90 degree
angle.
NOTE
You will be pulling approximately five
feet of water tube from the back of the
refrigerator. Use care while pulling the
water tube from the unit to be sure that
you do not kink the tube.
90˚
CAUTION
Be sure doors are set aside in a secure
position where they cannot fall and
cause personal injury, or damage to the
doors or handles.

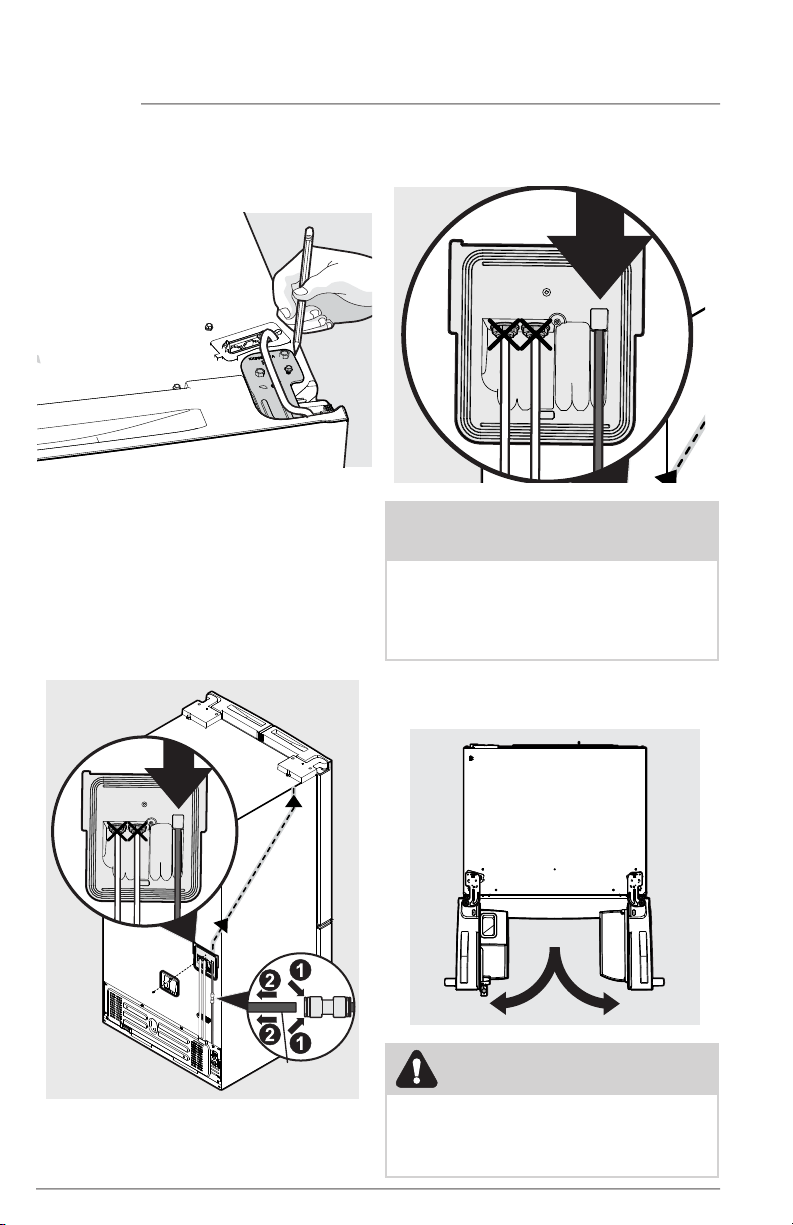

3. Trace lightly around the door’s top
hinges with a pencil. This makes re-
installation easier.
4. Remove bulkhead cover at rear
of unit to access water tubing.
Disconnect the water tube at the
push-lock connection on the rear
of the unit below the bulkhead. The
dispenser line is connected to the
yellow water line coming from the
main water valve.

13
DOOR REMOVAL

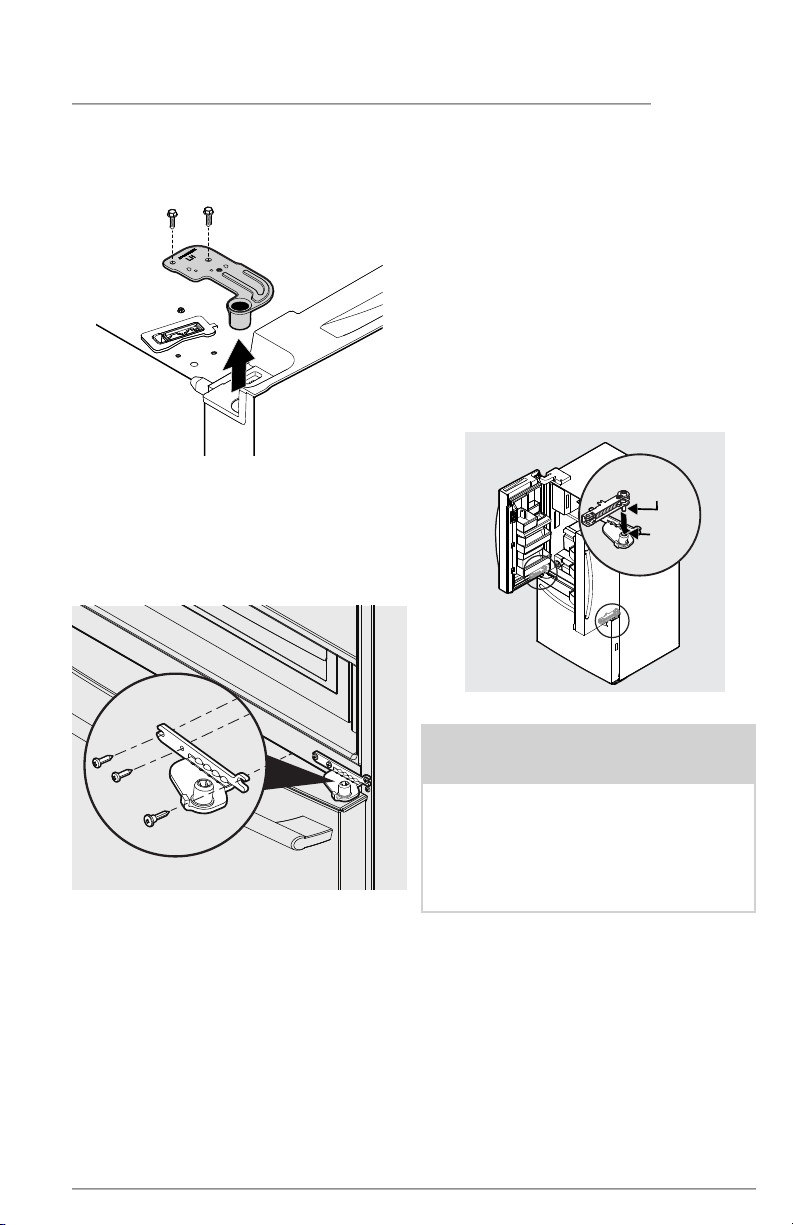

7. Remove hex screws from top hinge
plate, then remove the top hinge.
8. Lift doors o bottom hinges and set
aside.
9. Unscrew the three bottom hinge
screws and remove the bottom
hinges.
Lower Hinge Removal
Pin
Mechanism
Bottom
Hinge
Opening
NOTE
When reinserting the water tube and
replacing the top hinge cover, use care
to be sure you do not kink the tube.
The water line may also be dicult to
pass back through the conduit inside
the cabinet
To reinstall the refrigerator
doors:
1. Replace three bottom hinge screws
and hinges on both sides of the
cabinet. Ensure screws are tightly
snug to hinges on both sides of the
cabinet before re-installing doors
2. Holding the door at a 90 degree
angle, drop the pin down into the
bottom hinge opening. Rotate it
slightly in either direction until the
door falls onto the hinge and is fully
seated.

14 DOOR REMOVAL
Bottom of the Doors
For
RIGHT DOOR,
turn pin 90˚
counter-
clockwise
For
LEFT DOOR,
turn pin 90˚
clockwise
To reset door pin:
If doors are removed at less than a 40
degree angle, the pin returns to the home
position. It can be reset by turning the
door upside down and using a 5/32” Allen
wrench to rotate the left hand pin 90
degrees clockwise and the right hand pin
90 degrees counterclockwise.
Once the door pins are reset, follow the
steps “To reinstall the refrigerator doors”.
3. Reinstall top hinges and screws.
4. Insert and feed water line back into
the conduit at the top left door
hinge until tube re-appears at rear
of unit.
Push
Push
5. Reconnect all harnesses.
6. Replace top hinge covers and
screws.
7. Reconnect water line to push-lock
connection and reinstall water line
bulkhead cover at rear of unit.
8. Reconnect electrical power cord to
the wall outlet
NOTE
Upon replacement, the tube needs to
be fully inserted up to the marking line.

15
CAUTION
Drawer is heavy. Use caution when lifting.

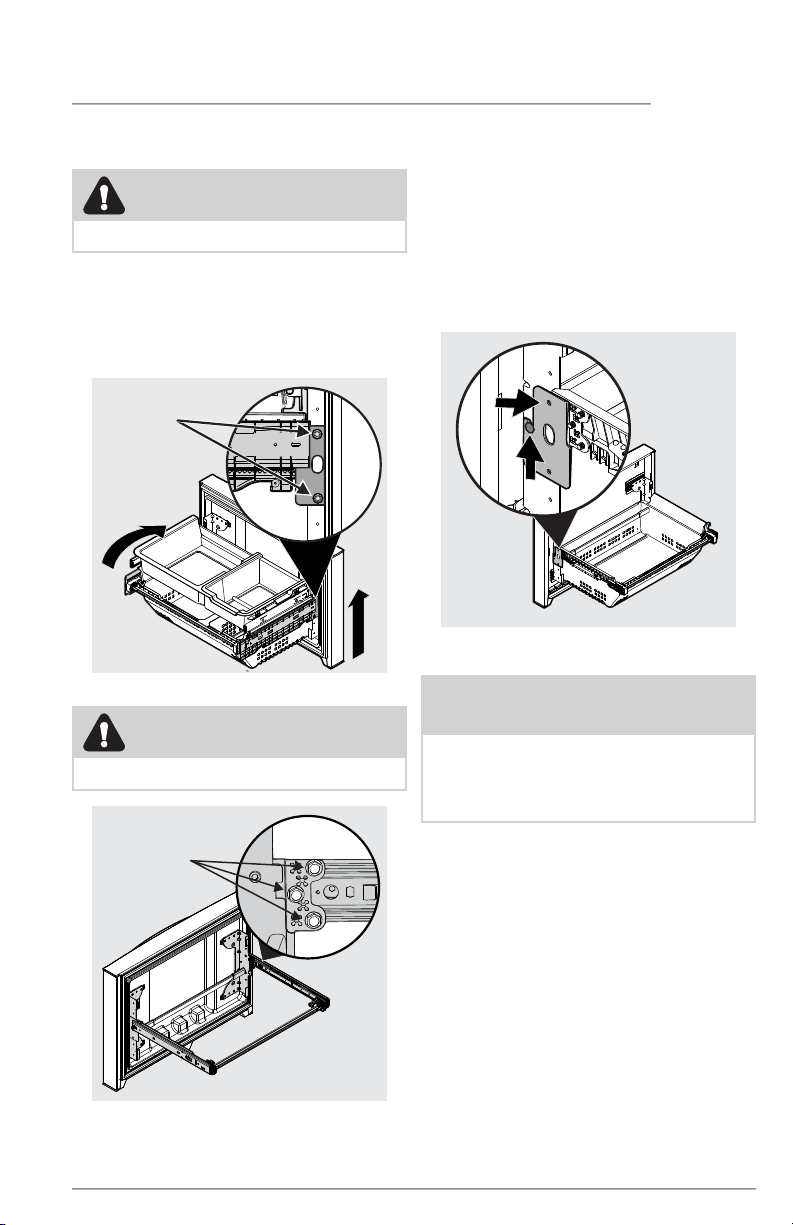

Removing Freezer Drawer
1. Remove 4 hex head drawer screws
(2 per side) that secure the drawer
to the slide assemblies.
2. Lift up drawer to remove.
Remove
Hex Head
Drawer
Screw
CAUTION
Do Not loosen or remove the 3 hex screws.
DOOR REMOVAL
NOTE
To locate the pin, look inside the drawer
and the pin is next to the door liner and
the slides. Not all parts are shown in the
illustration.
Replacing Freezer Drawer
1. Extend the Freezer slides from the
unit.
2. Carefully align support pin with
hooks on end of freezer slides and
then lower freezer door onto slides.
3. Replace the 4 hex head screws that
secure the slides to the door (2 on
each side) and tighten.

16
CAUTION
Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.
NOTE
All set screws should be tightened so the screw is below the surface of the handle.
The handles should be drawn tight to freezer and refrigerator doors with no gaps.
Opening the opposite door while tightening the Allen screw makes installation easier.
The door handle may loosen over time or if it was installed improperly. If this hap-
pens, tighten the set screws on the handles.
Door Handle Mounting
Instructions
1. Remove handles from carton
and any other protective
packaging.
2. Position refrigerator handle end
caps over upper and lower pre-
installed shoulder bolts (A) that
are fastened into door, ensuring
the holes for the set screws are
facing towards the opposite door.
3. While holding handle firmly
against door, fasten upper and
lower Allen set screws (B) with
supplied Allen wrench.
4. Repeat steps 2 and 3 to install
opposite handle. Ensure the
holes for the set screws are
facing towards the opposite
door.
5. Position freezer handle end caps
over left and right pre-installed
shoulder bolts (A) that are
fastened to the door, ensuring
the holes for the set screws are
facing down.
6. While holding handle firmly
against door, loosely tighten
right Allen set screw (B) with
supplied Allen wrench until
there is no gap between handle
and door.
7. Still holding the handle firmly to
the door, firmly tighten left Allen
set screw (B) with supplied Allen
wrench.
8. Return to the right Allen set
screw (B) and firmly tighten
with supplied Allen wrench.
Mounting Refrigerator Handles
NOTE
When tightening the Allen set screws, it
is important that force be applied to the
longer arm of the Allen wrench supplied in
the handle packaging.
DOOR HANDLE INSTALLATION
Mounting Freezer Handle
AA
B B
AA
AA
B
B
B
B

17
WARNING
To avoid electric shock, which can
cause death or severe personal injury,
disconnect the refrigerator from
electrical power before connecting a
water supply line to the refrigerator.
NOTE
Check with your local building au-
thority for recommendations on water
lines and associated materials prior
to installing your new refrigerator.
Depending on your local/state build-
ing codes, Frigidaire recommends for
homes with existing valves its Smart
Choice®water line kit 5305513409 with
a 6ft. (1.8 meters) Stainless Steel Water
Line, and for homes without an existing
valve Frigidaire recommends its Smart
Choice®water line kit 5305510264 with
a 20ft. (6meters) Copper Water Line
with self-tapping saddle valve. Please
refer to www.frigidaire.com/store for
more information.
CAUTION
To Avoid Property Damage:
• Copper or Stainless Steel braided
tubing is recommended for the
water supply line. Water supply
tubing made of ¼inch plastic is not
recommended to be used. Plastic
tubing greatly increases the potential
for water leaks, and the manufacturer
will not be responsible for any
damage if plastic tubing is used for
the supply line.
• DO NOT install water supply tubing
in areas where temperatures fall
below freezing.
• Chemicals from a malfunctioning
water softener can damage the ice
maker. If your home has a water
softening system, ensure the softener
is maintained and working properly.
IMPORTANT
Ensure that your water supply line con-
nections comply with all local plumbing
codes.
Before Installing The Water
Supply Line, You Will Need:
• Basic Tools: adjustable wrench,
flat-blade screwdriver, and PhillipsTM
screwdriver
• Access to a household cold water
line with water pressure between 30
and 100psi.
• A water supply line made of ¼inch
(6.4mm) OD, copper or stainless
steel tubing. To determine the
length of tubing needed, measure
the distance from the water inlet
valve at the back of the refrigerator
to your cold water pipe. Then add
approximately 6ft. (1.8 meters), so
the refrigerator can be moved out
for cleaning (as shown).
• A shuto valve to connect the water
supply line to your household water
system. DO NOT use a self-piercing
type shuto valve.
• Do not re-use compression fittings
or use thread seal tape.
• A compression nut and ferrule
(sleeve) for connecting a copper
water supply line to the ice maker
inlet valve.
To Connect Water Supply Line
To Main Water Inlet Valve
1. Disconnect refrigerator from electric
power source.
2. Place end of water supply line
into sink or bucket. Turn ON water
supply and flush supply line until
water is clear. Turn OFF water
supply at shuto valve.
3. Remove plastic cap from water valve
inlet and discard cap.
WATER SUPPLY CONNECTION

18 WATER SUPPLY CONNECTION
IMPORTANT
Your refrigerator’s water supply system
includes several tubing lines, a water
filter, and a water valve. To ensure that
your water dispenser works properly,
this system must be completely filled
with water when your refrigerator is
first connected to the household water
supply line.
NOTE
These instructions do not cover after
market ice maker installation. Instruc-
tions in after market ice maker kit
should be used.
4. If you use copper tubing - Slide
brass compression nut, then
ferrule (sleeve) onto water supply
line. Push water supply line into
water valve inlet as far as it will
go (¼inch/6.4mm). Slide ferrule
(sleeve) into valve inlet and finger
tighten compression nut onto valve.
Tighten another half turn with a
wrench; DO NOT over tighten. See
Figure 1.
• If you use braided flexible stainless
steel tubing - The nut is already
assembled on the tubing. Slide nut
onto valve inlet and finger tighten
nut onto valve. Tighten another half
turn with a wrench; DO NOT over
tighten. See Figure 2.
5. With steel clamp and screw, secure
water supply line to rear panel of
refrigerator as shown.
6. Coil excess water supply line
(copper tubing only), about
2½turns, behind refrigerator as
shown and arrange coils so they
do not vibrate or wear against any
other surface. Do not kink tubing.
7. Turn ON water supply at shuto
valve and tighten any connections
that leak.
8. Reconnect refrigerator to electrical
power source.
9. To turn ice maker on, ensure Ice
Maker is enabled on display (LED
will be lit) or set the ice maker’s
On/o power switch to the “ON”
position (freezer ice maker).
Figure 1
Steel
Clamp
Brass
Compression
Nut
Ferrule
(Sleeve)
Copper
Water line
Water Valve
Bracket
Valve Inlet
Water Valve
Copper waterline
from household
water supply
(Include enough tubing
in loop to allow moving
refrigerator out for cleaning)
Figure 2
Steel
Clamp
Valve Inlet
Water Valve
Braided
Flexible
Stainless
Steel
Water Line
(Include enough
tubing in loop
to allow moving
refrigerator out
for cleaning)
6 ft. (1.8 Meters)
Braided flexible
stainless steel water
line from household
water supply.

19
Internal Water Dispenser Control Display Mode Views
Your display is equipped with a sleep and lock mode to prevent accidental changes
to the unit settings during opening and closing of the doors. When both doors are
closed, the display will be in sleep mode. When either door is first opened, the display
will be in lock mode where all the current settings are visible but dimmed.
Pressing any button on the display will awake the display and a tone will be played.
All settings will then be fully lit. Touch the display again to change any setting.
If there is no button pressed for 10 seconds while any door is open, the display will
default back to lock mode.
Awake Mode View Lock Mode View Sleep Mode View
CONTROLS AND SETTINGS

20
1Change
Temperature
Select Freezer or Refrigerator icon to
change temperature.
Select +/- buttons to set the
temperature
Freezer
control range:
-6˚F/-21˚C –
+6˚F/-15˚C
Refrigerator
control range:
+34˚F/+1˚C –
+44˚F/+7˚C
2Clear Alerts Resets any alarms that are active and
illuminated on the display (DOOR
OPEN, HIGH TEMP, POWER OUTAGE).
3Freeze
Boost
Prior to grocery shopping, we
recommend you activate Freeze Boost to
lower the temperature and freeze food
faster. Freeze Boost will remain active
for up to 24 hours before automatically
deactivating or manually exiting by
pressing Freeze Boost to turn the
function o. This will reset the freezer to
the previous temperature setting.
4Temp F/C Touch to toggle display from Fahrenheit
to Celsius.
5Water
Dispenser
When the water dispenser is turned on
the LED’s above Water Dispenser will
be illuminated.
6Default
Settings
Press and hold button for 3 seconds to
reset to Factory settings.
7Water Filter Press and hold button to reset after
filter has been replaced, status shown
at right of button will reset to GOOD.
8Air Filters Press and hold to reset after filter has
been replaced, status shown at right of
button will reset to GOOD.

NOTE
The recommended settings for a product installed in a
kitchen is 37˚F for the refrigerator and 0˚F for the freezer.
Internal Water Dispenser Control Display
Setting cooling temperatures
Select the compartment where you want to change the temperature by pressing
the FREEZER or REFRIGERATOR buttons at the top of the display. Press the +or −
buttons to adjust the temperature to the desired setting.
The temperature setting will begin to blink with the first touch. The display will time
out after 10 seconds and return to the basic display.
1
2
3
65
7
8
4
CONTROLS AND SETTINGS
