Frigidaire FRS24MWG User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRS24MWGD1 FRS24MWG R134a System almond 115
FRS24MWGW1 FRS24MWG R134a System white 115
Publication No.
5995311122
980804
-EN/SERVICE /JLT
357
SIDE BY SIDE
REFRIGERATOR
Model No.
FRS24MWG
©1998 White Consolidated Industries, Inc.
All rights reserved
FACTORY PARTS CATALOG
SIDE BY SIDE
REFRIGERATOR
WIRING DIAGRAM - # 218682800
OWNER’S GUIDE - # 218870500
SERVICE DATA SHEET - # 218877000
101 Masters Blvd.
Anderson, SC 29624

08/98 2
Publication No. FRS24MWG
5995311122
FREEZER DOOR

# = Fast-moving Parts 3 08/98
* = Non-Illustrated Parts
FRS24MWG Publication No.
5995311122
FREEZER DOOR
A = FRS24MWG (FRS24MWGW1)
B = FRS24MWG (FRS24MWGD1)
POS. NO PART NO DESCRIPTION
1 # 215734313 A - Gasket-frzr door,white ,magnetic
1 # 215734303 - B Gasket-frzr door,almond ,magnetic
5 5303288950 A B Support-door rack,RH/LH
6 5303323484 A B Support-door rack,white ,LH
6A 5303323485 A B Support-door rack,white ,RH
8 218807004 A B Rack-door,w/end caps
8A 215474025 A B Rack-door
9 218510601 A B Panel-inner door,frzr
11 5303917662 A - Panel-frzr door,white ,w/foam insulatn
11 5303917674 - B Panel-frzr door,almond ,w/foam insulatn
13 5303289522 A B Door Stop
18 218762703 A B Handle-door,black
21 5303001001 A B Screw,hx wshr hd sems ,8-15A x 0.625
21A 218578600 A B Screw-door stop mtg,phl truss hd ,
10-16 x 3/4
22A 215615300 A B Bushing-door,bronze
23 5303001020 A B Screw,cr flat head ,8-32D x 1/2
37 215867093 A B Trim-handle,black ,upper ,w/chrome band
37A 215867092 A B Trim-handle,black ,lower ,w/chrome band
37A* 215782300 A B Lock-handle trim,snap-in
37A* 215940700 A B Lock-handle trim,stick-on
37A* 218676001 A B Band-decorative,chrome
47 218849901 A B Harness-wiring,frzr door
58 218749600 A B Screw,#10 pan hd ,8-18 x .5
68 218020600 A B Chute-ice
140 218518700 A B Elbow-water tube
* 215598900 A B Washer-flat,.691x1x.05,zinc ,
I&W hinge brkt
* 5303917276 A B Insulation-door,fiberglass ,(bulk)

08/98 4
Publication No. FRS24MWG
5995311122
REFRIGERATOR DOOR

# = Fast-moving Parts 5 08/98
* = Non-Illustrated Parts
FRS24MWG Publication No.
5995311122
A = FRS24MWG (FRS24MWGW1)
B = FRS24MWG (FRS24MWGD1)
POS. NO PART NO DESCRIPTION
2 # 215734314 A - Gasket-refr door,white ,magnetic
2 # 215734304 - B Gasket-refr door,almond ,magnetic
3 215390401 A B Panel-inner door,refr
4 218807002 A B Rack-door,w/end caps
5 5303288950 A B Support-door rack,RH/LH
7 5303308608 A B Door-dairy
13 5303289522 A B Door Stop
15 5303917498 A - Panel-refr door,white ,w/foam insulatn
15 5303917499 - B Panel-refr door,almond ,w/foam insulatn
18 218762703 A B Handle-door,black
21 5303001001 A B Screw,hx wshr hd sems ,8-15A x 0.625
21A 218578600 A B Screw-door stop mtg,phl truss hd ,
10-16 x 3/4
22 5303289320 A B Bearing-hinge
22* 3051070 A B Screw,hex washer head ,10-24 x 7/16 ,
special
37 215867093 A B Trim-handle,black ,upper ,w/chrome band
37A 215867092 A B Trim-handle,black ,lower ,w/chrome band
37A* 215782300 A B Lock-handle trim,snap-in
37A* 215940700 A B Lock-handle trim,stick-on
37A* 218676001 A B Band-decorative,chrome
49 215441608 A B Bin-door,gallon
58 218749600 A B Screw,#10 pan hd ,8-18 x .5
* 5303917276 A B Insulation-door,fiberglass ,(bulk)
REFRIGERATOR DOOR

08/98 6
Publication No. FRS24MWG
5995311122

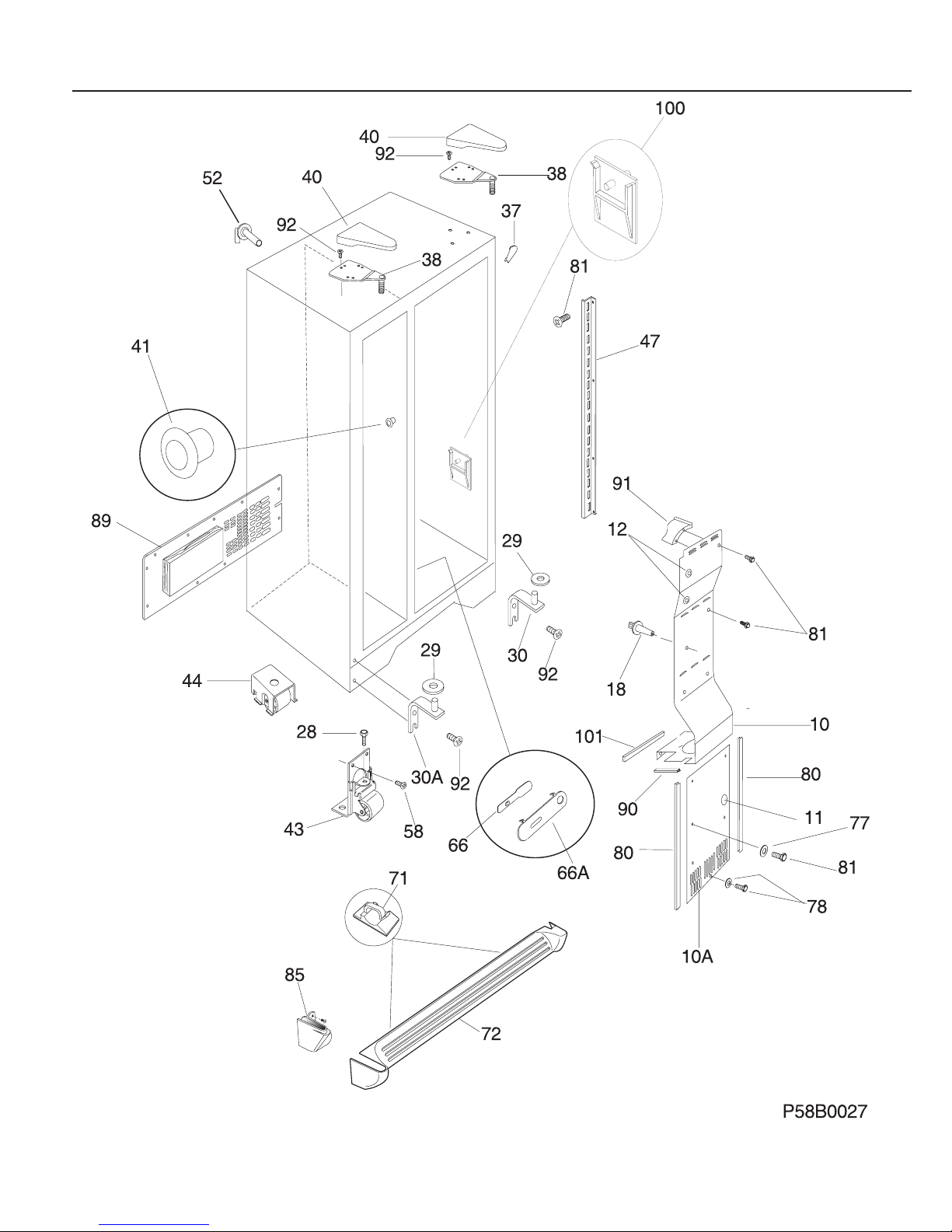

CABINET

# = Fast-moving Parts 7 08/98
* = Non-Illustrated Parts
FRS24MWG Publication No.
5995311122
A = FRS24MWG (FRS24MWGW1)
B = FRS24MWG (FRS24MWGD1)
POS. NO PART NO DESCRIPTION
10 215637602 A B Cover-air duct
10A 215637401 A B Cover-evap coil,lower
11 5303208309 A B Plug-hole,factory test
12 215230400 A B Plug-harness hole
18 5303289043 A B Support-air duct cvr,2.55" long
18* 5303289044 A B Support-air duct cvr,1.83" long
28 5303289062 A B Bolt-roller adj,hex head ,5/16-24 x 7/8
29 215314301 A B Washer,.40 x .75 x .06 ,nylon
29* 218871201 A B Washer-nylon
30 5303289060 A B Bracket-lower hinge,w/hinge pin
30* 218730800 A B Tapping Plate,RH
30A 215009000 A B Bracket-lower hinge,LH ,w/hinge pin
30A* 218730700 A B Tapping Plate,LH
* 218730900 A B Washer
37 5303321081 A - Trim-cabinet corner,white
37 5303321082 - B Trim-cabinet corner,almond
38 218215213 A - Bracket-upper hinge,with closer ,white ,
RH
38 218215215 A - Bracket-upper hinge,with closer ,white ,
LH
38 218215221 - B Bracket-upper hinge,with closer ,almond
38 218215223 - B Bracket-upper hinge,with closer ,almond
40 5303318773 A - Cover-upper hinge,white
40 5303318774 - B Cover-upper hinge,almond
41 5303001609 A B Grommet,shelf/rod mtg ,RH
41* 5303209814 A B Nut,"U" type ,8-15(A) ,fan mtr mtg
41* 5308009759 A B Grommet,shelf mtg ,LH
43 218615300 A B Roller Assy,front ,(2)
43* 5308017044 A B Screw-roller mtg,spcl ind hex hd ,5/16-18(23)x7/8
44 218738300 A B Roller Assy,rear ,(2)
47 218659500 A B Channel-shelf mtg,side ,(2)
52 215454600 A B Tube-water inlet
58 5308002748 A B Screw,hex wshr hd ,8-15A x 0.500 ,special
66 215050201 A B Damper-meat keeper
66A 218171301 A B Cover-meat kpr dmpr
71 218515401 A B Clip-grille
72 218359609 A B Grille/Kickplate,black
77 5303001216 A B Washer-nylon,3/16 x 5/8 OD
78 5303274237 A B Screw-bracket,hex wshr hd ,8-32CA x 0.500
80 218249802 A B Seal-coil cover,(2)
81 5308016566 A B Screw,hex wshr hd ,8-15A x 0.625 ,low profile
85 218359805 A B Cover-lower hinge,black
89 215176300 A B Cover-machine compt
90 215022602 A B Seal-foam
90* 5303322647 A B Tape-foam
91 218770000 A B Deflector-air,air duct cover
92 5303001479 A B Screw-hinge mtg,hex hd ,1/4-20 x 0.875
100 5303288973 A B Support-pan cover
101 215305702 A B Seal-foam
* 5303305324 A - Paint,touch-up ,white
* 5303305325 - B Paint,touch-up ,almond
* 5308009617 A B Washer,ext tooth lock ,#10
* 5308016571 A B Plug-button,cabinet liner
CABINET

08/98 8
Publication No. FRS24MWG
5995311122
SHELVES

# = Fast-moving Parts 9 08/98
* = Non-Illustrated Parts
FRS24MWG Publication No.
5995311122
A = FRS24MWG (FRS24MWGW1)
B = FRS24MWG (FRS24MWGD1)
POS. NO PART NO DESCRIPTION
2 5303298147 A B Trim-basket
11 218298003 A B Shelf-freezer,sliding ,wire
11A 5304405879 A B Shelf-freezer,fixed wire
* 218159700 A B Spacer-shelf
24 215919139 A B Frame-refr shelf,cantilever
25 218147701 A B Cover-storage pan
25* 5303307878 A B Trim-storage pan cvr,upper ,
w/humidity hole
25* 5303308340 A B Control-humidity
25A 218015302 A B Trim-storage pan cvr,snap-on ,front
25C 218015402 A B Trim-storage pan cvr,snap-on ,rear
26 5303289500 A B Pan-storage,upper
26A 5303289501 A B Pan-storage,lower
28 08013638 A B End Cap-shelf,protector ,
lower fzr shelf
29 215919415 A B Trim-refr shelf,front ,(3)
39 215217543 A B Trim-frzr shelf
39A 215217558 A B Trim-frzr shelf
40 5303300033 A B Glass-refr shelf,clear
41 215919815 A B Trim-refr shelf,rear
42 215002301 A B Hanger-pan/tray,LH
42* 215002401 A B Hanger-pan/tray,RH
46 5303308604 A B Front-storage pan,upper
46A 5303308605 A B Front-storage pan,lower
47 5303289387 A B Insert-pan cover,glass ,clear
47A 215723552 A B Insert-pan cover,glass ,clear
49 5303296573 A B Basket-sliding
51 5303296575 A B Hanger-basket,RH
52 215162502 A B Hanger-basket,LH,with spring
57 5303271653 A B Ferrule-inner
60 5303207328 A B Screw,hex wshr hd ,8-15A x 1
62 5303289517 A B Tray-deli
67 5303308609 A B Front-deli tray
81 5308016566 A B Screw,hex wshr hd ,8-15A x 0.625 ,
low profile
96 215192600 A B Support-water tank
97 218871301 A B Water Tank
98 5308015614 A B Connector-tube
99 5300186057 A B Grommet-tank
100A 218015501 A B Support-pan cover,LH
100B 218015601 A B Support-pan cover,RH
101 215005000 A B Screw,hex wshr hd ,8-18AB x 0.750 ,
gusset/hanger
123 215005100 A B Screw-roller/hanger,8-10 x .438
126 218867401 A B Channel,auger mtg ,LH
126* 218867402 A B Channel,auger mtg ,RH
* 215328300 A B Clip-shelf
SHELVES

08/98 10
Publication No. FRS24MWG
5995311122
CONTROLS

# = Fast-moving Parts 11 08/98
* = Non-Illustrated Parts
FRS24MWG Publication No.
5995311122
A = FRS24MWG (FRS24MWGW1)
B = FRS24MWG (FRS24MWGD1)
POS. NO PART NO DESCRIPTION
2 215028605 A B Knob-damper control
5 # 5308000010 A B Fan Blade,red
7 5308000124 A B Ring-fan orifice
8 5300157666 A B Bushing-motor mtg,(2)
9 5303205118 A B Bracket-motor mtg,front
12 215809600 A B Diffuser-air
13 # 215426200 A B Motor-evap fan
13* 215474201 A B Washer,"slinger" ,nylon ,evap fan shaft
14 5303205119 A B Bracket-motor mtg,rear
15 5303001179 A B Light Bulb/Lamp,40 W
16 # 5303289050 A B Socket-light/lamp
17 5303296805 A B Control Box,refr
17A 5303296581 A B Control Box,frzr
* 215188300 A B Screw-control box mtg,hex head ,
8-15A x 1.000,refr/frzr
18 5303308568 A B Knob-temp control,frzr
20 5303296804 A B Label-control box,refr
20A 5303308611 A B Label-control box,frzr
21 # 5303300027 A B Control-temperature
21* 5303001260 A B Screw-control mtg,pan hd ,6-32 x 0.250
22 5303319683 A B Housing-temp sensor,plastic
22* 218731102 A B Tube,insulator ,PVC ,white ,
on temp sensor
23 # 5303321133 A B Timer-defrost
23* 215277000 A B Cover-defrost timer,top
23* 5303001259 A B Screw-timer mtg,pan hd ,6-20 x 0.438
23* 5303289058 A B Shield-defrost timr,btm
41 5308000039 A B Screw,hex wshr hd ,8-32CA x 0.500 ,
serrated head
41* 5303209814 A B Nut,"U" type ,8-15(A) ,fan mtr mtg
53 215809505 A B Box-damper control
65 5303001361 A B Pin-mounting,push-in ,plastic
74 218465000 A B Shield-light,frzr
75 218465101 A B Shield-light,refr
78 5303274237 A B Screw-bracket,hex wshr hd ,
8-32CA x 0.500
81 5308016566 A B Screw,hex wshr hd ,8-15A x 0.625 ,
low profile
83 5308000107 A B Bracket-connector
111 5303297842 A B Wireway,frzr
114# 5303289051 A B Switch-light/lamp,white
115# 215011502 A B Damper Assy,w/seal
116 215011400 A B Seal-damper,foam
125# 215334201 A B Switch-auger kill,white
CONTROLS

08/98 12
Publication No. FRS24MWG
5995311122
SYSTEM

# = Fast-moving Parts 13 08/98
* = Non-Illustrated Parts
FRS24MWG Publication No.
5995311122
A = FRS24MWG (FRS24MWGW1)
B = FRS24MWG (FRS24MWGD1)
POS. NO PART NO DESCRIPTION
1 # 218787900 A B Condenser
1* 5303289026 A B Spacer-tube
2 5303289029 A B Clip-cond mtg,(4)
3 218679603 A B Block-evap coil,styrofoam ,(2)
4 # 218541000 A B Drier-filter
5 218646100 A B Harness-wiring,main
5* 215005200 A B Harness-wiring,refr controls
5* 218815101 A B Harness-wiring,frzr controls
6 218741500 A B Harness-wiring,machine compt
7 215459201 A B Cord-electric power
8 218803400 A B Cover-wiring
8* 218754500 A B Screw,hex hd ser wshr ,#8-18 x 3/8
13 # 215006701 A B Heat Exchanger,suction line
14 # 218169802 A B Heater-defrost
15 # 218691301 A B Evaporator,R134a System
15* 3206414 A B Tube-inlet
16 5308000110 A B Strap-evap/heater,aluminum
17 5303289496 A B Insulator-evap
19 218631200 A B Tube,rubber
21 # 218673001 A B Thermostat-defrost
22 218811100 A B Base-compressor mtg,(drain pan)
23 218513300 A B Grommet-compr mtg,(4)
25 218773500 A B Screw-compressor mtg,hex washer head ,
10Bx11/4
29 # 5303917619 A B Compressor,R134a ,w/ovld & drier
30 # 216008902 A B Starter-PTC
31 # 5303308603 A B Overload Protector
32 215012000 A B Wire-bale
41 5308000039 A B Screw,hex wshr hd ,8-32CA x 0.500 ,
serrated head
43 215174700 A B Clamp-service cord,strain relief ,
galv steel
43* 5303001199 A B Clamp-wiring harness,strain relief ,
galv steel
43* 5308000133 A B Clamp,nylon ,.75 OD tube
45 218769200 A B Screw,hx wshr hd spec ,#6-32 x .5
45 5300141713 A B Screw,hex wshr hd ,8-32 x .625 ,spec
45* 5303207328 A B Screw,hex wshr hd ,8-15A x 1
49 215506900 A B Bracket-evap mtg
54 5303289027 A B Rail-cabinet base,rear
54A 5303289311 A B Rail-compr support
54B 5303289292 A B Rail-cabinet base,front
55 # 218764602 A B Capacitor-run
56 218769300 A B Insert-compressor mtg
57 218247300 A B Clip-wiring harness
58 215004600 A B Screw-cond fan mtr,hx serr wshr hd ,
8-36 x 7/16,(2)
59 5303289031 A B Shroud-cond fan mtr
60 # 215501800 A B Motor-condenser fan
61 5303289032 A B Blade-cond fan
61* 215004700 A B Nut,speed
61* 215223700 A B Grommet-silencer
62 215048701 A B Trough-drain,w/shield assy ,
& #17 insulator
64 5303289063 A B Tube-drain
65 5303289301 A B Spacer-tube
70 5303289041 A B Bracket-evap/cvr mtg
81 5308016566 A B Screw,hex wshr hd ,8-15A x 0.625 ,
low profile
SYSTEM

08/98 14
Publication No. FRS24MWG
5995311122
DISPENSER

# = Fast-moving Parts 15 08/98
* = Non-Illustrated Parts
FRS24MWG Publication No.
5995311122
A = FRS24MWG (FRS24MWGW1)
B = FRS24MWG (FRS24MWGD1)
POS. NO PART NO DESCRIPTION
1 5308010366 A B Tube-water inlet,93" ,plastic ,
cut-to-length
1* 218658301 A B Tube-water inlet,filter ,
to filter valve,w/elbow
1* 218770401 A B Tube-water inlet,inlet valve ,to filter
1* 215294101 A B Tube-water inlet,formed ,plastic ,
dispenser
2 218505301 A - Deflector-ice disp,white
2 218505302 - B Deflector-ice disp,almond
3 # 215484300 A B Heater-door housing
4 218432101 A - Housing-dispenser,white
4 218432102 - B Housing-dispenser,almond
7 # 218841901 A B Switch-actuator,micro
7* 215944300 A B Shield-micro switch
8 218835701 A B Module-dispenser
10 218209800 A B Spring,dispenser door
12 215766501 A - Knob-selector,white
12 215766502 - B Knob-selector,almond
13 215748101 A B Ring-snap,actuator
14 218416158 A - Label-module cover,white
14 218416159 - B Label-module cover,almond
15 218284900 A B Light Bulb/Lamp,4 W ,115 V
16 215284900 A B Socket-light/lamp
17 215794400 A B Screw,#6 x 1/4
17A 215840700 A B Screw,truss head ,6-20 x 3/8
17A* 215923400 A B Washer-flat
23 5303297844 A - Drip Tray,white
23 5303297845 - B Drip Tray,almond
24 218796501 A - Actuator,white
24 218796502 - B Actuator,almond
26 215503200 A B Screw,cr pan hd ,10-16 x 1/2 ,
spec/hi-lo
27 218432600 A B Cam-slide
27A 218814901 A B Rocker-switch
28 218700601 A - Cover-module,white
28 218700602 - B Cover-module,almond
30 215753600 A B Door Assy-ice chute,w/gasket,insul
33 # 218870201 A B Heater-disp throat
35 # 218740003 A B Heat Motor,115V
36 218835601 A B Cover-selector sw
38A# 218479900 A B Switch-micro
38B# 218835401 A B Switch-micro
39 218284600 A B Wire-ice door
40 218284500 A B Yoke-heat motor
41 215765400 A B Spring-actuator
43 215760300 A B Screw,#4 x 3/8
49 215794000 A B Bracket-heat motor
56 218434300 A B Screw-micro switch,pan head ,
4-24 x 9/16
61 215766000 A B Ring-retainer,micro switch
82 215296300 A B Screw,plask h/l ,#6 x 3/8
* 215781700 A B Clip-tube
* 218863101 A B Harness-wiring,disp
* 5300460947 A B Tape-I&W dispenser,double faced ,foam ,
60 x1-1/4 x1/32,(2)
DISPENSER

08/98 16
Publication No. FRS24MWG
5995311122
45D
45A
45B
45C
45
50
ICE CONTAINER

# = Fast-moving Parts 17 08/98
* = Non-Illustrated Parts
FRS24MWG Publication No.
5995311122
A = FRS24MWG (FRS24MWGW1)
B = FRS24MWG (FRS24MWGD1)
POS. NO PART NO DESCRIPTION
2 5304404344 A B Auger-ice
3 5304404343 A B Cam-drive
4 218815300 A B Container-ice
6 5304404346 A B Drum-ice disp
7 218815400 A B Front-ice container
10 5304404337 A B Bar-drive
13 5304404359 A B Gate
15 5303001179 A B Light Bulb/Lamp,40 W
16 5303289050 A B Socket-light/lamp
17 5304404345 A B Drive Blade
18 # 5304404330 A B Motor-auger
18* 5304404335 A B Harness-wiring,auger motor
20 5304404332 A B Cover-motor
21 215285100 A B Nut-drive
23 5304404347 A B Plate-front
25 5304404362 A B Screw
26 215503200 A B Screw,cr pan hd ,10-16 x 1/2 ,
spec/hi-lo
33 5304404351 A B Spacer
34 5304404349 A B Spacer
35A 5304404353 A B Fixed Blade,round
35B 5304404352 A B Fixed Blade,square
37A 5304404348 A B Blade-crusher,#1
37B 5304404350 A B Blade-crusher,#2
37C 5304404356 A B Blade-crusher,#3
39 5304404365 A B Screw
41 5304404358 A B Housing-crusher
44 218359200 A B Screw,pan head ,8-32 x .25
45 # 5304404333 A B Solenoid Assy
45A 5304406816 A B Spring-solenoid
45B 5304406817 A B E-Ring-solenoid
45C 5304406818 A B Actuator-solenoid
45D 5304406819 A B Solenoid
46 5304404341 A B Control Rod
47 5304404342 A B Spring-control rod
48 5304404340 A B Bracket-control rod
48* 5304404364 A B Screw-bracket
49 5304404329 A B Rail Assy
50 5304404334 A B Guide-solenoid
51 5304404336 A B Rotation Stop
52 5304404354 A B Spacer-fixed blades
53 5304404355 A B Pin-spiral,fixed blades
54 5304404357 A B Nut-auger
55 5304404360 A B Washer
56 5304404361 A B E-ring
57 5304404363 A B Door-access
58 5304404331 A B Screw-solenoid
* 215781700 A B Clip-tube
* 218842802 A B Ice Container Assy
ICE CONTAINER

08/98 18
Publication No. FRS24MWG
5995311122
P58Z0015
12
12
14
37
38
3
4
6
29 26
26
10
23
24
2
9
2715
15
13
8
29
15
30
31
32
34
28
35
11
51
64
44
46
55
45
59
INSTALLATION PARTS
36
33
16
22
25
57
1
18
19
20
21
17
62
60
60
61
141

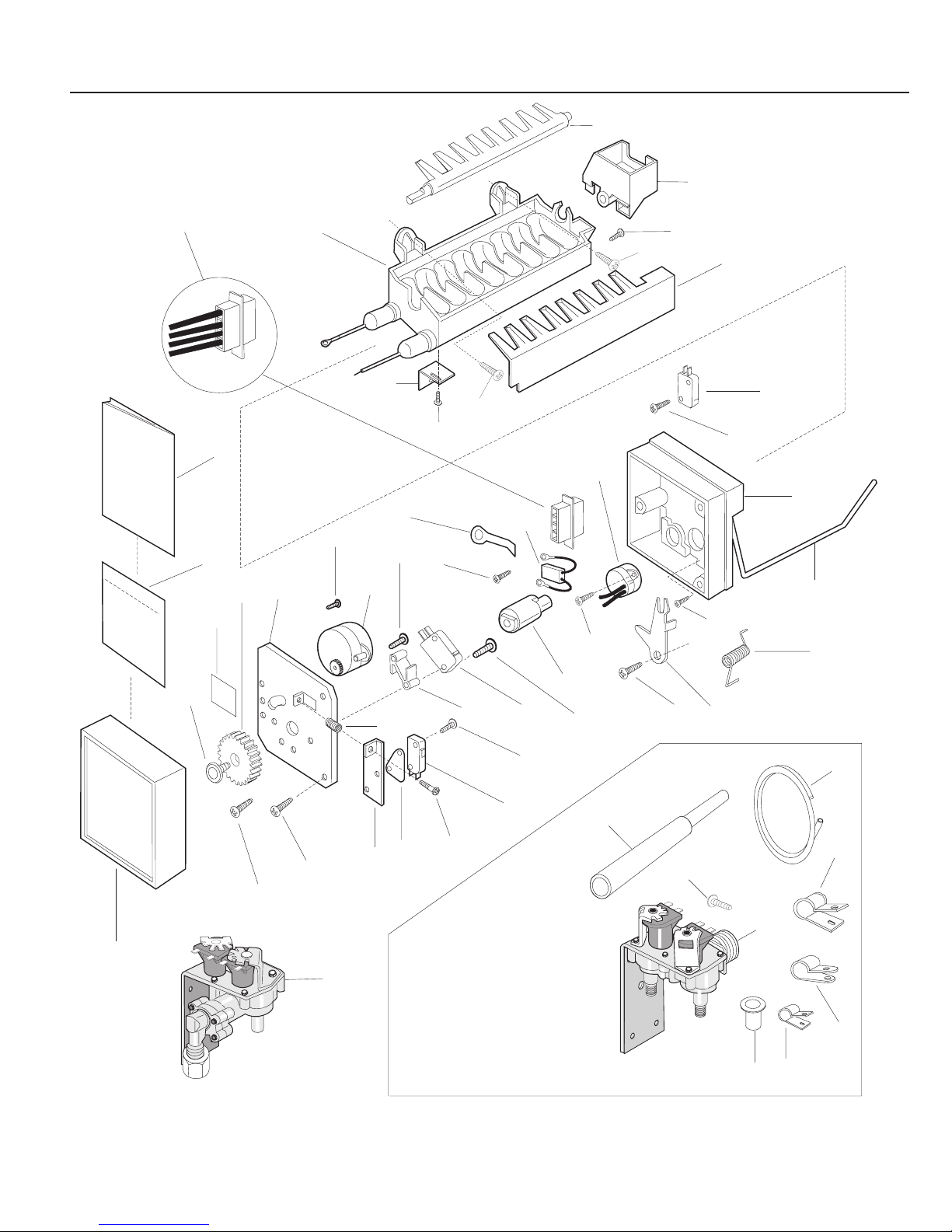

ICE MAKER

# = Fast-moving Parts 19 08/98
* = Non-Illustrated Parts
FRS24MWG Publication No.
5995311122
A = FRS24MWG (FRS24MWGW1)
B = FRS24MWG (FRS24MWGD1)
POS. NO PART NO DESCRIPTION
1 5308010366 A B Tube-water inlet,93" ,plastic ,
cut-to-length
1* 218658301 A B Tube-water inlet,filter ,
to filter valve,w/elbow
1* 218770401 A B Tube-water inlet,inlet valve ,to filter
2 3206348 A B Spring,shut-off arm
3 3206299 A B Plate-I.D.
4 3206301 A B Gear
5 3206303 A B Plate-mounting
6 3206305 A B Screw-ground wire,8-32 x 1/4
7 # 3206306 A B Motor-ice maker
8 3206312 A B Spacer-holding sw
9 3206313 A B Cam
10 3206315 A B Clamp
11 # 3206319 A B Thermal Cutoff Assy
12 3206321 A B Connector Plug,wiring harness
12 # 3206349 A B Harness-wiring,IM internal ,with plug
13 # 3206322 A B Thermostat Assy,ice maker
14 3206323 A B Screw-switch mtg,4-24 x 3/4 ,
sw to support,(2)
15 # 3206324 A B Switch,(3)
16 3206326 A B Support
17 # 5303320545 A B Mold-ice maker,with heater ,radius cube
18 3206328 A B Ejector
19 3206330 A B Bearing & Inlet
20 3206331 A B Screw,8-18 x 3/8 ,(2)
21 3206332 A B Ice Stripper
22 3206333 A B Arm,shut-off
23 3206334 A B Screw-sup/mold body,8-18 x 1 ,(4)
24 3206335 A B Lever-arm
25 3206336 A B Screw-arm levr/sprt,8-18 x 9/16
26 3206337 A B Screw-thermo/sprt,4-24 x 3/8 ,(4)
27 3206338 A B Screw-sw&spcr/plate,4-40 x 1
28 3206339 A B Screw-timing stop,4-40 x 3/8
29 3206340 A B Screw-mtr & sw/plate,4-40 x 3/4
30 3206341 A B Screw-timing,8-32 x 1
31 3206342 A B Insulator
32 3206343 A B Plate-valve switch
33 3206344 A B Spring
34 3206345 A B Screw-mtg plate/sprt,8-18 x 7/16
35 3206346 A B Screw-gear/cam,6-20 x 0.437
36 3206347 A B Cover-complete
37 5303320544 A B Data Sheet,ice maker
38 5303207445 A B Envelope-data sheet
44 5308000133 A B Clamp,nylon ,.75 OD tube
45 5303001343 A B Screw,hex wshr hd ,8-15A x .5 ,spec
46 5303001193 A B Clamp-inlet tube,metal
51 215811600 A B Tube-fill
55 # 218720500 A B Valve-water,dual solenoid ,115V
55* 218835800 A B Cap-water valve
59 5303001191 A B Sleeve-tube insert
60 5303207328 A B Screw,hex wshr hd ,8-15A x 1
61 218721500 A B Bracket-leveling,ice maker
62 218737900 A B Screw-IM mtg brkt,hex hd ,#8-32 x 3/8
64 5303001549 A B Clamp-copper tube,steel
91 218836401 A B Deflector-air,ice maker
141# 218658000 A B Valve-water filter,dual solenoid ,115V ,
w/nut
* 215290100 A B Screw-solenoid valve,hx hd-slot wshr ,
12-24 x 3/4
* 218699501 A B Icemaker,*
* 5308000205 A B Adapter-water sply,straight
* 218731600 A B Nut,7/16 x 20 ,nylon
* 5308000200 A B Nut,7/16 x 20 ,nylon
ICE MAKER

08/98 20
Publication No. FRS24MWG
5995311122
WIRING
