Frigidaire FRS26H5AS User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRS26H5ASB0 FRS26H5AS R134a stain/black 115
FRS26H5ASB1 FRS26H5AS R134a stain/black 115
MARKET
North America
Publication No.
5995364964
020130
-EN/SERVICE/KHB
357
SIDE BY SIDE
REFRIGERATOR
Model No.
FRS26H5AS
©2002 Electrolux Home Products, Inc.
All rights reserved
WIRING DIAGRAM - 240389604
OWNER’S GUIDE - 0 = 240389302 & 1 = 240389303
SERVICE DATA SHEET - 240389604
ELECTROLUX HOME PRODUCTS, INC
P.O. BOX 212378, Augusta, GA 30917
FACTORY
PARTS CATALOG

01/02 2
Publication No. FRS26H5AS
5995364964
FREEZER DOOR

# = Fast-moving Parts 3 01/02
* = Non-Illustrated Parts
FRS26H5AS Publication No.
5995364964
FREEZER DOOR
A = FRS26H5AS (FRS26H5ASB0)
B = FRS26H5AS (FRS26H5ASB1)
POS. NO PART NO DESCRIPTION
1 # 240390606 A B Gasket-frzr door,black ,magnetic
4A 240334201 A B Bin-door,frzr-upper
4B 240351601 A B Bin-door
11 240451817 A B Door-frzr,stainless steel, complete assy
13A 240456906 A B Door Stop,black ,frzr
18 240359108 A B Handle-door,black
21A 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
21C 218781100 A B Screw,pan head ,8-18 x 0.625
22A 240328202 A B Bearing-hinge,closer
22C 240328404 A B Bearing-hinge,black ,upper
37 240359203 A B Trim-handle,30.13" ,black ,lower
68 240467701 A B Chute-ice
72 240421701 A B Button-handle mtg,dovetail
73 218396700 A B Block-handle mtg,dovetail
73A 240339101 A B Clip-trim
74 215503200 A B Screw,cr pan hd ,10-16 x 0.500
96 240345506 A B Plug,door foam hole ,black
* 218490900 A B Cleaner,stainless steel
* 240323201 A B Wiring Harness
* 240352101 A B Connector-water,straight
* 5303918256 A B Dispenser heater kit

01/02 4
Publication No. FRS26H5AS
5995364964

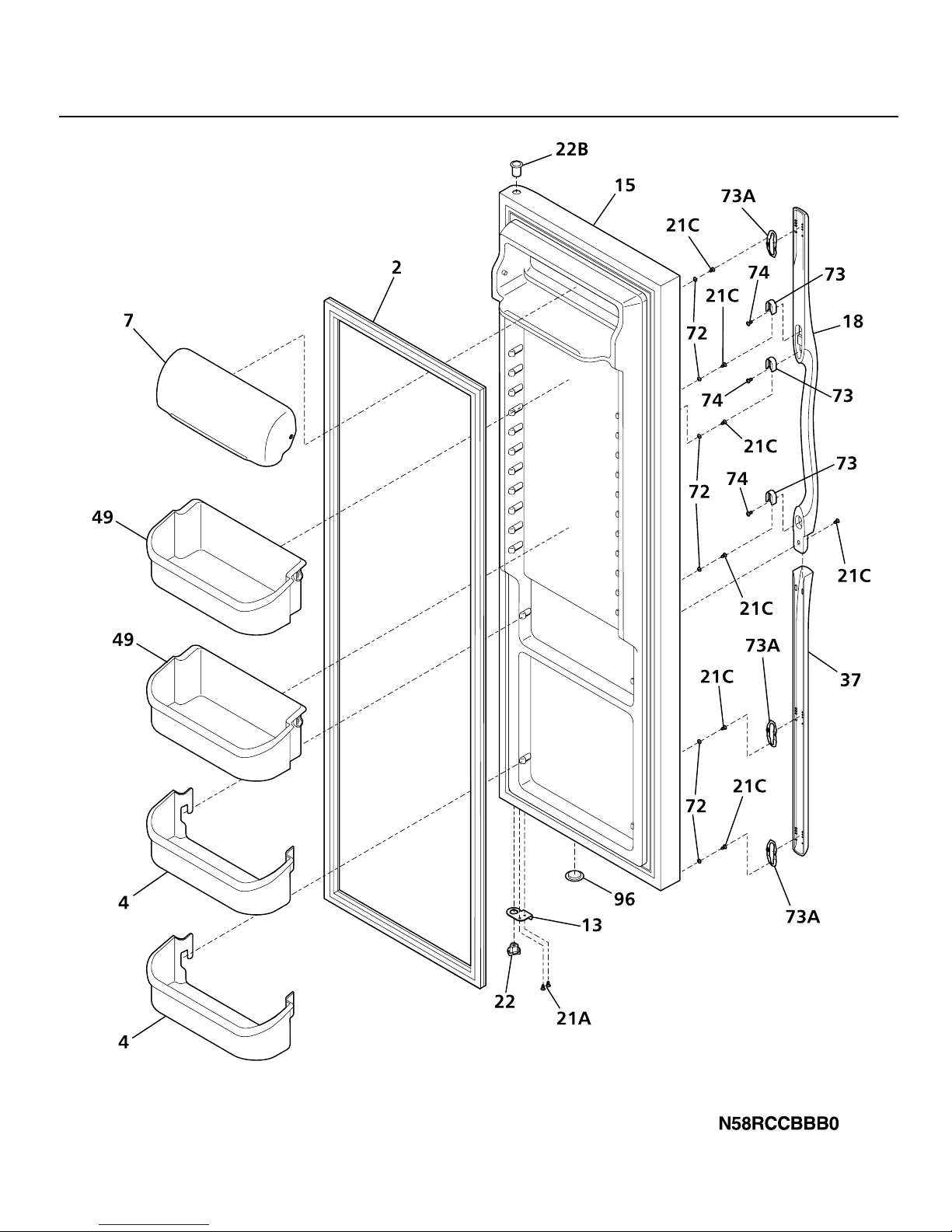

REFRIGERATOR DOOR

# = Fast-moving Parts 5 01/02
* = Non-Illustrated Parts
FRS26H5AS Publication No.
5995364964
A = FRS26H5AS (FRS26H5ASB0)
B = FRS26H5AS (FRS26H5ASB1)
POS. NO PART NO DESCRIPTION
2 240390605 A B Gasket-refr door,black ,magnetic
4 240323001 A B Bin-door,pseudo ,bottom
7 240326203 A B Door-dairy
13 240456905 A B Door Stop,black ,ref
15 240451910 A B Door-refr,stainless steel, complete assy
18 240359103 A B Handle-door,white
21A 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
21C 218781100 A B Screw,pan head ,8-18 x 0.625
22 240328201 A B Bearing-hinge,closer
22B 240328403 A B Bearing-hinge,upper
37 240359203 A B Trim-handle,30.13" ,black ,lower
49 240356401 A B Bin-door,gallon
72 240421701 A B Button-handle mtg,dovetail
73 218396700 A B Block-handle mtg,dovetail
73A 240339101 A B Clip-trim
74 215503200 A B Screw,cr pan hd ,10-16 x 0.500
96 240345506 A B Plug,door foam hole ,black
* 218490900 A B Cleaner,stainless steel
REFRIGERATOR DOOR

01/02 6
Publication No. FRS26H5AS
5995364964
CABINET

# = Fast-moving Parts 7 01/02
* = Non-Illustrated Parts
FRS26H5AS Publication No.
5995364964
A = FRS26H5AS (FRS26H5ASB0)
B = FRS26H5AS (FRS26H5ASB1)
POS. NO PART NO DESCRIPTION
10 240435902 A B Cover-air duct
10A 240475902 A B Cover-evap coil,lower
11 5303208309 A B Plug-hole,factory test
14 # 240413601 A B Switch,light/lamp ,rocker
14A# 215486600 A B Switch-light/lamp
21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500
22 240457701 A B Plate-door closer
23 240402701 A B Screw-#10-32 x 1/4 flat hd
28 240335501 A B Bolt-roller adj,hex wshr hd,1/4-20 x 4.020,(2),special
30 240419103 A B Bracket-lower hinge, ref
30A 240419104 A B Bracket-lower hinge
37 240337603 A B Trim-cabinet corner,black
38 240327202 A B Bracket-upper hinge
40 240327003 A B Cover-upper hinge,black
41 240358701 A B Grommet-shelf mtg,1.40" long
41* 240358801 A B Grommet-shelf mtg,.875" long
42 240315301 A B Screw-hinge mtg,hex head ,1/4-20 x 0.75
43 240335003 A B Roller Assy,front ,(2)
45 241500301 A B Screw,hex washer head ,8-18AB x 0.500
47 240349401 A B Channel-shelf mtg,side ,(2)
58 218749600 A B Screw,#10 pan hd ,8-18 x .5
66 240504901 A B Cover-damper
66* 240518802 A B Pin-push,push-in ,plastic
66A 240505001 A B Damper-meat keeper
66B 240355901 A B Insulation-damper
72 240324406 A B Grille/Kickplate,black
81 5308016566 A B Screw, hex wshr hd,8-15A x 0.625, low profile
82 5304418225 A B Roller,compressor base ,rear ,(2)
83 5303316859 A B Rivet, flat head,1/4 OD x 1-3/4, roller pin
89 240326104 A B Cover,access ,system compt ,with label
90 218249808 A B Seal-coil cover
91 240380101 A B Duct-ice maker
92 5303001479 A B Screw-hinge mtg,hex hd ,1/4-20 x 0.875
100 240423701 A B Support,crisper cover ,front ,(4)
100* 240350802 A B Support,crisper cover ,rear ,(4)
150 240368701 A B Guide-control bulb
* 240396801 A B Clamp,tube/wiring ,nylon ,black/natural
* 240479601 A B Plug,button ,cab liner holes
* 5303305345 A B Paint,touch-up ,black
CABINET

01/02 8
Publication No. FRS26H5AS
5995364964
SHELVES

# = Fast-moving Parts 9 01/02
* = Non-Illustrated Parts
FRS26H5AS Publication No.
5995364964
A = FRS26H5AS (FRS26H5ASB0)
B = FRS26H5AS (FRS26H5ASB1)
POS. NO PART NO DESCRIPTION
2 240434602 A B Trim-basket
11 240338802 A B Shelf-freezer,flip-up
11A 240338704 A B Shelf-freezer,fixed wire
11C 240324101 A B Shelf-pizza
24 240355208 A B Shelf-"Spill-Safe", fixed
24A 240355207 A B Shelf-"Spill-Safe", cantilever, half width, fixed
24B 240350108 A B Shelf-"Spill-Safe",cantilever ,sliding
25 240350701 A B Cover-crisper pan,upper
25* 240362101 A B Clip-slide,cover-crisper
25A 240350901 A B Cover-crisper pan,lower
26 240351005 A B Pan-crisper,upper
26* 240349801 A B Clip-slide,pan-crisper
26A 240362201 A B Control-humidity
27 240351205 A B Pan-crisper,lower
39 240430706 A B Trim-shelf,11.21" ,front
39A 240430702 A B Trim-shelf,12.39" ,front
42 240356501 A B Hanger-meat pan,RH
42A 240349701 A B Hanger-meat pan,LH
42A* 240349901 A B Block-meat pan rail,LH
42A* 240350001 A B Spring-meat pan rail
42A* 240356702 A B Seal-meat pan
47 240350633 A B Insert-pan cover,glass
47A 240350603 A B Insert-pan cover,glass
49 240338402 A B Basket-sliding
49B 240338502 A B Basket-sliding,upper ,half
51 240343002 A B Hanger-basket,RH
52 240343102 A B Hanger-basket,LH
54 240351901 A B Plug-hanger,right hand
55 240352001 A B Plug-hanger,left hand
62 240342805 A B Pan-meat
81 5308016566 A B Screw, hex wshr hd,8-15A x 0.625, low profile
97 240453003 A B Water Tank Assy, coiled tubing, front filter
100 240326302 A B Cover-water tank
101 218493100 A B Screw,hex washer head ,8-18AB x 1-3/4
123 215005100 A B Screw-roller/hanger,8-10 x 0.438
126 218867401 A B Channel,auger mtg ,LH
126 218867402 A B Channel,auger mtg ,RH
140 240430501 A B Channel,water tube cvr
SHELVES

01/02 10
Publication No. FRS26H5AS
5995364964

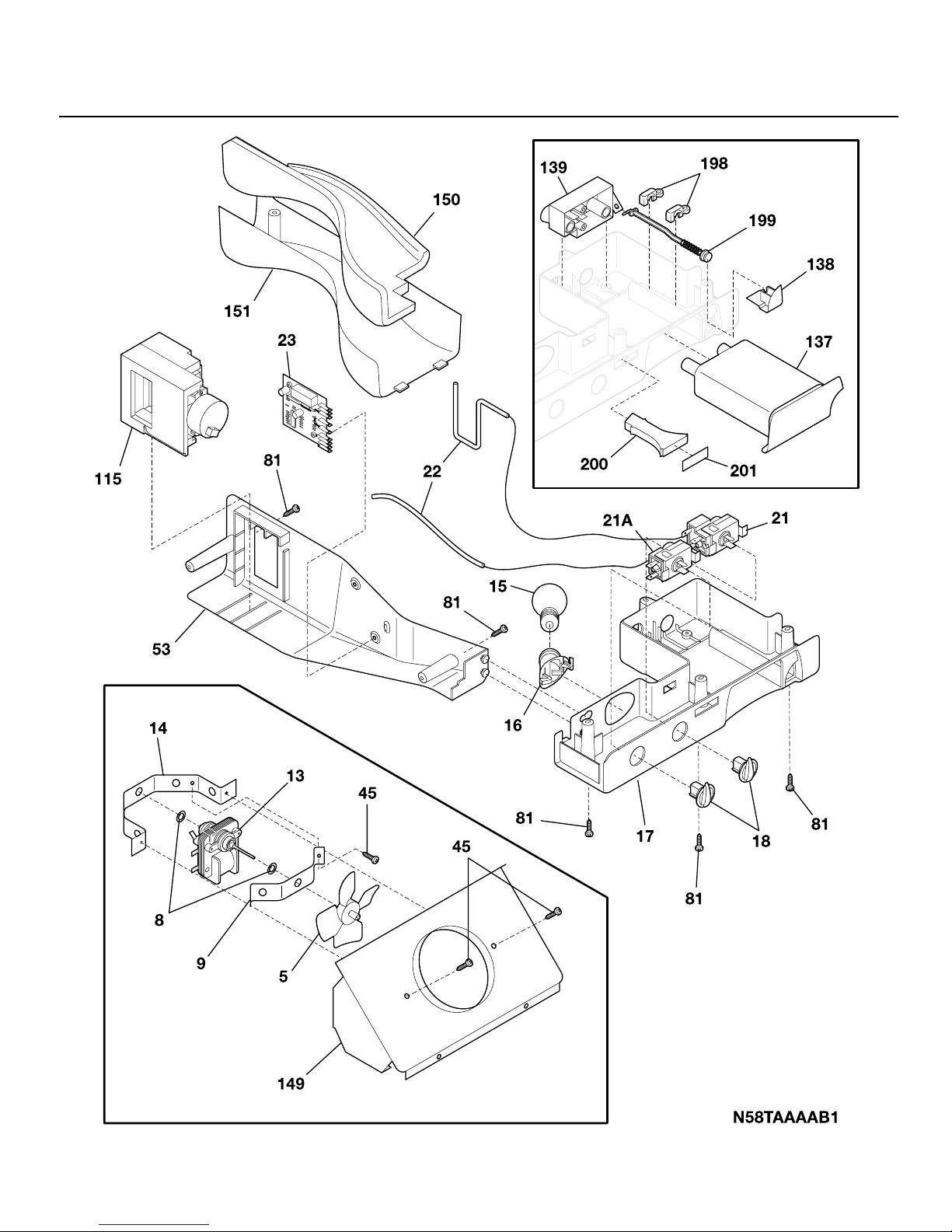

CONTROLS

# = Fast-moving Parts 11 01/02
* = Non-Illustrated Parts
FRS26H5AS Publication No.
5995364964
A = FRS26H5AS (FRS26H5ASB0)
B = FRS26H5AS (FRS26H5ASB1)
POS. NO PART NO DESCRIPTION
5 # 5308000010 A B Fan Blade,red ,evaporator fan
8 5300157666 A B Bushing-motor mtg,(2)
9 5303292396 A B Bracket-motor mtg,front
13 # 240315802 A B Motor-evap fan
13* 215474201 A B Washer,"slinger" ,nylon ,evap fan shaft
14 5303292397 A B Bracket-motor mtg,rear
15 240436701 A B Light Bulb/Lamp, A-15, 40 W, 120 V, miniature
16 218906801 A B Socket-light/lamp
17 240317701 A B Box-control,front
17* 240439901 A B Wiring Harness,controls
18 240360801 A B Knob-control
21 240375906 A B Control-temperature
21A 5304421768 A B Control-temperature
22 218660702 A B Tube-insulator
23 # 240375803 A B Control-defrost, adaptive timer, PC board
23* 5303001259 A B Screw-timer mtg,pan hd, 6-20 x 0.438, (2)
45 5303001343 A B Screw,hex washer head, 8-15A x 0.500
53 240369501 A B Box-control
81 5308016566 A B Screw,hex washer head, 8-15A x 0.625, low profile
115 240440701 A - Damper Assy,w/seal
115 240521101 - B Damper Assy,w/seal
115* 5304421593 A B Switch-micro, single pole, dble throw, damper assy
137 240396401 A B Filter,water ,front ,cassette
137* 240396701 A B Bypass,water filter ,Optional Part
138 240397301 A B Button-filter release
139 240396001 A B Base-water filter
139* 240526901 A B O-ring,wtr filter base
149 240331602 A B Shroud-fan orfice
150 240394204 A B Insulation-water tube cover
151 240373806 A B Cover-water tube
198 240397401 A B Retainer
199 240397501 A B Rod
199* 240398401 A B Spring-filter release rod
200 240397601 A B Light Pipe
201 240398501 A B Label-control box
* 3205266 A B Edge Protector,wiring harness
CONTROLS

01/02 12
Publication No. FRS26H5AS
5995364964

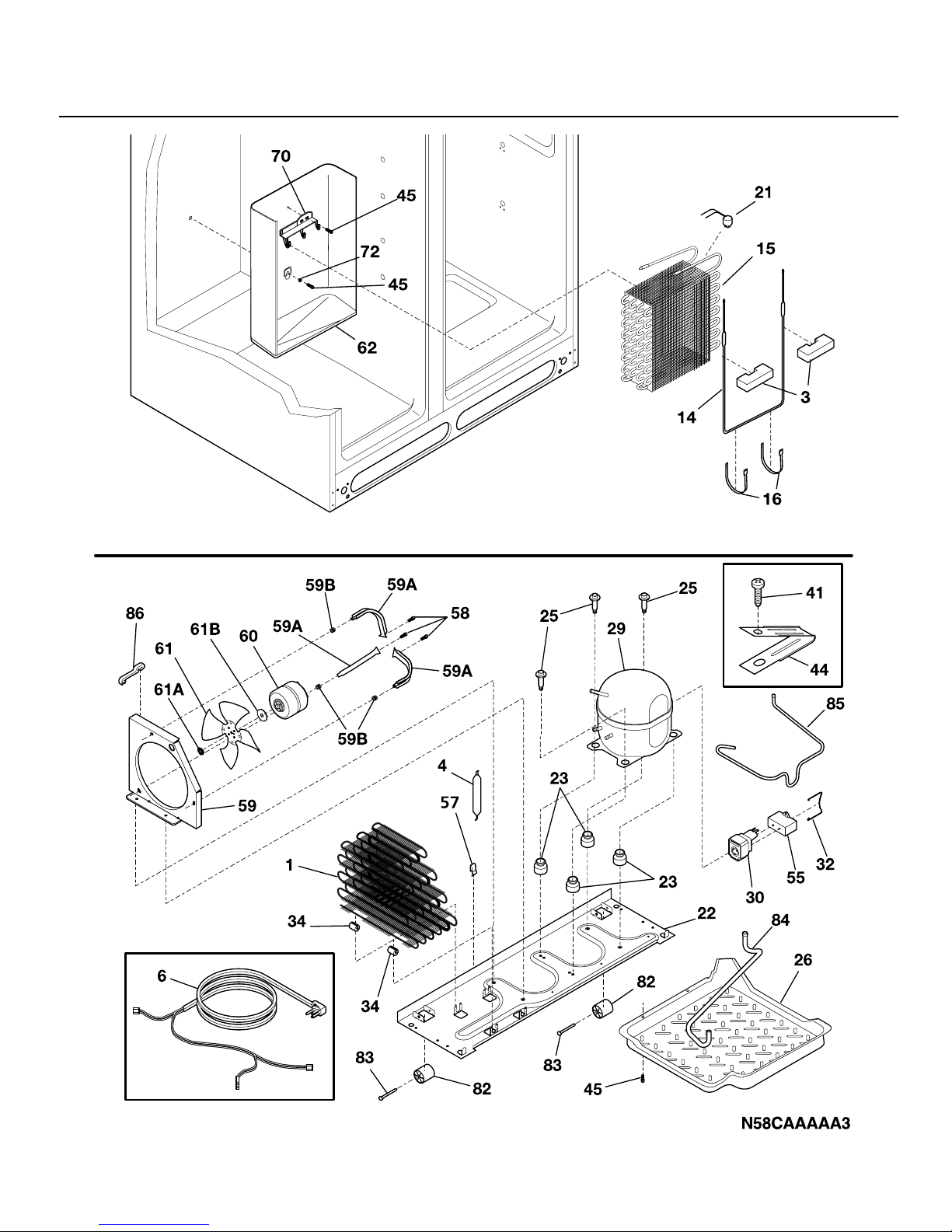

SYSTEM

# = Fast-moving Parts 13 01/02
* = Non-Illustrated Parts
FRS26H5AS Publication No.
5995364964
A = FRS26H5AS (FRS26H5ASB0)
B = FRS26H5AS (FRS26H5ASB1)
POS. NO PART NO DESCRIPTION
1 240333603 A B Condenser
3 218679607 A B Block-evap coil,styrofoam ,(2)
4 # 218944001 A B Drier-filter,R134a System
6 240346402 A B Harness-wiring,machine compt
6* 240315901 A B Harness-wiring
6* # 240439901 A B Wiring Harness,controls
14 # 5303918253 A B Defrost Heater Kit
15 # 5303918216 A B Evaporator Kit
16 5308000110 A B Strap-evap/heater,aluminum ,(2)
21 5303918214 A B Thermostat-defrost,kit
22 240330003 A B Base-compressor
23 218513300 A B Grommet-compr mtg,(4)
25 240491501 A B Screw-compr mtg,1/4-28 x 1.16, shoulder, typ CF
26 240332602 A B Pan-defrost drain
29 # 5303918254 A B Compressor,w/electricals
30 # 218721119 A B Starter-PTC
32 218973501 A B Clamp,elec cont mtg ,compressor
34 240405201 A B Grommet,rubber ,black ,cond tube/wire
41 218897001 A B Screw, hex washer head, 8-32 x 1/4
41* 5308000039 A B Screw, hex wshr hd, 8-32CA x 0.500, serrated head
44 5303001199 A B Clamp-wiring harness, strain relief, galv steel
45 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
55 # 218909901 A B Capacitor-run,220 VAC ,15 microfarad
57 240403601 A B Clip-wiring harness
58 215004600 A B Screw,hx wshr hd, 8-36 x 7/16, cond fan motor,(2)
59 240315501 A B Shroud-cond fan
59* 240346701 A B Tape-foam seal,shroud
59* 240359401 A B Screw-fan shroud,(2)
59A 240346501 A B Bracket-support,cond mtr ,(3)
59B 240346601 A B Grommet-bracket,(3)
60 # 240334002 A B Motor-condenser fan
61 # 240315401 A B Fan Blade,galv steel ,condenser fan
61A 215004700 A B Nut,speed
61B 215004800 A B Grommet-silencer
62 240429402 A B Trough-drain
70 218990801 A B Bracket-evap/cvr mtg
72 218397000 A B Button-handle mtg,dovetail
82 5304418225 A B Roller,compressor base ,rear ,(2)
83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 A B Tube-drain,lower
85 240346201 A B Tube-connector,suction
86 240409302 A B Spacer-cond tube,black
* # 5303918213 A B Heat Exchanger Kit,suction line
* # 5303918222 A B Hot Tube Repair Kit,Service
SYSTEM

01/02 14
Publication No. FRS26H5AS
5995364964

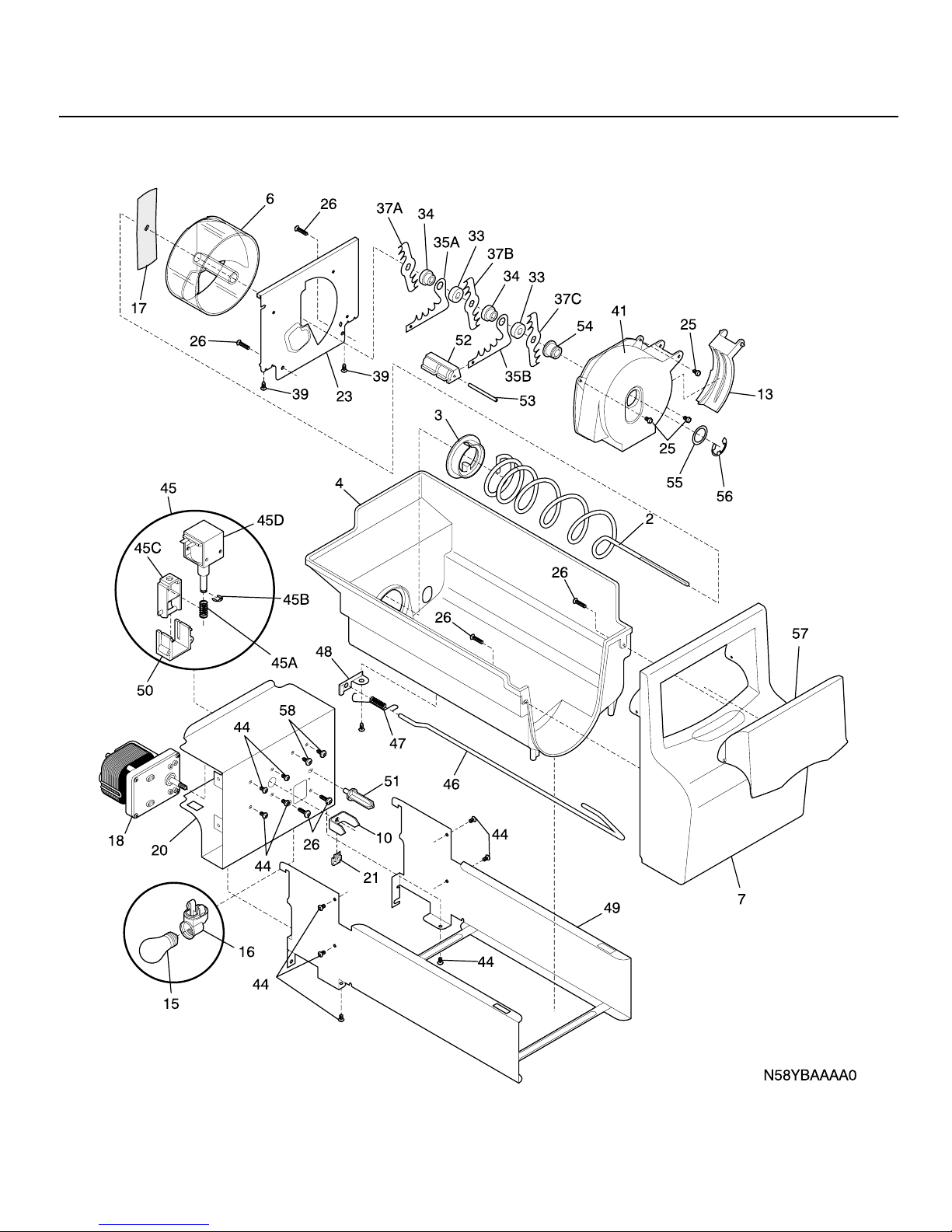

DISPENSER

# = Fast-moving Parts 15 01/02
* = Non-Illustrated Parts
FRS26H5AS Publication No.
5995364964
A = FRS26H5AS (FRS26H5ASB0)
B = FRS26H5AS (FRS26H5ASB1)
POS. NO PART NO DESCRIPTION
1 218976405 A B Tube-water inlet
1* 218976901 A B Tube-water inlet, inlet valve to ice maker
1* 218976903 A B Tube-water inlet, inlet valve to filter
1* 218976907 A B Tube-water inlet, valve to door
4 5304422012 A B Cover-module,black
8 5304422013 A B Module-dispenser
10 5304421626 A B Spring-torsion
14 240323910 A B Label-module cover,black
15 5304421616 A B Light Bulb/Lamp
16 215284900 A B Socket-light/lamp
17 5304421619 A B Screw
23 240323603 A B Drip Tray,black
24 5304422026 A B Actuator-water,black
24A 5304422025 A B Actuator-ice,black
30 5304421628 A B Door Assy-ice chute
30A 5304421624 A B Door center
30B 5304421625 A B Insulation-door
30C 5304421629 A B Door seal
35 5304421620 A B Damper-rotary
36 5304421824 A B Carrier
38 5304421827 A B Power Board
38A# 5304421617 A B Switch-micro,single pole ,double throw
38C 5304422029 A B Board-control
39 5304421627 A B Pin-hinge
41 5304421829 A B Spring-actuator
43 215296300 A B Screw,plask h/l ,#6 x 3/8
43* 240363401 A B Screw-#8-18 X 1/2,#6 hd plask
56 5304421830 A B Screw-micro switch,pan head
87 5304421622 A B Bearing Plate
87A 5304421621 A B Bearing Plate
88 5304421615 A B Shield-light
90 5304421831 A B Light Pipe,reflector
91 5304421850 A B Light Pipe,reflector ,short
* 5303918256 A B Dispenser heater kit
DISPENSER

01/02 16
Publication No. FRS26H5AS
5995364964
ICE CONTAINER

# = Fast-moving Parts 17 01/02
* = Non-Illustrated Parts
FRS26H5AS Publication No.
5995364964
A = FRS26H5AS (FRS26H5ASB0)
B = FRS26H5AS (FRS26H5ASB1)
POS. NO PART NO DESCRIPTION
2 5304404344 A B Auger-ice
3 5304404343 A B Cam-drive
4 218815300 A B Container-ice,bucket only
6 5304404346 A B Drum-ice disp
7 218815400 A B Front-ice container
10 5304404337 A B Bar-drive
13 5304404359 A B Gate
15 5303001179 A B Light Bulb/Lamp,40 W
16 5303289050 A B Socket-light/lamp
17 5304404345 A B Drive Blade
18 # 240326903 A B Motor-auger
18* 5304404335 A B Wiring Harness,auger motor
20 5304404332 A B Cover-motor
21 215285100 A B Nut-drive
23 5304404347 A B Plate-front
25 5304404362 A B Screw,hex washer head ,8-32T x 0.375
26 215503200 A B Screw,cr pan hd ,10-16 x 0.500
33 5304404351 A B Spacer
34 5304404349 A B Spacer
35A 5304404353 A B Fixed Blade,round
35B 5304404352 A B Fixed Blade,square
37A 5304404348 A B Blade,crusher #1
37B 5304404350 A B Blade,crusher #2
37C 5304404356 A B Blade,crusher #3
39 5304404365 A B Screw
41 5304404358 A B Housing-crusher
44 218359200 A B Screw,pan head ,8-32 x 0.250
45 # 5304404333 A B Solenoid Assy
45A 5304406816 A B Spring-solenoid
45B 5304406817 A B E-Ring-solenoid
45C 5304406818 A B Actuator-solenoid
45D 5304406819 A B Solenoid
46 5304404341 A B Control Rod
47 5304404342 A B Spring-control rod
48 5304404340 A B Bracket-control rod
48* 5304404364 A B Screw-bracket
49 5304404329 A B Rail Assy
50 5304404334 A B Guide-solenoid
51 5304404336 A B Rotation Stop
52 5304404354 A B Spacer-fixed blades
53 5304404355 A B Pin-spiral,fixed blades
54 5304404357 A B Nut-auger
55 5304404360 A B Washer
56 5304404361 A B E-ring
57 5304404363 A B Door-access
58 5304404331 A B Screw-solenoid
* 240323804 A B Ice Container Assy,w/moving parts
ICE CONTAINER

01/02 18
Publication No. FRS26H5AS
5995364964

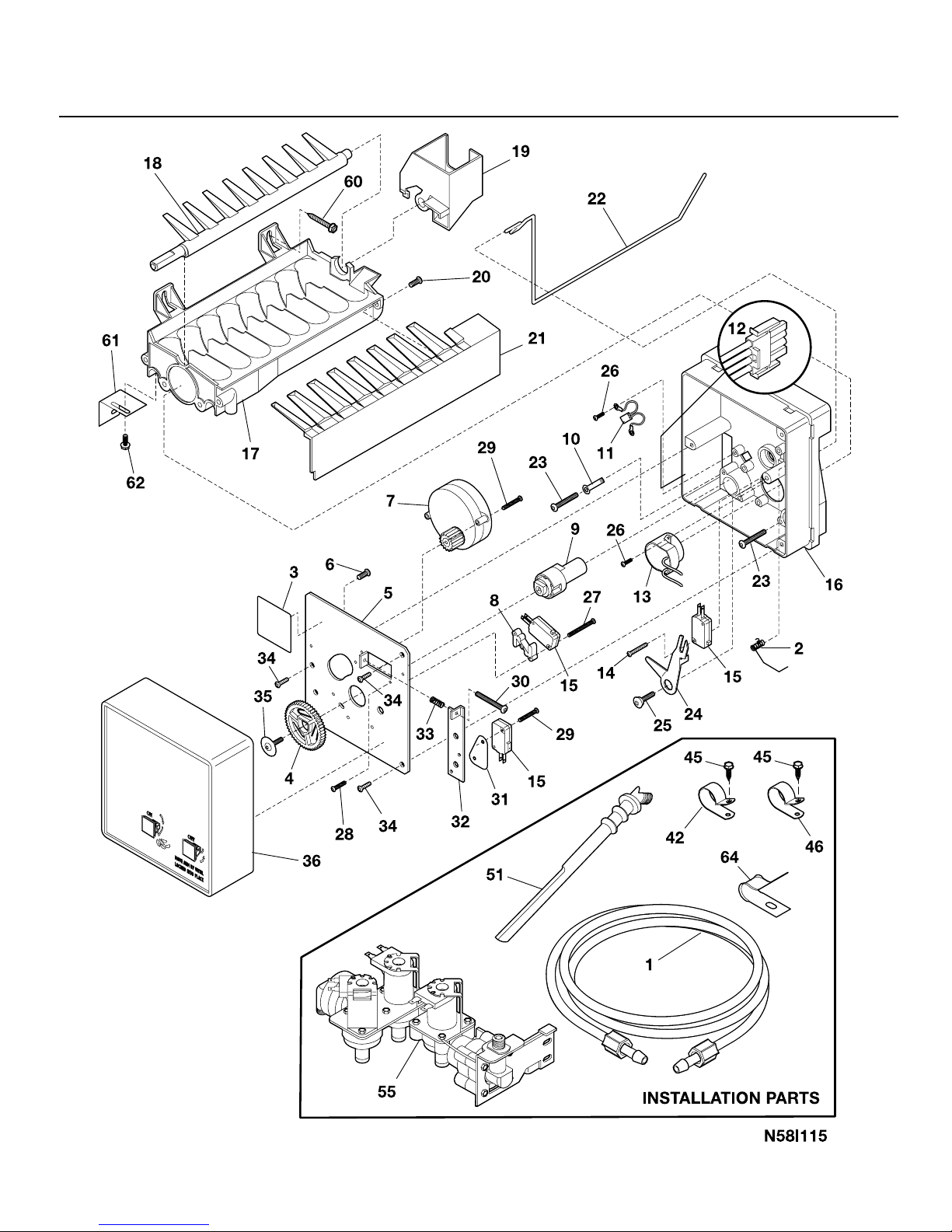

ICE MAKER

# = Fast-moving Parts 19 01/02
* = Non-Illustrated Parts
FRS26H5AS Publication No.
5995364964
A = FRS26H5AS (FRS26H5ASB0)
B = FRS26H5AS (FRS26H5ASB1)
POS. NO PART NO DESCRIPTION
1 218976405 A B Tube-water inlet
1* 218976901 A B Tube-water inlet, inlet valve to ice maker
1* 218976903 A B Tube-water inlet, inlet valve to filter
1* 218976907 A B Tube-water inlet, valve to door
2 5304420650 A B Spring,shut-off arm
3 3206299 A B Label,ID plate
4 3206301 A B Gear
5 3206303 A B Plate-mounting
6 3206305 A B Screw-ground wire,8-32 x 0.250
7 # 3206306 A B Motor-ice maker
8 3206312 A B Spacer-hold switch
9 3206313 A B Cam
10 3206315 A B Clamp
11 # 3206319 A B Thermal Cutoff, ice maker, complete assy
12 # 240352601 A B Wiring Harness, ice maker, internal, with plug
13 # 3206322 A B Thermostat Assy,ice maker
14 5304420652 A B Screw,4 x 0.750 ,switch mtg.
15 # 3206324 A B Switch,(3)
16 5304420653 A B Support,phenolic
17 # 5303320545 A B Mold-ice maker,Radius Cube ,with heater
18 3206328 A B Ejector-ice
19 3206330 A B Bearing & Inlet
20 5304408581 A B Screw,8-32 x 0.375
21 3206332 A B Ice Stripper
22 3206333 A B Shut-off Arm
23 5304408582 A B Screw, 8-32 x 0.875, mold-to-support, (3)
24 3206335 A B Lever Arm
25 3206336 A B Screw, 8-18 x 0.562, lever arm/sprt
26 5304420654 A B Screw-thermo/sprt, 4-24 x 0.375 ,(4)
27 3206338 A B Screw, 4-40 x 1.000, hold switch mtg, (2)
28 3206339 A B Screw-timing stop,4-40 x 0.375
29 3206323 A B Screw,4-24 x 0.750 ,(6)
30 3206341 A B Screw-timing adj,8-32 x 1.000
31 3206342 A B Insulator
32 3206343 A B Plate-valve switch
33 5304408583 A B Spring-timing adj
34 5304420655 A B Screw,plazscrew ,8-10 ,(3)
35 5304408585 A B Screw
36 3206347 A B Cover-ice maker
42 218515402 A B Clip,(2) ,tube mtg.
42* 5303001199 A B Clamp-wiring harness, strain relief, galv steel
45 5303001343 A B Screw,hex washer head ,8-15A x 0.500
46 5303001193 A B Clamp,.50 ID ,steel ,water tube
51 240387101 A B Tube-water,ice mold fill ,extension
55 # 240321801 A B Valve-water,triple solenoid
55* 218873001 A B • Cap-water valve
55*# 240508101 A B • Valve-water (Service), single solenoid
55*# 240508102 A B • Valve-water (Service), dual solenoid, 115 V
55* 240363601 A B Screw-shoulder
60 5303207328 A B Screw,hex washer head, 8-15A x 1.000, (2)
61 218721500 A B Bracket-leveling,ice maker
62 218737900 A B Screw-IM brkt mtg,hex washer head, 8-32D x 0.375
64 5303001549 A B Clamp,0.31 ID ,steel ,copper wtr line
* 218888001 A B Adapter-water supply, nut & sleeve, compression ftg
* 240352403 A B Ice Maker, Radius Cube, 115 V, no instl parts
ICE MAKER

01/02 20
Publication No. FRS26H5AS
5995364964
WIRING SCHEMATIC
