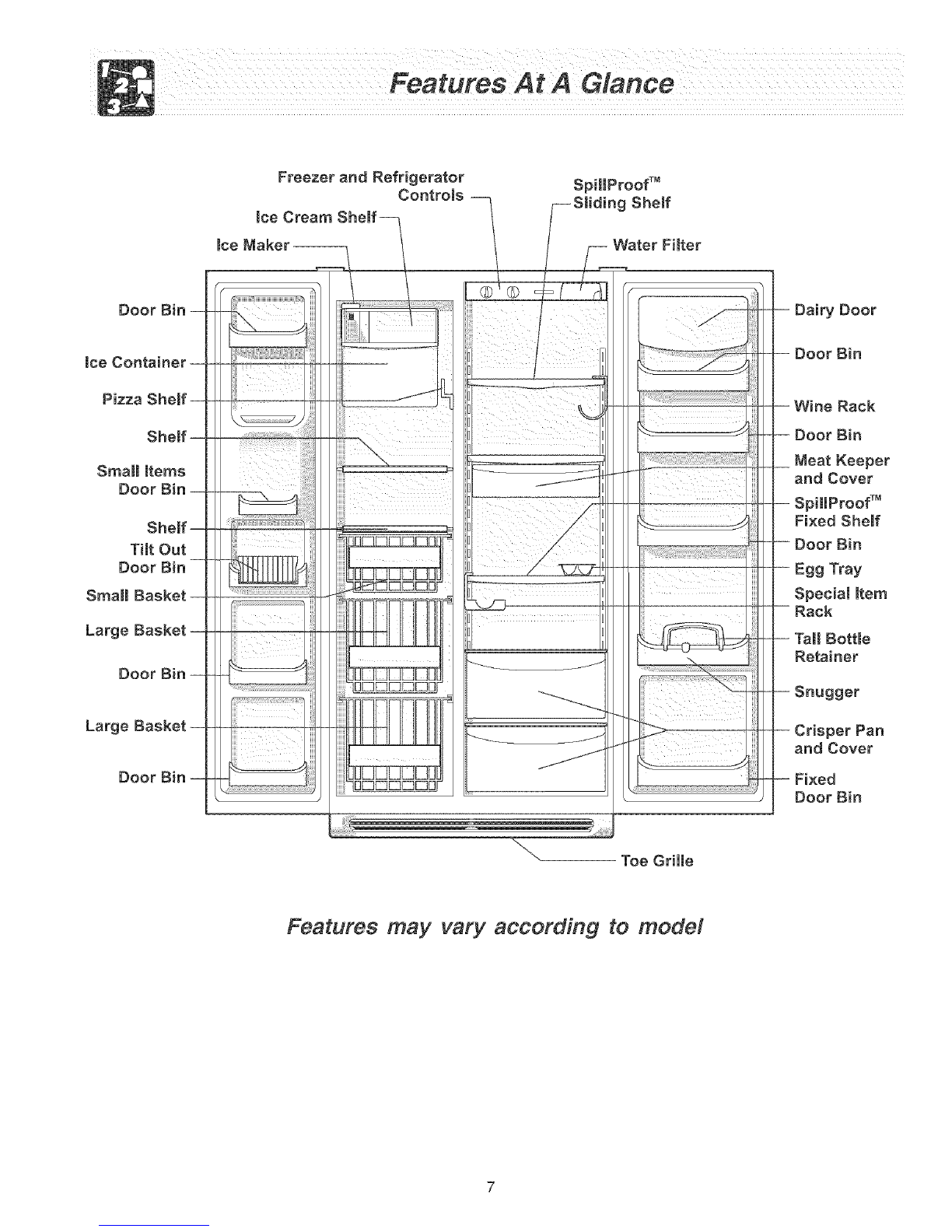

Features at a Glance ......... 7
Temperature Controls ..... 8
Looking inside .......... 9 - 1t

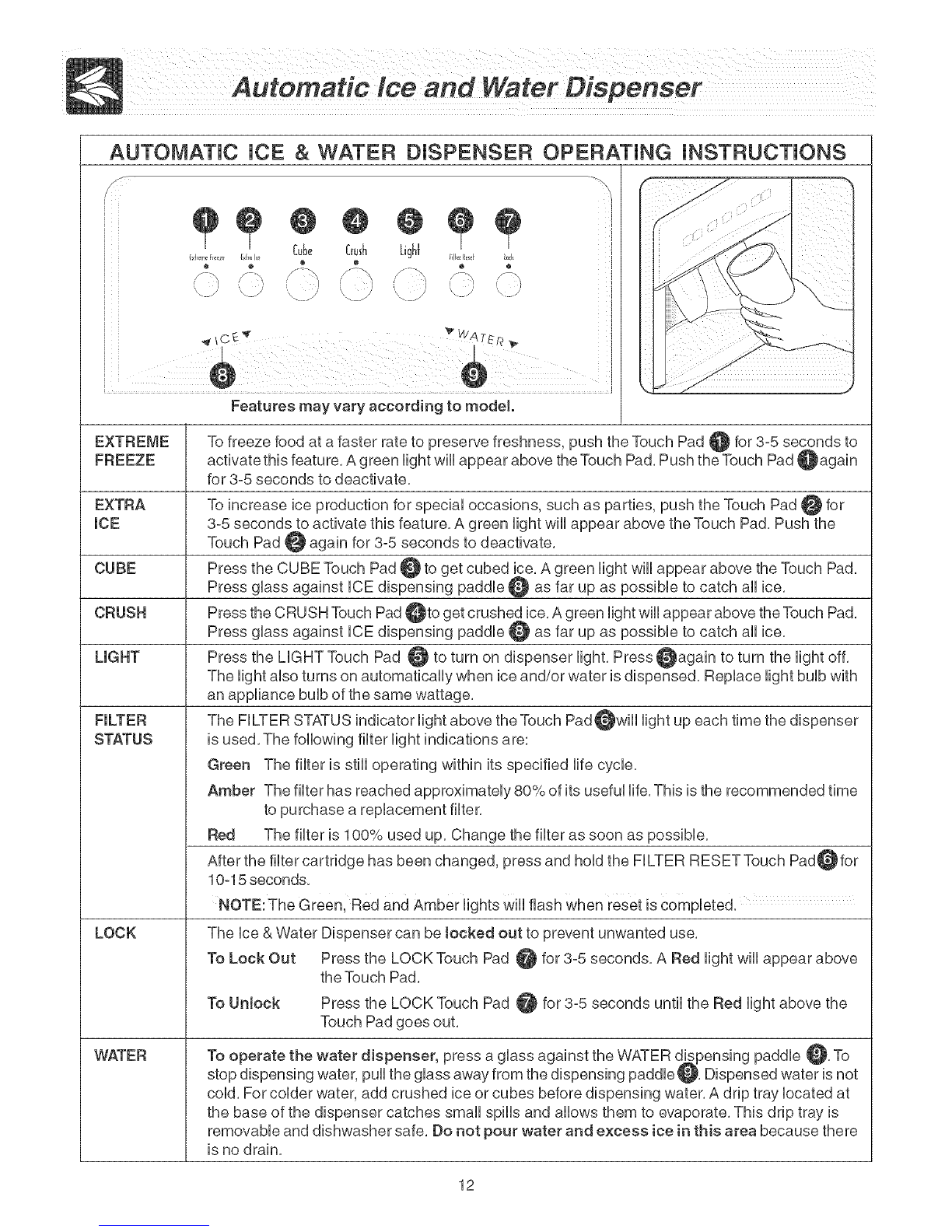

Automatic ice and Water
Dispenser ................ 12 - t6

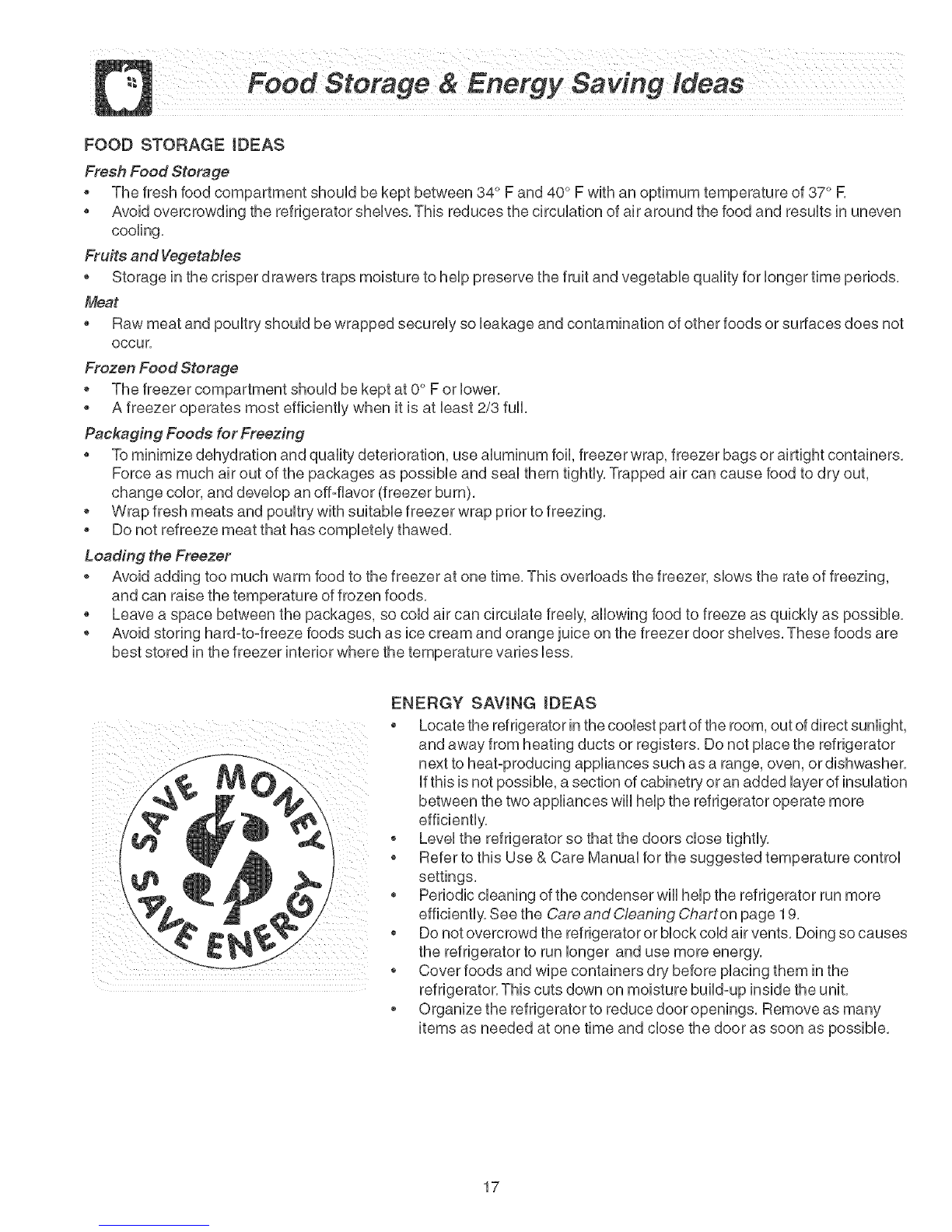

Food Storage
& Energy Saving Tips ....... 17

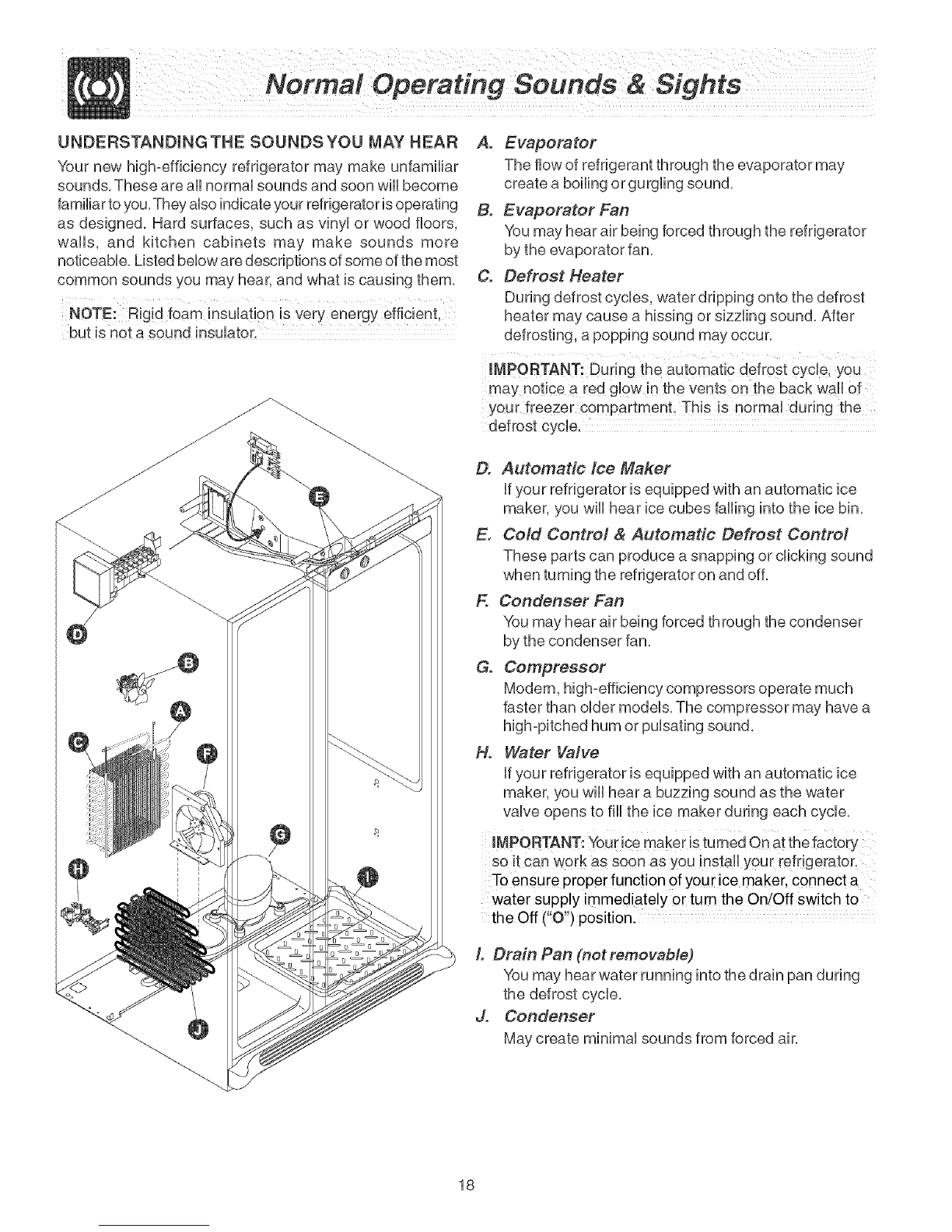

Normal Operatin_ Sounds.. t 8
Care & Cleaning ......... t9 - 20
Warranty ..................... 21
Before You Call
SolutioRs to
CommooProblem,.............. 22 o25
READ AND SAVE THESE INSTRUCTIONS PzN241572800(0304)

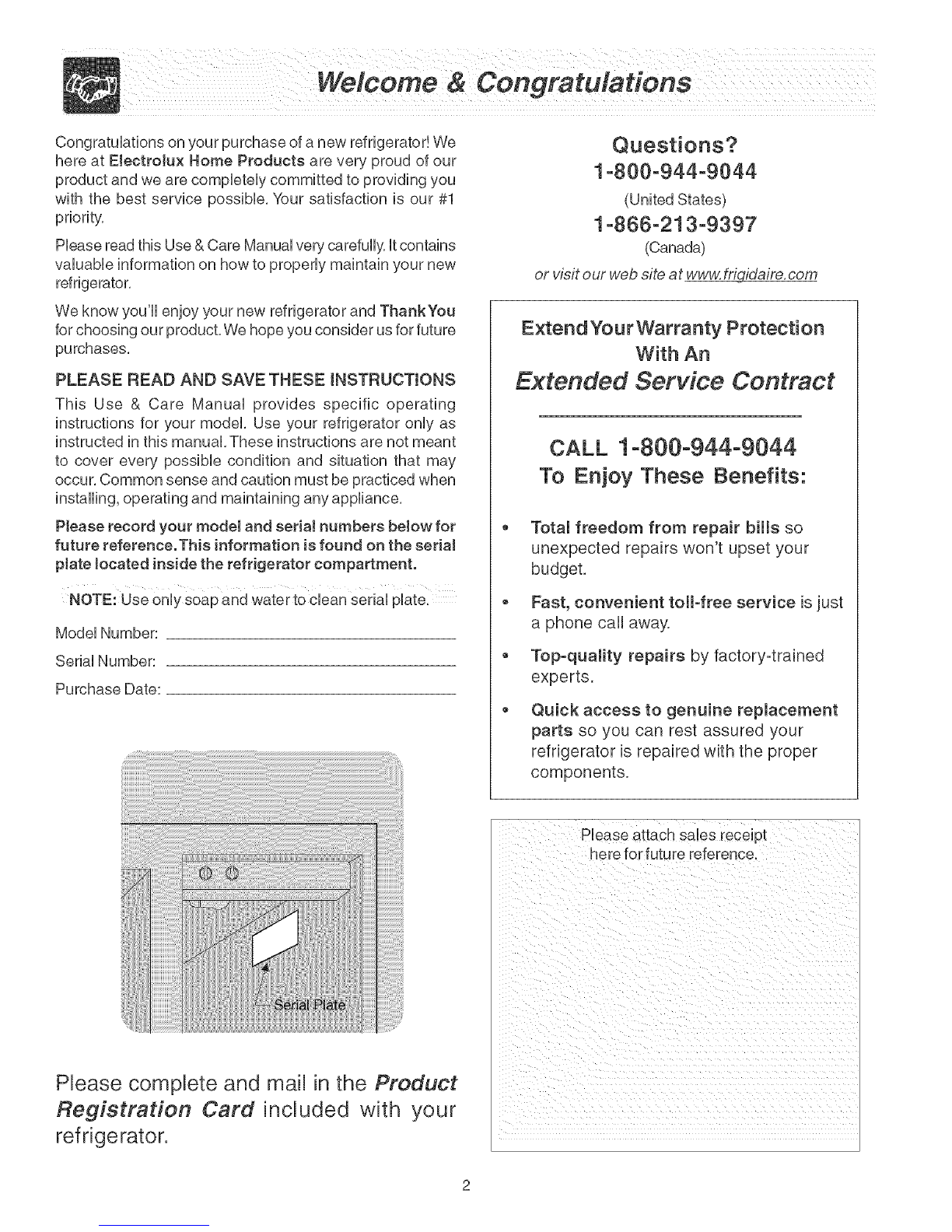

Congratulations on your purchase of a new refrigerator! We
here at F:lectroJux Home Products are very proud of our
product and we are completely committed to providing you
with the best service possible, Your satisfaction is our #1
priority,
Please read this Use & Care Manual very carefully, it contains
valuable information on how to properly maintain your new
refrigerator,
We know you'll enjoy your new refrigerator and ThankYou
for choosing our product, We hope you consider us for future
purchases,
PLEASE READ AND SAVE THESE INSTRUCTIONS
This Use & Care blanual provides specific operating
instructions for your model, Use your refrigerator only as
instructed in this manual, These instructions are not meant
to cover every possible condition and situation that may
occur, Common sense and caution must be practiced when
installing, operating and maintaining any appliance,
Please record your model and seriaJ numbers beJow for
future reference.This information is found on the serial
plate located inside the refrigerator compartment.
NOTE:Use only soar.,and water to clean serial plate.
Model Number:
Serial Number:
Purchase Date:
Questions?
1°800=944°9044
(United States)
1-866-213-9397
(Canada)
or visit our web site at www.frigidaire, corn
Extend Your Warranty Protection
With An
Extended Service Contract
CALL t-800-944-9044
To Enjoy These Benefits:
Total freedom from repair biims so
unexpected repairs won't upset your
budget.
Fast, convenient toil-free service is just
a phone call away.
Top-quality repairs by factory-trained
experts.
Quick access to genuine replacement
parts so you can rest assured your
refrigerator is repaired with the proper
components.
Please complete and mail in the Product
Registration Card included with your
refrigerator.
Please attach sales receipt
here for future reference.

FORYOURSAFETY
*Do not store or use gasoline, or other flammable liquids
in the vicinity of this or any other appliance, Read
product labels for warnings regarding flammability and
other hazards,
*Do not operate the refrigerator in the presence of
explosive fumes,
, Avoid contact with any moving parts of automatic ice
maker,
*Remove all staples from the carton, Staples can cause
severe cuts, and also destroy finishes if they come in
contact with other appliances or furniture,
PROPER DmSPOSAL OF YOUR REFRmGERATOR
OR FREEZER
Risk of child entrapment
Child entrapment and suffocation
are not problems of the past,
Junked or abandoned refrigerators
or freezers are still dangerous -
even if they will sit for "just a few
days," if you are getting rid of your
old refrigerator or freezer, please
follow the instructions below to
CHILD SAFETY
Destroy or recycle the carton, plastic bags, and any exterior
wrapping material immediately after the refrigerator is
unpacked, Children should NEVER use these items to play
with, Cartons covered with rugs, bedspreads, plastic sheets
or stretch wrap may become airtight chambers, and can
quickly cause suffocation.
Before you throw away your old refrigerator/freezer:
*Remove doors,
*Leave shelves in place so children may not easily climb
inside,
Have refrigerant removed by a qualified service
technician.
ELECTRmCAL mNFORMATION
*The refrigerator must be ptugged into its own
dedicated 115VoJt, 60 Hz., AC onty electric outJet.
The power cord of the appliance is equipped with a
three-prong grounding plug for your protection against
electrical shock hazards, it must be plugged directly
into a properly grounded three-prong receptacle, The
receptacle must be installed in accordance with local
codes and ordinances, Consult a qualified electrician,
Do not use an extension cord or adapter plug.
*if the power cord isdamaged, itshould be replaced bythe
manufacturer, service technician or a qualified person to
prevent any risk,
*Never unplug the refrigerator by pulling on the power
cord, Always grip the plug firmly, and pull straight out
from the receptacle to prevent damaging the power cord,
*Unplug the refrigerator before cleaning and before
replacing a light bulb to avoid electrical shock,
*Performance may be affected if the voltage varies by
10% or more, Operating the refrigerator with insufficient
power can damage the compressor, Such damage is
not covered under your warranty,
*Do not plug the unit into an outlet controlled by a wall
switch or pull cord to prevent the refrigerator from being
IMPORTANT: Turning the Freezer and Fresh Food
Controls to "0" turns off the compressor and p[events
your refrigerator from cooling, but does not disconnect
the power to the light buib and other electrical
must unplug the power cord from the wall outlet.
#o not,under
any circumstances, I
cut, remove,
or bypass the /
grounding prongj
Powercord with
37pronggrounded plug
*Avoid connecting refrigerator to a Ground Fault interrupter
(GFI) circuit,

ThisOwner'sGuideprovidesspecificoperatinginstructions
foryourmodekUsetherefrigeratoronUyasinstructedinthis
Use&CareManuakBeforestartingtherefrigerator,follow
theseimportantfirststeps.
LOCATION
*Choose a pUacethat is near a grounded eUectricaUoutbt,
Do Not use an extension cord or an adapter pUug,
*if possiMe, pUacethe refrigerator out of direct sunlight
and away from the range, dishwasher or other heat
SOUrces,
*The refrigerator must be installed on a floor that is bveU
and strong enough to support a fully baded refrigerator,
*Consider water suppUyavailability for modeb equipped
with an automatic ice maker.
mNSTALLATJON
the temperature will drop beJow 55°F (13°C) or rise
above tl O°F(430C). The compressor wiJJnot be aMe
to ma!ntain proper temperatures inside the
lowerfront of your refrigerator. Sufficient air circulation
!s essential for the proper operation of your
refrigerator.
Installation Clearances
*Allow the following clearances for ease of installation,
proper air circulation, and plumbing and electrical
connections:
Sides & Top 3/8"
Back 1"
DOOR OPENING
side against a wail, you may have to allow additional
space so the door can be opened wider,
Your refrigerator should be positioned to allow easy access to
a counter when removing food, For best use of drawers and
freezer baskets, the refrigerator should be in a position where
both the refrigerator and freezer doors can be fully opened,

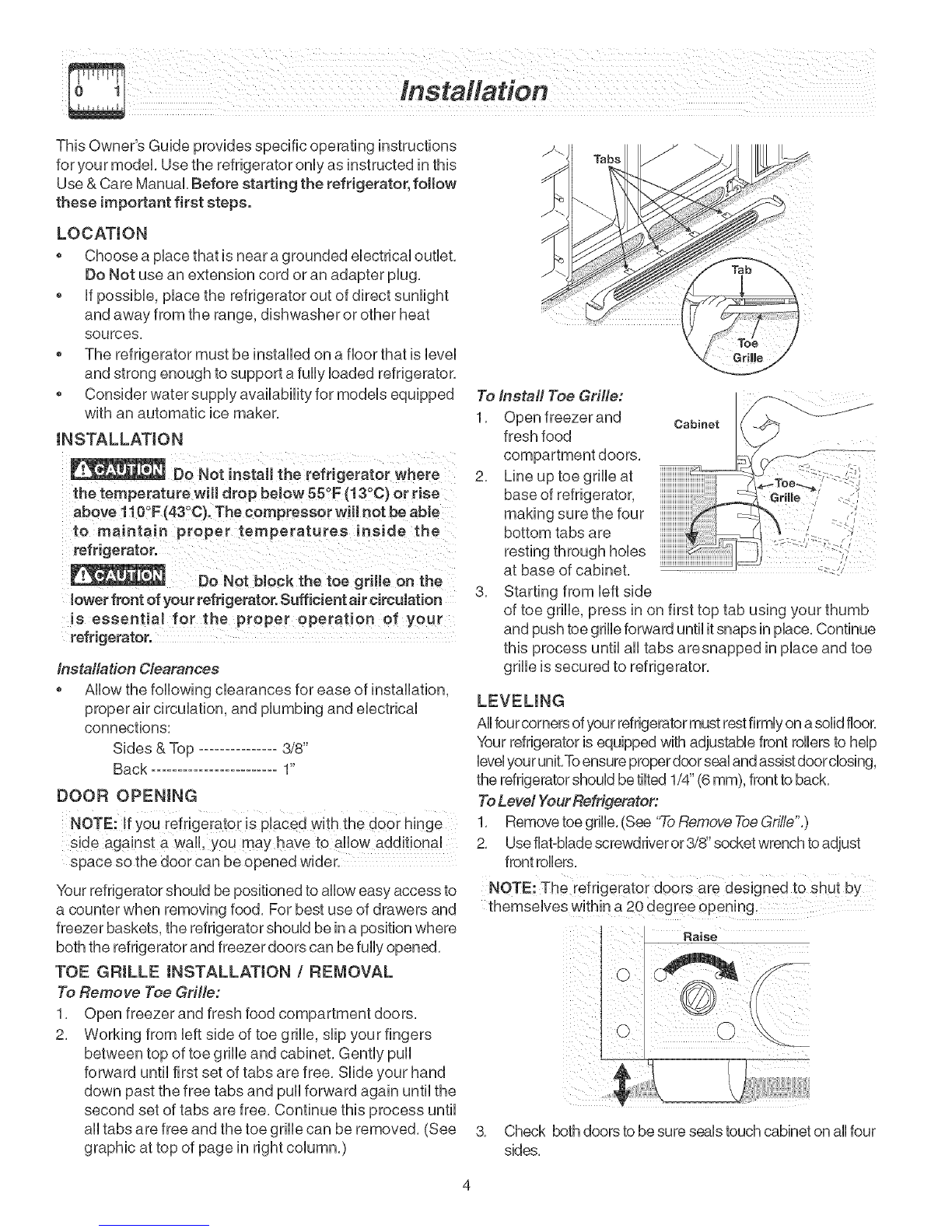

TOE GRILLE INSTALLATmON /REMOVAL
To Remove Toe Grille:
1. Open freezer and fresh food compartment doors,
2. Working from left side of toe grille, slip your fingers
between top of toe grille and cabinet. Gently pull
forward until first set of tabs are free. Slide your hand
down past the free tabs and pull forward again until the
second set of tabs are free. Continue this process until
all tabs are free and the toe grille can be removed. (See
graphic at top of page in right column.)
To/rratall Toe Grille:
1, Open freezer and
fresh food
2, Line up toe grille at
3,
Cabinet
making sure the four
bottom tabs are -_ /
resting through hobs --_
at base of cabinet,
Starting from left side
of toe grille, press in on first top tab using your thumb
and push toegrille forward until it snaps in place, Continue
this process until all tabs aresnapped in place and toe
grille issecured to refrigerator,
LEVEUNG
Allfourcorners ofyour refrigeratormust restfirmlyon a solidfloor,
Your refrigerator is equipped with adjustable front rollersto help
levelyourunit,Toensure proper doorseal and assistdoor closing,
the refrigerator should be tilted 1/4"(6 mm),front to back,
ToLevel Your Refrigerator:
1, Removetoe grille,(See '?-oRemove ToeGrille",)
2, Useflat-blade screwdriver or 3/8" socket wrench to adjust
front rollers.
themselves within a 20 degree opening,
Raise
3, Check both doors to be sure seals touch cabinet on all four
sides,

iftstallatio - connecting Ice Maker To Water Supply
To avoid eJectric shock, which can cause death or severe personaJ injury, disconnect the refrigerator
from eJectricaJ power before connecting a water supply line to the refrigerator.
To Avoid Property Damage:
oCopper tubing is recommended for the water suppJy Jine.Water supply tubing made of ¼"" plastic is not
recommended since it greatly increases the potentiaJ for water leaks. Manufacturer will not be responsiMe
for any damage if plastic tubing is used for supply line.
oDO NOT install water supply tubing in areas where temperatures fai! beJowfreezing.
oChemicaJs from a maffunctioning softener can damage the ice maker, if the ice maker is connected to soft
water, ensure that the softener is maintained and working properly.
IMPORTANT: Ensure that your water supply line connections comply with all local plumbing codes,
Before/nstafling The Water Supply Line, You Wifl Need
,, BasicTools: adjustable wrench, flat=blade screwdriver, and PhillipsTM screwdriver
oAccess to a household cold water line with water pressure between 20 and 100 psi,
A water supply line made of ¼ inch (6,4 mm) OD, copper tubing, Todetermine the length of copper tubing needed,
you will need to measure the distance from the ice maker inlet valve at the back of the refrigerator to your cold water
pipe, Then add approximately 7 feet (2.1 meters), so the refrigerator can be moved out for cleaning (as shown),
A shutoff valve to connect the water supply line to your household water system. DO NOT use a self-piercing type
shutoff valve.
A compression nut and ferrule (sleeve) for connecting the water supply line to the ice maker inlet valve.
To Connect Water Supply Line To Ice Maker Inlet Va/ve to Ice Maker
1, Disconnect refrigerator from ebctric power source, _ F_U!Tub_
2, Place end of water supply line into sink or bucket, Turn ON water supply Brass
and flush supply line until water is clear. Turn OFF water supply at shut compression
,Jut
off valve.
3. Unscrew plastic cap from water valve inlet and discard cap.
4. Slide brass compression nut, then ferrule (sleeve) onto water supply line,
as shown.
5. Push water supply line into water valve inlet as far as it wiii go (¼ inch).
Slide ferrule (sleeve) into valve inlet and finger tighten compression nut watervalve
onto valve. Tighten another half turn with a wrench; DO NOT over tighten.
6. With steel clamp and screw, secure water supply line to rear panel of inbt
refrigerator as shown.
7. Coil excess water supply line (about 2V2turns) behind refrigerator as shown
and arrange coils so they do not vibrate or wear against any other surface.
8. Turn ON water supply at shutoff valve and tighten any connections that
leak. flora househald water supply
9, Reconnect refrigeratortoelectrical powersource, (!ncludeenoughtubinginlooptoallow
10. Make sure ice maker power switch is turned On (See page 13 for location of rr_ovin_ refr geratorouforcleaning.}
power switch),
cause !ce make[ to CYC!etwo or three times before making a full tray of ice. New plumbing may cause ice to be
discolored or have poor flavor. Discard ice made during the first 24 hours.

Door Removal Instructions
Top
Hinge _///_iup H{ng_
Screw Cover Sc,ew
Screw
TO DmSCONNECT
•Pressouter rgagal _tface
_emove JuDe
TO CONNECT n_ _,<
1SO_"t tube 8rid u_ _
oush until mark touches face of fitting
ToolsNecessar,
Phi ED_ r_eoc_
_/o
Fixed
wrencr,
DOOR REMOVAL mNSTRUCTIONS:
If it isnecessary to move the refrigerator through narrow doorways, fofow
these steps to remove the doors.
IMPORTANT: Before you begin, turn Freezerand Fresh Food controls
to "0" and remove electrical power cord from wall outlet. Remove any
food from door shelves.
1. Disconnect electrical supply.
2. Open both doors, then remove toe grille.
8. Close doors,
To Remove Refrigerator Door:
1 Remove top hinge cover screw on refrigerator door and remove cover,
2. Trace around hinge with soft lead pencil. This wiii make it easier to realign
doors when they are replaced.
3. Remove top hinge and lift refrigerator door off bottom hinge pin. Set door
aside
4. Remove bottom hinge, f necessary,
5. Reverse this procedure to reinstall refrigerator door
To Remove Freezer Door:
1. Disconnect water line coming from lower hinge of freezer door at connection
located under front of freezer: Press outer ring against face of fitting, then puii
to remove tube.
2. Remove top hinge cover screw on freezer door and remove cover.
3. Disconnect wiring harness connector plug at top hinge: place your thumbs on
flat sides of each connector and bend both parts back and forth then with
firm grasp, puii both pieces apart.
4. Trace around hinge with soft lead pencil. This wiii make it easier to realign
doors when they are replaced.
5. Remove top hinge, allowing wiring harness to pull through hinge and lift freezer
door off of bottom hinge pin.Lay door down fiat to avoidkinking water line.
6. Remove bottom hinge, f necessary.
7. Reverse this procedure to reinstall freezer door.
When both doors have been reinstalled, connect water line by inserting Iube and
push until mark touches face of fitting, replace toe grille and plug in electrical power
cord. Turn both temperature controls to center position, Adjust settings as necessary,
Tubin£t

Freezer and Refrigerator
Controme SpiHProof TM
g Shemf
Door Bin
raceContainer
Pizza Shemf
Shelf
Small totems
Door Bin
Shemf
TimtOut
Door Bin
Small Basket
Large Basket
Door Bin
Large Basket
Door Bin ][Z31ZZ]D[Z][Z]D
Dairy Door
Door Bin
Rack
Door Bin
Meat Keeper
and Cover
SpillProof TM
Fixed Shelf
Door Bin
Egg Tray
Speciam totem
Rack
Tall Bottme
Retainer
Snugger
Crisper Pan
and Cover
Fixed
Door Bin
Toe Grille
Features may vary according to mode#

COOL DOWN PERmOD
To ensure safe food storage, allow the refrigerator to operate with the doors dosed for at Ueast8 to 12 hours before
Uoadingit with food,

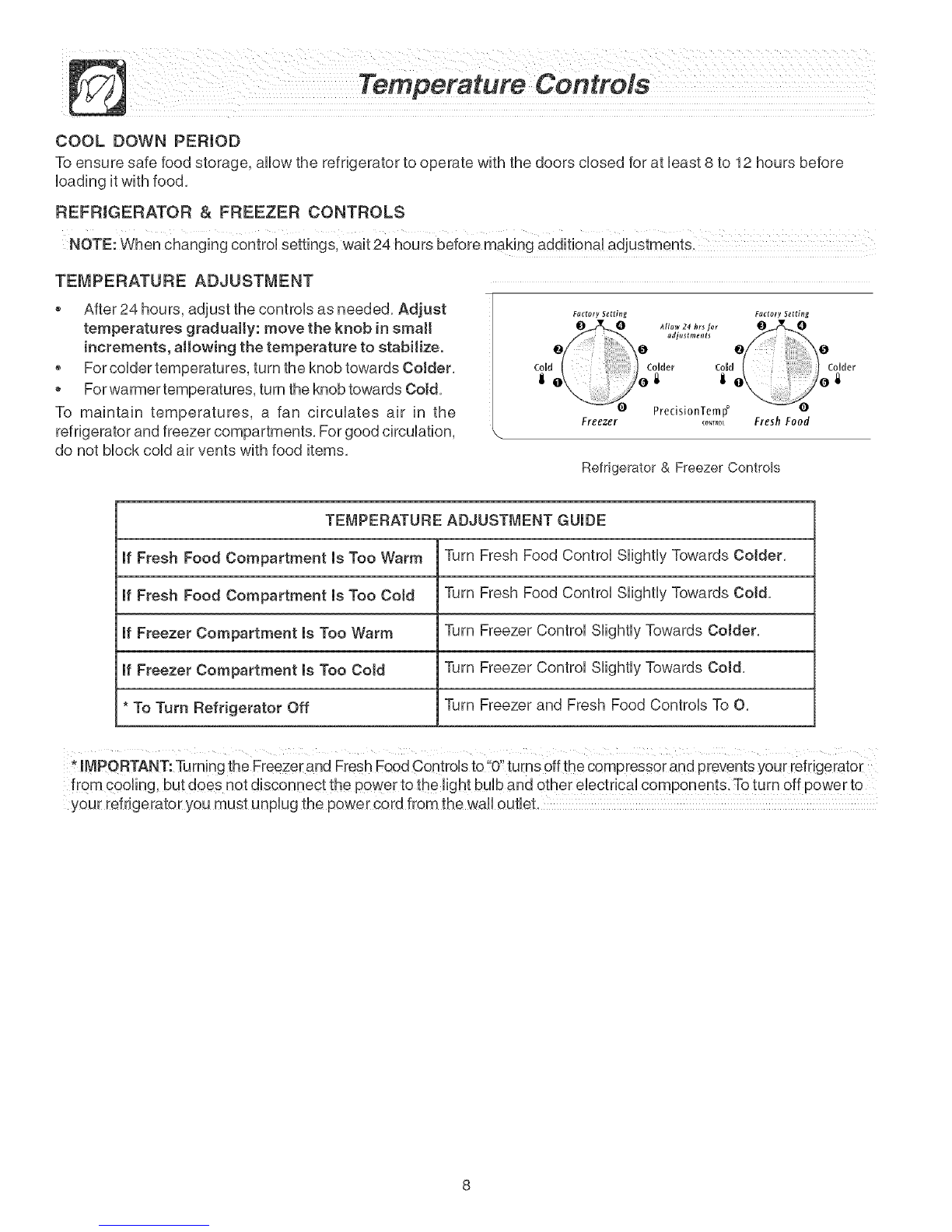

REFRIGERATOR & FREEZER CONTROLS
TEMPERATURE ADJUSTMENT
• After 24 hours, adjust the controls as needed, Adjust
temperatures gradually: move the knob in small
increments, allowing the temperature to stabilize,
• For coUdertemperatures, turn the knob towards CoMer,
o For warmer temperatures, turn the knob towards Cold,
To maintain temperatures, a fan circuUates air in the
refrigerator and freezer compartments, For good circulation,
do not bUockcoUdair vents with food items,
Fadory Setting Factory Setting
CoUd
|
Freezer ,o<.ot FreshFood
Refrigerator & Freezer Controls
TEMPERATURE ADJUSTMENT GUIDE
If Fresh Food Compartment Is Too Warm Turn Fresh Food Control Slightly Towards Colder,
if Fresh Food Compartment is Too Cold Turn Fresh Food Control Slightly Towards Cold,
if Freezer Compartment is Too Warm Turn Freezer Control Slightly Towards Colder,
if Freezer Compartment is Too Cold Turn Freezer Control Slightly Towards Cold,
* To Turn Refrigerator Off Turn Freezer and Fresh Food Controls To O,
* iMPORTANT: Turning the Freezer and Fresh Food Controls to"0'! turns off the compressor and prevents your refrigerator
your refrigerator you must unplug the power cord from the wall outlet,

t ooking mside

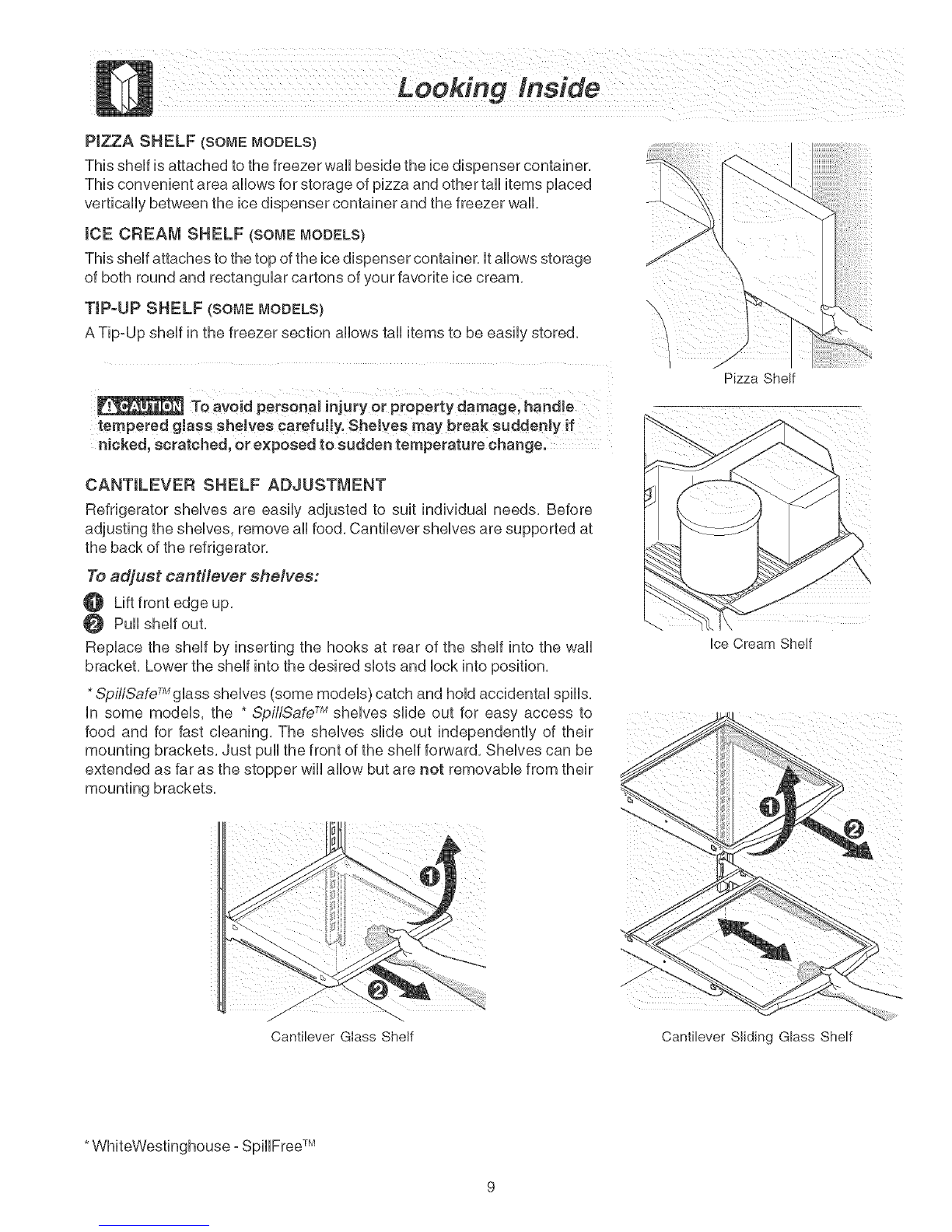

PIZZA SHELF (SOME MODELS)
This sheUfis attached to the freezer wall beside the ice dispenser container.
This convenient area allows for storage of pizza and other tall items pUaced
vertically between the ice dispenser container and the freezer wall.
iCE CREAM SHELF (SOME MODELS)
This sheUfattaches to the top of the ice dispenser container. Utallows storage
of both round and rectanguUar cartons of your favorite ice cream.
TiP-UP SHELF (SOME MODELS)
A Tip-Up shelf in the freezer section allows tall items to be easily stored,
Toa,,o!dpersonaRniurVorpiopertydamage;hand!e
tempered glass sheJves carefully. Shelyes may break suddenJy !f
nicked, scratched, or exposed to sudden temperature change.
CANTILEVER SHELF ADJUSTMENT
Refrigerator shelves are easily adjusted to suit individual needs, Before
adjusting the shelves, remove all food, Cantilever shelves are supported at
the back of the refrigerator,
To adjust cantilever shelves:
O Lift front edge up,
Pull shelf out,
Replace the shelf by inserting the hooks at rear of the shelf into the wall
bracket, Lower the shelf into the desired slots and lock into position,
*SpiflSafe TM glass shelves (some models) catch and hold accidental spills,
In some models, the * SpiflSafe 7_ shelves slide out for easy access to ....................................
food and for fast cleaning. The shelves slide out independently of their
mounting brackets. Just pull the front of the shelf forward. Shelves can be
extended as far as the stopper will allow but are not removable from their
mounting brackets.
Pizza Shelf
Ice Cream Shelf
Cantilever Glass Shelf Cantilever Sliding Glass Shelf
*WhiteWestinghouse - SpilFree TM

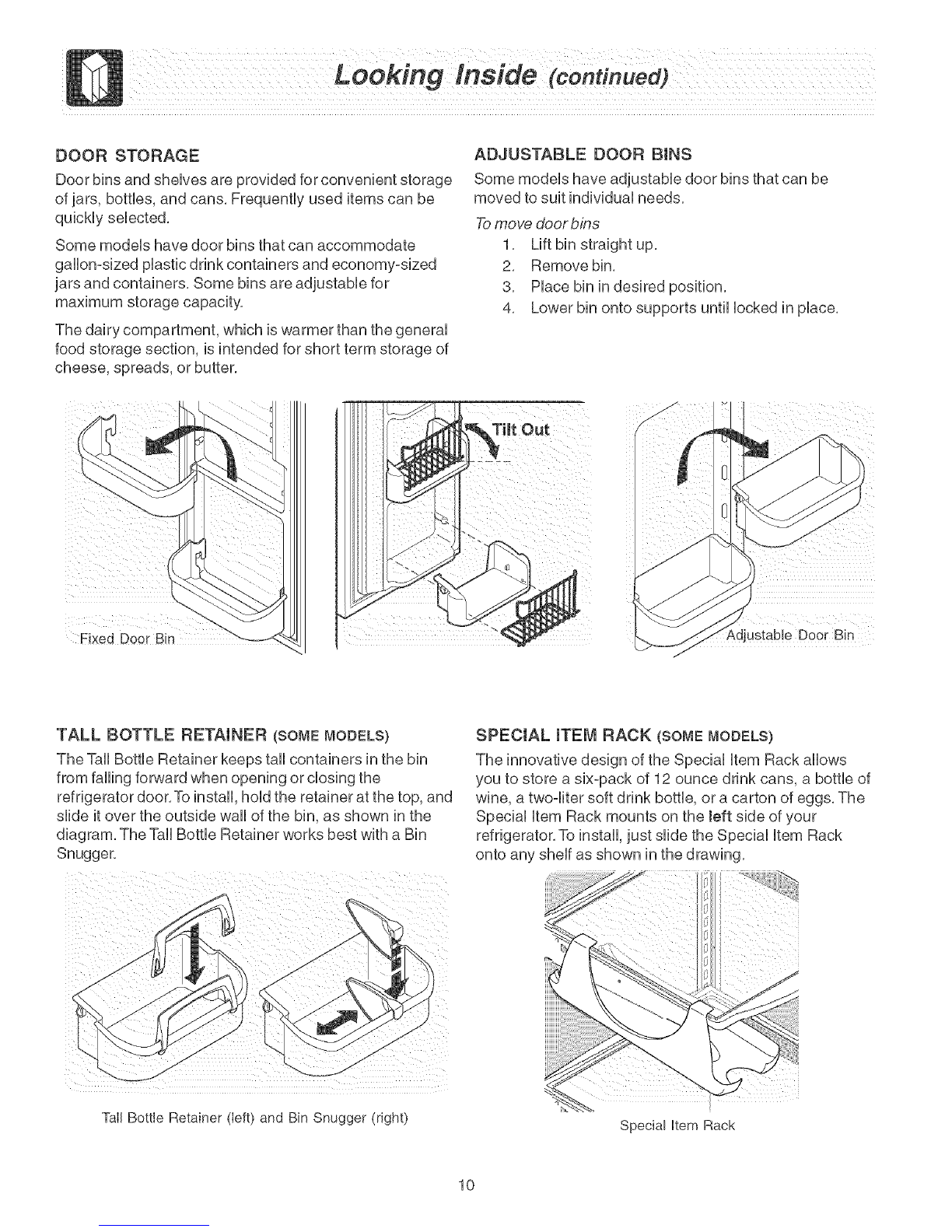

DOOR STORAGE
Door bins and sheUvesare provided for convenient storage
of jars, bottUes,and cans, FrequentUy used items can be
quickUyseUected,
Some modeUshave door bins that can accommodate
gaHonosized pUasticdrink containers and economy-sized
jars and containers, Some bins are adjustaNe for
maximum storage capacity,
The dairy compartment, which iswarmer than the generaU
food storage section, is intended for short term storage of
cheese, spreads, or butter.
Fixed Door Bin
ADJUSTABLE DOOR BraNS
Some modeUshave adjustaNe door bins that can be
moved to suit individual needs,
Tomove door bins
1, Lift bin straight up,
2, Remove bin,
3, Place bin in desired position,
4, Lower bin onto supports until locked in place,
ustable Door Bin
TALL BOTTLE RETAmNER (SOME MODELS)
The Tall Bottle Retainer keeps tall containers in the bin
from falling forward when opening or closing the
refrigerator door, To install, hold the retainer at the top, and
slide it over the outside wall of the bin, as shown in the
diagram, The Tall Bottle Retainer works best with a Bin
Snugger,
Tail Bottle Retainer (left) and Bin Snugger (right)
SPECIAL ITEM RACK (SOME MODELS)
The innovative design of the Special Item Rack allows
you to store a six-pack of 12 ounce drink cans, a bottle of
wine, a two-liter soft drink bottle, or a carton of eggs, The
Special Item Rack mounts on the Jeft side of your
refrigerator, To install, just slide the Special Item Rack
onto any shelf as shown in the drawing,
Special item Rack
10

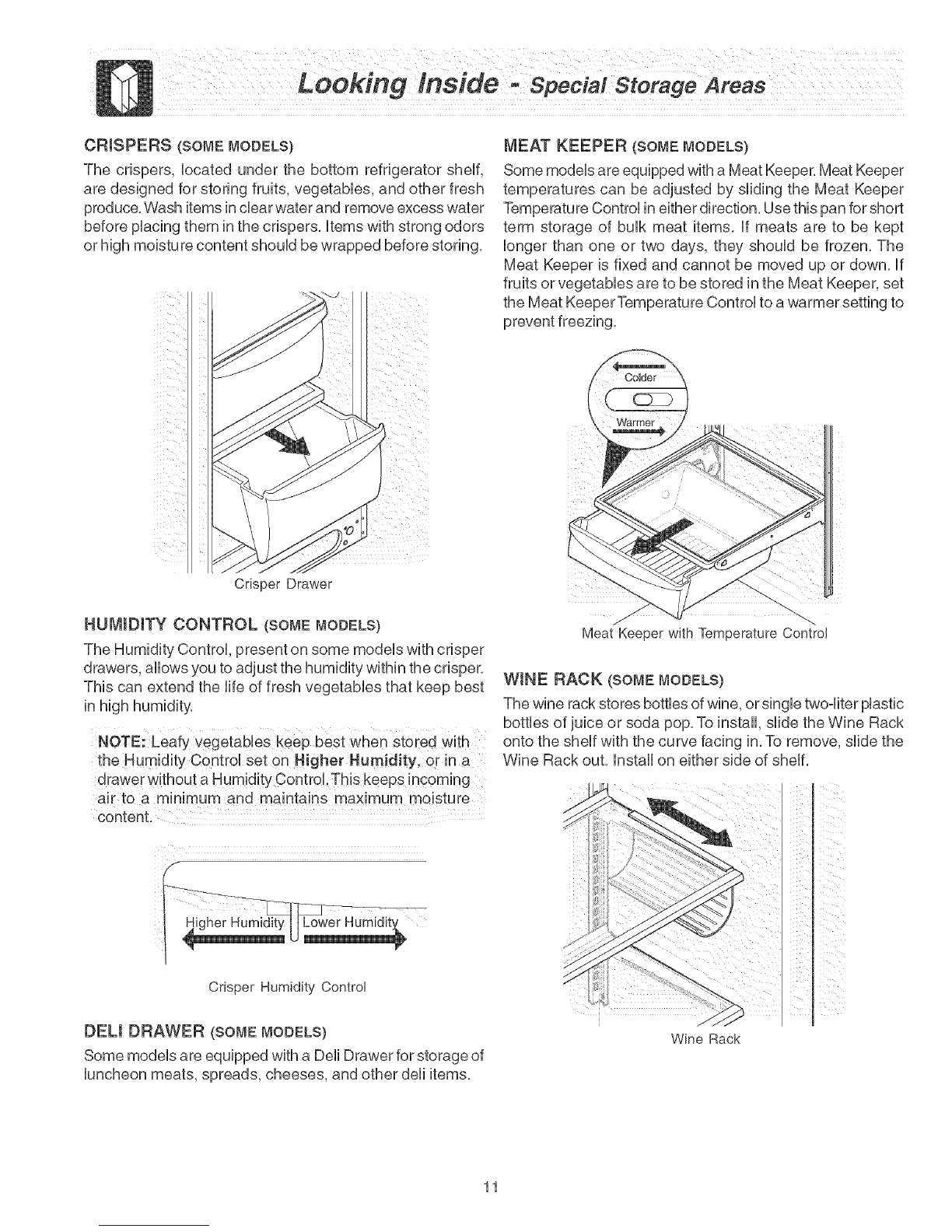

CRISPERS(SOMEMODELS)
Thecrispers,Uocatedunderthebottomrefrigeratorsheff,
aredesignedforstoringfruits,vegetaNes,andotherfresh
produce,Washitemsindearwaterandremoveexcess water
before pUacingthem in the crispers, Utemswith strong odors
or high moisture content shouUdbe wrapped before storff_g,
_iil ii
_iil ii
Crisper Drawer
HUMIDITY CONTROL (SOME MODELS)
The Humidity Control present on some modeUswith crisper
drawers, allows you to adjust the humidity within the crisper,
This can extend the Hfeof fresh vegetaMes that keep best
in high humidity,
the Humidity Control set on Higher Hum!d!ty, or in a
drawer without a Humidity Control,This keeps incoming
f
Crisper Humidity Control
DEU DRAWER (SOME MODELS)
Some models are equipped with a Deli Drawer for storage of
luncheon meats, spreads, cheeses, and other deli items,
MEAT KEEPER (SOME MODELS)
Some models are equipped with a Meat Keeper, Meat Keeper
temperatures can be adjusted by sliding the Meat Keeper
Temperature Control in either direction, Use this pan for short
term storage of bulk meat items, If meats are to be kept
longer than one or two days, they should be frozen, The
Meat Keeper is fixed and cannot be moved up or down, If
fruits or vegetables are to be stored in the Meat Keeper, set
the Meat Keeper Temperature Control to a warmer setting to
Meat Keeper with Temperature Control
WINE RACK (SOME MODELS)
The wine rack stores bottles of wine, or single two-liter plastic
bottles of juice or soda pop, To install, slide the Wine Rack
onto the shelf with the curve facing in, To remove, slide the
Wine Rack out, Install on either side of shelf,
Wine Rack
11

AUTOMATIC iCE & WATER DISPENSER OPERATING iNSTRUCTiONS
EXTREME
FREEZE
EXTRA
iCE
CUBE
CRUSH
LIGHT
FILTER
STATUS
LOCK
WATER
Features may vary according to model.
To freeze food at a faster rate to preserve freshness, push the Touch Pad 0 for 3-5 seconds to
activate this feature, A green HghtwHUappear above the Touch Pad, Push the Touch Pad Oagain
for 3-5 seconds to deactivate,
To increase ice production for speciaUoccasions, such as parties, push the Touch Pad _ for
3-5 seconds to activate this feature, A green HghtwHUappear above the Touch Pad, Push the
Touch Pad _ again for 3-5 seconds to deactivate,
Press the CUBE Touch Pad _ to get cubed ice, A green HghtwHUappear above the Touch Pad,
Press gUassagainst UCEdispensing paddUe_ as far up as possiMe to catch aHice,
Press the CRUSH Touch Pad Oto get crushed ice, A green light will appear above the Touch Pad,
Press glass against ICE dispensing paddle 0 as far up as possible to catch all ice,
Press the LIGHT Touch Pad _ to turn on dispenser light, Press___again to turn the light off,
The light also turns on automatically when ice and/or water is dispensed, Replace light bulb with
an appliance bulb of the same wattage,
The FILTER STATUS indicator light above the Touch Pad _will light up each time the dispenser
is used, The following filter light indications are:
Green The filter is still operating within its specified life cycle,
Amber The filter has reached approximately 80% of its useful life,This isthe recommended time
to purchase a replacement filter,
Red The filter is 100% used up, Change the filter as soon as possible,
After the filter cartridge has been changed, press and hold the FILTER RESET Touch PadOfor
10-15 seconds,
NOTE: The Green, Red and Amber lights will flash when reset is Completed,
The Ice & Water Dispenser can be locked out to prevent unwanted use,
To Lock Out Press the LOCK Touch Pad _ for 3-5 seconds, A Red light will appear above
the Touch Pad,
To Unlock Press the LOCK Touch Pad _ for 3=5 seconds until the Red light above the
Touch Pad goes out,
To operate the water dispenser, press a glass against the WATER d_pensing paddle O, To
stop dispensing water, pull the glass away from the dispensing paddle _, Dispensed water is not
cold, For colder water, add crushed ice or cubes before dispensing water, A drip tray located at
the base of the dispenser catches small spills and allows them to evaporate, This drip tray is
removable and dishwasher safe, Do not pour water and excess ice in this area because there
is no drain,
12

iCE AND WATER DISPENSER FEATURES
The ice and water dispenser convenientUydispenses chHUedwater, and ice cubes or crushed ice, depending on the model
Tooperate the ice dispenser, seUectthe ice option desired using the touchpad, Press a gUassagainst the dispensing paddUe
as far up as possiMe to catch aHice, To stop dispensing ice, pull gUassaway from dispensing paddUe,Do not remove the
gUassuntil the ice has compUeteUydispensed, (CompUete instructions for the dispenser operation are attached to the inside
of the freezer door,)
How the Water Dispenser Works
The water tank, Uocatedbehind the drawers in the refrigerator compartment, automatically fills as water is dispensed, For
proper dispenser operation, the recommended supply water pressure should fall between 20 psi and 100 psi,
Water pressure must not exceed 100 Ibs. Excessive pressure may cause water filter to malfunction.
After the refrigerator is connected to the water supply, fill the water tank by drawing one glass of water, it may take about
11/2minutes after activating the dispenser paddle before water begins to fill this first glass, Continue flushing the system
for 3 minutes to rid the tank and plumbing connections of any impurities, The water dispenser has a built in shutoff device
that will stop the water flow after 3 minutes of continuous use, Simply release the dispenser paddle to reset the shutoff
mechanism, Cbemisa sfromsma fu"st oninge0fte"erca.damagethe maker,the makerconnested
to soft water, ensure that the softener is maintained and working properly.
How the/co Dispenser Works
The ice maker and container are located in the top of the freezer compartment, After the
refrigerator is installed properly and has cooled for several hours, the ice maker can begin
making ice within 24 hours, Air in new plumbing lines may cause the ice maker to cycle two
or three times before making a full tray of ice, Ice production is controlled by the ice
maker's On/Off power switch, Press the switch to the "0" position to turn it Off and press it
to the 'T' position to turn it On, With no usage it will take approximately 2 days to fill the ice
container, The ice maker also has a built-in wire signal arm,which automatically stops ice
production when the ice bin is full, This signal arm should not be used to manually stop the
ice maker,
Because of new plumbing connections, the first production of ice cubes may be discolored
or have an odd flavor, These should be discarded until the cubes made are free of discoloration and taste,
iCE DISPENSER TiPS
o Ice cubes stored too long may develop an odd flavor, Empty the ice container and ensure that the ice maker's On/Off
power switch is turned On (set to the '1"position), The ice maker will then produce more ice,
*Occasionally shake the ice container to keep ice separated,
*Keep the ice maker's On/Off power switch turned Off (set to the "O" position) until the refrigerator isconnected tothe water
supply or whenever the water supply isturned off.
cannot connect a water supply, turn the On!Off swtch tO the Off ('_01_)position. Otherwise, the ice maker!s valve
may be noisy when it attempts to operate without water.
if the disport!!rig paddJe is PUshed for more than 4 minutes, the dispenser motor may overload
_-_ and stop.The overload protector will reset automatically after 3or 4 minutes.
o If a large quantity of ice is needed at one time, it is best to remove cubes directly from the ice container,
o The following sounds are normal when the ice maker is operating:
*Ice dropping into ice container *Running water
*Water valve opening or closing
o Turn Off the ice maker when cleaning the freezer and during vacations,
*If the ice maker will be turned off for a long period of time, you should also turn off the water supply valve,
13

Do not use the ice chute as a handle when
removing or replacing the ice storage bin,
Surfaces there may be sharp,
Do not put fingers up ice chute. Surfaces
t_here may be sharp. 1

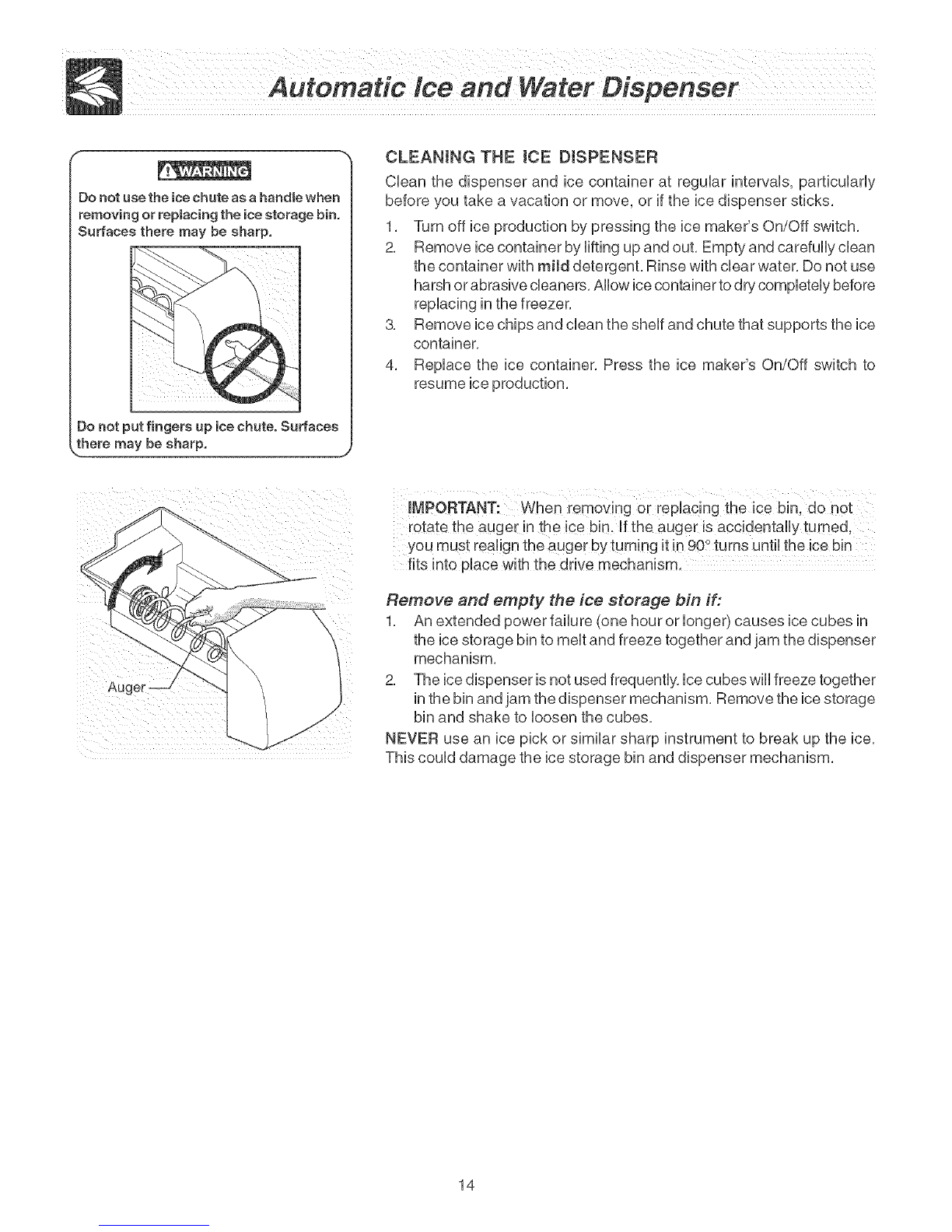

CLEANING THE iCE DISPENSER
Cban the dispenser and ice container at reguUarintervab, partbuUarUy
before you take a vacation or move, or if the ice dispenser sticks,
1, Turn off ice production by pressing the ice maker's On/Off switch,
2, Remove ice container by lifting up and out, Empty and carefully clean
the container with mild detergent, Rinse with clear water, Do not use
harsh or abrasive cleaners, Allow ice container to dry completely before
replacing in the freezer,
3, Remove ice chips and clean the shelf and chute that supports the ice
container,
4, Replace the ice container, Press the ice maker's On/Off switch to
resume ice production,
IMPORTANT: When removing or repiac ng the ice bin. do not
rotate the auger in the ice bin. If the auger is accidentally turned
you must realign the auger bytuming it in 90° turns until the ice bin
fits into place with the drive mechanism.
Remove and empty the ice storage bin if:
1, An extended power failure (one hour or longer causes ice cubes in
the ice storage bin to melt and freeze together and jam the dispenser
mechanism,
2, The ice dispenser is not used frequently, ice cubes wiii freeze together
in the bin and jam the dispenser mechanism, Remove the ice storage
bin and shake to loosen the cubes,
NEVER use an ice pick or similar sharp instrument to break up the ice,
This could damage the ice storage bin and dispenser mechanism,
14

{ t : : :/ j : : xfl ¸k t } }: :
Automadc lce and Water Dispenser

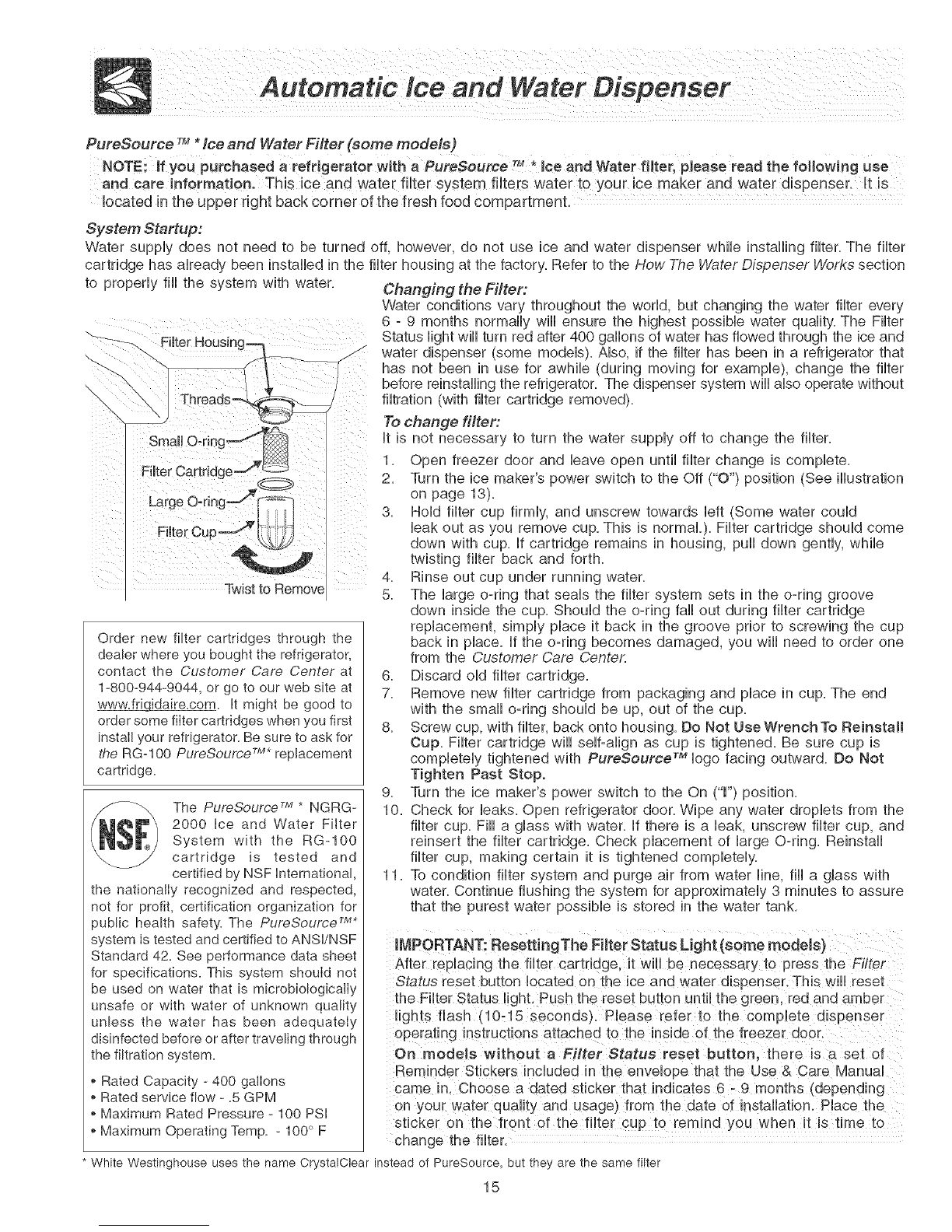

PureSource TM * Ice and Water Filter (come models)
NOTE:Ifyo,p.rc.asedar@ig ratorwit. aP.reSe.rOe*andwateri ter,plaasereadt.efollowing.so
and care information. This ice and wate_ filter system filters water to your ice maker and water dispenser, It is
located in the upper right back corner of the fresh food compartment,
System Startup:
Water supply does not need to be turned off, however, do not use ice and water dispenser while installing filter. The filter
cartridge has already been installed in the filter housing at the factory. Refer to the How The Water Dispenser Works section
to properly fill the system with water. Changing the Filter:
Eilter Cartridge*
FiRerCup _
Twist to Remove
u ii _i
iii _al
Order new filter cartridges through the
dealer where you bought the refrigerator,
contact the Customer Care Center at
1-800-944-9044, or go to our web site at
www.friqidaire.com, it might be good to
order some filter cartridges when you first
instaIJ your refrigerator. Be sure to ask for
t,_e RG-100 PureSoume TM*replacement
cartridge=
The PureSource TM * NGRG-
2000 ice and Water Filter
System with the RG-100
cartridge is tested and
certified by NSF international,
the nationally recognized and respected,
not for profit, certification organization for
public health safety. The PureSoume TM*
system is tested and certified to ANSI/NSF
Standard 42. See performance data sheet
for specifications. This system should not
be used on water that is microbiologicalIy
unsafe or with water of unknown quality
unless the water has been adequately
disinfected before or after traveling through
the filtration system.
Rated Capacity - 400 gallons
Rated service flow - .5 GPM
Maximum Rated Pressure _ 100 PSi
Maximum Operating Temp. - 100 ° F
Water conditions vary throughout the world, but changing the water filter every
6 - 9 months normally wiii ensure the highest possible water quality. The Filter
Status light wiii turn red after 400 gallons of water has flowed through the ice and
water dispenser (some models). Also, if the filter has been in a refrigerator that
has not been in use for awhile (during moving for example), change the filter
before reinstalling the refrigerator. The dispenser system wiii also operate without
filtration (with filter cartridge removed).
To change filter:
It is not necessary to turn the water supply off to change the filter.
1. Open freezer door and leave open until filter change is complete.
2. Turn the ice maker's power switch to the Off ("O") position (See illustration
on page 13).
3. Hold filter cup firmly, and unscrew towards left (Some water could
leak out as you remove cup. This is normaL). Filter cartridge should come
down with cup. if cartridge remains in housing, pull down gently, while
twisting filter back and forth.
4. Rinse out cup under running water.
5. The large o-ring that seals the filter system sets in the o-ring groove
down inside the cup. Should the o-ring fall out during filter cartridge
replacement, simply place it back in the groove prior to screwing the cup
back in place, if the o-ring becomes damaged, you will need to order one
from the Customer Care Center.
6. Discard old filter cartridge.
7. Remove new filter cartridge from packaging and place in cup. The end
with the small o-ring should be up, out of the cup.
8. Screw cup, with filter, back onto housing. Do Not Use Wrench To Reinstall
Cup. Filter cartridge will self-align as cup is tightened. Be sure cup is
compbtely tightened with PureSource TM logo facing outward. Do Not
Tighten Past Stop.
9. Turn the ice maker's power switch to the On ("1") position.
10. Check for leaks. Open refrigerator door. Wipe any water droplets from the
filter cup. Fill a glass with water, if there is a leak, unscrew filter cup, and
reinsert the filter cartridge. Check placement of large O-ring. Reinstall
filter cup, making certain it is tightened completely.
11. To condition filter system and purge air from water line, fill a glass with
water. Continue flushing the system for approximately 3 minutes to assure
that the purest water possible is stored in the water tank.
IMPORTANT; ResettingThe Fiffer Status Light (sOme model@
After replacing the filter cartridge, it wiii be necessary to press the Filter
Status reset button located on the ice and water dispenser, This will reset
!ights flash (t0_]5 Seconds), Please refer to the comp!ete dispenser
Reminder Stickers included in the envelope that the Use & Care Manual
came in. Choose a dated sticker that indicates 6 - 9 months (depending
on your water qua!ity and usage)from '[he date of installation, Place the
change the filter.
* White Westinghouse uses the name CrystaIClear instead of PureSource, but they are the same filter
15

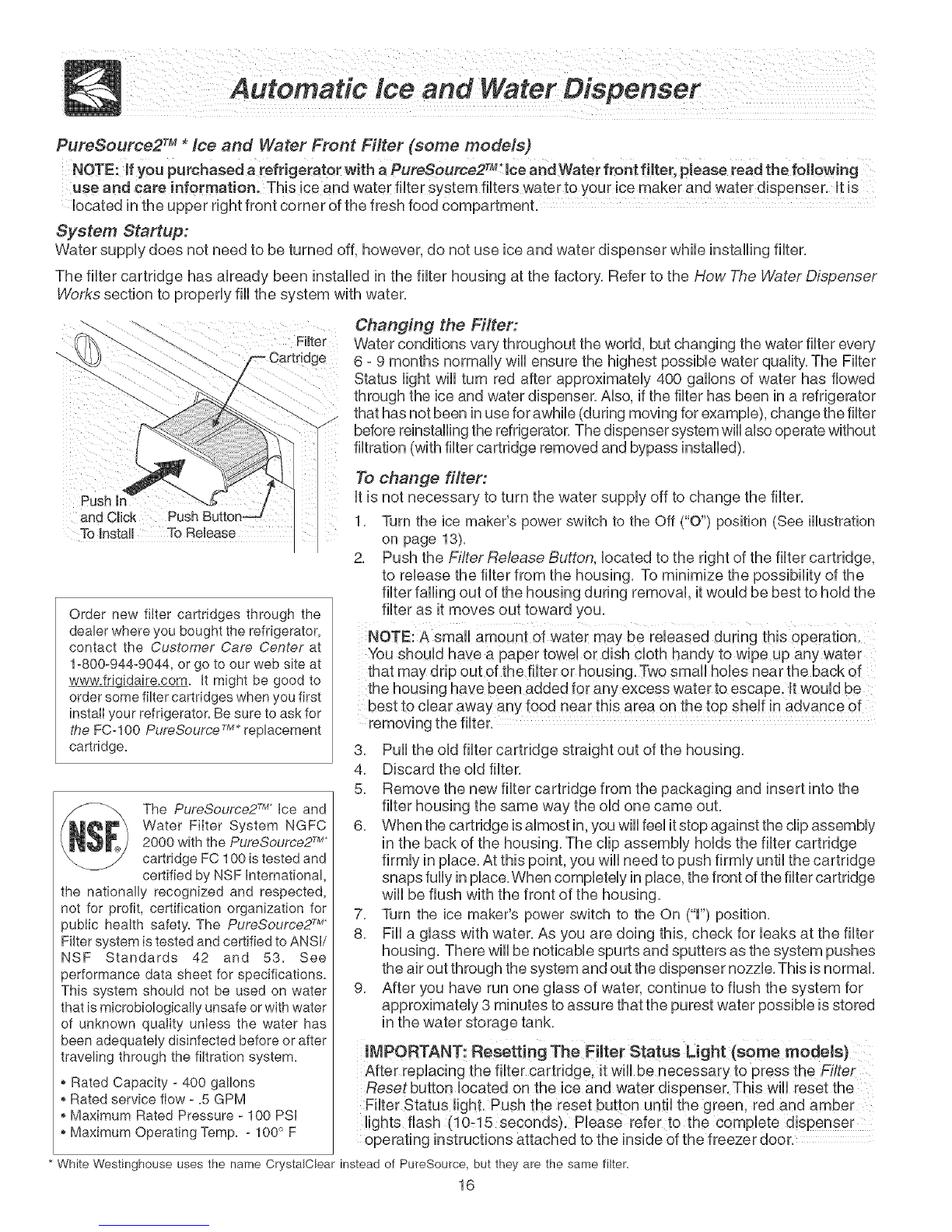

PureSourceZ M*Ice and Water Front Filter (some models)
NOTE: ff You purchased arefrigerator with a PureSource2 TM ice and Water front filter, please read the following
use and care information. This iceand water filter system filters water to your ice maker and water dispenser. It is
located in the upper right front corner of the fresh food compartment.
System Startup:
Water supply does not need to be turned off, however, do not use ice and water dispenser while installing filter,
The filter cartridge has already been installed in the filter housing at the factory, Refer to the How The Water Dispenser
Works section to properly fill the system with water,
and Cmick
To Instalm To Rebase
Order new fiIter cartridges through the
dealer where you bought the refrigerator,
contact the Customer Care Center at
1-800-944-9044, or go to our web site at
www.friqidaire.com, it might be good to
order some filter cartridges when you first
instaII your refrigerator= Be sure to ask for
t,_e FC-100 PureSoume TM*replacement
cartridge=
The PureSource2 rM"ice and
Water FiIter System NGFC
2000 with the PureSoumeZ M*
cartridge FC 100 is tested and
certified by NSF international,
the nationally recognized and respected,
not for profit, certification organization for
subIic health safety= The PureSource2 TM*
Filter system is tested and certified to ANSI/
NSF Standards 42 and 53. See
serformance data sheet for specifications.
This system should not be used on water
that is microbiologically unsafe or with water
of unknown quality unIess the water has
been adequateIy disinfected before or after
traveling through the filtration system.
o Rated Capacity - 400 gallons
Rated service flow - .5 GPM
Maximum Rated Pressure - 100 PSi
o Maximum Operating Temp. - 100° F
Changing the Fi#er:
Water conditions vary throughout the world, but changing the water filter every
6 =9 months normally will ensure the highest possible water quality, The Filter
Status light will turn red after approximately 400 gallons of water has flowed
through the ice and water dispenser, Also, if the filter has been in a refrigerator
that has not been in use for awhile (during moving for example), change the filter
before reinstalling the refrigerator, The dispenser system wiiialso operate without
filtration (with filter cartridge removed and bypass installed),
To change f/#er:
it is not necessary to turn the water supply off to change the filter.
1. Turn the ice maker's power switch to the Oft ("O') position (See illustration
on page 13).
2. Push the Filter Release Button, located to the right of the filter cartridge,
to release the filter from the housing. To minimize the possibility of the
filter falling out of the housing during removal, it would be best to hold the
filter as it moves out toward you.
You should have a paper towe! or dish cloth handy to wipe up any water
that may drip out of the filter or housing. Two small holes near the back of
the housing have been added for any excess water to escape. It would be
best to clear away any food near this area on the top shelf in advance of
removing the filter.
3. Pull the old filter cartridge straight out of the housing.
4. Discard theold filter.
5. Remove the new filter cartridge from the packaging and insert into the
filter housing the same way the old one came out.
6. When the cartridge is almost in, you will feel itstop against the clip assembly
in the back of the housing. The clip assembly holds the filter cartridge
firmly in place. At this point, you will need to push firmly until the cartridge
snaps fully in place. When completely in place, the front ofthe filter cartridge
will be flush with the front of the housing.
7. Turn the ice maker's power switch to the On ("1")position.
8. Fill a glass with water. As you are doing this, check for leaks at the filter
housing. There will be noticable spurts and sputters as the system pushes
the air out through the system and out the dispenser nozzle. This is normal.
9. After you have run one glass of water, continue to flush the system for
approximately 3 minutes to assure that the purest water possible is stored
in the water storage tank.
IMPORTANT_ Resetting The FiJter Status Light (some models)
After replacing the filter cartridge, itwill be necessary to press the Filter
Reset button located on the ice and water dispenser, This wii! reset the
Filter Status light. Push the reset button until the green, red and ambe[
!ights flash (10_15 seconds), Please refer to the complete d!spenser
operating instructions attached to the inside ofthe freezer door.
White Westinghouse uses the name CrystalCbar instead of PureSource, but they are the same filter.
16

FOOD STORAGE iDEAS
Fresh Food Storage
The fresh food compartment shouUdbe kept between 34° F and 40° Fwith an optimum temperature of 37° R
Avoid overcrowding the refrigerator sheUves,This reduces the circuUation of air around the food and resuUtsin uneven
cooling,
Fruits and Vegetables
oStorage in the crisper drawers traps moisture to heUppreserve the fruit and vegetaMe quality for Uongertime periods,
Meat
• Raw meat and pouUtryshouUdbe wrapped secu reUyso Ueakageand contamination of other foods or surfaces does not
Occur,
Frozen Food Storage
o The freezer compartment shouUdbe kept at 0° For Uower,
,, A freezer operates most efficientUy when it is at Ueast2/3 full,
Packaging Foods for Freezing
Tominimize dehydration and quality deterioration, use aUuminumfoil, freezer wrap, freezer bags or airtight containers,
Force as much air out of the packages as possible and seal them tightly, Trapped air can cause food to dry out,
change color, and develop an off-flavor (freezer burn),
o Wrap fresh meats and poultry with suitable freezer wrap prior to freezing,
Do not refreeze meat that has completely thawed,
Loading the Freezer
o Avoid adding too much warm food to the freezer at one time, This overloads the freezer, slows the rate of freezing,
and can raise the temperature of frozen foods,
• Leave a space between the packages, so cold air can circulate freely, allowing food to freeze as quickly as possible,
o Avoid storing hard-to-freeze foods such as ice cream and orange juice on the freezer door shelves, These foods are
best stored in the freezer interior where the temperature varies less,
ENERGY SAVING iDEAS
o Locate the refrigerator in the coolest part of the room out ofdirect sunlight,
and away from heating ducts or registers, Do no1 place the refrigerator
next to heat-producing appliances such as a range, oven, or dishwasher,
If this is not possible, a section of cabinetry or an added layer of insulation
between the two appliances will help the refrigerator operate more
efficiently,
o Level the refrigerator so that the doors close tightly,
° Refer to this Use & Care Manual for the suggested temperature control
settings,
Periodic cleaning of the condenser will help the refrigerator run more
efficiently, See the Care and Cleaning Charton page 19.
- Do not overcrowd the refrigerator or block cold air vents, Doing so causes
the refrigerator to run longer and use more energy,
o Cover foods and wi pe containers dry before placing them in the
refrigerator, This cuts down on moisture build-up inside the unit,
Organize the refrigerator to reduce door openings, Remove as many
items as needed at one time and close the door as soon as possible,
17

UNDERSTANDINGTHESOUNDSYOUMAYHEAR
Yournewhigh-efficbncyrefrigeratormaymakeunfamiliar
sounds.TheseareaHnormaUsoundsandsoonwHUbecome
familiartoyou.Theyaboindicateyourrefrigeratorisoperating
asdesigned.Hardsurfaces,suchasvinyUorwoodfloors,
walls,and kitchencabinetsmaymakesoundsmore
notbeabb.Listedbebwaredescriptionsofsomeofthemost
commonsoundsyoumayhear,andwhatiscausingthem.
NOTE: Rigidfoaminsulationisveryenergyefficient,
butisnotasoundinsulator.
A. Evaporator
The flow of refrigerant through the evaporator may
create a boiling or gurgling sound.
B. Evaporator Fan
You may hear air being forced through the refrigerator
by the evaporator fan.
C. Defrost Heater
During defrost cycles, water dripping onto the defrost
heater may cause a hissing or sizzling sound, After
defrosting, a popping sound may occur,
IMpORTANT::Dur!ng the automatic defrost cycle, you
may not!ce a red gbw in the vents on the back wall of
your freezer compartmenL This is n0rmaI during the
defrost cycle.
Do Automatic ice Maker
If your refrigerator is equipped with an automatic ice
maker, you will hear ice cubes falling into the ice bin.
E. Cold Control & Automatic Defrost Control
These parts can produce a snapping or clicking sound
when turning the refrigerator on and off,
F. Condenser Fan
You may hear air being forced through the condenser
by the condenser fan,
G. Compressor
Modern, high-efficiency compressors operate much
faster than older models, The compressor may have a
high@itched hum or pulsating sound,
H. Water Valve
If your refrigerator is equipped with an automatic ice
maker, you will hear a buzzing sound as the water
valve opens to fill the ice maker during each cycle.
To ensure proper function of your ice maker, connect a
water supply immediately or turn the On!Off switch to
the Off ("0") position.
L Drain Pan (not removable)
You may hear water running into the drain pan during
the defrost cycle,
do Condenser
May create minimal sounds from forced air,
18

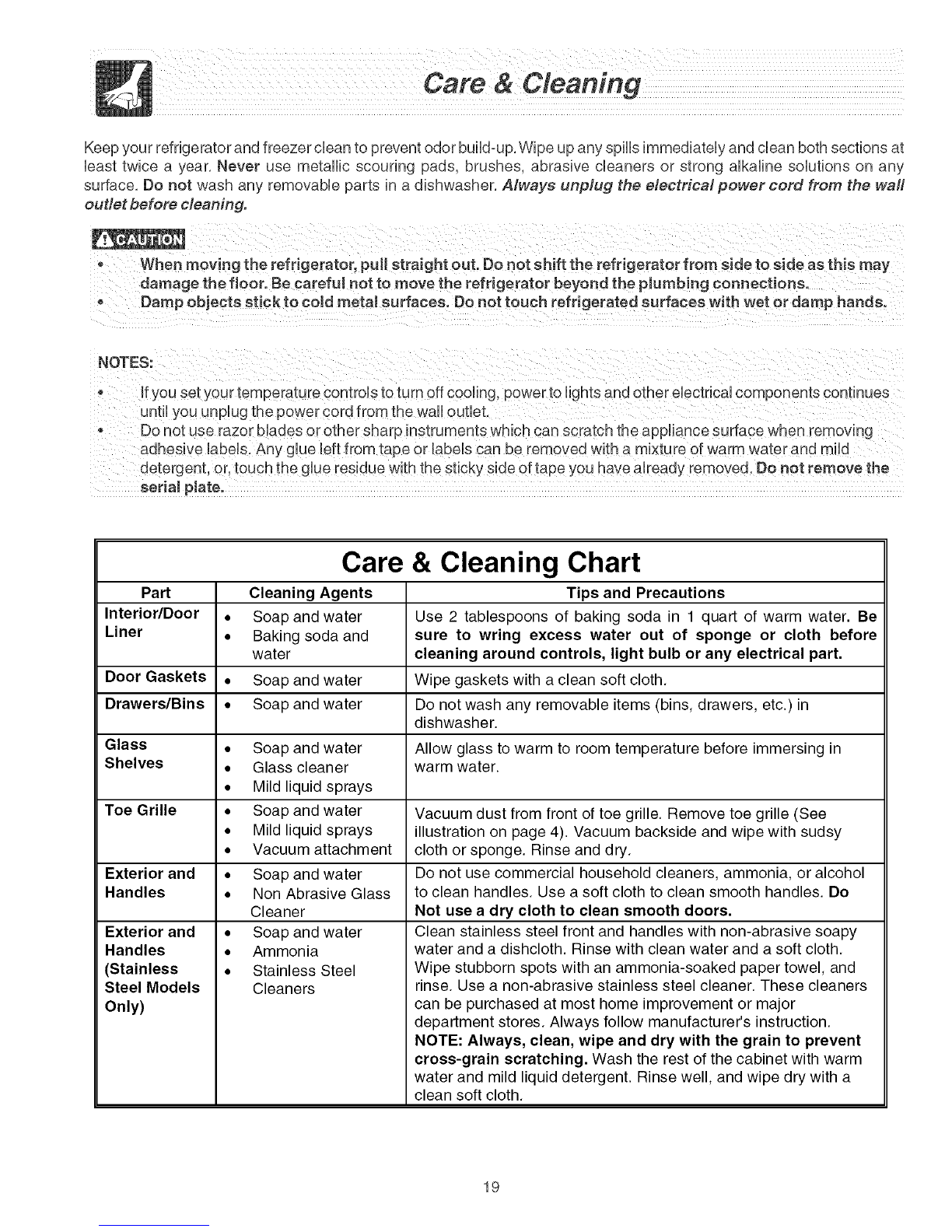

Keepyourrefrigeratorandfreezercbantopreventodorbuild-up.WipeupanyspHbimmediateUyanddeanbothsectionsat
basttwiceayear.NeverusemetaHbscouringpads,brushes,abrasivecleanersorstrongaUkaHnesoUutionsonany
surface.Donotwashanyremovablepartsinadishwasher.Always unplug the electricM power cord from the waft
outlet before Meaning.
- When moving the refrigerator, pull straight out. Do not shift the refrigerator from side to side as this may
damage the floor. Be careful not to move the refrigerator beyond the plumbing connections.
o Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with wet or damp hands.
NOTES:
oIf you set your temperature controls to turn off cooling, power to lights and other electrical components continues
until you unplug the power cord from the wall outlet.
Do ne[ use razor blades or other sharp instruments which can scratch the appliance surface when removing
adhesive labeb. Any glue left from tape or labels can be removed with a mixture of warm water and mild
detergent, or.touch the glue residue with the sticky side oftape you have already removed. Do not remove the
serial plate.
Part
Interior/Door •
Liner •
Door Gaskets •
Drawers/Bins •
Glass •
Shelves •
O
Toe Grille •
O
O
Exterior and •
Handles •
Exterior and •
Handles •
(Stainless •
Steel Models
Only)
Care & Cleaning Chart
Cleaning Agents Tips and Precautions
Soap and water Use 2 tablespoons of baking soda in 1 quart of warm water. Be
Baking soda and sure to wring excess water out of sponge or cloth before
water cleaning around controls, light bulb or any electrical part.
Soap and water Wipe gaskets with a clean soft cloth.
Soap and water Do not wash any removable items (bins, drawers, etc.) in
dishwasher.
Allow glass to warm to room temperature before immersing in
warm water.
Soap and water
Glass cleaner
Mild liquid sprays
Soap and water
Mild liquid sprays
Vacuum attachment
Soap and water
Non Abrasive Glass
Cleaner
Soap and water
Ammonia
Stainless Steel
Cleaners
Vacuum dust from front of toe grille. Remove toe grille (See
illustration on page 4). Vacuum backside and wipe with sudsy
cloth or sponge. Rinse and dry.
Do not use commercial household cleaners, ammonia, or alcohol
to clean handles. Use a soft cloth to clean smooth handles. Do
Not use a dry cloth to clean smooth doors.
Clean stainless steel front and handles with non-abrasive soapy
water and a dishcloth. Rinse with clean water and a soft cloth.
Wipe stubborn spots with an ammonia-soaked paper towel, and
rinse. Use a non-abrasive stainless steel cleaner. These cleaners
can be purchased at most home improvement or major
department stores. Always follow manufacturer's instruction.
NOTE: Always, clean, wipe and dry with the grain to prevent
cross-grain scratching. Wash the rest of the cabinet with warm
water and mild liquid detergent. Rinse well, and wipe dry with a
clean soft cloth.
19

bulbstoavoidgettingcut.
REPLACINGUGHT BULBS
1, Unplugrefrigerator,
2, Wearglovesasprotectionagainstpossiblebroken
glass,
3, Removelightcover,ifnecessary,
4, Unscrewandreplaceoldbulbwithanappliancebulb
ofthesametypeandwattage,
5, Replacelightcover,ifnecessary,
6, Remembertoplugtherefrigeratorbackin,
Located Behind
or
Light BuBbs
i}ii
Refrigerator Light Replacement
Light Socket
Located Behind Right
Rear of Ice Container
Crisper Light Replacement (Models may vary) Freezer Light Replacement
Vacation and Moving Tips
Short •
Vacations •
Long
Vacations
Leave refrigerator operating during vacations of 3 weeks or less.
Use all perishable items from refrigerator compartment.
Turn automatic ice maker off and empty ice bucket, even if you will only be
gone for a few days.
Remove all food and ice if you will be gone one month or more.
Turn controls to "O" ( the OFF position) and disconnect power.
Turn off automatic ice maker and turn water supply valve to closed position.
Clean interior thoroughly.
Leave both doors open to prevent odors and mold build-up. Block doors open if
necessary.
•Remove all food and ice.
•If using handcart, load from side.
Moving •Adjust rollers all the way up to protect them during sliding or moving.
• Pad cabinet to avoid scratching surface.
the refrigerator isput back intoservice. Contact a service representative to perform this operation.
2O
