Frigidaire FRS26MRLE User manual

N58L00001.eps N58FACBBB4.eps N58RACBBB6.eps N58BAAAAA0.eps
N58SJCAAB12.eps N58TAAAAA6.eps N58CAAAAA5.eps N58XDAAAA1.eps
N58YBAAAA0.eps N58I115S.eps W241526901A.eps S241526901A.eps
Product No. FRS26MRLES0
Series R134a
Color stain/blk
Volts 115
Wiring Diagram 241526901
Owner's Guide 241695300
Market North America
Energy Guide 241647703
Service Data Sheet 240389616
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995458907
06/01/17
(EN/SERVICE/DCS)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FRS26MRLE
Copyright ©2005 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995458907 FRS26MRLES0
01/06 2
FREEZER DOOR

FRS26MRLES0 Publication No: 5995458907
# Functional Parts 3 01/06
* Non-Illustrated Parts
FREEZER DOOR
POS. NO PART NO. DESCRIPTION
1 # 241674806 Gasket-frzr door, black, magnetic
4A 240334201 Bin-door, frzr-upper
4B 240351601 Bin-door
11 241668180 Door-frzr, stainless, complete assy
13A 240581906 Door Stop, black, frzr
18 218762703 Handle-door, black
21A 240598401 Screw, 10-32 x 1/2
21C 218781100 Screw, pan head, 8-18 x 0.625
22A 240328204 Bearing-hinge(frz), black, closer
22C 240328404 Bearing-hinge, black, upper
37 218811620 Trim-handle, black, upper
37* 218676004 Band-decorative, satin aluminum, handle trim
37A 218811617 Trim-handle, black, lower
37A* 215782300 Lock-handle trim, snap-in
68 241525101 Chute-ice
* 218490901 Cleaner, stainless steel
* 240352102 Connector-water, straight
* 240552101 Harness-wiring, door
* 5303918256 Dispenser heater kit

Publication No: 5995458907 FRS26MRLES0
01/06 4
REFRIGERATOR DOOR

FRS26MRLES0 Publication No: 5995458907
# Functional Parts 5 01/06
* Non-Illustrated Parts
REFRIGERATOR DOOR
POS. NO PART NO. DESCRIPTION
2 # 241674805 Gasket-refr door, black, magnetic
4 240323001 Bin-door, pseudo, bottom
7 240326203 Door-dairy
13 240581905 Door Stop, black, ref
15 241534531 Door-refr, stainless, complete assy
18 218762703 Handle-door, black
21A 240598401 Screw, 10-32 x 1/2
21C 218781100 Screw, pan head, 8-18 x 0.625
22 240328203 Bearing-hinge, black, closer
22B 240328404 Bearing-hinge, black, upper
37 218811620 Trim-handle, black, upper
37* 218676004 Band-decorative, satin aluminum, handle trim
37A 218811617 Trim-handle, black, lower
37A* 215782300 Lock-handle trim, snap-in
49 240356401 Bin-door, gallon
* 218490901 Cleaner, stainless steel

Publication No: 5995458907 FRS26MRLES0
01/06 6
CABINET

FRS26MRLES0 Publication No: 5995458907
# Functional Parts 7 01/06
* Non-Illustrated Parts
CABINET
POS. NO PART NO. DESCRIPTION
10 240435906 Cover-air duct
10A 240475907 Cover-evap coil, lower
11 5303208309 Plug-hole, factory test
14 240505801 Switch, light/lamp
14A 241547901 Switch-light/lamp, frzr door
21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 Plate-door closer
23 240402701 Screw-#10-32 x 1/4 flat hd
28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603701 Bracket-lower hinge, ref
30A 241603702 Bracket-lower hinge
37 240337603 Trim-cabinet corner, black, (2)
38 240327201 Bracket-upper hinge
40 240327007 Cover-upper hinge, black
41 241550801 Grommet-shelf mtg, 1.40" long
41* 241550701 Grommet-shelf mtg, .96" long
42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335003 Roller Assy, adjustable, front, (2)
45 241500301 Screw, hex washer head, 8-18AB x 0.500
47 218659500 Channel-shelf mtg, side, (2)
58 218781100 Screw, pan head, 8-18 x 0.625
66B 240374301 Diffuser-air
66B* 240518802 Pin-push, push-in, plastic
72 240324406 Grille/Kickplate, black
81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 Roller, compressor base, rear, (2)
83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241574602 Cover access
90 218249808 Seal-coil cover
91 240380101 Duct-ice maker
92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 Support, crisper cover, front, (4)
100* 240350802 Support, crisper cover, rear, (4)
150 240368701 Guide-control bulb
* 240479601 Plug, button, cab liner holes, (2)
* 5303321321 Paint, touch-up, black

Publication No: 5995458907 FRS26MRLES0
01/06 8

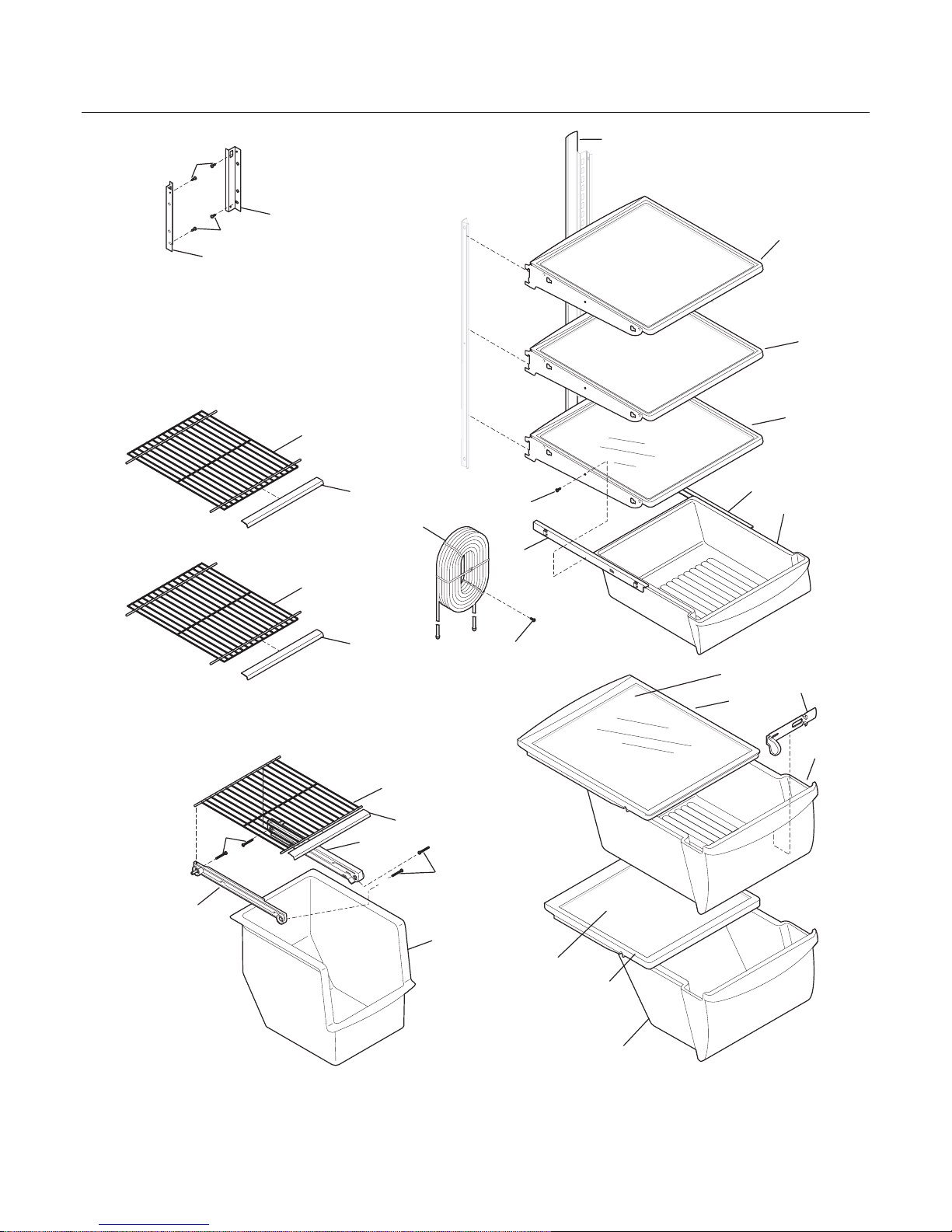

SHELVES
N58SJCAAB12
11B
11A
126
81
81
126
39B
39B
97
81
24
24
24
42
62
123
42
51
25
26
47
25A
27
47A
52
101
101
49
11
39
26A
140

FRS26MRLES0 Publication No: 5995458907
# Functional Parts 9 01/06
* Non-Illustrated Parts
SHELVES
POS. NO PART NO. DESCRIPTION
11 241657602 Shelf, flip up, wire
11A 241657502 Shelf, fixed, freezer
11B 241657504 Shelf, fixed, upper, freezer
24 240355208 Shelf-"Spill-Safe", fixed
25 240350702 Cover-crisper pan, upper
25* 240362101 Clip-slide, cover-crisper
25A 240350902 Cover-crisper pan, lower
26 240351005 Pan-crisper, upper
26* 240349801 Clip-slide, pan-crisper
26A 240362201 Control-humidity
27 240351206 Pan-crisper, lower
39 240430706 Trim-shelf, 11.21", front
39B 240430702 Trim-shelf, 12.39", front
42 240356501 Track, meat pan hanger, RH
42 240365401 Track, meat pan hanger, LH
47 240350633 Insert-pan cover, glass
47A 240350603 Insert-pan cover, glass
49 240564401 Basket-sliding
51 240343002 Hanger-basket, RH
52 240343102 Hanger-basket, LH
62 240342806 Pan-meat
81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
97 240545302 Water Tank Assy, coiled tubing, rear filter
101 218493100 Screw, hex washer head, 8-18AB x 1-3/4
123 215005100 Screw, hanger/rlr mtg, 8-10 x 0.438
126 241674401 Channel, auger mtg, LH
126 241674402 Channel, auger mtg, RH
140 240430501 Channel, wtr tube cover

Publication No: 5995458907 FRS26MRLES0
01/06 10
CONTROLS
140
139
81
138
137
81
151
150
115
23
22
53
81
101
15
16
21A 21
18
17
81
81
81
N58TAAAAA6
149
14
13
9
8
5

FRS26MRLES0 Publication No: 5995458907
# Functional Parts 11 01/06
* Non-Illustrated Parts
CONTROLS
POS. NO PART NO. DESCRIPTION
5 # 5308000010 Fan Blade, red, evaporator fan
8 215474201 Washer, "slinger", nylon, evap fan shaft
9 241563601 Bushing-motor mtg, (2)
13 240369702 Motor-evap fan
14 241517701 Clip, evap fan motor
15 240436702 Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature
16 # 241513901 Socket-light
17 240383301 Box-control, front
17* 241537802 Harness-wiring, control box
18 240360801 Knob, temp control
21 # 241586501 Control-temperature
21A 5304421067 Control-temperature, frzr section
22 218660702 Tube-insulator
23 # 241508001 Control-defrost, adaptive timer, PC board
23* 5303001259 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
53 240369501 Box-control
81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
101 241637201 Screw-Hex HD #8AB X 1 3/4
115 241600902 Damper Assy, w/seal
137# 240389102 Filter, water, carbon canister, rear, with o'rings
137* 218710300 Wrench-filter
138 240434401 Cup-water filter
138* 218904301 O-ring, wtr filter cup
139 240434301 Housing-water filtr
140 240545201 Elbow-water tube
149 241563501 Shroud-fan orfice
149* 241528306 Seal, shroud
150 240394102 Insulation-water filter cover
151 240376002 Cover-water filter

Publication No: 5995458907 FRS26MRLES0
01/06 12
SYSTEM
N58CAAAAA5
62
70
45
45
1
34
34
83
44
41
82
83
82
22
23
23
30
32
55
4
25
6
25
29
26
45
16
15
14
3
57
84
85
21
60
59
61
58

FRS26MRLES0 Publication No: 5995458907
# Functional Parts 13 01/06
* Non-Illustrated Parts
SYSTEM
POS. NO PART NO. DESCRIPTION
1 240333603 Condenser
3 218679607 Block-evap coil, styrofoam, (2)
4 # 218944001 Drier-filter, R134a System
6 241586801 Harness-wiring, machine compt
6* 241537802 Harness-wiring, control box
6* 241651601 Harness-wiring
14 # 240316107 Heater-defrost
15 # 5303918284 Evaporator Kit
16 5308000110 Strap-evap/heater, aluminum, (2)
21 5303918214 Thermostat-defrost, kit
22 240330008 Base-compressor mtg
22* 218252200 Screw, #8 truss hd, 10-32CA x 0.500
23 241659701 Grommet, compressor
25 240491501 Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF
26 241637401 Pan-defrost
29 5303918324 Compressor, kit, w/electricals
30 # 241524611 Starter-PTC
32 241650901 Clamp, elec cont mtg, compressor
34 240405201 Grommet, rubber, black, cond tube/wire
41 240555001 Screw-#8-32 X 3/8
44 215174700 Clamp-service cord, strain relief, galv steel
45 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
55 218909913 Capacitor, run, 220 VAC, 15 microfarad
57 240542601 Clip-wiring harness
58 218897002 Screw, hex washer head, 8-32 x 0.375
59 5304430246 Bracket-cond motor assy
59* 240346701 Tape-foam seal, shroud
59* 240359401 Screw-fan shroud, (2)
60 240525402 Motor, condensor fan
61 # 240524101 Fan Blade, galv steel, condenser fan
62 240429402 Trough-drain
70 218990801 Bracket-evap/cvr mtg
82 5304418225 Roller, compressor base, rear, (2)
83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 Tube-drain, lower
85 240553501 Tube-connector, suction
* 5303918213 Heat Exchanger Kit, suction line
* # 5303918222 Hot Tube Repair Kit, service

Publication No: 5995458907 FRS26MRLES0
01/06 14
ICE & WATER DISPENSER

FRS26MRLES0 Publication No: 5995458907
# Functional Parts 15 01/06
* Non-Illustrated Parts
ICE & WATER DISPENSER
POS. NO PART NO. DESCRIPTION
1 218976409 Tube-water-DOOR
1* 218976901 Tube-water inlet, inlet valve, to ice maker
1* 218976904 Tube-water inlet, valve to filter
1* 218976907 Tube-water inlet, valve to door
1* 240561701 Seal-water inlet, inlet valve, to ice maker
4 5304433186 Cover-module, black
8 5304422013 Module-dispenser
10 5304426649 Spring-torsion
14 240570206 Label-module cover, black
15 5304421616 Light Bulb
16 240548901 Socket-light
17 5304421619 Screw
17A 5304433185 Screw, switch mtg.
23 241649003 Drip Tray, black
24 5304422026 Actuator-water, black
24A 5304422025 Actuator-ice, black
30 5304421628 Door Assy-ice chute
30A 5304421624 Door center
30B 5304421625 Insulation-door
30C 5304421629 Door seal
35 5304421620 Damper-rotary
38A# 5304421617 Switch-micro, single pole, double throw
38A* 5304430839 Harness-wiring
38C 5304436275 Switch
38C* 5304430837 Harness-wiring
39 5304421627 Pin-hinge
41 5304421829 Spring-actuator
43 215296300 Screw, plask h/l, #6 x 3/8
56 5304421830 Screw-micro switch, pan head
82 240363401 Screw-#8-18 X 1/2, #6 hd plask
87 5304421622 Bearing Plate
87A 5304421621 Bearing Plate
88 5304421615 Shield-light
* 218515401 Clip
* 5303918256 Dispenser heater kit

Publication No: 5995458907 FRS26MRLES0
01/06 16

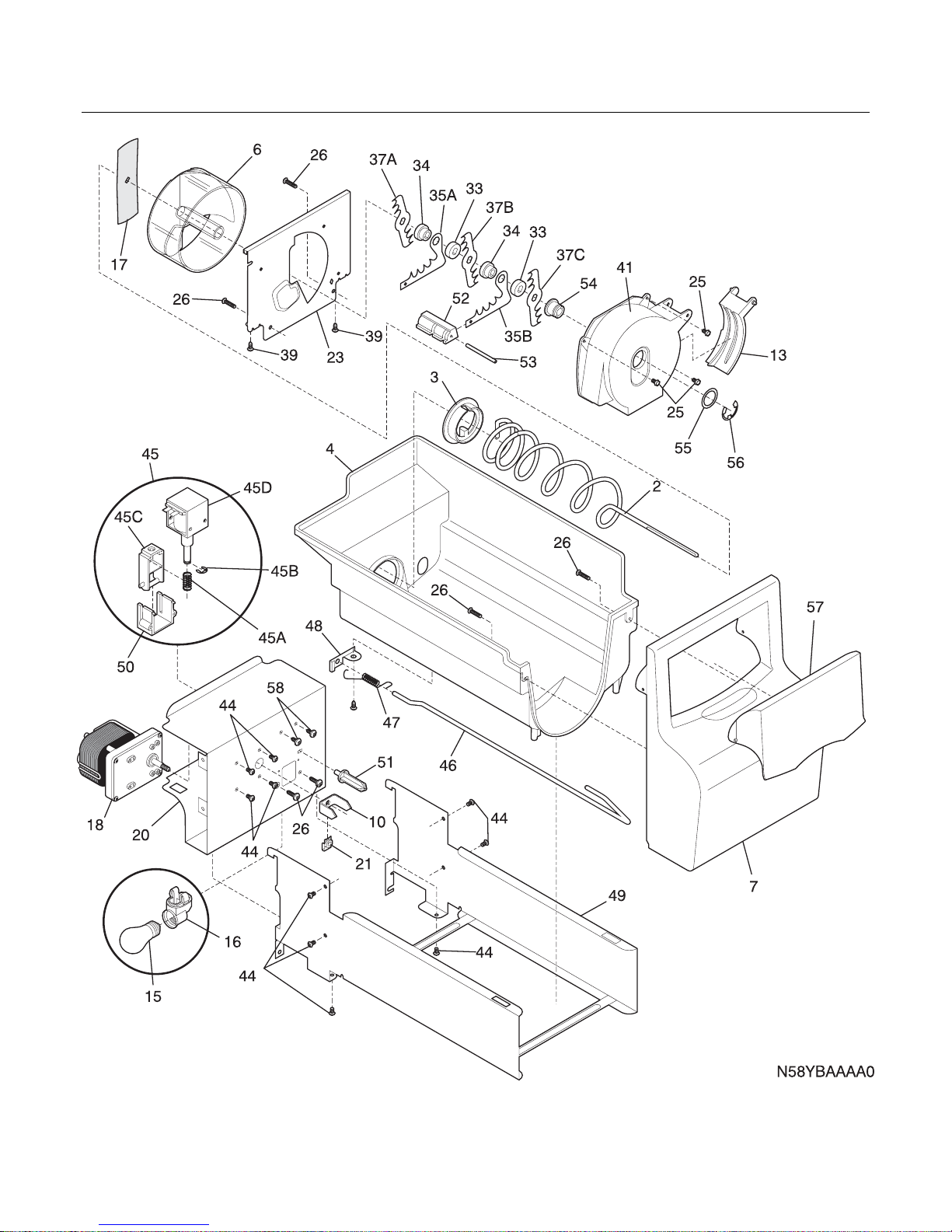

ICE CONTAINER

FRS26MRLES0 Publication No: 5995458907
# Functional Parts 17 01/06
* Non-Illustrated Parts
ICE CONTAINER
POS. NO PART NO. DESCRIPTION
2 5304428402 Auger-ice
3 5304404343 Cam-drive
4 218815300 Container-ice, bucket only
6 5304404346 Drum-ice disp
7 218815400 Front-ice container
10 241624801 Bar-drive
13 5304404359 Gate
15 240436702 Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature
16 241559801 Socket-light
17 5304404345 Drive Blade
18 # 5304404330 Motor-auger
18*# 240352601 Wiring Harness, internal, with plug
20 5304404332 Cover-motor
21 215285100 Nut-drive
23 5304404347 Plate-front
25 5304404362 Screw, hex washer head, 8-32T x 0.375
26 215503200 Screw, cr pan hd, 10-16 x 0.500
33 5304404351 Spacer
34 5304404349 Spacer
35A 5304404353 Fixed Blade, round
35B 5304404352 Fixed Blade, square
37A 5304404348 Blade, crusher #1
37B 5304404350 Blade, crusher #2
37C 5304404356 Blade, crusher #3
39 5304404365 Screw
41 5304404358 Housing-crusher
44 218359200 Screw, pan head, 8-32 x 0.250
45 # 5304404333 Solenoid Assy
45A 5304406816 Spring-solenoid
45B 5304406817 E-Ring-solenoid
45C 5304406818 Actuator-solenoid
45D 5304406819 Solenoid
46 5304404341 Control Rod
47 5304404342 Spring-control rod
48 5304404340 Bracket-control rod
48* 5304404364 Screw-bracket
49 5304404329 Rail Assy
50 5304404334 Guide-solenoid
51 5304404336 Rotation Stop
52 5304404354 Spacer-fixed blades
53 5304404355 Pin-spiral, fixed blades
54 5304404357 Nut-auger
55 5304404360 Washer
56 5304404361 E-ring
57 5304404363 Door-access
58 5304404331 Screw-solenoid
* 240323808 Ice Container Assy, w/moving parts
* 240507202 Deflector-ice container

Publication No: 5995458907 FRS26MRLES0
01/06 18
ICE MAKER
ON OFF
MOVE ARM UP UNTIL
LOCKED INTO PLACE
MOVE ARM UP UNTIL
LOCKED INTO PLACE
45 45
42
51
46
64
29
7
6
16
20
21
19
22
60
18
17
62
61
9
23
23
34
28
34
34
3
29
14
30
27
15 15
2
15
31
32
36
4
35
5
33
8
24
25
12
1
55 INSTALLATION PARTS
N58I115S

FRS26MRLES0 Publication No: 5995458907
# Functional Parts 19 01/06
* Non-Illustrated Parts
ICE MAKER
POS. NO PART NO. DESCRIPTION
1 218976409 Tube-water-DOOR
1* 218976901 Tube-water inlet, inlet valve, to ice maker
1* 218976904 Tube-water inlet, valve to filter
1* 218976907 Tube-water inlet, valve to door
1* 240561701 Seal-water inlet, inlet valve, to ice maker
2 5304420650 Spring, shut-off arm
3 3206299 Label, ID plate
4 3206301 Gear
5 3206303 Plate-mounting
6 3206305 Screw-ground wire, 8-32 x 0.250
7 # 5304445222 Motor-ice maker Svo
7* 5304445223 Spring Beam
8 3206312 Spacer-hold switch
9 3206313 Cam
12 # 240352601 Wiring Harness, internal, with plug
14 5304420652 Screw, 4 x 0.750, switch mtg.
15 # 3206324 Switch, (3)
16 5304420653 Support, phenolic
17 # 5303320545 Mold-ice maker, Radius Cube, with heater
18 3206328 Ejector-ice
19 3206330 Bearing & Inlet
20 5304408581 Screw, 8-32 x 0.375
21 3206332 Ice Stripper
22 3206333 Shut-off Arm
23 5304408582 Screw, 8-32 x 0.875, mold-to-support, (3)
24 3206335 Lever Arm
25 3206336 Screw, 8-18 x 0.562, lever arm/sprt
27 3206338 Screw, 4-40 x 1.000, hold switch mtg, (2)
28 3206339 Screw-timing stop, 4-40 x 0.375
29 3206323 Screw, 4-24 x 0.750, (6)
30 3206341 Screw-timing adj, 8-32 x 1.000
31 3206342 Insulator
32 3206343 Plate-valve switch
33 5304408583 Spring-timing adj
34 5304420655 Screw, plazscrew, 8-10, (3)
35 5304408585 Screw
36 3206347 Cover-ice maker
42 5303001199 Clamp-wiring harness, strain relief, galv steel
42* 218515402 Clip, (2), tube mtg.
45 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
45* 5303001343 Screw, hex washer head, 8-15A x 0.500
46 5303001193 Clamp, .50 ID, steel, water tube
46* 5308000133 Clamp, nylon, .625 ID
51 240387101 Tube-water, ice mold fill, extension
55 # 240531101 Valve-water, triple solenoid
55* 218709100 Screw, hex head, 10-32 x 0.500
55* 240363601 Screw-shoulder
55* 240542901 Cap-water valve
60 5303207328 Screw, hex washer head, 8-15A x 1.000, (2)
61 218721500 Bracket-leveling, ICE MAKER
62 218737900 Screw-IM brkt mtg, hex washer head, 8-32D x 0.375
64 5303001549 Clamp, 0.31 ID, steel, copper wtr line
* 218888001 Adapter-water supply, nut & sleeve, compression ftg
* 241642511 Ice Maker Svo, Radius Cube, 115 V, no instl parts
* 241642601 Harness-wiring Svo

Publication No: 5995458907 FRS26MRLES0
01/06 20
WIRING SCHEMATIC
