Frigidaire FRS26R4C User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRS26R4CB0 FRS26R4C R134a white 115
FRS26R4CQ0 FRS26R4C R134a bisque 115
FRS26R4CW0 FRS26R4C R134a black 115
MARKET
North America
Publication No.
5995388823
030411
-EN/SERVICE/KHB
357
SIDE BY SIDE
REFRIGERATOR
Model No.
FRS26R4C
©2003 Electrolux Home Products, Inc.
All rights reserved
ENERGY GUIDE - 240572130
OWNER’S GUIDE - 240581300
SERVICE DATA SHEET - 240389610
ELECTROLUX HOME PRODUCTS, INC
P.O. BOX 212378, Augusta, GA 30917
FACTORY
PARTS CATALOG

04/03 2
Publication No. FRS26R4C
5995388823
FREEZER DOOR

# = Fast-moving Parts 3 04/03
* = Non-Illustrated Parts
FRS26R4C Publication No.
5995388823
FREEZER DOOR
A = FRS26R4C (FRS26R4CB0)
B = FRS26R4C (FRS26R4CQ0)
C = FRS26R4C (FRS26R4CW0)
POS. NO PART NO DESCRIPTION
1 # 240390606 A - - Gasket-frzr door,black ,magnetic
1 # 240390602 - B C Gasket-frzr door,white ,magnetic
4A 240334201 A B C Bin-door,frzr-upper
4B 240351601 A B C Bin-door
11 240451815 A - - Door-frzr,black ,complete assy
11 240451807 - B - Door-frzr,bisque ,complete assy
11 240451801 - - C Door-frzr,white ,complete assy
13A 240537106 A - - Door Stop, black, frzr
13A 240537104 - B - Door Stop, bisque, frzr
13A 240537102 - - C Door Stop, white, frzr
18 218762703 A - - Handle-door, black
18 218762706 - B - Handle-door, bisque
18 218762701 - - C Handle-door, white
21A 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
21C 218781100 A B C Screw,pan head ,8-18 x 0.625
22A 240561602 A B C Bearing-hinge,closer
22C 240328404 A - - Bearing-hinge,black ,upper
22C 240328402 - B C Bearing-hinge,upper
37 218811620 A - - Trim-handle,black ,upper
37 218811632 - B - Trim-handle,bisque ,upper
37 218811618 - - C Trim-handle,white ,upper
37* 218676004 A B C Band-decorative,satin aluminum, handle trim
37A 218811617 A - - Trim-handle, black, lower
37A 218811631 - B - Trim-handle,bisque ,lower
37A 218811615 - - C Trim-handle,white ,lower
37A* 215782300 A B C Lock-handle trim,snap-in
68 240467701 A B C Chute-ice
* 5303918256 A B C Dispenser heater kit
* 240545101 A B C Connector-water,straight
* 240552101 A B C Harness-wiring,door

04/03 4
Publication No. FRS26R4C
5995388823
REFRIGERATOR DOOR

# = Fast-moving Parts 5 04/03
* = Non-Illustrated Parts
FRS26R4C Publication No.
5995388823
A = FRS26R4C (FRS26R4CB0)
B = FRS26R4C (FRS26R4CQ0)
C = FRS26R4C (FRS26R4CW0)
POS. NO PART NO DESCRIPTION
2 240390605 A - - Gasket-refr door,black ,magnetic
2 # 240390601 - B C Gasket-refr door,white ,magnetic
4 240323001 A B C Bin-door,pseudo ,bottom
7 240326203 A B C Door-dairy
13 240537105 A - - Door Stop, black, ref
13 240537103 - B - Door Stop, bisque, ref
13 240537101 - - C Door Stop, white, ref
15 240451930 A - - Door-refr, black, complete assy
15 240451905 - B - Door-refr, bisque, complete assy
15 240451901 - - C Door-refr, white, complete assy
18 218762703 A - - Handle-door, black
18 218762706 - B - Handle-door, bisque
18 218762701 - - C Handle-door, white
21A 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
21C 218781100 A B C Screw,pan head ,8-18 x 0.625
22 240561601 A B C Bearing-hinge,closer
22B 240328403 A - - Bearing-hinge,upper
22B 240328401 - B C Bearing-hinge,upper
37 218811620 A - - Trim-handle,black ,upper
37 218811632 - B - Trim-handle,bisque ,upper
37 218811618 - - C Trim-handle,white ,upper
37* 218676004 A B C Band-decorative,satin aluminum, handle trim
37A 218811617 A - - Trim-handle,black ,lower
37A 218811631 - B - Trim-handle,bisque ,lower
37A 218811615 - - C Trim-handle,white ,lower
37A* 215782300 A B C Lock-handle trim,snap-in
49 240356401 A B C Bin-door,gallon
REFRIGERATOR DOOR

04/03 6
Publication No. FRS26R4C
5995388823
CABINET

# = Fast-moving Parts 7 04/03
* = Non-Illustrated Parts
FRS26R4C Publication No.
5995388823
A = FRS26R4C (FRS26R4CB0)
B = FRS26R4C (FRS26R4CQ0)
C = FRS26R4C (FRS26R4CW0)
POS. NO PART NO DESCRIPTION
10 240435902 A B C Cover-air duct
10A 240475902 A B C Cover-evap coil,lower
11 5303208309 A B C Plug-hole,factory test
14 240505801 A B C Switch,light/lamp
14A# 215486600 A B C Switch-light/lamp
21C 218252200 A B C Screw,#8 truss hd ,10-32CA x 0.500
22 240457701 A B C Plate-door closer
23 240402701 A B C Screw-#10-32 x 1/4 flat hd
28 240335501 A B C Bolt-roller adj,hex wshr hd,1/4-20 x 4.020,(2),special
30 240419103 A B C Bracket-lower hinge, ref
30A 240419104 A B C Bracket-lower hinge
37 240337603 A - - Trim-cabinet corner, black, (2)
37 240337604 - B - Trim-cabinet corner, bisque, (2)
37 240337601 - - C Trim-cabinet corner, white, (2)
38 240327202 A B C Bracket-upper hinge
40 240327007 A - - Cover-upper hinge,black
40 240327006 - B - Cover-upper hinge,bisque
40 240327005 - - C Cover-upper hinge,white
41 240358701 A B C Grommet-shelf mtg,1.40" long
41* 240358801 A B C Grommet-shelf mtg,.875" long
42 240578901 A B C Screw-hinge mtg,hex head ,1/4-20 x 5/8
43 240335003 A B C Roller Assy,front ,(2)
45 241500301 A B C Screw,hex washer head ,8-18AB x 0.500
47 218659500 A B C Channel-shelf mtg,side ,(2)
58 218749600 A B C Screw,#10 pan hd ,8-18 x .5
66B 240374301 A B C Diffuser-air
66B* 240518802 A B C Pin-push,push-in, plastic
72 240324406 A - - Grille/Kickplate, black
72 240324404 - B - Grille/Kickplate, bisque
72 240324402 - - C Grille/Kickplate, white
81 5308016566 A B C Screw, hex wshr head, 8-15A x 0.625, low profile
82 5304418225 A B C Roller,compressor base ,rear ,(2)
83 5303316859 A B C Rivet,flat head, 1/4 OD x 1-3/4, roller pin
89 240326104 A B C Cover,access ,system compt ,with label
90 218249808 A B C Seal-coil cover
91 240380101 A B C Duct-ice maker
92 216850900 A B C Screw,hex washer hd ,1/4 x 7/8, hinge mtg
100 240423701 A B C Support,crisper cover ,front ,(4)
100* 240350802 A B C Support,crisper cover ,rear ,(4)
150 240368701 A B C Guide-control bulb
* 240396801 A B C Clamp, tube/wiring, nylon, black/natural
* 240479601 A B C Plug, button, cab liner holes
* 240481601 A B C Shim-lower hinge
* 5303305345 A - - Paint, touch-up, black
* 5304414035 - B - Paint, touch-up, bisque
* 5303305324 - - C Paint, touch-up, white
CABINET

04/03 8
Publication No. FRS26R4C
5995388823
SHELVES

# = Fast-moving Parts 9 04/03
* = Non-Illustrated Parts
FRS26R4C Publication No.
5995388823
A = FRS26R4C (FRS26R4CB0)
B = FRS26R4C (FRS26R4CQ0)
C = FRS26R4C (FRS26R4CW0)
POS. NO PART NO DESCRIPTION
11 240338802 A B C Shelf-freezer,flip-up
11A 240338702 A B C Shelf-freezer,fixed wire
11B 240338704 A B C Shelf-freezer,fixed wire
24 240355208 A B C Shelf-"Spill-Safe",fixed
25 240350702 A B C Cover-crisper pan,upper
25* 240362101 A B C Clip-slide,cover-crisper
25A 240350901 A B C Cover-crisper pan,lower
26 240351005 A B C Pan-crisper,upper
26* 240349801 A B C Clip-slide,pan-crisper
26A 240362201 A B C Control-humidity
27 240351206 A B C Pan-crisper,lower
39 240430706 A B C Trim-shelf,11.21" ,front
39B 240430702 A B C Trim-shelf,12.39" ,front
42 240356501 A B C Track,meat pan hanger ,RH
42 240365401 A B C Track,meat pan hanger ,LH
47 240350633 A B C Insert-pan cover,glass
47A 240350603 A B C Insert-pan cover,glass
49 240530402 A B C Basket-sliding
51 240343002 A B C Hanger-basket,RH
52 240343102 A B C Hanger-basket,LH
62 240342806 A B C Pan-meat
81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
97 240545302 A B C Water Tank Assy,coiled tubing, rear filter
100 240326302 A B C Cover-water tank
101 218493100 A B C Screw,hex washer head ,8-18AB x 1-3/4
123 215005100 A B C Screw,hanger/rlr mtg ,8-10 x 0.438
126 218867405 A B C Channel,auger mtg ,LH
126 218867406 A B C Channel,auger mtg ,RH
140 240430501 A B C Channel,wtr tube cover
SHELVES

04/03 10
Publication No. FRS26R4C
5995388823
CONTROLS

# = Fast-moving Parts 11 04/03
* = Non-Illustrated Parts
FRS26R4C Publication No.
5995388823
A = FRS26R4C (FRS26R4CB0)
B = FRS26R4C (FRS26R4CQ0)
C = FRS26R4C (FRS26R4CW0)
POS. NO PART NO DESCRIPTION
5 # 5308000010 A B C Fan Blade, red, evaporator fan
8 5300157666 A B C Bushing-motor mtg, (2)
9 5303292396 A B C Bracket-motor mtg, front
13 # 240315803 A B C Motor-evap fan
13* 215474201 A B C Washer, "slinger", nylon, evap fan shaft
14 5303292397 A B C Bracket-motor mtg,rear
15 240436702 A B C Light Bulb, A-15, clear, 40 W, 120 V, miniature
16 218906801 A B C Socket-light/lamp
17 240383301 A B C Box-control,front
17* 215188300 A B C Screw-control box mtg,hex hd,8-15Ax1.000, refr/frzr
17* 240439901 A B C Wiring Harness,controls
18 240360801 A B C Knob,temp control
21 # 240383703 A B C Control-temperature
21A 5304421768 A B C Control-temperature
22 218660702 A B C Tube-insulator
23 240554501 A B C Control-defrost, adaptive timer, PC board
23* 5303001259 A B C Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
45 5303001343 A B C Screw,hex washer head ,8-15A x 0.500
53 240369501 A B C Box-control
81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
101 218493100 A B C Screw, hex washer head, 8-18AB x 1-3/4
115 240521103 A B C Damper Assy, w/seal
137# 240389101 A B C Filter-water, carbon, with o’rings
138 240370201 A B C Cup-water filter
138* 218904301 A B C O-ring,wtr filter cup
139 240369901 A B C Housing-wtr filter
140 240545201 A B C Elbow-water tube
149 240331602 A B C Shroud-fan orfice
150 240394102 A B C Insulation-water filter cover
151 240376002 A B C Cover-water filter
* 3205266 A B C Edge Protector,wiring harness
CONTROLS

04/03 12
Publication No. FRS26R4C
5995388823

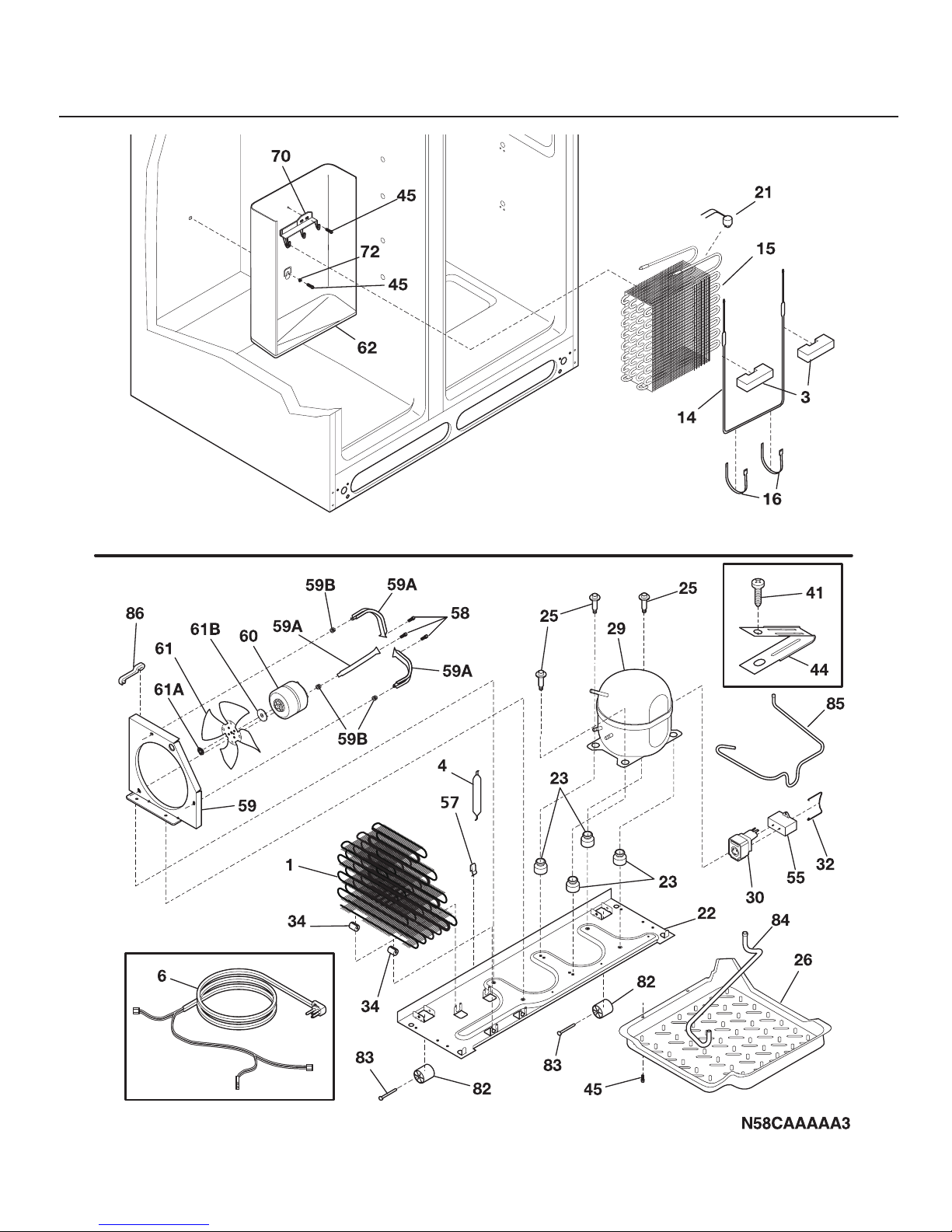

SYSTEM

# = Fast-moving Parts 13 04/03
* = Non-Illustrated Parts
FRS26R4C Publication No.
5995388823
A = FRS26R4C (FRS26R4CB0)
B = FRS26R4C (FRS26R4CQ0)
C = FRS26R4C (FRS26R4CW0)
POS. NO PART NO DESCRIPTION
1 240333603 A B C Condenser
3 218679607 A B C Block-evap coil,styrofoam ,(2)
4 # 218944001 A B C Drier-filter,R134a System
6 240346402 A B C Harness-wiring,machine compt
6* 240439901 A B C Wiring Harness,controls
6* 240449601 A B C Harness-wiring
14 # 5303918253 A B C Defrost Heater Kit
15 # 5303918284 A B C Evaporator Kit
16 5308000110 A B C Strap-evap/heater,aluminum ,(2)
21 5303918214 A B C Thermostat-defrost,kit
22 240330003 A B C Base-compressor
22* 218252200 A B C Screw,#8 truss hd ,10-32CA x 0.500
23 218513300 A B C Grommet-compr mtg,(4)
25 240491501 A B C Screw-compressor mtg,1/4-28 x 1.16,shoulder,typ CF
26 240332602 A B C Pan-defrost drain
29 # 5303918254 A B C Compressor,w/electricals
30 # 218721119 A B C Starter,PTC
32 218973501 A B C Clamp,elec cont mtg ,compressor
34 240405201 A B C Grommet,rubber ,black ,cond tube/wire
41 240555001 A B C Screw-#8-32 X 3/8
44 215174700 A B C Clamp-service cord,strain relief, galv steel
44* 5303001199 A B C Clamp-wiring harness, strain relief, galv steel
45 5308016566 A B C Screw,hex washer head ,8-15A x 0.625, low profile
55 # 218909901 A B C Capacitor, run, 50/60 Hz, 220 VAC, 15 microfarad
57 240542601 A B C Clip-wiring harness
58 215004600 A B C Screw,hx wshr hd, 8-36 x 7/16, cond fan motor,(2)
59 240315501 A B C Shroud-cond fan
59* 240346701 A B C Tape-foam seal,shroud
59* 240359401 A B C Screw-fan shroud,(2)
59A 240346501 A B C Bracket-support,cond mtr ,(3)
59B 240346601 A B C Grommet-bracket,(3)
60 # 240334003 A B C Motor-condenser fan
61 # 240315401 A B C Fan Blade,galv steel ,condenser fan
61A 215004700 A B C Nut,speed
61B 215004800 A B C Grommet-silencer
62 240429402 A B C Trough-drain
70 218990801 A B C Bracket-evap/cvr mtg
72 218397000 A B C Button-handle mtg,dovetail
82 5304418225 A B C Roller,compressor base ,rear ,(2)
83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4,roller pin
84 5304421068 A B C Tube-drain,lower
85 240346201 A B C Tube-connector,suction
86 240409302 A B C Spacer-cond tube,black
* 5303918213 A B C Heat Exchanger Kit,suction line
* # 5303918222 A B C Hot Tube Repair Kit,Service
SYSTEM

04/03 14
Publication No. FRS26R4C
5995388823

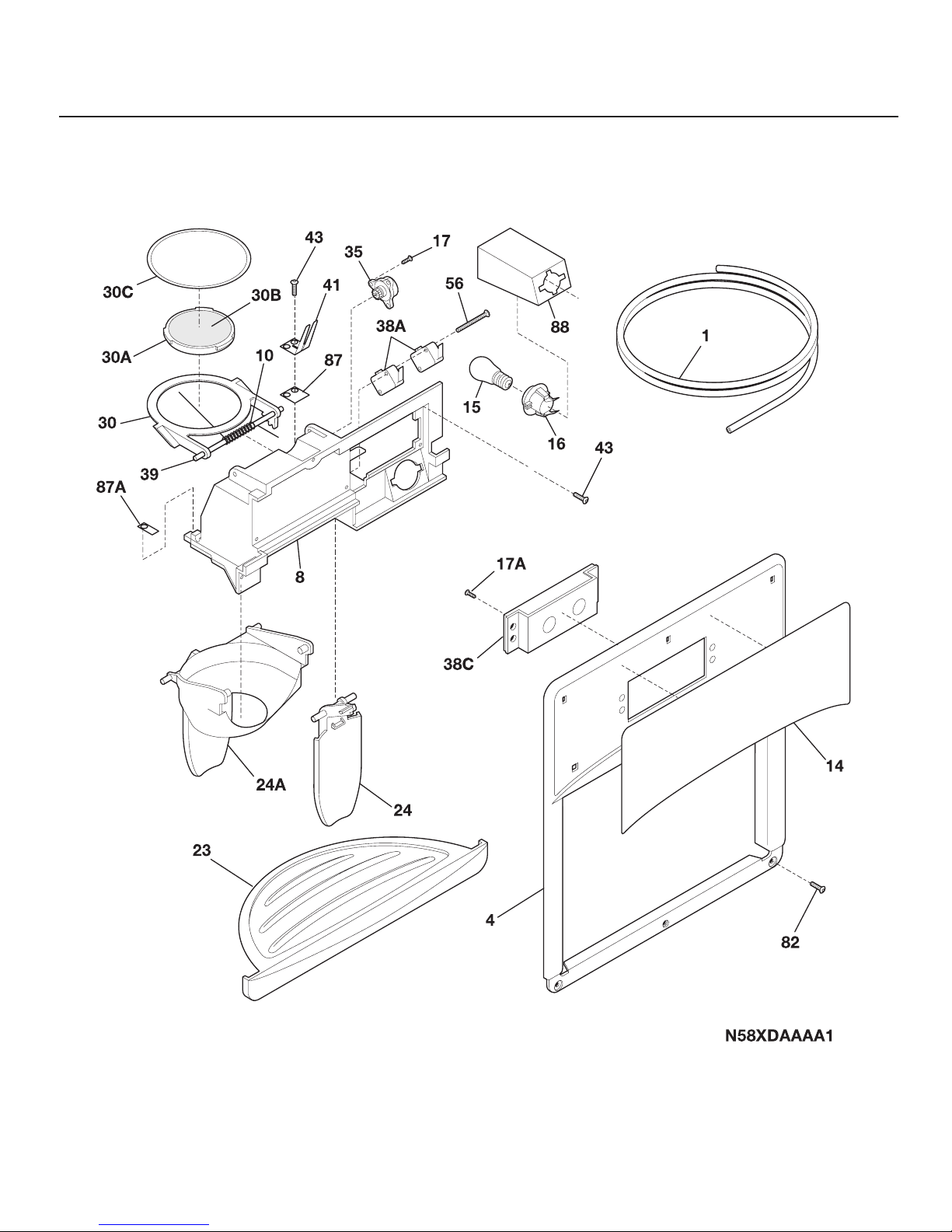

DISPENSER

# = Fast-moving Parts 15 04/03
* = Non-Illustrated Parts
FRS26R4C Publication No.
5995388823
A = FRS26R4C (FRS26R4CB0)
B = FRS26R4C (FRS26R4CQ0)
C = FRS26R4C (FRS26R4CW0)
POS. NO PART NO DESCRIPTION
1 218976409 A B C Tube-water
1* 218976901 A B C Tube-water inlet, inlet valve to ice maker
1* 218976904 A B C Tube-water inlet, valve to filter
1* 218976907 A B C Tube-water inlet, valve to door
4 5304433186 A - - Cover-module, black
4 5304433187 - B - Cover-module, bisque
4 5304433188 - - C Cover-module, white
8 5304422013 A - - Module-dispenser
8 5304421849 - B - Module-dispenser
8 5304422030 - - C Module-dispenser
10 5304426649 A B C Spring-torsion
14 240570206 A - - Label-module cover, black
14 240570205 - B - Label-module cover, bisque
14 240570204 - - C Label-module cover, white
15 5304421616 A B C Light Bulb
16 240548901 A B C Socket-light
17 5304421619 A B C Screw
17A 5304433185 A B C Screw,switch mtg.
23 240323603 A - - Drip Tray, black
23 240323602 - B - Drip Tray, bisque
23 240323601 - - C Drip Tray, white
24 5304422026 A - - Actuator-water, black
24 5304422027 - B - Actuator-water, bisque
24 5304421825 - - C Actuator-water, white
24A 5304422025 A - - Actuator-ice, black
24A 5304422028 - B - Actuator-ice, bisque
24A 5304421826 - - C Actuator-ice, white
30 5304421628 A B C Door Assy-ice chute
30A 5304421624 A B C Door center
30B 5304421625 A B C Insulation-door
30C 5304421629 A B C Door seal
35 5304421620 A B C Damper-rotary
38A# 5304421617 A B C Switch-micro,single pole ,double throw
38A* 5304430839 A B C Harness-wiring
38C 5304430836 A B C Switch
38C* 5304430837 A B C Harness-wiring
39 5304421627 A B C Pin-hinge
41 5304421829 A B C Spring-actuator
43 215296300 A B C Screw,plask h/l ,#6 x 3/8
56 5304421830 A B C Screw-micro switch,pan head
82 240363401 A B C Screw-#8-18 X 1/2,#6 hd plask
87 5304421622 A B C Bearing Plate
87A 5304421621 A B C Bearing Plate
88 5304421615 A B C Shield-light
* 218515401 A B C Clip
* 5303918256 A B C Dispenser heater kit
DISPENSER

04/03 16
Publication No. FRS26R4C
5995388823
ICE CONTAINER

# = Fast-moving Parts 17 04/03
* = Non-Illustrated Parts
FRS26R4C Publication No.
5995388823
A = FRS26R4C (FRS26R4CB0)
B = FRS26R4C (FRS26R4CQ0)
C = FRS26R4C (FRS26R4CW0)
POS. NO PART NO DESCRIPTION
2 5304428402 A B C Auger-ice
3 5304404343 A B C Cam-drive
4 218815300 A B C Container-ice,bucket only
6 5304404346 A B C Drum-ice disp
7 218815400 A B C Front-ice container
10 5304404337 A B C Bar-drive
13 5304404359 A B C Gate
15 5303001179 A B C Light Bulb/Lamp, 40 W
16 5303289050 A B C Socket-light/lamp
17 5304404345 A B C Drive Blade
18 # 240326903 A B C Motor-auger
18* 5304404335 A B C Wiring Harness, auger motor
20 5304404332 A B C Cover-motor
21 215285100 A B C Nut-drive
23 5304404347 A B C Plate-front
25 5304404362 A B C Screw, hex washer head, 8-32T x 0.375
26 215503200 A B C Screw, cr pan hd,10-16 x 0.500
33 5304404351 A B C Spacer
34 5304404349 A B C Spacer
35A 5304404353 A B C Fixed Blade,round
35B 5304404352 A B C Fixed Blade,square
37A 5304404348 A B C Blade, crusher #1
37B 5304404350 A B C Blade, crusher #2
37C 5304404356 A B C Blade, crusher #3
39 5304404365 A B C Screw
41 5304404358 A B C Housing-crusher
44 218359200 A B C Screw,pan head ,8-32 x 0.250
45 # 5304404333 A B C Solenoid Assy
45A 5304406816 A B C Spring-solenoid
45B 5304406817 A B C E-Ring-solenoid
45C 5304406818 A B C Actuator-solenoid
45D 5304406819 A B C Solenoid
46 5304404341 A B C Control Rod
47 5304404342 A B C Spring-control rod
48 5304404340 A B C Bracket-control rod
48* 5304404364 A B C Screw-bracket
49 5304404329 A B C Rail Assy
50 5304404334 A B C Guide-solenoid
51 5304404336 A B C Rotation Stop
52 5304404354 A B C Spacer-fixed blades
53 5304404355 A B C Pin-spiral,fixed blades
54 5304404357 A B C Nut-auger
55 5304404360 A B C Washer
56 5304404361 A B C E-ring
57 5304404363 A B C Door-access
58 5304404331 A B C Screw-solenoid
* 240323808 A B C Ice Container Assy,w/moving parts
* 240507202 A B C Deflector-ice container
ICE CONTAINER

04/03 18
Publication No. FRS26R4C
5995388823

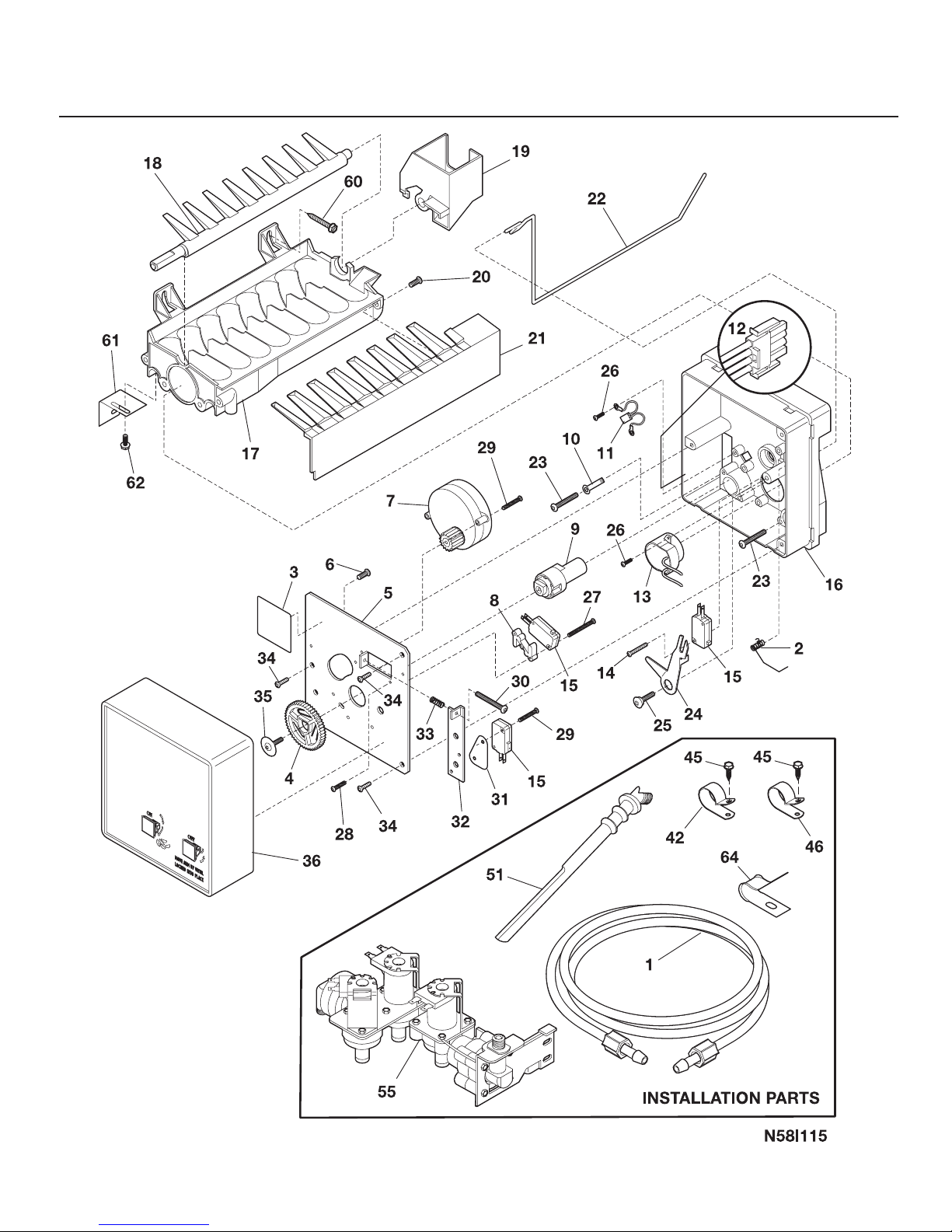

ICE MAKER

# = Fast-moving Parts 19 04/03
* = Non-Illustrated Parts
FRS26R4C Publication No.
5995388823
A = FRS26R4C (FRS26R4CB0)
B = FRS26R4C (FRS26R4CQ0)
C = FRS26R4C (FRS26R4CW0)
POS. NO PART NO DESCRIPTION
1 218976409 A B C Tube-water
1 218976901 A B C Tube-water inlet, inlet valve to ice maker
1* 218976904 A B C Tube-water inlet, valve to filter
1* 218976907 A B C Tube-water inlet, valve to door
1* 240561701 A B C Seal-water inlet, inlet valve to ice maker
2 5304420650 A B C Spring,shut-off arm
3 3206299 A B C Label,ID plate
4 3206301 A B C Gear
5 3206303 A B C Plate-mounting
6 3206305 A B C Screw-ground wire,8-32 x 0.250
7 # 3206306 A B C Motor-ice maker
8 3206312 A B C Spacer-hold switch
9 3206313 A B C Cam
10 3206315 A B C Clamp
11 # 3206319 A B C Thermal Cutoff, ice maker, complete assy
12 # 240352601 A B C Wiring Harness, ice maker, internal, with plug
13 # 3206322 A B C Thermostat Assy,ice maker
14 5304420652 A B C Screw,4 x 0.750 ,switch mtg.
15 # 3206324 A B C Switch,(3)
16 5304420653 A B C Support,phenolic
17 # 5303320545 A B C Mold-ice maker,Radius Cube ,with heater
18 3206328 A B C Ejector-ice
19 3206330 A B C Bearing & Inlet
20 5304408581 A B C Screw,8-32 x 0.375
21 3206332 A B C Ice Stripper
22 3206333 A B C Shut-off Arm
23 5304408582 A B C Screw, 8-32 x 0.875, mold-to-support, (3)
24 3206335 A B C Lever Arm
25 3206336 A B C Screw, 8-18 x 0.562, lever arm/sprt
26 5304420654 A B C Screw-thermo/sprt, 4-24 x 0.375 ,(4)
27 3206338 A B C Screw, 4-40 x 1.000, hold switch mtg, (2)
28 3206339 A B C Screw-timing stop,4-40 x 0.375
29 3206323 A B C Screw,4-24 x 0.750 ,(6)
30 3206341 A B C Screw-timing adj,8-32 x 1.000
31 3206342 A B C Insulator
32 3206343 A B C Plate-valve switch
33 5304408583 A B C Spring-timing adj
34 5304420655 A B C Screw,plazscrew ,8-10 ,(3)
35 5304408585 A B C Screw
36 3206347 A B C Cover-ice maker
42 5303001199 A B C Clamp-wiring harness, strain relief, galv steel
42* 218515402 A B C Clip, (2), tube mtg.
45 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
46 5308000133 A B C Clamp,nylon ,.625 ID
51 240387101 A B C Tube-water,ice mold fill ,extension
55 # 240531101 A B C Valve-water,triple solenoid
55* 218709100 A B C Screw,hex head ,10-32 x 0.500
55* 240363601 A B C Screw-shoulder
55* 240542901 A B C Cap-water valve
60 5303207328 A B C Screw, hex washer head, 8-15A x 1.000, (2)
61 218721500 A B C Bracket-leveling,ice maker
62 218737900 A B C Screw-IM brkt mtg, hex washer head, 8-32D x 0.375
64 5303001549 A B C Clamp,0.31 ID ,steel ,copper wtr line
* 218888001 A B C Adapter-water supply, nut & sleeve, compression ftg
* 240352411 A B C Ice Maker, Radius Cube, 115 V, no instl parts
ICE MAKER

04/03 20
Publication No. FRS26R4C
5995388823

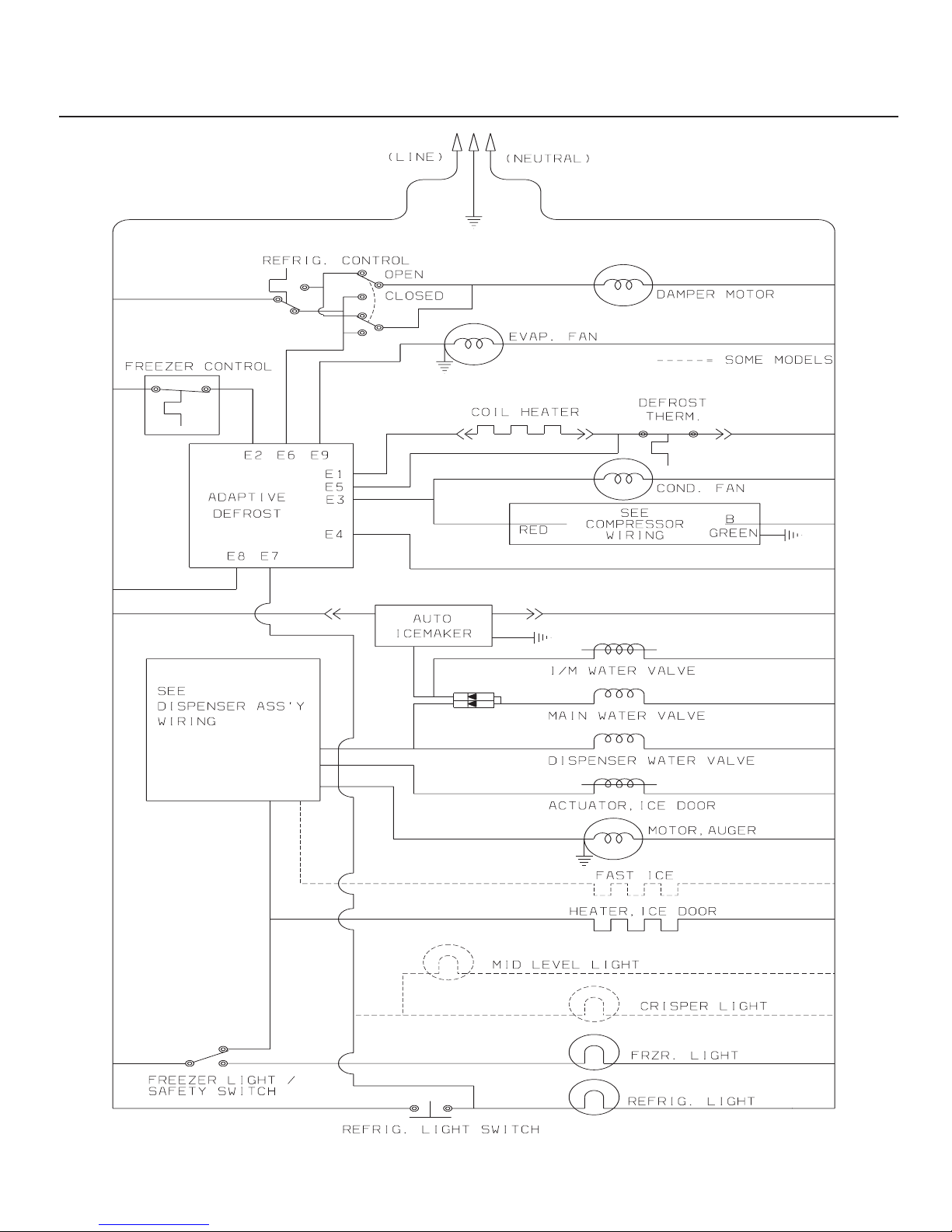

WIRING SCHEMATIC
