Frigidaire FRS26WQH User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRS26WQHD2 FRS26WQH R134a almond 115
FRS26WQHW2 FRS26WQH R134a white 115
MARKET
North American
Publication No.
5995343851
000922
-EN/SERVICE/KHB
357
SIDE BY SIDE
REFRIGERATOR
Model No.
FRS26WQH
©2000 White Consolidated Industries, Inc.
All rights reserved
FACTORY PARTS CATALOG
SIDE BY SIDE
REFRIGERATOR
WIRING DIAGRAM - # 218903201
OWNER’S GUIDE - # 218955100
SERVICE DATA SHEET - # 218909401
101 Masters Blvd.
Anderson, SC 29624

09/00 2
Publication No. FRS26WQH
5995343851
FREEZER DOOR

# = Fast-moving Parts 3 09/00
* = Non-Illustrated Parts
FRS26WQH Publication No.
5995343851
FREEZER DOOR
A = FRS26WQH (FRS26WQHD2)
B = FRS26WQH (FRS26WQHW2)
POS. NO PART NO DESCRIPTION
1 # 215734313 A B Gasket-frzr door,white ,magnetic
5 5303288950 A B Support-door rack,RH/LH
6 5303323484 A B Support-door rack,white ,LH
6A 5303323485 A B Support-door rack,white ,RH
8 218807028 A B Rack-door,w/end caps
8A 215474052 A B Rack-door
9 218510401 A B Panel-inner door,frzr
11 5303918165 A - Panel-ext frzr door, almond, w/foam insulatn
11 5303918162 - B Panel-ext frzr door, white, w/foam insulatn
13 5303289522 A B Door Stop
18 218762704 A - Handle-door,almond
18 218762701 - B Handle-door,white
21A 218578600 A B Screw-door stop mtg, phl truss hd, 10-16 x 3/4
22A 215615300 A B Bushing-door,bronze
23 218958100 A B Screw,flat hd ,#8-32D x 1/2
37 218811619 A - Trim-handle,almond ,upper
37 218811618 - B Trim-handle,white ,upper
37A 218811616 A - Trim-handle,almond ,lower
37A 218811615 - B Trim-handle,white ,lower
37A* 215782300 A B • Lock-handle trim,snap-in
37A* 218676004 A B • Band-decorative, satin aluminum, handle trim
47 218922901 A B Wiring Harness,frzr door
58 218781100 A B Screw,pan head ,8-18 x 0.625
68 218495200 A B Chute-ice
140 218922801 A B Elbow-water tube
141 218929601 A B Tool-Push Connector
* 5303917276 A B Insulation-door,fiberglass ,(bulk)

09/00 4
Publication No. FRS26WQH
5995343851

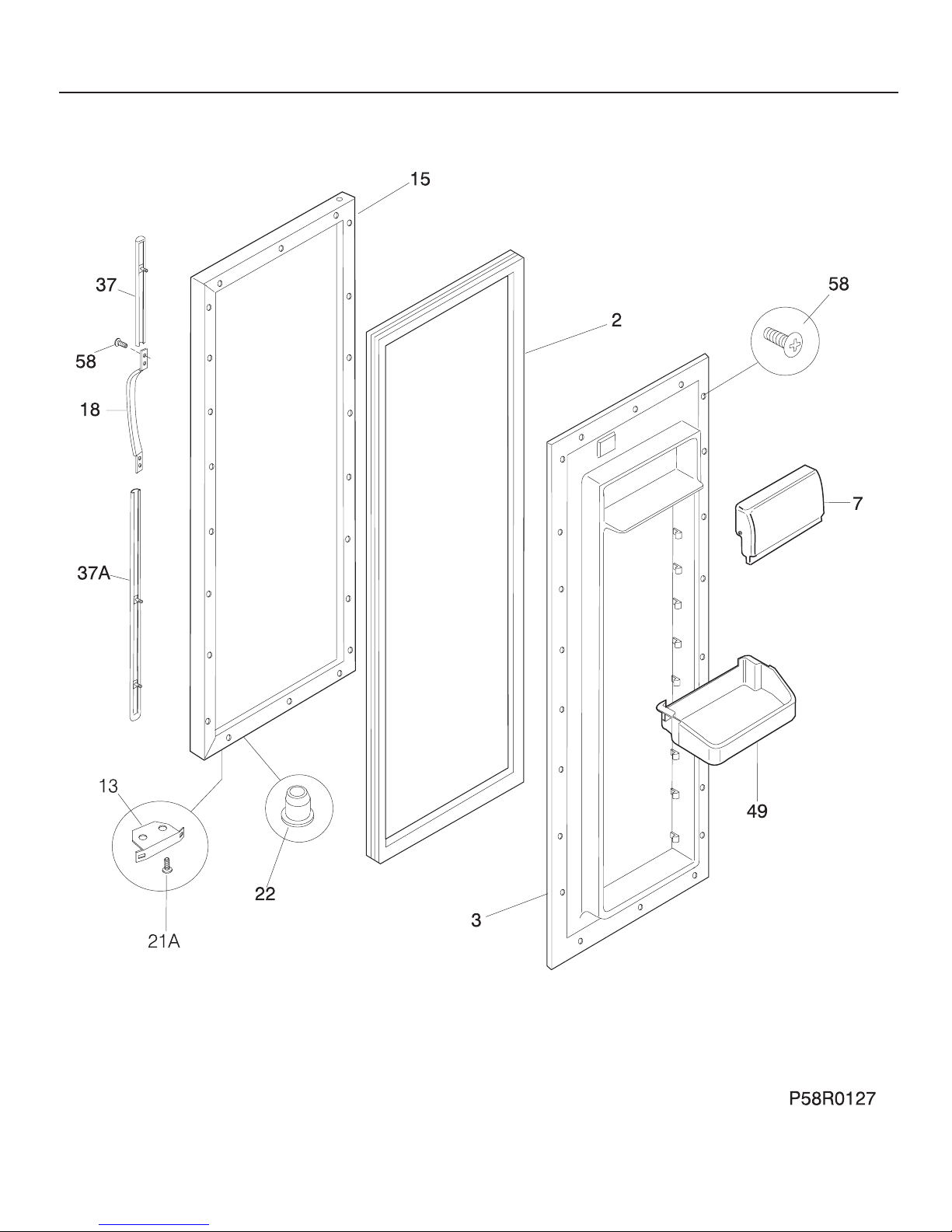

REFRIGERATOR DOOR

# = Fast-moving Parts 5 09/00
* = Non-Illustrated Parts
FRS26WQH Publication No.
5995343851
A = FRS26WQH (FRS26WQHD2)
B = FRS26WQH (FRS26WQHW2)
POS. NO PART NO DESCRIPTION
2 215734314 A B Gasket-refr door,white ,magnetic
3 215403201 A B Panel-inner door,refr
7 5303304563 A B Door-dairy
13 5303289522 A B Door Stop
15 5303918166 A - Panel-ext ref door, almond, w/foam insulatn
15 5303918161 - B Panel-ext refr door, white, w/foam insulatn
18 218762704 A - Handle-door,almond
18 218762701 - B Handle-door,white
21A 218578600 A B Screw-door stop mtg, phl truss hd, 10-16 x 3/4
22 5303289320 A B Bearing-hinge
37 218811619 A - Trim-handle,almond ,upper
37 218811618 - B Trim-handle,white ,upper
37A 218811616 A - Trim-handle,almond ,lower
37A 218811615 - B Trim-handle,white ,lower
37A* 215782300 A B • Lock-handle trim,snap-in
37A* 218676004 A B • Band-decorative, satin aluminum, handle trim
49 218592325 A B Bin-door,2-liter
58 218781100 A B Screw,pan head ,8-18 x 0.625
* 5303917276 A B Insulation-door,fiberglass ,(bulk)
REFRIGERATOR DOOR

09/00 6
Publication No. FRS26WQH
5995343851
CABINET

# = Fast-moving Parts 7 09/00
* = Non-Illustrated Parts
FRS26WQH Publication No.
5995343851
A = FRS26WQH (FRS26WQHD2)
B = FRS26WQH (FRS26WQHW2)
POS. NO PART NO DESCRIPTION
10 215637602 A B Cover-air duct
10* 5303209814 A B Nut,"U" type ,8-15A ,fan mtr mtg
10A 215637402 A B Cover-evap coil,lower
10A* 5308009617 A B Washer,ext tooth lock ,#10 ,grounding
11 5303208309 A B Plug-hole,factory test
12 215230400 A B Plug-harness hole
18 5303289043 A B Support-air duct cvr,2.55" long
18* 5303289044 A B Support-air duct cvr,1.83" long
28 5303289062 A B Bolt-roller adj, hex head, 5/16-24 x 7/8
29 215314301 A B Washer,.40 x .75 x .06 ,nylon
29* 215598900 A B Washer-flat,.691x1x.05, zinc, I&W hinge brkt
29* 218871201 A B Washer,nylon ,0.363 ID w/nibs
30 218993801 A B Bracket-lower hinge,RH ,w/hinge pin
30* 218979701 A B Tapping Plate,lower hinge
30A 218993601 A B Bracket-lower hinge,LH ,w/hinge pin
30A* 218979601 A B Tapping Plate,lower hinge
37 5303321082 A - Trim-cabinet corner,almond
37 5303321081 - B Trim-cabinet corner,white
38 218215250 A - Bracket-upper hinge, with closer, almond, RH
38 218215252 A - Bracket-upper hinge, with closer, almond, LH
38 218215245 - B Bracket-upper hinge, with closer, white, LH
38 218215247 - B Bracket-upper hinge,with closer ,white, RH
40 5303318774 A - Cover-upper hinge,almond
40 5303318773 - B Cover-upper hinge,white
41 5303001609 A B Grommet,shelf mtg ,0.69" ,RH
41* 5308009759 A B Grommet,shelf mtg ,1.25" ,LH
43 218615300 A B Roller Assy,front ,(2)
43* 5308017044 A B Screw-roller mtg, spcl ind hex hd, 5/16-18(23)x7/8
44 218738300 A B Roller Assy,rear ,(2)
45 5303001343 A B Screw,hex washer head ,8-15A x 0.500
45* 218754500 A B Screw,hex hd ser wshr ,8-18 x 0.375
47 218659500 A B Channel-shelf mtg,side ,(2)
52 215454600 A B Tube-water,ice mold fill ,elbow
66 215050201 A B Damper-meat keeper
66A 218171301 A B Cover-meat kpr dmpr
72 218359605 A - Grille/Kickplate, almond
72 218359601 - B Grille/Kickplate, white
77 5303001216 A B Washer-nylon, 3/16 x 5/8 OD
78 5303274237 A B Screw-bracket, hex wshr hd, 8-32CA x 0.500
80 218249802 A B Seal-coil cover,(2)
81 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile
85 218922704 A - Cover-lower hinge,almond
85 218922702 - B Cover-lower hinge,white
89 215176300 A B Cover-machine compt
90 215022602 A B Seal-foam
90* 5303322647 A B Tape-foam
91 218964701 A B Deflector-air,air duct cover
92 5303001479 A B Screw-hinge mtg, hex hd, 1/4-20 x 0.875
100 5303288973 A B Support-pan cover
101 215305702 A B Seal-foam
101* 218663103 A B Gasket-air duct cvr
* 218902101 A B Cap-protector, lower hinge
* 5303305325 A - Paint,touch-up ,almond
* 5303305324 - B Paint,touch-up ,white
CABINET

09/00 8
Publication No. FRS26WQH
5995343851
SHELVES

# = Fast-moving Parts 9 09/00
* = Non-Illustrated Parts
FRS26WQH Publication No.
5995343851
A = FRS26WQH (FRS26WQHD2)
B = FRS26WQH (FRS26WQHW2)
POS. NO PART NO DESCRIPTION
2 5303298147 A B Trim-basket
11 218298003 A B Shelf-freezer,sliding ,wire
11A 5304405879 A B Shelf-freezer,fixed wire
24 215406139 A B Shelf-"Spill-Safe",fixed ,(3)
25 215124343 A B Cover-storage pan
25* 5303301393 A B Control-humidity
25* 5304412757 A B Trim-storage pan cvr, upper, w/humidity hole
25A 218015302 A B Trim-storage pan cvr, snap-on, front
25C 218015402 A B Trim-storage pan cvr, snap-on, rear
26 5303289500 A B Pan-storage, upper
26A 5303289501 A B Pan-storage, lower
28 08013638 A B End Cap-shelf, protector, lower fzr shelf
39 215217543 A B Trim-frzr shelf
39A 215217558 A B Trim-frzr shelf
46 5304411659 A B Front-storage pan
47 5303289387 A B Insert-pan cover,glass ,clear
47A 215723552 A B Insert-pan cover,16.31" x 17.32" ,glass
49 5303296573 A B Basket-sliding
51A 5303296575 A B Hanger-basket,RH
52A 215162502 A B Hanger-basket,LH,with spring
52A* 5303299662 A B Hanger-basket,LH
57 5303271653 A B Ferrule-inner
81 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile
96 215192600 A B Support-water tank
97 241500101 A B Water Tank
100A 218015501 A B Support-pan cover,LH
100B 218015601 A B Support-pan cover,RH
101 215005000 A B Screw, hex wshr hd, 8-18AB x 0.750, gusset/hanger
126 218867401 A B Channel,auger mtg ,LH
126 218867402 A B Channel,auger mtg ,RH
* 215328300 A B Clip-shelf
SHELVES

09/00 10
Publication No. FRS26WQH
5995343851
CONTROLS

# = Fast-moving Parts 11 09/00
* = Non-Illustrated Parts
FRS26WQH Publication No.
5995343851
A = FRS26WQH (FRS26WQHD2)
B = FRS26WQH (FRS26WQHW2)
POS. NO PART NO DESCRIPTION
2 215028605 A B Knob-damper control
5 # 5308000010 A B Fan Blade,red ,evaporator fan
7 5308000124 A B Ring-fan orifice
8 5300157666 A B Bushing-motor mtg,(2)
9 5303205118 A B Bracket-motor mtg,front
12 215809600 A B Diffuser-air
13 # 215426200 A B Motor-evap fan
13* 215474201 A B Washer,"slinger" ,nylon ,evap fan shaft
14 5303205119 A B Bracket-motor mtg,rear
15 5303001179 A B Light Bulb/Lamp,40 W
16 # 5303289050 A B Socket-light/lamp
17 5303296805 A B Control Box,refr
17A 5303296581 A B Control Box,frzr
17A* 215188300 A B Screw-cont box mtg, hex hd, 8-15Ax1.000, refr/frzr
18 5303308568 A B Knob-temp control,frzr
20 5303296804 A B Label-control box,refr
20A 5303308611 A B Label-control box,frzr
21 # 5303300027 A B Control-temperature
22 5303319683 A B Housing-temp sensor, plastic
22* 218731102 A B Tube, insulator, PVC, white, on temp sensor
23 # 215846602 A B Timer-defrost, 60 Hz, 120 V, 8 hour/30 min
23* 215277000 A B Cover-defrost timer,top
23* 5303001259 A B Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
23* 5303289058 A B Shield-defrost timr,btm
41 5303001343 A B Screw,hex washer head ,8-15A x 0.500
41* 5303209814 A B Nut,"U" type ,8-15A ,fan mtr mtg
53 215809505 A B Box-damper control
65 5303001361 A B Pin-mounting,push-in ,plastic
75 218465101 A B Shield-light,refr
76 218225800 A B Cover-light socket
78 5303274237 A B Screw-bracket, hex wshr hd, 8-32CA x 0.500
81 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile
83 5308000107 A B Bracket-connector
111 5303297842 A B Wireway,frzr
114# 5303289051 A B Switch-light/lamp,white
115 215011505 A B Damper Assy,w/seal
116 215011400 A B Seal-damper,foam
125 215334201 A B Switch-auger kill,white
CONTROLS

09/00 12
Publication No. FRS26WQH
5995343851
SYSTEM

# = Fast-moving Parts 13 09/00
* = Non-Illustrated Parts
FRS26WQH Publication No.
5995343851
A = FRS26WQH (FRS26WQHD2)
B = FRS26WQH (FRS26WQHW2)
POS. NO PART NO DESCRIPTION
1 # 218787900 A B Condenser
1* 5303208866 A B Spacer-cond tube,black
1* 5303289026 A B Spacer-tube
1* 5304406721 A B Spacer-cond tube,round ,5/8 OD x .81"lg
2 5303289029 A B Clip-cond mtg,(4)
3 218679608 A B Block-evap coil,styrofoam ,(1)
3* 218679605 A B Block-evap coil, 2.05 wide, styrofoam, (2)
4 # 218944001 A B Drier-filter,R134a System
5 218959901 A B Wiring Harness,main
5* 215005200 A B Wiring Harness,refr controls
5* 218815101 A B Wiring Harness,frzr controls
6 218960001 A B Wiring Harness,machine compt
7 215459201 A B Cord-electric power
8 218803400 A B Cover-wiring
13 # 215006701 A B Heat Exchanger,suction line
14 # 218169805 A B Heater-defrost
15 # 218955802 A B Evaporator,bundy
16 5308000110 A B Strap-evap/heater,aluminum ,(2)
17 5304415956 A B Insulator-evap
19 218631200 A B Tube,rubber
21 # 218969902 A B Thermostat-defrost
22 218811100 A B Base-compressor mtg,(drain pan)
23 218513300 A B Grommet-compr mtg,(4)
25 218773500 A B Screw-compressor mtg, hex wshr hd, 10Bx11/4
29 # 218894802 A B Compressor,R134a ,w/o electricals
30 # 218721110 A B Starter-PTC
32 216649100 A B Clamp,elec cont mtg ,compressor
41 5308000039 A B Screw, hex wshr hd, 8-32CA x 0.500, (7),serrated hd
43 215174700 A B Clamp-service cord, strain relief, galv steel
43* 5303001199 A B Clamp-wiring harness, strain relief, galv steel
43* 5308000133 A B Clamp,nylon ,.625 ID
45 5303001343 A B Screw,hex washer head ,8-15A x 0.500
45* 218754500 A B Screw,hex hd ser wshr ,8-18 x 0.375
45* 218769200 A B Screw,hx wshr hd spec ,#6-32 x .5
49 218990801 A B Bracket-evap/cvr mtg
54 5303289027 A B Rail-cabinet base,rear
54A 5303289311 A B Rail-compr support
54A* 215732700 A B Screw,pan head ,10-12A x 0.50
54B 5303289292 A B Rail-cabinet base,front
55 # 218909901 A B Capacitor-run,220 VAC ,15 microfarad
56 218769300 A B Insert-compressor mtg
57 218247300 A B Clip-wiring harness
58 218956901 A B Screw-cond fan mtr, hex hd, #8-36 x 7/16
59 218956601 A B Shroud-cond fan mtr
60 # 218956401 A B Motor-condenser fan
61 218956501 A B Blade-condenser fan
61* 218956701 A B Nut,speed ,fan blade
61* 218956801 A B Grommet-silencer
62 215048703 A B Trough-drain, w/shield assy & #17 insulator
64 5303289063 A B Tube-drain
65 5303289301 A B Spacer-tube
70 5303289041 A B Bracket-evap/cvr mtg
81 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile
* 5303917166 A B Hot Tube Repair Kit,Service
SYSTEM

09/00 14
Publication No. FRS26WQH
5995343851
ICE DISPENSER

# = Fast-moving Parts 15 09/00
* = Non-Illustrated Parts
FRS26WQH Publication No.
5995343851
ICE DISPENSER
A = FRS26WQH (FRS26WQHD2)
B = FRS26WQH (FRS26WQHW2)

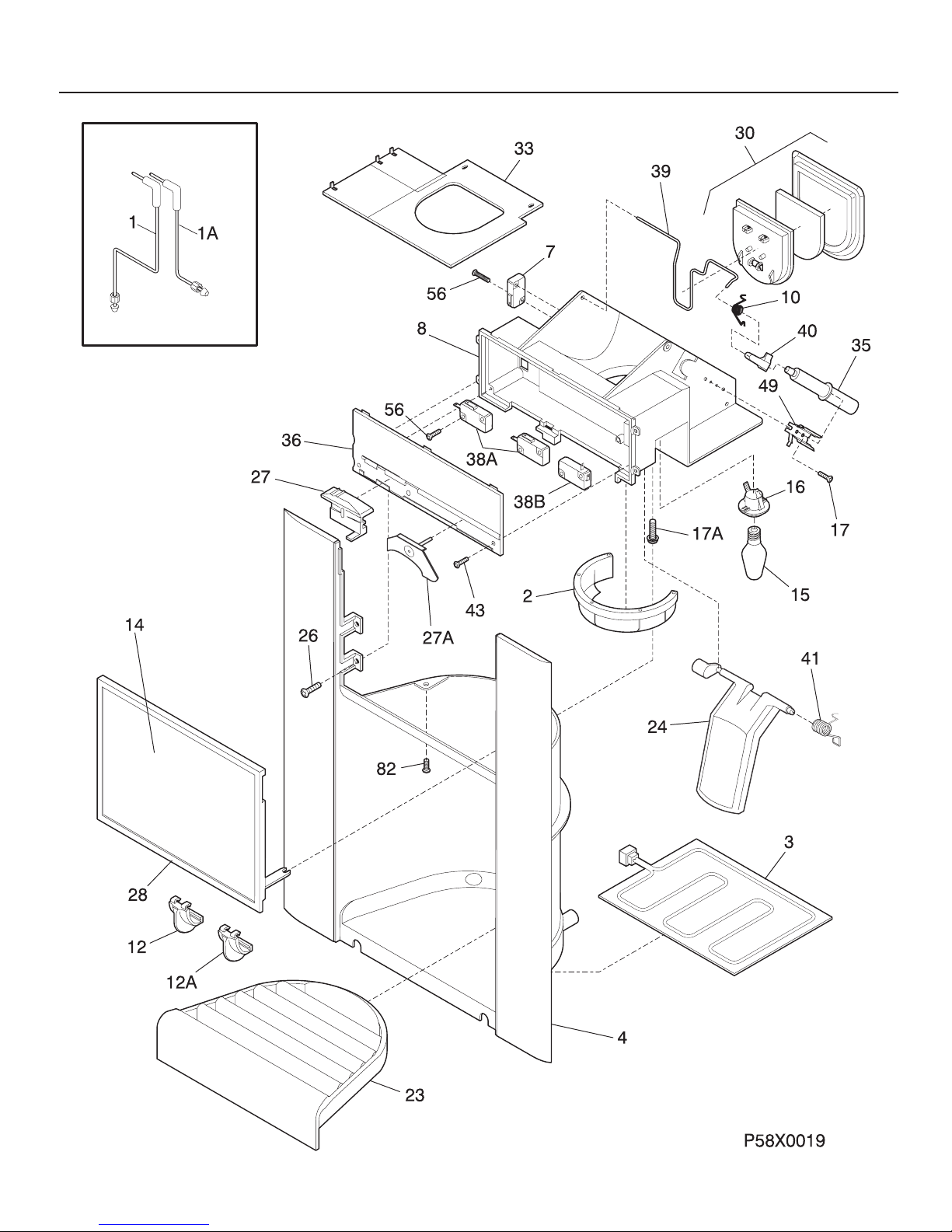

POS. NO PART NO DESCRIPTION
1 5308010366 A B Tube-water inlet, 0.25 OD x 93", plastic
1* 218949201 A B Tube-water inlet, formed, plastic, dispenser
2 218505302 A - Deflector-ice disp,almond
2 218505301 - B Deflector-ice disp,white
3 # 215484300 A B Heater-door housing
4 218852402 A - Housing-dispenser,almond
4 218852401 - B Housing-dispenser,white
7 218284800 A B Switch-actuator,micro
8 218874901 A B Module-dispenser
10 218209800 A B Spring,dispenser door
12 218836202 A - Knob-selector,almond
12 218836201 - B Knob-selector,white
12A 218925402 A - Knob-selector,almond
12A 218925401 - B Knob-selector,white
12A* 218925501 A B Spring-knob
14 218416159 A - Label-module cover,almond
14 218416158 - B Label-module cover,white
15 218284900 A B Light Bulb/Lamp,4 W ,115 V
16 215284900 A B Socket-light/lamp
17 215794400 A B Screw,#6 x 1/4
17A 215840700 A B Screw,truss head ,6-20 x 3/8
17A* 215923400 A B Washer-flat
23 5303297845 A - Drip Tray,almond
23 5303297844 - B Drip Tray,white
24 218921302 A - Actuator,almond
24 218921301 - B Actuator,white
26 215503200 A B Screw,cr pan hd ,10-16 x 0.500
27 218432600 A B Cam-slide
27A 218814901 A B Rocker-switch
28 218906202 A - Cover-module,almond
28 218906201 - B Cover-module,white
30 215753600 A B Door Assy-ice chute,w/gasket,insul
33 218870201 A B Heater-disp throat
35 # 218740003 A B Heat Motor,115 V
36 218835601 A B Cover-slctr switch,ice dispenser
38A# 218479900 A B Switch-micro,single pole ,double throw
38B# 218835401 A B Switch-micro,single pole ,single throw
39 218284600 A B Wire-ice door
40 218284500 A B Yoke-heat motor
41 215917800 A B Spring-actuator
43 215760300 A B Screw,#4 x 3/8
49 215794000 A B Bracket-heat motor
56 218434300 A B Screw-micro switch,pan head, 4-24 x 9/16
82 215296300 A B Screw,plask h/l ,#6 x 3/8
* 215781700 A B Clip-tube
* 218863108 A B Wiring Harness,disp

09/00 16
Publication No. FRS26WQH
5995343851
ICE CONTAINER

# = Fast-moving Parts 17 09/00
* = Non-Illustrated Parts
FRS26WQH Publication No.
5995343851
ICE CONTAINER
A = FRS26WQH (FRS26WQHD2)
B = FRS26WQH (FRS26WQHW2)

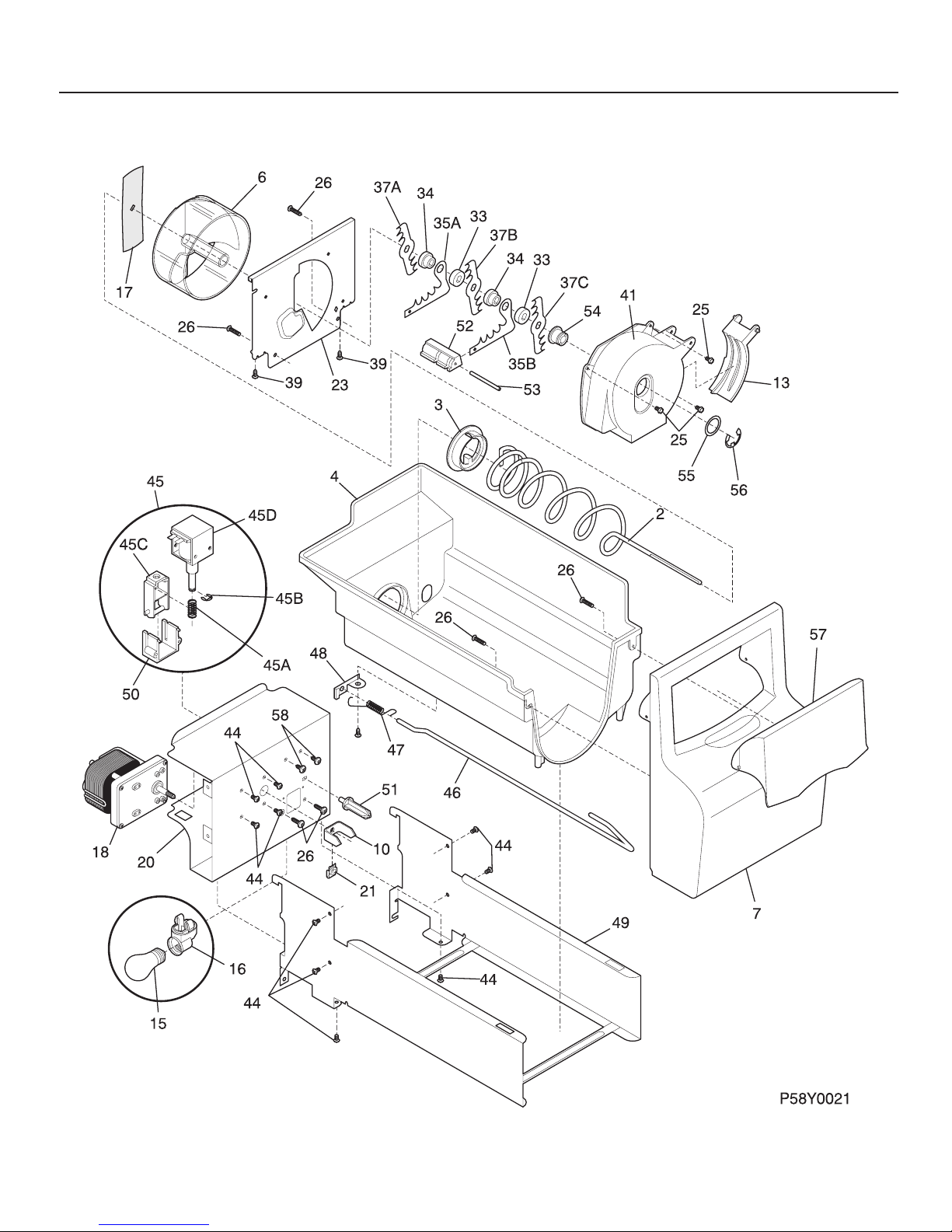

POS. NO PART NO DESCRIPTION
2 5304404344 A B Auger-ice
3 5304404343 A B Cam-drive
4 218815300 A B Container-ice
6 5304404346 A B Drum-ice disp
7 218815400 A B Front-ice container
10 5304404337 A B Bar-drive
13 5304404359 A B Gate
15 5303001179 A B Light Bulb/Lamp,40 W
16 5303289050 A B Socket-light/lamp
17 5304404345 A B Drive Blade
18 # 218980701 A B Motor-auger
18* 5304404335 A B Wiring Harness,auger motor
20 5304404332 A B Cover-motor
21 215285100 A B Nut-drive
23 5304404347 A B Plate-front
25 5304404362 A B Screw,hex washer head ,8-32T x 0.375
26 215503200 A B Screw,cr pan hd ,10-16 x 0.500
33 5304404351 A B Spacer
34 5304404349 A B Spacer
35A 5304404353 A B Fixed Blade,round
35B 5304404352 A B Fixed Blade,square
37A 5304404348 A B Blade-crusher,#1
37B 5304404350 A B Blade-crusher,#2
37C 5304404356 A B Blade-crusher,#3
39 5304404365 A B Screw
41 5304404358 A B Housing-crusher
44 218359200 A B Screw,pan head ,8-32 x 0.250
45 # 5304404333 A B Solenoid Assy
45A 5304406816 A B Spring-solenoid
45B 5304406817 A B E-Ring-solenoid
45C 5304406818 A B Actuator-solenoid
45D 5304406819 A B Solenoid
46 5304404341 A B Control Rod
47 5304404342 A B Spring-control rod
48 5304404340 A B Bracket-control rod
48* 5304404364 A B Screw-bracket
49 5304404329 A B Rail Assy
50 5304404334 A B Guide-solenoid
51 5304404336 A B Rotation Stop
52 5304404354 A B Spacer-fixed blades
53 5304404355 A B Pin-spiral,fixed blades
54 5304404357 A B Nut-auger
55 5304404360 A B Washer
56 5304404361 A B E-ring
57 5304404363 A B Door-access
58 5304404331 A B Screw-solenoid
* 215781700 A B Clip-tube
* 218842802 A B Ice Container Assy

09/00 18
Publication No. FRS26WQH
5995343851
ICE MAKER

# = Fast-moving Parts 19 09/00
* = Non-Illustrated Parts
FRS26WQH Publication No.
5995343851
ICE MAKER
A = FRS26WQH (FRS26WQHD2)
B = FRS26WQH (FRS26WQHW2)
POS. NO PART NO DESCRIPTION
1 5308010366 A B Tube-water inlet, 0.25 OD x 93", plastic
1* 218949201 A B Tube-water inlet, formed, plastic, dispenser
2 3206348 A B Spring,shut-off arm
3 3206299 A B Label,ID plate
4 3206301 A B Gear
5 3206303 A B Plate-mounting
6 3206305 A B Screw-ground wire,8-32 x 0.250
7 # 3206306 A B Motor-ice maker
8 3206312 A B Spacer-hold switch
9 3206313 A B Cam
10 3206315 A B Clamp
11 # 3206319 A B Thermal Cutoff, ice maker, complete assy
12 # 3206349 A B Wiring Harness, ice maker, internal, with plug
12* 3206321 A B • Connector Plug, wiring harness
13 # 3206322 A B Thermostat Assy,ice maker
15 # 3206324 A B Switch,(3)
16 3206326 A B Support,phenolic
17 # 5303320545 A B Mold-ice maker,Radius Cube ,with heater
18 3206328 A B Ejector-ice
19 3206330 A B Bearing & Inlet
20 5304408581 A B Screw,8-32 x 0.375
21 3206332 A B Ice Stripper
22 3206333 A B Shut-off Arm
23 5304408582 A B Screw, 8-32 x 0.875, mold-to-support, (3)
24 3206335 A B Lever Arm
25 3206336 A B Screw,8-18 x 0.562 ,lever arm/sprt
26 3206337 A B Screw-thermo/sprt,4-24 x 0.375 ,(4)
27 3206338 A B Screw, 4-40 x 1.000, hold switch mtg, (2)
28 3206339 A B Screw-timing stop,4-40 x 0.375
29 3206323 A B Screw,4-24 x 0.750 ,(6)
30 3206341 A B Screw-timing adj,8-32 x 1.000
31 3206342 A B Insulator
32 3206343 A B Plate-valve switch
33 5304408583 A B Spring-timing adj
34 5304408584 A B Screw,plascrew ,#6 ,(3)
35 5304408585 A B Screw
36 3206347 A B Cover-ice maker
42 5308000133 A B Clamp,nylon ,.625 ID
45 215290100 A B Screw-solenoid valve, hx hd-slot wshr, 12-24 x 3/4
45 5303001343 A B Screw,hex washer head ,8-15A x 0.500
46 5303001193 A B Clamp,.50 ID ,steel ,water tube
47 5308000205 A B Adapter-water sply,straight
51 218947201 A B Tube-water fill,extension ,with notch
55 # 218720500 A B Valve-water,dual solenoid ,115 V
55* 218835800 A B Cap-water valve
60 5303207328 A B Screw,hex washer hd, 8-15A x 1.000, (2)
61 218721500 A B Bracket-leveling,ice maker
62 218737900 A B Screw-IM brkt mtg, hex wshr hd, 8-32D x 0.375
64 5303001549 A B Clamp,0.31 ID ,steel ,copper wtr line
* 218699501 A B Ice Maker, Radius Cube, 115 V, no instl parts
* 5303001191 A B Sleeve-tube insert

09/00 20
Publication No. FRS26WQH
5995343851
WIRING SCHEMATIC
