PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRT21P5AB2 FRT21P5A R134a black 115
FRT21P5AQ2 FRT21P5A R134a bisque 115
FRT21P5AW2 FRT21P5A R134a white 115
MARKET
North America
Publication No.
5995355913
010712
-EN/SERVICE/KHB
357
TOP MOUNT
REFRIGERATOR
Model No.
FRT21P5A
©2001 White Consolidated Industries, Inc.
All rights reserved
FACTORY
PARTS CATALOG
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O. Box 212378, Augusta, GA 30917
WIRING DIAGRAM - # 240379005
OWNER’S GUIDE - # 240400103
SERVICE DATA SHEET - # 240379005

07/01 2
Publication No. FRT21P5A
5995355913
DOOR

# = Fast-moving Parts 3 07/01
* = Non-Illustrated Parts
FRT21P5A Publication No.
5995355913
A = FRT21P5A (FRT21P5AB2)
B = FRT21P5A (FRT21P5AQ2)
C = FRT21P5A (FRT21P5AW2)
POS. NO PART NO DESCRIPTION
1 # 240390705 A - - Gasket-frzr door,black ,magnetic
1 # 240390702 - B C Gasket-frzr door,white ,magnetic
2 # 240390704 A - - Gasket-refr door,black ,magnetic
2 # 240390701 - B C Gasket-refr door,white ,magnetic
4 240331401 A B C Rack-door,20.27" x 1.72"
5 240311502 A B C Support-door rack,2 liter ,RH
5A 240331502 A B C Support-door rack,gallon ,RH
6 240311501 A B C Support-door rack,2 liter ,LH
6A 240331501 A B C Support-door rack,gallon ,LH
7 240337703 A B C Door-dairy,w/o graphics ,clear
8 240331402 A B C Rack-door,17.99" x 1.72"
10 240381303 A - - Plug-button,black ,hinge brg hole
10 240381302 - B - Plug-button,hinge brg hole ,bisque ,(2)
10 240381301 - - C Plug-button,hinge brg hole ,white ,(2)
11 240450313 A - - Door-frzr,black ,complete assy
11 240450305 - B - Door-frzr,bisque ,complete assy
11 240450301 - - C Door-frzr,white ,complete assy
12 240415204 A - - Label-nameplate,black
12 240415203 - B - Label-nameplate,bisque
12 240415201 - - C Label-nameplate,white
13 240312405 A - - Door Stop,black ,ref
13 240312407 - B - Door Stop,bisque ,ref
13 240312403 - - C Door Stop,white ,ref
13A 240312406 A - - Door Stop,white ,frzr
13A 240312408 - B - Door Stop,bisque ,frzr
13A 240312404 - - C Door Stop,white ,frzr
14 218915703 A - - Plug-button,black
14 218915704 - B - Plug-button,bisque
14 218915701 - - C Plug-button,white
14A 240428303 A - - Plug-button,screw type ,black
14A 240428302 - B - Plug-button,screw type ,bisque
14A 240428301 - - C Plug-button,screw type ,white
15 240450413 A - - Door-refr,black ,complete assy
15 240450405 - B - Door-refr,bisque ,complete assy
15 240450401 - - C Door-refr,white ,complete assy
18 218668003 A - - Handle-door,black
18 218668004 - B - Handle-door,bisque
18 218668001 - - C Handle-door,white
21 240383401 A B C Screw,truss hd quad ,#10-16 x .500
21C 218252200 A B C Screw,#8 truss hd ,10-32CA x 0.500
22 240311202 A - - Bearing-hinge,black ,(8)
22 240311201 - B C Bearing-hinge,natural color ,(8)
37 215870636 A - - Trim-handle, 2.47", black, w/satin AL band
37 215870633 - B - Trim-handle, 2.47", bisque, w/satin AL band
37 215870629 - - C Trim-handle, 2.47", white, w/satin AL band
37* 218676004 A B C Band-decorative, satin aluminum, handle trim
96 240345504 A - - Plug-foam hole,black
96 240345503 - B C Plug-foam hole,white
DOOR

07/01 4
Publication No. FRT21P5A
5995355913

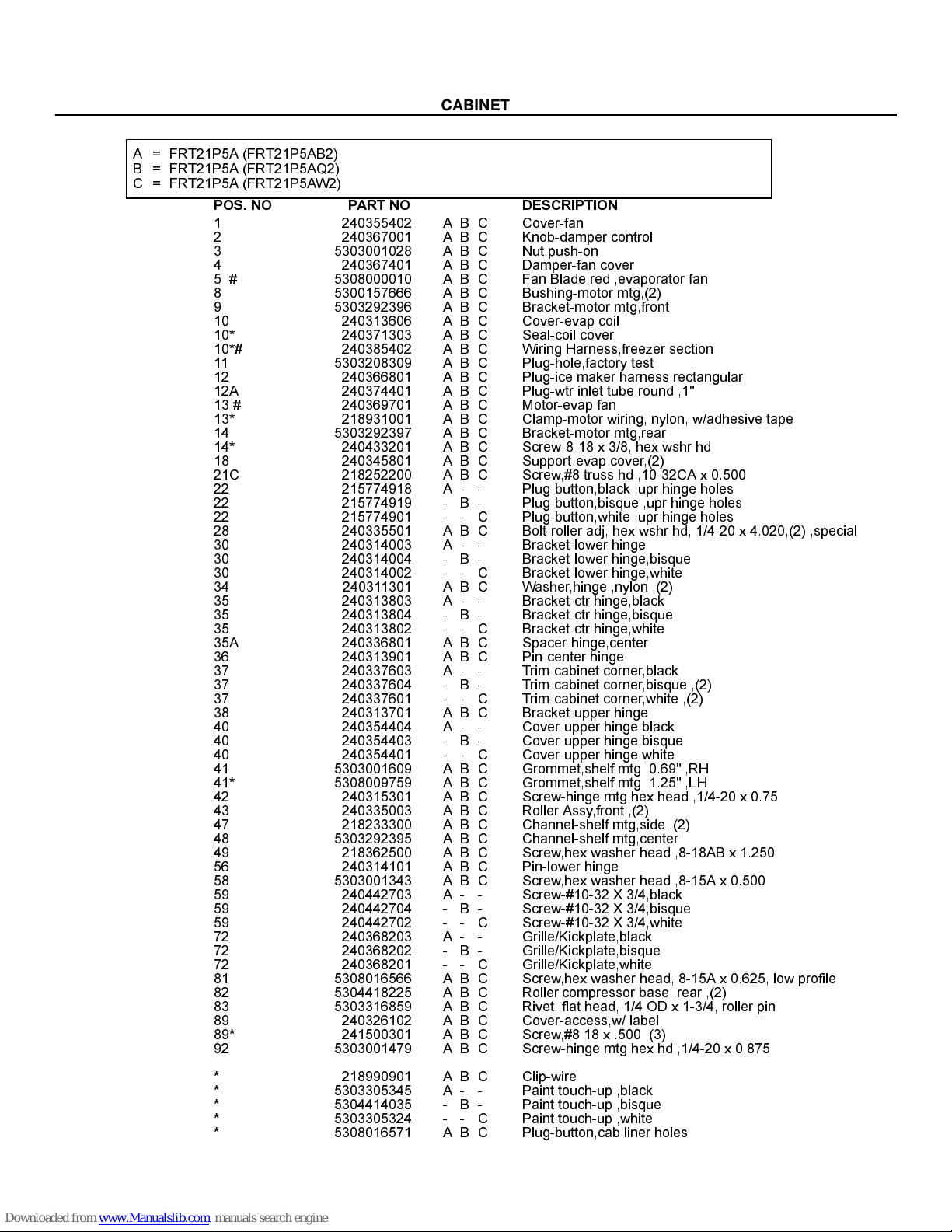

CABINET

# = Fast-moving Parts 5 07/01
* = Non-Illustrated Parts
FRT21P5A Publication No.
5995355913
A = FRT21P5A (FRT21P5AB2)
B = FRT21P5A (FRT21P5AQ2)
C = FRT21P5A (FRT21P5AW2)
POS. NO PART NO DESCRIPTION
1 240355402 A B C Cover-fan
2 240367001 A B C Knob-damper control
3 5303001028 A B C Nut,push-on
4 240367401 A B C Damper-fan cover
5 # 5308000010 A B C Fan Blade,red ,evaporator fan
8 5300157666 A B C Bushing-motor mtg,(2)
9 5303292396 A B C Bracket-motor mtg,front
10 240313606 A B C Cover-evap coil
10* 240371303 A B C Seal-coil cover
10*# 240385402 A B C Wiring Harness,freezer section
11 5303208309 A B C Plug-hole,factory test
12 240366801 A B C Plug-ice maker harness,rectangular
12A 240374401 A B C Plug-wtr inlet tube,round ,1"
13 # 240369701 A B C Motor-evap fan
13* 218931001 A B C Clamp-motor wiring, nylon, w/adhesive tape
14 5303292397 A B C Bracket-motor mtg,rear
14* 240433201 A B C Screw-8-18 x 3/8, hex wshr hd
18 240345801 A B C Support-evap cover,(2)
21C 218252200 A B C Screw,#8 truss hd ,10-32CA x 0.500
22 215774918 A - - Plug-button,black ,upr hinge holes
22 215774919 - B - Plug-button,bisque ,upr hinge holes
22 215774901 - - C Plug-button,white ,upr hinge holes
28 240335501 A B C Bolt-roller adj, hex wshr hd, 1/4-20 x 4.020,(2) ,special
30 240314003 A - - Bracket-lower hinge
30 240314004 - B - Bracket-lower hinge,bisque
30 240314002 - - C Bracket-lower hinge,white
34 240311301 A B C Washer,hinge ,nylon ,(2)
35 240313803 A - - Bracket-ctr hinge,black
35 240313804 - B - Bracket-ctr hinge,bisque
35 240313802 - - C Bracket-ctr hinge,white
35A 240336801 A B C Spacer-hinge,center
36 240313901 A B C Pin-center hinge
37 240337603 A - - Trim-cabinet corner,black
37 240337604 - B - Trim-cabinet corner,bisque ,(2)
37 240337601 - - C Trim-cabinet corner,white ,(2)
38 240313701 A B C Bracket-upper hinge
40 240354404 A - - Cover-upper hinge,black
40 240354403 - B - Cover-upper hinge,bisque
40 240354401 - - C Cover-upper hinge,white
41 5303001609 A B C Grommet,shelf mtg ,0.69" ,RH
41* 5308009759 A B C Grommet,shelf mtg ,1.25" ,LH
42 240315301 A B C Screw-hinge mtg,hex head ,1/4-20 x 0.75
43 240335003 A B C Roller Assy,front ,(2)
47 218233300 A B C Channel-shelf mtg,side ,(2)
48 5303292395 A B C Channel-shelf mtg,center
49 218362500 A B C Screw,hex washer head ,8-18AB x 1.250
56 240314101 A B C Pin-lower hinge
58 5303001343 A B C Screw,hex washer head ,8-15A x 0.500
59 240442703 A - - Screw-#10-32 X 3/4,black
59 240442704 - B - Screw-#10-32 X 3/4,bisque
59 240442702 - - C Screw-#10-32 X 3/4,white
72 240368203 A - - Grille/Kickplate,black
72 240368202 - B - Grille/Kickplate,bisque
72 240368201 - - C Grille/Kickplate,white
81 5308016566 A B C Screw,hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B C Roller,compressor base ,rear ,(2)
83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 240326102 A B C Cover-access,w/ label
89* 241500301 A B C Screw,#8 18 x .500 ,(3)
92 5303001479 A B C Screw-hinge mtg,hex hd ,1/4-20 x 0.875
* 218990901 A B C Clip-wire
* 5303305345 A - - Paint,touch-up ,black
* 5304414035 - B - Paint,touch-up ,bisque
* 5303305324 - - C Paint,touch-up ,white
* 5308016571 A B C Plug-button,cab liner holes
CABINET

07/01 6
Publication No. FRT21P5A
5995355913
SHELVES

# = Fast-moving Parts 7 07/01
* = Non-Illustrated Parts
FRT21P5A Publication No.
5995355913
A = FRT21P5A (FRT21P5AB2)
B = FRT21P5A (FRT21P5AQ2)
C = FRT21P5A (FRT21P5AW2)
POS. NO PART NO DESCRIPTION
10 215667501 A B C Tray-ice,plastic
11 240358003 A B C Shelf-freezer
11* 5303299664 A B C Spacer-shelf
12 240380202 A B C Diffuser-air,top
13 240362601 A B C Diffuser-air,bottom
13* 240392601 A B C Seal-diffuser
14 # 240413601 A B C Switch-light/lamp
15 240436701 A B C Light Bulb/Lamp, A-15, 40 W, 120 V, miniature
16 241500701 A B C Socket-light/lamp
17 240368101 A B C Box-control
17*# 240388701 A B C Wiring Harness,control box
18 240360801 A B C Knob-control
21 # 5304421256 A B C Control-temperature
22A 5303916855 A B C Tube,sensor sleeve, plastic, clear
23 # 215846606 A B C Timer-defrost, 60 Hz, 120 V, 10 hour/30 min
23* 5303001259 A B C Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
24 240373105 A B C Frame-shelf,cantilever ,full width
25 240364717 A B C Cover-crisper pan
25B 240361202 A B C Control-humidity
25C 240361301 A B C Damper-humidity control
26 240343803 A B C Pan-crisper,(2)
28 3201150 A B C End Cap-shelf,protector ,frzr shelf
29 240357701 A B C Trim-shelf,24.48" ,front
31 240371403 A B C Pan-meat
36 240373106 A B C Frame-half shelf,cantilever ,(2)
37 240357702 A B C Trim-shelf,11.95" ,front
40 240443323 A B C Glass-shelf,24.45" x 17.60" ,full shelf
41 240357801 A B C Trim-shelf,24.48" ,rear
42 240460401 A B C Hanger-meat pan,LH
42 240460501 A B C Hanger-meat pan,RH
43 240443318 A B C Glass-shelf,11.92" x 17.60" ,half shelf
44 240357802 A B C Trim-shelf,11.95" ,rear
47 240350654 A B C Insert-pan cover,glass
81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
123 215005100 A B C Screw-roller/hanger,8-10 x 0.438
* 3205266 A B C Edge Protector,wiring harness
SHELVES

07/01 8
Publication No. FRT21P5A
5995355913
SYSTEM

# = Fast-moving Parts 9 07/01
* = Non-Illustrated Parts
FRT21P5A Publication No.
5995355913
A = FRT21P5A (FRT21P5AB2)
B = FRT21P5A (FRT21P5AQ2)
C = FRT21P5A (FRT21P5AW2)
POS. NO PART NO DESCRIPTION
1 240444401 A B C Condenser,dynamic
4 # 218944001 A B C Drier-filter,R134a System
6 # 240375301 A B C Wiring Harness, machine compt, w/service cord
6* # 240385402 A B C Wiring Harness,freezer section
6* # 240388701 A B C Wiring Harness,control box
14 # 5303918247 A B C Defrost Heater Kit
15 # 5303918250 A B C Evaporator Kit
16 5308000110 A B C Strap-evap/heater,aluminum ,(2)
17 240434002 A B C Trough-drain
18 240362301 A B C Insulation Block,RH
20 240362401 A B C Insulation Block,LH
21 # 5303918202 A B C Thermostat-defrost,kit
22 240330001 A B C Plate-compr mtg
22* 218252200 A B C Screw,#8 truss hd ,10-32CA x 0.500
23 218513300 A B C Grommet-compr mtg,(4)
25 240491501 A B C Screw-compressor mtg, 1/4-28 x 1.16,shoulder,typ CF
26 240332602 A B C Pan-defrost drain
29 # 5303918249 A B C Compressor,w/electricals
30 # 218721113 A B C Starter-PTC
32 218740800 A B C Clamp,elec cont mtg ,compressor
34 240405201 A B C Grommet, mounting, rubber, black, holds tube/wire
41 218897001 A B C Screw, hex washer head, 8-32 x 1/4
41* 5308000039 A B C Screw, hex wshr hd, 8-32CA x 0.500, (7),serrated hd
44 5303001199 A B C Clamp-wiring harness, strain relief, galv steel
45 5308016566 A B C Screw, hex wshr hd, 8-15A x 0.625, low profile
55 # 218909901 A B C Capacitor-run,220 VAC ,15 microfarad
57 240403601 A B C Clip-wiring harness
58 215004600 A B C Screw-cond fan mtr, hx serr wshr hd, 8-36 x 7/16,(2)
59 240315501 A B C Shroud-cond fan
59* 240346701 A B C Tape-foam seal,shroud
59* 240359401 A B C Screw-fan shroud,(2)
59A 240346501 A B C Bracket-support,cond mtr ,(3)
59B 240346601 A B C Grommet-bracket,(3)
60 # 240334001 A B C Motor,condenser fan
61 # 240315401 A B C Fan Blade,galv steel ,condenser fan
61A 215004700 A B C Nut,speed
61B 215004800 A B C Grommet-silencer
82 5304418225 A B C Roller,compressor base ,rear ,(2)
83 5303316859 A B C Rivet,flat head, 1/4 OD x 1-3/4, roller pin
84 240359601 A B C Tube-drain,lower
85 240346201 A B C Tube-connector,suction
86 240409302 A B C Spacer-cond tube,black
* 218843800 A B C Screw,hex wshr hd ,8-15A x 0.500
* 240396801 A B C Clamp,tube/wiring ,nylon ,black/natural
* # 5303918210 A B C Heat Exchanger Kit,suction line
* 5304421289 A B C Hot Tube Repair Kit,Service
SYSTEM

07/01 10
Publication No. FRT21P5A
5995355913
WIRING SCHEMATIC

# = Fast-moving Parts 11 07/01
* = Non-Illustrated Parts
FRT21P5A Publication No.
5995355913
WIRING DIAGRAM
