Frigidaire FRS6L7EF Instruction Manual

N58L00001.eps N58FFCBBC1.eps N58RCCBBC6.eps N58BAAAAB3.eps
N58SKDMBD1.eps N58TCAAAB4.eps N58CAAAAC7.eps N58XEAAAA0.eps
N58YBAAAA0.eps N58I115.eps W241660401.eps S241660401.eps
Product No. FRS6L7EFS0
Series 134A
Color stain/blk
Volts 115

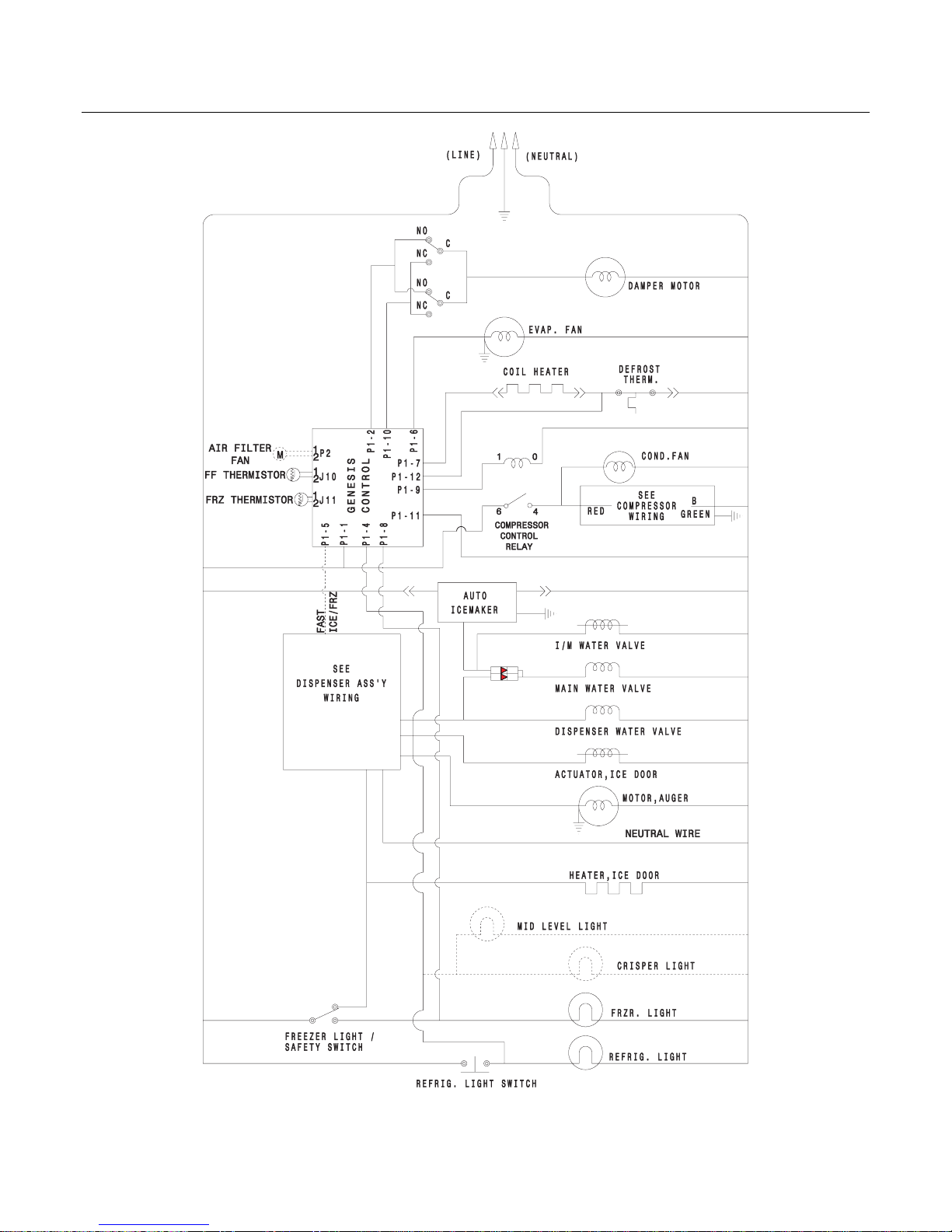

Wiring Diagram 241660401
Owner's Guide 241660600
Market North America
Energy Guide 241649227
Service Data Sheet 240389624
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995454823
05/11/29
(EN/SERVICE/KHB)
357
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FRS6L7EF
Copyright ©All rights reserved.

Publication No: 5995454823 FRS6L7EFS0
11/05 2
FREEZER DOOR

FRS6L7EFS0 Publication No: 5995454823
# Functional Parts 3 11/05
* Non-Illustrated Parts
FREEZER DOOR
POS. NO PART NO. DESCRIPTION
1 # 241674806 Gasket-frzr door, black, magnetic
4A 240334201 Bin-door, frzr-upper
4B 240351601 Bin-door
4C 240351701 Bin-door, frzr-dispenser
11 241615116 Door-frzr, stainless, complete assy
13A 240581906 Door Stop, black, frzr
18 240536801 Handle-door, stainless steel, with insert
21A 240598401 Screw, 10-32 x 1/2
22A 240328204 Bearing-hinge(frz), black, closer
22C 240328404 Bearing-hinge, black, upper
68 241525101 Chute-ice
79 218755402 Screw-set, 10-32 x 0.375
80 218755503 Screw-shoulder, #10 AB, handle mounting
* 240352102 Connector-water, straight
* 240552102 Harness-wiring, door
* 5303918256 Dispenser heater kit

Publication No: 5995454823 FRS6L7EFS0
11/05 4
REFRIGERATOR DOOR

FRS6L7EFS0 Publication No: 5995454823
# Functional Parts 5 11/05
* Non-Illustrated Parts
REFRIGERATOR DOOR
POS. NO PART NO. DESCRIPTION
2 # 241674805 Gasket-refr door, black, magnetic
4 240323002 Bin-door, pseudo, bottom
7 240326203 Door-dairy
12 240572601 Label-nameplate
13 240581905 Door Stop, black, ref
15 241534541 Door-refr, stainless steel, complete assy
18 240536801 Handle-door, stainless steel, with insert
21A 240598401 Screw, 10-32 x 1/2
22 240328203 Bearing-hinge, black, closer
22B 240328404 Bearing-hinge, black, upper
27A 240396102 Retainer, tall bottle
49 240356410 Bin-door, gallon
79 218755402 Screw-set, 10-32 x 0.375
80 218755503 Screw-shoulder, #10 AB, handle mounting

Publication No: 5995454823 FRS6L7EFS0
11/05 6

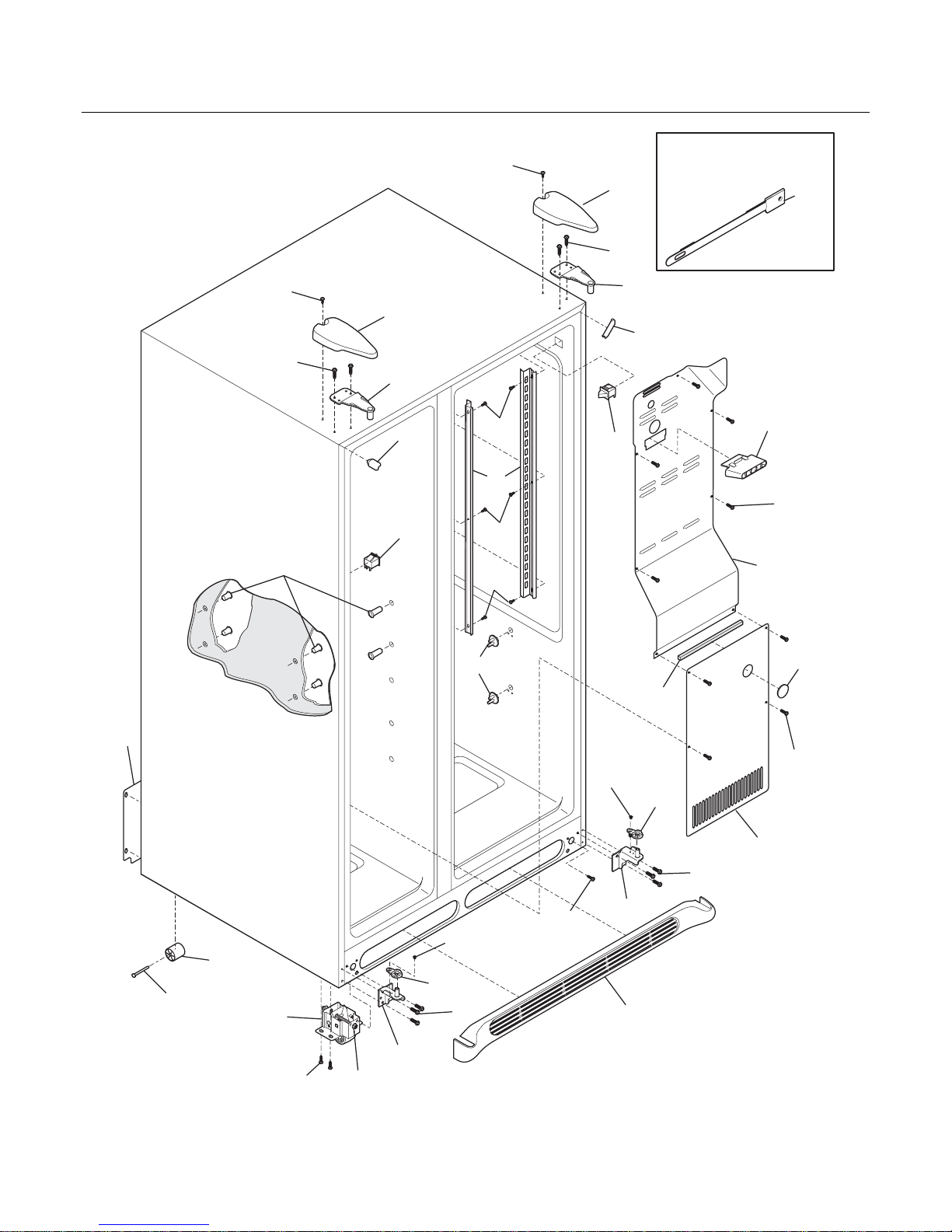

CABINET
58
58
40 66
40
92
92
38
38
37
37
14A
14
91
41
100
89
83
82
43
21C
21C
28
42
42
23
22
23
22
30A
30
72
10A
N58BAAAAB3
10
90
11
45
45
81
81
81
47

FRS6L7EFS0 Publication No: 5995454823
# Functional Parts 7 11/05
* Non-Illustrated Parts
CABINET
POS. NO PART NO. DESCRIPTION
10 240435906 Cover-air duct
10A 240475907 Cover-evap coil, lower
11 5303208309 Plug-hole, factory test
14 240505801 Switch, light/lamp
14A 241547901 Switch-light/lamp, frzr door
21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 Plate-door closer
23 240402701 Screw-#10-32 x 1/4 flat hd
28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603701 Bracket-lower hinge, ref
30A 241603702 Bracket-lower hinge
37 240337603 Trim-cabinet corner, black, (2)
38 240327201 Bracket-upper hinge
40 240327007 Cover-upper hinge, black
41 241550801 Grommet-shelf mtg, 1.40" long
41* 241550701 Grommet-shelf mtg, .96" long
42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335003 Roller Assy, adjustable, front, (2)
45 241500301 Screw, hex washer head, 8-18AB x 0.500
47 240349402 Channel-shelf mtg, side, (2)
58 218781100 Screw, pan head, 8-18 x 0.625
66 5304424968 Damper Cover Assy
66* 240518802 Pin-push, push-in, plastic
72 240324406 Grille/Kickplate, black
81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 Roller, compressor base, rear, (2)
83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241574602 Cover access
90 218249808 Seal-coil cover
91 240380101 Duct-ice maker
92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 Support, crisper cover, front, (4)
100* 240350802 Support, crisper cover, rear, (4)
* 240481601 Shim-lower hinge
* 240396801 Clamp, tube/wiring, nylon, black/natural
* 240479601 Plug, button, cab liner holes, (2)
* 5303305345 Paint, touch-up, black

Publication No: 5995454823 FRS6L7EFS0
11/05 8

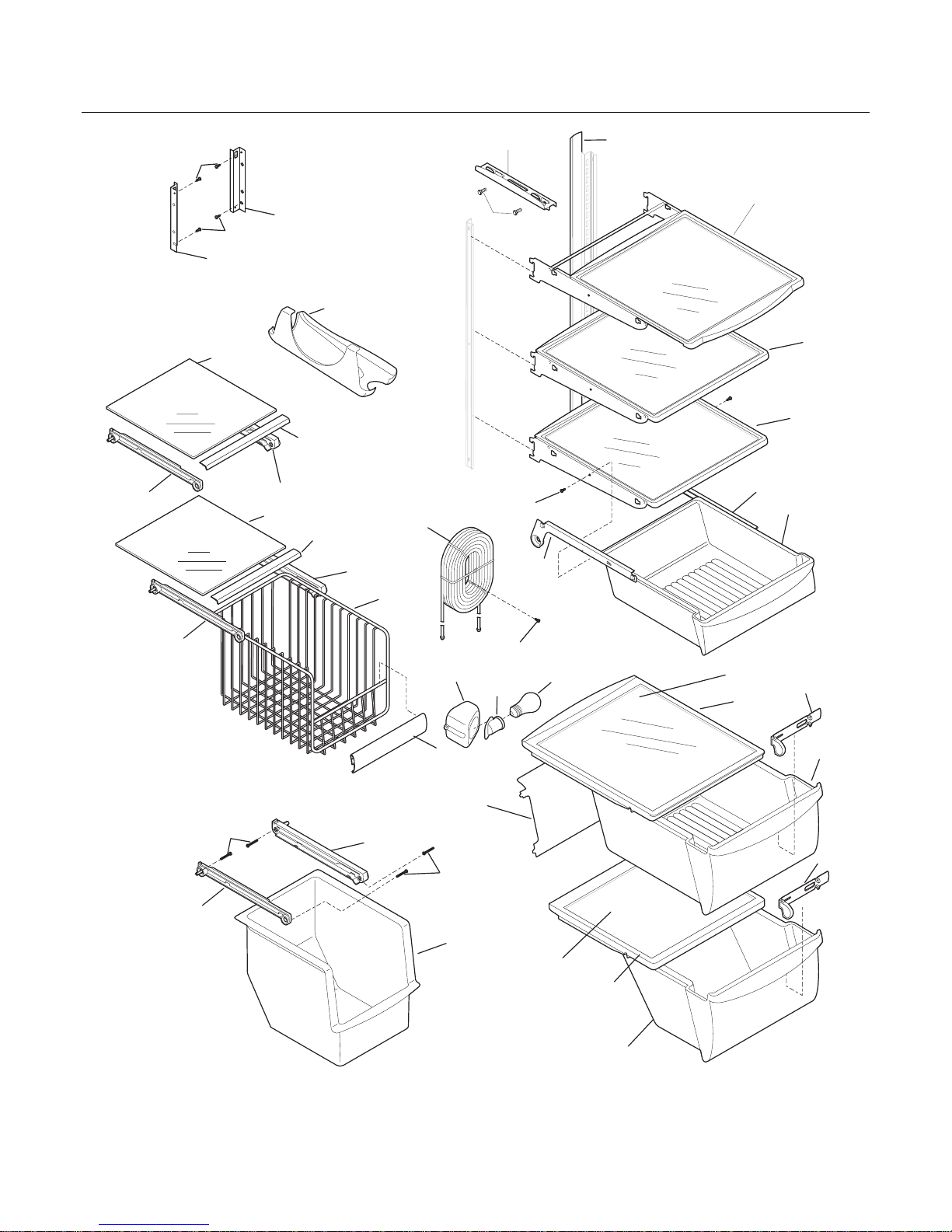

SHELVES
11
39
11A
39
126
81
81
126
52
52A
109
51
51A
49B
2
97
51
52
101
101
49
N58SKDMBD1
100
25A
27
47A
15A
16A
81
25
26
47
26A
26A
42A
62
123
42
24A
24
140
24B
81
11C
136

FRS6L7EFS0 Publication No: 5995454823
# Functional Parts 9 11/05
* Non-Illustrated Parts
SHELVES
POS. NO PART NO. DESCRIPTION
2 241510604 Trim-basket
11 240350668 Shelf-freezer, glass, lower
11A 240350667 Shelf-freezer, glass, upper
11C 240324101 Shelf-pizza
15A 241555401 Light Bulb
16A# 241513901 Socket-light
16A* 241537602 Harness-wiring
24 240355203 Shelf-"Spill-Safe", fixed
24A 240355205 Shelf-"Spill-Safe", fixed
24B 240350106 Shelf-"Spill-Safe", cantilever, sliding
25 240350702 Cover-crisper pan, upper
25* 240362101 Clip-slide, cover-crisper
25A 240350902 Cover-crisper pan, lower
26 240351005 Pan-crisper, upper
26* 240349801 Clip-slide, pan-crisper
26A 240362201 Control-humidity
27 240351205 Pan-crisper, lower
39 240367602 Trim-shelf, front
42 240356501 Track, meat pan hanger, RH
42A 240349701 Hanger-meat pan, LH
42A* 240349901 Block-meat pan rail, LH
42A* 240350001 Spring-meat pan rail
47 240350602 Insert-pan cover, glass
47A 240350603 Insert-pan cover, glass
49 240564401 Basket-sliding
49B 240530504 Basket-sliding, upper, full
51 240343002 Hanger-basket, RH
51A 240395502 Hanger-basket, RH
52 240343102 Hanger-basket, LH
52A 240395602 Hanger-basket, LH
62 240342805 Pan-meat
81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
97 240545303 Water Tank Assy, coiled tubing, front filter
100 240326302 Cover-water tank
101 218493100 Screw, hex washer head, 8-18AB x 1-3/4
109 240351301 Base-crisper light socket
123 215005100 Screw, hanger/rlr mtg, 8-10 x 0.438
126 241674401 Channel, auger mtg, LH
126 241674402 Channel, auger mtg, RH
136 240424501 Dispenser-can, white
140 240430501 Channel, wtr tube cover

Publication No: 5995454823 FRS6L7EFS0
11/05 10
CONTROLS
149
14
13
9
8
5
139
138
198
199
137
200
151
150
21
21A
23
115
53
81
101
15
16
20
N58TCAAAB4
81
81
17
81

FRS6L7EFS0 Publication No: 5995454823
# Functional Parts 11 11/05
* Non-Illustrated Parts
CONTROLS
POS. NO PART NO. DESCRIPTION
5 # 5308000010 Fan Blade, red, evaporator fan
8 215474201 Washer, "slinger", nylon, evap fan shaft
9 241563601 Bushing-motor mtg, (2)
13 240369702 Motor-evap fan
14 241517701 Clip, evap fan motor
15 241555401 Light Bulb
16 # 241513901 Socket-light
17 241608801 Box-control, front
17* 241663601 Harness-wiring, control box
20 241603907 Label-control box
21 241608401 Thermistor-refr
21A 241608501 Thermistor-frzr
23 # 5304452071 Control, board assy
23* 5303001259 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
53 241608901 Box-control
81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
101 241637201 Screw-Hex HD #8AB X 1 3/4
115 241600902 Damper Assy, w/seal
137 240396401 Filter, water, carbon cassette, front, with o'rings
137* 240396701 Bypass, water filter, Optional Part
138 240397301 Button-filter release
139 240396002 Base-water filter
139* 240526901 O-ring, wtr filter base
149 241563501 Shroud-fan orfice
149* 241528306 Seal, shroud
150 241505101 Insulation-water tube cover
151 241505001 Cover-water tube
198 240397401 Retainer
199 240397501 Rod
199* 240398401 Spring-filter release rod
200 240397601 Light Pipe
* 3205266 Edge Protector, wiring harness

Publication No: 5995454823 FRS6L7EFS0
11/05 12
SYSTEM
85
84
83
83
82
82
70
62
61
60
59B
59B
59A
59A
59A
59
58
57
55
45
45
44
41
34
34
32
30
29
26
N58CAAAAC7
25
25
23
23
22
21
16
15
14
6
4
3
1

FRS6L7EFS0 Publication No: 5995454823
# Functional Parts 13 11/05
* Non-Illustrated Parts
SYSTEM
POS. NO PART NO. DESCRIPTION
1 240333603 Condenser
3 218679607 Block-evap coil, styrofoam, (2)
4 # 218944001 Drier-filter, R134a System
6 241586801 Harness-wiring, machine compt
6* 241651601 Harness-wiring
6* 241663601 Harness-wiring, control box
14 # 240316107 Heater-defrost
15 # 5303918284 Evaporator Kit
16 5308000110 Strap-evap/heater, aluminum, (2)
21 5303918214 Thermostat-defrost, kit
22 240330008 Base-compressor mtg
22* 218252200 Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 Grommet-compr mtg, (4)
25 240491501 Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF
26 241637401 Pan-defrost
29 5303918314 Compressor, w/o electricals
30 # 241527803 Starter-TSD
32 241544101 Clamp, elec cont mtg, compressor, bale wire
34 240405201 Grommet, rubber, black, cond tube/wire
41 240555001 Screw-#8-32 X 3/8
44 215174700 Clamp-service cord, strain relief, galv steel
45 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
55 218909915 Capacitor, run, 220 VAC, 15 microfarad
57 240542601 Clip-wiring harness
58 240433201 Screw, hex washer head, 8-18 x 0.375
59 240315502 Shroud-cond fan
59* 240346701 Tape-foam seal, shroud
59* 240359401 Screw-fan shroud, (2)
59A 240346501 Bracket-support, cond mtr, (3)
59B 240346601 Grommet-bracket, (3)
60 # 241584301 Motor-condenser fan
61 241639501 Blade-condenser fan
62 240429402 Trough-drain
70 218990801 Bracket-evap/cvr mtg
82 5304418225 Roller, compressor base, rear, (2)
83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 Tube-drain, lower
85 240553501 Tube-connector, suction
* # 5303918213 Heat Exchanger Kit, suction line
* 5303918222 Hot Tube Repair Kit, service

Publication No: 5995454823 FRS6L7EFS0
11/05 14
ICE & WATER DISPENSER

FRS6L7EFS0 Publication No: 5995454823
# Functional Parts 15 11/05
* Non-Illustrated Parts
ICE & WATER DISPENSER
POS. NO PART NO. DESCRIPTION
1 218976409 Tube-water-DOOR
1* 218976901 Tube-water inlet, inlet valve, to ice maker
1* 218976903 Tube-water inlet, inlet valve, to filter
1* 218976907 Tube-water inlet, valve to door
1* 240561701 Seal-water inlet, inlet valve, to ice maker
4 5304422012 Cover-module, black
8 5304424549 Module-dispenser
10 5304426649 Spring-torsion
14 240323998 Label-module cover, black
17 5304421619 Screw
23 241649003 Drip Tray, black
24 5304433613 Actuator-water, black
24A 5304433610 Actuator-ice, black
30 5304421628 Door Assy-ice chute
30A 5304421624 Door center
30B 5304421625 Insulation-door
30C 5304421629 Door seal
35 5304421620 Damper-rotary
36 5304421824 Carrier
38 5304433619 Board-power
38A# 5304421617 Switch-micro, single pole, double throw
38C 5304441058 Board-control
38C* 5304430811 Harness-ribbon cable
39 5304421627 Pin-hinge
41 5304421829 Spring-actuator
43 215296300 Screw, plask h/l, #6 x 3/8
43* 240363401 Screw-#8-18 X 1/2, #6 hd plask
56 5304421830 Screw-micro switch, pan head
87 5304421622 Bearing Plate
87A 5304421621 Bearing Plate
90 5304421831 Light Pipe, reflector
91 5304421850 Light Pipe, reflector, short
* 5304426535 Insulator-electrical
* 5303918256 Dispenser heater kit

Publication No: 5995454823 FRS6L7EFS0
11/05 16

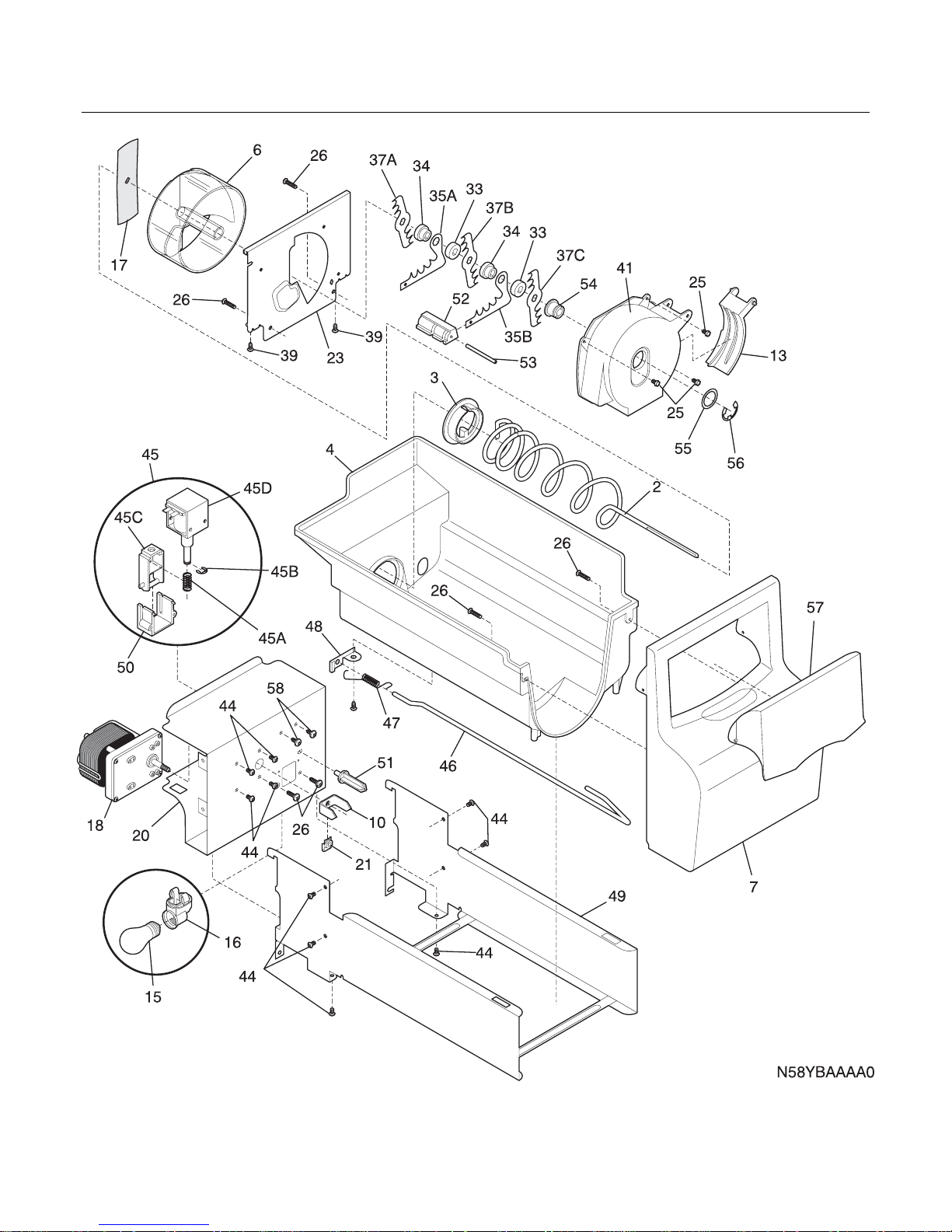

ICE CONTAINER

FRS6L7EFS0 Publication No: 5995454823
# Functional Parts 17 11/05
* Non-Illustrated Parts
ICE CONTAINER
POS. NO PART NO. DESCRIPTION
2 5304428402 Auger-ice
3 5304404343 Cam-drive
4 218815300 Container-ice, bucket only
6 5304404346 Drum-ice disp
7 218815400 Front-ice container
10 241624801 Bar-drive
13 5304404359 Gate
15 241555401 Light Bulb
16 241559801 Socket-light
17 5304404345 Drive Blade
18 # 5304440392 Motor-auger
18*# 240352601 Wiring Harness, internal, with plug
20 5304404332 Cover-motor
21 215285100 Nut-drive
23 5304404347 Plate-front
25 5304404362 Screw, hex washer head, 8-32T x 0.375
26 215503200 Screw, cr pan hd, 10-16 x 0.500
33 5304404351 Spacer
34 5304404349 Spacer
35A 5304404353 Fixed Blade, round
35B 5304404352 Fixed Blade, square
37A 5304404348 Blade, crusher #1
37B 5304404350 Blade, crusher #2
37C 5304404356 Blade, crusher #3
39 5304404365 Screw
41 5304404358 Housing-crusher
44 218359200 Screw, pan head, 8-32 x 0.250
45 # 5304404333 Solenoid Assy
45A 5304406816 Spring-solenoid
45B 5304406817 E-Ring-solenoid
45C 5304406818 Actuator-solenoid
45D 5304406819 Solenoid
46 5304404341 Control Rod
47 5304404342 Spring-control rod
48 5304404340 Bracket-control rod
48* 5304404364 Screw-bracket
49 5304404329 Rail Assy
50 5304404334 Guide-solenoid
51 5304404336 Rotation Stop
52 5304404354 Spacer-fixed blades
53 5304404355 Pin-spiral, fixed blades
54 5304404357 Nut-auger
55 5304404360 Washer
56 5304404361 E-ring
57 5304404363 Door-access
58 5304404331 Screw-solenoid
* 240323808 Ice Container Assy, w/moving parts
* 240507202 Deflector-ice container

Publication No: 5995454823 FRS6L7EFS0
11/05 18

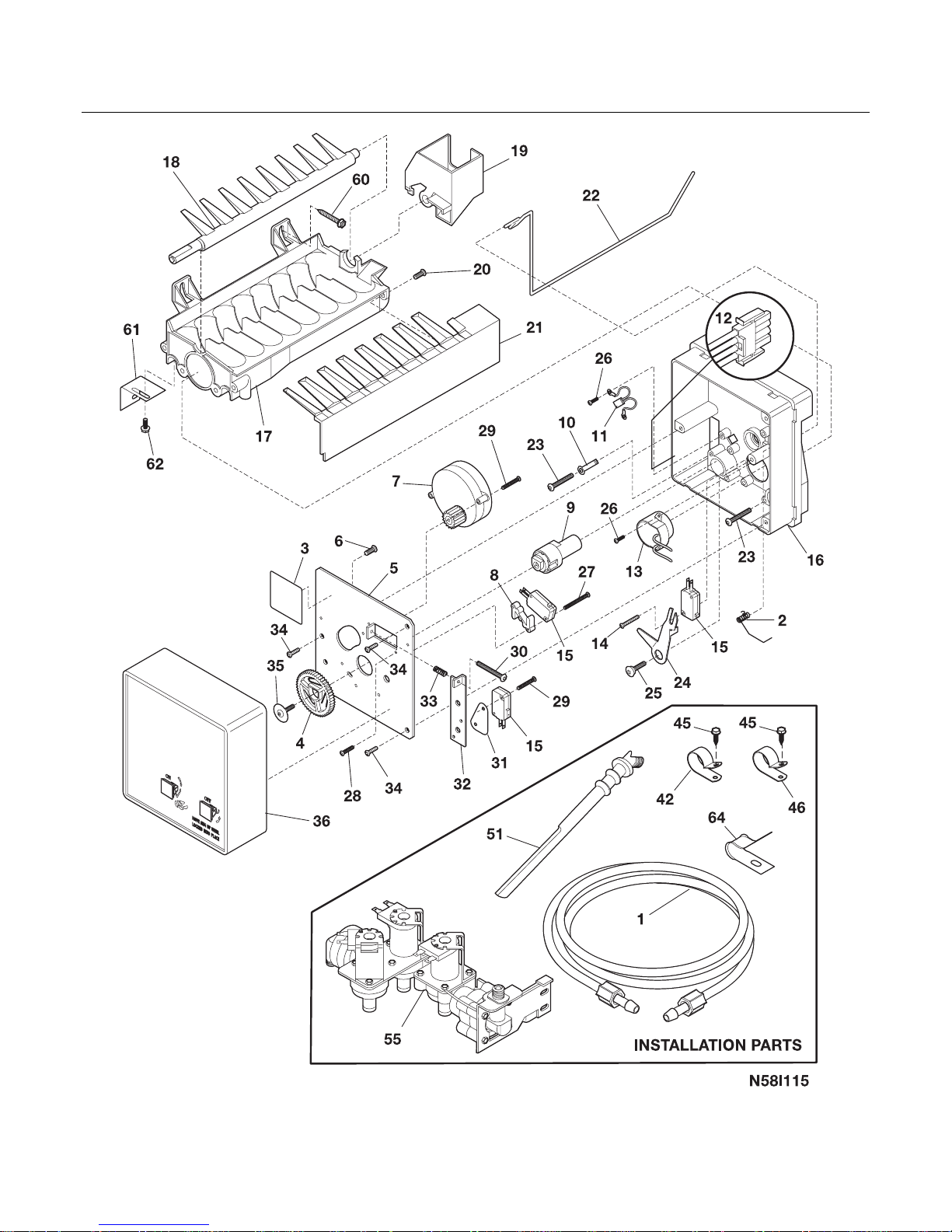

ICE MAKER

FRS6L7EFS0 Publication No: 5995454823
# Functional Parts 19 11/05
* Non-Illustrated Parts
ICE MAKER
POS. NO PART NO. DESCRIPTION
1 218976409 Tube-water-DOOR
1* 218976901 Tube-water inlet, inlet valve, to ice maker
1* 218976903 Tube-water inlet, inlet valve, to filter
1* 218976907 Tube-water inlet, valve to door
1* 240561701 Seal-water inlet, inlet valve, to ice maker
2 5304420650 Spring, shut-off arm
3 3206299 Label, ID plate
4 3206301 Gear
5 3206303 Plate-mounting
6 3206305 Screw-ground wire, 8-32 x 0.250
7 # 3206306 Motor-ice maker
8 3206312 Spacer-hold switch
9 3206313 Cam
10 3206315 Clamp
11 # 3206319 Thermal Cutoff, ICE MAKER, complete assy
12 # 240352601 Wiring Harness, internal, with plug
13 # 3206322 Thermostat Assy, ICE MAKER
14 5304420652 Screw, 4 x 0.750, switch mtg.
15 # 3206324 Switch, (3)
16 5304420653 Support, phenolic
17 # 5303320545 Mold-ice maker, Radius Cube, with heater
18 3206328 Ejector-ice
19 3206330 Bearing & Inlet
20 5304408581 Screw, 8-32 x 0.375
21 3206332 Ice Stripper
22 3206333 Shut-off Arm
23 5304408582 Screw, 8-32 x 0.875, mold-to-support, (3)
24 3206335 Lever Arm
25 3206336 Screw, 8-18 x 0.562, lever arm/sprt
26 5304420654 Screw-thermo/sprt, 4-24 x 0.375, (4)
27 3206338 Screw, 4-40 x 1.000, hold switch mtg, (2)
28 3206339 Screw-timing stop, 4-40 x 0.375
29 3206323 Screw, 4-24 x 0.750, (6)
30 3206341 Screw-timing adj, 8-32 x 1.000
31 3206342 Insulator
32 3206343 Plate-valve switch
33 5304408583 Spring-timing adj
34 5304420655 Screw, plazscrew, 8-10, (3)
35 5304408585 Screw
36 3206347 Cover-ice maker
42 5303001199 Clamp-wiring harness, strain relief, galv steel
42* 218515402 Clip, (2), tube mtg.
45 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
45* 5303001343 Screw, hex washer head, 8-15A x 0.500
46 5303001193 Clamp, .50 ID, steel, water tube
46* 5308000133 Clamp, nylon, .625 ID
51 240387101 Tube-water, ice mold fill, extension
55 # 240531101 Valve-water, triple solenoid
55* 218709100 Screw, hex head, 10-32 x 0.500
55* 240363601 Screw-shoulder
55* 240542901 Cap-water valve
60 5303207328 Screw, hex washer head, 8-15A x 1.000, (2)
61 218721500 Bracket-leveling, ICE MAKER
62 218737900 Screw-IM brkt mtg, hex washer head, 8-32D x 0.375
64 5303001549 Clamp, 0.31 ID, steel, copper wtr line
* 218888001 Adapter-water supply, nut & sleeve, compression ftg
* 240352411 Ice Maker, Radius Cube, 115 V, no instl parts

Publication No: 5995454823 FRS6L7EFS0
11/05 20
WIRING SCHEMATIC
