Frigidaire FRS6L9EF Instruction Manual

N58L00002.eps N58FFDEEA2.eps N58RFCBBC7.eps N58BAAAAB2.eps
N58SLDJEE1.eps N58TCAAAB4.eps N58CAAAAC9.eps N58XEAAAA1.eps
N58YDAAAC2.eps n58I115T1.eps W241689701.eps S241689701.eps
Product No. FRS6L9EFSS5
Series 134A
Color stain/gray
Volts 115
Wiring Diagram 241689701
Owner's Guide 241695101
Market North America
Energy Guide 241649229
Service Data Sheet 241636603
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995480141
06/12/05
(EN/SERVICE/DCS)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FRS6L9EF
Copyright ©All rights reserved.

Publication No: 5995480141 FRS6L9EFSS5
12/06 2
FREEZER DOOR
68
55
5
5
22C
22A
21A
13A
11
4B
N58FFDEEA2
1
18
79
79 80
80
4C

FRS6L9EFSS5 Publication No: 5995480141
# Functional Parts 3 12/06
* Non-Illustrated Parts
FREEZER DOOR
POS. NO PART NO. DESCRIPTION
1 # 241674806 Gasket-frzr door, black, magnetic
4B 240334202 Bin-door, frzr-upper
4C 240351702 Bin-door, frzr-dispenser
5 241545005 Bin-tilt out, tilt-out
11 241668500 Door-frzr, stainless, complete assy
13A 240581906 Door Stop, black, frzr
18 240536818 Handle-door, stainless steel, with insert, & set screw
21A 240598402 Screw, 10-32 x 1/2
22A 240328204 Bearing-hinge(frz), black, closer
22C 240328404 Bearing-hinge, black, upper
68 241525101 Chute-ice
79 218755402 Screw-set, 10-32 x 0.375
80 218755504 Screw-shoulder, #10 AB, handle mounting
* 240352102 Connector-water, straight
* 240552102 Harness-wiring, door
* 5303918256 Dispenser heater kit

Publication No: 5995480141 FRS6L9EFSS5
12/06 4
REFRIGERATOR DOOR

FRS6L9EFSS5 Publication No: 5995480141
# Functional Parts 5 12/06
* Non-Illustrated Parts
REFRIGERATOR DOOR
POS. NO PART NO. DESCRIPTION
2 # 241674805 Gasket-refr door, black, magnetic
4 240323002 Bin-door, pseudo, bottom
7 240326203 Door-dairy
12 240572601 Label-nameplate
13 240581905 Door Stop, black, ref
15 241534541 Door-refr, stainless steel, complete assy
18 240536818 Handle-door, stainless steel, with insert, & set screw
21A 240598402 Screw, 10-32 x 1/2
22 240328203 Bearing-hinge, black, closer
22B 240328404 Bearing-hinge, black, upper
27A 240396102 Retainer, tall bottle
49 240356410 Bin-door, gallon
79 218755402 Screw-set, 10-32 x 0.375
80 218755504 Screw-shoulder, #10 AB, handle mounting

Publication No: 5995480141 FRS6L9EFSS5
12/06 6
CABINET
58
58
40 66
40
92
92
38
38
37
37
14A
14
41
100
89
83
82
43
21C
21C
28
42
42
23
22
23
22
30A
30
72
10A
N58BAAAAB2
10
90
11
45
45
45
45
45
81
81
81
47

FRS6L9EFSS5 Publication No: 5995480141
# Functional Parts 7 12/06
* Non-Illustrated Parts
CABINET
POS. NO PART NO. DESCRIPTION
10 240435908 Cover-air duct
10A 240475911 Cover-evap coil, lower
11 5303208309 Plug-hole, factory test
14 240505801 Switch, light/lamp
14A 241547901 Switch-light/lamp, frzr door
21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 Plate-door closer
23 240402702 Screw-#10-32 x 1/4 flat hd
28 240335502 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603703 Bracket-lower hinge, ref
30A 241603704 Bracket-lower hinge
37 240337605 Trim-cabinet corner, silver, (2)
38 240327207 Bracket-upper hinge
40 240327007 Cover-upper hinge, black
41 241550801 Grommet-shelf mtg, 1.40" long
41* 241550701 Grommet-shelf mtg, .96" long
42 240578902 Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335005 Roller Assy, adjustable, front, (2)
45 241500303 Screw, hex washer head, 8-18AB x 0.500
47 240349402 Channel-shelf mtg, side, (2)
58 218781101 Screw, pan head, 8-18 x 0.625
66 5304424968 Damper Cover Assy
66* 240518802 Pin-push, push-in, plastic
72 240324411 Grille/Kickplate, black
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 Roller, compressor base, rear, (2)
83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241733905 Cover-access, w/label
90 218249808 Seal-coil cover
92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 Support, crisper cover, front, (4)
100* 240350802 Support, crisper cover, rear, (4)
* 240396801 Clamp, tube/wiring, nylon, black/natural
* 240479601 Plug, button, cab liner holes

Publication No: 5995480141 FRS6L9EFSS5
12/06 8

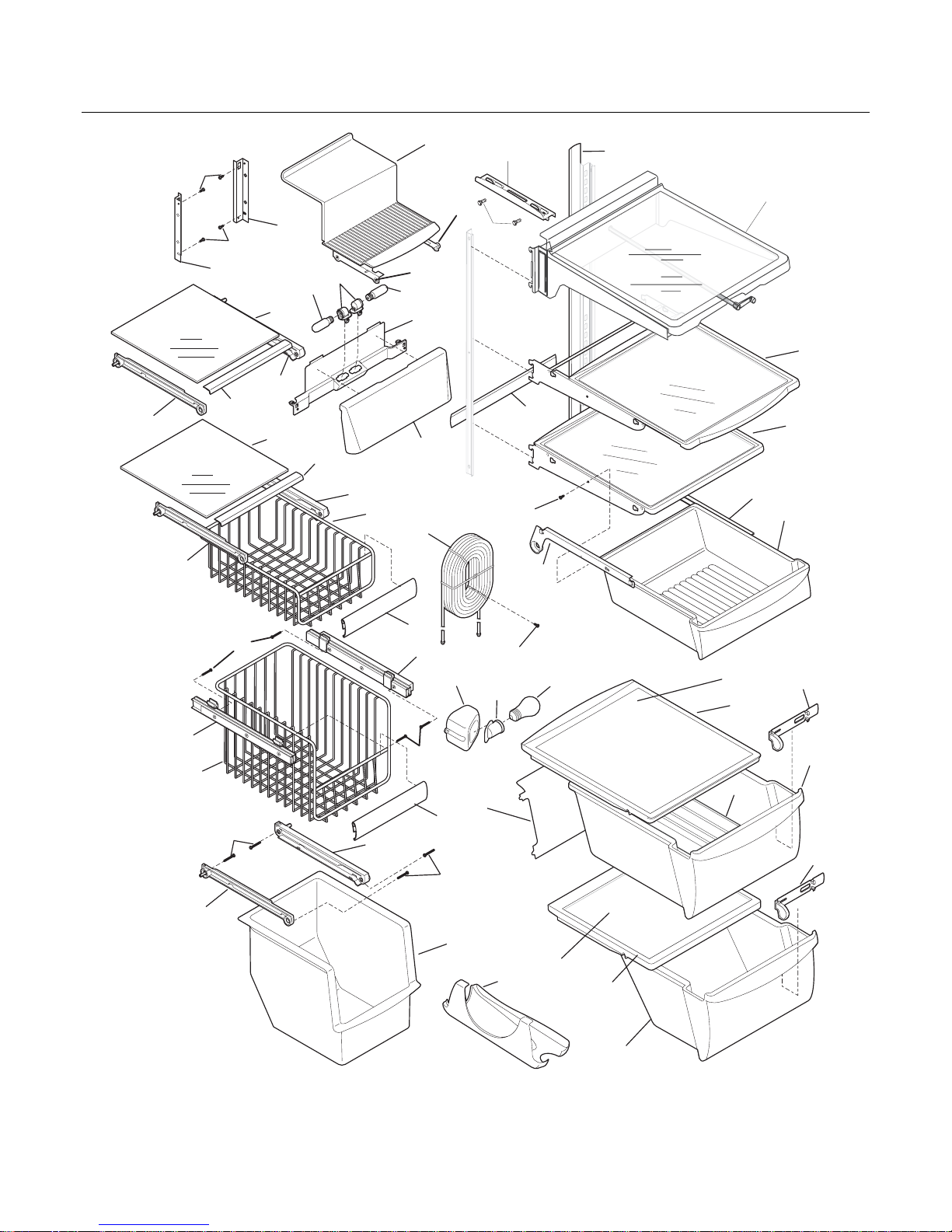

SHELVES
120
122
121
11
39
11A
16
15
141
142
140A
15
39
126
81
81
126
52
52A
109
51
51A
49B
49A
52B
51B
2
97
51
52
101
101
49
N58SLDJEE1
100
25A
27
47A
15A
16A
21
25
26
143
47
26A
27A
42A
62
123
42
24A
24
140
81
11C
24B
136
2
60
81

FRS6L9EFSS5 Publication No: 5995480141
# Functional Parts 9 12/06
* Non-Illustrated Parts
SHELVES
POS. NO PART NO. DESCRIPTION
2 241510604 Trim-basket
11 240350668 Shelf-freezer, glass, lower
11A 240350667 Shelf-freezer, glass, upper
11C 240324101 Shelf-pizza
15 241552801 Light Bulb
15A 241555401 Light Bulb
16 240590401 Socket-light
16* 241537504 Harness-wiring
16A 241513901 Socket-light
21 5304455658 Screw, hx wshr hd sems, 8-15A x 0.625, 21
24 240355203 Shelf-"Spill-Safe", fixed
24A 240350106 Shelf-"Spill-Safe", cantilever, sliding
24B 240424609 Shelf-"Spill-Safe", sliding, "Aspect", complete
25 240350703 Cover-crisper pan
25* 240362101 Clip-slide, cover-crisper
25A 240350902 Cover-crisper pan, lower
26 240351041 Pan-crisper, upper
26* 240349801 Clip-slide, pan-crisper
26* 241595202 Clip-slide, pan-crisper
26A 241638201 Control-humidity
26A* 241638101 Frame-humidity control
27 240351218 Pan-crisper, lower
27A 240362201 Control-humidity
39 240367602 Trim-shelf, front
42 240356501 Track, meat pan hanger, RH
42A 240349701 Hanger-meat pan, LH
42A* 240349901 Block-meat pan rail, LH
42A* 240350001 Spring-meat pan rail
47 240350602 Insert-pan cover, glass
47A 240350603 Insert-pan cover, glass
49 240564401 Basket-sliding
49A 240530502 Basket-sliding, upper, half
49B 240530504 Basket-sliding, upper, full
51 240343002 Hanger-basket, RH
51A 240395502 Hanger-basket, RH
51B 240579801 Hanger-basket, RH
52 240343102 Hanger-basket, LH
52A 240395602 Hanger-basket, LH
52B 240579802 Hanger-basket, LH
60 218362501 Screw, hex washer head, 8-18AB x 1.250, spacer, (2)
62 240342817 Pan-meat
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
97 240545307 Water Tank
100 240326302 Cover-water tank
101 218493101 Screw, hex washer head, 8-18AB x 1-3/4
109 240351301 Base-crisper light socket
120 241691901 Shelf-ice cream
121 241561001 Rail-ice cream shelf, LH
122 241692001 Rail-ice cream shelf, LH
123 215005101 Screw, hanger/rlr mtg, 8-10 x 7/16
126 241674401 Channel, auger mtg, LH

Publication No: 5995480141 FRS6L9EFSS5
12/06 10
SHELVES
120
122
121
11
39
11A
16
15
141
142
140A
15
39
126
81
81
126
52
52A
109
51
51A
49B
49A
52B
51B
2
97
51
52
101
101
49
N58SLDJEE1
100
25A
27
47A
15A
16A
21
25
26
143
47
26A
27A
42A
62
123
42
24A
24
140
81
11C
24B
136
2
60
81

FRS6L9EFSS5 Publication No: 5995480141
# Functional Parts 11 12/06
* Non-Illustrated Parts
SHELVES
POS. NO PART NO. DESCRIPTION
126 241674402 Channel, auger mtg, RH
136 241657701 Dispenser-can, white
140 240430501 Channel, wtr tube cover
140A 240430503 Channel, wtr tube cover
141 240585404 Bracket-light socket
142 240582701 Shield-light, deli pan
143 240423301 Divider-crisper pan
* 241649229 Label-Energyguide, ENERGY GUIDE

Publication No: 5995480141 FRS6L9EFSS5
12/06 12

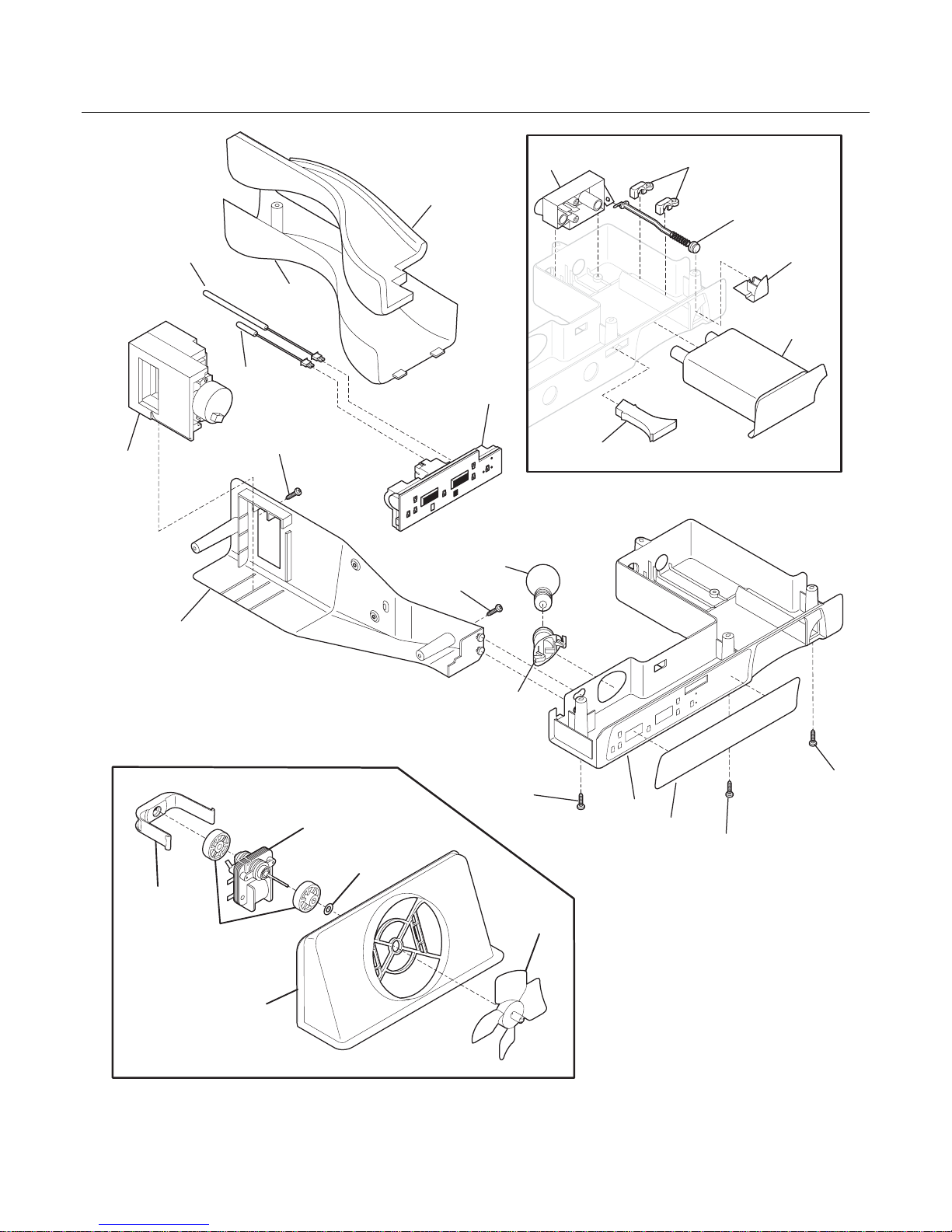

CONTROLS
149
14
13
9
8
5
139
138
198
199
137
200
151
150
21
21A
23
115
53
81
101
15
16
20
N58TCAAAB4
81
81
17
81

FRS6L9EFSS5 Publication No: 5995480141
# Functional Parts 13 12/06
* Non-Illustrated Parts
CONTROLS
POS. NO PART NO. DESCRIPTION
5 # 5308000010 Fan Blade, red, evaporator fan
8 215474201 Washer, "slinger", nylon, evap fan shaft
9 241563601 Bushing-motor mtg, (2)
13 240369702 Motor-evap fan
14 241517701 Clip, evap fan motor
15 241555401 Light Bulb
16 # 241513901 Socket-light
17 241608801 Box-control, front
17* 241737801 Harness-wiring, control box
20 241603907 Label-control box
21 # 241608402 Thermistor-refr
21A# 241608502 Thermistor-frzr
23 # 241739701 Control, electronic, w/seal
23* 5304455649 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
53 241608901 Box-control
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
101 241637202 Screw, #8AB x 1 3/4"
115 241600905 Damper Assy, w/seal
137 240396401 Filter, water, carbon cassette, front, with o'rings
137* 240396701 Bypass, water filter, Optional Part
138 240397301 Button-filter release
139 240396002 Base-water filter
139* 240526901 O-ring, wtr filter base
149 241563501 Shroud-fan orfice
149* 241528306 Seal, shroud
150 241505101 Insulation-water tube cover
151 241505001 Cover-water tube
198 240397401 Retainer
199 240397501 Rod
199* 240398401 Spring-filter release rod
200 240397601 Light Pipe

Publication No: 5995480141 FRS6L9EFSS5
12/06 14
SYSTEM
85
84
83
83
82
82
70
62
57
55
45
45
44
41
34
34
32
30
29
26
N58CAAAAC9
25
25
23
23
22
21
16
15
14
6
4
3
1
50
60
59
61
58

FRS6L9EFSS5 Publication No: 5995480141
# Functional Parts 15 12/06
* Non-Illustrated Parts
SYSTEM
POS. NO PART NO. DESCRIPTION
1 240333603 Condenser
3 218679607 Block-evap coil, styrofoam, (2)
4 218944001 Drier-filter, R134a System
6 # 241641401 Harness-wiring, machine compt
6* 241651601 Harness-wiring
6* # 241737801 Harness-wiring, control box
14 # 240316107 Heater-defrost
15 # 5303918284 Evaporator Kit
16 5308000110 Strap-evap/heater, aluminum, (2)
21 5303918214 Thermostat-defrost, kit
22 240330011 Base-compressor mtg
22* 218252201 Screw, #8 truss hd, 10-32CA x 0.500
23 241659701 Grommet, compressor
25 240491503 Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241697601 Pan-defrost
29 # 5303918329 Compressor, kit, w/electricals
30 # 241707701 Starter, PTC
32 241650901 Clamp, elec cont mtg, compressor
34 240405201 Grommet, rubber, black, cond tube/wire
41 240555002 Screw-#8-32 X 3/8
44 215174700 Clamp-service cord, strain relief, galv steel
45 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
50 241635501 Housing-control, apollo lighting
50* 241641501 Screw
55 218909913 Capacitor, run, 220 VAC, 15 microfarad
57 240542601 Clip-wiring harness
58 218897004 Screw, hex washer head, 8-32 x 0.375
59 5304430246 Bracket-cond motor assy
59* 240346701 Tape-foam seal, shroud
59* 240359403 Screw-fan shroud, (2)
60 # 240525402 Motor, condensor fan
61 # 240524101 Fan Blade, galv steel, condenser fan
62 240429402 Trough-drain
70 218990801 Bracket-evap/cvr mtg
82 5304418225 Roller, compressor base, rear, (2)
83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 Tube-drain, lower
85 241719501 Tube-connector, suction
* 5303918222 Hot Tube Repair Kit, service
* # 5303918328 Heat Exchanger Kit, suction line, service

Publication No: 5995480141 FRS6L9EFSS5
12/06 16

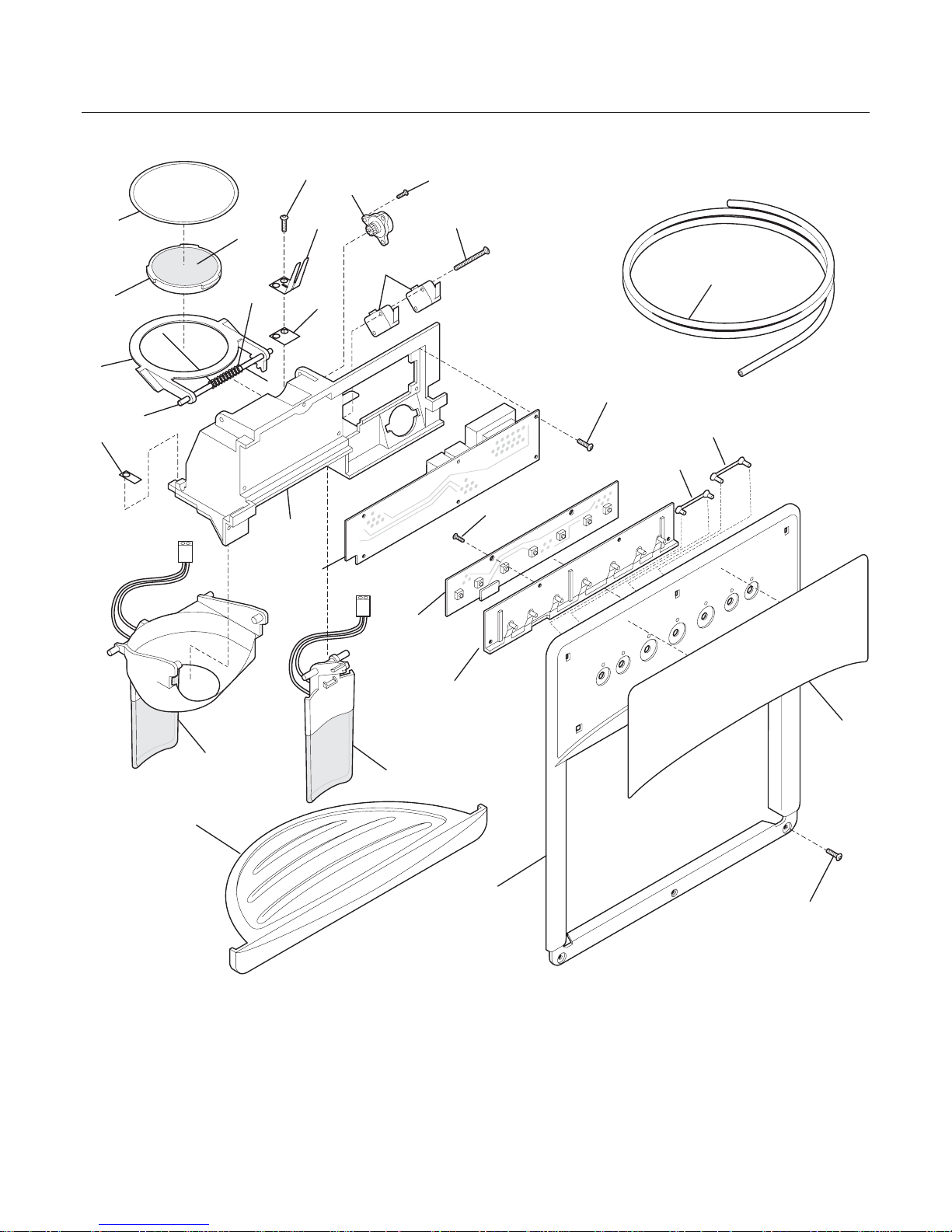

ICE & WATER DISPENSER
N58XEAAAA1
43
41
87
87A
35 17
56
38A
17
8
38
38C
1
17
24
24A
23
82
4
14
30
30A
30B
30C
39
10
90
91
36

FRS6L9EFSS5 Publication No: 5995480141
# Functional Parts 17 12/06
* Non-Illustrated Parts
ICE & WATER DISPENSER
POS. NO PART NO. DESCRIPTION
1 218976409 Tube, water, door
1* 218976418 Tube-water inlet, inlet valve, to filter
1* 218976419 Tube-water inlet, valve to door
1* 240561703 Seal-water inlet, inlet valve, to ice maker
1* 218976915 Tube-water inlet, inlet valve, to filter
4 241678703 Cover-module, black
8 241680503 Module-dispenser, black
10 241688901 Spring-torsion
14 241611206 Label-module cover, black
17 241679801 Screw
23 241649003 Drip Tray, black
24 241685703 Actuator-water, black
24A 241682303 Actuator-ice, black
30 241688401 Door Assy-ice chute
30A 241688501 Door center
30B 241688601 Insulation-door
30C 241688701 Door seal
35 241689301 Damper-rotary
36 241680301 Carrier
38 # 241708102 Board-power
38A# 241689101 Switch-micro, single pole, double throw
38C# 241708307 Board-control
38C* 241680001 Harness-ribbon cable
39 241688801 Pin-hinge
41 241689001 Spring-actuator
43 215296301 Screw, plask h/l, #6 x 3/8
56 241689201 Screw-micro switch, pan head
82 240363402 Screw-#8-18 X 1/2, #6 hd plask
87 241688302 Bearing Plate
87A 241688301 Bearing Plate
90 241680201 Light Pipe, reflector, long
91 241680101 Light Pipe, reflector, short
* 241686201 Insulator-electrical
* 5303918256 Dispenser heater kit

Publication No: 5995480141 FRS6L9EFSS5
12/06 18
ICE CONTAINER
45
4
45A
48
47
46
45B
45C
45D
50
18 20
15
16
44
44
44
51
26
26
26
26
10
21
26
43
43
43
49
7
3
2
23
39
70
39
6
17
53
52
37A 34
33
37B
34 33
37C
54
35A
35B
41
56
55
13
25
25
22
N58YDAAAC2
39

FRS6L9EFSS5 Publication No: 5995480141
# Functional Parts 19 12/06
* Non-Illustrated Parts
ICE CONTAINER
POS. NO PART NO. DESCRIPTION
2 241716101 Auger-ice
3 241685201 Cam-drive
4 241561302 Container-ice, bucket only
6 241685101 Drum-ice disp
7 241561401 Front-ice container
10 241624801 Bar-drive
13 241685301 Gate
15 241555401 Light Bulb
16 241559801 Socket-light
17 241684501 Drive Blade
18 # 241676202 Motor-auger, 115V
18* 241522901 Harness-wiring, icmkr/container
20 241675502 Cover-motor
21 215285101 Nut-drive
22 240597201 Sensor
22* 241716801 Clip
23 241684001 Plate-front
25 241690701 Screw, hex washer head, 8-32T x 0.375
26 215503205 Screw, cr pan hd, 10-16 x 0.500
33 241684801 Spacer
34 241689801 Spacer
35A 241684301 Fixed Blade, round
35B 241684201 Fixed Blade, square
37A 241684101 Blade, crusher #1
37B 241684102 Blade, crusher #2
37C 241684103 Blade, crusher #3
39 241690501 Screw
41 241685601 Housing-crusher
43 215005101 Screw, hanger/rlr mtg, 8-10 x 7/16
44 218359202 Screw, pan head, 8-32 x 0.250
45 241675701 Solenoid Assy, 115V
45A 241675901 Spring-solenoid
45B 241676001 E-Ring-solenoid
45C 241676101 Actuator-solenoid
45D 241675801 Solenoid, 115V
46 241716002 Control Rod
47 241731801 Spring-control rod
48 241684602 Bracket-control rod
49 241734501 Rail Assy
50 241675601 Guide-solenoid
51 241676301 Rotation Stop
52 241684901 Spacer-fixed blades
53 241690402 Pin-spiral, fixed blades
54 241685001 Nut-auger
55 241690306 Washer
56 241690201 E-ring
70 241504601 Plate-mounting
70* 241551602 Screw, hex head, 8-18B x 0.875
* 241561603 Ice Container Assy, w/moving parts

Publication No: 5995480141 FRS6L9EFSS5
12/06 20
ICE MAKER
45
51
64
6
6
7
6
16
67
20
21
19
22 66
60
18
17
3
2
23
23
34
34
34
11
29
30
27
9
15
15
31
32
36
4
35
5
37
8
1
55 INSTALLATION PARTS
N58I115T1
15
14
12
13
33
42
