Frigidaire FRS6R2F Instruction Manual

N58L00001.eps N58FAAAAB4.eps N58RAAABB5.eps N58BAAAAA0.eps
N58SJCACA24.eps N58TAAAAA7.eps N58CAAAAC1.eps N58XCAAAA2.eps
N58YCAAAA3.eps N58I1151.eps W241708401.eps S241708401.eps
Product No. FRS6R2FB0 FRS6R2FB1
Series R134a R134a
Color black black
Volts 115 115
Wiring Diagram 241708401 241708401
Owner's Guide 241812900 241812900
Market North America North America
Energy Guide 241615437 241615437
Service Data Sheet 240389629 240389629
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995491981
07/06/04
(EN/SERVICE/RLF)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FRS6R2F
Copyright ©All rights reserved.

Publication No: 5995491981 FRS6R2F
06/07 2
FREEZER DOOR

FRS6R2F Publication No: 5995491981
# Functional Parts 3 06/07
* Non-Illustrated Parts
FREEZER DOOR
Model Index: AFRS6R2F (FRS6R2FB0)
BFRS6R2F (FRS6R2FB1)
POS. NO PART NO. DESCRIPTION
1 # 241674806 A B Gasket-frzr door, black, magnetic
4A 240334201 A B Bin-door, frzr-upper
4B 240351601 A B Bin-door
11 241615175 A B Door-frzr, black, complete assy
13A 240581906 A B Door Stop, black, frzr
18 218762703 A B Handle-door, black
21A 240598402 A B Screw, 10-32 x 1/2
21C 218781101 A B Screw, pan head, 8-18 x 0.625
22A 240328204 A B Bearing-hinge(frz), black, closer
22C 240328404 A B Bearing-hinge, black, upper
37A 215870636 A B Trim-handle, 2.47", black, w/satin AL band
37A* 218676004 A B Band-decorative, satin aluminum, handle trim
68 241525101 A B Chute-ice
* 240552101 A B Harness-wiring, door
* 240352102 A - Connector-water, straight
* 241806601 - B Connector-water, straight
* 5303918256 A B Dispenser heater kit

Publication No: 5995491981 FRS6R2F
06/07 4
REFRIGERATOR DOOR
21A
22
13
15
22B
2
49
49
4
4
21C
21C 37A
37A
18
N58RAAABB5

FRS6R2F Publication No: 5995491981
# Functional Parts 5 06/07
* Non-Illustrated Parts
REFRIGERATOR DOOR
Model Index: AFRS6R2F (FRS6R2FB0)
BFRS6R2F (FRS6R2FB1)
POS. NO PART NO. DESCRIPTION
2 # 241674805 A B Gasket-refr door, black, magnetic
4 240323001 A B Bin-door, pseudo, bottom
13 240581905 A B Door Stop, black, ref
15 241629345 A B Door-refr, black, complete assy
18 218762703 A B Handle-door, black
21A 240598402 A B Screw, 10-32 x 1/2
21C 218781101 A B Screw, pan head, 8-18 x 0.625
22 240328203 A B Bearing-hinge, black, closer
22B 240328404 A B Bearing-hinge, black, upper
37A 215870636 A B Trim-handle, 2.47", black, w/satin AL band
37A* 218676004 A B Band-decorative, satin aluminum, handle trim
49 240356401 A B Bin-door, gallon

Publication No: 5995491981 FRS6R2F
06/07 6
CABINET

FRS6R2F Publication No: 5995491981
# Functional Parts 7 06/07
* Non-Illustrated Parts
CABINET
Model Index: AFRS6R2F (FRS6R2FB0)
BFRS6R2F (FRS6R2FB1)
POS. NO PART NO. DESCRIPTION
10 240435912 A B Cover-air duct
10A 240475911 A B Cover-evap coil, lower
11 5303208309 A B Plug-hole, factory test
14 240505801 A B Switch, light/lamp
14A 241547901 A B Switch-light/lamp, frzr door
21C 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 A B Plate-door closer
23 240402702 A B Screw-#10-32 x 1/4 flat hd
28 240335502 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603703 A B Bracket-lower hinge, ref
30A 241603704 A B Bracket-lower hinge
37 240337603 A - Trim-cabinet corner, black, (2)
37 240337610 - B Trim-cabinet corner, black, (2)
38 240327207 A B Bracket-upper hinge
40 240327007 A B Cover-upper hinge, black
41 241550801 A B Grommet-shelf mtg, 1.40" long
41* 241550701 A B Grommet-shelf mtg, .96" long
42 240578902 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335005 A B Roller Assy, adjustable, front, (2)
45 241500301 A B Screw, hex washer head, 8-18AB x 0.500
47 218659500 A B Channel-shelf mtg, side, (2)
58 218781101 A B Screw, pan head, 8-18 x 0.625
66B 240374301 A B Diffuser-air
66B* 240518802 A B Pin-push, push-in, plastic
72 240324411 A B Grille/Kickplate, black
81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B Roller, compressor base, rear, (2)
83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241733902 A B Cover-access, w/label
89* 241500303 A B Screw, hex washer head, 8-18AB x 0.500
90 218249808 A B Seal-coil cover
91 240380101 A B Duct-ice maker
92 241710601 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 A B Support, crisper cover, front, (4)
100* 240350802 A B Support, crisper cover, rear, (4)
150 240368701 A B Guide-control bulb
* 240396801 A B Clamp, tube/wiring, nylon, black/natural
* 240479601 A B Plug, button, cab liner holes
* 5303321321 A B Paint, touch-up, black

Publication No: 5995491981 FRS6R2F
06/07 8

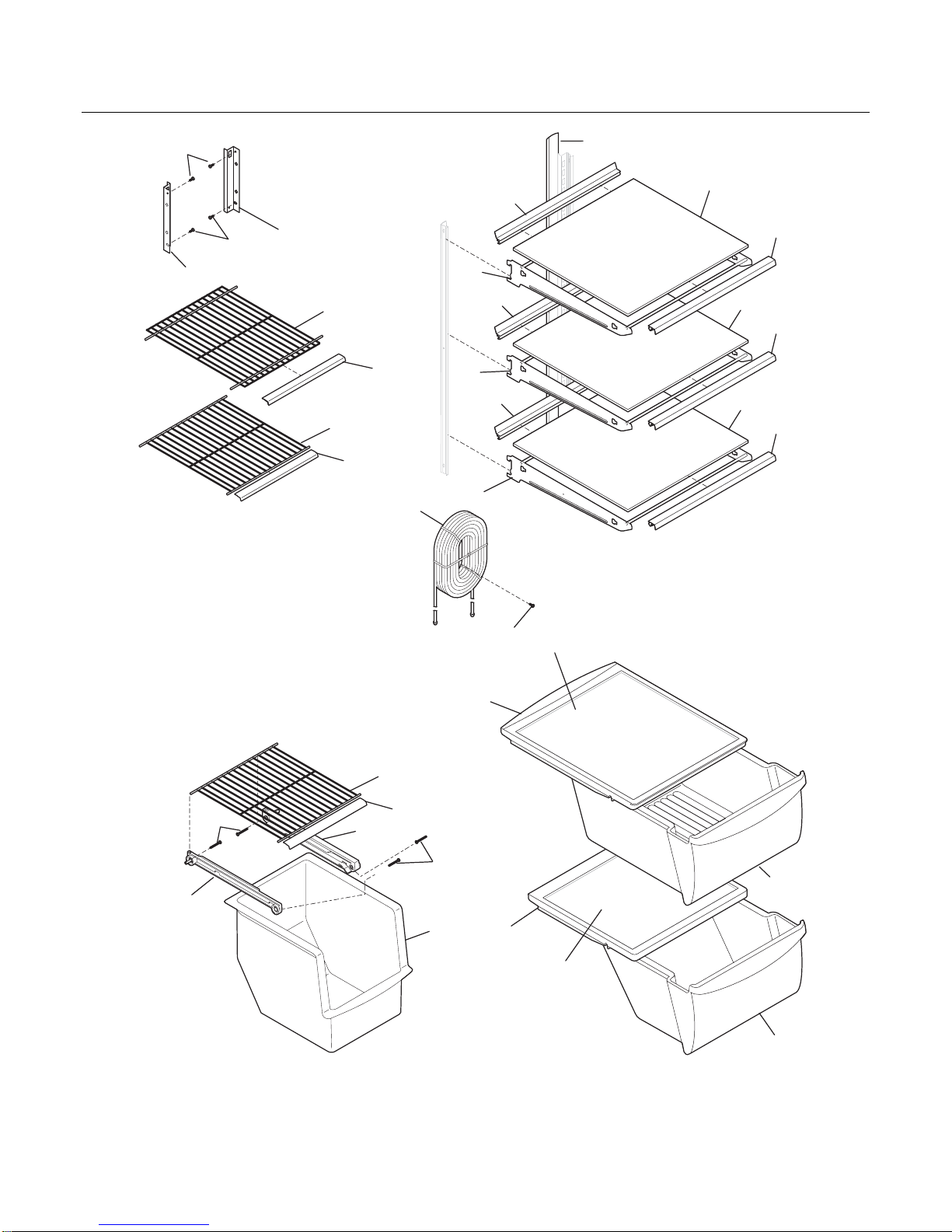

SHELVES
126
126
81
81
27
26
25A
25
47
47A
24
24
24
41
41
41
40
40
40
29
29
29
N58SJCACA24
97
21
11B
39B
11A
39B
140
101
52
11
39
51
101
49

FRS6R2F Publication No: 5995491981
# Functional Parts 9 06/07
* Non-Illustrated Parts
SHELVES
Model Index: AFRS6R2F (FRS6R2FB0)
BFRS6R2F (FRS6R2FB1)
POS. NO PART NO. DESCRIPTION
11 241657602 A B Shelf, flip up, wire
11A 241657502 A B Shelf, fixed, freezer
11B 241657504 A B Shelf, fixed, upper, freezer
21 5304455658 A B Screw, hx wshr hd sems, 8-15A x 0.625, 21
24 240373108 A B Frame-shelf, cantilever
25 240350702 A B Cover-crisper pan, upper
25A 240350902 A B Cover-crisper pan, lower
26 240351003 A B Pan-crisper, upper
27 240351203 A B Pan-crisper, lower
29 240357706 A B Trim-shelf, front
39 240430706 A B Trim-shelf, 11.21", front
39B 240430702 A B Trim-shelf, 12.39", front
40 240350623 A B Glass-shelf, 16.76" x 17.60"
41 240357806 A B Trim-shelf, rear
47 240350649 A B Insert-pan cover, glass
47A 240350603 A B Insert-pan cover, glass
49 240564401 A B Basket-sliding
51 240343002 A B Hanger-basket, RH
52 240343102 A B Hanger-basket, LH
81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
97 240545302 A B Water Tank Assy, coiled tubing, rear filter
101 218493101 A B Screw, hex washer head, 8-18AB x 1-3/4
126 241674401 A B Channel, auger mtg, LH
126 241674402 A B Channel, auger mtg, RH
140 240430501 A B Channel, wtr tube cover
* 241615437 A B Label, ENERGY GUIDE

Publication No: 5995491981 FRS6R2F
06/07 10

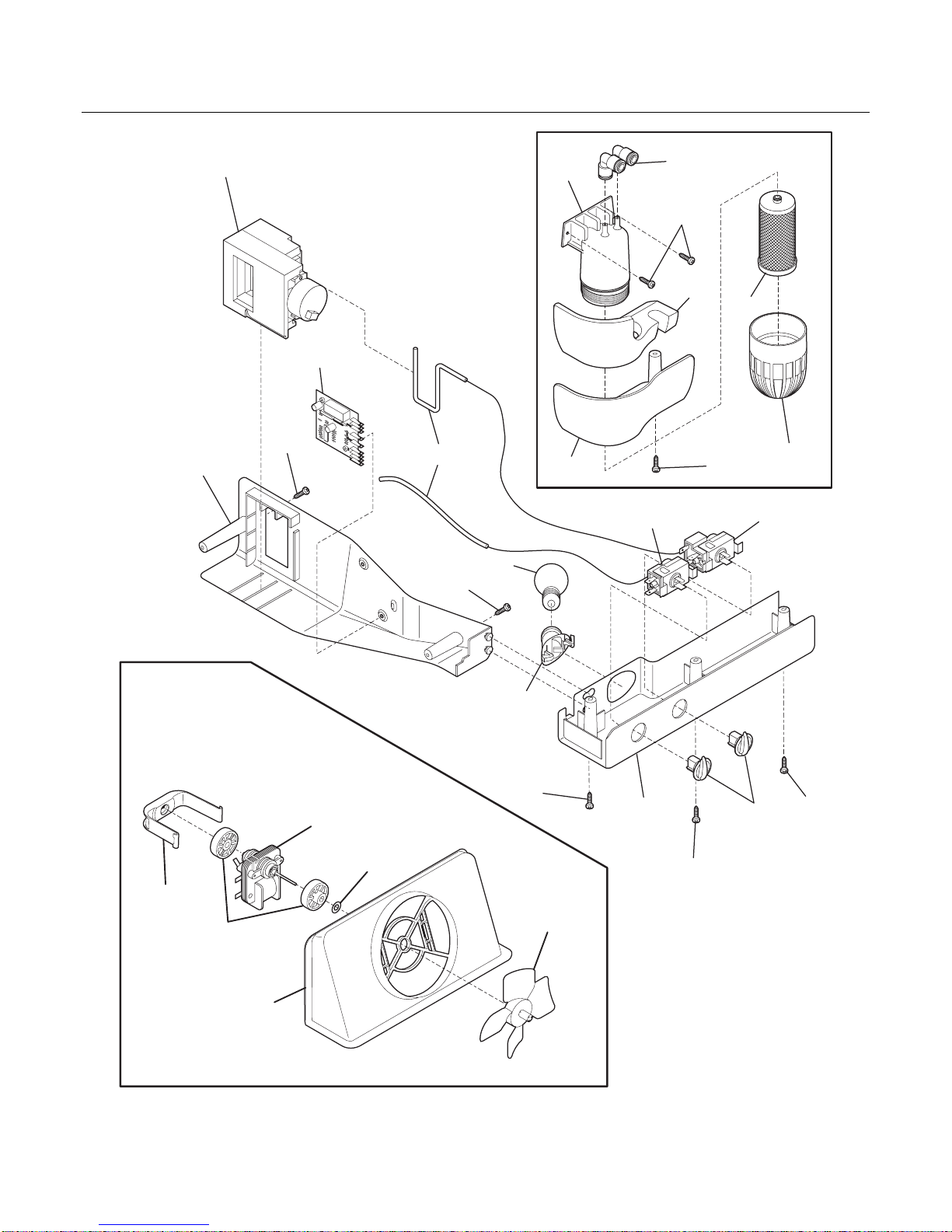

CONTROLS
140
139
45
138
137
81
151
150
115
23
22
53
81
101
15
16
21A 21
18
17
81
81
81
N58TAAAAA7
149
14
13
9
8
5

FRS6R2F Publication No: 5995491981
# Functional Parts 11 06/07
* Non-Illustrated Parts
CONTROLS
Model Index: AFRS6R2F (FRS6R2FB0)
BFRS6R2F (FRS6R2FB1)
POS. NO PART NO. DESCRIPTION
5 # 5308000010 A B Fan Blade, red, evaporator fan
8 215474201 A B Washer, "slinger", nylon, evap fan shaft
9 241563601 A B Bushing-motor mtg, (2)
13 # 240369702 A B Motor-evap fan
14 241517701 A B Clip, evap fan motor
15 240436702 A B Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature
16 # 241513901 A B Socket-light
17 240383301 A B Box-control, front
17*# 241735702 A B Harness-wiring, control box
18 240360801 A B Knob, temp control
21 # 241586501 A B Control-temperature
21A 5304421067 A B Control-temperature, frzr section
22 218660704 A B Tube, insulator, plastic
23 # 241736601 A B Control-defrost, adaptive timer, PC board
23* 5304455649 A B Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
45 241500303 A B Screw, hex washer head, 8-18AB x 0.500
53 240369501 A B Box-control
81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
101 241637202 A B Screw, #8AB x 1 3/4"
115 241600905 A B Damper Assy, w/seal
137# 240389101 A B Filter, water, carbon canister, rear, with o'rings
137* 218710300 A B Wrench-filter
138 240434401 A B Cup-water filter
138* 218904301 A B O-ring, wtr filter cup
139 240434301 A B Housing-water filtr
140 240545201 A B Elbow-water tube
149 241563501 A B Shroud-fan orfice
149* 241528306 A B Seal, shroud
150 240394102 A B Insulation-water filter cover
151 240376002 A B Cover-water filter

Publication No: 5995491981 FRS6R2F
06/07 12

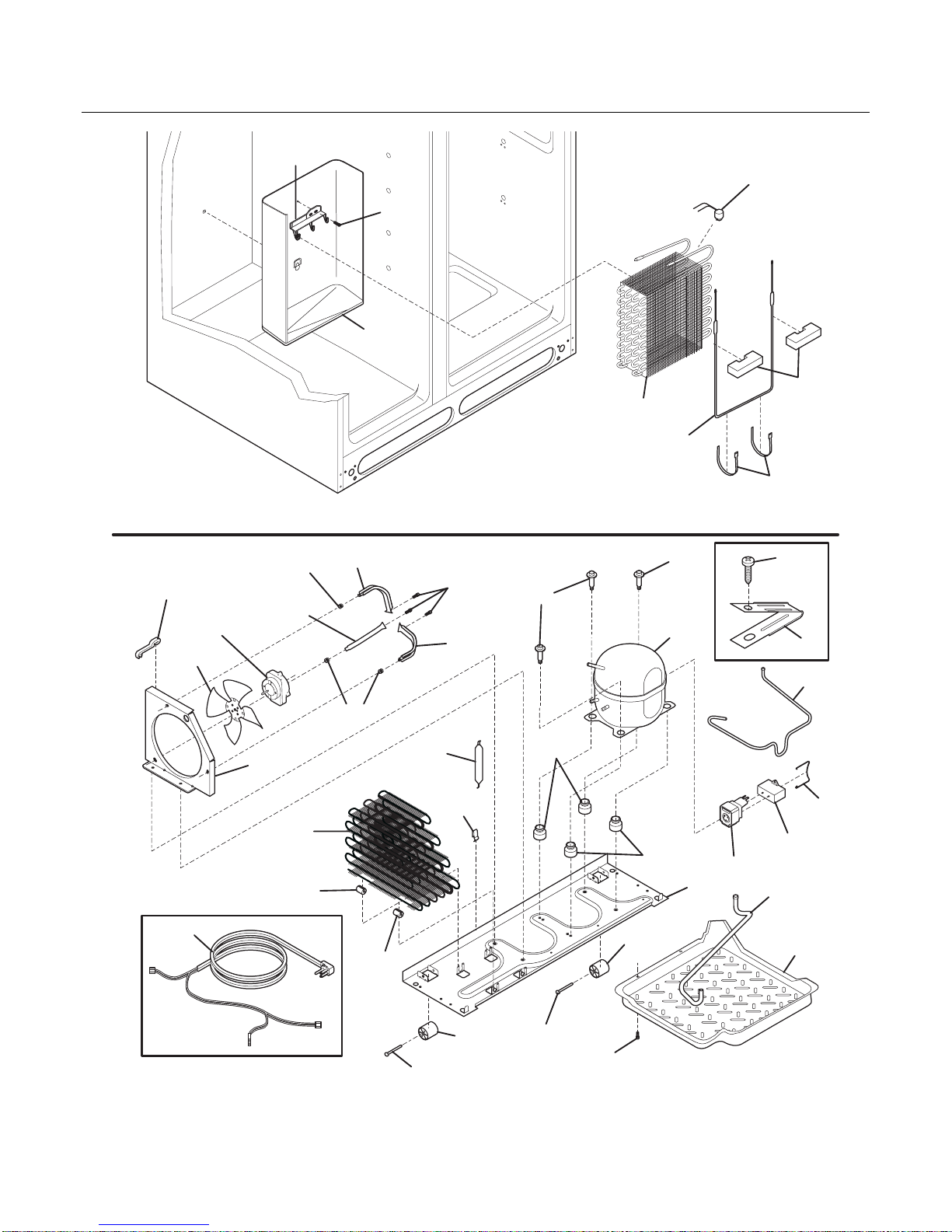

SYSTEM
86
85
84
83
83
82
82
70
62
61
60
59B
59B
59A
59A
59A
59
58
57
55
45
45
44
41
34
34
32
30
29
26
N58CAAAAC1
25
25
23
23
22
21
16
15
14
6
4
3
1

FRS6R2F Publication No: 5995491981
# Functional Parts 13 06/07
* Non-Illustrated Parts
SYSTEM
Model Index: AFRS6R2F (FRS6R2FB0)
BFRS6R2F (FRS6R2FB1)
POS. NO PART NO. DESCRIPTION
1 240333603 A B Condenser
3 218679607 A B Block-evap coil, styrofoam, (2)
4 # 218944001 A B Drier-filter, R134a System
6 241586801 A B Harness-wiring, machine compt
6* 241651601 A B Harness-wiring
6* # 241735702 A B Harness-wiring, control box
14 # 240316107 A B Heater-defrost
15 # 5303918284 A B Evaporator Kit
16 5308000110 A B Strap-evap/heater, aluminum, (2)
21 5303918214 A B Thermostat-defrost, kit
22 240330011 A B Base-compressor mtg
22* 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 A - Grommet-compr mtg, (4)
23 241659701 - B Grommet, compressor
25 240491503 A B Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241697601 A B Pan-defrost
29 # 5303918316 A - Compressor, w/electricals
29 # 5303918329 - B Compressor, kit, w/electricals
30 # 241524605 A - Starter
30 # 241707701 - B Starter, PTC
32 218973501 A - Clamp, elec cont mtg, compressor
32 241650901 - B Clamp, elec cont mtg, compressor
34 240405201 A B Grommet, rubber, black, cond tube/wire
41 240555002 A B Screw-#8-32 X 3/8
44 215174700 A B Clamp-service cord, strain relief, galv steel
45 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
55 218909913 A B Capacitor, run, 220 VAC, 15 microfarad
57 240542601 A B Clip-wiring harness
58 218897004 A - Screw, hex washer head, 8-32 x 0.375
58 240433203 - B Screw, hex washer head, 8-18 x 3/8
59 5304430246 A - Bracket-cond motor assy
59 240315502 - B Shroud-cond fan
59A 240346501 - B Bracket-support, cond mtr, (3)
59B 240346601 - B Grommet-bracket, (3)
59* 240346701 A B Tape-foam seal, shroud
59* 240359403 A B Screw-fan shroud, (2)
60 240525402 A - Motor, condensor fan
60 241584301 - B Motor-condenser fan
61 # 240524101 A - Fan Blade, galv steel, condenser fan
61 241639501 - B Blade-condenser fan
62 240429402 A B Trough-drain
70 218990801 A B Bracket-evap/cvr mtg
82 5304418225 A B Roller, compressor base, rear, (2)
83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 A B Tube-drain, lower
85 240346201 A - Tube-connector, suction
85 241719501 - B Tube-connector, suction
86 240409302 - B Spacer-cond tube, black
* # 5303918328 A B Heat Exchanger Kit, suction line, service
* 5303918222 A B Hot Tube Repair Kit, service

Publication No: 5995491981 FRS6R2F
06/07 14

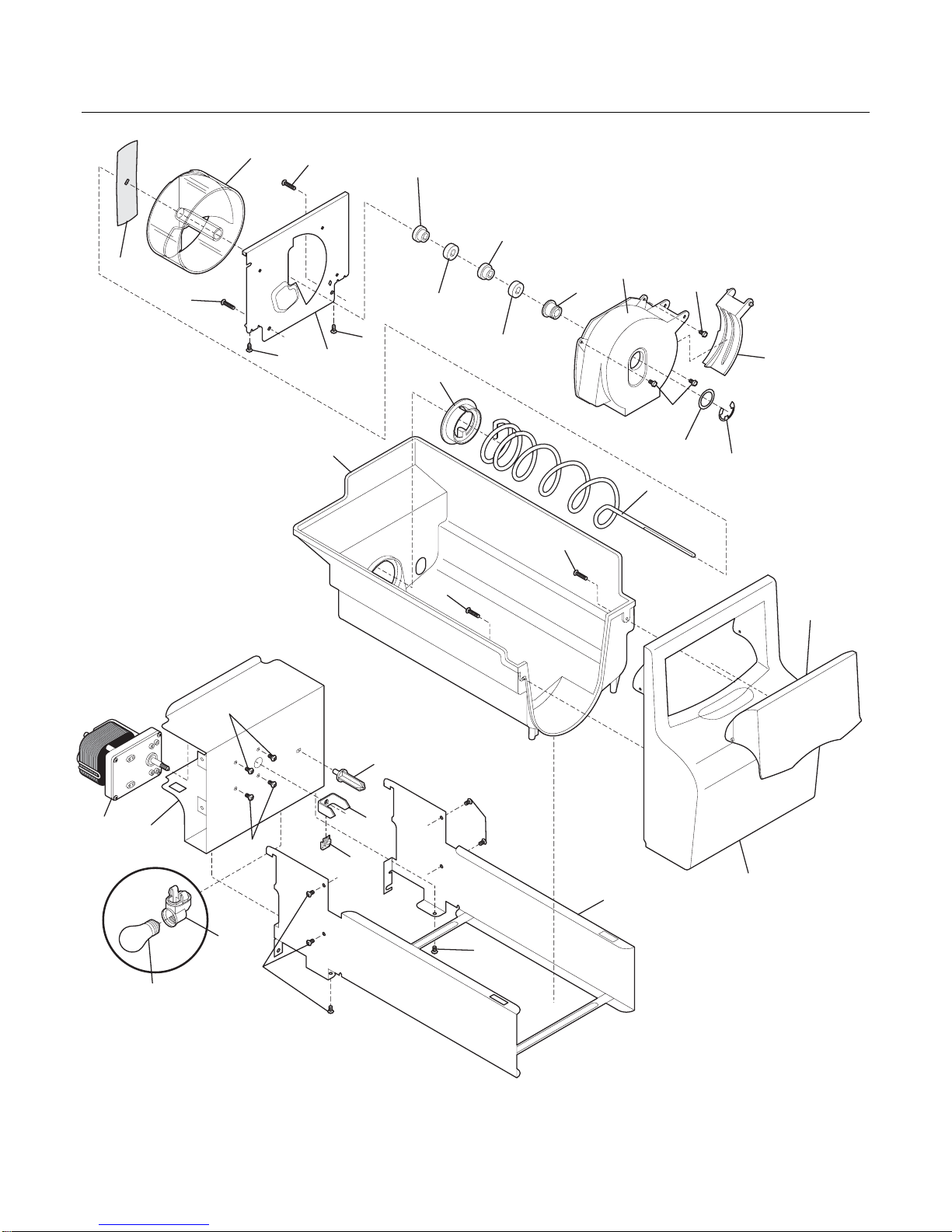

ICE & WATER DISPENSER
43
41
87
87A
35 17
56
38A
8
1
24
24A
23
82
N58XCAAAA2
4
14
30
30A
30B
30C
39
10

FRS6R2F Publication No: 5995491981
# Functional Parts 15 06/07
* Non-Illustrated Parts
ICE & WATER DISPENSER
Model Index: AFRS6R2F (FRS6R2FB0)
BFRS6R2F (FRS6R2FB1)
POS. NO PART NO. DESCRIPTION
1 218976409 A B Tube, water, door
1* 218976901 A B Tube, water inlet, valve to IM
1* 218976904 A B Tube-water inlet, valve to filter
1* 218976907 A B Tube-water inlet, valve to door
1* 240561701 A B Seal-water inlet, inlet valve, to ice maker
4 241678707 A B Cover-module, black
8 241680503 A B Module-dispenser, black
10 241688901 A B Spring-torsion
14 240323917 A B Label-module cover, black
17 241679801 A B Screw
23 241649003 A B Drip Tray, black
24 241682003 A B Actuator-water, black
24A 241681903 A B Actuator-ice, black
30 241688401 A B Door Assy-ice chute
30A 241688501 A B Door center
30B 241688601 A B Insulation-door
30C 241688701 A B Door seal
35 241689301 A B Damper-rotary
38A# 241689101 A B Switch-micro, single pole, double throw
38A* 241733101 A B Wiring Harness
39 241688801 A B Pin-hinge
41 241689001 A B Spring-actuator
43 215296301 A B Screw, plask h/l, #6 x 3/8
56 241689201 A B Screw-micro switch, pan head
82 240363402 A B Screw-#8-18 X 1/2, #6 hd plask
87 241688302 A B Bearing Plate
87A 241688301 A B Bearing Plate
* 218515403 A B Clip-grille
* 5303918256 A B Dispenser heater kit

Publication No: 5995491981 FRS6R2F
06/07 16
ICE CONTAINER
4
18 20
15
16
44
44
51
26
26
26
26
10
21
43
43
43
49 7
N58YCAAAA3
57
3
2
23
39
39
6
17
34
33
34
33
54
41
56
55
13
25
25

FRS6R2F Publication No: 5995491981
# Functional Parts 17 06/07
* Non-Illustrated Parts
ICE CONTAINER
Model Index: AFRS6R2F (FRS6R2FB0)
BFRS6R2F (FRS6R2FB1)
POS. NO PART NO. DESCRIPTION
2 241716101 A B Auger-ice
3 241685201 A B Cam-drive
4 241734001 A B Container-ice, bucket only
6 241685101 A B Drum-ice disp
7 241734201 A B Front-ice container
10 241726501 A B Bar-drive
13 241685301 A B Gate
15 240436702 A B Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature
16 241559801 A B Socket-light
17 241684501 A B Drive Blade
18 # 241676202 A B Motor-auger, 115V
18*# 240352601 A B Wiring Harness, internal, with plug
18#* 241731901 A B Harness, wiring
20 241734901 A B Cover-motor
21 215285101 A B Nut-drive
23 241684001 A B Plate-front
25 241690701 A B Screw, hex washer head, 8-32T x 0.375
26 215503205 A B Screw, cr pan hd, 10-16 x 0.500
33 241684801 A B Spacer
34 241689801 A B Spacer
39 241690501 A B Screw
41 241685601 A B Housing-crusher
43 215005100 A B Screw, hanger/rlr mtg, 8-10 x 0.438
44 218359202 A B Screw, pan head, 8-32 x 0.250
49 241734501 A B Rail Assy
51 241676301 A B Rotation Stop
54 241685001 A B Nut-auger
55 241690301 A B Washer
56 241690201 A B E-ring
57 241734101 A B Door-access
* 240507202 A B Deflector-ice container
* 240323812 A B Ice Container Assy, w/moving parts

Publication No: 5995491981 FRS6R2F
06/07 18
ICE MAKER

FRS6R2F Publication No: 5995491981
# Functional Parts 19 06/07
* Non-Illustrated Parts

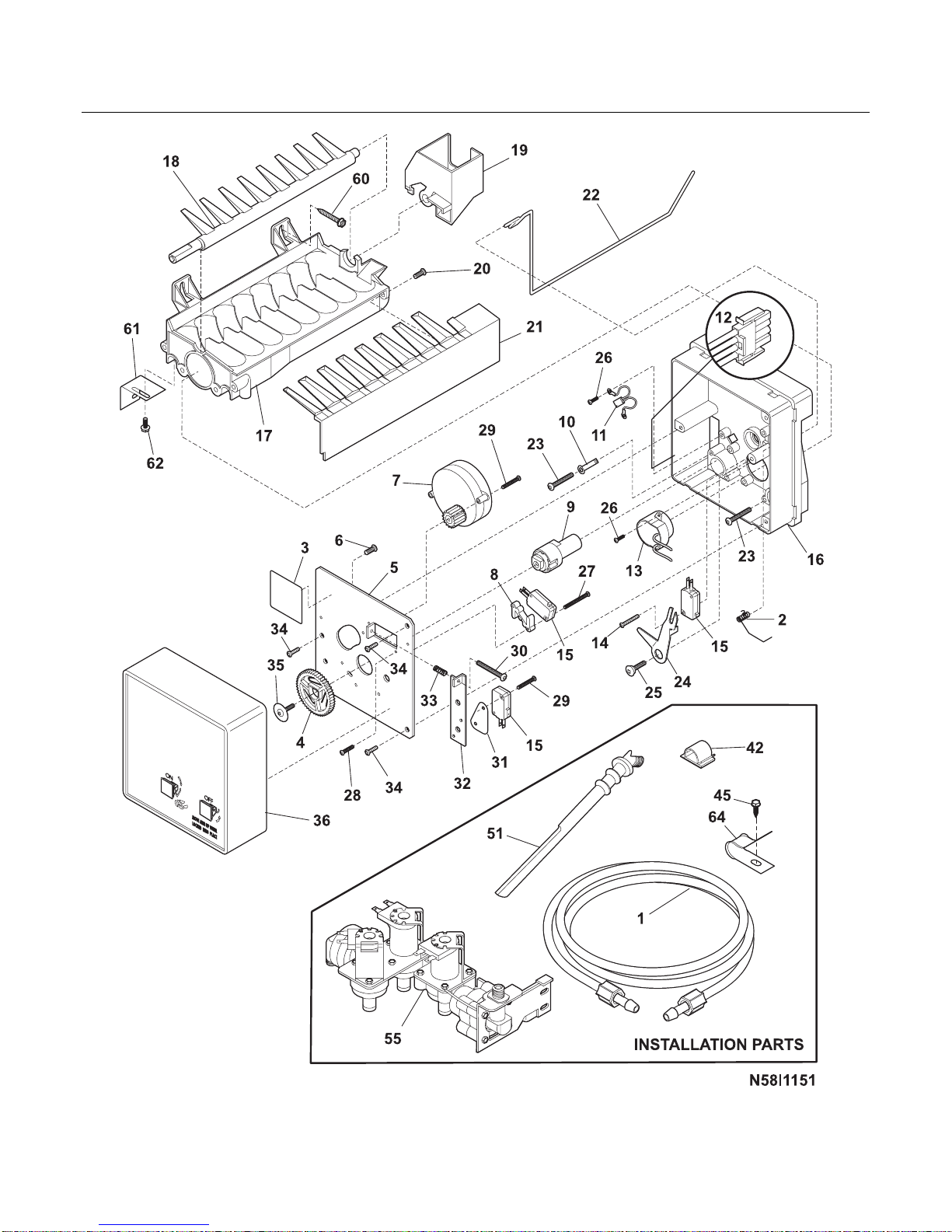

ICE MAKER
Model Index: AFRS6R2F (FRS6R2FB0)
BFRS6R2F (FRS6R2FB1)
POS. NO PART NO. DESCRIPTION
1 218976409 A B Tube, water, door
1* 218976901 A B Tube, water inlet, valve to IM
1* 218976904 A B Tube-water inlet, valve to filter
1* 218976907 A B Tube-water inlet, valve to door
1* 240561701 A B Seal-water inlet, inlet valve, to ice maker
2 5304456650 A B Spring-shutoff arm, ICE MAKER
3 5304456657 A B Nameplate
4 5304456658 A B Gear
5 5304456659 A B Plate-mounting
6 5304456691 A B Screw, M 3x20 #3, valve plate
7 # 5304445222 A B Motor-ice maker Svo
7* 5304445223 A B Spring Beam
8 5304456661 A B Spacer-hold switch
9 5304456662 A B Cam
10 5304456689 A B Retainer
11 # 5304456663 A B Thermal Cutoff, ICE MAKER
12 5304456664 A B Harness-wiring
13 5304456665 A B Thermostat, ICE MAKER
14 5304456666 A B Screw, M 3x20 #2, (6)
15 # 5304456667 A B Switch-micro, (3)
15* 5304456688 A B Terminal
16 5304456668 A B Support
17 5304456669 A B Mold-ice maker, w/therm cut off
18 5304456670 A B Ejector-ice
18*# 240352601 A B Wiring Harness, internal, with plug
19 5304456671 A B Bearing & Inlet, fill cup
20 5304455677 A B Screw, 8-32 x 3/8
21 5304456672 A B Ice Stripper
22 5304456673 A B Shut-off Arm
23 5304456674 A B Screw, M 4x25 #2, mold-to-support, (2)
24 5304456675 A B Lever Arm
25 5304456676 A B Screw, M 4x12.8 #2, lever arm/sprt
26 5304420654 A B Screw-thermo/sprt, 4-24 x 0.375, (4)
27 5304456677 A B Screw, M 3x25 #3, hold switch mtg, (2)
28 5304456660 A B Screw, M 4x6 #2
29 5304456678 A B Screw, M 3x12 #3, (2)
30 5304456679 A B Screw-timing adj, M 4x25 #3
31 5304456680 A B Insulator
32 5304456681 A B Plate-valve switch
33 5304456682 A B Spring, shut-off arm
34 5304456683 A B Screw, M 4x12 #2, (3)
35 5304456684 A B Screw
36 5304456685 A B Cover-ice maker
36* 5304456690 A B Label, on/off
42 218515403 A B Clip-grille
45 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
51 241523501 A B Tube-water, ice mold fill, extension
55 # 240531101 A B Valve-water, triple solenoid
55* 218709101 A B Screw, hex head, 10-32 x 0.500

Publication No: 5995491981 FRS6R2F
06/07 20
ICE MAKER
