Frigidaire FRT18KD4A User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRT18KD4AW0 FRT18KD4A R134a white 115
FRT18KD4AW2 FRT18KD4A R134a white 115
MARKET
North America
Publication No.
5995355384
010629
-EN/SERVICE/KHB
TOP MOUNT
REFRIGERATOR
Model No.
FRT18KD4A
©2001 White Consolidated Industries, Inc.
All rights reserved
FACTORY
PARTS CATALOG
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O. Box 212378, Augusta, GA 30917
WIRING DIAGRAM - 0= 240379006 & 2= 240379007
OWNER’S GUIDE - 240400103
SERVICE DATA SHEET - 0= 240379006 & 2= 240379007

06/01 2
Publication No. FRT18KD4A
5995355384
DOOR

# = Fast-moving Parts 3 06/01
* = Non-Illustrated Parts
FRT18KD4A Publication No.
5995355384
A = FRT18KD4A (FRT18KD4AW0)
B = FRT18KD4A (FRT18KD4AW2)
POS. NO PART NO DESCRIPTION
1 # 240370905 A B Gasket-frzr door,white ,magnetic
2 # 240370906 A B Gasket-refr door,white ,magnetic
4 240331401 A B Rack-door,20.27" x 1.72"
5 240311502 A B Support-door rack,2 liter ,RH
5A 240331502 A B Support-door rack,gallon ,RH
6 240311501 A B Support-door rack,2 liter ,LH
6A 240331501 A B Support-door rack,gallon ,LH
7 240337703 A B Door-dairy,w/o graphics ,clear
8 240331402 A B Rack-door,17.99" x 1.72"
10 240381301 A B Plug-button,hinge brg hole ,white ,(2)
11 240412501 A B Door,frzr ,white ,complete assy
12 240415201 A B Label-nameplate,white
13 240312403 A B Door Stop,white ,ref
13A 240312404 A B Door Stop,white ,frzr
14 218915701 A B Plug-button,white
14A 240428301 A B Plug-button,screw type ,white
15 240412601 A B Door,refr ,white ,complete assy
18A 218428121 A B Handle-door,gray ,w/block & screw
21 240383401 A B Screw,truss hd quad ,#10-16 x .500
21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500
22 240311201 A B Bearing-hinge,natural color ,(8)
72 218397000 A B Button-handle mtg,dovetail
73 218396700 A B Block-handle mtg,dovetail
74 215503200 A B Screw,cr pan hd ,10-16 x 0.500
96 240345501 A - Plug-foam hole,white
96 240345503 - B Plug-foam hole,white
DOOR

06/01 4
Publication No. FRT18KD4A
5995355384

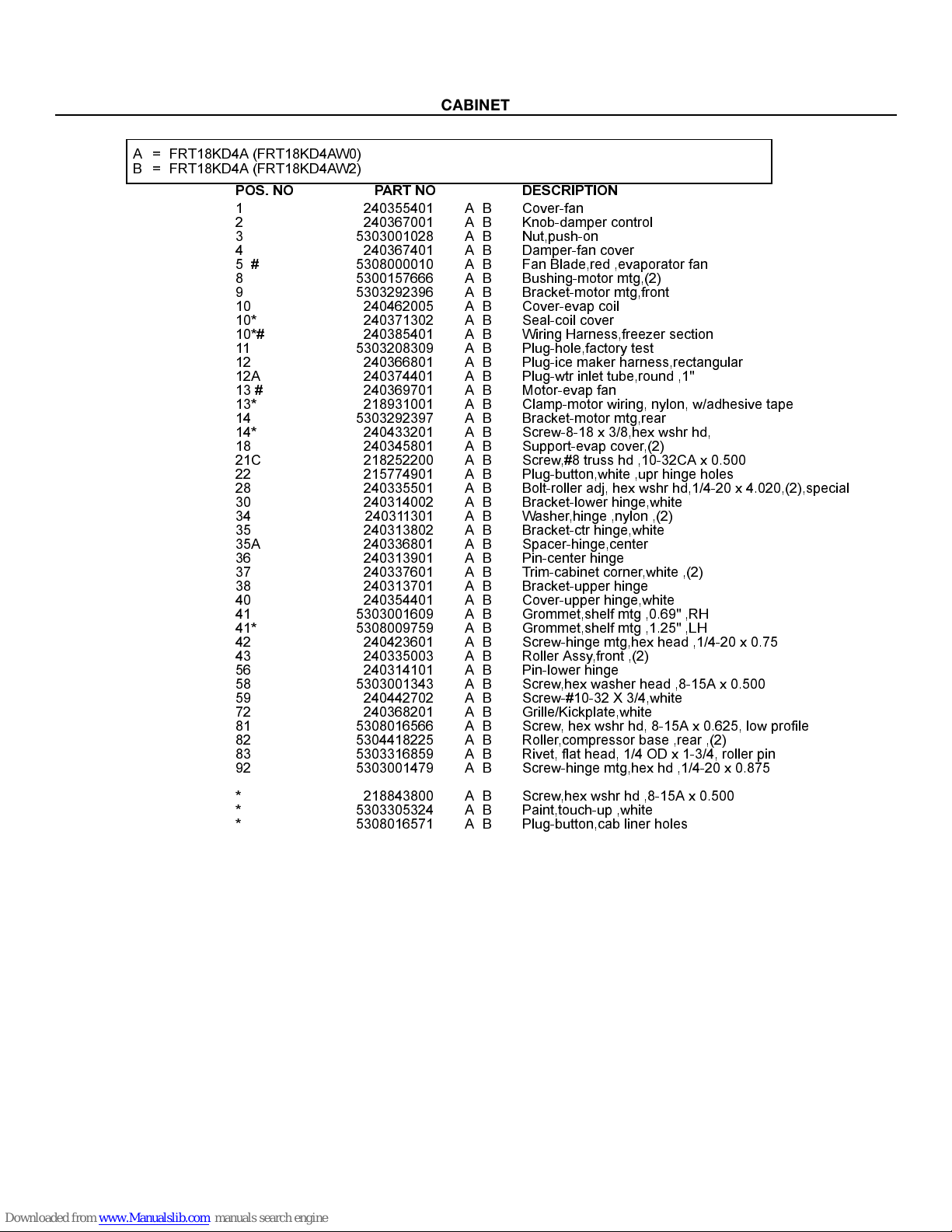

CABINET

# = Fast-moving Parts 5 06/01
* = Non-Illustrated Parts
FRT18KD4A Publication No.
5995355384
A = FRT18KD4A (FRT18KD4AW0)
B = FRT18KD4A (FRT18KD4AW2)
POS. NO PART NO DESCRIPTION
1 240355401 A B Cover-fan
2 240367001 A B Knob-damper control
3 5303001028 A B Nut,push-on
4 240367401 A B Damper-fan cover
5 # 5308000010 A B Fan Blade,red ,evaporator fan
8 5300157666 A B Bushing-motor mtg,(2)
9 5303292396 A B Bracket-motor mtg,front
10 240462005 A B Cover-evap coil
10* 240371302 A B Seal-coil cover
10*# 240385401 A B Wiring Harness,freezer section
11 5303208309 A B Plug-hole,factory test
12 240366801 A B Plug-ice maker harness,rectangular
12A 240374401 A B Plug-wtr inlet tube,round ,1"
13 # 240369701 A B Motor-evap fan
13* 218931001 A B Clamp-motor wiring, nylon, w/adhesive tape
14 5303292397 A B Bracket-motor mtg,rear
14* 240433201 A B Screw-8-18 x 3/8,hex wshr hd,
18 240345801 A B Support-evap cover,(2)
21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500
22 215774901 A B Plug-button,white ,upr hinge holes
28 240335501 A B Bolt-roller adj, hex wshr hd,1/4-20 x 4.020,(2),special
30 240314002 A B Bracket-lower hinge,white
34 240311301 A B Washer,hinge ,nylon ,(2)
35 240313802 A B Bracket-ctr hinge,white
35A 240336801 A B Spacer-hinge,center
36 240313901 A B Pin-center hinge
37 240337601 A B Trim-cabinet corner,white ,(2)
38 240313701 A B Bracket-upper hinge
40 240354401 A B Cover-upper hinge,white
41 5303001609 A B Grommet,shelf mtg ,0.69" ,RH
41* 5308009759 A B Grommet,shelf mtg ,1.25" ,LH
42 240423601 A B Screw-hinge mtg,hex head ,1/4-20 x 0.75
43 240335003 A B Roller Assy,front ,(2)
56 240314101 A B Pin-lower hinge
58 5303001343 A B Screw,hex washer head ,8-15A x 0.500
59 240442702 A B Screw-#10-32 X 3/4,white
72 240368201 A B Grille/Kickplate,white
81 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile
82 5304418225 A B Roller,compressor base ,rear ,(2)
83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
92 5303001479 A B Screw-hinge mtg,hex hd ,1/4-20 x 0.875
* 218843800 A B Screw,hex wshr hd ,8-15A x 0.500
* 5303305324 A B Paint,touch-up ,white
* 5308016571 A B Plug-button,cab liner holes
CABINET

06/01 6
Publication No. FRT18KD4A
5995355384
SHELVES

# = Fast-moving Parts 7 06/01
* = Non-Illustrated Parts
FRT18KD4A Publication No.
5995355384
A = FRT18KD4A (FRT18KD4AW0)
B = FRT18KD4A (FRT18KD4AW2)
POS. NO PART NO DESCRIPTION
10 215667501 A B Tray-ice,plastic
11 240358002 A B Shelf-freezer,full width
11* 5303299664 A B Spacer-shelf
12 240362501 A - Diffuser-air,top
12 240362502 - B Diffuser-air,top
13 240362601 A B Diffuser-air,bottom
13* 240392601 A B Seal-diffuser
14 # 5309918806 A - Switch-light/lamp
14 240505801 - B Switch-light/lamp
15 # 5303001179 A B Light Bulb/Lamp,40 W
16 241500701 A B Socket-light/lamp
17 240352701 A B Control Box
17*# 240388701 A B Wiring Harness,control box
18 240360801 A B Knob-control
21 # 5304418228 A - Control-temperature
21 # 5304421256 - B Control-temperature
22A 5303916855 A - Tube, sensor sleeve, plastic ,clear
22A 240468201 - B Tube, sensor sleeve, 31 inch, plastic, white
22B 218731105 A - Tube, PVC, white, @ air diffuser, insulator
23 # 215846606 A B Timer-defrost, 60 Hz, 120 V, 10 hour/30 min
23* 5303001259 A B Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
24 240360905 A B Shelf,sliding ,wire
25 240364701 A B Cover-crisper pan,w/ beam ,less insert
26 240337101 A B Pan-crisper,white ,(2) ,no graphics
28 3201150 A B End Cap-shelf,protector ,frzr shelf
30 240361801 A B Hanger-meat pan,drop thru
31 240354203 A B Pan-meat,w/o graphics ,clear
47 240350608 A B Insert-pan cover,23.82" x 15.50" ,glass
81 5308016566 A B Screw, hex washer hd, 8-15A x 0.625, low profile
SHELVES

06/01 8
Publication No. FRT18KD4A
5995355384
SYSTEM

# = Fast-moving Parts 9 06/01
* = Non-Illustrated Parts
FRT18KD4A Publication No.
5995355384
A = FRT18KD4A (FRT18KD4AW0)
B = FRT18KD4A (FRT18KD4AW2)
POS. NO PART NO DESCRIPTION
1 # 240406401 A B Condenser,static
1* 5303208866 A B Spacer-cond tube,black
1* 240405201 A B Grommet, mounting, rubber, black, holds tube/wire
2 5308000296 A B Bracket,condenser mtg ,(4)
2* 5308009617 A B Washer,ext tooth lock ,#10 ,grounding
4 # 218944001 A B Drier-filter,R134a System
6 # 240375401 A B Wiring Harness, mach compt, w/service cord
6* # 240385401 A B Wiring Harness,freezer section
6* # 240388701 A B Wiring Harness,control box
14 # 5303918208 A B Defrost Heater Kit
15 # 5303918250 A B Evaporator Kit
16 5308000110 A B Strap-evap/heater,aluminum ,(2)
17 240434002 A B Trough-drain
18 240362301 A B Insulation Block,RH
20 240362401 A B Insulation Block,LH
21 # 5303918202 A B Thermostat-defrost,kit
22 240330001 A B Plate-compr mtg
22* 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500
23 216498900 A B Grommet,compressor
25 240420301 A B Screw,shoulder typ CF,1/4-28 x 0.965,hex wshr hd
26 240346901 A B Pan-defrost drain
27 5303001348 A B Nut,lock ,1/4-20 ,drain pan mtg
28 5303916001 A B Pan Retainer Kit,Service
29 # 5303918233 A B Compressor,R134a ,w/ electricals
30 # 218721113 A B Starter-PTC
32 218740800 A B Clamp,elec cont mtg ,compressor
41 5308000039 A B Screw, hex wshr hd, 8-32CA x 0.500, (7), serrated hd
44 5303001199 A B Clamp-wiring harness, strain relief, galv steel
45 5308016566 A B Screw,hex wshr hd, 8-15A x 0.625, low profile
55 # 218909901 A B Capacitor-run,220 VAC ,15 microfarad
57 240403601 A B Clip-wiring harness
82 5304418225 A B Roller,compressor base ,rear ,(2)
83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 240367101 A B Tube-drain,lower
85 240346202 A B Tube-connector,suction
* 240396801 A B Clamp,tube/wiring ,nylon ,black/natural
* # 5303918207 A B Heat Exchanger Kit,suction line
* # 5303918234 A B Hot Tube Repair Kit,Service
SYSTEM

06/01 10
Publication No. FRT18KD4A
5995355384
WIRING SCHEMATIC

# = Fast-moving Parts 11 06/01
* = Non-Illustrated Parts
FRT18KD4A Publication No.
5995355384
WIRING DIAGRAM
