Frigidaire FRT21C5A User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRT21C5AQ2 FRT21C5A R134a bisque 115
FRT21C5AW2 FRT21C5A R134a white 115
MARKET
North America
Publication No.
5995355251
010626
-EN/SERVICE/KHB
357
TOP MOUNT
REFRIGERATOR
Model No.
FRT21C5A
©2001 White Consolidated Industries, Inc.
All rights reserved
FACTORY
PARTS CATALOG
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O. Box 212378, Augusta, GA 30917
WIRING DIAGRAM - 240398801
OWNER’S GUIDE - 240400102
SERVICE DATA SHEET-0=240379004 1 = 240379005
06/01 2
Publication No. FRT21C5A
5995355251
DOOR
# = Fast-moving Parts 3 06/01
* = Non-Illustrated Parts
FRT21C5A Publication No.
5995355251
A = FRT21C5A (FRT21C5AQ2)
B = FRT21C5A (FRT21C5AW2)
POS. NO PART NO DESCRIPTION
1 # 240390702 A B Gasket-frzr door,white ,magnetic
2 # 240390701 A B Gasket-refr door,white ,magnetic
4 240331401 A B Rack-door,20.27" x 1.72"
5 240311502 A B Support-door rack,2 liter ,RH
5A 240331502 A B Support-door rack,gallon ,RH
6 240311501 A B Support-door rack,2 liter ,LH
6A 240331501 A B Support-door rack,gallon ,LH
7 240337703 A B Door-dairy,w/o graphics ,clear
8 240331402 A B Rack-door,17.99" x 1.72"
10 240381302 A - Plug-button,hinge brg hole ,bisque ,(2)
10 240381301 - B Plug-button,hinge brg hole ,white ,(2)
11 240450305 A - Door-frzr,bisque ,complete assy
11 240450301 - B Door-frzr,white ,complete assy
12 240415203 A - Label-nameplate,bisque
12 240415201 - B Label-nameplate,white
13 240312407 A - Door Stop,bisque ,ref
13 240312403 - B Door Stop,white ,ref
13A 240312408 A - Door Stop,bisque ,frzr
13A 240312404 - B Door Stop,white ,frzr
14 218915704 A - Plug-button,bisque
14 218915701 - B Plug-button,white
14A 240428302 A - Plug-button,screw type ,bisque
14A 240428301 - B Plug-button,screw type ,white
15 240450405 A - Door-refr,bisque ,complete assy
15 240450401 - B Door-refr,white ,complete assy
18A 218428119 A - Handle-door,bisque ,w/block & screw
18A 218428101 - B Handle-door,white ,w/block & screw
21 240383401 A B Screw,truss hd quad ,#10-16 x .500
21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500
22 240311201 A B Bearing-hinge,natural color ,(8)
72 218397000 A B Button-handle mtg,dovetail
73 218396700 A B Block-handle mtg,dovetail
74 215503200 A B Screw,cr pan hd ,10-16 x 0.500
96 240345503 A B Plug-foam hole,white
DOOR
06/01 4
Publication No. FRT21C5A
5995355251

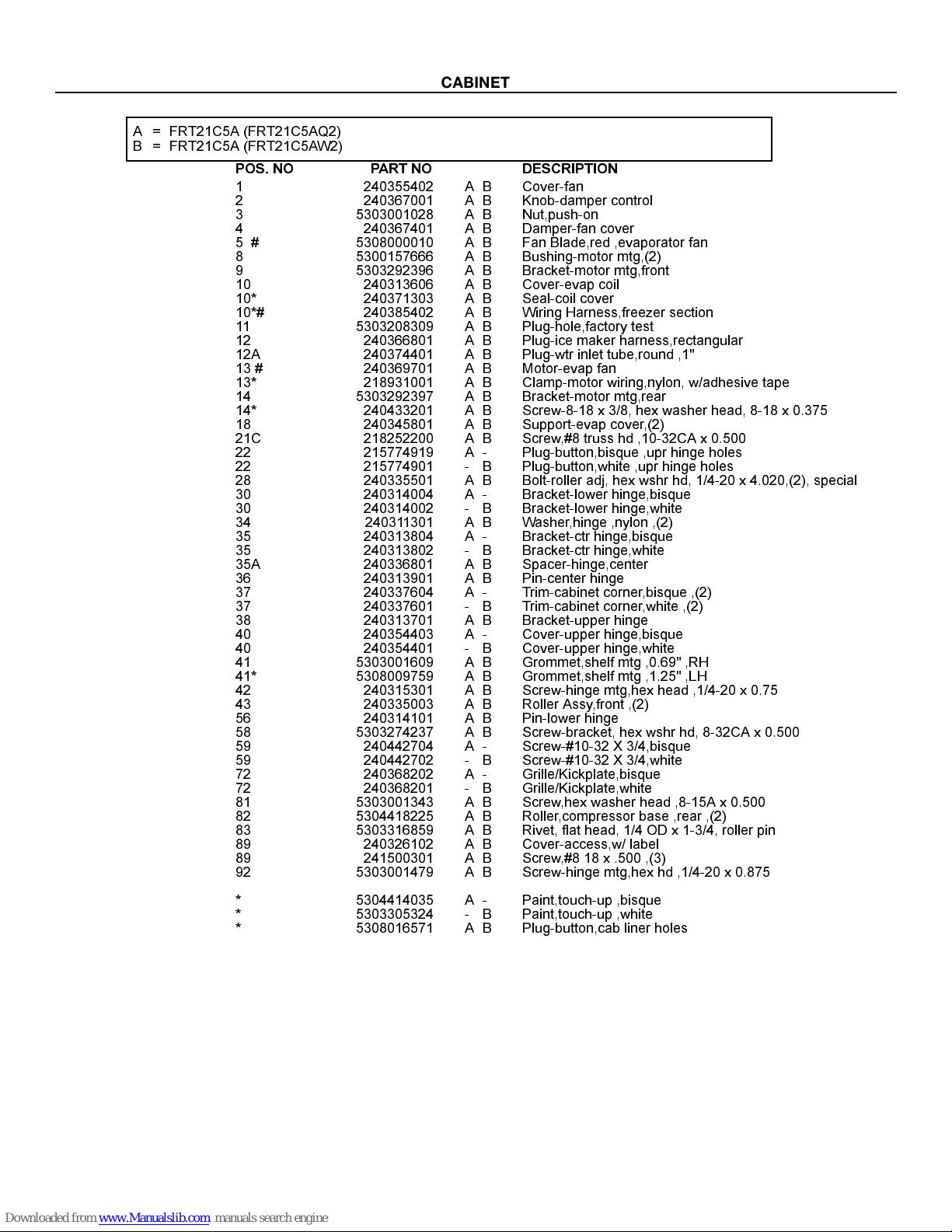

CABINET
# = Fast-moving Parts 5 06/01
* = Non-Illustrated Parts
FRT21C5A Publication No.
5995355251
A = FRT21C5A (FRT21C5AQ2)
B = FRT21C5A (FRT21C5AW2)
POS. NO PART NO DESCRIPTION
1 240355402 A B Cover-fan
2 240367001 A B Knob-damper control
3 5303001028 A B Nut,push-on
4 240367401 A B Damper-fan cover
5 # 5308000010 A B Fan Blade,red ,evaporator fan
8 5300157666 A B Bushing-motor mtg,(2)
9 5303292396 A B Bracket-motor mtg,front
10 240313606 A B Cover-evap coil
10* 240371303 A B Seal-coil cover
10*# 240385402 A B Wiring Harness,freezer section
11 5303208309 A B Plug-hole,factory test
12 240366801 A B Plug-ice maker harness,rectangular
12A 240374401 A B Plug-wtr inlet tube,round ,1"
13 # 240369701 A B Motor-evap fan
13* 218931001 A B Clamp-motor wiring,nylon, w/adhesive tape
14 5303292397 A B Bracket-motor mtg,rear
14* 240433201 A B Screw-8-18 x 3/8, hex washer head, 8-18 x 0.375
18 240345801 A B Support-evap cover,(2)
21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500
22 215774919 A - Plug-button,bisque ,upr hinge holes
22 215774901 - B Plug-button,white ,upr hinge holes
28 240335501 A B Bolt-roller adj, hex wshr hd, 1/4-20 x 4.020,(2), special
30 240314004 A - Bracket-lower hinge,bisque
30 240314002 - B Bracket-lower hinge,white
34 240311301 A B Washer,hinge ,nylon ,(2)
35 240313804 A - Bracket-ctr hinge,bisque
35 240313802 - B Bracket-ctr hinge,white
35A 240336801 A B Spacer-hinge,center
36 240313901 A B Pin-center hinge
37 240337604 A - Trim-cabinet corner,bisque ,(2)
37 240337601 - B Trim-cabinet corner,white ,(2)
38 240313701 A B Bracket-upper hinge
40 240354403 A - Cover-upper hinge,bisque
40 240354401 - B Cover-upper hinge,white
41 5303001609 A B Grommet,shelf mtg ,0.69" ,RH
41* 5308009759 A B Grommet,shelf mtg ,1.25" ,LH
42 240315301 A B Screw-hinge mtg,hex head ,1/4-20 x 0.75
43 240335003 A B Roller Assy,front ,(2)
56 240314101 A B Pin-lower hinge
58 5303274237 A B Screw-bracket, hex wshr hd, 8-32CA x 0.500
59 240442704 A - Screw-#10-32 X 3/4,bisque
59 240442702 - B Screw-#10-32 X 3/4,white
72 240368202 A - Grille/Kickplate,bisque
72 240368201 - B Grille/Kickplate,white
81 5303001343 A B Screw,hex washer head ,8-15A x 0.500
82 5304418225 A B Roller,compressor base ,rear ,(2)
83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 240326102 A B Cover-access,w/ label
89 241500301 A B Screw,#8 18 x .500 ,(3)
92 5303001479 A B Screw-hinge mtg,hex hd ,1/4-20 x 0.875
* 5304414035 A - Paint,touch-up ,bisque
* 5303305324 - B Paint,touch-up ,white
* 5308016571 A B Plug-button,cab liner holes
CABINET
06/01 6
Publication No. FRT21C5A
5995355251
SHELVES
# = Fast-moving Parts 7 06/01
* = Non-Illustrated Parts
FRT21C5A Publication No.
5995355251
A = FRT21C5A (FRT21C5AQ2)
B = FRT21C5A (FRT21C5AW2)
POS. NO PART NO DESCRIPTION
10 215667501 A B Tray-ice,plastic
11 240358003 A B Shelf-freezer
11* 5303299664 A B Spacer-shelf
12 240380202 A B Diffuser-air,top
13 240362601 A B Diffuser-air,bottom
13* 240392601 A B Seal-diffuser
14 240413601 A B Switch-light/lamp
15 240436701 A B Light Bulb/Lamp, A-15, 40 W, 120 V, miniature
16 241500701 A B Socket-light/lamp
17 240368101 A B Box-control
17*# 240388701 A B Wiring Harness,control box
18 240360801 A B Knob-control
21 # 5304421256 A B Control-temperature
22A 5303916855 A B Tube,sensor sleeve ,plastic ,clear
23 # 215846606 A B Timer-defrost, 60 Hz, 120 V, 10 hour/30 min
23* 5303001259 A B Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
24 240360904 A B Shelf,sliding ,wire
25 240364717 A B Cover-crisper pan
25B 240361202 A B Control-humidity
25C 240361301 A B Damper-humidity control
26 240343801 A B Pan-crisper,(2)
28 3201150 A B End Cap-shelf,protector ,frzr shelf
30 240361801 A B Hanger-meat pan,drop thru
31 240354203 A B Pan-meat,w/o graphics ,clear
47 240350609 A B Insert-pan cover,glass
81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
* 3205266 A B Edge Protector,wiring harness
SHELVES
06/01 8
Publication No. FRT21C5A
5995355251
SYSTEM
# = Fast-moving Parts 9 06/01
* = Non-Illustrated Parts
FRT21C5A Publication No.
5995355251
A = FRT21C5A (FRT21C5AQ2)
B = FRT21C5A (FRT21C5AW2)
POS. NO PART NO DESCRIPTION
1 240444401 A B Condenser,dynamic
4 # 218944001 A B Drier-filter,R134a System
6 # 240375301 A B Wiring Harness, machine compt, w/ service cord
6* # 240385402 A B Wiring Harness,freezer section
6* # 240388701 A B Wiring Harness,control box
14 # 5303918247 A B Defrost Heater Kit
15 # 5303918250 A B Evaporator Kit
16 5308000110 A B Strap-evap/heater,aluminum ,(2)
17 240434002 A B Trough-drain
18 240362301 A B Insulation Block,RH
20 240362401 A B Insulation Block,LH
21 # 5303918202 A B Thermostat-defrost,kit
22 240330001 A B Plate-compr mtg
22* 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500
23 218513300 A B Grommet-compr mtg,(4)
25 240491501 A B Screw-compressor mtg, 1/4-28 x 1.16,shoulder,typ CF
26 240332602 A B Pan-defrost drain
29 # 5303918249 A B Compressor,w/electricals
30 # 218721113 A B Starter-PTC
32 218740800 A B Clamp, elec cont mtg, compressor
34 240405201 A B Grommet, mounting, rubber, black, holds tube/wire
41 218897001 A B Screw, hex washer head, 8-32 x 1/4
41* 5308000039 A B Screw, hex wshr hd, 8-32CA x 0.500, (7),serrated head
44 5303001199 A B Clamp-wiring harness,strain relief, galv steel
45 5308016566 A B Screw,hex washer head ,8-15A x 0.625, low profile
55 # 218909901 A B Capacitor-run,220 VAC ,15 microfarad
57 240403601 A B Clip-wiring harness
58 215004600 A B Screw-cond fan mtr, hx serr wshr hd, 8-36 x 7/16,(2)
59 240315501 A B Shroud-cond fan
59* 240346701 A B Tape-foam seal,shroud
59* 240359401 A B Screw-fan shroud,(2)
59A 240346501 A B Bracket-support,cond mtr ,(3)
59B 240346601 A B Grommet-bracket,(3)
60 # 240334001 A B Motor,condenser fan
61 # 240315401 A B Fan Blade,galv steel ,condenser fan
61A 215004700 A B Nut,speed
61B 215004800 A B Grommet-silencer
82 5304418225 A B Roller,compressor base ,rear ,(2)
83 5303316859 A B Rivet,flat head ,1/4 OD x 1-3/4, roller pin
84 240359601 A B Tube-drain,lower
85 240346201 A B Tube-connector,suction
86 240409302 A B Spacer-cond tube,black
* 218843800 A B Screw,hex wshr hd ,8-15A x 0.500
* 240396801 A B Clamp,tube/wiring ,nylon ,black/natural
* # 5303918210 A B Heat Exchanger Kit,suction line
* 5304421289 A B Hot Tube Repair Kit,Service
SYSTEM
06/01 10
Publication No. FRT21C5A
5995355251
WIRING SCHEMATIC
# = Fast-moving Parts 11 06/01
* = Non-Illustrated Parts
FRT21C5A Publication No.
5995355251
WIRING DIAGRAM
