Frigidaire FGHS2644K - Gallery 26.0 cu. Ft.... User guide

N58L00003.eps F58FFDAAA1.eps F58RFDACA0.eps F58BAAAAE3.eps
F58SJCAAD1.eps F58TEACAE0.eps N58CAAAAA14.eps F58XFCAAA0.eps
N58YBAAAA7.eps N58I1151-1.eps W242072901.eps S242072901B.eps
Product No. FGHS2634KB2 FGHS2634KE2 FGHS2634KP2 FGHS2634KQ2 FGHS2634KW2 FGHS2644KF2 FGHS2644KM2
Series Gallery Gallery Gallery Gallery Gallery Gallery Gallery
Color black black (smooth) white (smooth) bisque white stainless silvermist
Volts 115 115 115 115 115 115 115
Wiring Diagram 242072901 242072901 242072901 242072901 242072901 242072901 242072901
Owner's Guide 241979202 241979202 241979202 241979202 241979202 241979202 241979202
Market North America North America North America North America North America North America North America
Energy Guide 241935574 241935574 241935574 241935574 241935574 241935575 241935575
Service Data Sheet 240389641 240389641 240389641 240389641 240389641 240389641 240389641
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995560355
10/02/26
(EN/SERVICE/DCS)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FGHS2634K /
FGHS2644K

Publication No: 5995560355 FGHS2634K / FGHS2644K
02/10 2
FREEZER DOOR
22C
11
1
4A
4B
4B
13A
22A
21A
F58FFDAAA1
18
79
79 80
80

FGHS2634K / FGHS2644K Publication No: 5995560355
# Functional Parts 3 02/10
* Non-Illustrated Parts
FREEZER DOOR
Model Index: AFGHS2634K (FGHS2634KB2)
BFGHS2634K (FGHS2634KE2)
CFGHS2634K (FGHS2634KP2)
DFGHS2634K (FGHS2634KQ2)
EFGHS2634K (FGHS2634KW2)
FFGHS2644K (FGHS2644KF2)
GFGHS2644K (FGHS2644KM2)
POS. NO PART NO. DESCRIPTION
1 241786006 A B - - - F G Gasket-frzr door, black, magnetic
1 241786002 - - C D E - - Gasket-frzr door, white, magnetic
4A 240334201 A B C D E F G Bin-door, frzr-upper
4B 240351601 A B C D E F G Bin-door
11 241837173 A - - - - - - Door-frzr,black
11 241837181 - B - - - - - Door-frzr, black, completeassy
11 241837182 - - C - - - - Door-frzr, white,complete assy
11 241837172 - - - D - - - Door-frzr, bisque, complete assy
11 241837171 - - - - E - - Door-frzr, white, complete assy
11 241837185 - - - - - F - Door-frzr, stainless, completeassy
11 242026408 - - - - - - G Door-frzr, silver mist, complete assy
13A 241942604 A B C D E F G Door Stop, black, frzr
18 241930103 A B - - - - - Handle-door, black
18 241930102 - - C - E - - Handle-door, white
18 241930104 - - - D - - - Handle-door, bisque
18 241930101 - - - - - F G Handle-door, stainless
21A 240442706 A B C D E F G Screw-#10-32 X 3/4, zinc
22A 241990302 A B C D E F G Bearing-hinge(frz), closer
22C 241760402 A B - - - - - Bearing, hinge, top
22C 241760401 - - C D E F G Bearing, hinge, top
79 218755405 A B C D E F G Screw-set, 10-32 x 0.650
80 218755504 A B C D E F G Screw-shoulder, #10 AB, handle mounting
* 240352102 A B C D E F G Connector-water, straight
* 5303918371 A B C D E F G Dispenser heater kit, 115
* # 241834703 A B C D E F G Harness-wiring, door
* 240451503 A B C D E F G Screw, ind hex wshr hd, 8-32 x 0.375, trilobe

Publication No: 5995560355 FGHS2634K / FGHS2644K
02/10 4

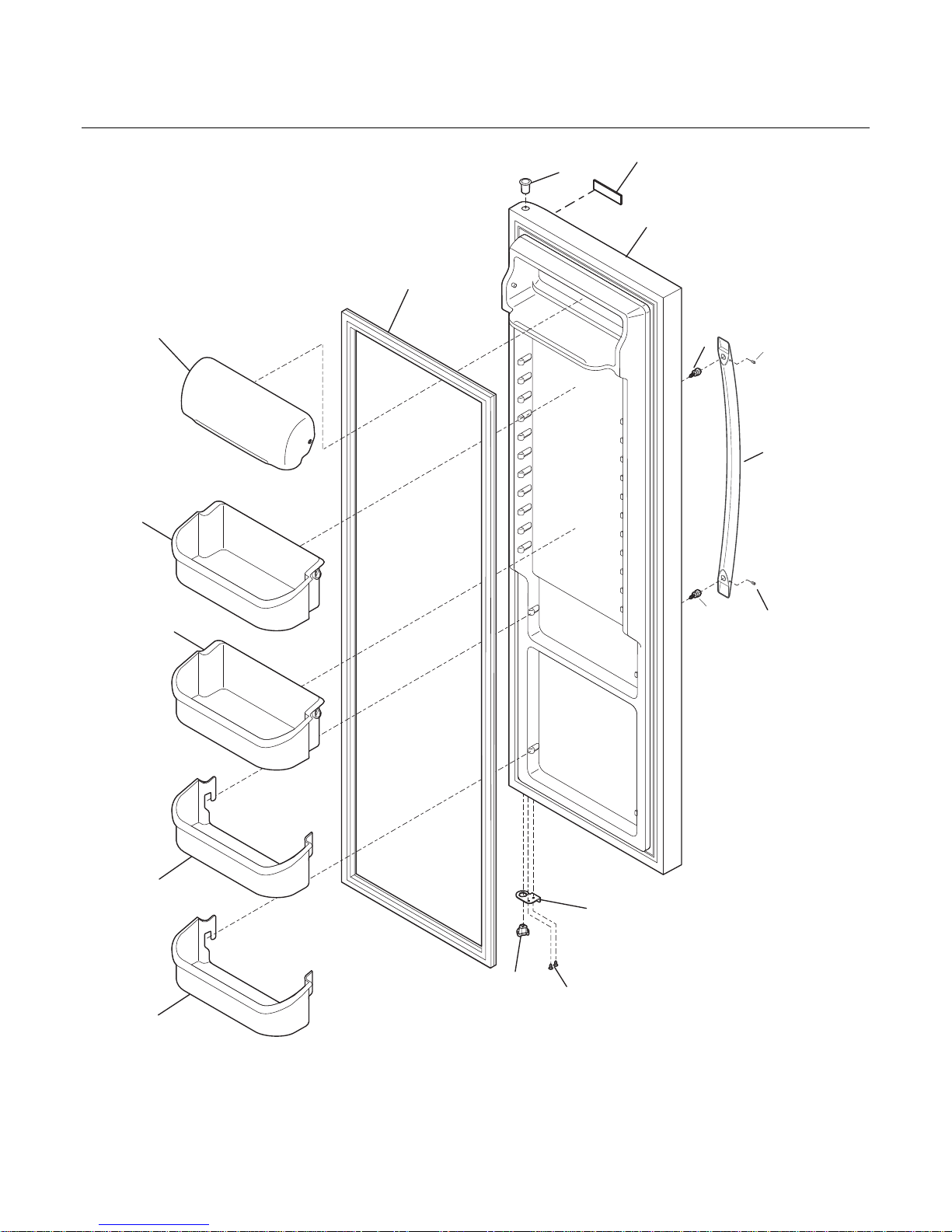

REFRIGERATOR DOOR
21A
22
13
15
12
22B
2
7
49
49
4
4
F58RFDACA0
18
79
79
80
80

FGHS2634K / FGHS2644K Publication No: 5995560355
# Functional Parts 5 02/10
* Non-Illustrated Parts
REFRIGERATOR DOOR
Model Index: AFGHS2634K (FGHS2634KB2)
BFGHS2634K (FGHS2634KE2)
CFGHS2634K (FGHS2634KP2)
DFGHS2634K (FGHS2634KQ2)
EFGHS2634K (FGHS2634KW2)
FFGHS2644K (FGHS2644KF2)
GFGHS2644K (FGHS2644KM2)
POS. NO PART NO. DESCRIPTION
2 241786005 A B - - - F G Gasket-refr door, black, magnetic
2 241786001 - - C D E - - Gasket-refrdoor, white, magnetic
4 240323001 A B C D E F G Bin-door, pseudo, bottom
7 240326203 A B C D E F G Door-dairy
12 242015201 A B C D E F G Label-nameplate
13 241942603 A B C D E F G Door Stop, black, ref
15 241837255 A - - - - - - Door-refr, black
15 241837263 - B - - - - - Door-refr, black, complete assy
15 241837264 - - C - - - - Door-refr, white, complete assy
15 241837254 - - - D - - - Door-refr, bisque, complete assy
15 241837253 - - - - E - - Door-refr, white, complete assy
15 241837260 - - - - - F - Door-refr, stainless, complete assy
15 241837294 - - - - - - G Door-refr, silver mist, complete assy
18 241930103 A B - - - - - Handle-door, black
18 241930102 - - C - E - - Handle-door, white
18 241930104 - - - D - - - Handle-door, bisque
18 241930101 - - - - - F G Handle-door, stainless
21A 240442706 A B C D E F G Screw-#10-32 X 3/4, zinc
22 241990301 A B C D E F G Bearing-hinge, gray
22B 241760404 A B - - - - - Bearing, hinge, top
22B 241760403 - - C D E F G Bearing, hinge, top
49 240356402 A B C D E F G Bin-door, gallon
79 218755405 A B C D E F G Screw-set, 10-32 x 0.650
80 218755504 A B C D E F G Screw-shoulder, #10 AB, handle mounting

Publication No: 5995560355 FGHS2634K / FGHS2644K
02/10 6

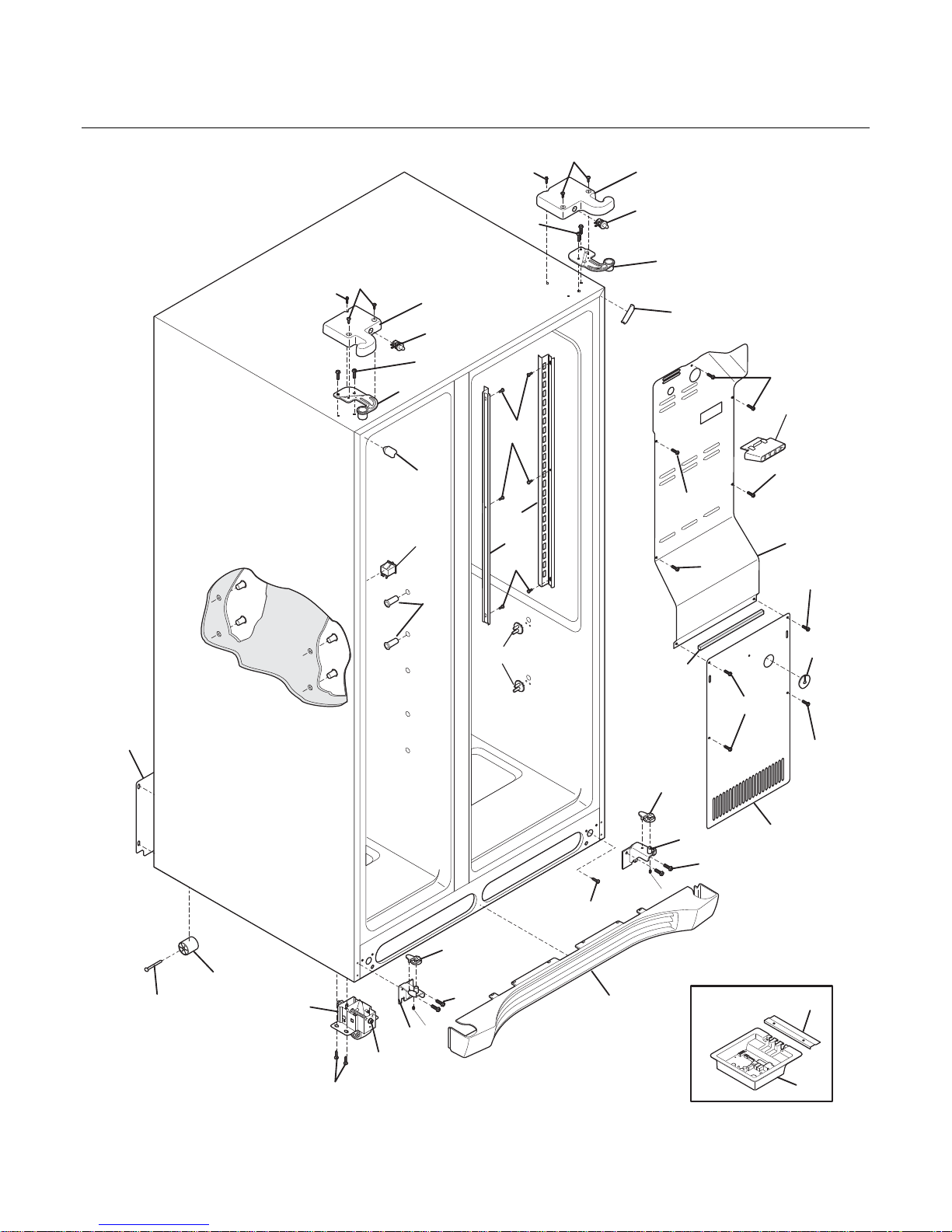

CABINET
92
93
93
92
90
89
83
82
81
81
72 54
50
45
45
45
45
45
45
45
43
42
42
41
40
40A
21D
21D
58
58
38
38A
37
37
28
30A
30
22
22
21C
21C
11
10A
10
100
F58BAAAAE3
14A
74
74
91
47A
47

FGHS2634K / FGHS2644K Publication No: 5995560355
# Functional Parts 7 02/10
* Non-Illustrated Parts
CABINET
Model Index: AFGHS2634K (FGHS2634KB2)
BFGHS2634K (FGHS2634KE2)
CFGHS2634K (FGHS2634KP2)
DFGHS2634K (FGHS2634KQ2)
EFGHS2634K (FGHS2634KW2)
FFGHS2644K (FGHS2644KF2)
GFGHS2644K (FGHS2644KM2)
POS. NO PART NO. DESCRIPTION
10 240435912 A B C D E F G Cover-air duct
10A 241719711 A B C D E F G Cover-evap coil, lower
11 5303208309 A B C D E F G Plug-hole, factory test
14A# 241547901 A B C D E F G Switch-light/lamp, frzr door
21C 218252201 A B C D E F G Screw, #8 truss hd, 10-32CA x 0.500
21D 241548003 A B C D E F G Screw, 10-32 x 3/8
22 241917801 A B C D E F G Plate-door closer
28 240335502 A B C D E F G Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241917901 A B C D E F G Bracket-lower hinge, RH, w/hinge pin
30A 241917902 A B C D E F G Bracket-lower hinge, LH, w/hinge pin
37 240337610 A B - - - F G Trim-cabinet corner, black, (2)
37 240337608 - - C - E - - Trim-cabinet corner, white, (2)
37 240337611 - - - D - - - Trim-cabinet corner, bisque, (2)
38 241761301 A B C D E F G Bracket-upper hinge, RH
38A 241761302 A B C D E F G Bracket-upper hinge, LH
40 241946705 A B - - - F G Cover-upper hinge, black, RH
40 241946701 - - C - E - - Cover-upper hinge, white
40 241946703 - - - D - - - Cover-upper hinge, bisque, RH
40* 241835801 A B C D E F G Harness-wiring
40A 241946706 A B - - - F G Cover-upper hinge, black, LH
40A 241946702 - - C - E - - Cover-upper hinge, white, LH
40A 241946704 - - - D - - - Cover-upper hinge, bisque, LH
40A* 241891901 A B C D E F G Harness-wiring, freezer
41 241550801 A B C D E F G Grommet-shelf mtg, 1.40" long
41* 241550701 A B C D E F G Grommet-shelf mtg, .96" long
42 240578902 A B C D E F G Screw, hex head, 1/4-20 x 5/8
43 240335006 A B C D E F G Roller Assy, front, (2)
45 241500303 A B C D E F G Screw, hex washer head, 8-18AB x 0.500
47 242001902 A B C D E F G Channel-shelf mtg, side, LH
47A 242001901 A B C D E F G Channel-shelf mtg, side, RH
50 242009011 A B C D E F G Board-main power
54 241532401 A B C D E F G Channel
58 218781101 A B C D E F G Screw, pan head, 8-18 x 0.625
72 241969403 A B - - - - - Grille/Kickplate, black
72 241969401 - - C - E - - Grille/Kickplate, white
72 241969402 - - - D - - - Grille/Kickplate, bisque
72 241969405 - - - - - F G Grille/Kickplate
74 218755402 A B C D E F G Screw-set, 10-32 x 0.375
81 5304455650 A B C D E F G Screw, hex washer head, 8-15A x 0.625, Low Profile
82 5304418225 A B C D E F G Roller, compressor base, rear, (2)
83 5304455655 A B C D E F G Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241733902 A B C D E F G Cover-access, w/label
90 218249808 A B C D E F G Seal-coil cover
91 240380101 A B C D E F G Duct-ice maker

Publication No: 5995560355 FGHS2634K / FGHS2644K
02/10 8
CABINET
92
93
93
92
90
89
83
82
81
81
72 54
50
45
45
45
45
45
45
45
43
42
42
41
40
40A
21D
21D
58
58
38
38A
37
37
28
30A
30
22
22
21C
21C
11
10A
10
100
F58BAAAAE3
14A
74
74
91
47A
47

FGHS2634K / FGHS2644K Publication No: 5995560355
# Functional Parts 9 02/10
* Non-Illustrated Parts
CABINET
Model Index: AFGHS2634K (FGHS2634KB2)
BFGHS2634K (FGHS2634KE2)
CFGHS2634K (FGHS2634KP2)
DFGHS2634K (FGHS2634KQ2)
EFGHS2634K (FGHS2634KW2)
FFGHS2644K (FGHS2644KF2)
GFGHS2644K (FGHS2644KM2)
POS. NO PART NO. DESCRIPTION
92 241710601 A B C D E F G Screw, hex washer hd, 1/4 x 7/8, hinge mtg
93 241911704 A B - - - F G Switch, plunger style
93 241911703 - - C D E - - Switch, plunger style
100 241993101 A B C D E F G Support-crisper cvr
100* 241993001 A B C D E F G Support-crisper cvr
* 240479601 A B C D E F G Plug, button, cab liner holes
* 241852501 A B C D E F G Clip, wiring harness
* 5303321321 A B - - - F G Paint, touch-up, black
* 5303321319 - - C - E - - Paint, touch-up, white
* 5304414035 - - - D - - - Paint, touch-up, bisque

Publication No: 5995560355 FGHS2634K / FGHS2644K
02/10 10

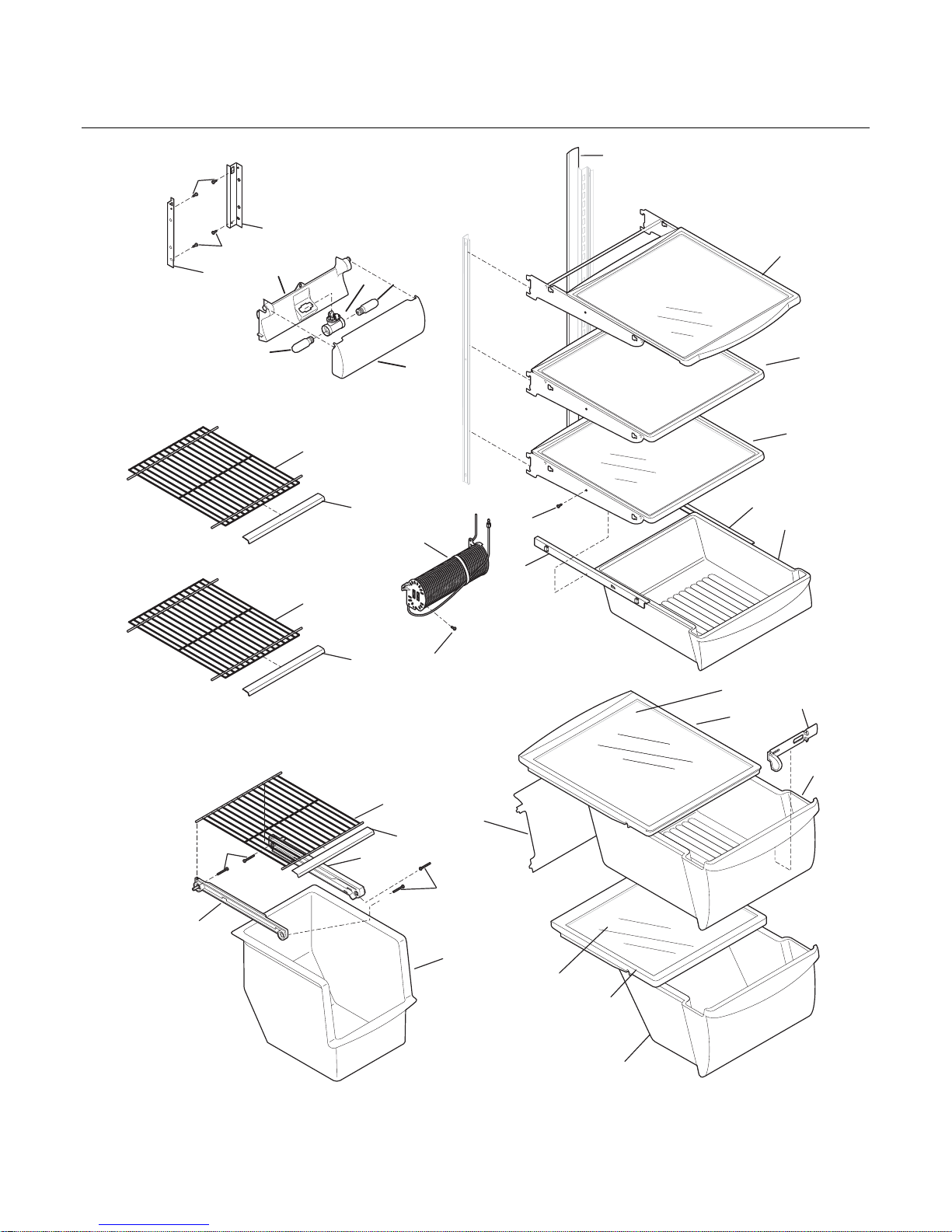

SHELVES
49
51
25
26
47
100
25A
27
47A
52
101
101
11
39
26A
F58SJCAAD1
42
62
123
42
11B
11A
39B
39B
24A
24
24
97
21
126
81
81
126
140
108
107
16
15
15

FGHS2634K / FGHS2644K Publication No: 5995560355
# Functional Parts 11 02/10
* Non-Illustrated Parts
SHELVES
Model Index: AFGHS2634K (FGHS2634KB2)
BFGHS2634K (FGHS2634KE2)
CFGHS2634K (FGHS2634KP2)
DFGHS2634K (FGHS2634KQ2)
EFGHS2634K (FGHS2634KW2)
FFGHS2644K (FGHS2644KF2)
GFGHS2644K (FGHS2644KM2)
POS. NO PART NO. DESCRIPTION
11 241657602 A B C D E F G Shelf, flip up, wire
11A 241657502 A B C D E F G Shelf, fixed, freezer
11B 241657504 A B C D E F G Shelf, fixed, upper, freezer
15 241552801 A B C D E F G Light Bulb
16 241622802 A B C D E F G Socket-light, frz light
16* 241987501 A B C D E F G Harness-wiring
16* 240570304 A B C D E F G Tape, aluminum, 3" wide
21 5304455658 A B C D E F G Screw, hx wshr hd sems, 8-15A x 0.625
24 240355256 A B C D E F G Shelf-"Spill-Safe", fixed
24A 240350136 A B C D E F G Shelf-"Spill-Safe", cantilever, sliding
25 240599301 A B C D E F G Cover-crisper pan, upper
25* 240362101 A B C D E F G Clip-slide, cover-crisper
25A 240350903 A B C D E F G Cover-crisper pan, lower
26 240351061 A B C D E F G Pan-crisper, upper
26* 240349801 A B C D E F G Clip-slide, pan-crisper
26* 241595202 A B C D E F G Clip-slide, pan-crisper
26A 240362201 A B C D E F G Control-humidity
27 240351239 A B C D E F G Pan-crisper, lower
39 240430706 A B C D E F G Trim-shelf, 11.21", front
39B 240430702 A B C D E F G Trim-shelf, 12.39", front
42 240356501 A B C D E F G Track, meat pan hanger, RH
42 240365401 A B C D E F G Track, meat pan hanger, LH
47 240350649 A B C D E F G Insert-pan cover, glass
47A 240350603 A B C D E F G Insert-pan cover, glass
49 240564401 A B C D E F G Basket-sliding
51 240343002 A B C D E F G Hanger-basket, RH
52 240343102 A B C D E F G Hanger-basket, LH
62 240342830 A B C D E F G Pan-meat
81 5304455650 A B C D E F G Screw, hex washer head, 8-15A x 0.625, Low Profile
97 241532007 A B C D E F G Water Tank
100 240326304 A B C D E F G Cover-water tank
101 218493101 A B C D E F G Screw, hex washer head, 8-18AB x 1-3/4
107 241753601 A B C D E F G Shield-light, upper
108 241753701 A B C D E F G Housing-light, upper, fresh food
123 215005101 A B C D E F G Screw, hanger/rlr mtg, 8-10x 7/16
126 241674401 A B C D E F G Channel, auger mtg, LH
126 241674402 A B C D E F G Channel, auger mtg, RH
140 241812502 A B C D E F G Channel, wtr tube cover
* 241935574 A B C D E - - Energy Guide
* 241935575 - - - - - F G Energy Guide

Publication No: 5995560355 FGHS2634K / FGHS2644K
02/10 12

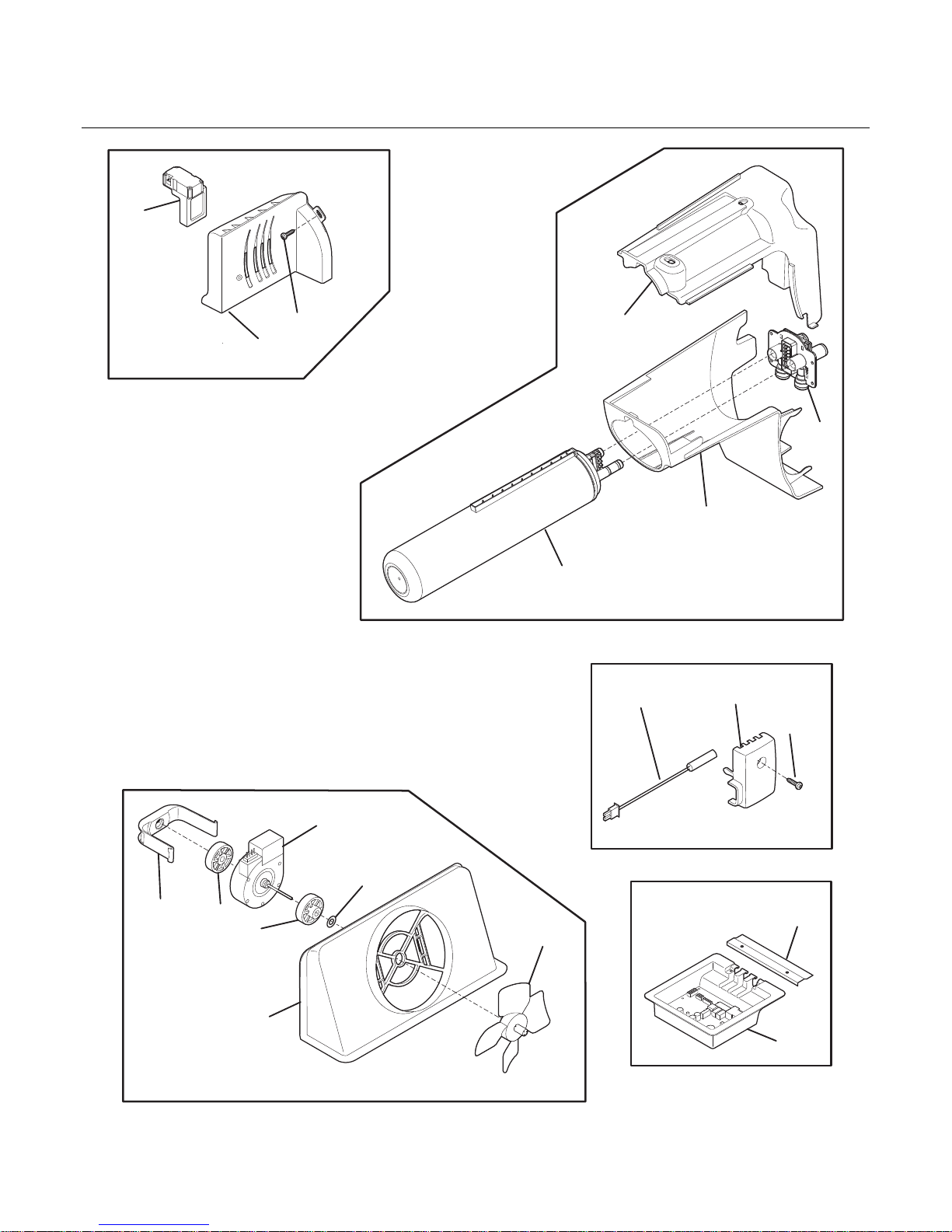

CONTROLS
81
137
139
210
210A
60
115
23
58
22
54
50
149
14
13
9
9A
8
5
F58TEACAE0

FGHS2634K / FGHS2644K Publication No: 5995560355
# Functional Parts 13 02/10
* Non-Illustrated Parts
CONTROLS
Model Index: AFGHS2634K (FGHS2634KB2)
BFGHS2634K (FGHS2634KE2)
CFGHS2634K (FGHS2634KP2)
DFGHS2634K (FGHS2634KQ2)
EFGHS2634K (FGHS2634KW2)
FFGHS2644K (FGHS2644KF2)
GFGHS2644K (FGHS2644KM2)
POS. NO PART NO. DESCRIPTION
5 # 5308000010 A B C D E F G Fan Blade, red, evaporator fan
8 215474201 A B C D E F G Washer, "slinger", nylon, evap fan shaft
9 241563601 A B C D E F G Bushing-motor mtg
9A 241845301 A B C D E F G Bushing-motor mtg
13 241509402 A B C D E F G Motor, evaporator fan
14 241517701 A B C D E F G Clip, evap fan motor
22 240597203 A B C D E F G Sensor
23 241845401 A B C D E F G Housing-sensor
50 242009011 A B C D E F G Board-main power
54 241532401 A B C D E F G Channel
58 5304455650 A B C D E F G Screw, hex washer head, 8-15A x 0.625, Low Profile
60 241794301 A B C D E F G Diffuser-air
60* 241945101 A B C D E F G Insulation-air duct
81 5304455658 A B C D E F G Screw, hx wshr hd sems, 8-15A x 0.625
115 241853801 A B C D E F G Damper Assy, w/seal
137 241791601 A B C D E F G Filter-water, carbon
139 242009601 A B C D E F G Base-water filter
149 241563501 A B C D E F G Shroud-fan orfice
149* 241528306 A B C D E F G Seal, shroud
210 241983801 A B C D E F G Housing-water filtr
210A 241998302 A B C D E F G Mount-water filter
* 3205266 A B C D E F G Edge Protector, wiring harness
* 241852501 A B C D E F G Clip, wiring harness

Publication No: 5995560355 FGHS2634K / FGHS2644K
02/10 14

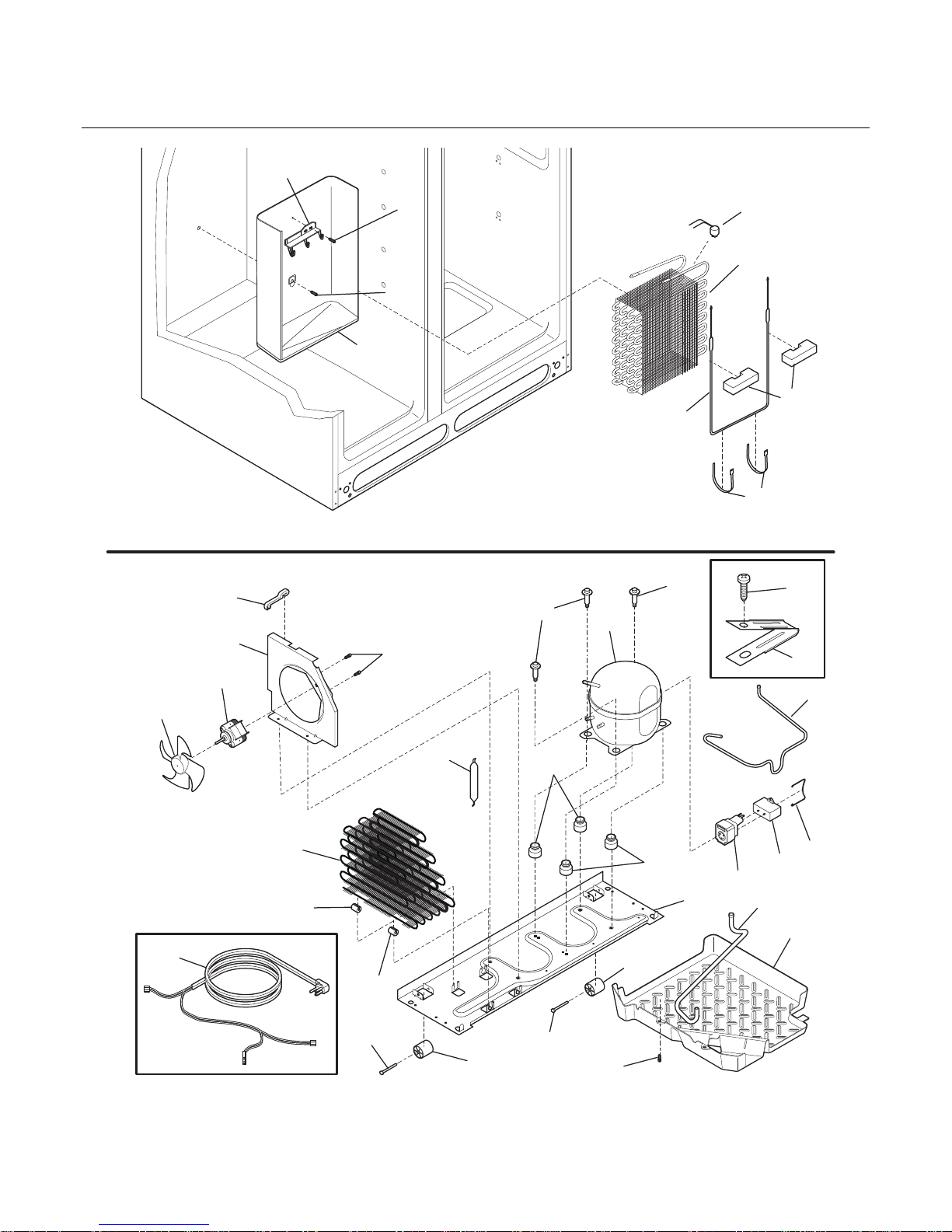

SYSTEM
N58CAAAAA14
62
70
45
45
1
34
34
83
44
41
82
83
82
22
23
23
30
32
55
4
25
6
25
29
26
45
16
15
14
3
84
85
21
60
59
61
58
86

FGHS2634K / FGHS2644K Publication No: 5995560355
# Functional Parts 15 02/10
* Non-Illustrated Parts
SYSTEM
Model Index: AFGHS2634K (FGHS2634KB2)
BFGHS2634K (FGHS2634KE2)
CFGHS2634K (FGHS2634KP2)
DFGHS2634K (FGHS2634KQ2)
EFGHS2634K (FGHS2634KW2)
FFGHS2644K (FGHS2644KF2)
GFGHS2644K (FGHS2644KM2)
POS. NO PART NO. DESCRIPTION
1 242039202 A B C D E F G Condenser
3 218679607 A B C D E F G Block-evap coil, styrofoam, (2)
4 # 218944001 A B C D E F G Drier-filter, R134a System
6 # 241516901 A B C D E F G Cord-service
6* 242008702 A B C D E F G Harness-wiring, machine compt
6* # 241519902 A B C D E F G Harness-wiring
14 # 240316107 A B C D E F G Heater-defrost
15 # 5303918284 A B C D E F G Evaporator Kit
16 5308000110 A B C D E F G Strap-evap/heater, aluminum, (2)
21 # 5303918214 A B C D E F G Thermostat-defrost, kit
22 240330011 A B C D E F G Base-compressor mtg
22* 218252201 A B C D E F G Screw, #8 truss hd, 10-32CA x 0.500
23 241659701 A B C D E F G Grommet, compressor
25 240491503 A B C D E F G Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241697602 A B C D E F G Pan-defrost
29 # 5303918329 A B C D E F G Compressor, kit, w/electricals
30 # 241707701 A B C D E F G Starter, PTC
32 241650901 A B C D E F G Clamp, elec cont mtg, compressor
34 240405201 A B C D E F G Grommet, rubber, black, cond tube/wire
41 240555002 A B C D E F G Screw-#8-32 X 3/8
44 215174700 A B C D E F G Clamp-service cord, strain relief, galv steel
45 5304455650 A B C D E F G Screw, hex washer head, 8-15A x 0.625, Low Profile
55 218909913 A B C D E F G Capacitor, run, 220 VAC, 15 microfarad
58 240569201 A B C D E F G Screw, 8-18 x 0.500
59 241946106 A B C D E F G Shroud-cond fan
59* 240346701 A B C D E F G Tape-foam seal, shroud
59* 240359403 A B C D E F G Screw-fan shroud, (2)
60 # 241584301 A B C D E F G Motor-condenser fan
61 241639501 A B C D E F G Blade-condenser fan
62 240429405 A B C D E F G Trough-drain
70 218990801 A B C D E F G Bracket-evap/cvr mtg
82 5304418225 A B C D E F G Roller, compressor base, rear, (2)
83 5304455655 A B C D E F G Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 241957901 A B C D E F G Tube-drain, lower
85 241856903 A B C D E F G Tube-connector, suction
86 240409302 A B C D E F G Spacer-cond tube, black
* 241852501 A B C D E F G Clip, wiring harness
* 5303918222 A B C D E F G Hot Tube Repair Kit, service
* # 5303918328 A B C D E F G Heat Exchanger Kit, suction line, service

Publication No: 5995560355 FGHS2634K / FGHS2644K
02/10 16

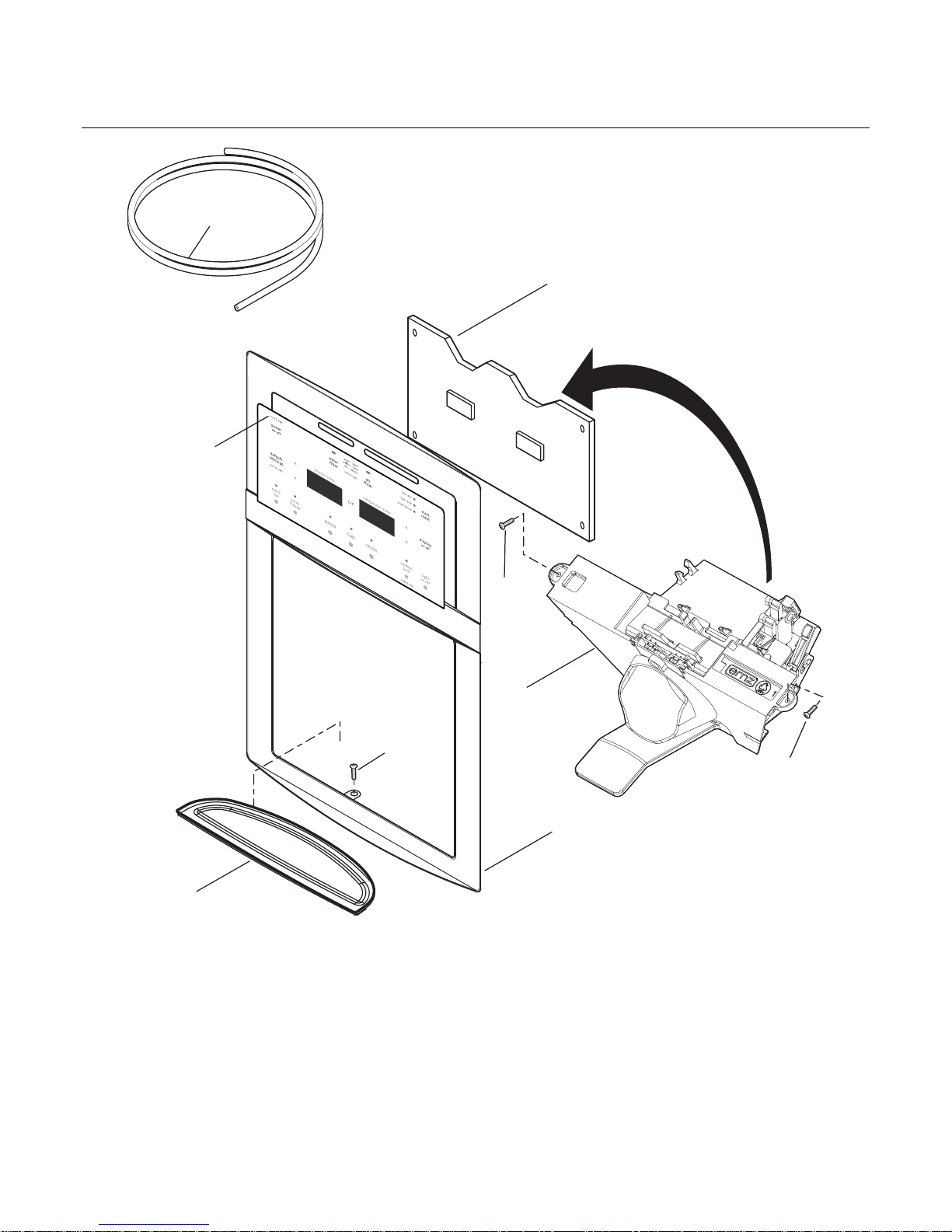

ICE & WATER DISPENSER
4
F58XFCAAA0
8
2
23
82
82
82
38C
1

FGHS2634K / FGHS2644K Publication No: 5995560355
# Functional Parts 17 02/10
* Non-Illustrated Parts
ICE & WATER DISPENSER
Model Index: AFGHS2634K (FGHS2634KB2)
BFGHS2634K (FGHS2634KE2)
CFGHS2634K (FGHS2634KP2)
DFGHS2634K (FGHS2634KQ2)
EFGHS2634K (FGHS2634KW2)
FFGHS2644K (FGHS2644KF2)
GFGHS2644K (FGHS2644KM2)
POS. NO PART NO. DESCRIPTION
1 218976409 A B C D E F G Tube, water, door
1* 218976419 A B C D E F G Tube-water inlet, valve to door
1* 218976429 A B C D E F G Tube-water inlet, 97.50", brown/tan
1* 218976915 A B C D E F G Tube-water inlet, inlet valve, to filter
1* 240561701 A B C D E F G Seal-water inlet, inlet valve, to ice maker
2 241973817 A B - - - F G Switch Assembly, overlay, black
2 241973818 - - C - E - - Switch Assembly, overlay, white
2 241973819 - - - D - - - Switch Assembly, overlay, bisque
4 241946808 A B - - - - - Cover-module, black
4 241946806 - - C - E - - Cover-module, white
4 241946807 - - - D - - - Cover-module, bisque
4 241946809 - - - - - F G Cover-module
8 241753408 A B - - - - - Module-dispenser, black
8 241753409 - - C - E - - Module-dispenser, white
8 241753410 - - - D - - - Module-dispenser
8 241753412 - - - - - F G Module-dispenser, gray
23 241947003 A B - - - - - Drip Tray, black
23 241947001 - - C - E - - Drip Tray, white
23 241947002 - - - D - - - Drip Tray,bisque
23 241947006 - - - - - F G Drip Tray
38C# 241973702 A B C D E F G Board-control
82 240363402 A B C D E F G Screw, plask, #8-18 x .500
* 5303918371 A B C D E F G Dispenser heater kit, 115

Publication No: 5995560355 FGHS2634K / FGHS2644K
02/10 18

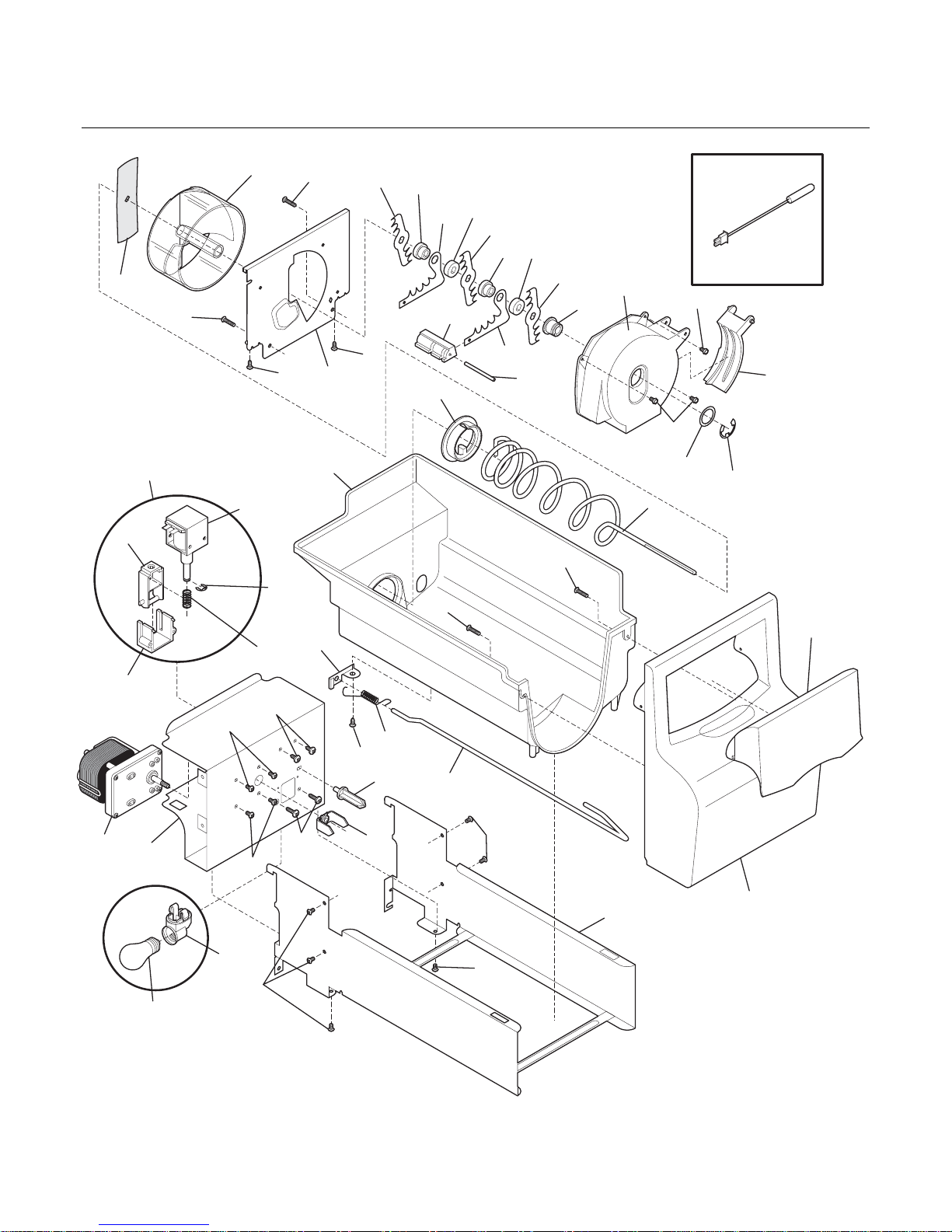

ICE CONTAINER
45 4
45A
48
47
46
45B
45C
45D
50
18 20
15
16
44
44
44
51
26
26
26
26
10
26
43
43
43
49 7
N58YBAAAA7
57
3
2
23
39
39
6
17
53
52
37A 34
33
37B
34 33
37C
54
35A
35B
41
56
55
13
25
25
39
22

FGHS2634K / FGHS2644K Publication No: 5995560355
# Functional Parts 19 02/10
* Non-Illustrated Parts
ICE CONTAINER
Model Index: AFGHS2634K (FGHS2634KB2)
BFGHS2634K (FGHS2634KE2)
CFGHS2634K (FGHS2634KP2)
DFGHS2634K (FGHS2634KQ2)
EFGHS2634K (FGHS2634KW2)
FFGHS2644K (FGHS2644KF2)
GFGHS2644K (FGHS2644KM2)
POS. NO PART NO. DESCRIPTION
2 241716101 A B C D E F G Auger-ice
3 241685201 A B C D E F G Cam-drive
4 241734001 A B C D E F G Container-ice, bucket only
6 241685101 A B C D E F G Drum-ice disp
7 241734202 A B C D E F G Front-ice container
10 241726501 A B C D E F G Bar-drive
13 241685301 A B C D E F G Gate
15 241555401 A B C D E F G Light Bulb
16 241559801 A B C D E F G Socket-light
17 241684501 A B C D E F G Drive Blade
18 241676201 A B C D E F G Motor-auger
18* 241522901 A B C D E F G Harness-wiring, icmkr/container
20 241734902 A B C D E F G Cover, motor
22 240597203 A B C D E F G Sensor
22* 241519401 A B C D E F G Clip, sensor
23 241684001 A B C D E F G Plate-front
25 241690701 A B C D E F G Screw, hex washer head, 8-32T x 0.375
26 215503203 A B C D E F G Screw, cr pan hd, 10-16 x 0.500
33 241684801 A B C D E F G Spacer
34 241689801 A B C D E F G Spacer
35A 241684301 A B C D E F G Fixed Blade, round
35B 241684201 A B C D E F G Fixed Blade, square
37A 241684101 A B C D E F G Blade, crusher #1
37B 241684102 A B C D E F G Blade, crusher #2
37C 241684103 A B C D E F G Blade, crusher #3
39 241690501 A B C D E F G Screw
41 241685601 A B C D E F G Housing-crusher
43 218359202 A B C D E F G Screw, pan head, 8-32 x 0.250
44 241842101 A B C D E F G Screw, 8-32 x 1/4
45 # 241675701 A B C D E F G SolenoidAssy, 115V
45A 241675901 A B C D E F G Spring-solenoid
45B 241676001 A B C D E F G E-Ring-solenoid
45C 241676101 A B C D E F G Actuator-solenoid
45D# 241675801 A B C D E F G Solenoid, 115V
46 241716002 A B C D E F G Control Rod
47 241731801 A B C D E F G Spring-control rod
48 241684602 A B C D E F G Bracket-control rod
49 241734501 A B C D E F G Rail Assy
50 241675601 A B C D E F G Guide-solenoid
51 241676301 A B C D E F G Rotation Stop
52 241684901 A B C D E F G Spacer-fixed blades
53 241690402 A B C D E F G Pin-spiral, fixed blades
54 241685001 A B C D E F G Nut-auger
55 241690306 A B C D E F G Washer
56 241690201 A B C D E F G E-ring
57 241734101 A B C D E F G Door-access
* 240507202 A B C D E F G Deflector-ice container
* 241860812 A B C D E F G Ice Container Assy, w/moving parts

Publication No: 5995560355 FGHS2634K / FGHS2644K
02/10 20
ICE MAKER
ON OFF
MOVE ARM UP UNTIL
LOCKED INTO PLACE
MOVE ARM UP UNTIL
LOCKED INTO PLACE
45
51
42
64
29
7
6
16
20
21
19
22
60
18
17
62
61
9
10
23
23
34
28
34
34
3
11
29
14
30
27 13
26
26
15 15
2
15
31
32
36
4
35
5
33
8
24
25
12
55 INSTALLATION PARTS
N58I1151-1
1
