Frigidaire FRT21FR7E User manual

Product No. FRT21FR7EB5 FRT21FR7EQ5 FRT21FR7EW5
Series R134a R134a R134a
Color black bisque white
Volts 115 115 115

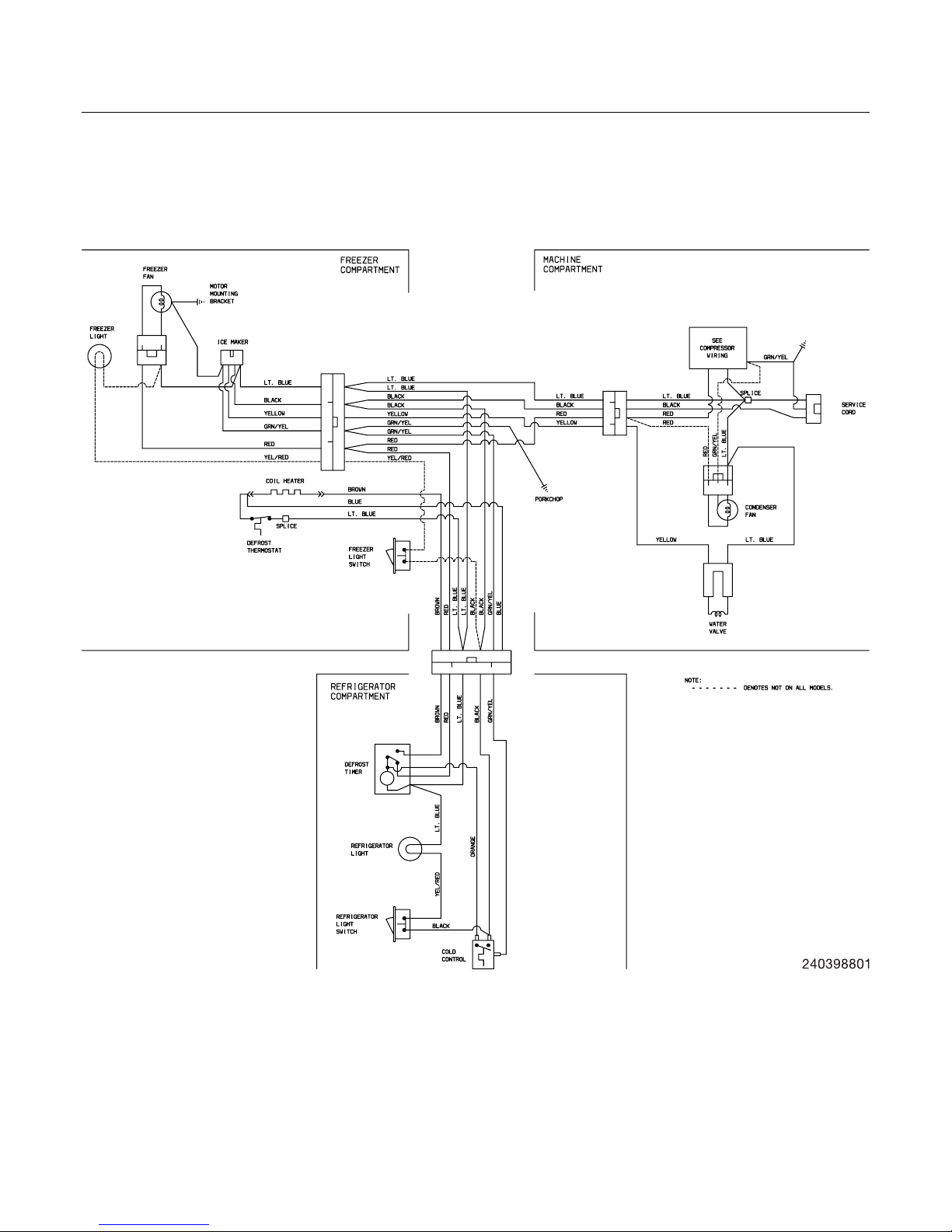

Wiring Diagram 240398801 240398801 240398801
Owner's Guide 240400112 240400112 240400112
Market North America North America North America
Energy Guide 241607580 241607580 241607580
Service Data Sheet 240379014 240379014 240379014
Installation Instructions 240568300 240568300 240568300
N05L00003.eps N05DCDBCA1.eps N05BAAABC5.eps N05SACAFH11.eps
N05CAAAAC6.eps 115-1.eps 240398801.eps 240398601.eps
u x Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995452454
05/10/26
(EN/SERVICE/WC)
357
TOP-MOUNT
REFRIGERATOR WITH
ICE-MAKER
Model No.
FRT21FR7E
Copyright ©2005 Home Pr oducts, Inc.
All rights reserved.

Publication No: 5995452454 FRT21FR7E
10/05 2

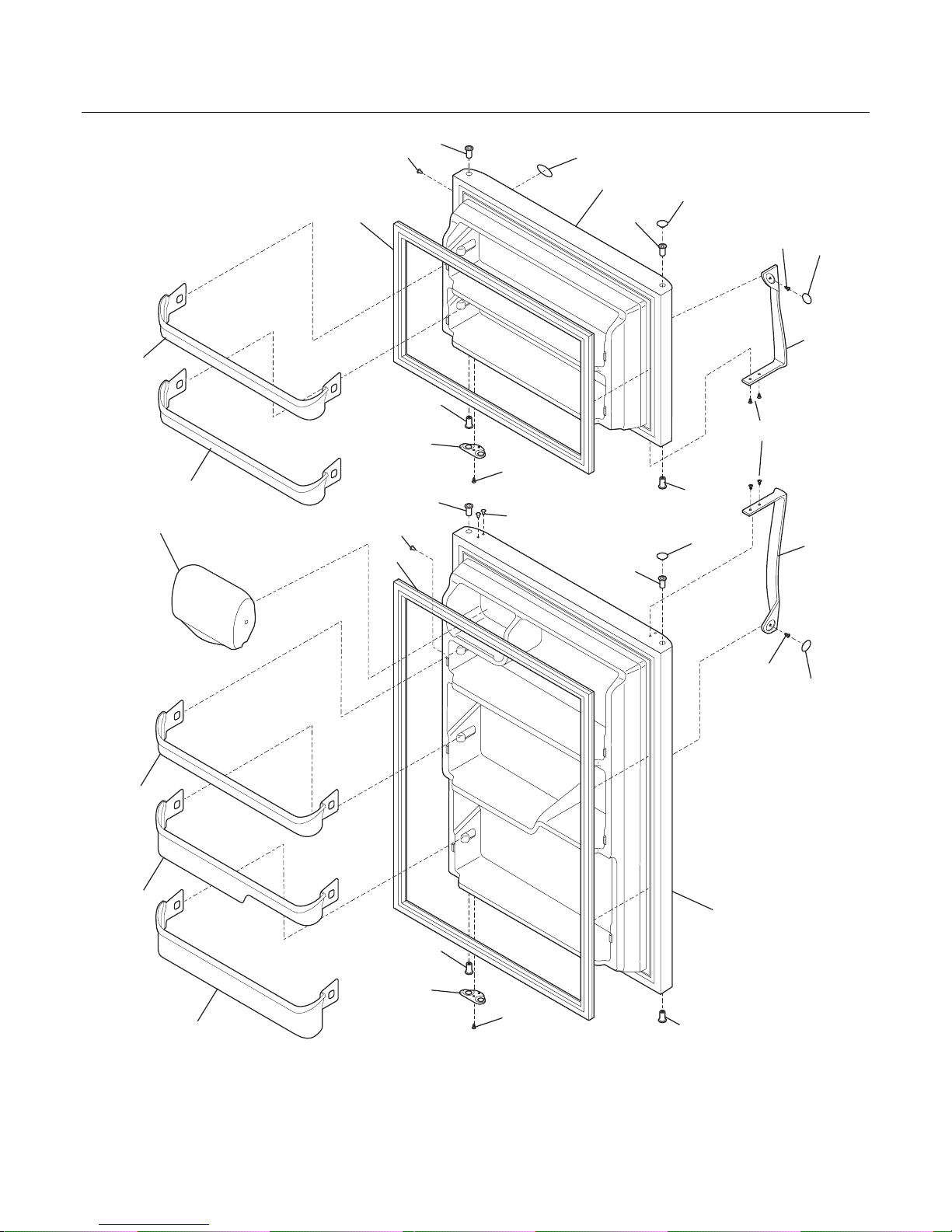

DOOR
14
14
48
48A
48B
10
22
22
11
12
22
22
22
13A
13
21C
21C
10
22
14
22
1
7
2
22
N05DCDBCA1
15
21 14B
21
14B
18
21
18A
49
49

FRT21FR7E Publication No: 5995452454
# Functional Parts 3 10/05
* Non-Illustrated Parts
DOOR
Model Index: AFRT21FR7E (FRT21FR7EB5)
BFRT21FR7E (FRT21FR7EQ5)
CFRT21FR7E (FRT21FR7EW5)
POS. NO PART NO. DESCRIPTION
1 # 240514611 A - - Gasket, seal, black, frzr door, magnetic
1 # 240514607 - B C Gasket, seal, white, frzr door, magnetic
2 # 240514612 A - - Gasket, seal, black, refr door, magnetic
2 # 240514608 - B C Gasket, seal, white, refr door, magnetic
7 240337703 A B C Door-dairy, w/o graphics, clear
10 240381303 A - - Plug-button, black, hinge brg hole
10 240381302 - B - Plug-button, bisque, hinge brg hole, (2)
10 240381301 - - C Plug-button, white, hinge brg hole, (2)
11 240450312 A - - Door, frzr, black
11 240450306 - B - Door, frzr, bisque
11 240450302 - - C Door, frzr, white
12 240416304 A - - Nameplate, black
12 240416303 - B - Label-nameplate, bisque
12 240416301 - - C Label-nameplate, white
13 240312405 A - - Door Stop, black, refr
13 240312407 - B - Door Stop, bisque, ref
13 240312403 - - C Door Stop, white, ref
13A 240312406 A - - Door Stop, black, frzr
13A 240312408 - B - Door Stop, bisque, frzr
13A 240312404 - - C Door Stop, white, frzr
14 240494003 A - - Plug-button, black
14 240494002 - B - Plug-button, bisque
14 240494001 - - C Plug-button, white
14B 240383603 A - - Plug-button, black, door handle
14B 240383602 - B - Plug-button, bisque, door handle
14B 240383601 - - C Plug-button, white, door handle
15 240450412 A - - Door, refr, black
15 240450406 - B - Door-refr, refr, bisque, complete assy
15 240450402 - - C Door, refr, white
18 240339203 A - - Handle-door, black, refr-LH/frzr-RH
18 240339204 - B - Handle-door, bisque, refr-LH/frzr-RH
18 240339201 - - C Handle-door, white, refr-LH/frzr-RH
18A 240339208 A - - Handle-door, black, refr-RH/frzr-LH
18A 240339209 - B - Handle-door, bisque, refr-RH/frzr-LH
18A 240339206 - - C Handle-door, white, refr-RH/frzr-LH
21 240383401 A B C Screw, truss hd quad, #10-16 x .500
21C 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500
22 240527102 A - - Bearing-hinge, black
22 240527101 - B C Bearing-hinge, natural color
48 240338101 A B C Bin-door, pseudo, bottom
48A 240337901 A B C Bin-door, refr
48B 240338001 A B C Bin-door, pseudo, gallon, refr
49 240495804 A B C Bin-door, pseudo, frzr

Publication No: 5995452454 FRT21FR7E
10/05 4

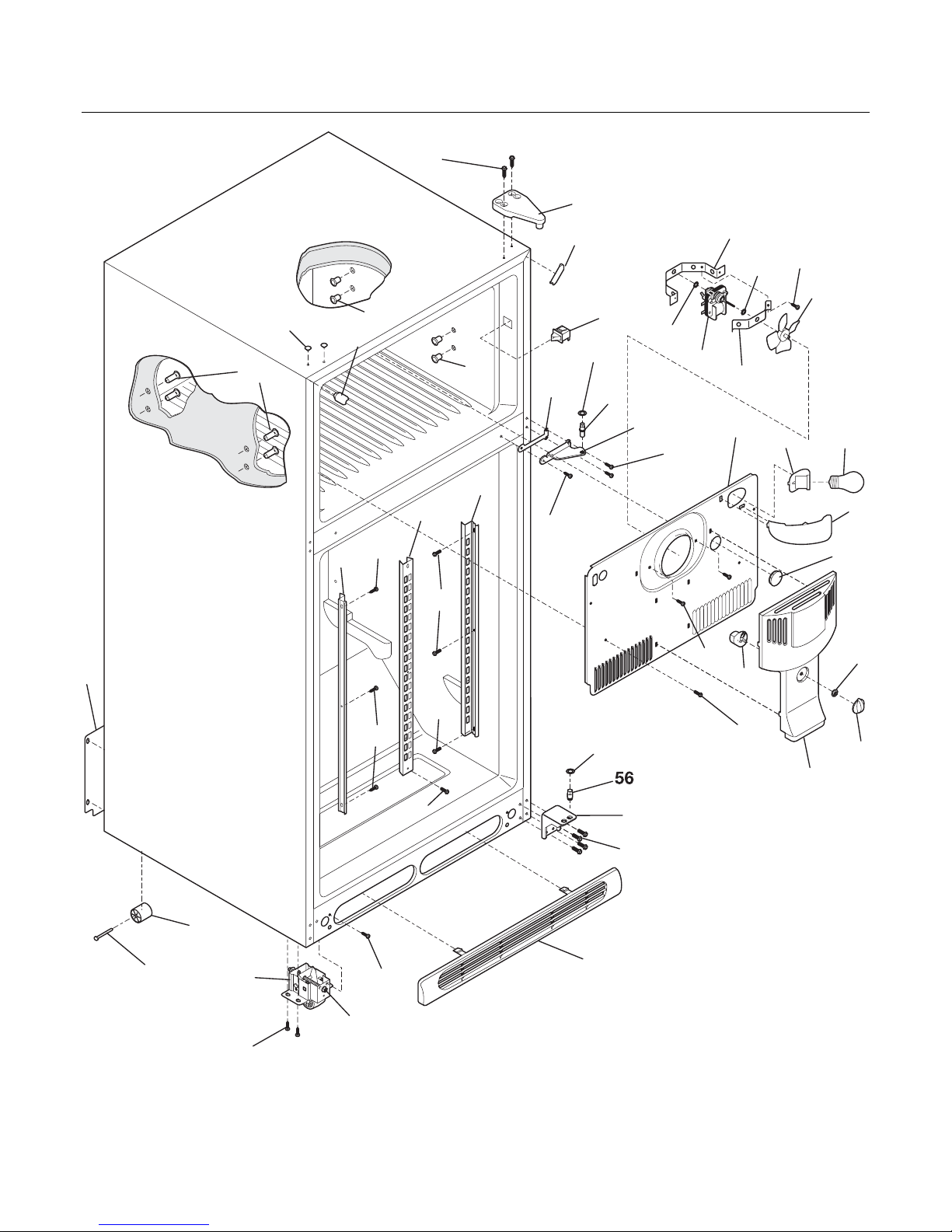

CABINET
49
49
49
49
49
47
47
48
114
83
82
89
11
10
81
58
92
38
37
37
13
5
58
35A 36
34
35
59
59
42
30
72
N05BAAABC5
43
28
21C
21C
41
41
22
41
8
8
9
14
34
15
16
74
1
4
2
3

FRT21FR7E Publication No: 5995452454
# Functional Parts 5 10/05
* Non-Illustrated Parts
CABINET
Model Index: AFRT21FR7E (FRT21FR7EB5)
BFRT21FR7E (FRT21FR7EQ5)
CFRT21FR7E (FRT21FR7EW5)
POS. NO PART NO. DESCRIPTION
1 240355402 A B C Cover-fan
2 240367001 A B C Knob-damper control
3 5303212803 A B C Nut
4 241523701 A B C Damper-fan cover
5 # 5308000010 A B C Fan Blade, red, evaporator fan
8 5300157666 A B C Bushing-motor mtg, (2)
9 5303292396 A B C Bracket-motor mtg, front
10 240313609 A B C Cover-evap coil, w/light
10* 240568606 A B C Seal-coil cover
10*# 241537701 A B C Wiring Harness, freezer section, with light
11 5303208309 A B C Plug-hole, factory test
13 240369702 A B C Motor-evap fan
14 5303292397 A B C Bracket-motor mtg, rear
14* 240433201 A B C Screw, hex washer head, 8-18 x 0.375
15 241560701 A B C Light Bulb
16 241513901 A B C Socket-light
21C 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500
22 215774918 A - - Plug-button, black, upr hinge holes
22 215774919 - B - Plug-button, bisque, upr hinge holes
22 215774901 - - C Plug-button, white, upr hinge holes
28 240335501 A B C Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 240314003 A - - Bracket-lower hinge, black
30 240314001 - B C Bracket-lower hinge, zinc
34 240311303 A B C Washer, hinge, nylon, (2)
35 240313803 A - - Bracket-ctr hinge, black
35 240313801 - B C Bracket-ctr hinge, zinc
35A 240336802 A B C Spacer-hinge, center
36 240516401 A B C Pin-center hinge
37 240337603 A - - Trim-cabinet corner, black, (2)
37 240337604 - B - Trim-cabinet corner, bisque, (2)
37 240337601 - - C Trim-cabinet corner, white, (2)
38 241622603 A - - Hinge-up-plastic-blk, plastic, black
38 241622604 - B - Hinge-up-plastic-bis, plastic, bisque
38 241622601 - - C Hinge-up-plastc-wht, plastic, white
41 5308009759 A B C Grommet, shelf mtg, 1.25", LH, (4)
42 240578901 A B C Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335003 A B C Roller Assy, adjustable, front, (2)
47 218233300 A B C Channel-shelf mtg, side, (2)
48 5303292395 A B C Channel-shelf mtg, center
49 218362500 A B C Screw, hex washer head, 8-18AB x 1.250, spacer, (2)
56 240516501 A B C Pin-lower hinge
58 5303001343 A B C Screw, hex washer head, 8-15A x 0.500
59 240442703 A - - Screw-#10-32 X 3/4, black
59 240442701 - B C Screw-#10-32 X 3/4, zinc
72 240368207 A - - Grille/Kickplate, black
72 240368206 - B - Grille/Kickplate, bisque
72 240368205 - - C Grille/Kickplate, white
74 240354301 A B C Shield-light, frzr

Publication No: 5995452454 FRT21FR7E
10/05 6
CABINET
49
49
49
49
49
47
47
48
114
83
82
89
11
10
81
58
92
38
37
37
13
5
58
35A 36
34
35
59
59
42
30
72
N05BAAABC5
43
28
21C
21C
41
41
22
41
8
8
9
14
34
15
16
74
1
4
2
3

FRT21FR7E Publication No: 5995452454
# Functional Parts 7 10/05
* Non-Illustrated Parts
CABINET
Model Index: AFRT21FR7E (FRT21FR7EB5)
BFRT21FR7E (FRT21FR7EQ5)
CFRT21FR7E (FRT21FR7EW5)
POS. NO PART NO. DESCRIPTION
81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B C Roller, compressor base, rear, (2)
83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241574607 A B C Cover-access, w/label
89* 241500301 A B C Screw, hex washer head, 8-18AB x 0.500
92 216850900 A B C Screw, hex washer hd, 1/4 x 7/8, hinge mtg
114# 240505801 A B C Switch, light/lamp
* 5303305345 A - - Paint, touch-up, black
* 5304414035 - B - Paint, touch-up, bisque
* 5303305324 - - C Paint, touch-up, white

Publication No: 5995452454 FRT21FR7E
10/05 8
SHELVES
25
25B
25B
25C
25C
26
47
N05SACAFH11
26
11
31
24
42
42
123
123
81
81
23
21
22A
13
12
14
18
17
34
15
15
16
24B
24

FRT21FR7E Publication No: 5995452454
# Functional Parts 9 10/05
* Non-Illustrated Parts
SHELVES
Model Index: AFRT21FR7E (FRT21FR7EB5)
BFRT21FR7E (FRT21FR7EQ5)
CFRT21FR7E (FRT21FR7EW5)
POS. NO PART NO. DESCRIPTION
11 240358006 A B C Shelf, freezer, full-width, wire
12 240545901 A B C Diffuser-air, top
13 240362601 A B C Diffuser, air, bottom
14 # 241554901 A B C Switch-light/lamp
15 241555401 A B C Light Bulb
16 240364201 A B C Socket-light/lamp, dual
17 240368101 A B C Control Box
17*# 240388701 A B C Wiring Harness, control box
18 240360801 A B C Knob, temp control
21 5304445058 A B C Control-temperature
22A 5303916855 A B C Tube, sensor sleeve, plastic, clear
23 # 215846606 A B C Timer, defrost, 60 Hz, 0.25 W, 120 V, 10 hour/30 min
23* 5303001259 A B C Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
24 240355214 A B C Shelf-"Spill-Safe", cantilever, fixed
24B 240408903 A B C Shelf-"Spill-Safe", cantilever fixe
25 240364718 A B C Cover-crisper pan
25B 240361201 A B C Control-humidity
25C 240361301 A B C Damper, humidity cont.
26 240343803 A B C Pan, crisper, (2)
31 240530803 A B C Pan-meat, w/o graphics, clear
34 240385201 A B C Container, ice bin
42 240356501 A B C Track, meat pan hanger, RH
42 240365401 A B C Track, meat pan hanger, LH
47 240350654 A B C Insert-pan cover, glass
81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
123 215005100 A B C Screw, hanger/rlr mtg, 8-10 x 0.438

Publication No: 5995452454 FRT21FR7E
10/05 10
SYSTEM
17
21
15
14
20
16
59
61
60
59B
59B
59A
59A
59A 58
1
34
34
83
44
41
82
83
82
N05CAAAAC6
22
23
23
30
32
85
55
4
6
29
26
45
57
25
25
86
20

FRT21FR7E Publication No: 5995452454
# Functional Parts 11 10/05
* Non-Illustrated Parts
SYSTEM
Model Index: AFRT21FR7E (FRT21FR7EB5)
BFRT21FR7E (FRT21FR7EQ5)
CFRT21FR7E (FRT21FR7EW5)
POS. NO PART NO. DESCRIPTION
1 240444401 A B C Condenser, dynamic
4 # 218944001 A B C Drier-filter, R134a System
6 # 241607001 A B C Harness-wiring, machine compt
6* # 240388701 A B C Wiring Harness, control box
6* # 241537701 A B C Wiring Harness, freezer section, with light
14 240356217 A B C Heater-defrost
15 # 5303918274 A B C Evaporator Kit
16 5308000110 A B C Strap-evap/heater, aluminum, (2)
17 241551801 A B C Trough-drain
20 241551902 A B C Insulation Block
21 # 5303918202 A B C Thermostat-defrost, kit
22 241602001 A B C Base-compressor
22* 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 A B C Grommet-compr mtg, (4)
25 240491501 A B C Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF
26 241637401 A B C Pan-defrost
29 # 5303918312 A B C Compressor Kit
30 # 241527804 A B C Starter
32 241527901 A B C Clamp, elec cont mtg, compressor
34 240405201 A B C Grommet, rubber, black, cond tube/wire
41 240555001 A B C Screw-#8-32 X 3/8
44 215174700 A B C Clamp-service cord, strain relief, galv steel
45 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
55 218909915 A B C Capacitor, run, 220 VAC, 15 microfarad
57 240542601 A B C Clip-wiring harness
58 240433201 A B C Screw, hex washer head, 8-18 x 0.375
59 240315502 A B C Shroud-cond fan
59* 240346701 A B C Tape-foam seal, shroud
59* 240359401 A B C Screw-fan shroud, (2)
59A 240346501 A B C Bracket-support, cond mtr, (3)
59B 240346601 A B C Grommet-bracket, (3)
60 # 241584301 A B C Motor-condenser fan
61 241536201 A B C Blade-condenser fan
82 5304418225 A B C Roller, compressor base, rear, (2)
83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin
85 240493101 A B C Tube-connector, suction
86 240409302 A B C Spacer-cond tube, black
* # 5303918210 A B C Heat Exchanger Kit, suction line
* # 5304421289 A B C Hot Tube Repair Kit, service

Publication No: 5995452454 FRT21FR7E
10/05 12
ICE MAKER

FRT21FR7E Publication No: 5995452454
# Functional Parts 13 10/05
* Non-Illustrated Parts
ICE MAKER
Model Index: AFRT21FR7E (FRT21FR7EB5)
BFRT21FR7E (FRT21FR7EQ5)
CFRT21FR7E (FRT21FR7EW5)
POS. NO PART NO. DESCRIPTION
1 218976901 A B C Tube-water inlet, inlet valve, to ice maker
1* 240561701 A B C Seal-water inlet, inlet valve, to ice maker
2 5304420650 A B C Spring, shut-off arm
3 3206299 A B C Label, ID plate
4 3206301 A B C Gear
5 3206303 A B C Plate-mounting
6 3206305 A B C Screw-ground wire, 8-32 x 0.250
7 # 3206306 A B C Motor-ice maker
8 3206312 A B C Spacer-hold switch
9 3206313 A B C Cam
10 3206315 A B C Clamp
11 # 3206319 A B C Thermal Cutoff, ICE MAKER, complete assy
12 # 5304420651 A B C Wiring Harness, ICE MAKER, internal, with plug
13 # 3206322 A B C Thermostat Assy, ICE MAKER
14 5304420652 A B C Screw, 4 x 0.750, switch mtg.
15 # 3206324 A B C Switch, (3)
16 5304420653 A B C Support, phenolic
17 # 5303320545 A B C Mold-ice maker, Radius Cube, with heater
18 3206328 A B C Ejector-ice
19 3206330 A B C Bearing & Inlet
20 5304408581 A B C Screw, 8-32 x 0.375
21 3206332 A B C Ice Stripper
22 3206333 A B C Shut-off Arm
23 5304408582 A B C Screw, 8-32 x 0.875, mold-to-support, (3)
24 3206335 A B C Lever Arm
25 3206336 A B C Screw, 8-18 x 0.562, lever arm/sprt
26 5304420654 A B C Screw-thermo/sprt, 4-24 x 0.375, (4)
27 3206338 A B C Screw, 4-40 x 1.000, hold switch mtg, (2)
28 3206339 A B C Screw-timing stop, 4-40 x 0.375
29 3206323 A B C Screw, 4-24 x 0.750, (6)
30 3206341 A B C Screw-timing adj, 8-32 x 1.000
31 3206342 A B C Insulator
32 3206343 A B C Plate-valve switch
33 5304408583 A B C Spring-timing adj
34 5304420655 A B C Screw, plazscrew, 8-10, (3)
35 5304408585 A B C Screw
36 3206347 A B C Cover-ice maker
45 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
51 241523501 A B C Tube-water, ice mold fill, extension
55 # 240519601 A B C Valve-water, single solenoid, 60 Hz, 105/120 V
60 218362500 A B C Screw, hex washer head, 8-18AB x 1.250, spacer, (2)
61 218721500 A B C Bracket-leveling, ICE MAKER
62 218737900 A B C Screw-IM brkt mtg, hex washer head, 8-32D x 0.375
64 5303001549 A B C Clamp, 0.31 ID, steel, copper wtr line
* 218888001 A B C Adapter-water supply, nut & sleeve, compression ftg
* 240352409 A B C Ice Maker, Radius Cube, 115 V, no instl parts

Publication No: 5995452454 FRT21FR7E
10/05 14
WIRING SCHEMATIC

FRT21FR7E Publication No: 5995452454
# Functional Parts 15 10/05
* Non-Illustrated Parts
WIRING DIAGRAM
