Frigidaire PLHS267ZC User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
PLHS267ZCB0 PLRS267ZA R134a Professio stainless/black 115
MARKET
North America
Publication No.
5995389482
030428
-EN/SERVICE/KHB
357
SIDE BY SIDE
REFRIGERATOR
Model No.
PLHS267ZC
©2003 Electrolux Home Products, Inc.
All rights reserved
ENERGY GUIDE - 240592242
OWNER’S GUIDE - 240389311
SERVICE DATA SHEET - 240389610
ELECTROLUX HOME PRODUCTS, INC
P.O. BOX 212378, Augusta, GA 30917
FACTORY
PARTS CATALOG

04/03 2
Publication number PLHS267ZCB0
5995389482
FREEZER DOOR

# = Fast-moving Parts 3 04/03
* = Non-Illustrated Parts
PLHS267ZCB0 Publication No.
5995389482
FREEZER DOOR
POS. NO PART NO DESCRIPTION
1 # 240390606 Gasket-frzr door, black, magnetic
4A 240334201 Bin-door, frzr-upper
4B 240351601 Bin-door
4C 240351701 Bin-door, frzr-dispenser
11 240554227 Door-frzr, stainless steel, complete assy
13A 240581906 Door Stop, black, frzr
18 240536801 Handle-door, stainless steel, with insert
21A 240598401 Screw,10-32 x 1/2
22A 240328202 Bearing-hinge,closer
22C 240328404 Bearing-hinge,black ,upper
68 240467701 Chute-ice
79 218755402 Screw-set,10-32 x 0.375
80 218755503 Screw-shoulder, #10 AB ,handle mounting
* 240545101 Connector-water,straight
* 240552102 Harness-wiring,door
* 5303918256 Dispenser heater kit

04/03 4
Publication number PLHS267ZCB0
5995389482
REFRIGERATOR DOOR

# = Fast-moving Parts 5 04/03
* = Non-Illustrated Parts
PLHS267ZCB0 Publication No.
5995389482
POS. NO PART NO DESCRIPTION
2 240390605 Gasket-refr door,black ,magnetic
4 240323002 Bin-door,pseudo ,bottom
7 240326203 Door-dairy
12 240558801 Nameplate,aluminum
13 240581905 Door Stop,black ,ref
15 240451981 Door-refr, stainless steel, complete assy
18 240536801 Handle-door,stainless steel, with insert
21A 240598401 Screw,10-32 x 1/2
22 240328201 Bearing-hinge, closer
22B 240328403 Bearing-hinge, upper
27A 240396102 Retainer, tall bottle
49 240430312 Bin-door, gallon
79 218755402 Screw-set, 10-32 x 0.375
80 218755503 Screw-shoulder, #10 AB, handle mounting
REFRIGERATOR DOOR

04/03 6
Publication number PLHS267ZCB0
5995389482

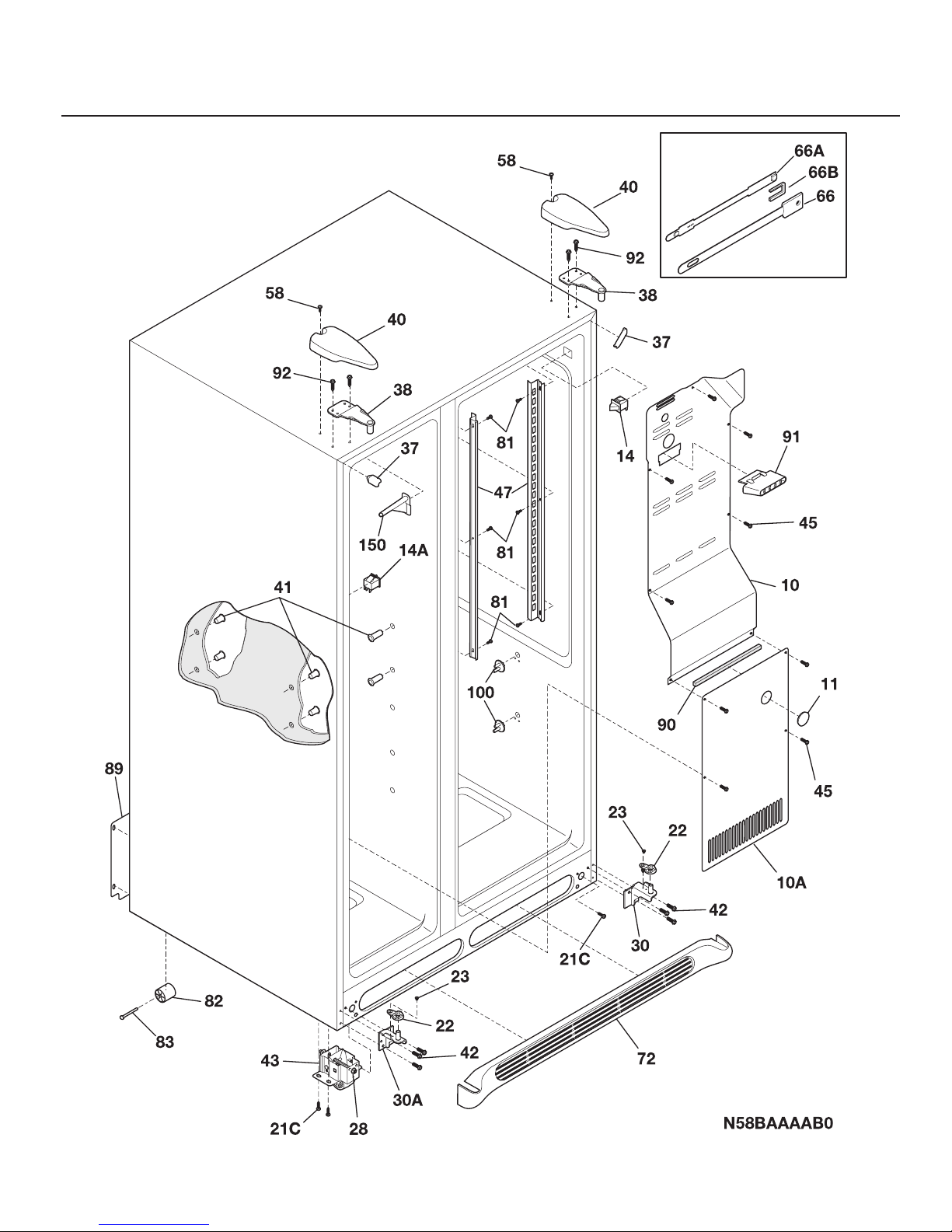

CABINET

# = Fast-moving Parts 7 04/03
* = Non-Illustrated Parts
PLHS267ZCB0 Publication No.
5995389482
POS. NO PART NO DESCRIPTION
10 240435902 Cover-air duct
10A 240475902 Cover-evap coil,lower
11 5303208309 Plug-hole,factory test
14 240505801 Switch,light/lamp
14A# 215486600 Switch-light/lamp
21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500
22 240457701 Plate-door closer
23 240402701 Screw-#10-32 x 1/4 flat hd
28 240335501 Bolt-roller adj,hex wshr hd, 1/4-20 x 4.020, (2), special
30 240419103 Bracket-lower hinge, ref
30A 240419104 Bracket-lower hinge
37 240337603 Trim-cabinet corner,black ,(2)
38 240327202 Bracket-upper hinge
40 240327007 Cover-upper hinge,black
41 240358701 Grommet-shelf mtg,1.40" long
41* 240358801 Grommet-shelf mtg,.875" long
42 240578901 Screw-hinge mtg,hex head ,1/4-20 x 5/8
43 240335003 Roller Assy,front ,(2)
45 241500301 Screw,hex washer head ,8-18AB x 0.500
47 240349401 Channel-shelf mtg,side ,(2)
58 218749600 Screw,#10 pan hd ,8-18 x .5
66 240504901 Cover-damper
66* 240518802 Pin-push, push-in, plastic
66A 240505001 Damper-meat keeper
66B 240355901 Insulation-damper
72 240324406 Grille/Kickplate, black
81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 Roller,compressor base ,rear ,(2)
83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 240326104 Cover,access ,system compt ,with label
90 218249808 Seal-coil cover
91 240380101 Duct-ice maker
92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 Support,crisper cover ,front ,(4)
100* 240350802 Support,crisper cover ,rear ,(4)
150 240368701 Guide-control bulb
* 218515401 Clip
* 240396801 Clamp,tube/wiring, nylon, black/natural
* 240479601 Plug, button, cab liner holes
* 240481601 Shim-lower hinge
* 5303305345 Paint, touch-up, black
CABINET

04/03 8
Publication number PLHS267ZCB0
5995389482
SHELVES

# = Fast-moving Parts 9 04/03
* = Non-Illustrated Parts
PLHS267ZCB0 Publication No.
5995389482
POS. NO PART NO DESCRIPTION
2 240434604 Trim-basket
11 240350668 Shelf-freezer,glass ,lower
11A 240350667 Shelf-freezer,glass ,upper
11C 240324101 Shelf-pizza
15A 240436702 Light Bulb, A-15, clear, 40 W, 120 V, miniature
16A 218906801 Socket-light/lamp
16A* 240323102 Harness-wiring
24 240355203 Shelf-"Spill-Safe",fixed
24A 240355205 Shelf-"Spill-Safe",fixed
24B 240350106 Shelf-"Spill-Safe",cantilever ,sliding
25 240350702 Cover-crisper pan,upper
25* 240362101 Clip-slide,cover-crisper
25A 240350902 Cover-crisper pan,lower
26 240351023 Pan-crisper,upper
26* 240349801 Clip-slide,pan-crisper
26A 240362201 Control-humidity
27 240351219 Pan-crisper,lower
39 240367602 Trim-shelf,front
42 240356501 Track,meat pan hanger ,RH
42A 240349701 Hanger-meat pan,LH
42A* 240349901 Block-meat pan rail,LH
42A* 240350001 Spring-meat pan rail
47 240350602 Insert-pan cover,glass
47A 240350603 Insert-pan cover,glass
49 240564401 Basket-sliding
49B 240530504 Basket-sliding,upper ,full
51 240343002 Hanger-basket,RH
51A 240395502 Hanger-basket,RH
52 240343102 Hanger-basket,LH
52A 240395602 Hanger-basket,LH
62 240342818 Pan-meat
81 5308016566 Screw, hex wshr head, 8-15A x 0.625, low profile
97 240545303 Water Tank Assy, coiled tubing, front filter
100 240326302 Cover-water tank
101 218493100 Screw,hex washer head ,8-18AB x 1-3/4
109 240351301 Base-crisper light socket
120 240342901 Shelf-ice cream
123 215005100 Screw,hanger/rlr mtg ,8-10 x 0.438
126 218867405 Channel,auger mtg ,LH
126 218867406 Channel,auger mtg ,RH
136 240424501 Dispenser-can,white
140 240430501 Channel,wtr tube cover
SHELVES

04/03 10
Publication number PLHS267ZCB0
5995389482
CONTROLS

# = Fast-moving Parts 11 04/03
* = Non-Illustrated Parts
PLHS267ZCB0 Publication No.
5995389482
PLHS267ZC
POS. NO PART NO DESCRIPTION
5 # 5308000010 Fan Blade,red ,evaporator fan
8 5300157666 Bushing-motor mtg,(2)
9 5303292396 Bracket-motor mtg,front
13 # 240315802 Motor-evap fan
13* 215474201 Washer,"slinger" ,nylon ,evap fan shaft
14 5303292397 Bracket-motor mtg,rear
15 240436702 Light Bulb, A-15, clear, 40 W, 120 V, miniature
16 218906801 Socket-light/lamp
17 240317701 Box-control,front
17* 240439901 Wiring Harness,controls
18 240360801 Knob,temp control
21 # 240383703 Control-temperature
21A 5304421768 Control-temperature
22 218660702 Tube-insulator
23 240554501 Control-defrost, adaptive timer, PC board
23* 5303001259 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
45 5303001343 Screw,hex washer head, 8-15A x 0.500
53 240369501 Box-control
81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
101 218493100 Screw, hex washer head, 8-18AB x 1-3/4
115 240521103 Damper Assy,w/seal
137 240396401 Filter,water ,front ,cassette
137* 240396701 Bypass,water filter ,Optional Part
138 240397301 Button-filter release
139 240396001 Base-water filter
139* 240526901 O-ring,wtr filter base
149 240331602 Shroud-fan orfice
150 240394204 Insulation-water tube cover
151 240373806 Cover-water tube
198 240397401 Retainer
199 240397501 Rod
199* 240398401 Spring-filter release rod
200 240397601 Light Pipe
201 240398508 Label-control box
* 240470401 Connector-amp
* 3205266 Edge Protector,wiring harness
* 240427201 Heater-freezer control
CONTROLS

04/03 12
Publication number PLHS267ZCB0
5995389482

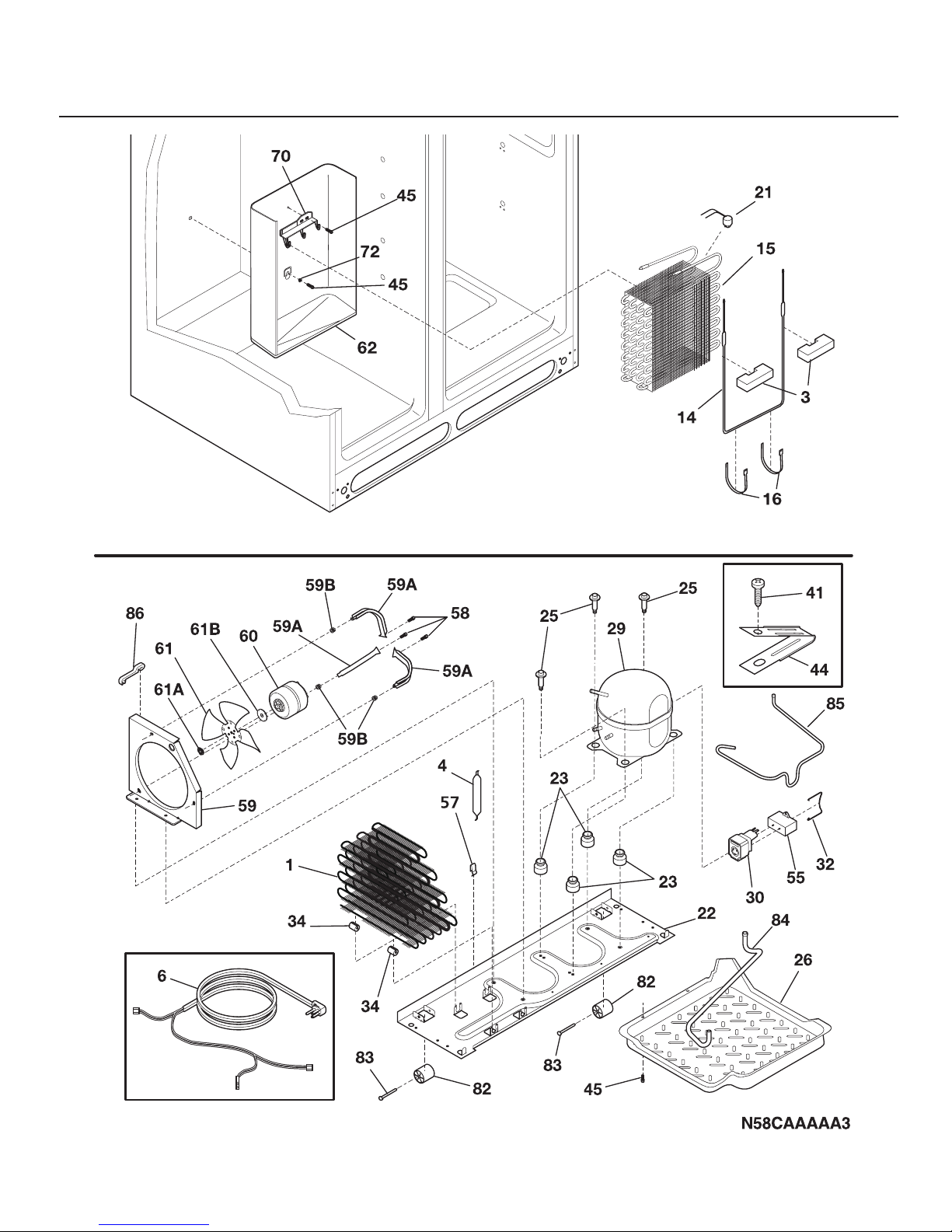

SYSTEM

# = Fast-moving Parts 13 04/03
* = Non-Illustrated Parts
PLHS267ZCB0 Publication No.
5995389482
POS. NO PART NO DESCRIPTION
1 240333603 Condenser
3 218679607 Block-evap coil,styrofoam ,(2)
4 # 218944001 Drier-filter,R134a System
6 240346402 Harness-wiring,machine compt
6* 240439901 Wiring Harness,controls
6* 240449601 Harness-wiring
14 # 5303918253 Defrost Heater Kit
15 # 5303918284 Evaporator Kit
16 5308000110 Strap-evap/heater,aluminum ,(2)
21 5303918214 Thermostat-defrost,kit
22 240330003 Base-compressor
22* 218252200 Screw,#8 truss hd ,10-32CA x 0.500
23 218513300 Grommet-compr mtg,(4)
25 240491501 Screw-compressor mtg,1/4-28 x 1.16, shoulder, typ CF
26 240332602 Pan-defrost drain
29 # 5303918292 Compressor,w/electricals
30 # 218721119 Starter,PTC
32 218973501 Clamp,elec cont mtg ,compressor
34 240405201 Grommet,rubber ,black ,cond tube/wire
41 240555001 Screw-#8-32 X 3/8
44 215174700 Clamp-service cord, strain relief, galv steel
45 5308016566 Screw,hex washer head ,8-15A x 0.625, low profile
55 # 218909901 Capacitor,run ,50/60 Hz ,220 VAC,15 microfarad
57 240542601 Clip-wiring harness
58 215004600 Screw,hx serr wshr hd, 8-36 x 7/16, cond fan motor,(2)
59 240315501 Shroud-cond fan
59* 240346701 Tape-foam seal, shroud
59* 240359401 Screw-fan shroud, (2)
59A 240346501 Bracket-support, cond mtr, (3)
59B 240346601 Grommet-bracket,(3)
60 # 240334002 Motor-condenser fan
61 # 240315401 Fan Blade, galv steel, condenser fan
61A 215004700 Nut,speed
61B 215004800 Grommet-silencer
62 240429402 Trough-drain
70 218990801 Bracket-evap/cvr mtg
72 218397000 Button-handle mtg,dovetail
82 5304418225 Roller,compressor base ,rear ,(2)
83 5303316859 Rivet,flat head ,1/4 OD x 1-3/4, roller pin
84 5304421068 Tube-drain,lower
85 240346201 Tube-connector,suction
86 240409302 Spacer-cond tube,black
* # 5303918213 Heat Exchanger Kit,suction line
* # 5303918222 Hot Tube Repair Kit,Service
SYSTEM

04/03 14
Publication number PLHS267ZCB0
5995389482

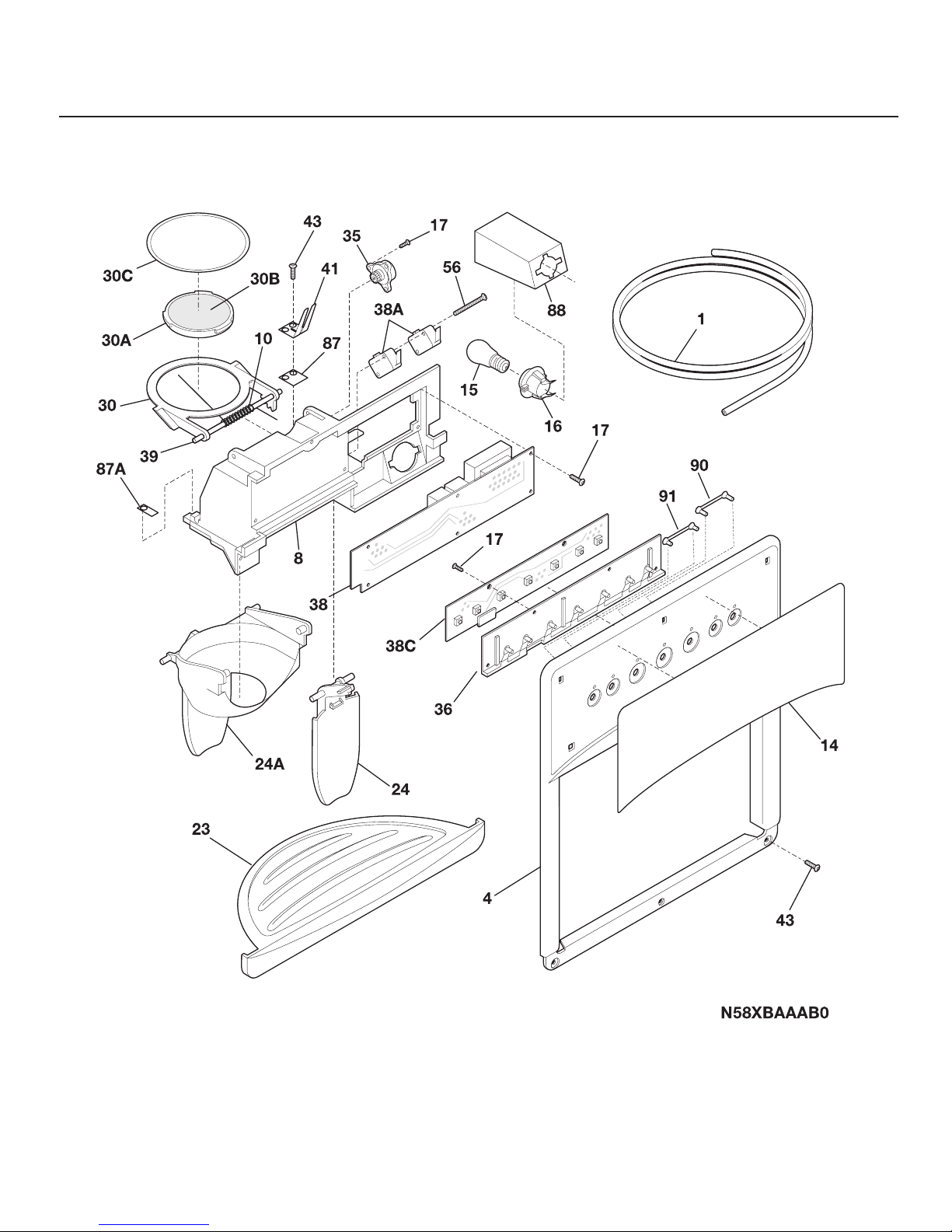

DISPENSER

# = Fast-moving Parts 15 04/03
* = Non-Illustrated Parts
PLHS267ZCB0 Publication No.
5995389482
POS. NO PART NO DESCRIPTION
1 218976409 Tube-water
1* 218976901 Tube-water inlet, inlet valve to ice maker
1* 218976903 Tube-water inlet, inlet valve to filter
1* 218976907 Tube-water inlet, valve to door
4 5304422012 Cover-module, black
8 5304422013 Module-dispenser
10 5304426649 Spring-torsion
14 240323973 Label-module cover, black
15 5304421616 Light Bulb
16 215284900 Socket-light/lamp
17 5304421619 Screw
23 240323603 Drip Tray,black
24 5304425585 Actuator-water, black
24A 5304425584 Actuator-ice, black
30 5304421628 Door Assy-ice chute
30A 5304421624 Door center
30B 5304421625 Insulation-door
30C 5304421629 Door seal
35 5304421620 Damper-rotary
36 5304421824 Carrier
38 5304431764 PC Board-power
38A# 5304421617 Switch-micro, single pole, double throw
38C 5304431856 Board-control
38C* 5304430811 Harness-ribbon cable
39 5304421627 Pin-hinge
41 5304421829 Spring-actuator
43 215296300 Screw, plask h/l ,#6 x 3/8
43* 240363401 Screw-#8-18 X 1/2,#6 hd plask
56 5304421830 Screw-micro switch,pan head
87 5304421622 Bearing Plate
87A 5304421621 Bearing Plate
88 5304421615 Shield-light
90 5304421831 Light Pipe,reflector
91 5304421850 Light Pipe,reflector ,short
* 5304426535 Insulator-electrical
* 5303918256 Dispenser heater kit
DISPENSER

04/03 16
Publication number PLHS267ZCB0
5995389482

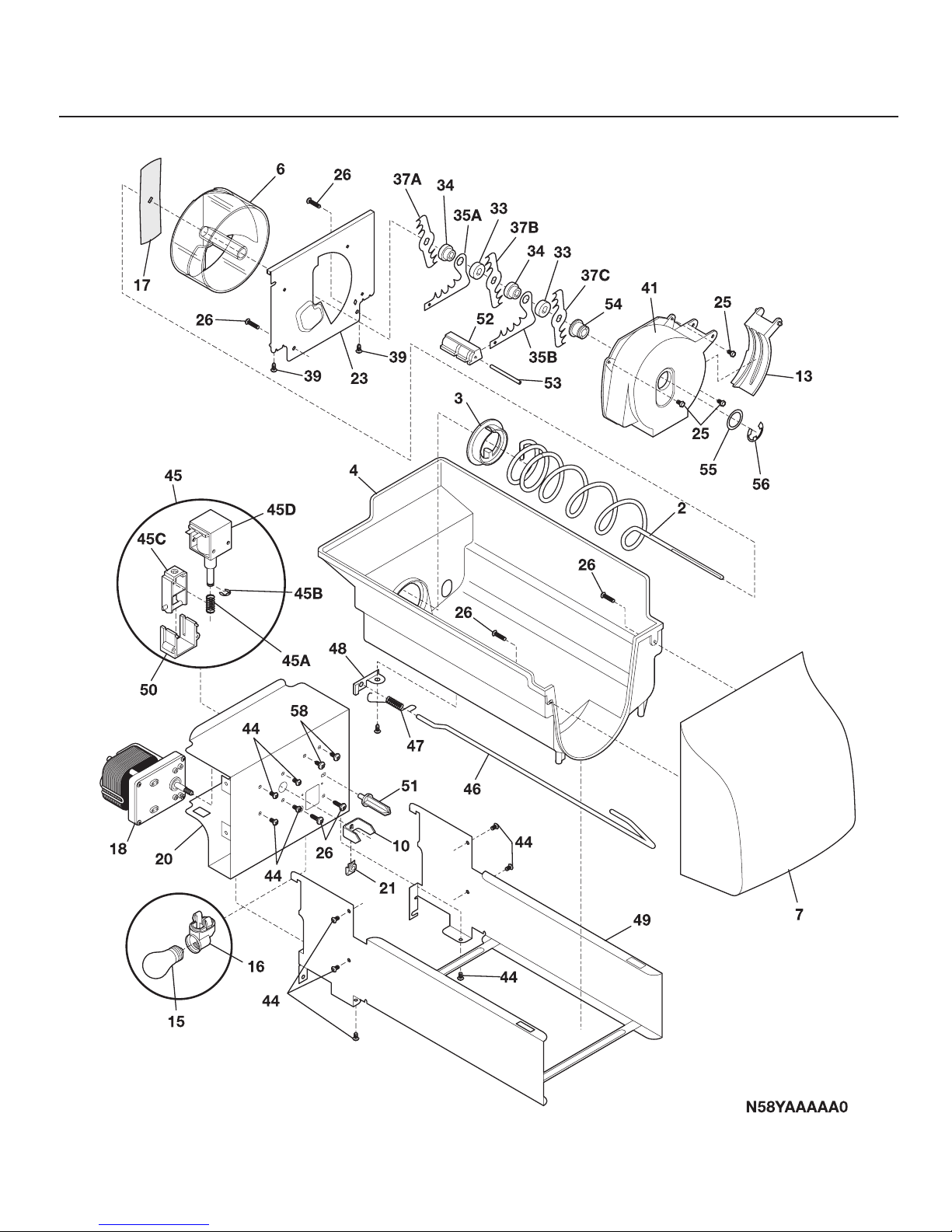

ICE CONTAINER

# = Fast-moving Parts 17 04/03
* = Non-Illustrated Parts
PLHS267ZCB0 Publication No.
5995389482
POS. NO PART NO DESCRIPTION
2 5304428402 Auger-ice
3 5304404343 Cam-drive
4 218815300 Container-ice,bucket only
6 5304404346 Drum-ice disp
7 5304422805 Front-ice container
10 5304404337 Bar-drive
13 5304404359 Gate
15 5303001179 Light Bulb/Lamp,40 W
16 5303289050 Socket-light/lamp
17 5304404345 Drive Blade
18 # 240326903 Motor-auger
18* 5304404335 Wiring Harness,auger motor
20 5304404332 Cover-motor
21 215285100 Nut-drive
23 5304404347 Plate-front
25 5304404362 Screw,hex washer head ,8-32T x 0.375
26 215503200 Screw,cr pan hd ,10-16 x 0.500
33 5304404351 Spacer
34 5304404349 Spacer
35A 5304404353 Fixed Blade,round
35B 5304404352 Fixed Blade,square
37A 5304404348 Blade,crusher #1
37B 5304404350 Blade,crusher #2
37C 5304404356 Blade,crusher #3
39 5304404365 Screw
41 5304404358 Housing-crusher
44 218359200 Screw,pan head ,8-32 x 0.250
45 # 5304404333 Solenoid Assy
45A 5304406816 Spring-solenoid
45B 5304406817 E-Ring-solenoid
45C 5304406818 Actuator-solenoid
45D 5304406819 Solenoid
46 5304404341 Control Rod
47 5304404342 Spring-control rod
48 5304404340 Bracket-control rod
48* 5304404364 Screw-bracket
49 5304404329 Rail Assy
50 5304404334 Guide-solenoid
51 5304404336 Rotation Stop
52 5304404354 Spacer-fixed blades
53 5304404355 Pin-spiral,fixed blades
54 5304404357 Nut-auger
55 5304404360 Washer
56 5304404361 E-ring
58 5304404331 Screw-solenoid
* 240323806 Ice Container Assy,w/moving parts
ICE CONTAINER

04/03 18
Publication number PLHS267ZCB0
5995389482

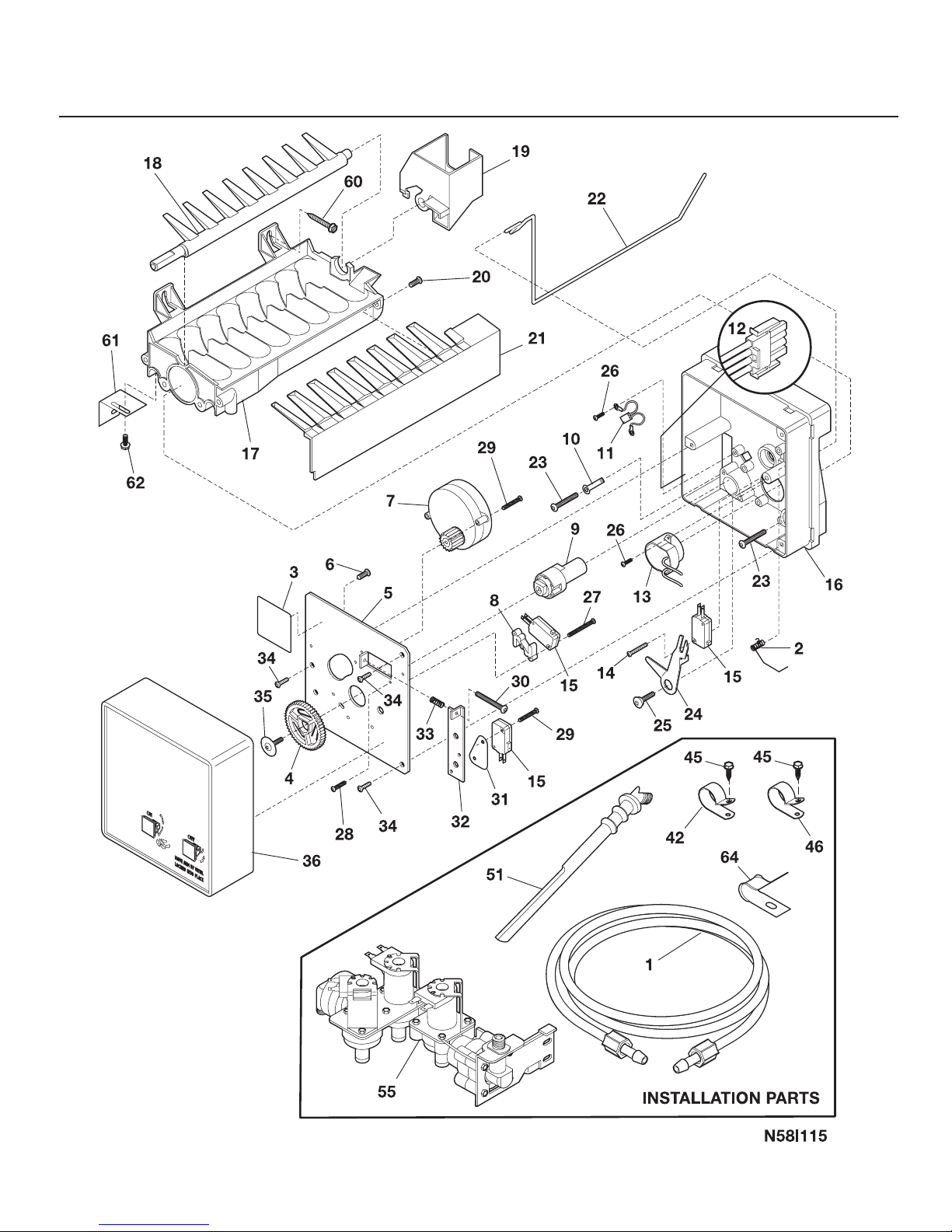

ICE MAKER

# = Fast-moving Parts 19 04/03
* = Non-Illustrated Parts
PLHS267ZCB0 Publication No.
5995389482
POS. NO PART NO DESCRIPTION
1 218976409 Tube-water
1* 218976901 Tube-water inlet, inlet valve to ice maker
1* 218976903 Tube-water inlet, inlet valve to filter
1* 218976907 Tube-water inlet, valve to door
1* 240561701 Seal-water inlet, inlet valve to ice maker
2 5304420650 Spring,shut-off arm
3 3206299 Label,ID plate
4 3206301 Gear
5 3206303 Plate-mounting
6 3206305 Screw-ground wire,8-32 x 0.250
7 # 3206306 Motor-ice maker
8 3206312 Spacer-hold switch
9 3206313 Cam
10 3206315 Clamp
11 # 3206319 Thermal Cutoff, ice maker, complete assy
12 # 240352601 Wiring Harness, ice maker, internal, with plug
13 # 3206322 Thermostat Assy,ice maker
14 5304420652 Screw,4 x 0.750 ,switch mtg.
15 # 3206324 Switch,(3)
16 5304420653 Support,phenolic
17 # 5303320545 Mold-ice maker, Radius Cube, with heater
18 3206328 Ejector-ice
19 3206330 Bearing & Inlet
20 5304408581 Screw, 8-32 x 0.375
21 3206332 Ice Stripper
22 3206333 Shut-off Arm
23 5304408582 Screw, 8-32 x 0.875, mold-to-support, (3)
24 3206335 Lever Arm
25 3206336 Screw, 8-18 x 0.562 ,lever arm/sprt
26 5304420654 Screw-thermo/sprt,4-24 x 0.375 ,(4)
27 3206338 Screw, 4-40 x 1.000, hold switch mtg, (2)
28 3206339 Screw-timing stop,4-40 x 0.375
29 3206323 Screw, 4-24 x 0.750 ,(6)
30 3206341 Screw-timing adj,8-32 x 1.000
31 3206342 Insulator
32 3206343 Plate-valve switch
33 5304408583 Spring-timing adj
34 5304420655 Screw,plazscrew, 8-10 ,(3)
35 5304408585 Screw
36 3206347 Cover-ice maker
42 5303001199 Clamp-wiring harness, strain relief, galv steel
42* 218515402 Clip,(2) ,tube mtg.
45 5308016566 Screw,hex washer head ,8-15A x 0.625, low profile
45* 5303001343 Screw,hex washer head ,8-15A x 0.500
46 5303001193 Clamp,.50 ID ,steel ,water tube
46* 5308000133 Clamp,nylon ,.625 ID
51 240387101 Tube-water,ice mold fill ,extension
55 # 240531101 Valve-water,triple solenoid
55* 218709100 Screw,hex head ,10-32 x 0.500
55* 240363601 Screw-shoulder
55* 240542901 Cap-water valve
60 5303207328 Screw,hex washer head ,8-15A x 1.000, (2)
61 218721500 Bracket-leveling,ice maker
62 218737900 Screw-IM brkt mtg,hex washer head, 8-32D x 0.375
64 5303001549 Clamp,0.31 ID ,steel ,copper wtr line
* 218888001 Adapter-water supply,nut & sleeve, compression ftg
* 240352411 Ice Maker,Radius Cube ,115 V, no instl parts
ICE MAKER

04/03 20
Publication number PLHS267ZCB0
5995389482

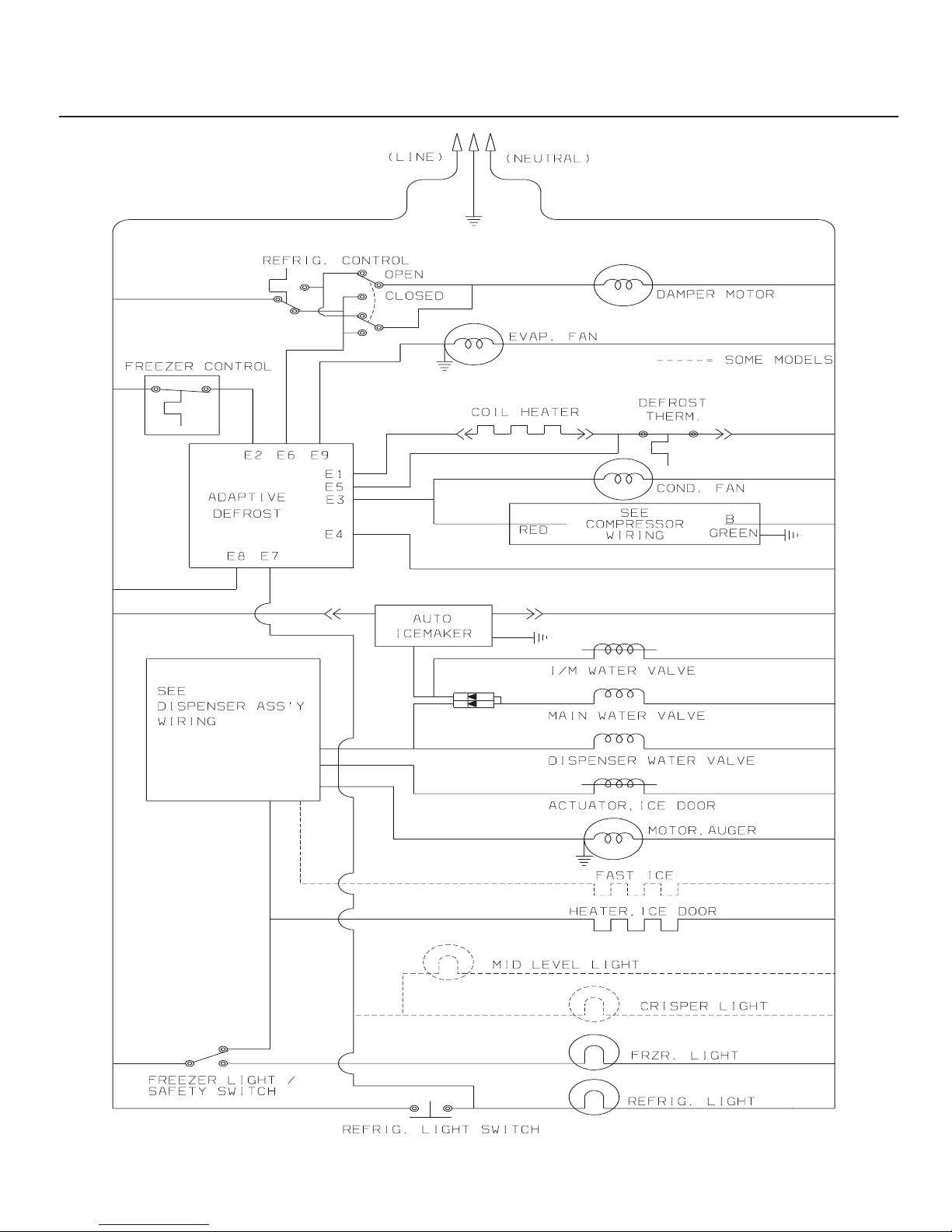

WIRING SCHEMATIC
