Frigidaire GLHS237ZA User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
GLHS237ZAB1 GLHS237ZA R134a Gallery black 115
GLHS237ZAQ1 GLHS237ZA R134a Gallery bisque 115
GLHS237ZAW1 GLHS237ZA R134a Gallery white 115
MARKET
North America
Publication No.
5995356911
010801
-EN/SERVICE/KHB
357
SIDE BY SIDE
REFRIGERATOR
Model No.
GLHS237ZA
©2001 White Consolidated Industries, Inc.
All rights reserved
WIRING DIAGRAM - 240443001
OWNER’S GUIDE - 240389302
SERVICE DATA SHEET - 240389604
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O. BOX 212378, Augusta, GA 30917
FACTORY
PARTS CATALOG

08/01 2
Publication No. GLHS237ZA
5995356911
FREEZER DOOR

# = Fast-moving Parts 3 08/01
* = Non-Illustrated Parts
GLHS237ZA Publication No.
5995356911
FREEZER DOOR
A = GLHS237ZA (GLHS237ZAB1)
B = GLHS237ZA (GLHS237ZAQ1)
C = GLHS237ZA (GLHS237ZAW1)
POS. NO PART NO DESCRIPTION
1 # 240390608 A - - Gasket-frzr door,black ,magnetic
1 240390604 - B C Gasket-door,white
4A 240367302 A B C Bin-door,frzr-upper
4B 240359002 A B C Bin-door
4C 240358402 A B C Bin-door,frzr-dispenser
11 240451833 A - - Panel-frzr door,black ,complete assy
11 240451831 - B - Panel-frzr door,bisque ,complete assy
11 240451823 - - C Panel-frzr door,white ,complete assy
13A 240456906 A - - Door Stop,black ,frzr
13A 240456904 - B - Door Stop,bisque ,frzr
13A 240456902 - - C Door Stop,white ,frzr
18 240359108 A - - Handle-door,black
18 240359109 - B - Handle-door,bisque
18 240359106 - - C Handle-door
21A 5308016566 A B C Screw, hex wshr hd,8-15A x 0.625, low profile
21C 218781100 A B C Screw,pan head ,8-18 x 0.625
22A 240328202 A B C Bearing-hinge,closer
22C 240328404 A - - Bearing-hinge,black ,upper
22C 240328402 - B C Bearing-hinge,upper
37 240359203 A - - Trim-handle,30.13" ,black ,lower
37 240359204 - B - Trim-handle,30.13" ,bisque ,lower
37 240359201 - - C Trim-handle,30.13" ,white ,lower
68 240465801 A B C Chute-ice
72 240421701 A B C Button-handle mtg,dovetail
73 218396700 A B C Block-handle mtg,dovetail
73A 240339101 A B C Clip-trim
74 215503200 A B C Screw,cr pan hd ,10-16 x 0.500
96 240345504 A - - Plug-foam hole,black
96 240345503 - B C Plug-foam hole,white
* 240323202 A B C Harness-wiring,door
* 240352101 A B C Connector-water,straight

08/01 4
Publication No. GLHS237ZA
5995356911
REFRIGERATOR DOOR

# = Fast-moving Parts 5 08/01
* = Non-Illustrated Parts
GLHS237ZA Publication No.
5995356911
A = GLHS237ZA (GLHS237ZAB1)
B = GLHS237ZA (GLHS237ZAQ1)
C = GLHS237ZA (GLHS237ZAW1)
POS. NO PART NO DESCRIPTION
2 # 240390607 A - - Gasket-refr door,black ,magnetic
2 # 240390603 - B C Gasket-refr door,white ,magnetic
4 240363702 A B C Bin-door,2-liter
7 240338303 A B C Door-dairy
13 240456905 A - - Door Stop,black ,ref
13 240456903 - B - Door Stop,bisque ,ref
13 240456901 - - C Door Stop,white ,ref
15 240451919 A - - Panel-refr door,black ,complete assy
15 240451917 - B - Panel-refr door,bisque ,complete assy
15 240451913 - - C Door-refr,white ,complete assy
18 240359103 A - - Handle-door,white
18 240359104 - B - Handle-door,bisque
18 240359101 - - C Handle-door
21A 5308016566 A B C Screw, hex wshr hd, 8-15A x 0.625, low profile
21C 218781100 A B C Screw,pan head ,8-18 x 0.625
22 240328201 A B C Bearing-hinge,closer
22B 240328403 A - - Bearing-hinge,upper
22B 240328401 - B C Bearing-hinge,upper
27A 240396102 A B C Retainer,tall bottle
37 240359203 A - - Trim-handle,30.13" ,black ,lower
37 240359204 - B - Trim-handle,30.13" ,bisque ,lower
37 240359201 - - C Trim-handle,30.13" ,white ,lower
49 240430303 A B C Bin-door,gallon
72 240421701 A B C Button-handle mtg,dovetail
73 218396700 A B C Block-handle mtg,dovetail
73A 240339101 A B C Clip-trim
74 215503200 A B C Screw,cr pan hd ,10-16 x 0.500
96 240345504 A - - Plug-foam hole,black
96 240345503 - B C Plug-foam hole,white
REFRIGERATOR DOOR

08/01 6
Publication No. GLHS237ZA
5995356911
CABINET

# = Fast-moving Parts 7 08/01
* = Non-Illustrated Parts
GLHS237ZA Publication No.
5995356911
A = GLHS237ZA (GLHS237ZAB1)
B = GLHS237ZA (GLHS237ZAQ1)
C = GLHS237ZA (GLHS237ZAW1)
POS. NO PART NO DESCRIPTION
10 240435901 A B C Cover-air duct
10A 240475901 A B C Cover-evap coil,lower
11 5303208309 A B C Plug-hole,factory test
14 # 240413601 A B C Switch-light/lamp
14A# 215486600 A B C Switch-light/lamp
21C 218252200 A B C Screw,#8 truss hd ,10-32CA x 0.500
22 240457701 A B C Plate-door closer
23 240402701 A B C Screw-#10-32 x 1/4 flat hd
28 240335501 A B C Bolt-roller adj, hex wshr hd, 1/4-20 x 4.020,(2),special
30 240419101 A B C Bracket-lower hinge, ref
30A 240419102 A B C Bracket-lower hinge
37 240337603 A - - Trim-cabinet corner,black
37 240337604 - B - Trim-cabinet corner,bisque ,(2)
37 240337601 - - C Trim-cabinet corner,white ,(2)
38 240327201 A B C Bracket-upper hinge
40 240327003 A - - Cover-upper hinge,black
40 240327002 - B - Cover-upper hinge,bisque
40 240327001 - - C Cover-hinge
41 240358701 A B C Grommet-shelf mtg,1.40" long
41* 240358801 A B C Grommet-shelf mtg,.875" long
42 240315301 A B C Screw-hinge mtg,hex head ,1/4-20 x 0.75
43 240335003 A B C Roller Assy,front ,(2)
45 241500301 A B C Screw,#8 18 x .500 ,(3)
47 240349401 A B C Channel-shelf mtg,side ,(2)
58 218749600 A B C Screw,#10 pan hd ,8-18 x .5
66 240470201 A B C Cover-damper
66A 240470301 A B C Damper-meat keeper
66B 240355901 A B C Insulation-damper
72 240324405 A - - Grille/Kickplate,black
72 240324403 - B - Grille/Kickplate,bisque
72 240324401 - - C Grille/Kickplate,white
81 5308016566 A B C Screw,hex wshr hd, 8-15A x 0.625, low profile
82 5304418225 A B C Roller,compressor base ,rear ,(2)
83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 240326103 A B C Cover-access,w/label
90 218249807 A B C Seal-coil cover
91 240380101 A B C Duct-ice maker
92 5303001479 A B C Screw-hinge mtg,hex hd ,1/4-20 x 0.875
100 240423701 A B C Support-crspr cover,(4)
100* 240350802 A B C Support-crspr cover,(4)
150 240368701 A B C Guide-control bulb
* 240396801 A B C Clamp,tube/wiring ,nylon ,black/natural
* 5303305345 A - - Paint,touch-up ,black
* 5304414035 - B - Paint,touch-up ,bisque
* 5303305324 - - C Paint,touch-up ,white
CABINET

08/01 8
Publication No. GLHS237ZA
5995356911
SHELVES

# = Fast-moving Parts 9 08/01
* = Non-Illustrated Parts
GLHS237ZA Publication No.
5995356911
A = GLHS237ZA (GLHS237ZAB1)
B = GLHS237ZA (GLHS237ZAQ1)
C = GLHS237ZA (GLHS237ZAW1)
POS. NO PART NO DESCRIPTION
2 240434601 A B C Trim-basket
11 240350648 A B C Shelf-freezer,glass ,lower
11A 240350647 A B C Shelf-freezer,glass ,upper
15A 215812200 A B C Light Bulb/Lamp,25W
16A 218906801 A B C Socket-light/lamp
24 240355201 A B C Shelf-"Spill-Safe",fixed ,(3)
24B 240350103 A B C Shelf-"Spill-Safe",sliding ,(3)
25 240354501 A B C Cover-crisper pan,upper
25* 240362101 A B C Clip-slide,cover-crisper
25A 240354601 A B C Cover-crisper pan,lower
26 240354705 A B C Pan-crisper,upper
26* 240349801 A B C Clip-slide,pan-crisper
26A 240351101 A B C Control-humidity
27 240354805 A B C Pan-crisper,lower
39 240367601 A B C Trim-shelf,front
42 240356501 A B C Hanger-meat pan,RH
42A 240349701 A B C Hanger-meat pan,LH
42A* 240349901 A B C Block-meat pan rail,LH
42A* 240350001 A B C Spring-meat pan rail
47 240350613 A B C Insert-pan cover,glass
47A 240350614 A B C Insert-pan cover,glass
49 240338401 A B C Basket-sliding
49A 240338501 A B C Basket-sliding,upper ,half
49B 240338503 A B C Basket-sliding,upper ,full
51 240343001 A B C Hanger-basket,RH
51A 240395501 A B C Hanger-basket,RH
52 240343101 A B C Hanger-basket,LH
52A 240395601 A B C Hanger-basket,LH
54 240351901 A B C Plug-hanger,right hand
55 240352001 A B C Plug-hanger,left hand
62 240355505 A B C Pan-meat
66 5303295947 A B C Rack-wine
81 5308016566 A B C Screw, hex wshr hd,8-15A x 0.625, low profile
97 240453003 A B C Water Tank Assy,with tubes
100 240326301 A B C Cover-water tank
101 218493100 A B C Screw,hex washer head ,8-18AB x 1-3/4
109 240351301 A B C Base-crisper light socket
120 240342902 A B C Shelf-ice cream
123 215005100 A B C Screw-roller/hanger,8-10 x 0.438
126 218867401 A B C Channel,auger mtg ,LH
126 218867402 A B C Channel,auger mtg ,RH
SHELVES

08/01 10
Publication No. GLHS237ZA
5995356911
CONTROLS

# = Fast-moving Parts 11 08/01
* = Non-Illustrated Parts
GLHS237ZA Publication No.
5995356911
A = GLHS237ZA (GLHS237ZAB1)
B = GLHS237ZA (GLHS237ZAQ1)
C = GLHS237ZA (GLHS237ZAW1)
POS. NO PART NO DESCRIPTION
5 # 5308000010 A B C Fan Blade,red ,evaporator fan
8 5300157666 A B C Bushing-motor mtg,(2)
9 5303292396 A B C Bracket-motor mtg,front
13 # 240315803 A B C Motor-evap fan
13* 215474201 A B C Washer,"slinger" ,nylon ,evap fan shaft
14 5303292397 A B C Bracket-motor mtg,rear
15 240436701 A B C Light Bulb/Lamp, A-15, 40 W, 120 V, miniature
16 218906801 A B C Socket-light/lamp
17 240374901 A B C Box-control,front
17* 240439901 A B C Wiring Harness,controls
18 240360801 A B C Knob-control
21 # 240375903 A B C Control-temperature
21A 5304421067 A B C Control-temperature,frzr section
22 218660702 A B C Tube-insulator
23 240375803 A B C Control-defrost, adaptive timer, PC board
23* 5303001259 A B C Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
45 5303001343 A B C Screw,hex washer head ,8-15A x 0.500
53 240369501 A B C Box-control
81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
115 240440701 A B C Damper Assy,w/seal
115* 5304421593 A B C Switch-micro,single pole, double throw, damper assy
137 240396401 A B C Filter,water ,front ,cassette
137* 240396701 A B C Bypass,water filter ,Optional Part
138 240397301 A B C Button-filter release
139 240396001 A B C Base-water filter
149 240331601 A B C Shroud-fan orfice
150 240394203 A B C Insulation-water tube cover
151 240373805 A B C Cover-water tube
198 240397401 A B C Retainer
199 240397501 A B C Rod
199* 240398401 A B C Spring-filter release rod
200 240397601 A B C Light pipe
201 240398502 A B C Label-control box
* 3205266 A B C Edge Protector,wiring harness
* 240427201 A B C Heater-freezer control
CONTROLS

08/01 12
Publication No. GLHS237ZA
5995356911
SYSTEM

# = Fast-moving Parts 13 08/01
* = Non-Illustrated Parts
GLHS237ZA Publication No.
5995356911
A = GLHS237ZA (GLHS237ZAB1)
B = GLHS237ZA (GLHS237ZAQ1)
C = GLHS237ZA (GLHS237ZAW1)
POS. NO PART NO DESCRIPTION
1 240333602 A B C Condenser
3 218679606 A B C Block-evap coil,styrofoam ,(2)
4 # 218944001 A B C Drier-filter,R134a System
6 240346402 A B C Harness-wiring,machine compt
6* # 240439901 A B C Wiring Harness,controls
14 # 5303918255 A B C Defrost Heater Kit
15 # 5303918211 A B C Evaporator Kit
16 5308000110 A B C Strap-evap/heater,aluminum ,(2)
22 240330002 A B C Plate-compr mtg
23 218513300 A B C Grommet-compr mtg,(4)
25 240491501 A B C Screw-compres mtg,1/4-28 x 1.16,shoulder,typ CF
26 240332602 A B C Pan-defrost drain
29 # 5303918251 A B C Compressor,w/electricals
30 # 218721119 A B C Starter-PTC
32 218973501 A B C Clamp,elec cont mtg ,compressor
34 240405201 A B C Grommet, mounting, rubber, black,holds tube/wire
41 218897001 A B C Screw,hex washer head ,8-32 x 1/4
41* 5308000039 A B C Screw, hex wshr hd, 8-32CA x 0.500, (7),serrated hd
44 5303001199 A B C Clamp-wiring harness,strain relief, galv steel
45 5308016566 A B C Screw,hex washer head, 8-15A x 0.625, low profile
55 # 218909901 A B C Capacitor-run,220 VAC ,15 microfarad
57 240403601 A B C Clip-wiring harness
58 215004600 A B C Screw-cond fan mtr,hx serr wshr hd, 8-36 x 7/16,(2)
59 240315501 A B C Shroud-cond fan
59* 240346701 A B C Tape-foam seal,shroud
59* 240359401 A B C Screw-fan shroud,(2)
59A 240346501 A B C Bracket-support,cond mtr ,(3)
59B 240346601 A B C Grommet-bracket,(3)
60 # 240334001 A B C Motor,condenser fan
61 # 240315401 A B C Fan Blade,galv steel ,condenser fan
61A 215004700 A B C Nut,speed
61B 215004800 A B C Grommet-silencer
62 240429401 A B C Trough-drain
70 218990801 A B C Bracket-evap/cvr mtg
72 218397000 A B C Button-handle mtg,dovetail
82 5304418225 A B C Roller,compressor base ,rear ,(2)
83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 A B C Tube-drain,lower
85 240346201 A B C Tube-connector,suction
86 240409302 A B C Spacer-cond tube,black
* # 5303918213 A B C Heat Exchanger Kit,suction line
* 5303918222 A B C Hot Tube Repair Kit,Service
SYSTEM

08/01 14
Publication No. GLHS237ZA
5995356911
DISPENSER

# = Fast-moving Parts 15 08/01
* = Non-Illustrated Parts
GLHS237ZA Publication No.
5995356911
A = GLHS237ZA (GLHS237ZAB1)
B = GLHS237ZA (GLHS237ZAQ1)
C = GLHS237ZA (GLHS237ZAW1)
POS. NO PART NO DESCRIPTION
1 218976405 A B C Tube-water inlet
1* 218976901 A B C Tube-water inlet,inlet valve to ice maker
1* 218976903 A B C Tube-water inlet,inlet valve to filter
1* 218976907 A B C Tube-water inlet,valve to door
4 5304422012 A - - Cover-module,black
4 5304421848 - B - Cover-module,bisque
4 5304421822 - - C Cover-module,white
8 5304422013 A - - Module-dispenser
8 5304421849 - B - Module-dispenser
8 5304422030 - - C Module-dispenser
10 5304421626 A B C Spring-torsion
14 240323916 A - - Label-module cover,black
14 240323915 - B - Label-module cover,bisque
14 240323914 - - C Label-module cover,white
15 5304421616 A B C Light Bulb/Lamp
16 215284900 A B C Socket-light/lamp
17 5304421619 A B C Screw
23 240323603 A - - Drip Tray,black
23 240323602 - B - Drip Tray,bisque
23 240323601 - - C Drip Tray,white
24 5304422026 A - - Actuator-water,black
24 5304422027 - B - Actuator-water,bisque
24 5304421825 - - C Actuator-water,white
24A 5304422025 A - - Actuator-ice,black
24A 5304422028 - B - Actuator-ice,bisque
24A 5304421826 - - C Actuator-ice,white
30 5304421628 A B C Door Assy-ice chute
30A 5304421624 A B C Door center
30B 5304421625 A B C Insulation-door
30C 5304421629 A B C Door seal
35 5304421620 A B C Damper-rotary
36 5304421824 A B C Carrier
38 5304422632 A B C PC Board,power
38A# 5304421617 A B C Switch-micro,single pole ,double throw
38C 5304422633 A B C PC Board,control
39 5304421627 A B C Pin-hinge
41 5304421829 A B C Spring-actuator
43 215296300 A B C Screw,plask h/l ,#6 x 3/8
43* 240363401 A B C Screw-#8-18 X 1/2,#6 hd plask
56 5304421830 A B C Screw-micro switch,pan head
87 5304421622 A B C Bearing Plate
87A 5304421621 A B C Bearing Plate
88 5304421615 A B C Shield-light
90 5304421831 A B C Light pipe
91 5304421850 A B C Light pipe,short
* 5303918256 A B C Dispenser heater kit
DISPENSER

08/01 16
Publication No. GLHS237ZA
5995356911
ICE CONTAINER

# = Fast-moving Parts 17 08/01
* = Non-Illustrated Parts
GLHS237ZA Publication No.
5995356911
A = GLHS237ZA (GLHS237ZAB1)
B = GLHS237ZA (GLHS237ZAQ1)
C = GLHS237ZA (GLHS237ZAW1)
POS. NO PART NO DESCRIPTION
2 5304404344 A B C Auger-ice
3 5304404343 A B C Cam-drive
4 218815300 A B C Container-ice,bucket only
6 5304404346 A B C Drum-ice disp
7 5304422805 A B C Front-ice container
10 5304404337 A B C Bar-drive
13 5304404359 A B C Gate
15 5303001179 A B C Light Bulb/Lamp,40 W
16 5303289050 A B C Socket-light/lamp
17 5304404345 A B C Drive Blade
18 # 240326901 A B C Motor-auger
18* 5304404335 A B C Wiring Harness,auger motor
20 5304404332 A B C Cover-motor
21 215285100 A B C Nut-drive
23 5304404347 A B C Plate-front
25 5304404362 A B C Screw,hex washer head ,8-32T x 0.375
26 215503200 A B C Screw,cr pan hd ,10-16 x 0.500
33 5304404351 A B C Spacer
34 5304404349 A B C Spacer
35A 5304404353 A B C Fixed Blade,round
35B 5304404352 A B C Fixed Blade,square
37A 5304404348 A B C Blade-crusher,#1
37B 5304404350 A B C Blade-crusher,#2
37C 5304404356 A B C Blade-crusher,#3
39 5304404365 A B C Screw
41 5304404358 A B C Housing-crusher
44 218359200 A B C Screw,pan head ,8-32 x 0.250
45 # 5304404333 A B C Solenoid Assy
45A 5304406816 A B C Spring-solenoid
45B 5304406817 A B C E-Ring-solenoid
45C 5304406818 A B C Actuator-solenoid
45D 5304406819 A B C Solenoid
46 5304404341 A B C Control Rod
47 5304404342 A B C Spring-control rod
48 5304404340 A B C Bracket-control rod
48* 5304404364 A B C Screw-bracket
49 5304404329 A B C Rail Assy
50 5304404334 A B C Guide-solenoid
51 5304404336 A B C Rotation Stop
52 5304404354 A B C Spacer-fixed blades
53 5304404355 A B C Pin-spiral,fixed blades
54 5304404357 A B C Nut-auger
55 5304404360 A B C Washer
56 5304404361 A B C E-ring
58 5304404331 A B C Screw-solenoid
* 240323802 A B C Ice Container Assy,w/moving parts
ICE CONTAINER

08/01 18
Publication No. GLHS237ZA
5995356911

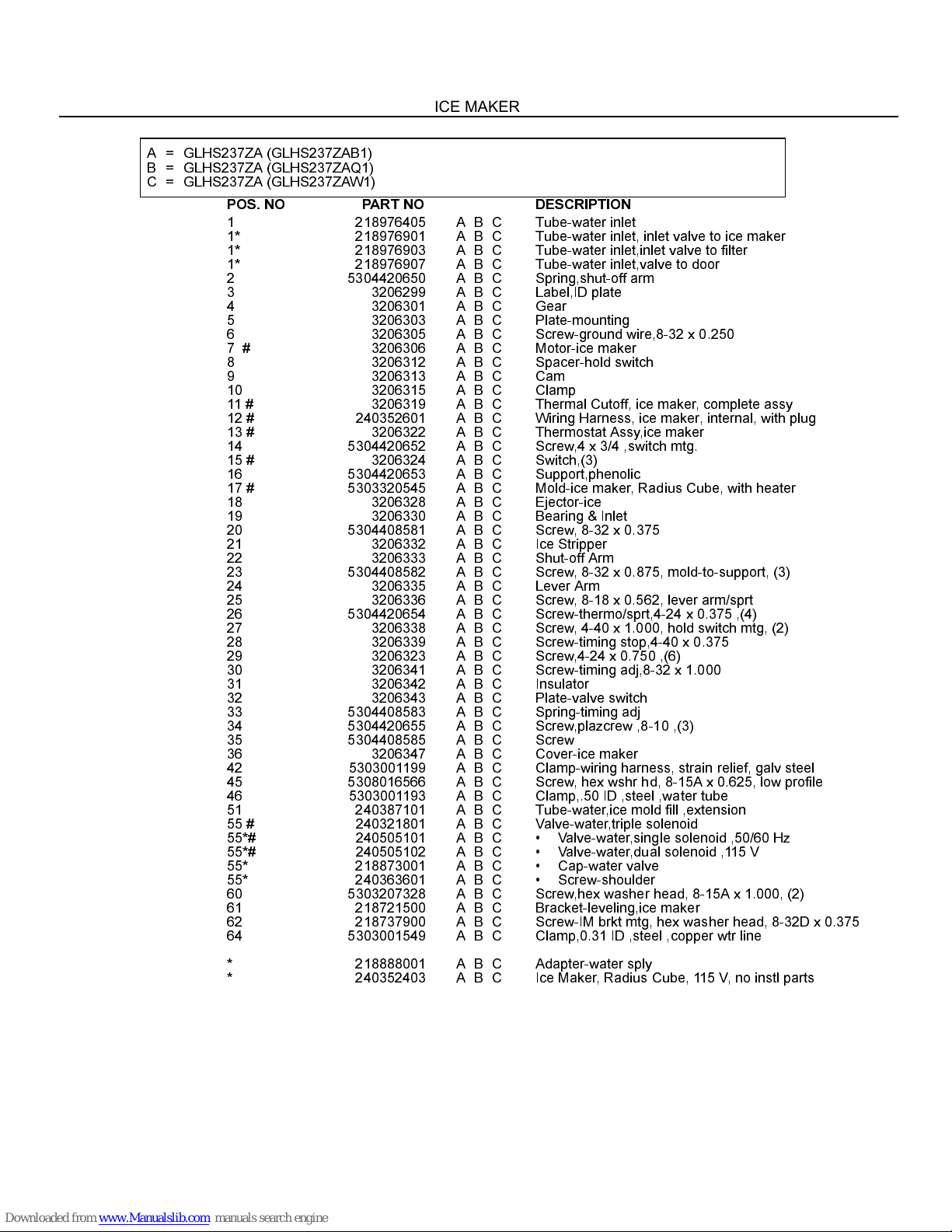

ICE MAKER

# = Fast-moving Parts 19 08/01
* = Non-Illustrated Parts
GLHS237ZA Publication No.
5995356911
A = GLHS237ZA (GLHS237ZAB1)
B = GLHS237ZA (GLHS237ZAQ1)
C = GLHS237ZA (GLHS237ZAW1)
POS. NO PART NO DESCRIPTION
1 218976405 A B C Tube-water inlet
1* 218976901 A B C Tube-water inlet, inlet valve to ice maker
1* 218976903 A B C Tube-water inlet,inlet valve to filter
1* 218976907 A B C Tube-water inlet,valve to door
2 5304420650 A B C Spring,shut-off arm
3 3206299 A B C Label,ID plate
4 3206301 A B C Gear
5 3206303 A B C Plate-mounting
6 3206305 A B C Screw-ground wire,8-32 x 0.250
7 # 3206306 A B C Motor-ice maker
8 3206312 A B C Spacer-hold switch
9 3206313 A B C Cam
10 3206315 A B C Clamp
11 # 3206319 A B C Thermal Cutoff, ice maker, complete assy
12 # 240352601 A B C Wiring Harness, ice maker, internal, with plug
13 # 3206322 A B C Thermostat Assy,ice maker
14 5304420652 A B C Screw,4 x 3/4 ,switch mtg.
15 # 3206324 A B C Switch,(3)
16 5304420653 A B C Support,phenolic
17 # 5303320545 A B C Mold-ice maker, Radius Cube, with heater
18 3206328 A B C Ejector-ice
19 3206330 A B C Bearing & Inlet
20 5304408581 A B C Screw, 8-32 x 0.375
21 3206332 A B C Ice Stripper
22 3206333 A B C Shut-off Arm
23 5304408582 A B C Screw, 8-32 x 0.875, mold-to-support, (3)
24 3206335 A B C Lever Arm
25 3206336 A B C Screw, 8-18 x 0.562, lever arm/sprt
26 5304420654 A B C Screw-thermo/sprt,4-24 x 0.375 ,(4)
27 3206338 A B C Screw, 4-40 x 1.000, hold switch mtg, (2)
28 3206339 A B C Screw-timing stop,4-40 x 0.375
29 3206323 A B C Screw,4-24 x 0.750 ,(6)
30 3206341 A B C Screw-timing adj,8-32 x 1.000
31 3206342 A B C Insulator
32 3206343 A B C Plate-valve switch
33 5304408583 A B C Spring-timing adj
34 5304420655 A B C Screw,plazcrew ,8-10 ,(3)
35 5304408585 A B C Screw
36 3206347 A B C Cover-ice maker
42 5303001199 A B C Clamp-wiring harness, strain relief, galv steel
45 5308016566 A B C Screw, hex wshr hd, 8-15A x 0.625, low profile
46 5303001193 A B C Clamp,.50 ID ,steel ,water tube
51 240387101 A B C Tube-water,ice mold fill ,extension
55 # 240321801 A B C Valve-water,triple solenoid
55*# 240505101 A B C  Valve-water,single solenoid ,50/60 Hz
55*# 240505102 A B C  Valve-water,dual solenoid ,115 V
55* 218873001 A B C  Cap-water valve
55* 240363601 A B C  Screw-shoulder
60 5303207328 A B C Screw,hex washer head, 8-15A x 1.000, (2)
61 218721500 A B C Bracket-leveling,ice maker
62 218737900 A B C Screw-IM brkt mtg, hex washer head, 8-32D x 0.375
64 5303001549 A B C Clamp,0.31 ID ,steel ,copper wtr line
* 218888001 A B C Adapter-water sply
* 240352403 A B C Ice Maker, Radius Cube, 115 V, no instl parts
ICE MAKER

08/01 20
Publication No. GLHS237ZA
5995356911
WIRING SCHEMATIC
