Frigidaire FRT21LR7A User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRT21LR7AB1 FRT21LR7A R134a black 115
FRT21LR7AB2 FRT21LR7A R134a black 115
FRT21LR7AQ1 FRT21LR7A R134a bisque 115
FRT21LR7AQ2 FRT21LR7A R134a bisque 115
FRT21LR7AW1 FRT21LR7A R134a white 115
FRT21LR7AW2 FRT21LR7A R134a white 115
MARKET
North America
Publication No.
5995359089
010924
-EN/SERVICE/KHB
357
TOP MOUNT
REFRIGERATOR
Model No.
FRT21LR7A
©2001 White Consolidated Industries, Inc.
All rights reserved
FACTORY
PARTS CATALOG
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O. Box 212378, Augusta, GA 30917
WIRING DIAGRAM - # 240379007
OWNER’S GUIDE - # 240400104
SERVICE DATA SHEET - # 240379007

09/01 2
Publication No. FRT21LR7A
5995359089
DOOR

# = Fast-moving Parts 3 09/01
* = Non-Illustrated Parts
FRT21LR6A Publication No.
5995359089
A = FRT21LR7A (FRT21LR7AB1)
B = FRT21LR7A (FRT21LR7AB2)
C = FRT21LR7A (FRT21LR7AQ1)
D = FRT21LR7A (FRT21LR7AQ2)
E = FRT21LR7A (FRT21LR7AW1)
F = FRT21LR7A (FRT21LR7AW2)
POS. NO PART NO DESCRIPTION
1 # 240390705 A B - - - - Gasket-frzr door,black ,magnetic
1 # 240390702 - - C D E F Gasket-frzr door,white ,magnetic
2 # 240390704 A B - - - - Gasket-refr door,black ,magnetic
2 # 240390701 - - C D E F Gasket-refr door,white ,magnetic
7 240338303 A B C D E F Door-dairy
10 240381303 A B - - - - Plug-button,black ,hinge brg hole
10 240381302 - - C D - - Plug-button,hinge brg hole ,bisque ,(2)
10 240381301 - - - - E F Plug-button,hinge brg hole ,white ,(2)
11 240450312 A B - - - - Panel-frzr door,black ,complete assy
11 240450306 - - C D - - Panel-frzr door,bisque ,complete assy
11 240450302 - - - - E F Panel-frzr door,white ,complete assy
12 240416304 A B - - - - Label-nameplate,black
12 240416303 - - C D - - Label-nameplate,bisque
12 240416301 - - - - E F Label-nameplate,white
13 240312405 A B - - - - Door Stop,black ,ref
13 240312407 - - C D - - Door Stop,bisque ,ref
13 240312403 - - - - E F Door Stop,white ,ref
13A 240312406 A B - - - - Door Stop,black ,frzr
13A 240312408 - - C D - - Door Stop,bisque ,frzr
13A 240312404 - - - - E F Door Stop,white ,frzr
14 240494003 A B - - - - Plug-button,black
14 240494002 - - C D - - Plug-button,bisque
14 240494001 - - - - E F Plug-button,white
14B 240383603 A B - - - - Plug-button,black ,door handle
14B 240383602 - - C D - - Plug-button,bisque ,door handle
14B 240383601 - - - - E F Plug-button,white ,door handle
15 240450421 A B - - - - Panel-refr door,black ,complete assy
15 240450418 - - C D - - Panel-refr door,bisque ,complete assy
15 240450417 - - - - E F Panel-refr door,white ,complete assy
18 240339203 A B - - - - Handle-door,white
18 240339204 - - C D - - Handle-door,bisque
18 240339201 - - - - E F Handle-door,white
18A 240339208 A B - - - - Handle-door,black
18A 240339209 - - C D - - Handle-door,bisque
18A 240339206 - - - - E F Handle-door,white
21 240383401 A B C D E F Screw,truss hd quad ,#10-16 x .500
21C 218252200 A B C D E F Screw,#8 truss hd ,10-32CA x 0.500
22 240311202 A B - - - - Bearing-hinge,black ,(8)
22 240311201 - - C D E F Bearing-hinge,natural color ,(8)
48 240338101 A B C D E F Bin-door,Pseudo ,bottom
48A 240338201 A B C D E F Bin-door,gallon
49 240337801 A B C D E F Bin-door,Pseudo ,frzr
96 240345506 A B - - - - Plug-foam hole,black
96 240345505 - - C D E F Plug,door foam hole ,white
DOOR

09/01 4
Publication No. FRT21LR7A
5995359089

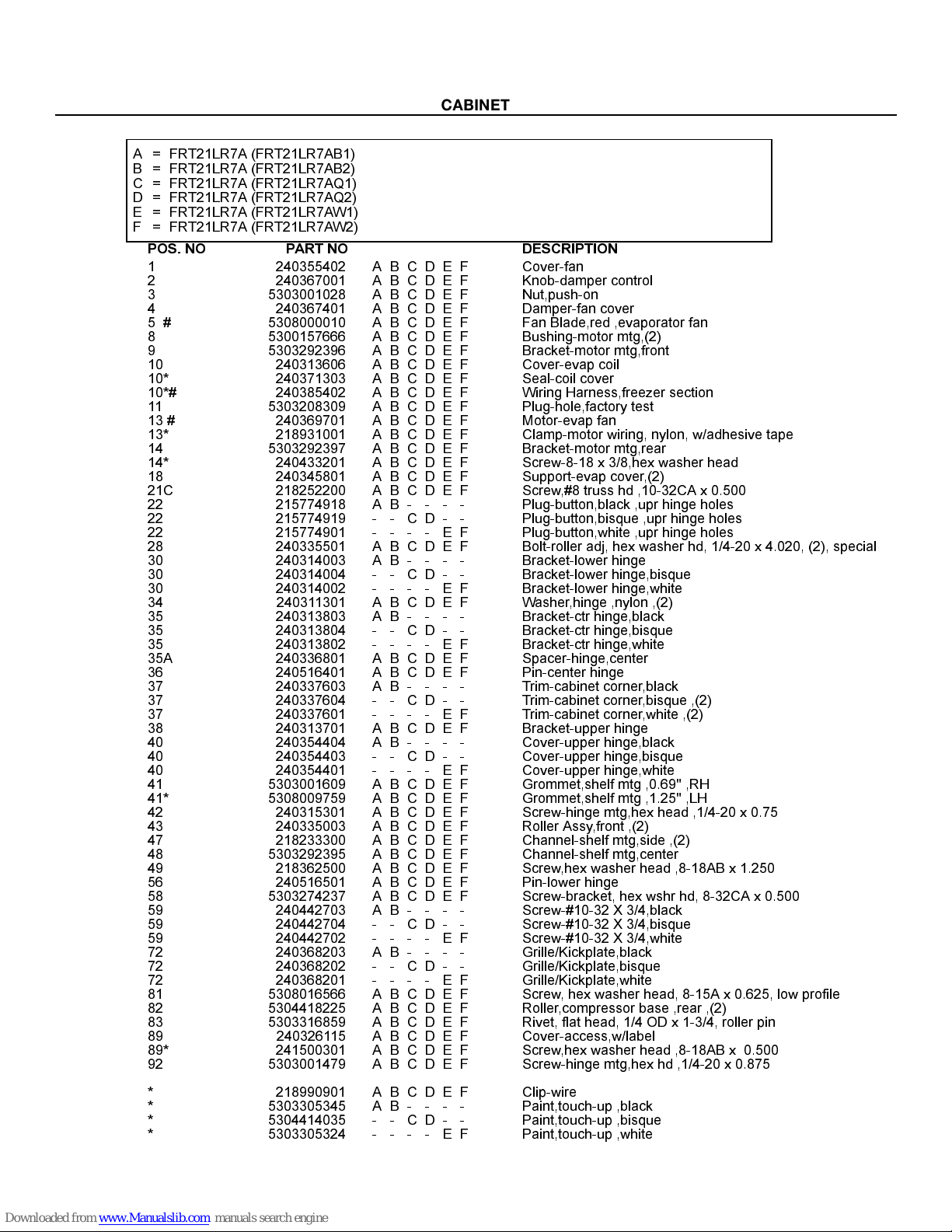

CABINET

# = Fast-moving Parts 5 09/01
* = Non-Illustrated Parts
FRT21LR6A Publication No.
5995359089
A = FRT21LR7A (FRT21LR7AB1)
B = FRT21LR7A (FRT21LR7AB2)
C = FRT21LR7A (FRT21LR7AQ1)
D = FRT21LR7A (FRT21LR7AQ2)
E = FRT21LR7A (FRT21LR7AW1)
F = FRT21LR7A (FRT21LR7AW2)
POS. NO PART NO DESCRIPTION
1 240355402 A B C D E F Cover-fan
2 240367001 A B C D E F Knob-damper control
3 5303001028 A B C D E F Nut,push-on
4 240367401 A B C D E F Damper-fan cover
5 # 5308000010 A B C D E F Fan Blade,red ,evaporator fan
8 5300157666 A B C D E F Bushing-motor mtg,(2)
9 5303292396 A B C D E F Bracket-motor mtg,front
10 240313606 A B C D E F Cover-evap coil
10* 240371303 A B C D E F Seal-coil cover
10*# 240385402 A B C D E F Wiring Harness,freezer section
11 5303208309 A B C D E F Plug-hole,factory test
13 # 240369701 A B C D E F Motor-evap fan
13* 218931001 A B C D E F Clamp-motor wiring, nylon, w/adhesive tape
14 5303292397 A B C D E F Bracket-motor mtg,rear
14* 240433201 A B C D E F Screw-8-18 x 3/8,hex washer head
18 240345801 A B C D E F Support-evap cover,(2)
21C 218252200 A B C D E F Screw,#8 truss hd ,10-32CA x 0.500
22 215774918 A B - - - - Plug-button,black ,upr hinge holes
22 215774919 - - C D - - Plug-button,bisque ,upr hinge holes
22 215774901 - - - - E F Plug-button,white ,upr hinge holes
28 240335501 A B C D E F Bolt-roller adj, hex washer hd, 1/4-20 x 4.020, (2), special
30 240314003 A B - - - - Bracket-lower hinge
30 240314004 - - C D - - Bracket-lower hinge,bisque
30 240314002 - - - - E F Bracket-lower hinge,white
34 240311301 A B C D E F Washer,hinge ,nylon ,(2)
35 240313803 A B - - - - Bracket-ctr hinge,black
35 240313804 - - C D - - Bracket-ctr hinge,bisque
35 240313802 - - - - E F Bracket-ctr hinge,white
35A 240336801 A B C D E F Spacer-hinge,center
36 240516401 A B C D E F Pin-center hinge
37 240337603 A B - - - - Trim-cabinet corner,black
37 240337604 - - C D - - Trim-cabinet corner,bisque ,(2)
37 240337601 - - - - E F Trim-cabinet corner,white ,(2)
38 240313701 A B C D E F Bracket-upper hinge
40 240354404 A B - - - - Cover-upper hinge,black
40 240354403 - - C D - - Cover-upper hinge,bisque
40 240354401 - - - - E F Cover-upper hinge,white
41 5303001609 A B C D E F Grommet,shelf mtg ,0.69" ,RH
41* 5308009759 A B C D E F Grommet,shelf mtg ,1.25" ,LH
42 240315301 A B C D E F Screw-hinge mtg,hex head ,1/4-20 x 0.75
43 240335003 A B C D E F Roller Assy,front ,(2)
47 218233300 A B C D E F Channel-shelf mtg,side ,(2)
48 5303292395 A B C D E F Channel-shelf mtg,center
49 218362500 A B C D E F Screw,hex washer head ,8-18AB x 1.250
56 240516501 A B C D E F Pin-lower hinge
58 5303274237 A B C D E F Screw-bracket, hex wshr hd, 8-32CA x 0.500
59 240442703 A B - - - - Screw-#10-32 X 3/4,black
59 240442704 - - C D - - Screw-#10-32 X 3/4,bisque
59 240442702 - - - - E F Screw-#10-32 X 3/4,white
72 240368203 A B - - - - Grille/Kickplate,black
72 240368202 - - C D - - Grille/Kickplate,bisque
72 240368201 - - - - E F Grille/Kickplate,white
81 5308016566 A B C D E F Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B C D E F Roller,compressor base ,rear ,(2)
83 5303316859 A B C D E F Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 240326115 A B C D E F Cover-access,w/label
89* 241500301 A B C D E F Screw,hex washer head ,8-18AB x 0.500
92 5303001479 A B C D E F Screw-hinge mtg,hex hd ,1/4-20 x 0.875
* 218990901 A B C D E F Clip-wire
* 5303305345 A B - - - - Paint,touch-up ,black
* 5304414035 - - C D - - Paint,touch-up ,bisque
* 5303305324 - - - - E F Paint,touch-up ,white
CABINET

09/01 6
Publication No. FRT21LR7A
5995359089
SHELVES

# = Fast-moving Parts 7 09/01
* = Non-Illustrated Parts
FRT21LR6A Publication No.
5995359089
A = FRT21LR7A (FRT21LR7AB1)
B = FRT21LR7A (FRT21LR7AB2)
C = FRT21LR7A (FRT21LR7AQ1)
D = FRT21LR7A (FRT21LR7AQ2)
E = FRT21LR7A (FRT21LR7AW1)
F = FRT21LR7A (FRT21LR7AW2)
POS. NO PART NO DESCRIPTION
11 240358003 A B C D E F Shelf-freezer
11* 5303299664 A B C D E F Spacer-shelf
12 240380202 A B C D E F Diffuser-air,top
13 240362601 A B C D E F Diffuser-air,bottom
13* 240392601 A B C D E F Seal-diffuser
14 # 240413601 A B C D E F Switch-light/lamp
15 240436701 A B C D E F Light Bulb/Lamp, A-15, 40 W, 120 V, miniature
16 241500701 A B C D E F Socket-light/lamp
17 240368101 A B C D E F Box-control
18 240360801 A B C D E F Knob-control
21 # 5304421256 A B C D E F Control-temperature
22A 240468201 A B C D E F Tube, sensor sleeve, 31 inch, plastic, white
23 # 240375801 A B C D E F Control-defrost, adaptive timer, PC board
23* 5303001259 A B C D E F Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
24 240355214 A B C D E F Shelf-"Spill-Safe",fixed
24B 240408903 A B C D E F Shelf-"Spill-Safe",cantilever fixe
25 240364718 A B C D E F Cover-crisper pan
25B 240361201 A B C D E F Control-humidity
25C 240361301 A B C D E F Damper-humidity control
26 240343803 A B C D E F Pan-crisper,(2)
28 3201150 A B C D E F End Cap,freezer shelf ,protector
31 240354203 A B C D E F Pan-meat,w/o graphics ,clear
34 240385201 A B C D E F Container-ice
42 240356501 A B C D E F Hanger-meat pan,RH
42 240365401 A B C D E F Hanger-meat pan,white ,LH
47 240350654 A B C D E F Insert-pan cover,glass
81 5308016566 A B C D E F Screw, hex washer head, 8-15A x 0.625, low profile
123 215005100 A B C D E F Screw-roller/hanger,8-10 x 0.438
* 3205266 A B C D E F Edge Protector,wiring harness
SHELVES

09/01 8
Publication No. FRT21LR7A
5995359089
SYSTEM

# = Fast-moving Parts 9 09/01
* = Non-Illustrated Parts
FRT21LR6A Publication No.
5995359089
A = FRT21LR7A (FRT21LR7AB1)
B = FRT21LR7A (FRT21LR7AB2)
C = FRT21LR7A (FRT21LR7AQ1)
D = FRT21LR7A (FRT21LR7AQ2)
E = FRT21LR7A (FRT21LR7AW1)
F = FRT21LR7A (FRT21LR7AW2)
POS. NO PART NO DESCRIPTION
1 240444401 A B C D E F Condenser,dynamic
4 # 218944001 A B C D E F Drier-filter,R134a System
6 # 240375301 A - C - E - Wiring Harness, machine compt, w/service cord
6 240496101 - B - D - F Harness-wiring,machine compt
6* # 240385402 A B C D E F Wiring Harness,freezer section
6* # 240375501 A B C D E F Wiring Harness,control box
14 # 5303918247 A B C D E F Defrost Heater Kit
15 # 5303918250 A B C D E F Evaporator Kit
16 5308000110 A B C D E F Strap-evap/heater,aluminum ,(2)
17 240434002 A B C D E F Trough-drain
18 240362301 A B C D E F Insulation Block,RH
20 240362401 A B C D E F Insulation Block,LH
21 # 5303918202 A B C D E F Thermostat-defrost,kit
22 240330001 A B C D E F Plate-compr mtg
22* 218252200 A B C D E F Screw,#8 truss hd ,10-32CA x 0.500
23 218513300 A B C D E F Grommet-compr mtg,(4)
25 240491501 A B C D E F Screw-compressor mtg, 1/4-28 x 1.16, shoulder,typ CF
26 240332602 A B C D E F Pan-defrost drain
29 5303918209 A - C - E - Compressor,w/electricals
29 5303918265 - B - D - F Compressor,w/electricals
30 # 218721112 A - C - E - Starter-PTC
30 # 218721120 - B - D - F Starter-PTC
32 218740800 A - C - E - Clamp, elec cont mtg, compressor
32 240493301 - B - D - F Clamp, elec cont mtg, compressor
34 240405201 A B C D E F Grommet, mounting, rubber, black, holds tube/wire
41 218897001 A B C D E F Screw,hex washer head ,8-32 x 1/4
41* 5308000039 A B C D E F Screw,hex washer head, 8-32CA x 0.500, serrated head
44 5303001199 A B C D E F Clamp-wiring harness, strain relief, galv steel
45 5308016566 A B C D E F Screw, hex washer head, 8-15A x 0.625, low profile
55 # 218909901 A B C D E F Capacitor-run,220 VAC ,15 microfarad
57 240403601 A B C D E F Clip-wiring harness
58 215004600 A B C D E F Screw-cond fan mtr, hx serr wshr hd, 8-36 x 7/16,(2)
59 240315501 A B C D E F Shroud-cond fan
59* 240346701 A B C D E F Tape-foam seal,shroud
59* 240359401 A B C D E F Screw-fan shroud,(2)
59A 240346501 A B C D E F Bracket-support,cond mtr ,(3)
59B 240346601 A B C D E F Grommet-bracket,(3)
60 # 240334001 A B C D E F Motor,condenser fan
61 # 240315401 A B C D E F Fan Blade,galv steel ,condenser fan
61A 215004700 A B C D E F Nut,speed
61B 215004800 A B C D E F Grommet-silencer
82 5304418225 A B C D E F Roller, compressor base, rear, (2)
83 5303316859 A B C D E F Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 240359601 A B C D E F Tube-drain,lower
85 240346201 A - C - E - Tube-connector,suction
85 240493101 - B - D - F Tube-connector,suction
86 240409302 A B C D E F Spacer-cond tube,black
* 218843800 A B C D E F Screw,hex wshr hd ,8-15A x 0.500
* 240396801 A B C D E F Clamp,tube/wiring ,nylon ,black/natural
* # 5303918210 A B C D E F Heat Exchanger Kit,suction line
* 5304421289 A B C D E F Hot Tube Repair Kit,Service
SYSTEM

09/01 10
Publication No. FRT21LR7A
5995359089
ICE MAKER

# = Fast-moving Parts 11 09/01
* = Non-Illustrated Parts
FRT21LR6A Publication No.
5995359089
A = FRT21LR7A (FRT21LR7AB1)
B = FRT21LR7A (FRT21LR7AB2)
C = FRT21LR7A (FRT21LR7AQ1)
D = FRT21LR7A (FRT21LR7AQ2)
E = FRT21LR7A (FRT21LR7AW1)
F = FRT21LR7A (FRT21LR7AW2)
POS. NO PART NO DESCRIPTION
1 218976901 A B C D E F Tube-water inlet, inlet valve to ice maker
2 5304420650 A B C D E F Spring,shut-off arm
2* 5308000039 A B C D E F Screw, hex washer head, 8-32CA x 0.500, serrated hd
3 3206299 A B C D E F Label,ID plate
4 3206301 A B C D E F Gear
5 3206303 A B C D E F Plate-mounting
6 3206305 A B C D E F Screw-ground wire,8-32 x 0.250
7 # 3206306 A B C D E F Motor-ice maker
8 3206312 A B C D E F Spacer-hold switch
9 3206313 A B C D E F Cam
10 3206315 A B C D E F Clamp
11 # 3206319 A B C D E F Thermal Cutoff, ice maker, complete assy
12 # 5304420651 A B C D E F Wiring Harness, ice maker, internal, with plug
13 # 3206322 A B C D E F Thermostat Assy,ice maker
14 5304420652 A B C D E F Screw,4 x 0.750 ,switch mtg.
15 # 3206324 A B C D E F Switch,(3)
16 5304420653 A B C D E F Support,phenolic
17 # 5303320545 A B C D E F Mold-ice maker,Radius Cube ,with heater
18 3206328 A B C D E F Ejector-ice
19 3206330 A B C D E F Bearing & Inlet
20 5304408581 A B C D E F Screw,8-32 x 0.375
21 3206332 A B C D E F Ice Stripper
22 3206333 A B C D E F Shut-off Arm
23 5304408582 A B C D E F Screw, 8-32 x 0.875, mold-to-support, (3)
24 3206335 A B C D E F Lever Arm
25 3206336 A B C D E F Screw, 8-18 x 0.562, lever arm/sprt
26 5304420654 A B C D E F Screw-thermo/sprt, 4-24 x 0.375 ,(4)
27 3206338 A B C D E F Screw, 4-40 x 1.000, hold switch mtg, (2)
28 3206339 A B C D E F Screw-timing stop,4-40 x 0.375
29 3206323 A B C D E F Screw,4-24 x 0.750 ,(6)
30 3206341 A B C D E F Screw-timing adj,8-32 x 1.000
31 3206342 A B C D E F Insulator
32 3206343 A B C D E F Plate-valve switch
33 5304408583 A B C D E F Spring-timing adj
34 5304420655 A B C D E F Screw,plazscrew ,8-10 ,(3)
35 5304408585 A B C D E F Screw
36 3206347 A B C D E F Cover-ice maker
42 5303001199 A B C D E F Clamp-wiring harness, strain relief, galv steel
45 5308016566 A B C D E F Screw, hex washer head, 8-15A x 0.625, low profile
45* 218843800 A B C D E F Screw,hex wshr hd ,8-15A x 0.500
46 5303001193 A B C D E F Clamp,.50 ID ,steel ,water tube
51 240387101 A B C D E F Tube-water,ice mold fill ,extension
55 # 240380301 A B C D E F Valve-water, single solenoid, 50/60 Hz, 105/120 V
60 218362500 A B C D E F Screw,hex washer head ,8-18AB x 1.250
61 218721500 A B C D E F Bracket-leveling,ice maker
62 218737900 A B C D E F Screw-IM brkt mtg, hex washer head, 8-32D x 0.375
64 5303001549 A B C D E F Clamp,0.31 ID ,steel ,copper wtr line
* 218888001 A B C D E F Adapter-water supply,nut & sleeve, compression ftg
* 240352403 A B C D E F Ice Maker, Radius Cube, 115 V, no instl parts
ICE MAKER

09/01 12
Publication No. FRT21LR7A
5995359089
WIRING SCHEMATIC

# = Fast-moving Parts 13 09/01
* = Non-Illustrated Parts
FRT21LR6A Publication No.
5995359089
WIRING DIAGRAM
