Frigidaire GLRT187TA User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
GLRT187TAQ0 GLRT187RA R134a Gallery bisque 115
GLRT187TAW0 GLRT187RA R134a Gallery white 115
MARKET
North America
Publication No.
5995357695
010816
-EN/SERVICE/KHB
390
TOP MOUNT
REFRIGERATOR
Model No.
GLRT187TA
©2001 White Consolidated Industries, Inc.
All rights reserved
FACTORY
PARTS CATALOG
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O. Box 212378, Augusta, GA 30917
WIRING DIAGRAM - 240379007
OWNER’S GUIDE - 240400104
SERVICE DATA SHEET - 240379007

08/01 2
Publication No. GLRT187TA
5995357695
DOOR

# = Fast-moving Parts 3 08/01
* = Non-Illustrated Parts
GLRT187TA Publication No.
5995357695
A = GLRT187TA (GLRT187TAQ0)
B = GLRT187TA (GLRT187TAW0)
POS. NO PART NO DESCRIPTION
1 # 240370905 A B Gasket-frzr door,white ,magnetic
2 # 240370906 A B Gasket-refr door,white ,magnetic
7 240338303 A B Door-dairy
10 240381302 A - Plug-button,hinge brg hole ,bisque ,(2)
10 240381301 - B Plug-button,hinge brg hole ,white ,(2)
11 240409902 A - Panel-frzr door,bisque ,complete assy
11 240409901 - B Panel-frzr door,white ,complete assy
12 240449702 A - Nameplate,bisque
12 240449701 - B Nameplate,white
13 240312407 A - Door Stop,bisque ,ref
13 240312403 - B Door Stop,white ,ref
13A 240312408 A - Door Stop,bisque ,frzr
13A 240312404 - B Door Stop,white ,frzr
14 218915704 A - Plug-button,bisque
14 218915701 - B Plug-button,white
14A 240428302 A - Plug-button,screw type ,bisque
14A 240428301 - B Plug-button,screw type ,white
14B 240383602 A - Plug-button,bisque ,door handle
14B 240383601 - B Plug-button,white ,door handle
15 240410102 A - Panel-refr door,bisque ,complete assy
15 240410101 - B Panel-refr door,white ,complete assy
18 240339204 A - Handle-door,bisque
18 240339201 - B Handle-door,white
18A 240339209 A - Handle-door,bisque
18A 240339206 - B Handle-door,white
21 240383401 A B Screw,truss hd quad ,#10-16 x .500
21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500
22 240311201 A B Bearing-hinge,natural color ,(8)
27A 240396102 A B Retainer,tall bottle
48 240338101 A B Bin-door,Pseudo ,bottom
48A 240430301 A B Bin-door,gallon
49 240337802 A B Bin-door,clear ,frzr
96 240345503 A B Plug-foam hole,white
DOOR

08/01 4
Publication No. GLRT187TA
5995357695

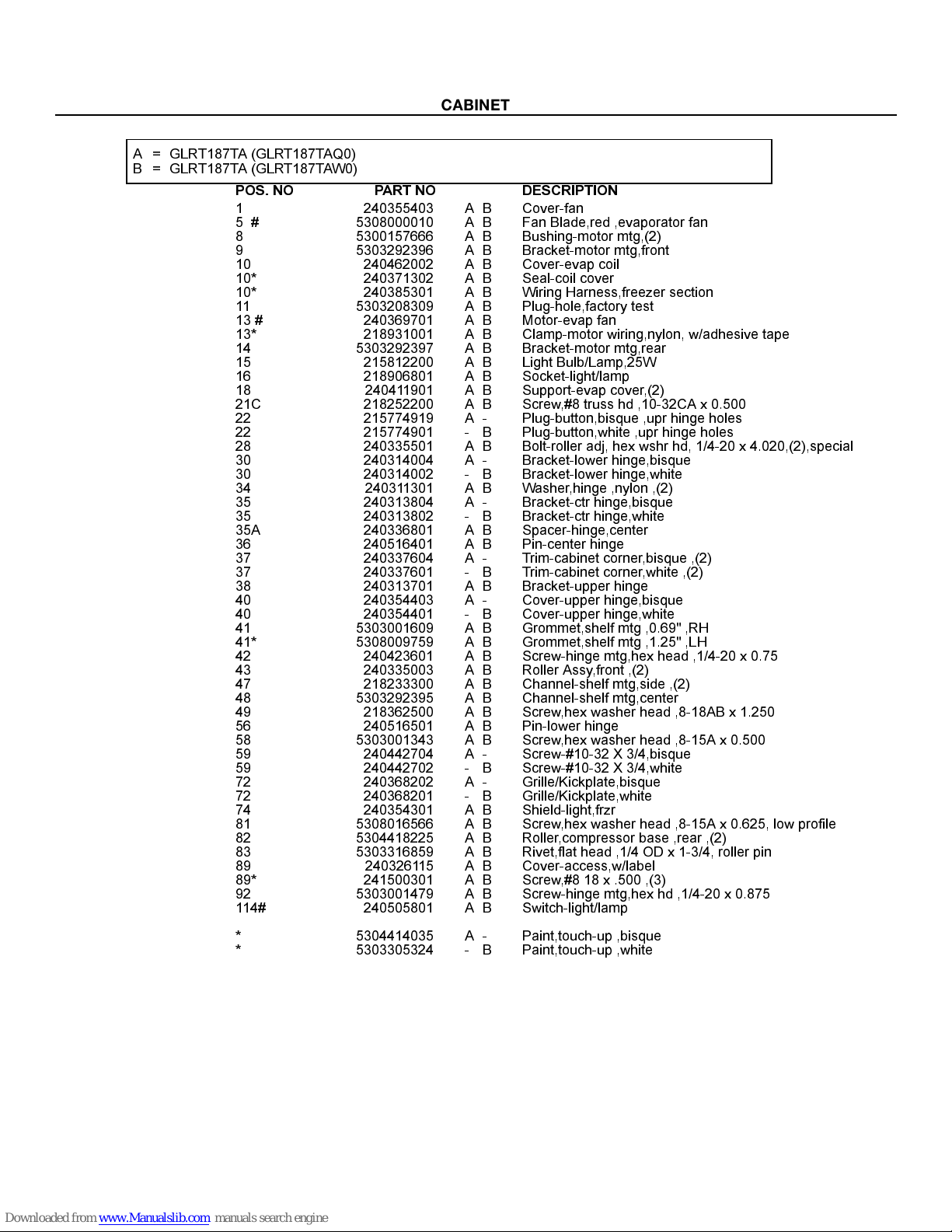

CABINET

# = Fast-moving Parts 5 08/01
* = Non-Illustrated Parts
GLRT187TA Publication No.
5995357695
A = GLRT187TA (GLRT187TAQ0)
B = GLRT187TA (GLRT187TAW0)
POS. NO PART NO DESCRIPTION
1 240355403 A B Cover-fan
5 # 5308000010 A B Fan Blade,red ,evaporator fan
8 5300157666 A B Bushing-motor mtg,(2)
9 5303292396 A B Bracket-motor mtg,front
10 240462002 A B Cover-evap coil
10* 240371302 A B Seal-coil cover
10* 240385301 A B Wiring Harness,freezer section
11 5303208309 A B Plug-hole,factory test
13 # 240369701 A B Motor-evap fan
13* 218931001 A B Clamp-motor wiring,nylon, w/adhesive tape
14 5303292397 A B Bracket-motor mtg,rear
15 215812200 A B Light Bulb/Lamp,25W
16 218906801 A B Socket-light/lamp
18 240411901 A B Support-evap cover,(2)
21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500
22 215774919 A - Plug-button,bisque ,upr hinge holes
22 215774901 - B Plug-button,white ,upr hinge holes
28 240335501 A B Bolt-roller adj, hex wshr hd, 1/4-20 x 4.020,(2),special
30 240314004 A - Bracket-lower hinge,bisque
30 240314002 - B Bracket-lower hinge,white
34 240311301 A B Washer,hinge ,nylon ,(2)
35 240313804 A - Bracket-ctr hinge,bisque
35 240313802 - B Bracket-ctr hinge,white
35A 240336801 A B Spacer-hinge,center
36 240516401 A B Pin-center hinge
37 240337604 A - Trim-cabinet corner,bisque ,(2)
37 240337601 - B Trim-cabinet corner,white ,(2)
38 240313701 A B Bracket-upper hinge
40 240354403 A - Cover-upper hinge,bisque
40 240354401 - B Cover-upper hinge,white
41 5303001609 A B Grommet,shelf mtg ,0.69" ,RH
41* 5308009759 A B Grommet,shelf mtg ,1.25" ,LH
42 240423601 A B Screw-hinge mtg,hex head ,1/4-20 x 0.75
43 240335003 A B Roller Assy,front ,(2)
47 218233300 A B Channel-shelf mtg,side ,(2)
48 5303292395 A B Channel-shelf mtg,center
49 218362500 A B Screw,hex washer head ,8-18AB x 1.250
56 240516501 A B Pin-lower hinge
58 5303001343 A B Screw,hex washer head ,8-15A x 0.500
59 240442704 A - Screw-#10-32 X 3/4,bisque
59 240442702 - B Screw-#10-32 X 3/4,white
72 240368202 A - Grille/Kickplate,bisque
72 240368201 - B Grille/Kickplate,white
74 240354301 A B Shield-light,frzr
81 5308016566 A B Screw,hex washer head ,8-15A x 0.625, low profile
82 5304418225 A B Roller,compressor base ,rear ,(2)
83 5303316859 A B Rivet,flat head ,1/4 OD x 1-3/4, roller pin
89 240326115 A B Cover-access,w/label
89* 241500301 A B Screw,#8 18 x .500 ,(3)
92 5303001479 A B Screw-hinge mtg,hex hd ,1/4-20 x 0.875
114# 240505801 A B Switch-light/lamp
* 5304414035 A - Paint,touch-up ,bisque
* 5303305324 - B Paint,touch-up ,white
CABINET

08/01 6
Publication No. GLRT187TA
5995357695
SHELVES

# = Fast-moving Parts 7 08/01
* = Non-Illustrated Parts
GLRT187TA Publication No.
5995357695
A = GLRT187TA (GLRT187TAQ0)
B = GLRT187TA (GLRT187TAW0)
POS. NO PART NO DESCRIPTION
11 240358002 A B Shelf-freezer,full width
11* 5303299664 A B Spacer-shelf
12 240417702 A B Diffuser-air,top
12* 240466001 A B Seal-air diffuser
13 240362601 A B Diffuser-air,bottom
14 240413601 A B Switch-light/lamp
15 240436701 A B Light Bulb/Lamp, A-15,40 W,120 V, miniature
16 241500701 A B Socket-light/lamp
17 240342301 A B Control Box
17*# 240388701 A B Wiring Harness,control box
18 240360801 A B Knob-control
21 # 5304421256 A B Control-temperature
22A 240468201 A B Tube, sensor sleeve, 31 inch, plastic, white
23 # 215846606 A B Timer-defrost, 60 Hz, 120 V, 10 hour/30 min
23* 5303001259 A B Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
24 240350111 A B Shelf-"Spill-Safe",cantilever ,sliding
24A 240355213 A B Shelf-"Spill-Safe", cantilever, half width, fixed
25 240364714 A B Cover-crisper pan
25B 240361201 A B Control-humidity
25C 240361301 A B Damper-humidity control
26 240337103 A B Pan-crisper,clear ,(2) ,no graphics
28 3201150 A B End Cap,freezer shelf ,protector
31 240354203 A B Pan-meat,w/o graphics ,clear
34 240385201 A B Container-ice
42 240356501 A B Hanger-meat pan,RH
42 240365401 A B Hanger-meat pan,white ,LH
47 240350650 A B Insert-pan cover,glass
66 5304402116 A B Rack-wine
81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
120 240366401 A B Guide-follower
121 240366602 A B Cam follower
122 240366502 A B Cam-damper
123 215005100 A B Screw-roller/hanger,8-10 x 0.438
130 240366101 A B Damper-control box
130* 218249806 A B Insulation,foam ,damper
131 240366201 A B Retainer-damper
132 240366301 A B Control Rod,damper
* 240443401 A B Seal-air supply
SHELVES

08/01 8
Publication No. GLRT187TA
5995357695
SYSTEM

# = Fast-moving Parts 9 08/01
* = Non-Illustrated Parts
GLRT187TA Publication No.
5995357695
A = GLRT187TA (GLRT187TAQ0)
B = GLRT187TA (GLRT187TAW0)
POS. NO PART NO DESCRIPTION
1 # 240444401 A B Condenser,dynamic
4 # 218944001 A B Drier-filter,R134a System
6 240496101 A B Harness-wiring,machine compt
6* # 240385301 A B Wiring Harness,freezer section
6* # 240388701 A B Wiring Harness,control box
14 # 5303918208 A B Defrost Heater Kit
15 # 5303918250 A B Evaporator Kit
16 5308000110 A B Strap-evap/heater,aluminum ,(2)
17 240434002 A B Trough-drain
18 240362301 A B Insulation Block,RH
20 240362401 A B Insulation Block,LH
21 # 5303918202 A B Thermostat-defrost,kit
22 240330001 A B Plate-compr mtg
22* 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500
23 218513300 A B Grommet-compr mtg,(4)
25 240491501 A B Screw-compressor mtg,1/4-28 x 1.16,shoulder,typ CF
26 240332603 A B Pan-defrost drain
29 # 5303918249 A B Compressor,w/electricals
30 # 218721113 A B Starter-PTC
32 218740800 A B Clamp,elec cont mtg ,compressor
34 240405201 A B Grommet, mounting, rubber, black, holds tube/wire
41 218897001 A B Screw,hex washer head ,8-32 x 1/4
41* 5308000039 A B Screw, hex wshr hd, 8-32CA x 0.500, (7),serrated head
44 5303001199 A B Clamp-wiring harness,strain relief, galv steel
45 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
55 # 218909901 A B Capacitor-run,220 VAC ,15 microfarad
57 240403601 A B Clip-wiring harness
58 240346801 A B Screw-cond fan mtr, hx serr wshr hd, 8-32 x 7/16,(3)
59 240315501 A B Shroud-cond fan
59* 240346701 A B Tape-foam seal,shroud
59* 240359401 A B Screw-fan shroud,(2)
59A 240346501 A B Bracket-support,cond mtr ,(3)
59B 240346601 A B Grommet-bracket,(3)
60 # 240397101 A B Motor-condenser fan
61 # 240315401 A B Fan Blade,galv steel ,condenser fan
61* 240397201 A B Connector-shaft
61A 218956700 A B Nut,speed
61B 218956801 A B Grommet-silencer
82 5304418225 A B Roller, compressor base, rear, (2)
83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 240359601 A B Tube-drain,lower
85 240346201 A B Tube-connector,suction
86 240409302 A B Spacer-cond tube,black
* 218843800 A B Screw,hex wshr hd ,8-15A x 0.500
* 240396801 A B Clamp,tube/wiring ,nylon ,black/natural
* # 5303918263 A B Heat Exchanger Kit,suction line
* 5303918222 A B Hot Tube Repair Kit,Service
SYSTEM

08/01 10
Publication No. GLRT187TA
5995357695
ICE MAKER

# = Fast-moving Parts 11 08/01
* = Non-Illustrated Parts
GLRT187TA Publication No.
5995357695
A = GLRT187TA (GLRT187TAQ0)
B = GLRT187TA (GLRT187TAW0)
POS. NO PART NO DESCRIPTION
1 218976901 A B Tube-water inlet,inlet valve to ice maker
2 5304420650 A B Spring,shut-off arm
2* 5308000039 A B Screw,hex washer hd,8-32CA x 0.500, (7),serrated hd
3 3206299 A B Label,ID plate
4 3206301 A B Gear
5 3206303 A B Plate-mounting
6 3206305 A B Screw-ground wire,8-32 x 0.250
7 # 3206306 A B Motor-ice maker
8 3206312 A B Spacer-hold switch
9 3206313 A B Cam
10 3206315 A B Clamp
11 # 3206319 A B Thermal Cutoff,ice maker ,complete assy
12 # 5304420651 A B Wiring Harness,ice maker ,internal, with plug
13 # 3206322 A B Thermostat Assy,ice maker
14 5304420652 A B Screw,4 x 3/4 ,switch mtg.
15 # 3206324 A B Switch,(3)
16 5304420653 A B Support,phenolic
17 # 5303320545 A B Mold-ice maker,Radius Cube ,with heater
18 3206328 A B Ejector-ice
19 3206330 A B Bearing & Inlet
20 5304408581 A B Screw,8-32 x 0.375
21 3206332 A B Ice Stripper
22 3206333 A B Shut-off Arm
23 5304408582 A B Screw,8-32 x 0.875 ,mold-to-support, (3)
24 3206335 A B Lever Arm
25 3206336 A B Screw, 8-18 x 0.562, lever arm/sprt
26 5304420654 A B Screw-thermo/sprt,4-24 x 0.375 ,(4)
27 3206338 A B Screw, 4-40 x 1.000, hold switch mtg, (2)
28 3206339 A B Screw-timing stop,4-40 x 0.375
29 3206323 A B Screw,4-24 x 0.750 ,(6)
30 3206341 A B Screw-timing adj,8-32 x 1.000
31 3206342 A B Insulator
32 3206343 A B Plate-valve switch
33 5304408583 A B Spring-timing adj
34 5304420655 A B Screw,plazcrew ,8-10 ,(3)
35 5304408585 A B Screw
36 3206347 A B Cover-ice maker
42 5303001199 A B Clamp-wiring harness, strain relief, galv steel
45 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
45* 218843800 A B Screw,hex wshr hd ,8-15A x 0.500
46 5303001193 A B Clamp,.50 ID ,steel ,water tube
51 240387101 A B Tube-water,ice mold fill ,extension
55 # 240380301 A B Valve-water, single solenoid, 50/60 Hz, 105/120 V
60 218362500 A B Screw,hex washer head ,8-18AB x 1.250
61 218721500 A B Bracket-leveling,ice maker
62 218737900 A B Screw-IM brkt mtg,hex washer head, 8-32D x 0.375
64 5303001549 A B Clamp,0.31 ID ,steel ,copper wtr line
* 218888001 A B Adapter-water sply
* 240352403 A B Ice Maker, Radius Cube, 115 V, no instl parts
ICE MAKER

08/01 12
Publication No. GLRT187TA
5995357695
WIRING SCHEMATIC

# = Fast-moving Parts 13 08/01
* = Non-Illustrated Parts
GLRT187TA Publication No.
5995357695
WIRING DIAGRAM
