Frigidaire Gallery GLHS36EF User manual

N58L00001.eps N58FCCBBB2.eps N58RCCBBB9.eps N58BAAAAB3.eps
N58SKBBBB1.eps N58TCAAAB4.eps N58CAAAAA10.eps N58XBAAAB1.eps
N58YAAAAA0.eps N58I1151S.eps W241689601.eps S241689601.eps
Product No. GLHS36EFSB0
Series Gallery
Color stain/blk
Volts 115

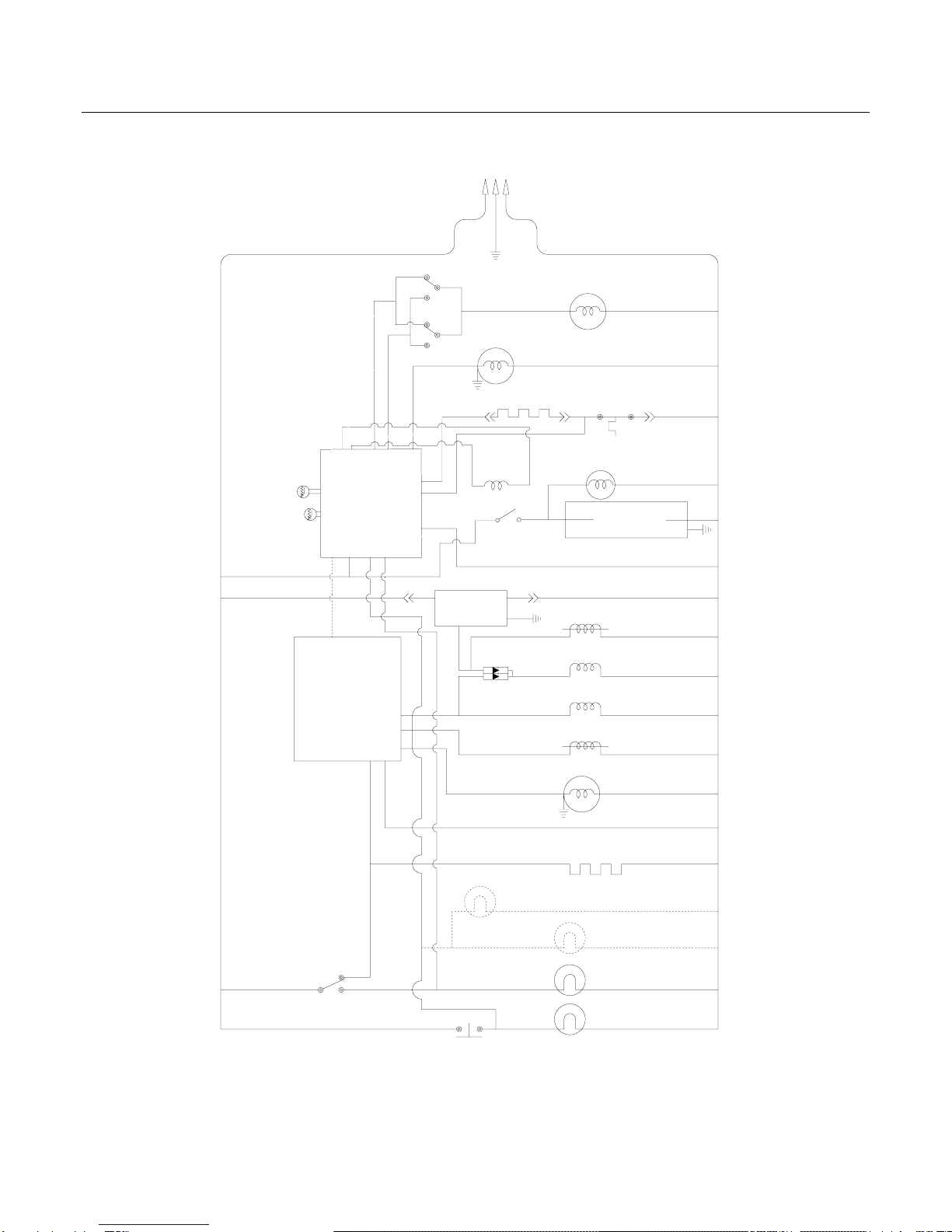

Wiring Diagram 241689601
Owner's Guide 241695101
Market North America
Energy Guide 241649283
Service Data Sheet 240389627
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995466041
06/05/08
(EN/SERVICE/KHB)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
GLHS36EF
Copyright ©2006 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995466041 GLHS36EFSB0
05/06 2
FREEZER DOOR
21C
21
21
21
21C
21C
21
74
74
74
72
72
73
73
73
18
37
22C
11
1
4A
68
4B
4B
13A
22A
21A
N58FCCBBB2

GLHS36EFSB0 Publication No: 5995466041
# Functional Parts 3 05/06
* Non-Illustrated Parts
FREEZER DOOR
POS. NO PART NO. DESCRIPTION
1 # 241674808 Gasket-frzr door, black, magnetic
4A 240367301 Bin-door, frzr-upper
4B 240359001 Bin-door
11 241615150 Door-frzr, stainless, complete assy
13A 240581906 Door Stop, black, frzr
18 240359108 Handle-door, black, LH
21 218781101 Screw, pan head, 8-18 x 0.625
21A 240598402 Screw, 10-32 x 1/2
21C 240521304 Screw, #8-18 x 3/4
22A 240328204 Bearing-hinge(frz), black, closer
22C 240328404 Bearing-hinge, black, upper
37 240359203 Trim-handle, 30.13", black, lower
68 241525101 Chute-ice
72 240421701 Button-handle mtg, dovetail
73 218396700 Block-handle mtg, dovetail
74 215503204 Screw, cr pan hd, 10-16
* 240352102 Connector-water, straight
* 240552102 Harness-wiring, door
* 5303918256 Dispenser heater kit

Publication No: 5995466041 GLHS36EFSB0
05/06 4
REFRIGERATOR DOOR

GLHS36EFSB0 Publication No: 5995466041
# Functional Parts 5 05/06
* Non-Illustrated Parts
REFRIGERATOR DOOR
POS. NO PART NO. DESCRIPTION
2 # 241674807 Gasket-refr door, black, magnetic
4 240363702 Bin-door, 2-liter
7 240338303 Door, dairy, clear
12 240449710 Nameplate
13 240581905 Door Stop, black, ref
15 241629323 Door-refr, stainless, complete assy
18 240359103 Handle-door, black, RH
21 218781101 Screw, pan head, 8-18 x 0.625
21A 240598402 Screw, 10-32 x 1/2
21C 240521304 Screw, #8-18 x 3/4
22 240328203 Bearing-hinge, black, closer
22B 240328404 Bearing-hinge, black, upper
37 240359203 Trim-handle, 30.13", black, lower
49 240430303 Bin-door, gallon
72 240421701 Button-handle mtg, dovetail
73 218396700 Block-handle mtg, dovetail
74 215503204 Screw, cr pan hd, 10-16

Publication No: 5995466041 GLHS36EFSB0
05/06 6
CABINET
58
58
40 66
40
92
92
38
38
37
37
14A
14
91
41
100
89
83
82
43
21C
21C
28
42
42
23
22
23
22
30A
30
72
10A
N58BAAAAB3
10
90
11
45
45
81
81
81
47

GLHS36EFSB0 Publication No: 5995466041
# Functional Parts 7 05/06
* Non-Illustrated Parts
CABINET
POS. NO PART NO. DESCRIPTION
10 240435911 Cover-air duct
10A 240475906 Cover-evap coil, lower
11 5303208309 Plug-hole, factory test
14 # 240505801 Switch, light/lamp
14A# 241547901 Switch-light/lamp, frzr door
21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 Plate-door closer
23 240402702 Screw-#10-32 x 1/4 flat hd
28 240335502 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603703 Bracket-lower hinge, ref
30A 241603704 Bracket-lower hinge
37 240337603 Trim-cabinet corner, black, (2)
38 240327201 Bracket-upper hinge
40 240327007 Cover-upper hinge, black
41 241550801 Grommet-shelf mtg, 1.40" long
41* 241550701 Grommet-shelf mtg, .96" long
42 240578902 Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335003 Roller Assy, adjustable, front, (2)
45 241500303 Screw, hex washer head, 8-18AB x 0.500
47 240349402 Channel-shelf mtg, side, (2)
58 218781101 Screw, pan head, 8-18 x 0.625
66 5304424968 Damper Cover Assy
66* 240518802 Pin-push, push-in, plastic
72 240324405 Grille/Kickplate, black
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 Roller, compressor base, rear, (2)
83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241574601 Cover access
90 218249807 Seal-coil cover
91 240380101 Duct-ice maker
92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 Support, crisper cover, front, (4)
100* 240350802 Support, crisper cover, rear, (4)
* 240396801 Clamp, tube/wiring, nylon, black/natural
* 240479601 Plug, button, cab liner holes
* 240481601 Shim-lower hinge
* 5303321321 Paint, touch-up, black

Publication No: 5995466041 GLHS36EFSB0
05/06 8
SHELVES
24A
126
81
81
126
52 109
51
49B
2
97
51
52
101
101
49
N58SKBBBB1
100
25A
27
47A
15A
16A
81
25
26
47
26A
26A
42A
62
123
42
24A
24
140
120
11A
39A
39
11

GLHS36EFSB0 Publication No: 5995466041
# Functional Parts 9 05/06
* Non-Illustrated Parts
SHELVES
POS. NO PART NO. DESCRIPTION
2 241510603 Trim-basket
11 241657601 Shelf, flip up, wire
11A 241657503 Shelf, fixed upper, freezer
15A 241555401 Light Bulb
16A 241513901 Socket-light
16A* 241537603 Harness-wiring
24 240355201 Shelf-"Spill-Safe", fixed, (1)
24A 240355204 Shelf-"Spill-Safe", fixed, (3)
25 240354502 Cover-crisper pan, upper
25* 240362101 Clip-slide, cover-crisper
25A 240354602 Cover-crisper pan, lower
26 240354705 Pan-crisper, upper
26* 240349801 Clip-slide, pan-crisper
26A 240351101 Control-humidity
27 240354805 Pan-crisper, lower
39 240430705 Trim-shelf, front
39A 240430701 Trim-shelf, front
42 240356501 Track, meat pan hanger, RH
42A 240349701 Hanger-meat pan, LH
42A* 240349901 Block-meat pan rail, LH
42A* 240350001 Spring-meat pan rail
47 240350613 Insert-pan cover, glass
47A 240350614 Insert-pan cover, glass
49 240564301 Basket-sliding
49B 240530503 Basket-sliding, upper, full
51 240343002 Hanger-basket, RH
52 240343102 Hanger-basket, LH
62 240355505 Pan-meat
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
97 240545303 Water Tank Assy, coiled tubing, front filter
100 240326301 Cover-water tank
101 218493101 Screw, hex washer head, 8-18AB x 1-3/4
109 240351301 Base-crisper light socket
120 240342901 Shelf-ice cream
123 215005100 Screw, hanger/rlr mtg, 8-10 x 0.438
126 241674401 Channel, auger mtg, LH
126 241674402 Channel, auger mtg, RH
140 240430501 Channel, wtr tube cover

Publication No: 5995466041 GLHS36EFSB0
05/06 10
CONTROLS
149
14
13
9
8
5
139
138
198
199
137
200
151
150
21
21A
23
115
53
81
101
15
16
20
N58TCAAAB4
81
81
17
81

GLHS36EFSB0 Publication No: 5995466041
# Functional Parts 11 05/06
* Non-Illustrated Parts
CONTROLS
POS. NO PART NO. DESCRIPTION
5 # 5308000010 Fan Blade, red, evaporator fan
8 215474201 Washer, "slinger", nylon, evap fan shaft
9 241563601 Bushing-motor mtg, (2)
13 # 240369702 Motor-evap fan
14 241517701 Clip, evap fan motor
15 241555401 Light Bulb
16 241513901 Socket-light
17 241633401 Box-control, front
17*# 241663601 Harness-wiring, control box
20 241603910 Label-control box
21 # 241608401 Thermistor-refr
21A# 241608501 Thermistor-frzr
23 5304452072 Control, board assy
23* 5303001259 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
53 241608901 Box-control
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
101 241637202 Screw, #8A x 5/8"
115 241600902 Damper Assy, w/seal
137 240396401 Filter, water, carbon cassette, front, with o'rings
137* 240396701 Bypass, water filter, Optional Part
138 240397301 Button-filter release
139 240396002 Base-water filter
139* 240526901 O-ring, wtr filter base
149 241563401 Shroud-fan orfice
149* 241528305 Seal, shroud
150 241505101 Insulation-water tube cover
151 241505001 Cover-water tube
198 240397401 Retainer
199 240397501 Rod
199* 240398401 Spring-filter release rod
200 240397601 Light Pipe

Publication No: 5995466041 GLHS36EFSB0
05/06 12
SYSTEM
N58CAAAAA10
62
70
45
45
1
34
34
83
44
41
82
83
82
22
23
23
30
32
55
4
25
6
25
29
26
45
16
15
14
3
57
84
85
21
60
59
61
58

GLHS36EFSB0 Publication No: 5995466041
# Functional Parts 13 05/06
* Non-Illustrated Parts
SYSTEM
POS. NO PART NO. DESCRIPTION
1 240333602 Condenser
3 218679606 Block-evap coil, styrofoam, (2)
4 # 218944001 Drier-filter, R134a System
6 241586801 Harness-wiring, machine compt
6* 241663601 Harness-wiring, control box
6* # 241651601 Harness-wiring
14 # 240316107 Heater-defrost
15 # 5303918286 Evaporator Kit
16 5308000110 Strap-evap/heater, aluminum, (2)
21 # 5303918214 Thermostat-defrost, kit
22 240330007 Base-compressor mtg
22* 218252201 Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 Grommet-compr mtg, (4)
25 240491503 Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241637401 Pan-defrost
29 # 5303918315 Compressor, w/electricals
30 # 241524605 Starter
32 218973501 Clamp, elec cont mtg, compressor
34 240405201 Grommet, rubber, black, cond tube/wire
41 240555002 Screw-#8-32 X 3/8
44 215174700 Clamp-service cord, strain relief, galv steel
45 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
55 218909913 Capacitor, run, 220 VAC, 15 microfarad
57 240542601 Clip-wiring harness
58 218897004 Screw, hex washer head, 8-32 x 0.375
59 5304430246 Bracket-cond motor assy
59* 240346701 Tape-foam seal, shroud
59* 240359403 Screw-fan shroud, (2)
60 # 240525402 Motor, condensor fan
61 # 240524101 Fan Blade, galv steel, condenser fan
62 240429401 Trough-drain
70 218990801 Bracket-evap/cvr mtg
82 5304418225 Roller, compressor base, rear, (2)
83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 Tube-drain, lower
85 240346201 Tube-connector, suction
* # 5303918328 Heat Exchanger Kit, suction line, service
* 5303918222 Hot Tube Repair Kit, service

Publication No: 5995466041 GLHS36EFSB0
05/06 14

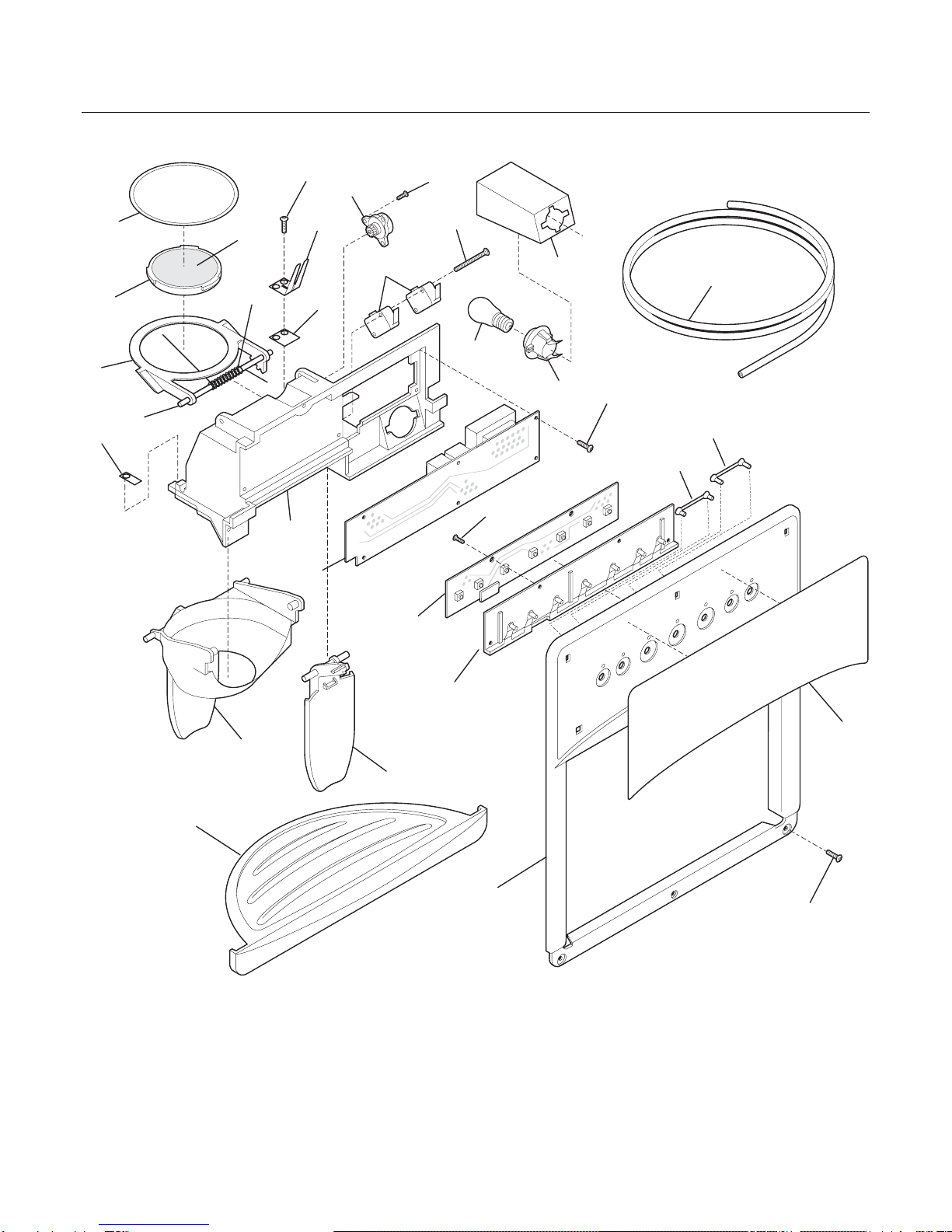

ICE & WATER DISPENSER
N58XBAAAB1
43
41
87
87A
35 17
56
38A 88
15
16 17
8
38
38C
1
17
24
24A
23
82
4
14
30
30A
30B
30C
39
10
90
91
36

GLHS36EFSB0 Publication No: 5995466041
# Functional Parts 15 05/06
* Non-Illustrated Parts
ICE & WATER DISPENSER
POS. NO PART NO. DESCRIPTION
1 218976409 Tube-water-DOOR
1* 218976901 Tube-water inlet, inlet valve, to ice maker
1* 218976903 Tube-water inlet, inlet valve, to filter
1* 218976907 Tube-water inlet, valve to door
1* 240561701 Seal-water inlet, inlet valve, to ice maker
4 241678703 Cover-module, black
8 5304422013 Module-dispenser
10 5304426649 Spring-torsion
14 240323976 Label-module cover, black
15 5304421616 Light Bulb
16 240548901 Socket-light
17 5304455697 Screw
23 241649003 Drip Tray, black
24 5304422026 Actuator-water, black
24A 5304422025 Actuator-ice, black
30 5304421628 Door Assy-ice chute
30A 5304421624 Door center
30B 5304421625 Insulation-door
30C 5304421629 Door seal
35 5304421620 Damper-rotary
36 5304421824 Carrier
38 # 241708202 Board-power
38A# 5304421617 Switch-micro, single pole, double throw
38C# 241708309 Board-control
38C* 5304430811 Harness-ribbon cable
39 5304421627 Pin-hinge
41 5304421829 Spring-actuator
43 5304455699 Screw, plask h/l, #6 x 3/8
56 5304455700 Screw-micro switch, pan head
82 240363402 Screw-#8-18 X 1/2, #6 hd plask
87 5304421622 Bearing Plate
87A 5304421621 Bearing Plate
88 5304421615 Shield-light
90 5304421831 Light Pipe, reflector
91 5304421850 Light Pipe, reflector, short
* 5303918256 Dispenser heater kit
* 5304426535 Insulator-electrical

Publication No: 5995466041 GLHS36EFSB0
05/06 16
ICE CONTAINER

GLHS36EFSB0 Publication No: 5995466041
# Functional Parts 17 05/06
* Non-Illustrated Parts
ICE CONTAINER
POS. NO PART NO. DESCRIPTION
2 5304428402 Auger-ice
3 5304404343 Cam-drive
4 218815300 Container-ice, bucket only
6 5304404346 Drum-ice disp
7 5304422805 Front-ice container
10 241624801 Bar-drive
13 5304404359 Gate
15 241555401 Light Bulb
16 241559801 Socket-light
17 5304404345 Drive Blade
18 # 5304447433 Motor-auger
18*# 5304455843 Harness-wiring
20 5304404332 Cover-motor
21 215285100 Nut-drive
23 5304404347 Plate-front
25 5304404362 Screw, hex washer head, 8-32T x 0.375
26 5304455680 Screw, plask, 4-14 x 3/8
33 5304404351 Spacer
34 5304404349 Spacer
35A 5304404353 Fixed Blade, round
35B 5304404352 Fixed Blade, square
37A 5304404348 Blade, crusher #1
37B 5304404350 Blade, crusher #2
37C 5304404356 Blade, crusher #3
39 5304404365 Screw
41 5304404358 Housing-crusher
44 218359200 Screw, pan head, 8-32 x 0.250
45 # 5304404333 Solenoid Assy
45A 5304406816 Spring-solenoid
45B 5304406817 E-Ring-solenoid
45C 5304406818 Actuator-solenoid
45D 5304406819 Solenoid
46 5304404341 Control Rod
47 5304404342 Spring-control rod
48 5304404340 Bracket-control rod
48* 5304404364 Screw-bracket
49 5304404880 Rail Assy
50 5304404334 Guide-solenoid
51 5304404336 Rotation Stop
52 5304404354 Spacer-fixed blades
53 5304404355 Pin-spiral, fixed blades
54 5304404357 Nut-auger
55 5304404360 Washer
56 5304404361 E-ring
58 5304404331 Screw-solenoid
* 240323806 Ice Container Assy, w/moving parts

Publication No: 5995466041 GLHS36EFSB0
05/06 18

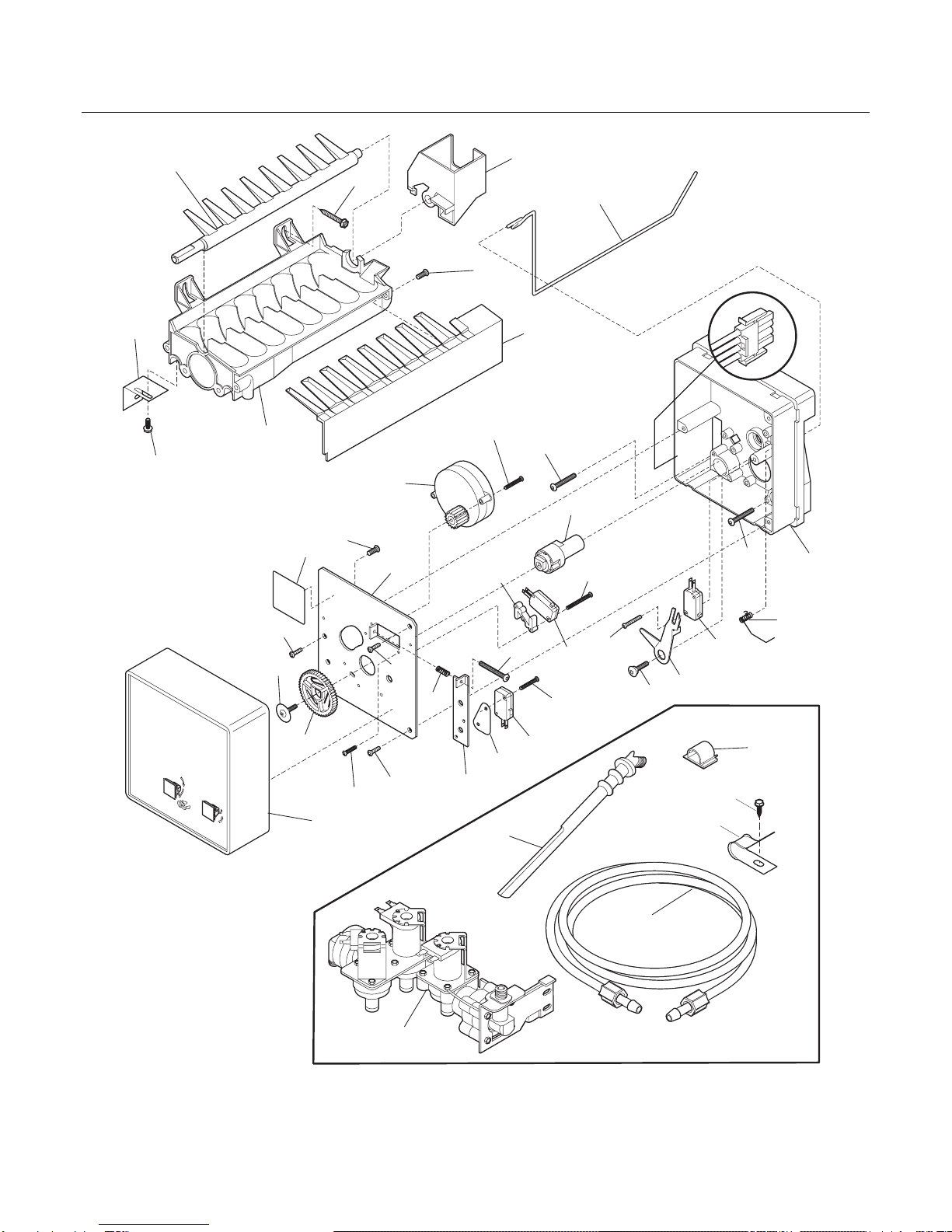

ICE MAKER
ON OFF
MOVE ARM UP UNTIL
LOCKED INTO PLACE
MOVE ARM UP UNTIL
LOCKED INTO PLACE
45
51
64
29
7
6
16
20
21
19
22
60
18
17
62
61
9
23
23
34
28
34
34
3
29
14
30
27
15 15
2
15
31
32
36
4
35
5
33
8
24
25
12
1
55 INSTALLATION PARTS
N58I1151S
42

GLHS36EFSB0 Publication No: 5995466041
# Functional Parts 19 05/06
* Non-Illustrated Parts
ICE MAKER
POS. NO PART NO. DESCRIPTION
1 218976409 Tube-water-DOOR
1* 218976901 Tube-water inlet, inlet valve, to ice maker
1* 218976903 Tube-water inlet, inlet valve, to filter
1* 218976907 Tube-water inlet, valve to door
1* 240561701 Seal-water inlet, inlet valve, to ice maker
2 5304420650 Spring, shut-off arm
3 3206299 Label, ID plate
4 3206301 Gear
5 5304455693 Plate-mounting
6 5304455670 Screw, taptite, 8-32 x 1/4
7 5304445222 Motor-ice maker Svo
7* 5304445223 Spring Beam
8 3206312 Spacer-hold switch
9 3206313 Cam
12 # 5304420651 Wiring Harness, ICE MAKER, internal, with plug
14 5304455676 Screw, plask, 4-14 x 3/4
15 # 3206324 Switch, (3)
16 5304420653 Support, phenolic
17 # 5303320545 Mold-ice maker, Radius Cube, with heater
18 3206328 Ejector-ice
19 3206330 Bearing & Inlet
20 5304455677 Screw, 8-32 x 3/8
21 3206332 Ice Stripper
22 3206333 Shut-off Arm
23 5304455678 Screw, 8-32 x 7/8, mold-to-support
24 5304455679 Lever Arm
25 5304404362 Screw, hex washer head, 8-32T x 0.375
27 5304455681 Screw, taptite, 4-40 x 1.000, hold switch mtg, (2)
28 3206339 Screw-timing stop, 4-40 x 0.375
29 5304455845 Screw, 4-24 x 0.750, (6)
30 5304455682 Screw, type 23, 8-32 x 1.00
31 3206342 Insulator
32 5304455683 Plate-valve switch
33 5304408583 Spring-timing adj
34 5304455684 Screw, plazscrew, 8-10 x 1/2, (3)
35 5304455685 Screw
42* 218515402 Clip, (2), tube mtg.
45 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
51 240387101 Tube-water, ice mold fill, extension
55 # 240531101 Valve-water, triple solenoid
55* 218709101 Screw, hex head, 10-32 x 0.500
55* 240363602 Screw-shoulder
55* 240542901 Cap-water valve
60 5303207328 Screw, hex washer head, 8-15A x 1.000, (2)
61 218721500 Bracket-leveling, ICE MAKER
62 218737900 Screw-IM brkt mtg, hex washer head, 8-32D x 0.375
64 5303001549 Clamp, 0.31 ID, steel, copper wtr line
* 218888001 Adapter-water supply, nut & sleeve, compression ftg
* # 241642511 Ice Maker Svo, Radius Cube, 115 V, no instl parts

Publication No: 5995466041 GLHS36EFSB0
05/06 20
WIRING SCHEMATIC
EVAP. FAN
P1-8
DAMPER MOTOR
C
NO
P1-2
P1-6
NC
C
NO
NC
P1-10
(NEUTRAL)
(LINE)
REFRIG. LIGHT
FRZR. LIGHT
CRISPER LIGHT
REFRIG. LIGHT SWITCH
MOTOR,AUGER
FREEZER LIGHT /
SAFETY SWITCH
MAIN WATER VALVE
DISPENSER WATER VALVE
ACTUATOR,ICE DOOR
I/M WATER VALVE
AUTO
ICEMAKER
THERM.
COIL HEATER DEFROST
B
RED GREEN
COND.FAN
SEE
COMPRESSOR
WIRING
P1-12
P1-1
HEATER,ICE DOOR
SEE
DISPENSER ASS'Y
WIRING
GENESIS CONTROL
P1-11
P1-7
P1-4
MID LEVEL LIGHT
P1-5
FAST ICE/FRZ
J10
J11
2
1
2
1
FF THERMISTOR
FRZ THERMISTOR
NEUTRAL WIRE
COMPRESSOR
CONTROL
RELAY
12
J5
