Frigidaire FRS6LC8F Instruction Manual

N58L00002.eps N58FFDBGA0.eps N58RFCBBC9.eps N58BAAAAB3.eps
N58SKDCBE1.eps N58TCAAAB3.eps N58CAAAAA10.eps N58XEAAAA1.eps
N58YAAAAA4.eps N58I1151.eps W241689601.eps S241689601.eps
Product No. FRS6LC8FS5
Series 134A
Color stain/blk
Volts 115
Wiring Diagram 241689601
Owner's Guide 241692101
Market North America
Energy Guide 241649291
Service Data Sheet 240389627
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995484192
07/02/13
(EN/SERVICE/)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FRS6LC8F
Copyright ©All rights reserved.

Publication No: 5995484192 FRS6LC8FS5
02/07 2
FREEZER DOOR
68
55
5
22C
22A
21A
13A
11
4A
4B
N58FFDBGA0
1
18
79
79 80
80
4C

FRS6LC8FS5 Publication No: 5995484192
# Functional Parts 3 02/07
* Non-Illustrated Parts
FREEZER DOOR
POS. NO PART NO. DESCRIPTION
1 # 241674806 Gasket-frzr door, black, magnetic
4A 240334201 Bin-door, frzr-upper
4B 240351601 Bin-door
4C 240351701 Bin-door, frzr-dispenser
5 241545005 Bin-tilt out, tilt-out
11 241668500 Door-frzr, stainless, complete assy
13A 240581906 Door Stop, black, frzr
18 240536818 Handle-door, stainless steel, with insert, & set screw
21A 240598402 Screw, 10-32 x 1/2
22A 240328204 Bearing-hinge(frz), black, closer
22C 240328404 Bearing-hinge, black, upper
68 241525101 Chute-ice
79 218755402 Screw-set, 10-32 x 0.375
80 218755504 Screw-shoulder, #10 AB, handle mounting
* 240352102 Connector-water, straight
* 240552102 Harness-wiring, door
* 5303918256 Dispenser heater kit

Publication No: 5995484192 FRS6LC8FS5
02/07 4

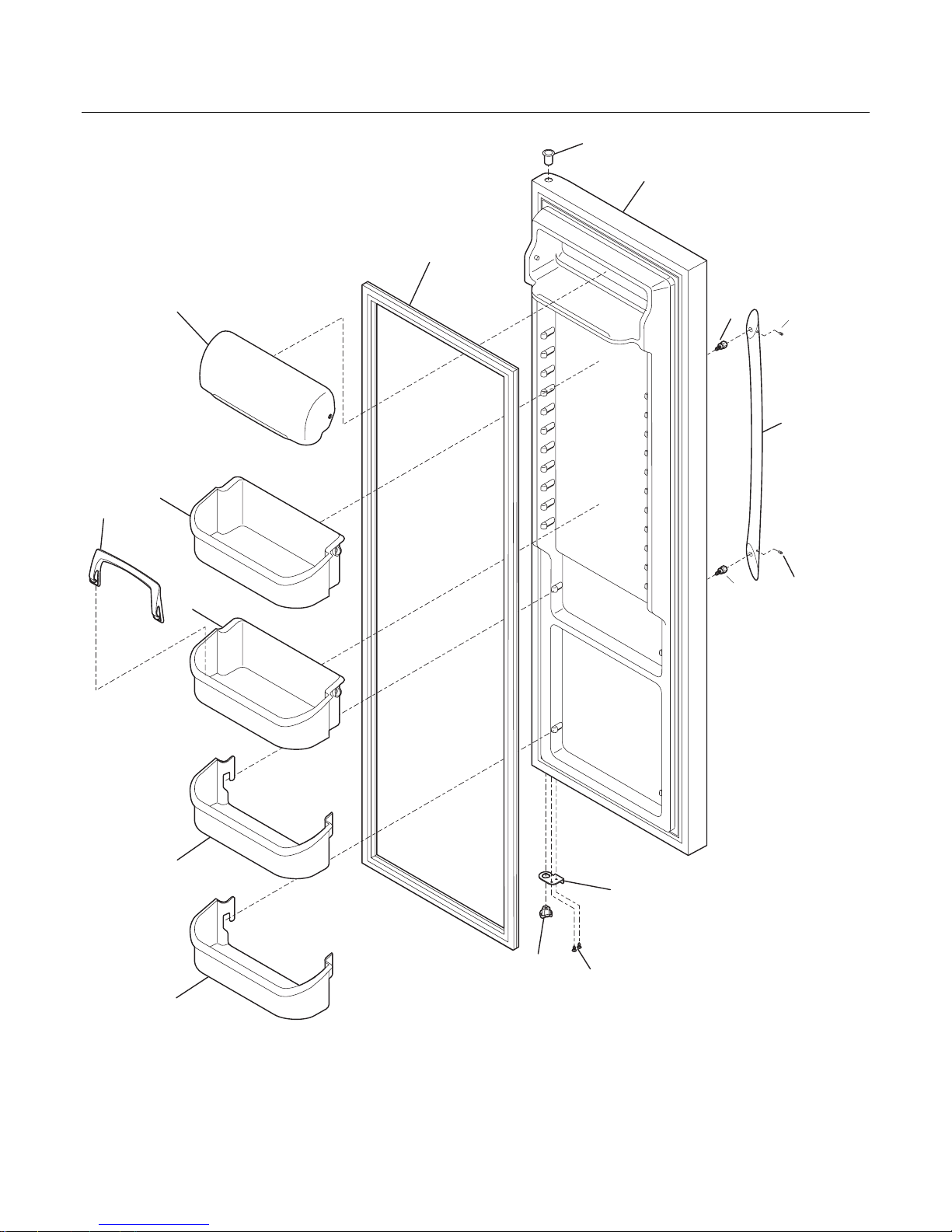

REFRIGERATOR DOOR
21A
22
13
15
22B
2
7
49
49
4
4
N58RFCBBC9
27A
18
79
79
80
80

FRS6LC8FS5 Publication No: 5995484192
# Functional Parts 5 02/07
* Non-Illustrated Parts
REFRIGERATOR DOOR
POS. NO PART NO. DESCRIPTION
2 # 241674805 Gasket-refr door, black, magnetic
4 240323002 Bin-door, pseudo, bottom
7 240326203 Door-dairy
13 240581905 Door Stop, black, ref
15 241534541 Door-refr, stainless steel, complete assy
18 240536818 Handle-door, stainless steel, with insert, & set screw
21A 240598402 Screw, 10-32 x 1/2
22 240328203 Bearing-hinge, black, closer
22B 240328404 Bearing-hinge, black, upper
27A 240396102 Retainer, tall bottle
49 240356402 Bin-door, gallon
79 218755402 Screw-set, 10-32 x 0.375
80 218755504 Screw-shoulder, #10 AB, handle mounting

Publication No: 5995484192 FRS6LC8FS5
02/07 6
CABINET
58
58
40 66
40
92
92
38
38
37
37
14A
14
91
41
100
89
83
82
43
21C
21C
28
42
42
23
22
23
22
30A
30
72
10A
N58BAAAAB3
10
90
11
45
45
81
81
81
47

FRS6LC8FS5 Publication No: 5995484192
# Functional Parts 7 02/07
* Non-Illustrated Parts
CABINET
POS. NO PART NO. DESCRIPTION
10 240435912 Cover-air duct
10A 240475911 Cover-evap coil, lower
11 5303208309 Plug-hole, factory test
14 240505801 Switch, light/lamp
14A 241547901 Switch-light/lamp, frzr door
21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 Plate-door closer
23 240402702 Screw-#10-32 x 1/4 flat hd
28 240335502 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603703 Bracket-lower hinge, ref
30A 241603704 Bracket-lower hinge
37 240337603 Trim-cabinet corner, black, (2)
38 240327207 Bracket-upper hinge
40 240327007 Cover-upper hinge, black
41 241550801 Grommet-shelf mtg, 1.40" long
41* 241550701 Grommet-shelf mtg, .96" long
42 240578902 Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335005 Roller Assy, adjustable, front, (2)
45 241500303 Screw, hex washer head, 8-18AB x 0.500
47 240349402 Channel-shelf mtg, side, (2)
58 218781101 Screw, pan head, 8-18 x 0.625
66 5304424968 Damper Cover Assy
66* 240518802 Pin-push, push-in, plastic
72 240324411 Grille/Kickplate, black
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 Roller, compressor base, rear, (2)
83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241733902 Cover-access, w/label
90 218249808 Seal-coil cover
91 240380101 Duct-ice maker
92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 Support, crisper cover, front, (4)
100* 240350802 Support, crisper cover, rear, (4)
* 240396801 Clamp, tube/wiring, nylon, black/natural
* 240479601 Plug, button, cab liner holes
* 5303321321 Paint, touch-up, black

Publication No: 5995484192 FRS6LC8FS5
02/07 8

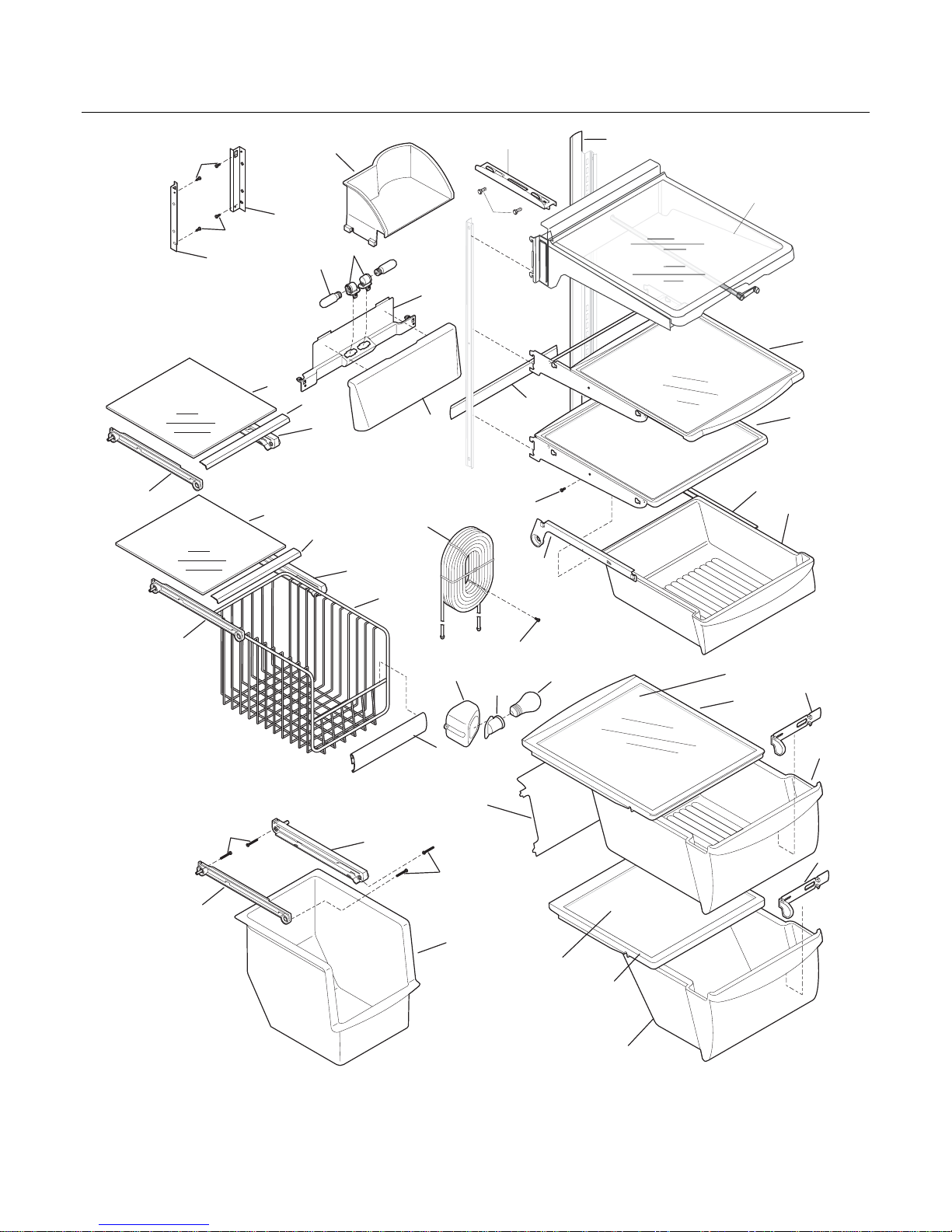

SHELVES
11
39
11A
39
126
81
81
126
52
52A
109
51
51A
49B
2
97
51
52
101
101
49
N58SKDCBE1
100
25A
27
47A
15A
16A
21
25
26
47
26A
26A
42A
62
123
42
24A
24
140
120
81
11C
24B
16 15
141
142
15
140A

FRS6LC8FS5 Publication No: 5995484192
# Functional Parts 9 02/07
* Non-Illustrated Parts
SHELVES
POS. NO PART NO. DESCRIPTION
2 241510604 Trim-basket
11 240350668 Shelf-freezer, glass, lower
11A 240350667 Shelf-freezer, glass, upper
11C 240324101 Shelf-pizza
15 241552801 Light Bulb
15A 241555401 Light Bulb
16 240590401 Socket-light
16*# 241537504 Harness-wiring
16A# 241513901 Socket-light
21 5304455658 Screw, hx wshr hd sems, 8-15A x 0.625, 21
24 240355203 Shelf-"Spill-Safe", fixed
24A 240350106 Shelf-"Spill-Safe", cantilever, sliding
24B 240424609 Shelf-"Spill-Safe", sliding, "Aspect", complete
25 240350702 Cover-crisper pan, upper
25* 240362101 Clip-slide, cover-crisper
25A 240350902 Cover-crisper pan, lower
26 240351005 Pan-crisper, upper
26* 240349801 Clip-slide, pan-crisper
26A 240362201 Control-humidity
27 240351205 Pan-crisper, lower
39 240367602 Trim-shelf, front
42 240356501 Track, meat pan hanger, RH
42A 240349701 Hanger-meat pan, LH
42A* 240349901 Block-meat pan rail, LH
42A* 240350001 Spring-meat pan rail
42A* 240356702 Seal-meat pan
47 240350602 Insert-pan cover, glass
47A 240350603 Insert-pan cover, glass
49 240564401 Basket-sliding
49B 240530504 Basket-sliding, upper, full
51 240343002 Hanger-basket, RH
51A 240395502 Hanger-basket, RH
52 240343102 Hanger-basket, LH
52A 240395602 Hanger-basket, LH
62 240342805 Pan-meat
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
97 240545303 Water Tank Assy, coiled tubing, front filter
100 240326302 Cover-water tank
101 218493101 Screw, hex washer head, 8-18AB x 1-3/4
109 240351301 Base-crisper light socket
120 240342901 Shelf-ice cream
123 215005101 Screw, hanger/rlr mtg, 8-10 x 7/16
126 241674401 Channel, auger mtg, LH
126 241674402 Channel, auger mtg, RH
140 240430501 Channel, wtr tube cover
140A 240430503 Channel, wtr tube cover
141 240585404 Bracket-light socket
142 240582701 Shield-light, deli pan
* 241649291 Energy Guide

Publication No: 5995484192 FRS6LC8FS5
02/07 10
CONTROLS
149
14
13
9
8
5
139
138
198
199
137
200
151
150
21
21A 23
115
53
81
101
15
16
20
N58TCAAAB3
81
81
17
81

FRS6LC8FS5 Publication No: 5995484192
# Functional Parts 11 02/07
* Non-Illustrated Parts
CONTROLS
POS. NO PART NO. DESCRIPTION
5 # 5308000010 Fan Blade, red, evaporator fan
8 215474201 Washer, "slinger", nylon, evap fan shaft
9 241563601 Bushing-motor mtg, (2)
13 240369702 Motor-evap fan
14 241517701 Clip, evap fan motor
15 241555401 Light Bulb
16 # 241513901 Socket-light
17 241608801 Box-control, front
17* 241663601 Harness-wiring, control box
20 241603907 Label-control box
21 241608401 Thermistor-refr
21A 241608501 Thermistor-frzr
23 5304452071 Control, board assy
23* 5304455649 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
53 241608901 Box-control
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
101 241637202 Screw, #8AB x 1 3/4"
115 241600902 Damper Assy, w/seal
137 240396401 Filter, water, carbon cassette, front, with o'rings
137* 240396701 Bypass, water filter, Optional Part
138 240397301 Button-filter release
139 240396002 Base-water filter
139* 240526901 O-ring, wtr filter base
149 241563501 Shroud-fan orfice
149* 241528306 Seal, shroud
150 241505101 Insulation-water tube cover
151 241505001 Cover-water tube
198 240397401 Retainer
199 240397501 Rod
199* 240398401 Spring-filter release rod
200 240397601 Light Pipe

Publication No: 5995484192 FRS6LC8FS5
02/07 12
SYSTEM
N58CAAAAA10
62
70
45
45
1
34
34
83
44
41
82
83
82
22
23
23
30
32
55
4
25
6
25
29
26
45
16
15
14
3
57
84
85
21
60
59
61
58

FRS6LC8FS5 Publication No: 5995484192
# Functional Parts 13 02/07
* Non-Illustrated Parts
SYSTEM
POS. NO PART NO. DESCRIPTION
1 240333603 Condenser
3 218679607 Block-evap coil, styrofoam, (2)
4 # 218944001 Drier-filter, R134a System
6 # 241586801 Harness-wiring, machine compt
6* # 241651601 Harness-wiring
6* 241663601 Harness-wiring, control box
14 # 240316107 Heater-defrost
15 # 5303918284 Evaporator Kit
16 5308000110 Strap-evap/heater, aluminum, (2)
21 # 5303918214 Thermostat-defrost, kit
22 240330011 Base-compressor mtg
22* 218252201 Screw, #8 truss hd, 10-32CA x 0.500
23 241659701 Grommet, compressor
25 240491503 Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241697601 Pan-defrost
29 # 5303918329 Compressor, kit, w/electricals
30 # 241707701 Starter, PTC
32 241650901 Clamp, elec cont mtg, compressor
34 240405201 Grommet, rubber, black, cond tube/wire
41 240555002 Screw-#8-32 X 3/8
44 215174700 Clamp-service cord, strain relief, galv steel
45 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
55 218909913 Capacitor, run, 220 VAC, 15 microfarad
57 240542601 Clip-wiring harness
58 218897004 Screw, hex washer head, 8-32 x 0.375
59 5304430246 Bracket-cond motor assy
59* 240346701 Tape-foam seal, shroud
59* 240359403 Screw-fan shroud, (2)
60 # 240525402 Motor, condensor fan
61 # 240524101 Fan Blade, galv steel, condenser fan
62 240429402 Trough-drain
70 218990801 Bracket-evap/cvr mtg
82 5304418225 Roller, compressor base, rear, (2)
83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 Tube-drain, lower
85 241719501 Tube-connector, suction
* 5303918222 Hot Tube Repair Kit, service
* # 5303918328 Heat Exchanger Kit, suction line, service

Publication No: 5995484192 FRS6LC8FS5
02/07 14

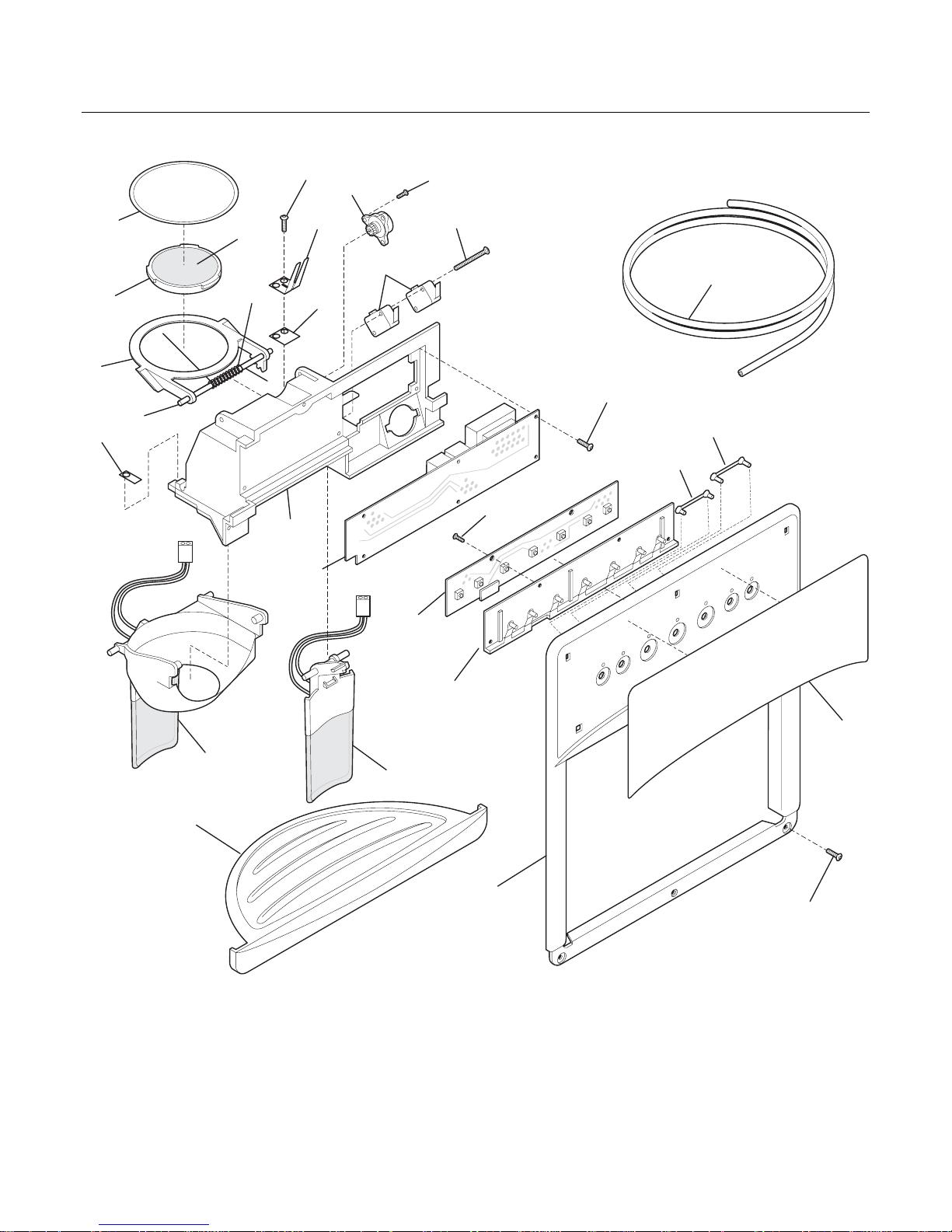

ICE & WATER DISPENSER
N58XEAAAA1
43
41
87
87A
35 17
56
38A
17
8
38
38C
1
17
24
24A
23
82
4
14
30
30A
30B
30C
39
10
90
91
36

FRS6LC8FS5 Publication No: 5995484192
# Functional Parts 15 02/07
* Non-Illustrated Parts
ICE & WATER DISPENSER
POS. NO PART NO. DESCRIPTION
1 218976409 Tube, water, door
1* 218976901 Tube, water inlet, valve to IM
1* 218976903 Tube-water inlet, inlet valve, to filter
1* 218976907 Tube-water inlet, valve to door
1* 240561701 Seal-water inlet, inlet valve, to ice maker
4 241678703 Cover-module, black
8 241680503 Module-dispenser, black
10 241688901 Spring-torsion
14 240323998 Label-module cover, black
17 241679801 Screw
23 241649003 Drip Tray, black
24 241685703 Actuator-water, black
24A 241682303 Actuator-ice, black
30 241688401 Door Assy-ice chute
30A 241688501 Door center
30B 241688601 Insulation-door
30C 241688701 Door seal
35 241689301 Damper-rotary
36 241680301 Carrier
38 # 241708102 Board-power
38A# 241689101 Switch-micro, single pole, double throw
38C# 241708309 Board-control
38C* 241680001 Harness-ribbon cable
39 241688801 Pin-hinge
41 241689001 Spring-actuator
43 215296301 Screw, plask h/l, #6 x 3/8
56 241689201 Screw-micro switch, pan head
82 240363402 Screw-#8-18 X 1/2, #6 hd plask
87 241688302 Bearing Plate
87A 241688301 Bearing Plate
90 241680201 Light Pipe, reflector, long
91 241680101 Light Pipe, reflector, short
* 241686201 Insulator-electrical
* 5303918256 Dispenser heater kit

Publication No: 5995484192 FRS6LC8FS5
02/07 16
ICE CONTAINER
45 4
45A
48
47
39
46
45B
45C
45D
50
18 20
15
16
44
44
44
51
26
26
26
26
10
26
43
43
43
49 7
N58YAAAAA4
3
2
23
39
39
6
17
53
52
37A 34
33
37B
34 33
37C
54
35A
35B
41
56
55
13
25
25

FRS6LC8FS5 Publication No: 5995484192
# Functional Parts 17 02/07
* Non-Illustrated Parts
ICE CONTAINER
POS. NO PART NO. DESCRIPTION
2 241716101 Auger-ice
3 241685201 Cam-drive
4 241734001 Container-ice, bucket only
6 241685101 Drum-ice disp
7 241735301 Front-ice container
10 241726501 Bar-drive
13 241685301 Gate
15 241555401 Light Bulb
16 # 241559801 Socket-light
17 241684501 Drive Blade
18 # 241676202 Motor-auger, 115V
18* 240352602 Harness-wiring, icmkr/container
20 241734802 Cover-motor
23 241684001 Plate-front
25 241690701 Screw, hex washer head, 8-32T x 0.375
26 215503205 Screw, cr pan hd, 10-16 x 0.500
33 241684801 Spacer
34 241689801 Spacer
35A 241684301 Fixed Blade, round
35B 241684201 Fixed Blade, square
37A 241684101 Blade, crusher #1
37B 241684102 Blade, crusher #2
37C 241684103 Blade, crusher #3
39 241690501 Screw
41 241685601 Housing-crusher
43 215005100 Screw, hanger/rlr mtg, 8-10 x 0.438
44 218359202 Screw, pan head, 8-32 x 0.250
45 # 241675701 Solenoid Assy, 115V
45A 241675901 Spring-solenoid
45B 241676001 E-Ring-solenoid
45C 241676101 Actuator-solenoid
45D# 241675801 Solenoid, 115V
46 241716002 Control Rod
47 241731801 Spring-control rod
48 241684602 Bracket-control rod
49 241734501 Rail Assy
50 241675601 Guide-solenoid
51 241676301 Rotation Stop
52 241684901 Spacer-fixed blades
53 241690402 Pin-spiral, fixed blades
54 241685001 Nut-auger
55 241690301 Washer
56 241690201 E-ring
* 240323811 Ice Container Assy, w/moving parts

Publication No: 5995484192 FRS6LC8FS5
02/07 18
ICE MAKER

FRS6LC8FS5 Publication No: 5995484192
# Functional Parts 19 02/07
* Non-Illustrated Parts
ICE MAKER
POS. NO PART NO. DESCRIPTION
1 218976409 Tube, water, door
1* 218976901 Tube, water inlet, valve to IM
1* 218976903 Tube-water inlet, inlet valve, to filter
1* 218976907 Tube-water inlet, valve to door
1* 240561701 Seal-water inlet, inlet valve, to ice maker
2 5304456650 Spring-shutoff arm, ICE MAKER
3 5304456657 Nameplate
4 5304456658 Gear
5 5304456659 Plate-mounting
6 5304456691 Screw, M 3x20 #3, valve plate
7 # 5304445222 Motor-ice maker Svo
7* 5304445223 Spring Beam
8 5304456661 Spacer-hold switch
9 5304456662 Cam
10 5304456689 Holder-thermostat
11 # 5304456663 Thermal Cutoff, ICE MAKER
12 5304456664 Harness-wiring
13 5304456665 Thermostat, ICE MAKER
14 5304456666 Screw, M 3x20 #2, (6)
15 # 5304456667 Switch-micro, (3)
15* 5304456688 Terminal
16 5304456668 Support
17 5304456669 Mold-ice maker, w/therm cut off
18 5304456670 Ejector-ice
18* 240352602 Harness-wiring, icmkr/container
19 5304456671 Bearing & Inlet, fill cup
20 5304455677 Screw, 8-32 x 3/8
21 5304456672 Ice Stripper
22 5304456673 Shut-off Arm
23 5304456674 Screw, M 4x25 #2, mold-to-support, (2)
24 5304456675 Lever Arm
25 5304456676 Screw, M 4x12.8 #2, lever arm/sprt
26 5304455680 Screw, plask, 4-14 x 3/8
27 5304456677 Screw, M 3x25 #3, hold switch mtg, (2)
28 5304456660 Screw, M 4x6 #2
29 5304456678 Screw, M 3x12 #3, (2)
30 5304456679 Screw-timing adj, M 4x25 #3
31 5304456680 Insulator
32 5304456681 Plate-valve switch
33 5304456682 Spring, shut-off arm
34 5304456683 Screw, M 4x12 #2, (3)
35 5304456684 Screw
36 5304456685 Cover-ice maker
36* 5304456690 Label, on/off
42 218515403 Clip-grille
45 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
51 241523501 Tube-water, ice mold fill, extension
55 # 240531101 Valve-water, triple solenoid
55* 218709101 Screw, hex head, 10-32 x 0.500
55* 240363602 Screw-shoulder
55* 240542901 Cap-water valve

Publication No: 5995484192 FRS6LC8FS5
02/07 20
ICE MAKER
